EWS356-FIT: Punto de acceso Wi-Fi 6 inalámbrico para interiores EnGenius Fit 2×2
Indoor Access Point speeds up to 2400Mbps on 5GHz and 574Mbps on 2.4GHz

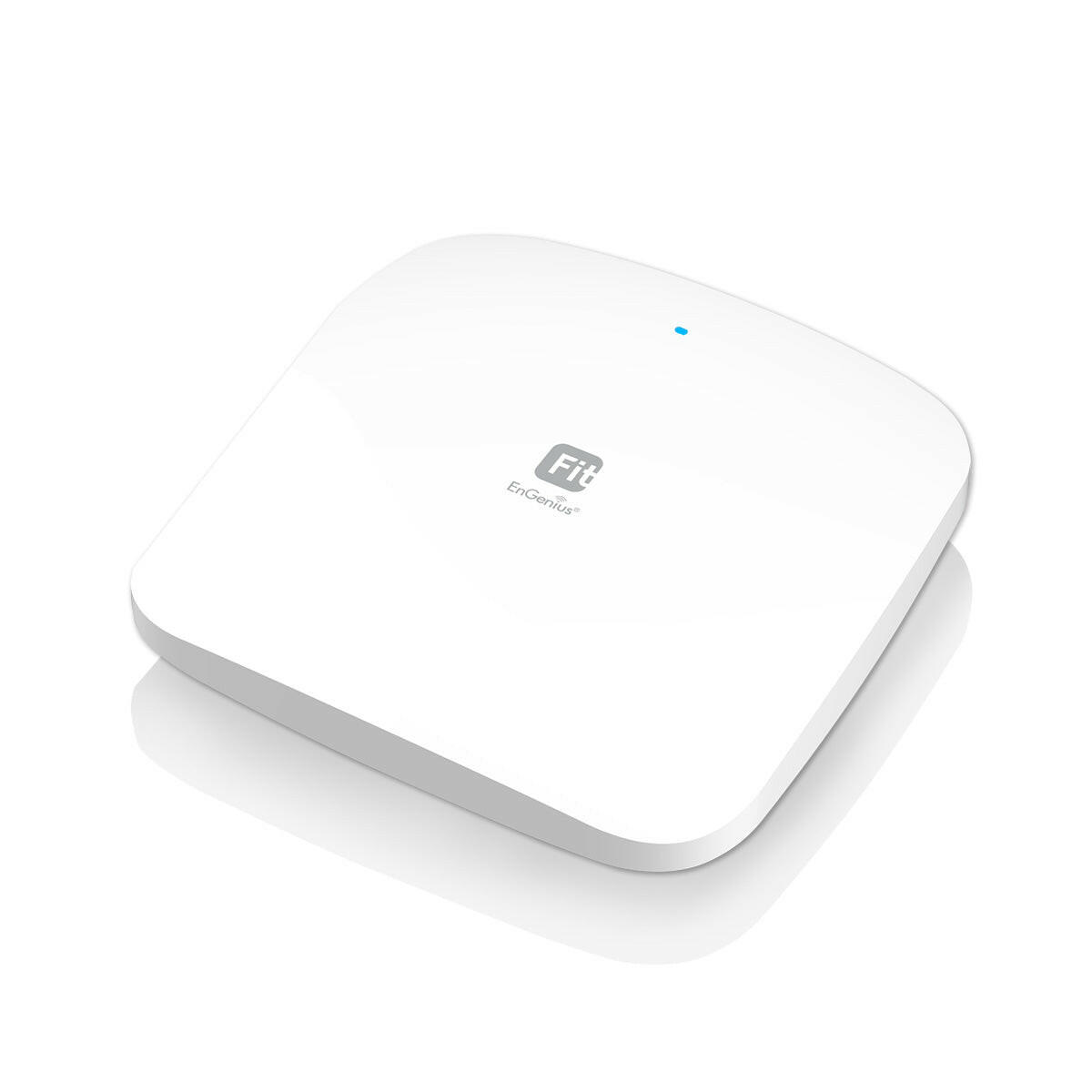

The EnGenius Fit Managed EWS356-FIT Wi-Fi 6 2x2 indoor wireless access point is a business-class device that provides secure and reliable high performance while reducing capital and operating expenses for cost-conscious small businesses. With support for the latest 802.11ax technology on the Qualcomm® platform, this access point can deliver maximum speeds of 574 Mbps (2.4 GHz) and 2,400 Mbps (5 GHz). Additionally, it features an easy-to-use web interface for cloud or on-premises management options based on network architecture and technical aptitude.
Must be Powered over Ethernet, does not include AC Adapters.
- EWS356-FIT Datasheet
- EWS356-FIT Quick Start Guide
- EnGenius Fit FAQs
- EnGenius Fit Access Point Series
- EnGenius Fit Network Management Datasheet
Shipping & Returns
Not satisfied? We allow returns within 30 days of product purchase
Management
This product is compatible with the EnGenius Fit line of products
WiFi 6
Supports up to 2,400 Mbps in 5GHz band & 574 Mbps in 2.4GHz band
Features
Specifications
- Dual concurrent 802.11ax architecture & backward-compatible with 11ac/a/b/g/n client devices; 2x2 antenna
- Supports up to 2,400 Mbps in 5-GHz frequency band & 574 Mbps in 2.4-GHz frequency band

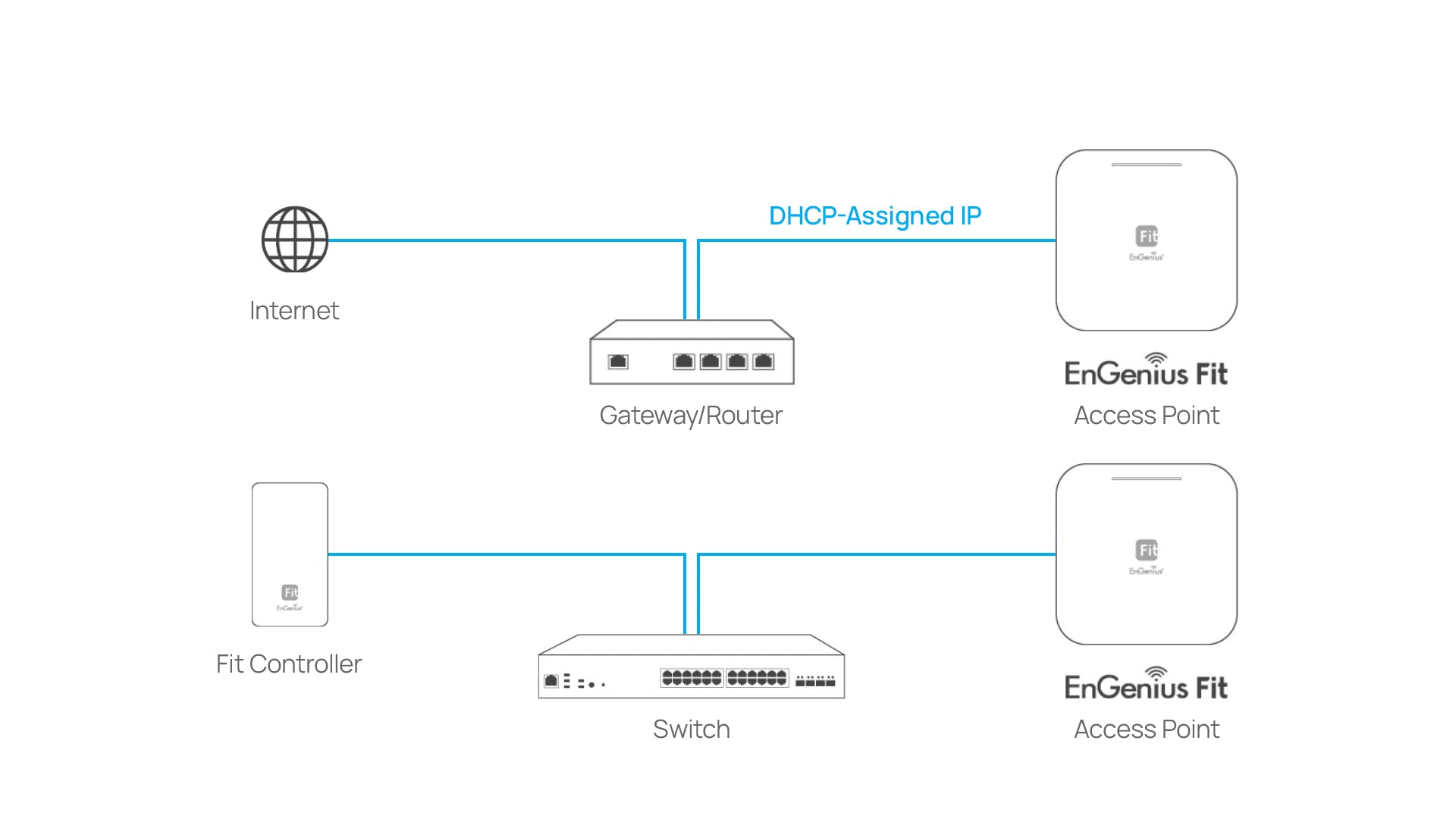

- Select cloud or on-premises management options based on network architecture, administrative permissions
- From anywhere cloud visibility and control
- Setup in minutes with app-based step by step instructions
- Quick-scan device register, remote monitoring, and troubleshooting
- Real-time system metrics, analytics, and remote configurations
- No access point licensing or subscription fees
- Uplink and downlink of OFDMA improves transmission to APs and client devices
- Target wake time for power-saving of client & IoT devices
- Uplink & downlink of MU-MIMO for optimal signal & reception reliability for up to 2 devices
- BSS coloring for tagging packets with a “color” to differentiate between adjacent basic service sets
Standards
IEEE 802.11ax on 2.4 GHz
IEEE 802.11ax on 5 GHz
Backward compatible with 802.11a/b/g/n/ac
Processor
Qualcomm® Quad-Core CPU ARM Cortex A53s @ 1.0GHz
Antenna
2 x 2.4 GHz: 4 dBi
2 x 5 GHz: 5 dBi
Integrated Omni-Directional Antenna

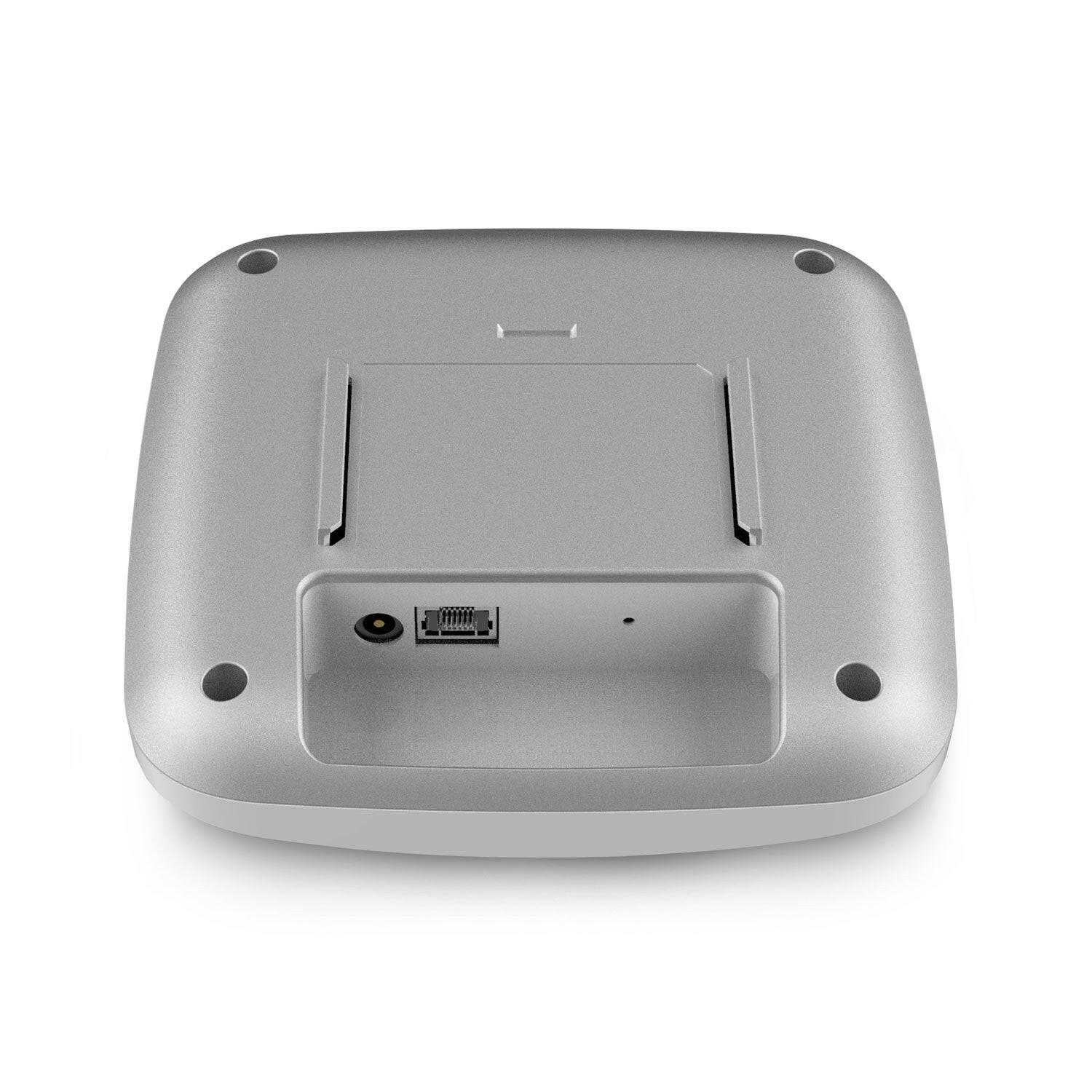

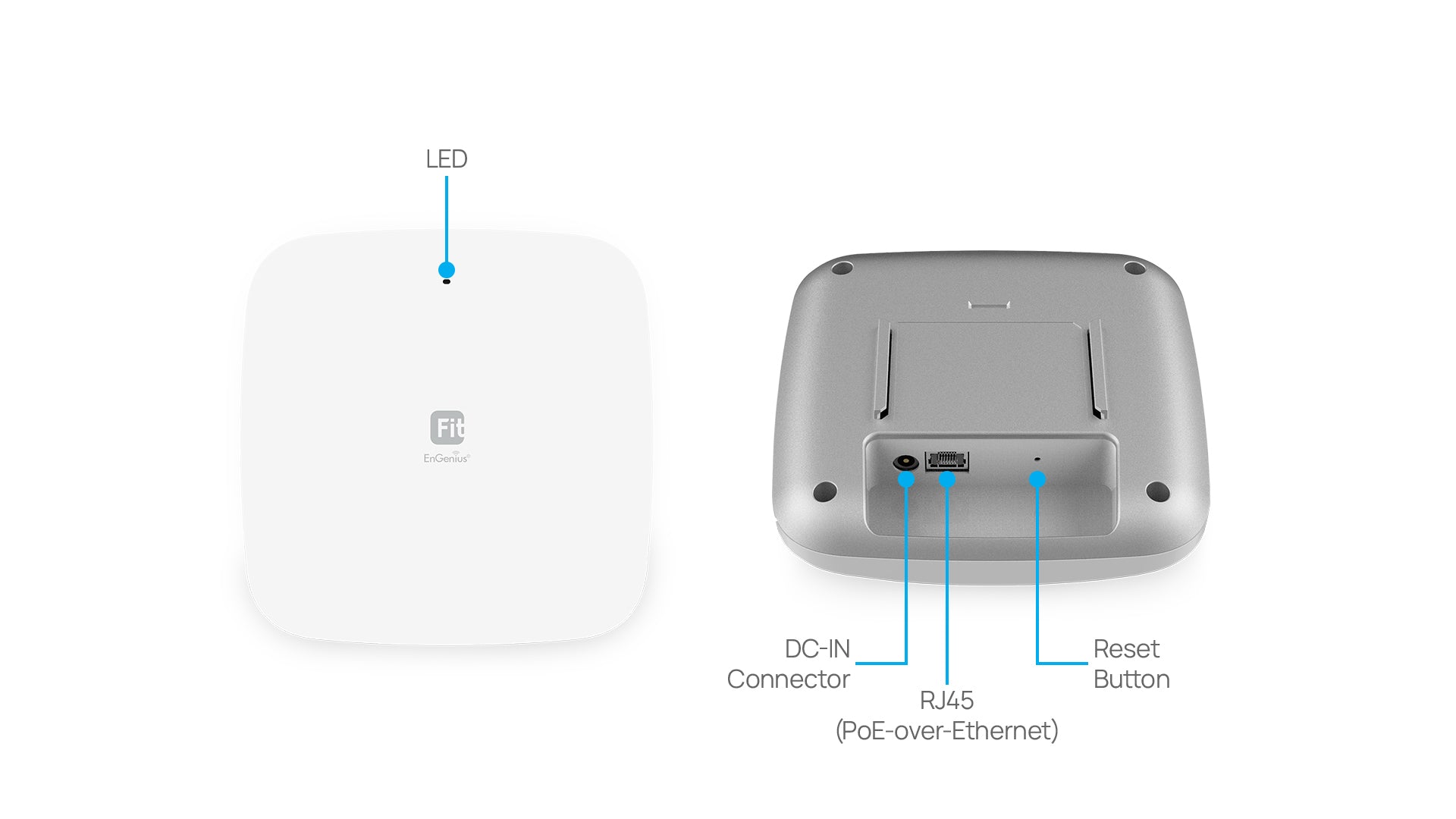

Physical Interface
1 x 10/100/1000 BASE-T, RJ-45 Ethernet Port
1x DC Jack
1 x Reset Button
LED Indicators
1 x Power
1 x LAN
1 x 2.4 GHz
1 x 5 GHz
Power Source
Power-over-Ethernet: 802.3af Input
12VDC /1.5A
Maximum Power Consumption
12.8W
Operating Frequency
Dual-Radio Concurrent 2.4 GHz & 5 GHz
Operation Modes
AP, Mesh
Frequency Radio
2.4 GHz: 2400 MHz ~ 2482 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
Transmit Power
Up to 21 dBm on 2.4 GHz
Up to 21 dBm on 5 GHz
Tx Beamforming (TxBF)
Radio Chains/Spatial Stream
2x2:2
SU-MIMO
Two (2) spatial streams SU-MIMO for 2.4GHz and two (2) spatial streams SU-MIMO for 5GHz up to 2,974Mbps wireless data rate to a single 11ax wireless client device under both the 2.4GHz and 5GHz radios.
MU-MIMO
Two (2) spatial streams Multiple (MU)-MIMO for up to 2400 Mbps wireless data rate to transmit to one (1) two streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously.
Two (2) multiple (MU)-MIMO for up to 574 Mbps wireless data rate to transmit to one (1) two streams MU-MIMO 11ax capable wireless client devices under 2.4GHz simultaneously.
Supported Data Rates (Mbps)
802.11ax:
2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 2)
5 GHz: 18 to 2400 (MCS0 to MSC11, NSS = 1 to 2)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 300 Mbps (MCS0 to MCS15)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)
Supported Radio Technologies
802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)
802.11b: Direct-sequence spread-spectrum (DSSS)
802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)
Channelization
802.11ax supports high efficiency (HE) —HE 20/40/80/160 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU
Supported Modulation
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK
Multiple BSSID
8 SSIDs for both 2.4GHz and 5GHz radios.
VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN
Spanning Tree
Supports 802.1d Spanning Tree Protocol
QoS (Quality of Service)
Compliant With IEEE 802.11e Standard
WMM
SNMP
v1, v2c, v3
MIB
I/II, Private MIB
Wireless Security
WPA3
WPA2 Enterprise (AES)
WPA2 AES-PSK
Hide SSID in Beacons
MAC Address Filtering, Up to 32 MACs per SSID
Wireless STA (Client) Connected List
SSH Tunnel
Client Isolation
Temperature Range
Operating: 32ºF~104ºF (0 ºC~40 ºC)
Storage: -40 ºF~176 ºF (-40 ºC~80 ºC)
Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less
EWS356-FIT Device
Weight: 0.83 lbs. (380 g)
Length: 6.30" (160 mm)
Width: 6.30" (160 mm)
Height: 1.31" (33.2 mm)
EWS356-FIT Packaging
Weight: 1.28 lbs. (580 g)
Length: 8.07" (205 mm)
Width: 8.07" (205 mm)
Height: 3.27" (83 mm)

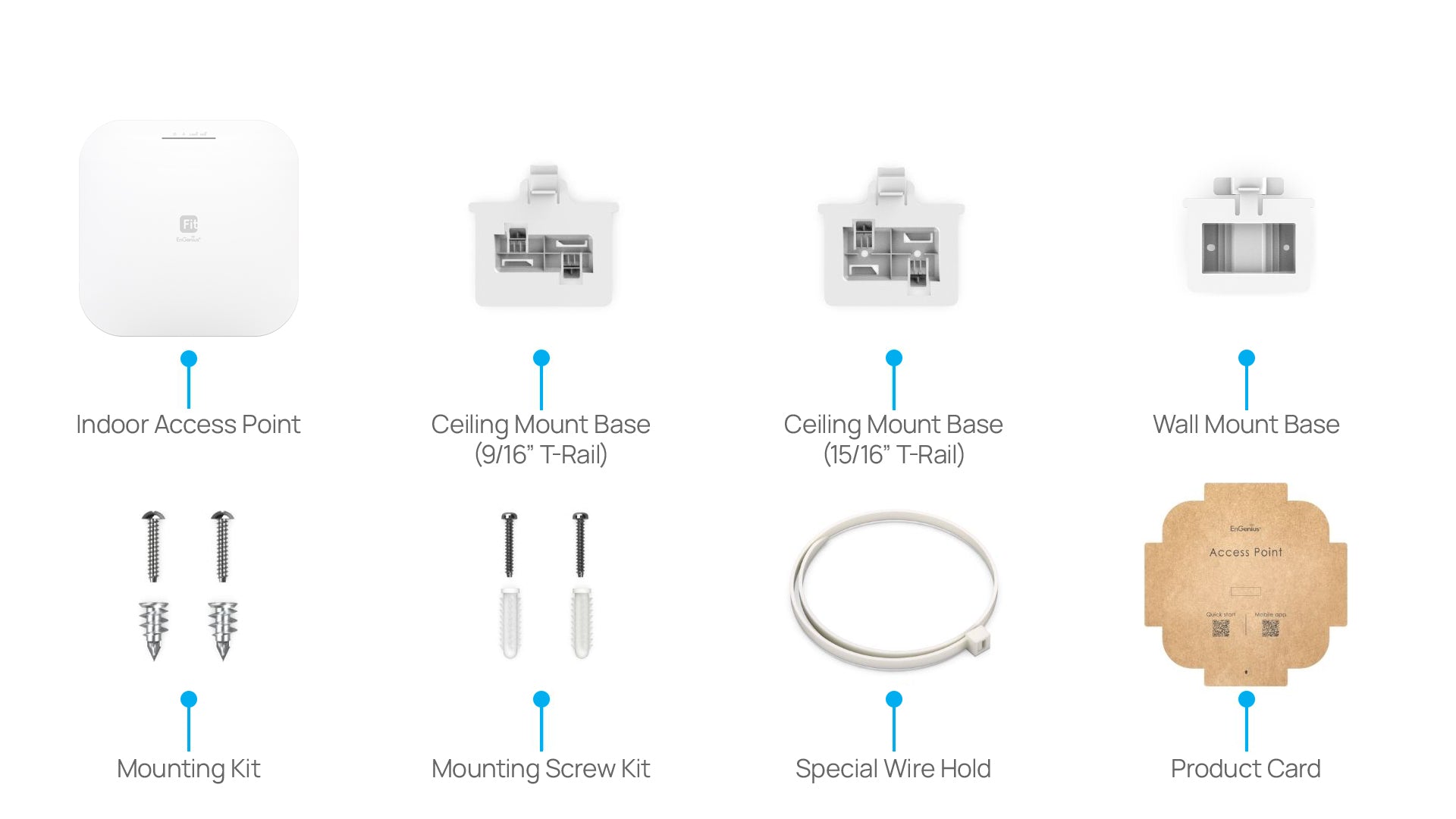

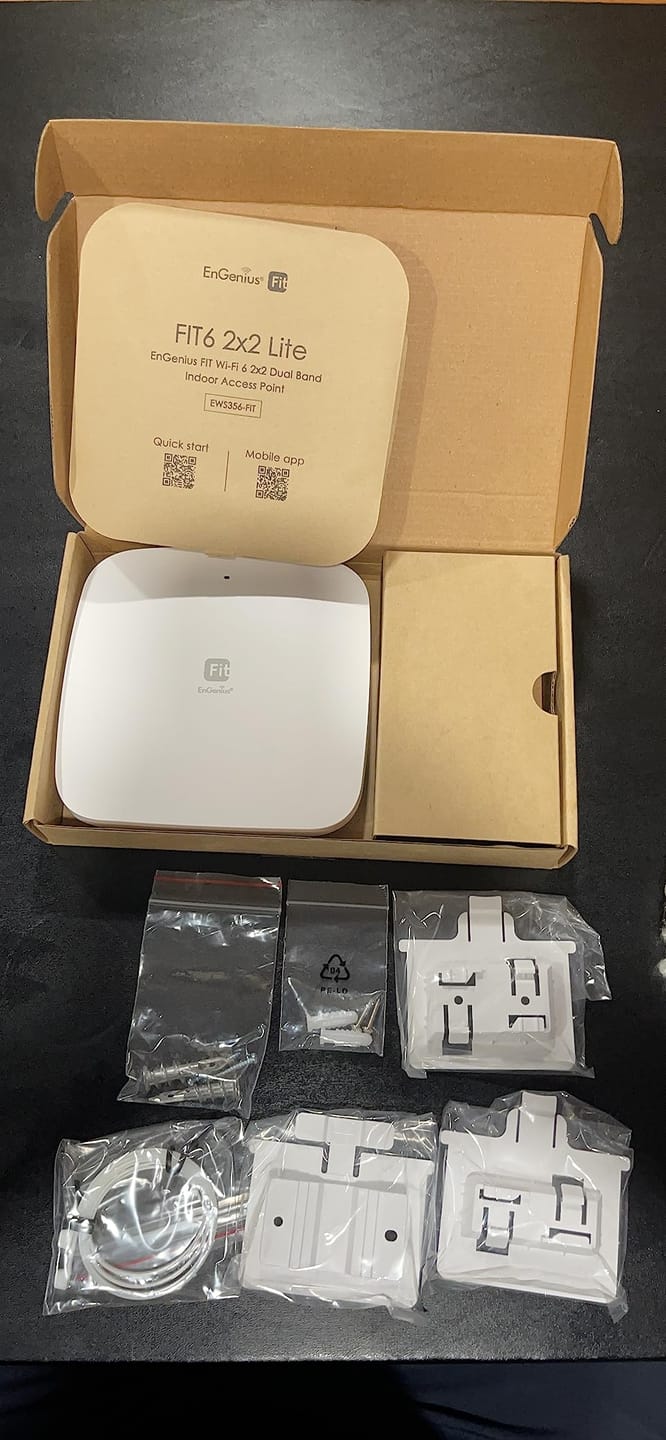

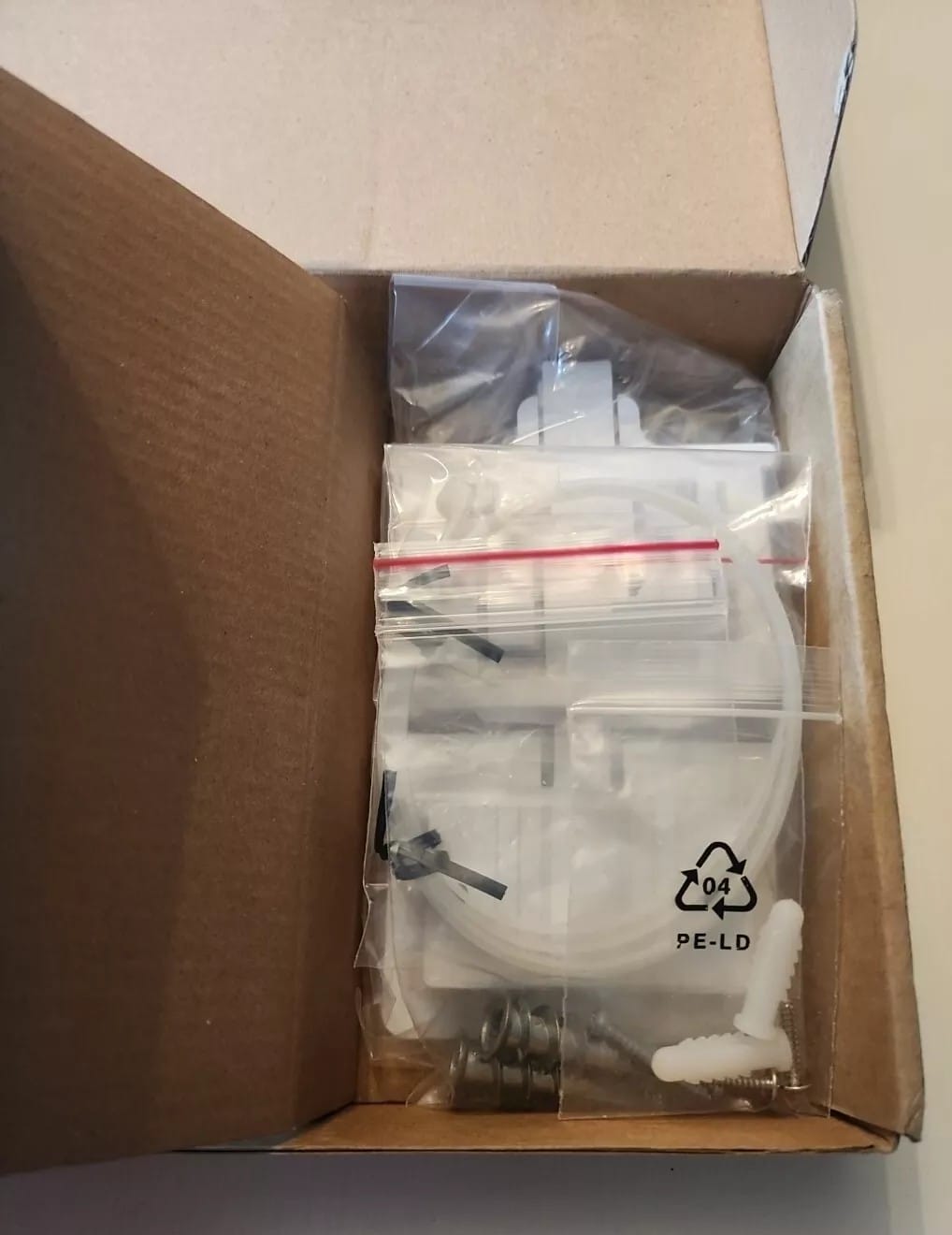

Package Contents
1 - EWS356-FIT Cloud Managed Indoor Access Point

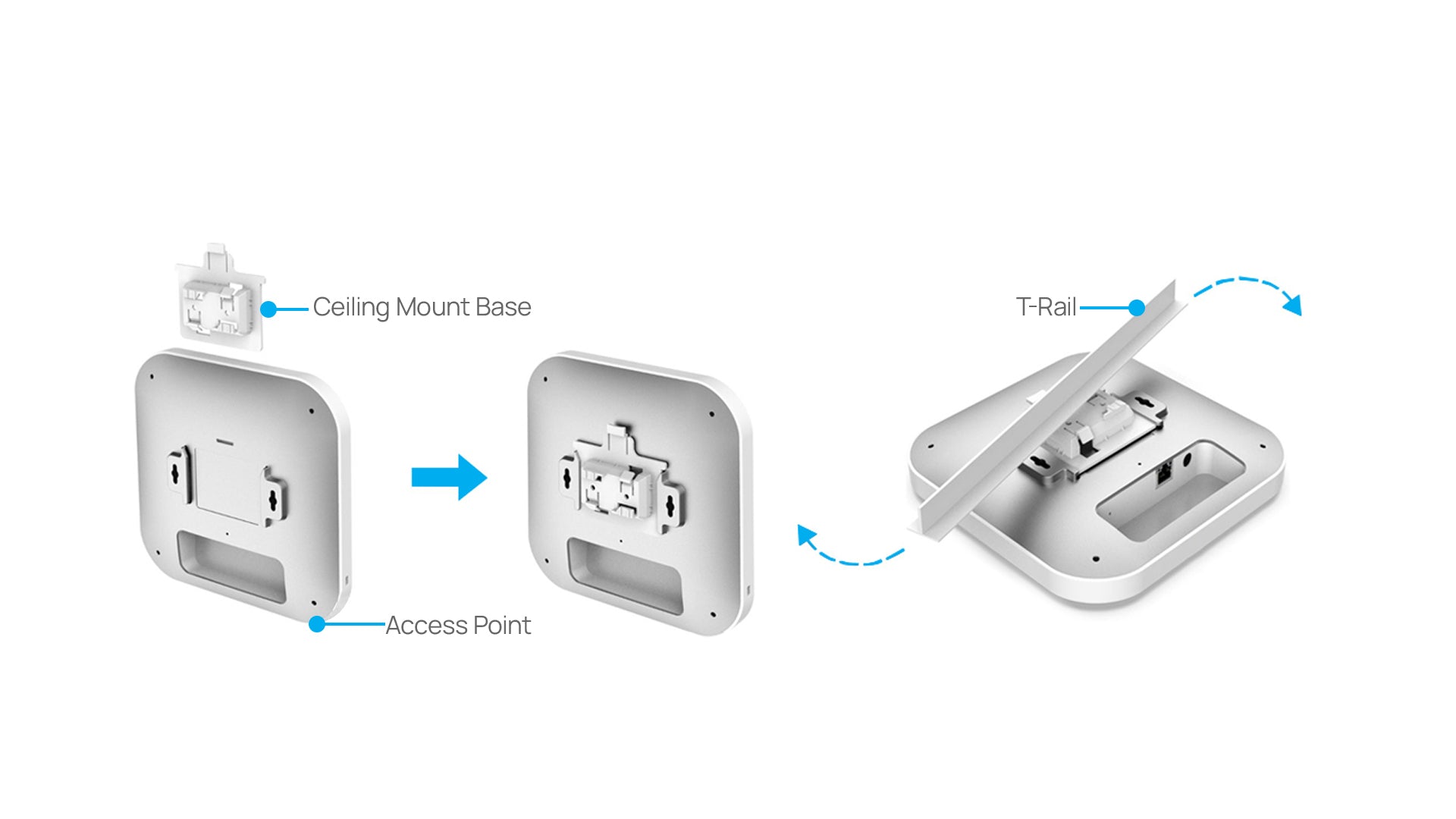

1 – Ceiling Mount Base (9/16” Trail)
1 – Ceiling Mount Base (15/16” Trail)
1 - Ceiling and Wall Mount Screw Kits
Quick Start Guide QR Code
Mobile App QR Code
Certifications
FCC
CE
IC
Warranty
1 Year
EWS356-FIT Power Sources
