• 8 10/100/1000 Base-T GbE ports

• Full-featured layer 2 plus switching

• 802.3at PoE ready on all ports with 110W PoE budget

• 20 Gbps switching capacity

• Setup in minutes with app-based step by step instructions

• Quick-scan device register, remote monitoring, and troubleshooting

• Real-time system metrics, analytics, and remote configurations

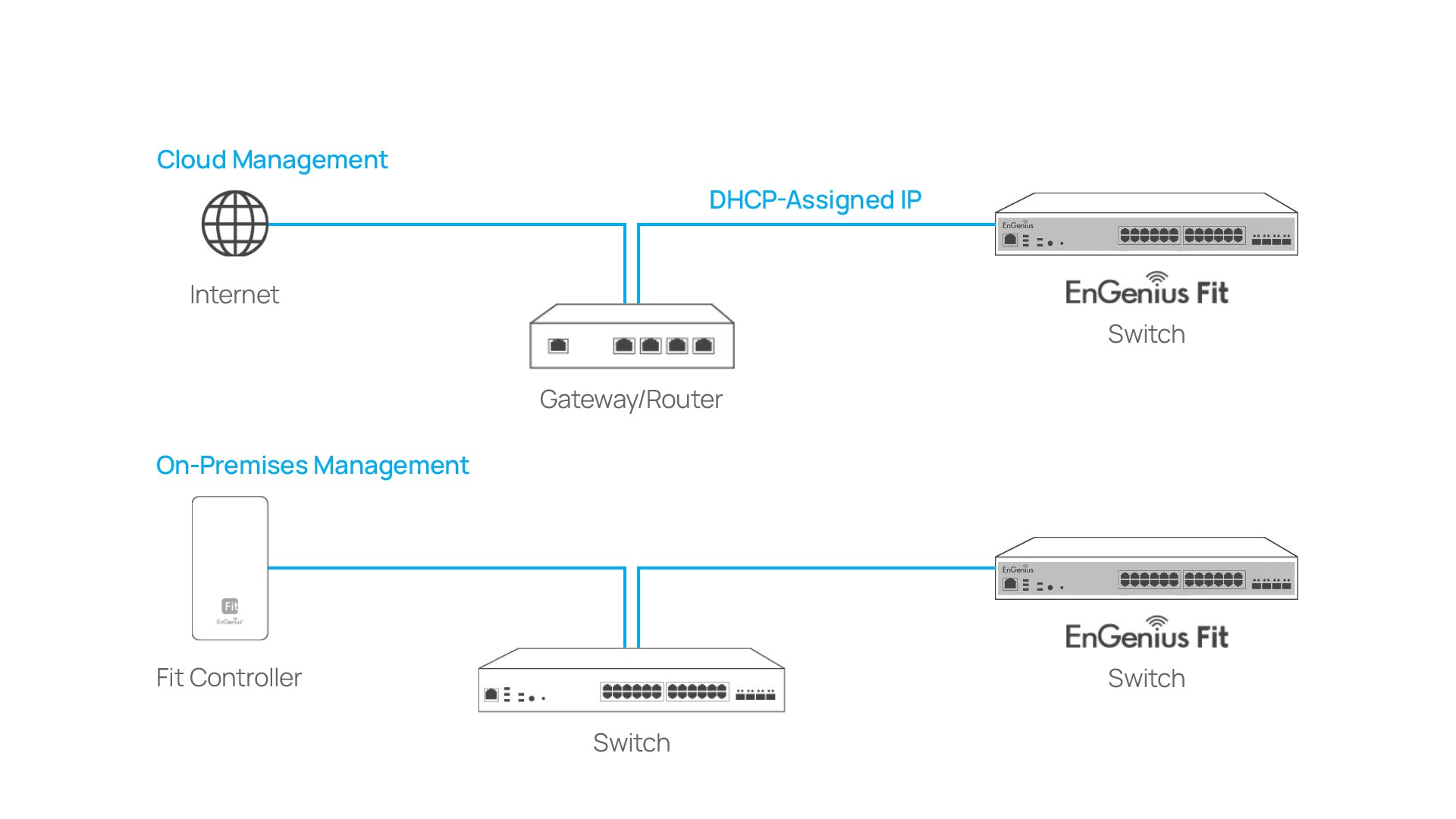

• Hybrid switch supports multiple management options

• From anywhere cloud visibility and control

• Monitor a site or multiple sites with no recurring cost or licensing fee

• Security - access control list/port security; 802.1x authentication

• IGMP & MLD snooping provides advanced multicast filtering & network efficiency

• 802.3ad Link Aggregation (LACP), Spanning Tree (STP), Rapid Spanning Tree (RSTP) & Multiple Spanning Tree (MSTP)

• Voice VLAN for fast, reliable deployment of VoIP services

• Advanced QoS with IPv4/IPv6 ingress traffic filtering (ACLs) & prioritization

• Standards-based technology ensures interoperability with existing standards-based network devices

• Dual firmware images improve reliability & network uptime

Port Standards
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3x Full-Duplex Flow Control

Network Ports
8 10/100/1000 Mbps Ports
2 10/100/1000 Mbps SFP Ports

PoE Capable Ports
1-8 (802.3af/at)
All Gigabit Ethernet ports can output up to 30 Watts

Total PoE Budget
110W

SDRAM
256MB

Flash Memory
32MB

Power Source
100 ~ 240VAC, 50-60Hz

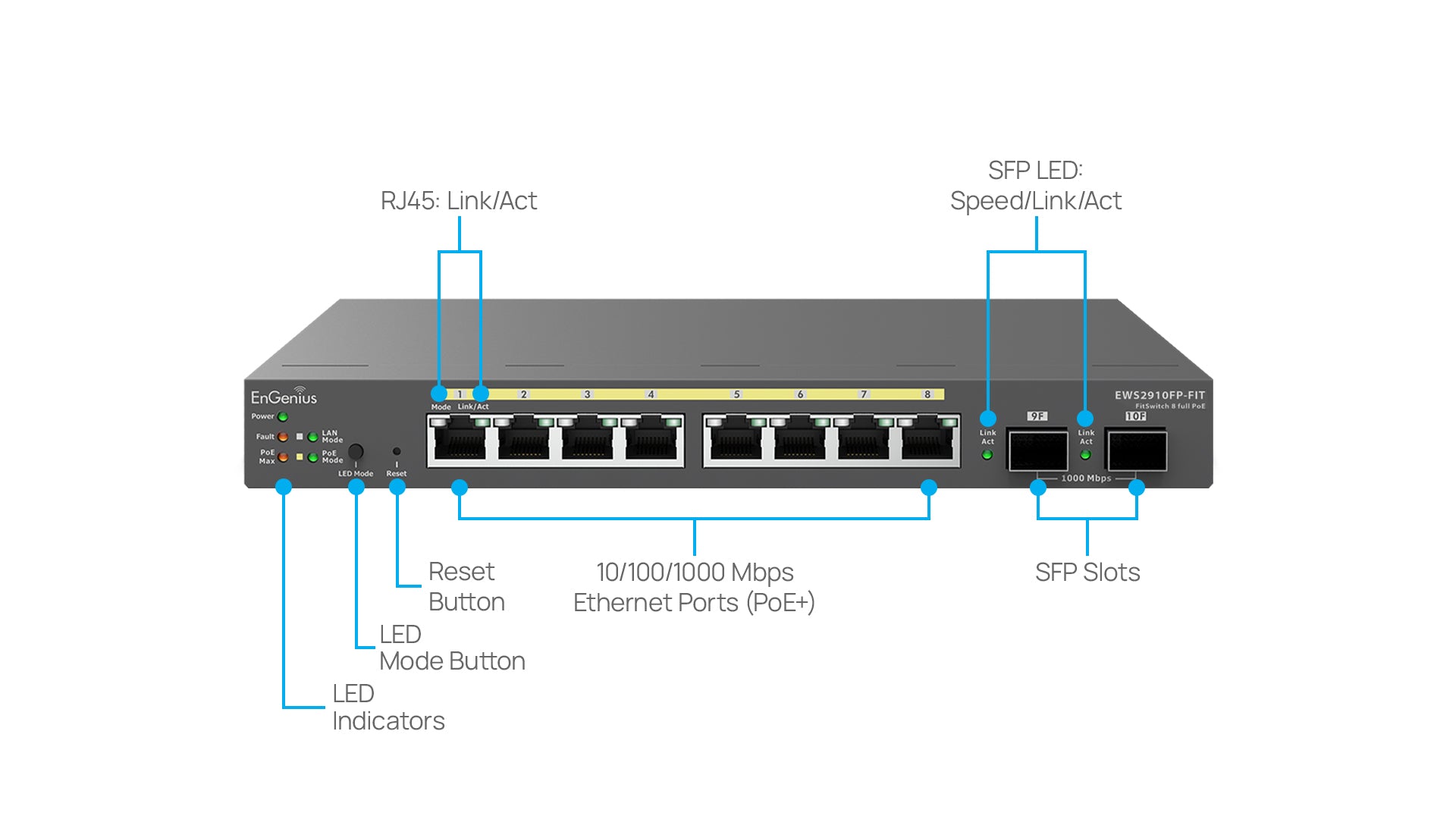

LED Indicators
Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED

Ports
Link/Activity/Speed (per Ethernet port)

Multiple IP Interface
20 IPv6 address

ARP Table
Max. 192 ARP entries

Static ARP
Static 192 ARP entries

IPv4 Static Route
Max. 63 entries

IPv6 Static Route
Max. 21 entries

MAC Address Table
8K

Jumbo Frame
9K

Multicast Group
Max 256 groups

Port Security
Max. 256 Entries

SSL Certificate
Certificate/Key Update

L2 Features
802.1d Spanning tree
Loopback Detection
Multicast Filtering
IGMP Multicast Forwarding
IGMP Snooping
MLD Multicast Forwarding
802.1Q VLAN tagging
802.3x flow control
802.3ad Link Aggregation
802.1d Spanning tree
- RSTP
- CIST
- MSTP
MAC Address Check-up
ARP Inspection
ARP Packet Validation (additional validation checks)
Voice VLAN
Port-based VLAN
Protocol-Based VLAN
CoS Mapping
802. 1X Radius Authentication
Pv4 Settings
IPv6 Settings
IEEE 802. 3az Energy Efficeient Ethernet (EEE)
Command Line Interface (CLI)
SSH Server
Telnet Server
TFTP Client
Configuration Upgrade/ Backup
Simple Network Time Protocol (SNTP)
SYSLOG
802.1d Spanning tree

L3 Features
IGMP Snooping
MLD Snooping
DHCP Snooping
DHCP Relay
Static Route

Port Settings
Multicast Filtering
EEE
Port Isolation
Port Mirror
Jumbo Frames
LLDP

Security
802.1X Radius Authentication Protocol
Port Security
Radius Server
DoS Prevention
Web Access
- HTTP Service
- HTTPs Service
Command Line Interface (CLI) Access
- Telnet Service
- SSH Service

System Settings
IP Settings
- IPv4 Management
- IPv6 Management
- IPv4 Network
ARP Table
ARP Statistics
Simple Network Time Protocol (SNTP)

Analyze
Local Logging
Remote Logging

Diagnostics
Cable Diagnostics
Ping Test
IPv6 Ping Test
Trace Route
Connection Diagnostic

Access Control List (ACL)
MAC Based ACL
MAC ACE
IPv4 ACL
IPv4 ACE
IPv6 ACL
IPv6 ACE
ACL (Port) Binding

SNMP
SNMP v1/v2c/v3 Support

RMON
RMON 1,2,3,9

QoS
CoS Mapping
DSCP Mapping
Port CoS
Bandwidth Control
Storm control
Advanced Mode
Class Mapping

MIB/RFC Standards
RFC1213
RFC1493
RFC1757
RFC2674
RFC2863

Temperature Range
Operating: 32°F to 104°F (0°C to 40°C)

Humidity (Non-Condensing)
Operating: 5% - 95%

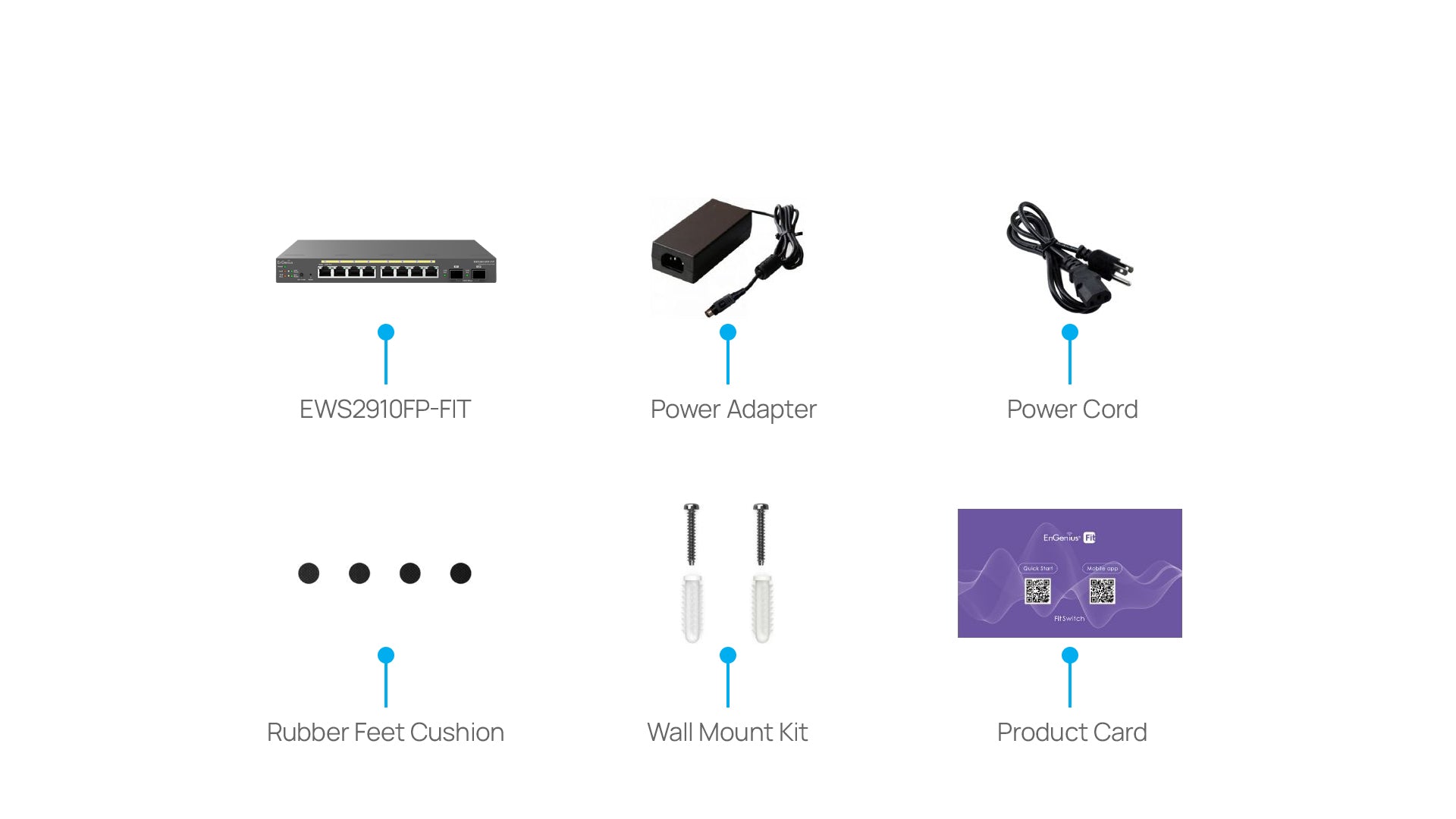

Package Contents
1x Fit Managed 8 Ports Gigabit Switch
1x Power Adapter
Product Card

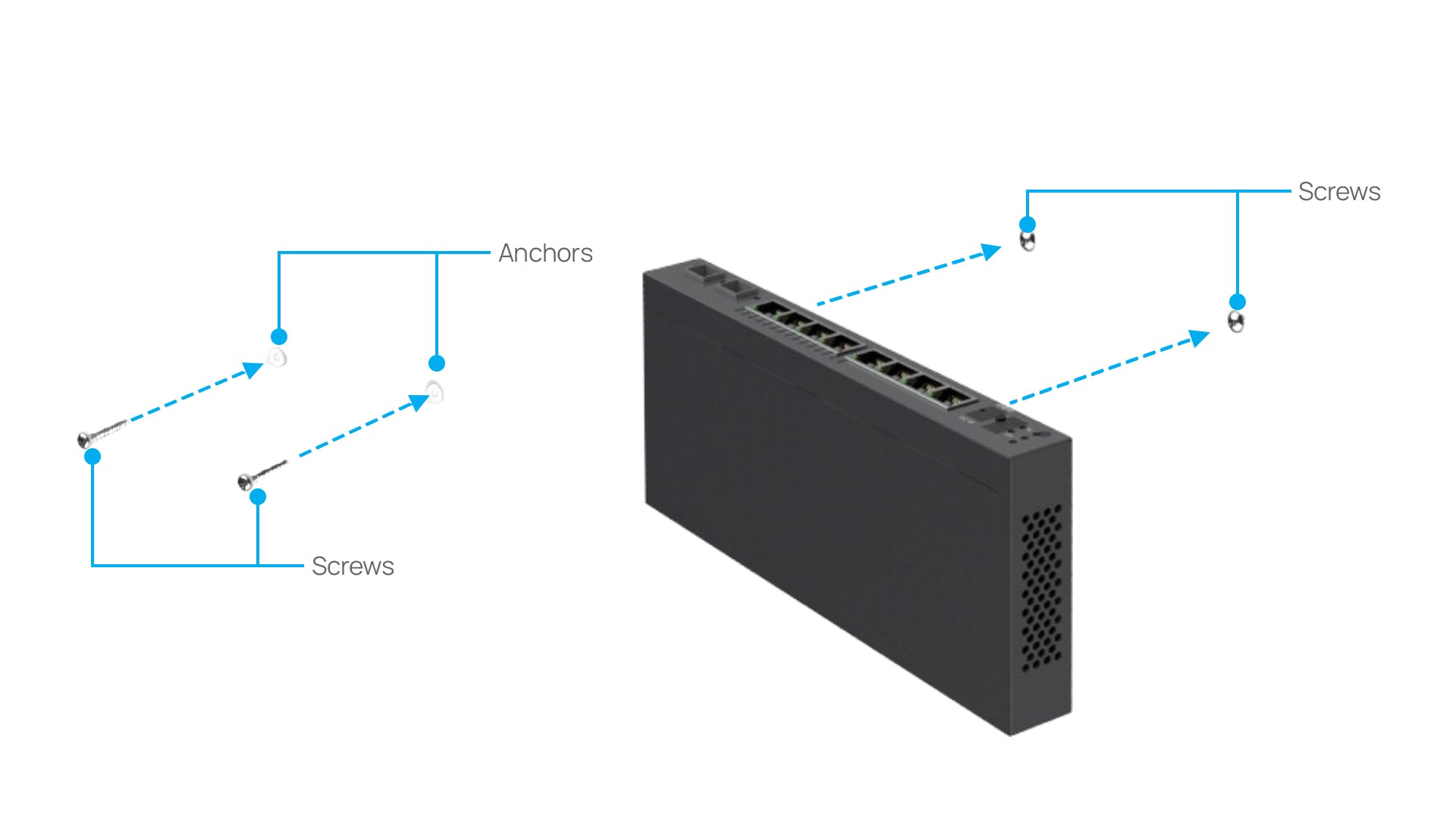

Wall mount kit

EWS2910FP-FIT Device
Weight: 1.36 lbs. (620 g)
Length: 9.44” (240 mm)
Width: 4.13” (105 mm)
Height: 1.06” (27 mm)

EWS2910FP-FIT Packaging
Weight: 3.3 lbs. (1495 g)
Length: 10.67” (271 mm)
Width: 6.61” (168 mm)
Height: 3.34” (85 mm)

Warranty
1 year

Certifications
CE
FCC
IC
