EWS7928P-FIT: Conmutador EnGenius Fit de 24 puertos de alimentación a través de Ethernet 240 W Gigabit PoE+
El conmutador Layer 2 plus viene con 4 puertos de enlace ascendente SFP y múltiples opciones de administración: El conmutador administrado EnGenius Fit EWS7928P-FIT es un conmutador Gigabit PoE+ Layer 2 plus de 24 puertos con una potencia PoE de 240 W y 4 puertos de enlace ascendente SFP. Ofrece múltiples opciones de administración para entornos de red de pequeñas empresas, lo que le permite seleccionar la opción de administración local o en la nube que mejor se adapte a sus necesidades. Con sus características de clase empresarial, el conmutador administrado EnGenius Fit proporciona conmutación segura, confiable y de alto rendimiento al tiempo que reduce los gastos operativos y de capital para las pequeñas empresas preocupadas por los costos.
Shipping & Returns
Can be returned within 30 days If not satisfied with product.
Compatibility
Compatible with all EnGenius Fit products.
Product Specifications
Product Highlights
- 24 10/100/1000 Base-T GbE Ports
- Full-featured Layer 2 plus Switching
- 802.3at/af PoE+ ready on all ports with 240W PoE budget
- 56 Gbps switching capacity
- Setup in minutes with App-based step by step instructions
- Quick-scan device register, remote monitoring and troubleshooting
- Real-time system metrics, analytics and remote configurations
- Hybrid switch supports multiple management options
- From anywhere cloud visibility and control
- Monitor a site or multiple sites with no recurring cost or licensing fee
- Security - access control list/port security; 802.1x authentication
- IGMP & MLD snooping provides advanced multicast filtering & network efficiency
Technical
Port Standards
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3x Full-Duplex Flow Control
Network Ports
24 10/100/1000 Mbps Ports
4 10/100/1000 Mbps SFP Ports
PoE Capable Ports
1-24 (802.3at/af)
All Gigabit Ethernet ports can output up to 30 Watts
Total PoE Budget
240W
Switching Capacity
56Gbps
SDRAM
256MB
Flash Memory
32MB
Packet Buffer Memory
512 KB
Address Database Size
8,000 MAC Addresses
Physical Interface

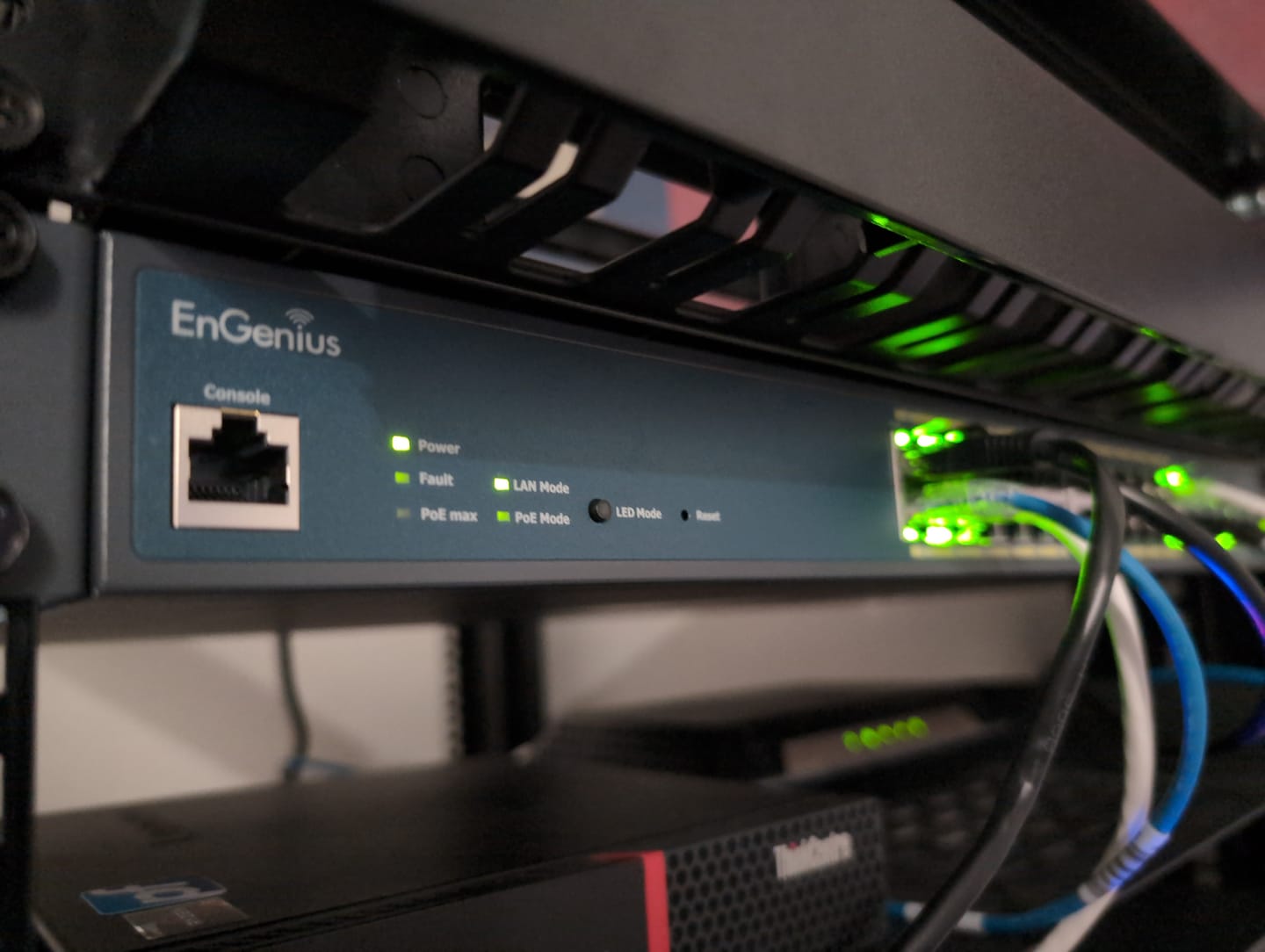

LED Indicators
Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED
Ports
Link/Activity/Speed (per Ethernet port)
SFP Ports
Link/Act LED
Software Features
Multiple IP Interface
20 IPv6 address
ARP Table
Max. 192 ARP entries
Static ARP
Static 192 ARP entries
IPv4 Static Route
Max. 59 entries
IPv6 Static Route
Max. 5 entries
Software Features (L2 Features)
MAC Address Table
8K
Jumbo Frame
9K
Multicast Group
Max 256 groups
Port Security
Max. 256 Entries
SSL Certificate
Certificate/Key Update
L2 Features
802.1Q VLAN tagging
VLAN Table
Port-based VLAN
Voice VLAN
GARP VLAN Registration Protocol
802.1d Spanning tree
RSTP
CIST
MSTP
802.3ad Link Aggregation
Loopback Detection
L3 Features
IGMP Snooping
MLD Snooping
DHCP Snooping
DHCP Relay
Static Route
Port Settings
Multicast Filtering
EEE
Port Isolation
Port Mirror
Jumbo Frames
LLDP
Security
802. 1X Radius Authentication Protocol
Access
Web
HTTP Service
HTTPs Service
Command Line Interface (CLI)
Telnet Service
SSH Service
Port Security
Radius Server
DoS Prevention
System Settings
IP Settings
IPv4 Management
IPv6 Management
IPv4 Network
ARP Table
ARP Statistics
Simple Network Time Protocol (SNTP)
Analyze
Log
Local Logging
Remote Logging
Diagnostic
Cable Diagnostics
Ping Test
IPv6 Ping Test
Trace Route
Connection Diagnostic
Access Control List (ACL)
MAC Based ACL
MAC ACE
IPv4 ACL
IPv4 ACE
IPv6 ACL
IPv6 ACE
ACL (Port) Binding
SNMP
SNMP v1/v2c/v3 Support
RMON
RMON 1,2,3,9
QoS
CoS Mapping
DSCP Mapping
Port CoS
Bandwidth Control
Storm control
Advanced Mode
Class Mapping
MIB/RFC Standards
RFC1213
RFC1493
RFC1757
RFC2674
RFC2863
Environmental & Physical
Temperature Range
Operating: 32 to 104°F/0 to 40°C
Storage: -40 to 158°F/-40 to 70 °C
Humidity (Non-Condensing)
5% - 95%
Package Contents
1x Fit Managed 24 Ports Gigabit Switch
1x Quick Installation Guide
1x Power Cord
Dimensions & Weights
EWS7928P-FIT Device
Weight: 7.82 Ibs
Width:17.32” (440 mm)
Length: 10.23” (260 mm)
Height: 1.73” (44 mm)
Packaging
Weight:10.13 lbs
Width: 20.95” (532mm)
Length:13.63” (346mm)
Height: 3.97” (101mm)
Warranty
1 Year
