EWS2910P-FIT: EnGenius Fit 55W Gigabit PoE 8 Port Switch
EWS2910P-FIT: EnGenius Fit 55W Gigabit PoE 8 Port Switch
Layer 2 plus switch comes with 2 SFP uplink ports and multiple management options
EnGenius Fit Managed Switch EWS2910P-FIT is an 8-port Gigabit PoE Layer 2 plus switch with a 55W PoE budget and 2 SFP uplink ports. It offers multiple management options for small business network environments, allowing you to select the cloud or on-premises management option that best suits your needs. With its business-class features, the EnGenius Fit Managed Switch provides secure, reliable, and high-performance switching while reducing capital and operating expenses for cost-conscious small businesses.
- EWS2910P-FIT Datasheet
- EWS2910P-FIT Quick Start Guide
- EnGenius Fit FAQs
- EnGenius Fit Switches
Features
Specifications
- 8 10/100/1000 Base-T GbE ports
- Full-featured layer 2 plus switching
- 802.3af PoE ready on all ports with 55W PoE budget
- 20 Gbps switching capacity
- Setup in minutes with app-based step by step instructions
- Quick-scan device register, remote monitoring and troubleshooting
- Real-time system metrics, analytics and remote configurations

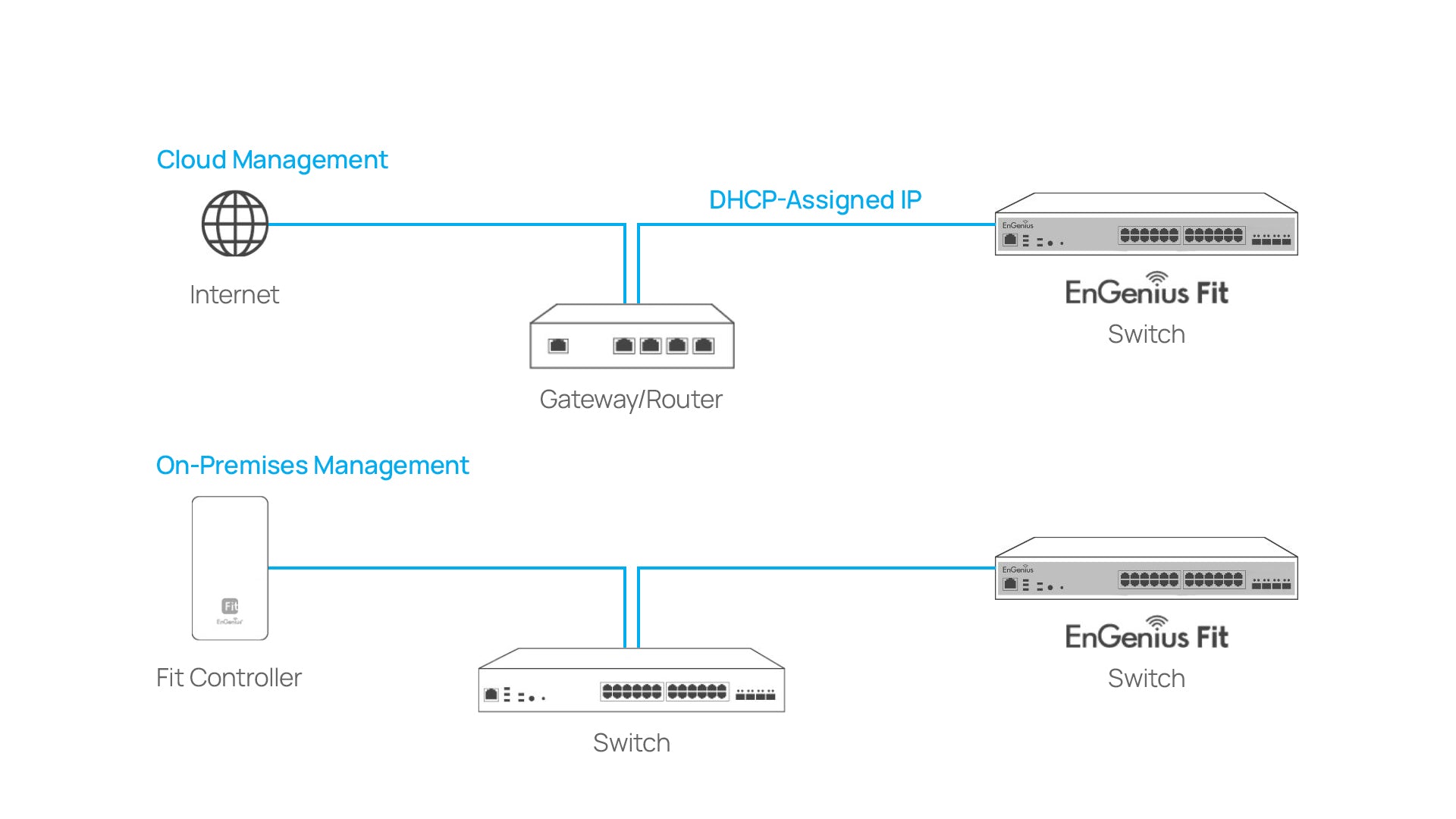

- Hybrid switch supports multiple management options
- From anywhere cloud visibility and control
- Monitor a site or multiple sites with no recurring cost or licensing fee
- Security - access control list/port security; 802.1x authentication
- IGMP & MLD snooping provides advanced multicast filtering & network efficiency
Port Standards
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3x Full-Duplex Flow Control
Network Ports
8 10/100/1000 Mbps Ports
2 10/100/1000 Mbps SFP Ports
PoE Capable Ports
1-8 (802.3af only)
All Gigabit Ethernet ports can output up to 15 Watts
Total PoE Budget
55W
SDRAM
256MB
Flash Memory
32MB
Power Source
100 ~ 240VAC, 50-60Hz

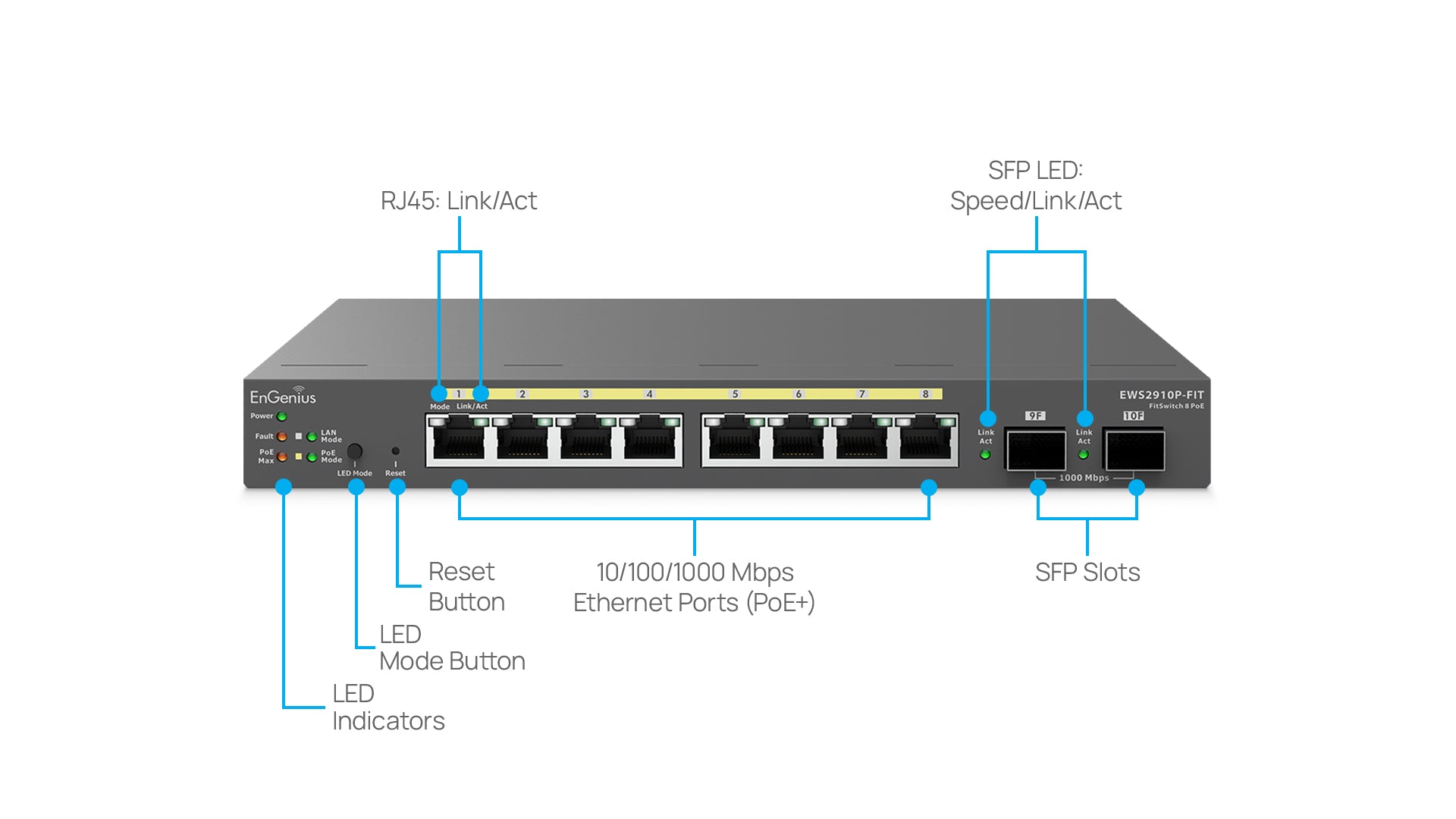

LED Indicators
Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED
Ports
Link/Activity/Speed (per Ethernet port)
Multiple IP Interface
20 IPv6 address
ARP Table
Max. 192 ARP entries
Static ARP
Static 192 ARP entries
IPv4 Static Route
Max. 59 entries
IPv6 Static Route
Max. 5 entries
MAC Address Table
8K
Jumbo Frame
9K
Multicast Group
Max 256 groups
Port Security
Max. 256 Entries
SSL Certificate
Certificate/Key Update
L2 Features
802.1Q VLAN tagging
VLAN Table
Port-based VLAN
Voice VLAN
GARP VLAN Registration Protocol
802.1d Spanning tree
RSTP
CIST
MSTP
802.3ad Link Aggregation
Loopback Detection
L3 Features
IGMP Snooping
MLD Snooping
DHCP Snooping
DHCP Relay
Static Route
Port Settings
Multicast Filtering
EEE
Port Isolation
Port Mirror
Jumbo Frames
LLDP
Security
802. 1X Radius Authentication Protocol
Access
Web
HTTP Service
HTTPs Service
Command Line Interface (CLI)
Telnet Service
SSH Service
Port Security
Radius Server
DoS Prevention
System Settings
IP Settings
IPv4 Management
IPv6 Management
IPv4 Network
ARP Table
ARP Statistics
Simple Network Time Protocol (SNTP)
Analyze
Log
Local Logging
Remote Logging
Diagnostics
Cable Diagnostics
Ping Test
IPv6 Ping Test
Trace Route
Connection Diagnostic
Access Control List (ACL)
MAC Based ACL
MAC ACE
IPv4 ACL
IPv4 ACE
IPv6 ACL
IPv6 ACE
ACL (Port) Binding
SNMP
SNMP v1/v2c/v3 Support
RMON
RMON 1,2,3,9
QoS
CoS Mapping
DSCP Mapping
Port CoS
Bandwidth Control
Storm control
Advanced Mode
Class Mapping
MIB/RFC Standards
RFC1213
RFC1493
RFC1757
RFC2674
RFC2863
Temperature Range
Operating: 32°F to 104°F (0°C to 40°C)
Humidity (Non-Condensing)
Operating: 5% - 95%

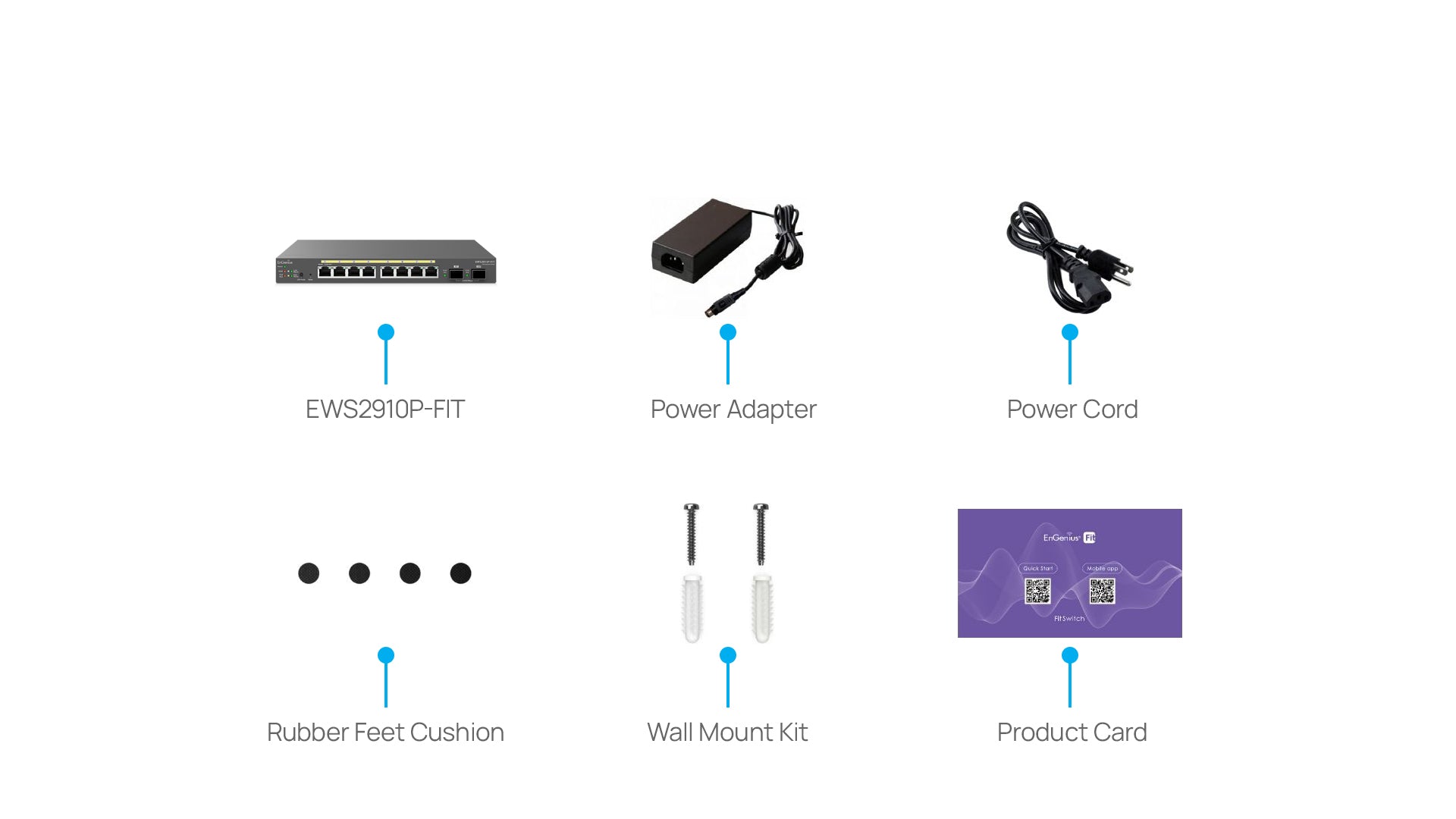

Package Contents
1x Fit Managed 8 Ports Gigabit Switch
1x Quick Installation Guide
1x Power Adapter
EWS2910P-FIT Device
Weight: 1.36 lbs. (620 g)
Length: 9.44” (240 mm)
Width: 4.13” (105 mm)
Height: 1.06” (27 mm)
Packaging
Weight: 3.3 lbs. (1495 g)
Length: 10.67” (271 mm)
Width: 6.61” (168 mm)
Height: 3.34” (85 mm)
Warranty
1 year
Certifications
CE
FCC
IC
