XG60-FIT: EnGenius FitXpress 4-Port Gig PoE+ Dual-Core 2.1GHz Router

$299.00
 por
Dual-WAN GbE, Dual-LAN GbE (PoE+ via P1), 1 SFP, supports Auto-VPN, stateful firewall, and cellular failover

The EnGenius XG60-FIT FitXpress Router delivers secure, reliable networking for small businesses. The router’s stateful firewall, auto-VPN, and client VPN ensures robust security and the dual-WAN guarantees seamless connectivity via load balancing and WAN/cellular failover. The FitXpress management solution streamlines implementation and simplifies management for chain stores, small offices, and branch offices.

- XG60-FIT Datasheet
- XG60-FIT Quick Start Guide
- EnGenius Fit FAQs
- EnGenius Fit Network Management Datasheet


Shipping & Returns

Not satisfied? We allow returns within 30 days of product purchase

Management

This product is compatible with the EnGenius Fit line of products

2.1GHz Processor

Dual core design for greater speed and power

Features

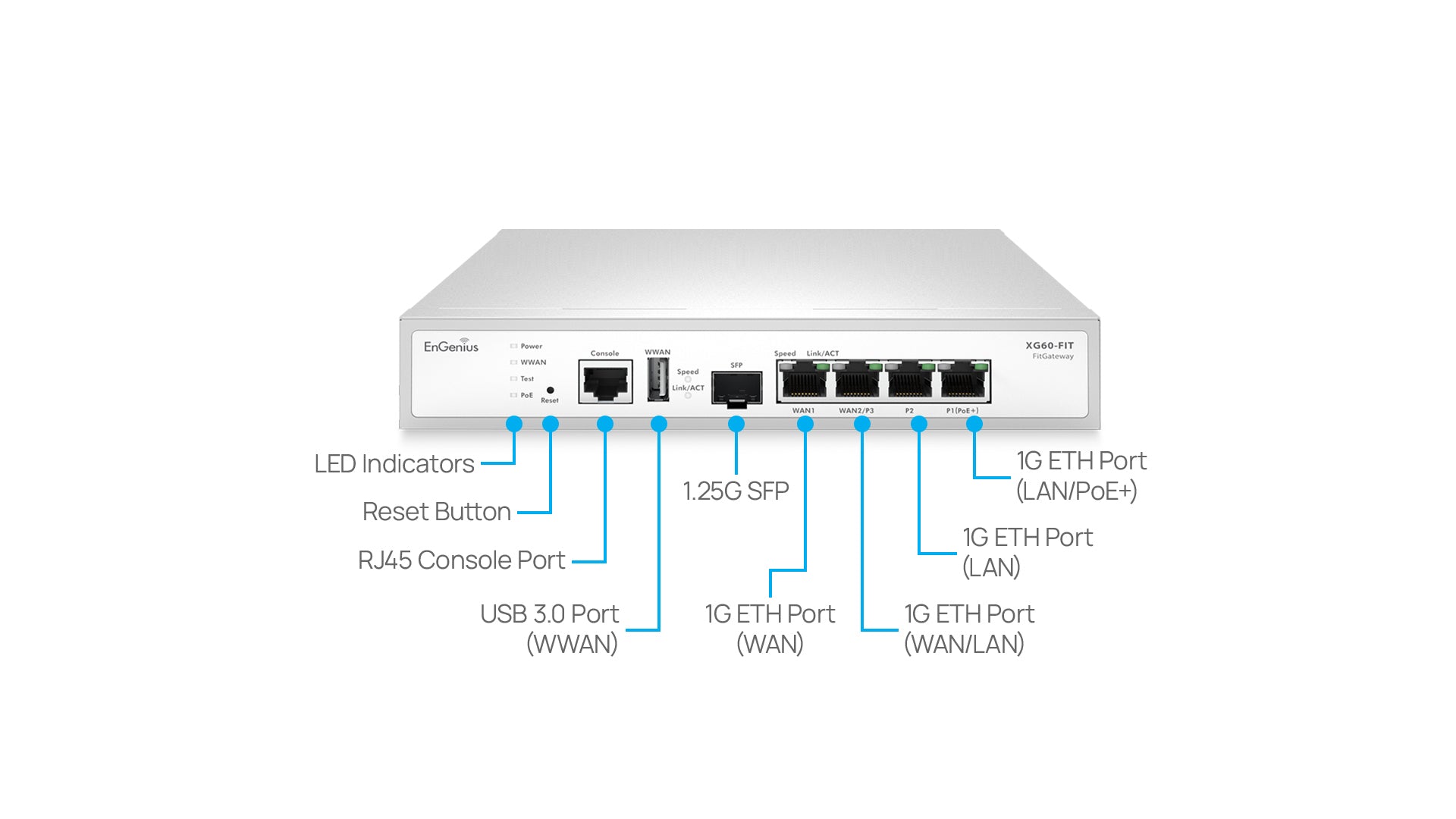

Overview

In-the-Box

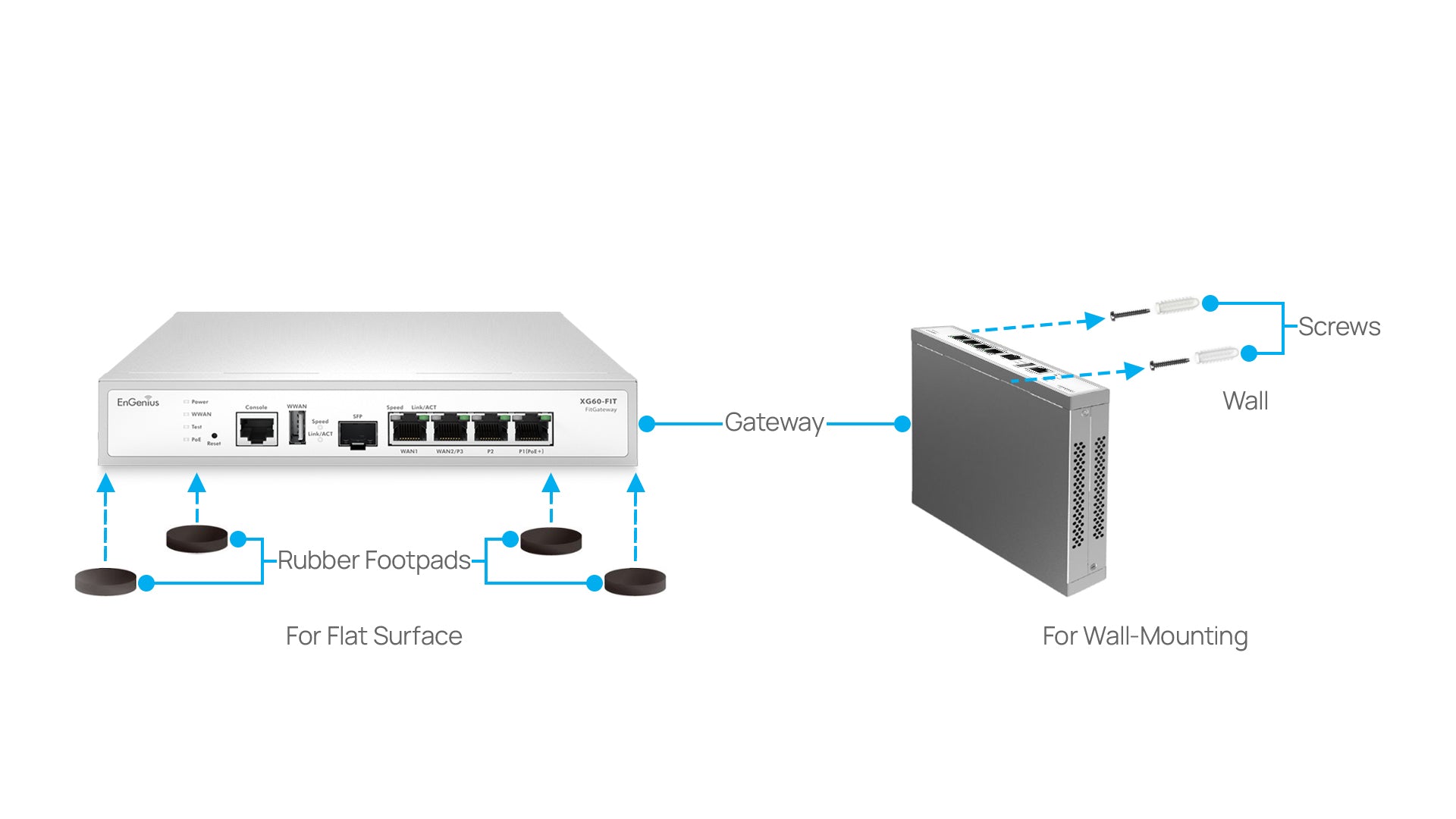

Mounting

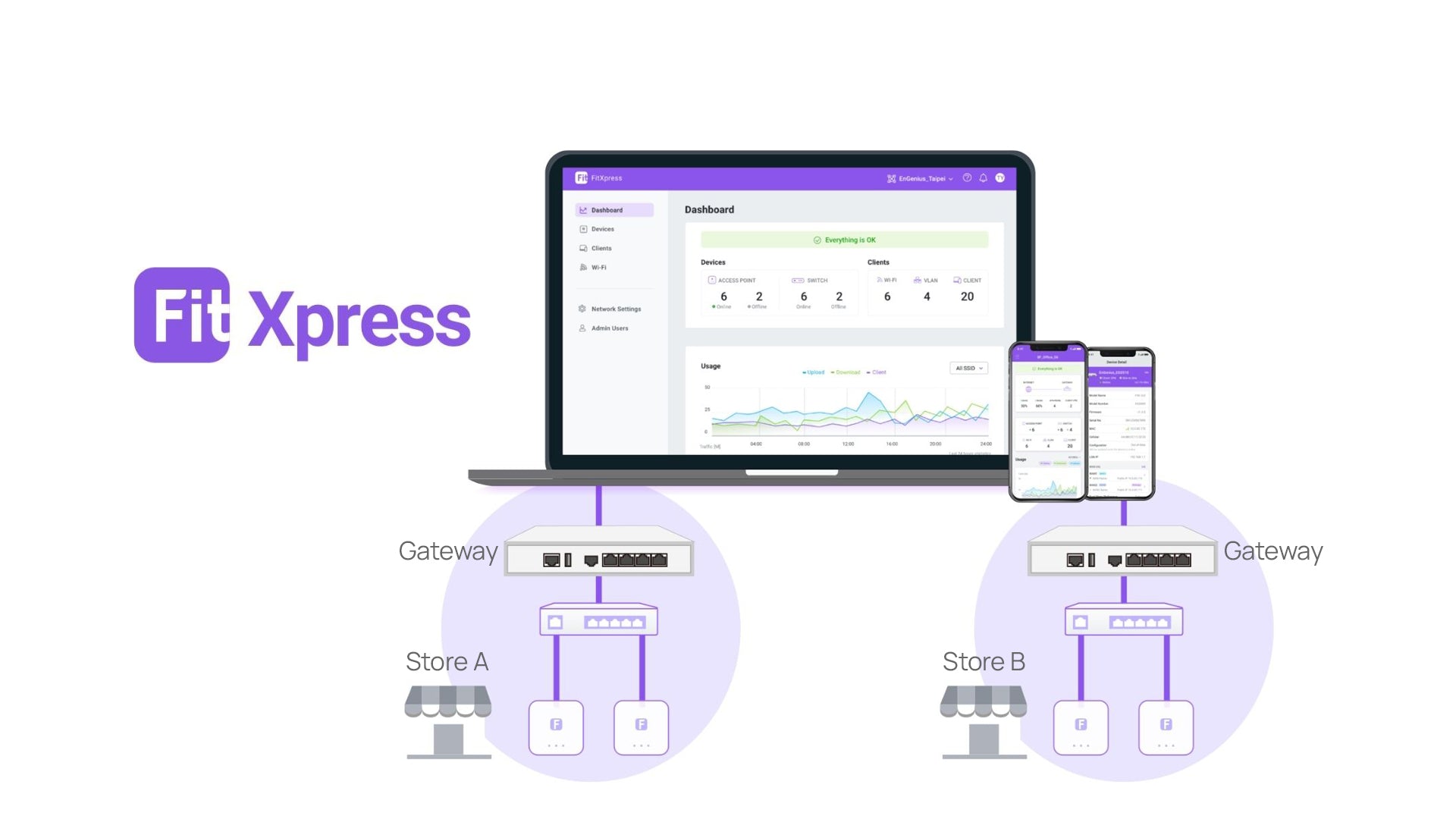

Deployment

XG60-FIT

Specifications

Product Highlights

  • Simple, unified FitXpress management for any small business

  • Intuitive and centralized device visibility from anywhere

  • Dual-core 2.1GHz processor for greater speed and power

  • Dual GbE WAN for maximum performance and redundancy

  • 4x GE Ports and 1x SFP uplink with seamless connectivity

  • Flexible connectivity through dual-WAN load balancing

  • WAN failover and cellular failover ensure uninterrupted connectivity

  • Auto-VPN for self-healing and quick network deployment

  • High-throughput and secure site-to-site VPN/ client VPN

  • 1 GbE PoE+ to power up a Wi-Fi 6 AP, IP camera or IP phone

  • Stateful firewall with high-efficiency filtering and inspection to enhance security

  • Cloud-based management unifies Gateways, Wi-Fi Access Points, and Switches

  • Central management through FitXpress web portal or App from anywhere

  • Touchless system maintenance and automatic updates

  • No licensing or subscription fees required

Technical

CPU Processor
Dual-Core

Operating Frequency
2.1 GHz

Memory
4 GB

Flash Storage
8 GB

Network Ports (Copper Ports)
4 x 10/100/1000 BASE-T, RJ-45 Ethernet ports

SFP Interface (Fiber)
1 x SFP

Console Port
1 x 10/100/1000, RJ-45 Ethernet port

PoE Capable Port
1 x LAN (802.3af) (P1)

I/O Interfaces
1 x RJ-45 Console

USB Interface
1 x USB 3.0

Mounting Method
Wall mount

Security Chip
TPM

Performance & Capacity

Firewall (SPI Throughput)
3 Gbps

VPN Throughput
900 Mbps

Max. TCP Concurrent Sessions
1,000,000

Max. Concurrent VPN Tunnels
100

Max. Concurrent VPN Users
50

Max. VLAN
16

Firewall

Firewall Features
Stateful Packet Inspection
Policy Rules
Port Forwarding
1:1 NAT
Allow Inbound Services

VPN

Site-to-Site VPN
Mesh VPN/Hub-and-Spoke

Encryption
DES, 3DES, AES (256-bit)

Authentication
MD5, SHA1, SHA2 (512-bit)

Key Management
IKEv1 (x-auth, mode-config)
IKEv2 (EAP, configuration payload)

VPN Features
Site-to-Site VPN
Client VPN
Policy-based VPN
IPsec NAT traversal (NAT-T)
Dead Peer Detection (DPD)
Auto-VPN Connection
Auto NAT traversal

Networking

Operation Mode
Routed/Passthrough

Multiple WANS
Dual (WAN 1 & WAN 2)

Bandwidth Limit
Per Interface/Per Client

Traffic Load Balancing
WAN load balancing with WRR

Networking Features
Static Route
Multiple WANs
USB Cellular
User Authentication
PPPoE
VLAN Tagging
Captive Portal
Custom Splash Page
Dynamic Routing
Bandwidth Limit
Traffic Load Balancing
DHCP client/server/relay
Dynamic DNS support

Environmental & Physical

Power
54V/1.2A

Operating Temperature
0°C to 40°C

Humidity (non-condensing)
5 to 95% non-condensing

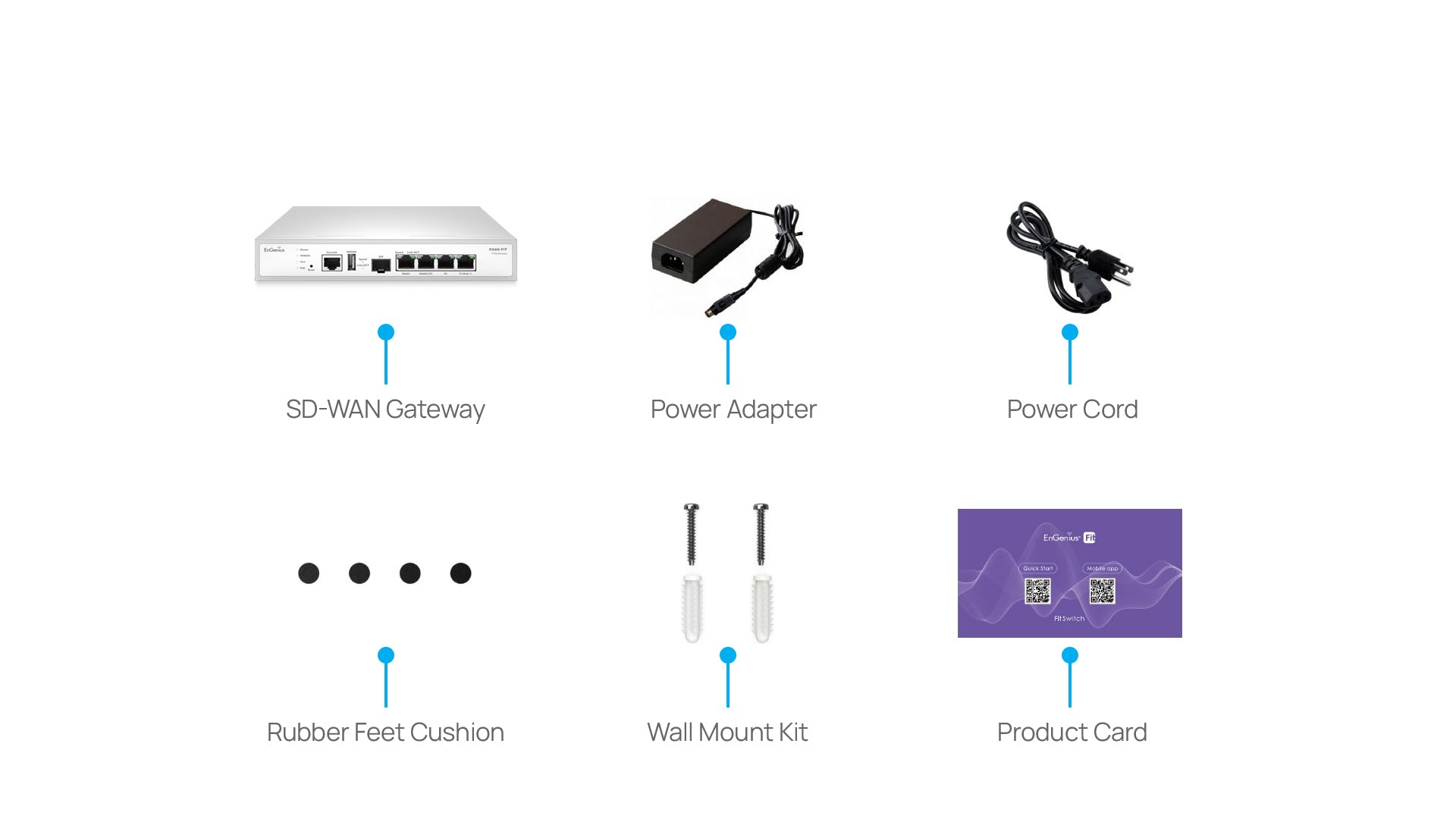

Package Contents
Power adapter
Power cord
RJ-45 Console Cable
Wall Mount Kit
Quick Installation Guide

Dimensions & Weights

XG60-FIT Device
Weight: 2.38lbs. (1.08 kg)
Width: 8.27” (210 mm)
Length: 7.07” (179.5 mm)
Height: 1.38” (35 mm)

XG60-FIT Packaging
Weight: 3.90 lbs. (1.77 kg)
Width: 3.94” (100 mm)
Length: 10.83” (275 mm)
Height: 11.61” (295 mm)

Compliance & Warranty

Regulatory Compliance
FCC Part 15 (Class B)
IC
CE EMC (Class B)
CB
RCM
BSMI
UL

Warranty
2 years

Certifications
CE
FCC
IC
