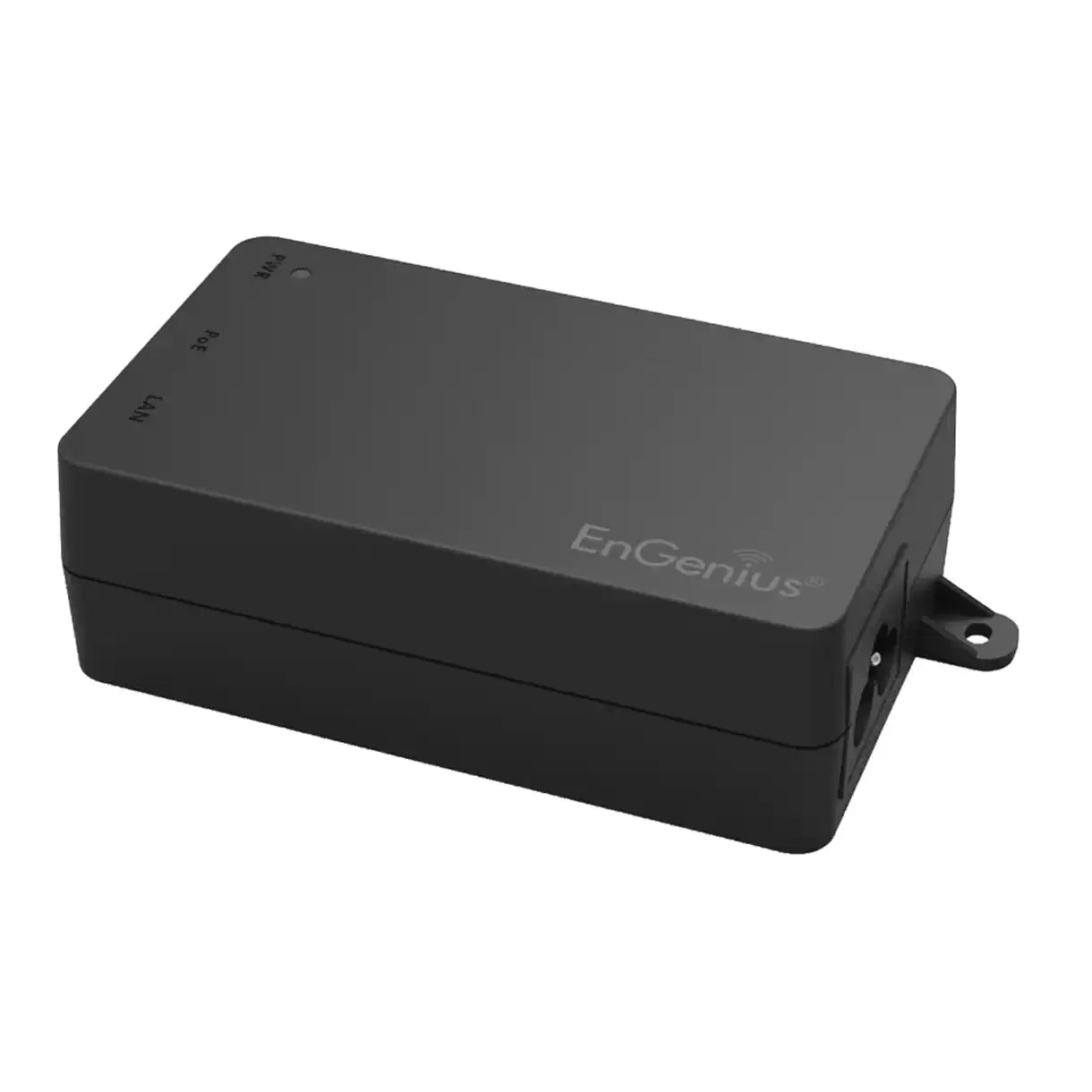

EPA5006GP: Passive 54V Gigabit Power-over-Ethernet Adapter
EPA5006GP: Passive 54V Gigabit Power-over-Ethernet Adapter
Delivers Data & Power to Passive 54V PoE-Compatible Network Devices
The EnGenius EPA5006GP Passive PoE Adapter supports high-speed data and up to 32.8 Watts/54V of power to compliant devices such as APs, IP cameras or VoIP phones to 328-feet away over a single cable. A compact, optimal port design provides easy, precise installation, while built-in power surge protection preserves valuable equipment.
Shipping & Returns
Not satisfied? We allow returns within 30 days of product purchase
Great for Outdoor WiFi
Delivers both data and power to EnGenius outdoor access points
Flexible Deployment
Extends power to unwired areas up to 328-ft./100m away
Features
Specifications
- Gigabit Ethernet In & Out Ports for High-Speed Devices
- Disconnect, Short-Circuit & Surge Protection Ensure Reliable, Secure Connections
- Mounts to Walls or Ceilings with Included Hardware
Standards
802.3 10BaseT
802.3u 100BaseT
802.3ab Gigabit Ethernet
Compliance
FCC Part 15 Class B
IEC 60950-1:2005+A1
UL60950-1 2nd
CE
ENS55032:2012/AC:2013
EN55024:2010
RCM
AS/NZS60950.1: 2011/Amdt 1: 2012
Physical Interface

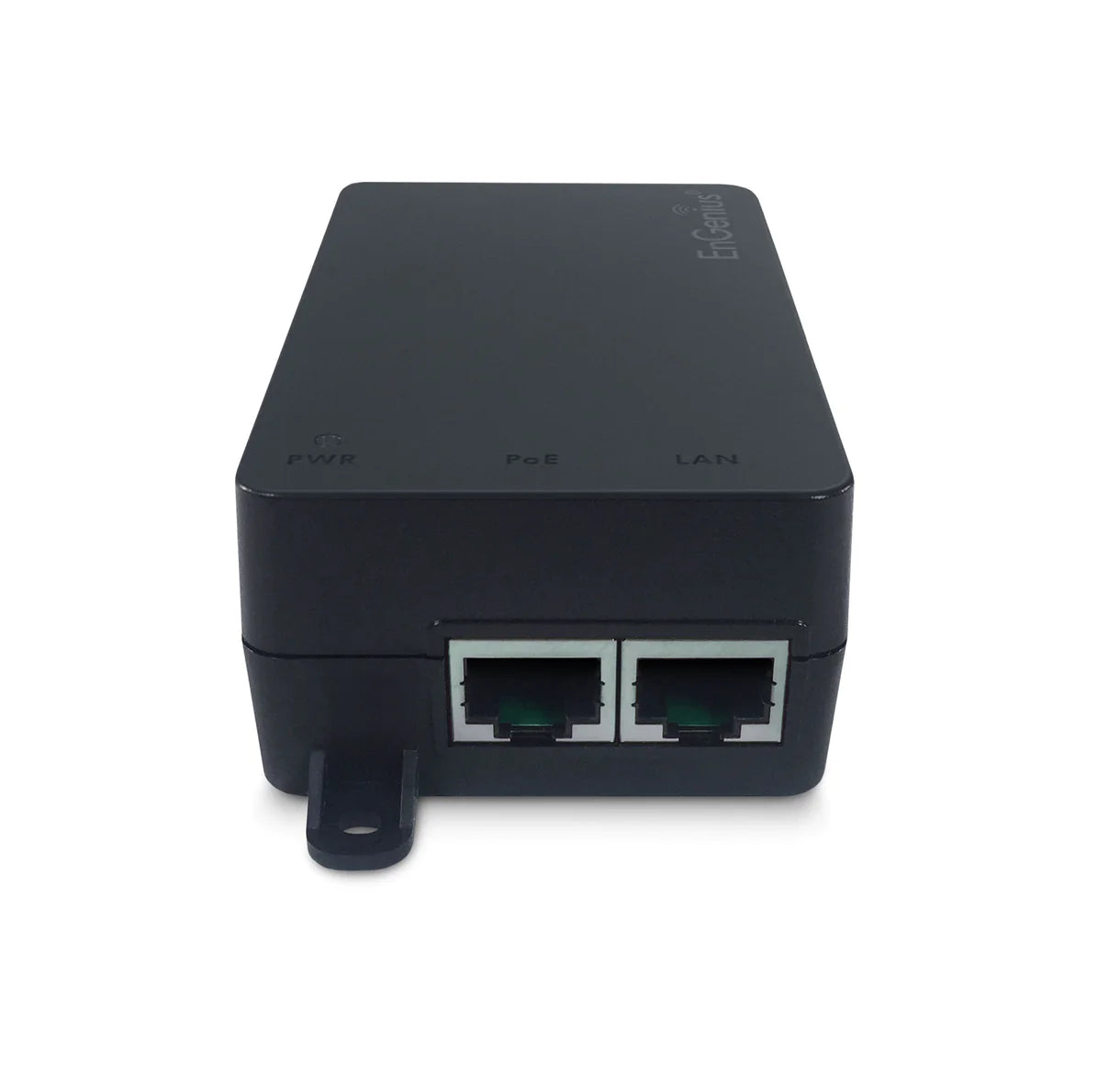

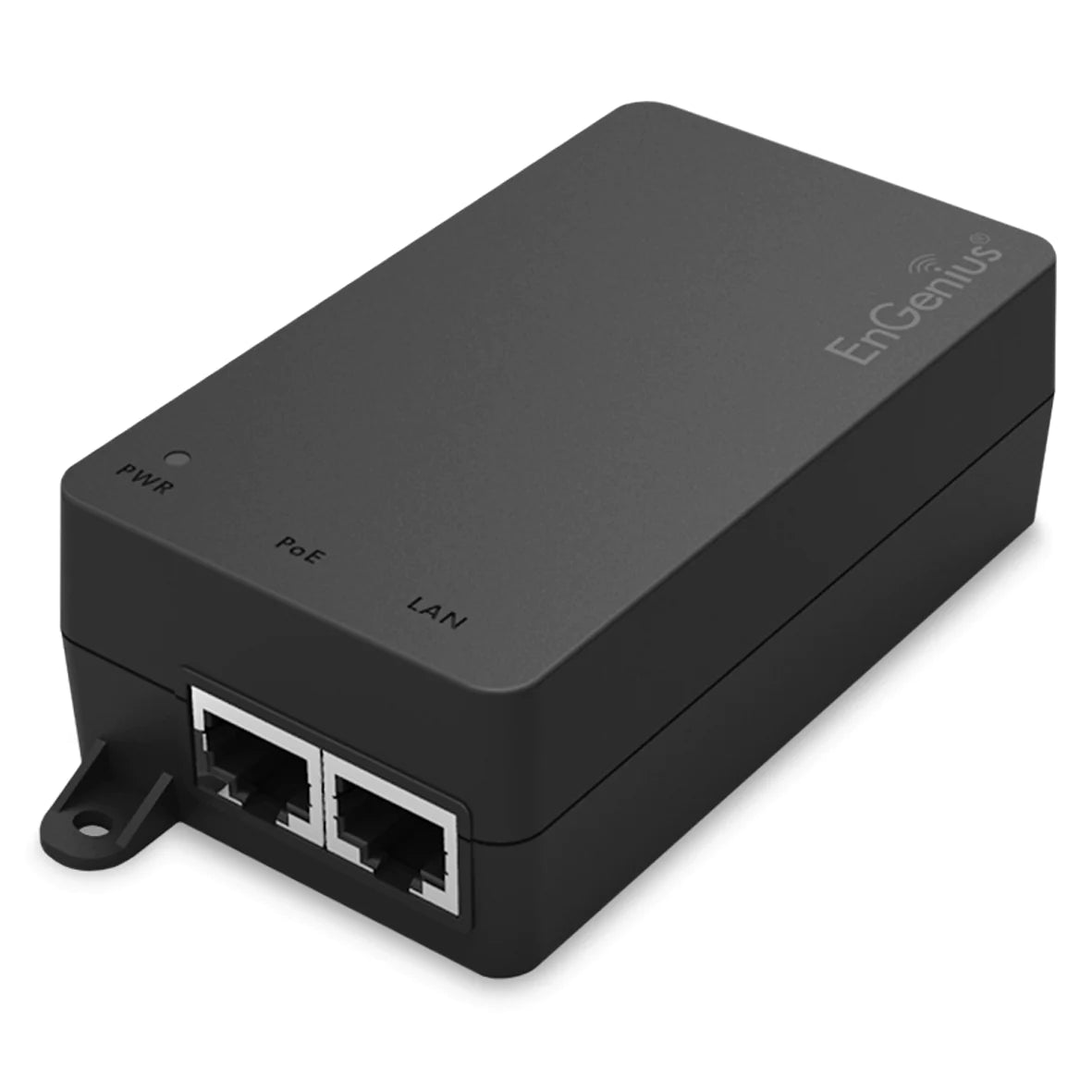

(1) Gigabit Data Port
(1) Gigabit Data & Power Output Port

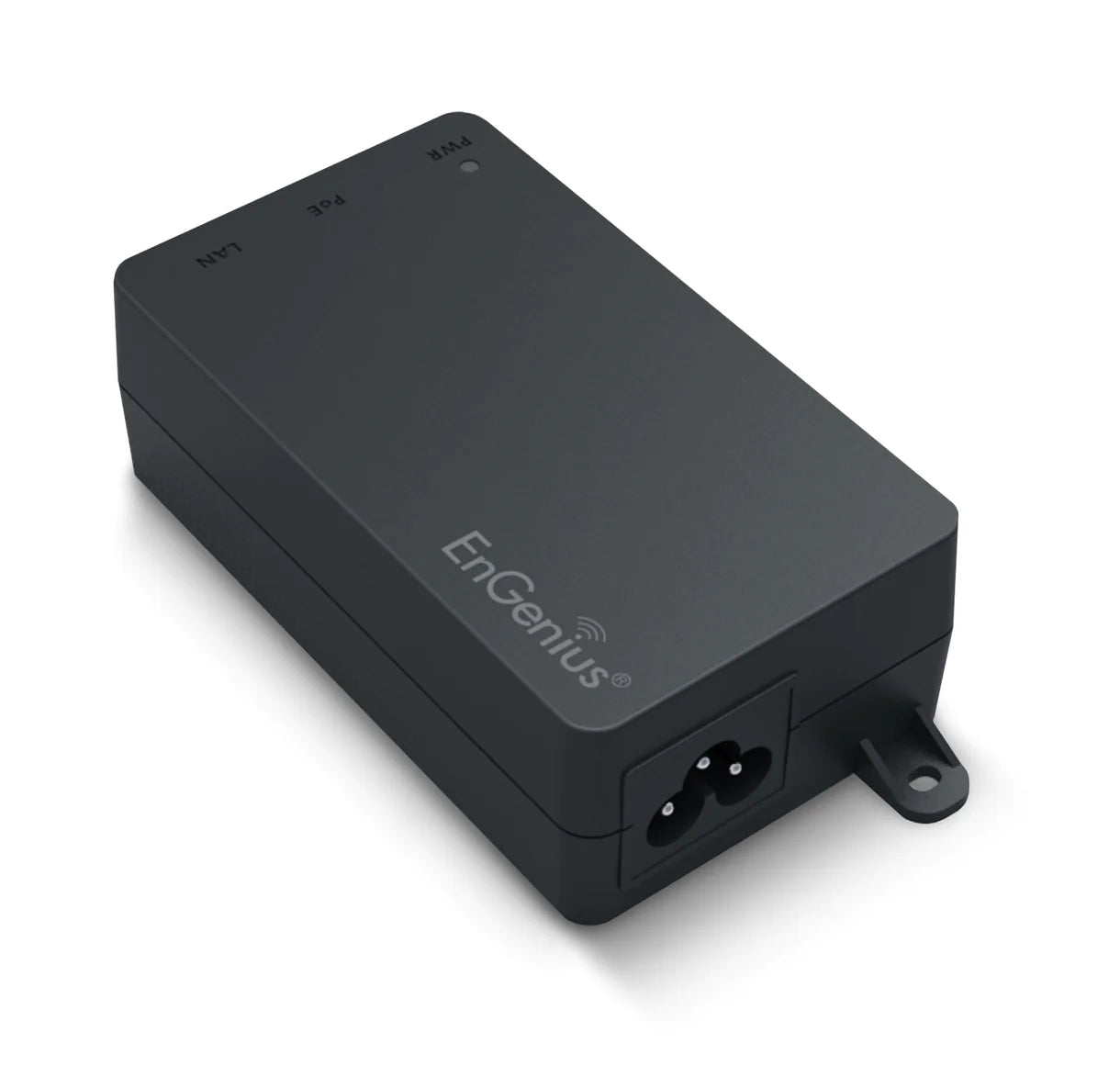

(1) IEC 320C6 AC Connector
LED Indicator
1 x Power on Green
Mounting
Wall (anchors & screws included)
Input Voltage
100 to 240VAC
Input Current
0.8A Max for 120VAC
AC Input Frequency
50-60Hz
Maximum Output Power
32.8W
Power Lines
Pin4(Vdc+)&Pin5(Vdc+)
Pin7(Vdc-)&Pin8(Vdc-)
Data Specifications
10/100/1000 Mbit/s
Pin1(Rx+)&Pin2(Rx-)
Pin3(Tx+)&Pin6(Tx-)
Added Protection Features
Short-Circuit
Surge (over current/over voltage)
Surge Protection
L-L: 2KV
L-G: 4KV
ESD Protection
Contact: 4KV
Air: 8 KV
Temperature Range
Operating: 32°F to 104°F (0°C to 40°C)
Storage: -22°F to 176°F (-30°C to 80°C)
Humidity (non-condensing)
Operating: 5 to 90% or less
Storage: 5 to 90% or less
EPA5006GP Device (Without Mounting Kit)
Weight: 0.317 lbs. (144 g)
Length: 3.9” (100 mm)
Width: 2.27” (58.5 mm)
Height: 1.3” (33.4 mm)
Package Contents
EPA5006GP
Power Cord
