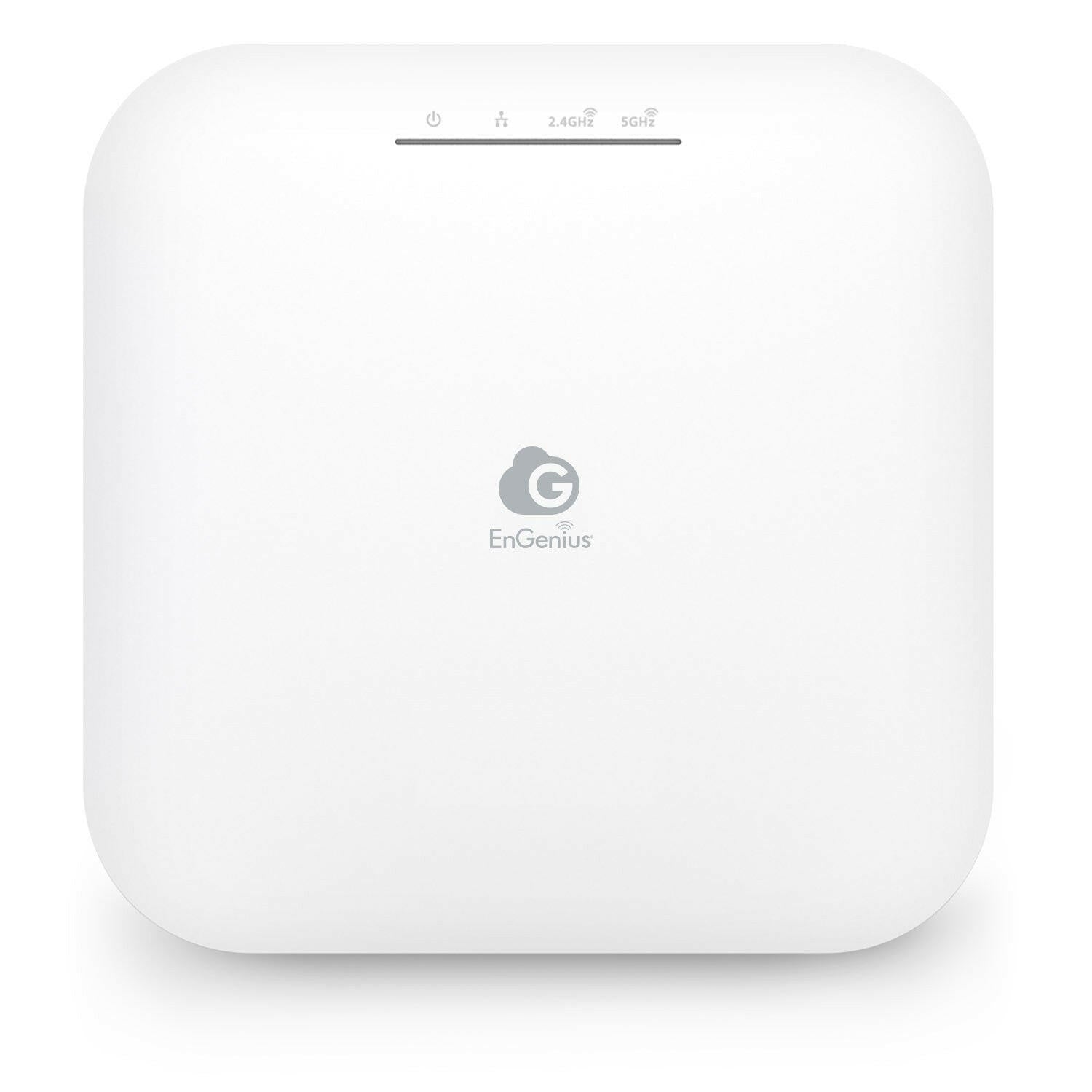

ECW220S: Cloud Managed Wi-Fi 6 2×2 Indoor Wireless Security Access Point
Earn [points_amount] when you buy this item.
ECW220S: Cloud Managed Wi-Fi 6 2×2 Indoor Wireless Security Access Point
Intelligent wireless security system that eliminates threats 24/7 while providing maximum performance
The EnGenius Wi-Fi 6, Cloud-Managed ECW220S Security Access Point is ideal for information-sensitive financial, medical, and distributed networks and comes equipped with EnGenius AirGuard, an intelligent wireless security system that identifies and eliminates intrusions and threats 24/7 while providing client devices with maximum performance.
Must be Powered over Ethernet, does not include AC Adapters.
- ECW220S Datasheet
- Cloud Managed AP Datasheet
- EnGenius Cloud User Manual
Shipping & Returns
Not satisfied? We allow returns within 30 days of product purchase
Management
This product is compatible with the EnGenius Cloud line of products
AirGuard
Intelligent wireless security system that eliminates threats 24/7 while providing maximum performance
5-Year Warranty
Leave the worrying to us. We've got you covered on your hardware purchase.
Features
Specifications
- Wi-Fi 6 technology for high-performance Wi-Fi in high-density, multi-device environments
- 2x2 antennas to support up to 1,200 Mbps in 5 GHz & 574 Mbps in 2.4 GHz
- 1 GbE throughput and 802.3at support for flexible installation over 100 meters (328 feet)
- Wireless intrusion detection system (WIDS) for threat detection
- Wireless intrusion protection system (WIPS) for attack remediation
- Zero-wait DFS to avoid client disruption when radar is detected on DFS channels
- Dedicated scanning radios for 24/7 wireless AP security monitoring
- RF spectrum analysis for identifying clean channels and ensuring all SSIDs are legitimate
- Bluetooth 5 low energy for BLE device detection and location-based extended advertising
Standards
IEEE 802.11ax on 2.4 GHz
IEEE 802.11ax on 5 GHz
(Backward compatible with 802.11b/g/n/ac)
2.4 GHz Bluetooth Low Energy (BLE) Radio
Processor
Qualcomm® Quad-Core ARM Cortex A53s @ 2.0GHz CPU
Antenna
2 x 2.4 GHz: 4 dBi
2 x 5 GHz: 5 dBi
Scanning Radio
1 x 2.4 GHz
1 x 5 GHz
Integrated Omni-Directional Antenna
BLE: 6 dBi

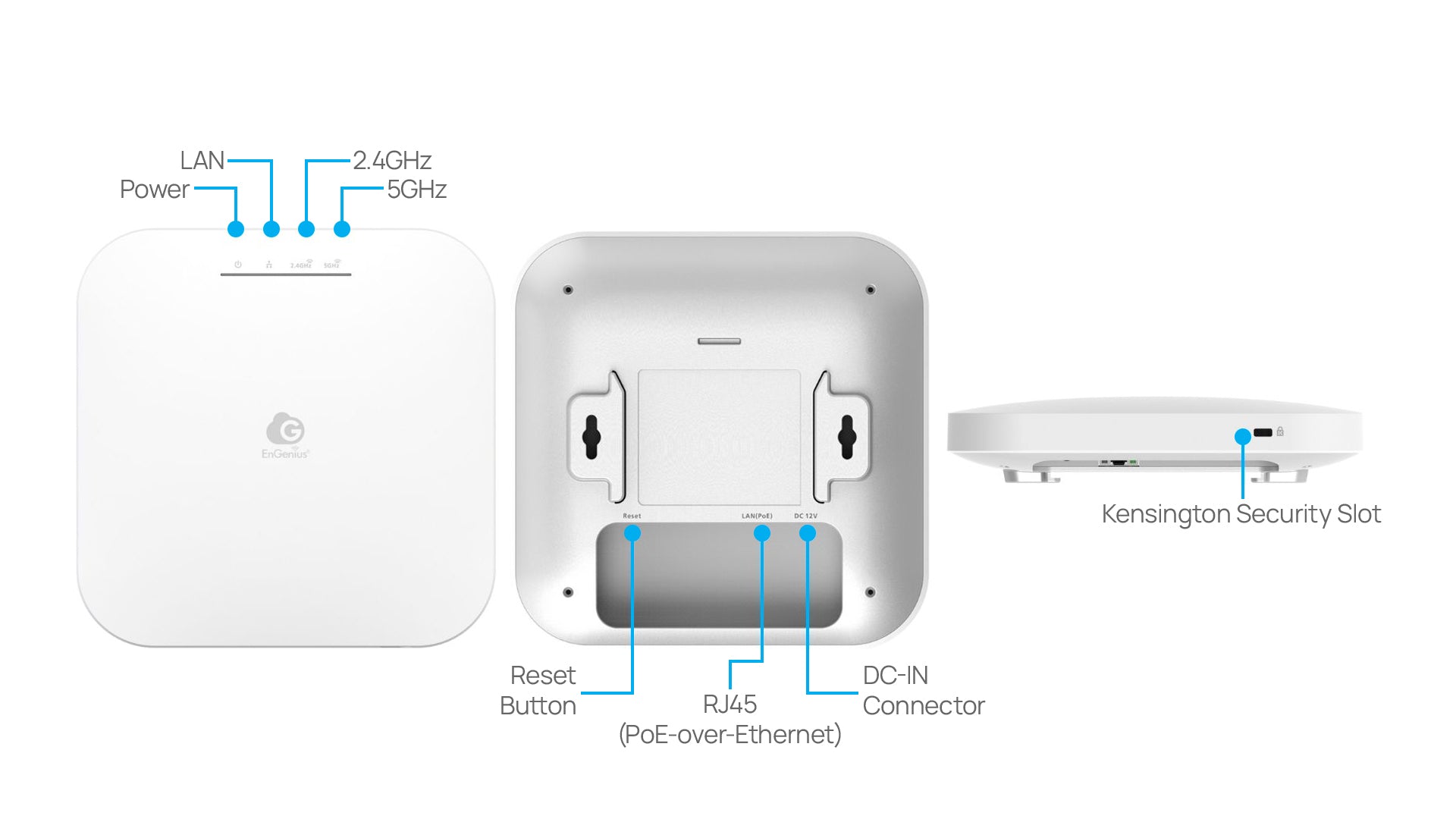

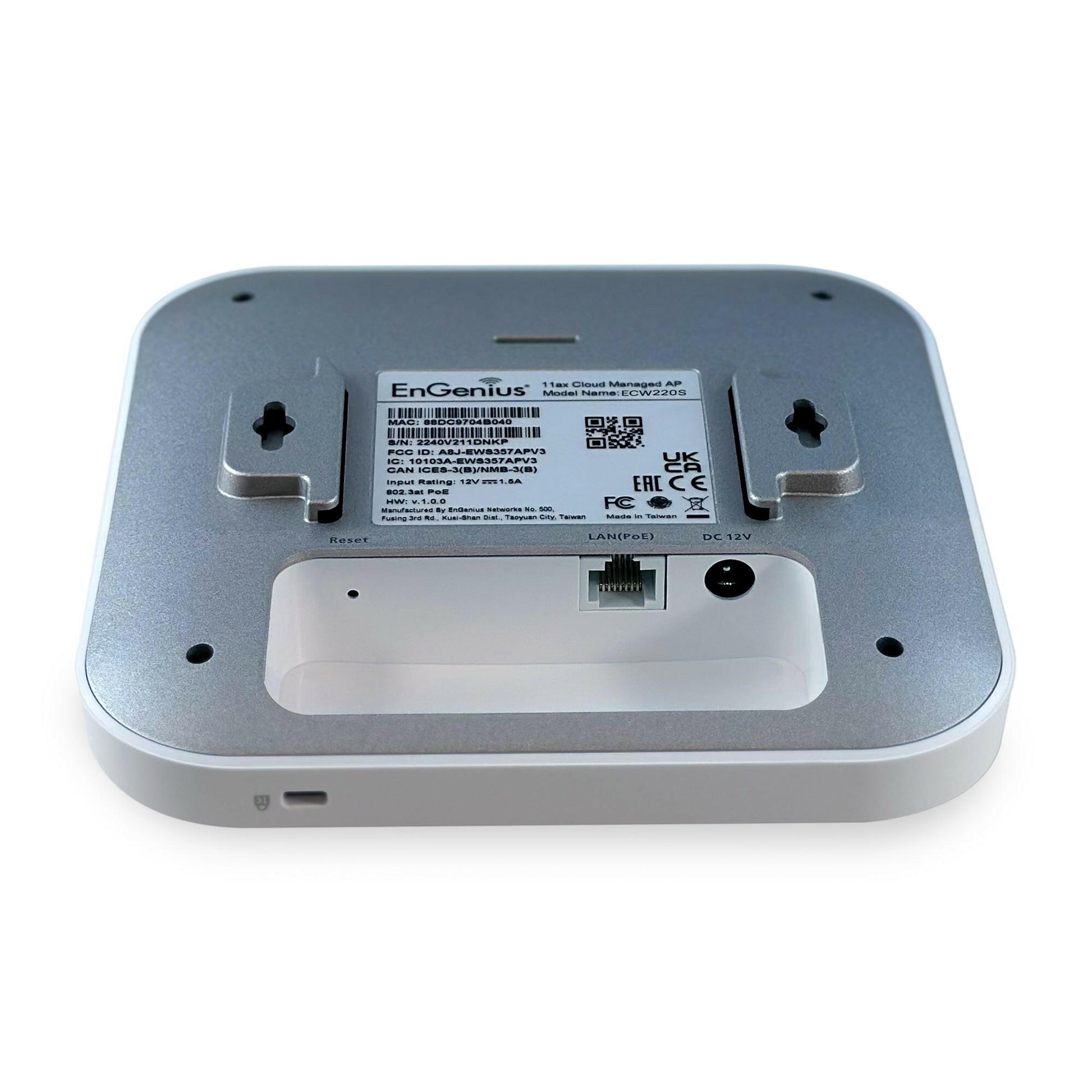

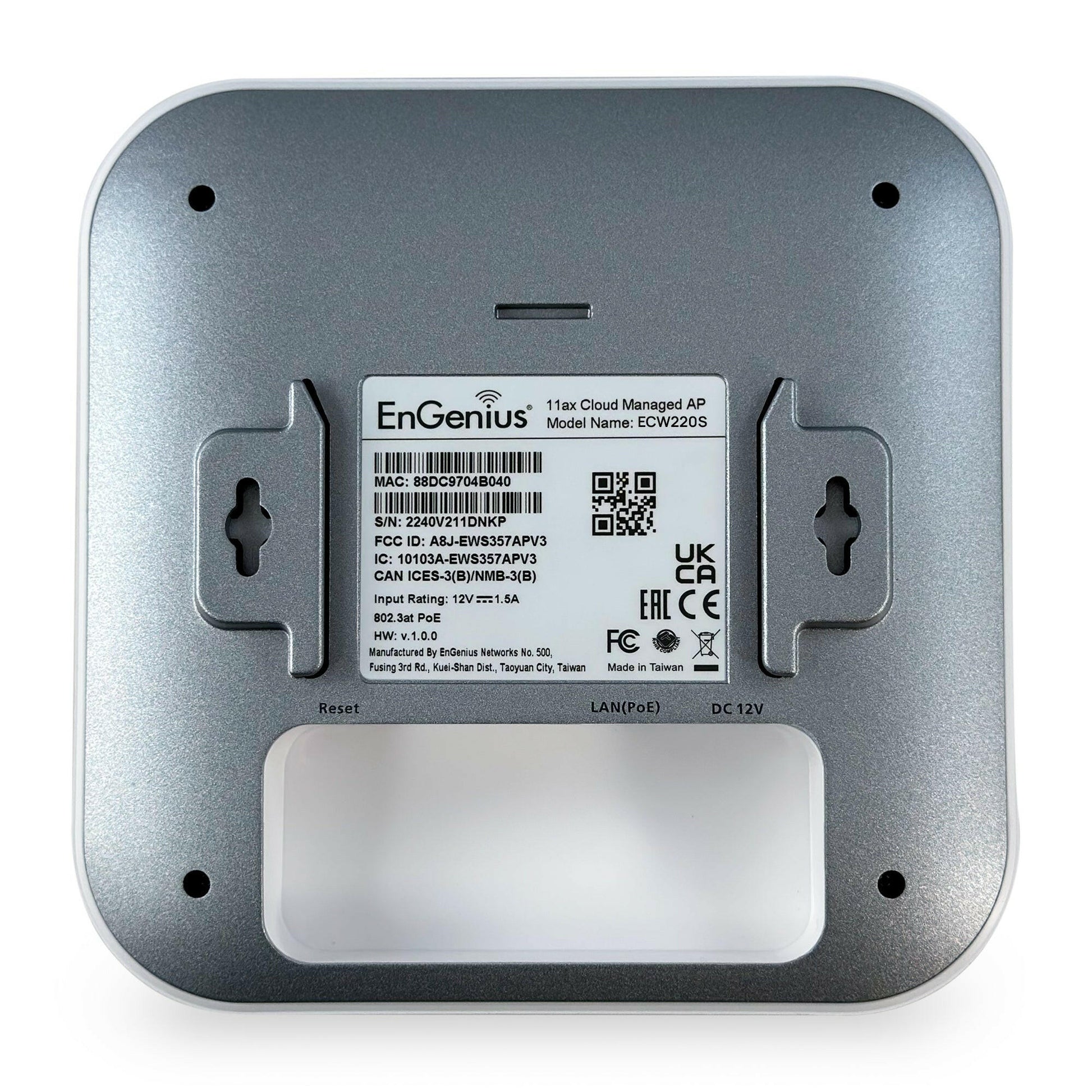

Physical Interface
1 x 10/100/1000 BASE-T, RJ-45 Ethernet Port
1 x DC Jack
1 x Reset Button
LED Indicators
1 x Power
1 x LAN
1 x 2.4 GHz
1 x 5 GHz
1 x Scanning Radio
1 x BLE
Power Source
Power-over-Ethernet: 802.3at Input
12VDC /2A Power Adapter (Not Included)
Maximum Power Consumption
12.8W
Operating Frequency
Dual-Radio Concurrent 2.4 GHz & 5 GHz
Operation Modes
AP, Mesh
Frequency Radio
2.4 GHz: 2400 MHz ~ 2482 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
Transmit Power
Up to 22 dBm on 2.4 GHz
Up to 22 dBm on 5 GHz
(Maximum power is limited by regulatory domain)
Tx Beamforming (TxBF)
Increasing signal reliability and transmitting distance.
Radio Chains/Spatial Stream
2x2:2
SU-MIMO
Two (2) spatial stream SU-MIMO for 2.4GHz and four spatial stream SU-MIMO for 5GHz up to 1,774 Mbps wireless data rate to a single wireless client device under both 2.4 GHz and 5GHz radio.
MU-MIMO
Two (2) spatial streams multiple (MU)-MIMO for up to 1,200 Mbps wireless data rate to transmit to two (2) stream MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously.
Two (2) multiple (MU)-MIMO for up to 574 Mbps wireless data rate to transmit to two stream MUMIMO 11ax capable wireless client devices under 2.4GHz simultaneously.
Supported Data Rates (Mbps)
802.11ax:
2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 4)
5 GHz: 18 to 1200 (MCS0 to MSC11, NSS = 1 to 4)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 4)
802.11n: 6.5 to 300 Mbps (MCS0 to MCS15)
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11b: 1, 2, 5.5, 11
Supported Radio Technologies
802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)
802.11b: Direct-sequence spread-spectrum (DSSS)
802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)
Channelization
802.11ax supports high efficiency (HE) —HE 20/40/80 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU
Dynamic Frequency Selection (DFS) Certified
Supported Modulation
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK
Multiple BSSID
8 SSIDs for both 2.4GHz and 5GHz radios
VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN
Spanning Tree
Supports 802.1d Spanning Tree Protocol
QoS (Quality of Service)
IEEE 802.11e compliant
WMM
SNMP
v1, v2c, v3
MIB
I/II, Private MIB
Wireless Security
WPA3 Enterprise
WPA3-PSK (SAE)
WPA3/WPA2-PSK Mixed
WPA2 Enterprise
WPA2 AES-PSK
Hide SSID in Beacons
MAC Address Filtering, up to 256 MACs per SSID
Wireless STA (Client) Connected List
SSH Tunnel
Client Isolation
Wireless Monitoring
WIPS/WIDS Dedicated Dual-Band Radios
Rogue AP & Device Detection
RF Spectrum Analysis
Zero-Wait DFS
Temperature Range
Operating: 32ºF~104ºF (0ºC~40ºC)
Storage: -40ºF~176 ºF (-40ºC~80ºC)
Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less
ECW220S Device
Weight: 0.947 lbs (0.43kg)
Length: 6.30" (160 mm)
Width: 6.30" (160 mm)
Height: 1.31" (33.2 mm)
Packaging
Weight: 1.28 lbs (0.58Kg)
Length: 8.07" (205 mm)
Width: 8.07" (205 mm)
Height: 3.27" (83 mm)

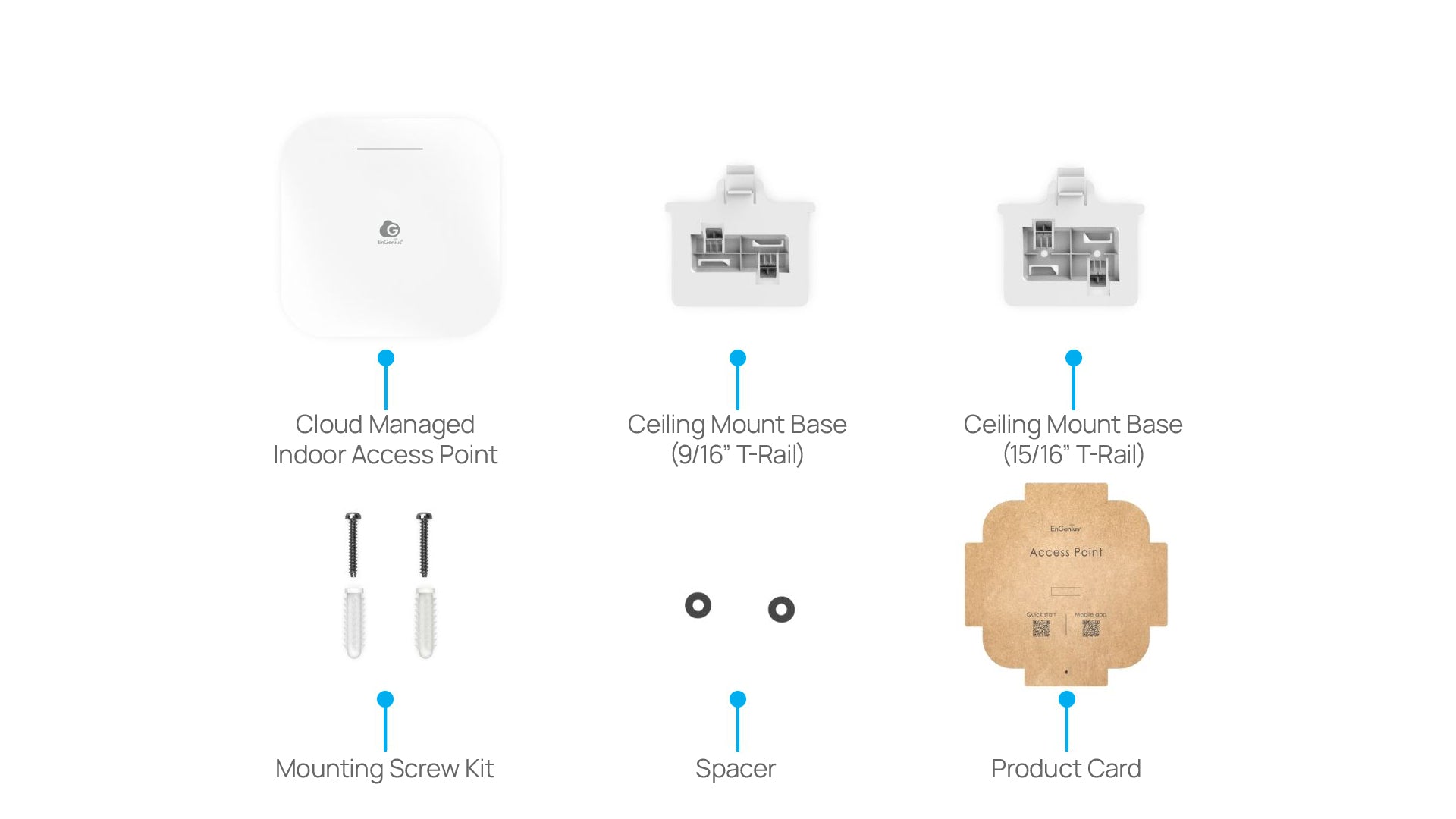

Package Contents
1 - ECW220S Cloud Managed Indoor Access Point

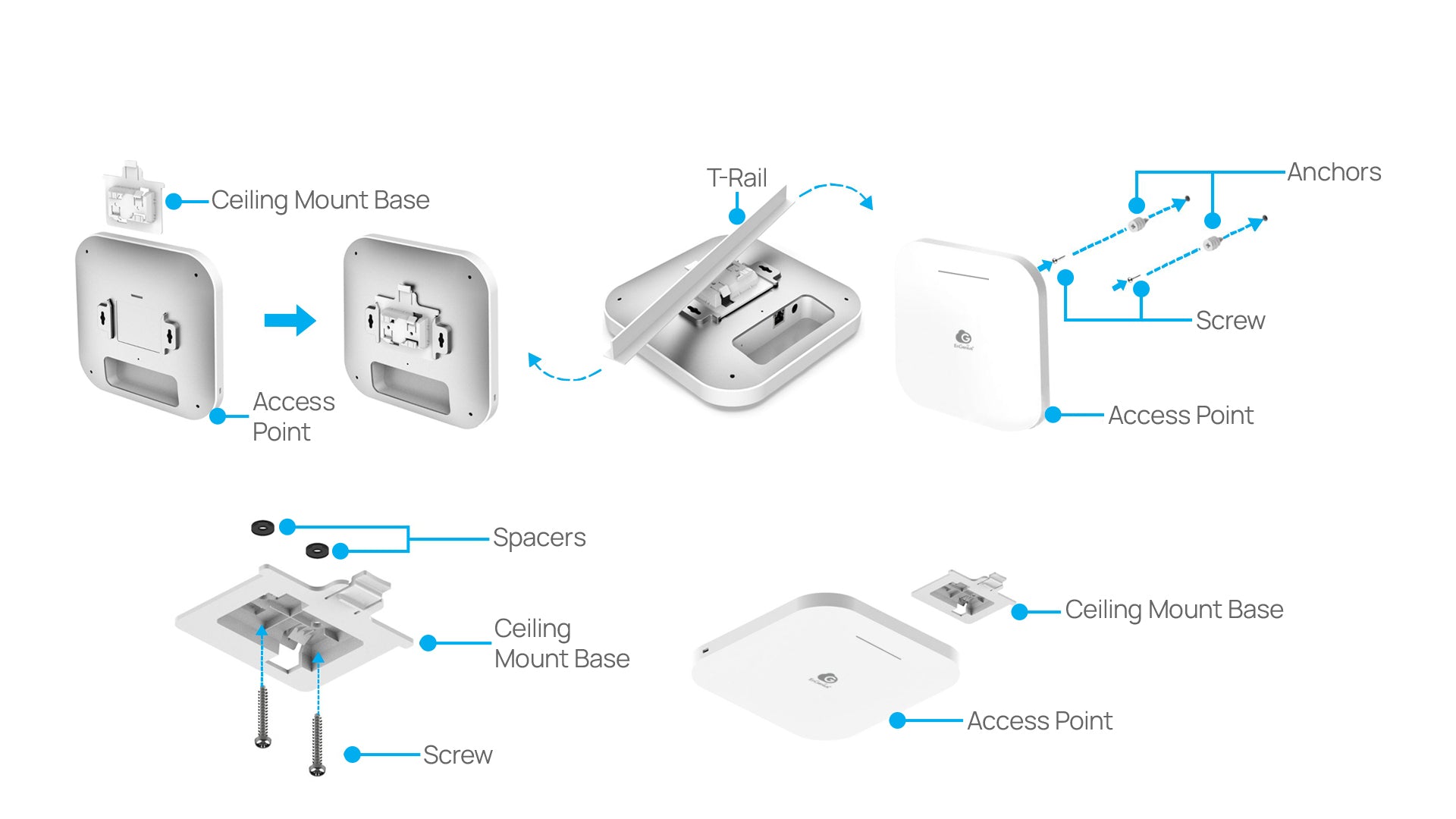

1 - Ceiling Mount Base (9/16” Trail)
1 - Ceiling Mount Base (15/16” Trail)
1 - Ceiling and Wall Mount Screw Kits
1 - Quick Installation Guide
Warranty
5 Year
Certifications
CE
FCC
