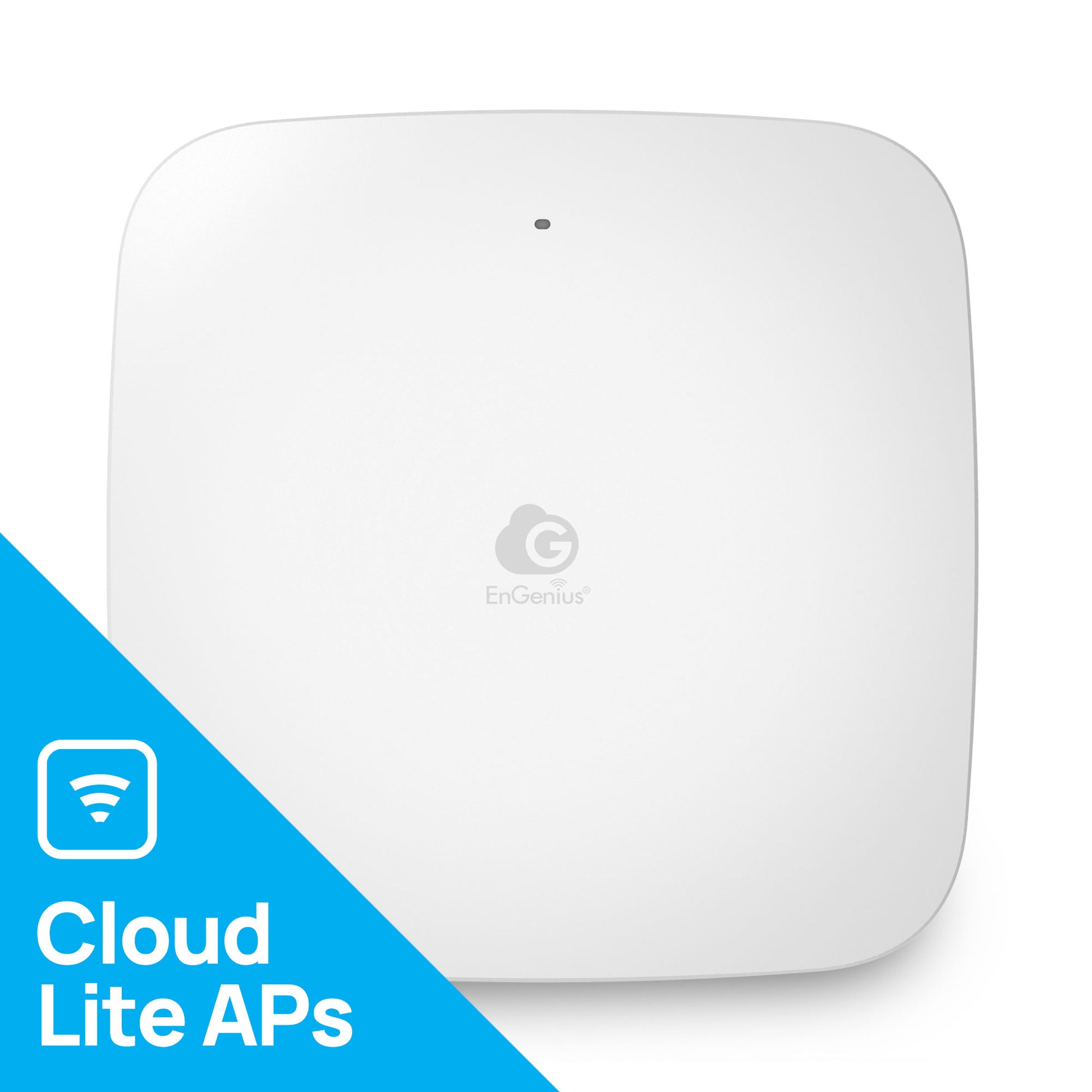

ECW210L: Cloud Managed 2×2 Lite Indoor Dual-Band WiFi 6 Access Point
Delivers up-to 2,400 Mbps (5 GHz) and 574 Mbps (2.4 GHz) of high performance for enterprises
EnGenius ECW210L Wi-Fi 6 Lite 2x2 access point (AP) offers high performance delivery speeds of 574 Mbps (2.4 GHz) and 2400 Mbps (5 GHz). This high-efficiency AP provides up to 1,000 sq. ft. of wireless coverage and can support up to 100 connected devices in small businesses.
Must be Powered over Ethernet, does not include AC Adapters.
- ECW210L Datasheet
- Cloud Managed AP Datasheet
- EnGenius Cloud User Manual
Features
Specifications
- Wi-Fi 6 delivers reliable and high performance.
- Provides Wi-Fi coverage for up to 1,000 sq. ft. and supports up to 100 connected devices.
- Smooth streaming and video conferencing with high speeds up-to 3 Gbps.
- Take advantage of Wi-Fi 6’s reliable connectivity for all your legacy devices.
- Experience faster throughput and installation flexibility with up-to 100 meters away with the 1 GbE PoE+ Port.
- Protect your Wi-Fi with the latest WPA3 enterprise and WPA3 for top-notch security.
- Easily manage all your AP’s with EnGenius Cloud and a user-friendly mobile AP from anywhere.
- Quick network setup and management with simple device registration and remote monitoring.
- Sleek and modern ceiling-mount design with LED lights, seamlessly blending into any environment.

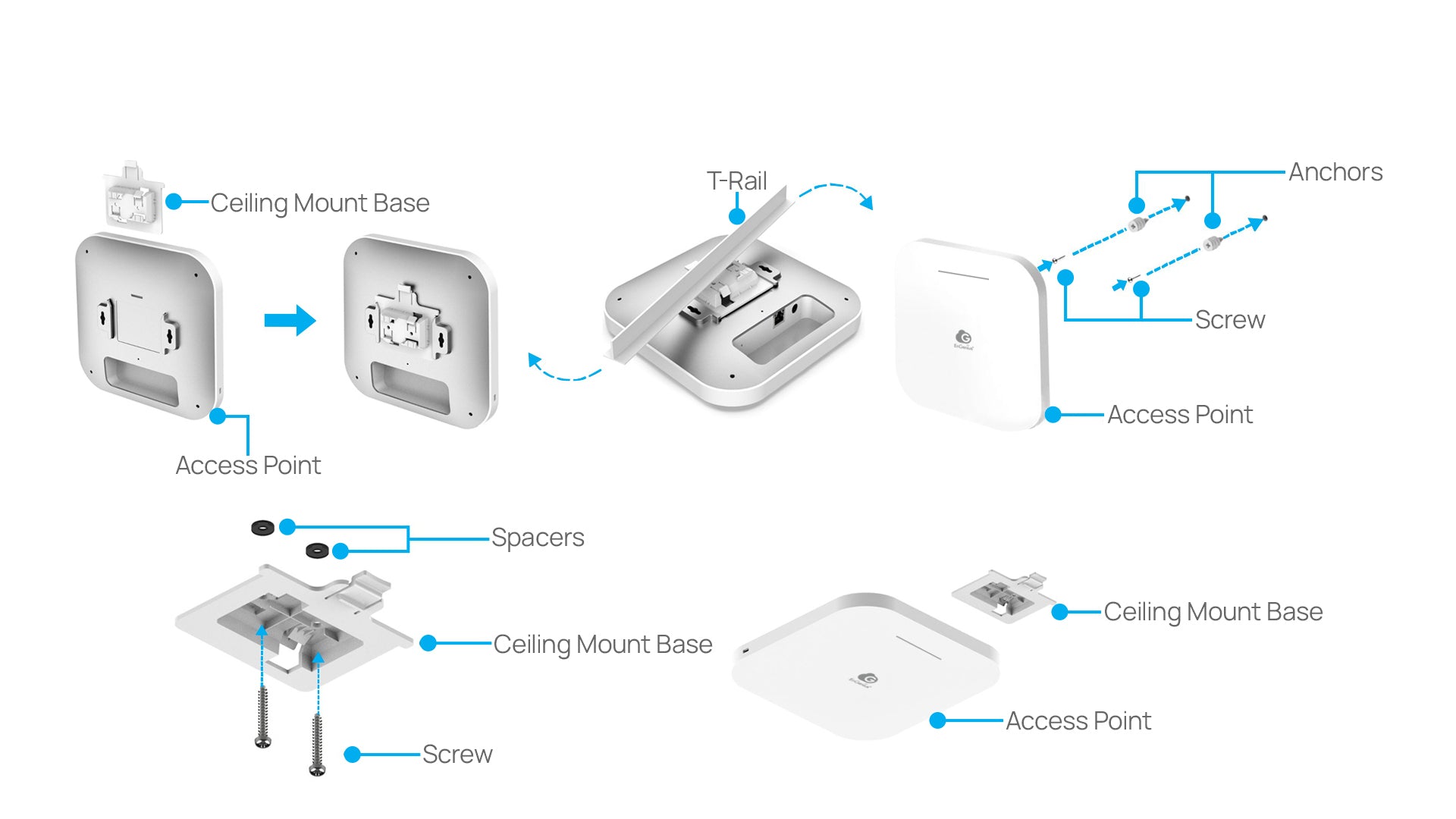

- Simple mounting and Kensington lock to ensure a hassle-free and secure installation process.
- Best for Restaurants and Cafés, Boutique Stores, Bars, Repair Shops, Law Firms Dentist Office, Urgent Care, etc.
Standards
IEEE 802.11ax on 2.4 GHz
IEEE 802.11ax on 5 GHz
Backward compatible with 802.11a/b/g/n/ac
Processor
Qualcomm® Dual-Core CPU ARM Cortex A53 @ 1.0GHz
Antenna
2 x 2.4 GHz: 4 dBi
2 x 5 GHz: 5 dBi
Integrated Omni-Directional Antenna

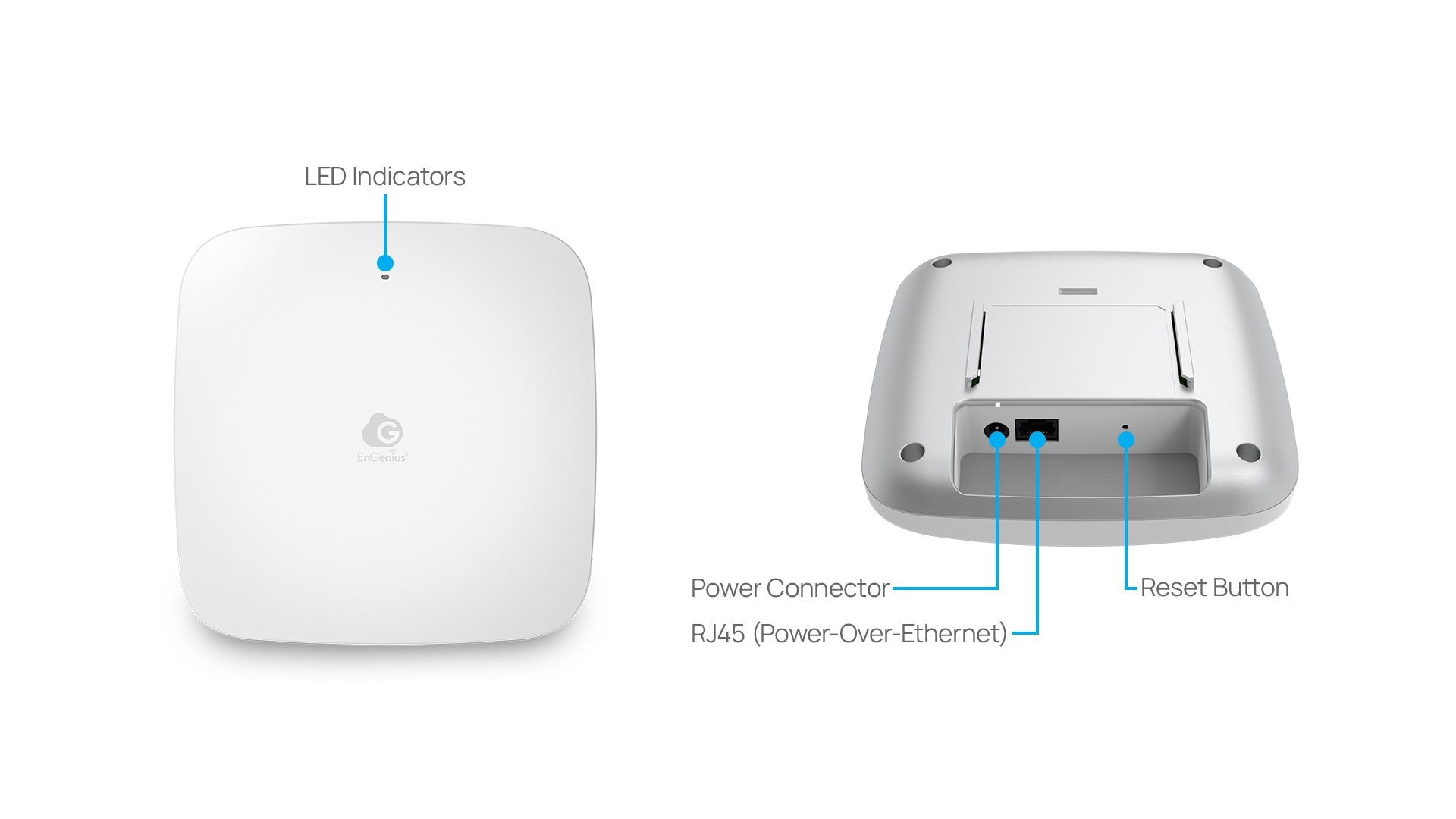

Physical Interface
1 x 10/100/1000 BASE-T, RJ-45 Ethernet Port
1x DC Jack
1 x Reset Button
LED Indicators
1 x Colors LEDs
Power Source
Power-over-Ethernet: 802.3at Input
12VDC /1.5A
Maximum Power Consumption
10.7W
Operating Frequency
Dual-Radio Concurrent 2.4 GHz & 5 GHz
Operation Modes
AP

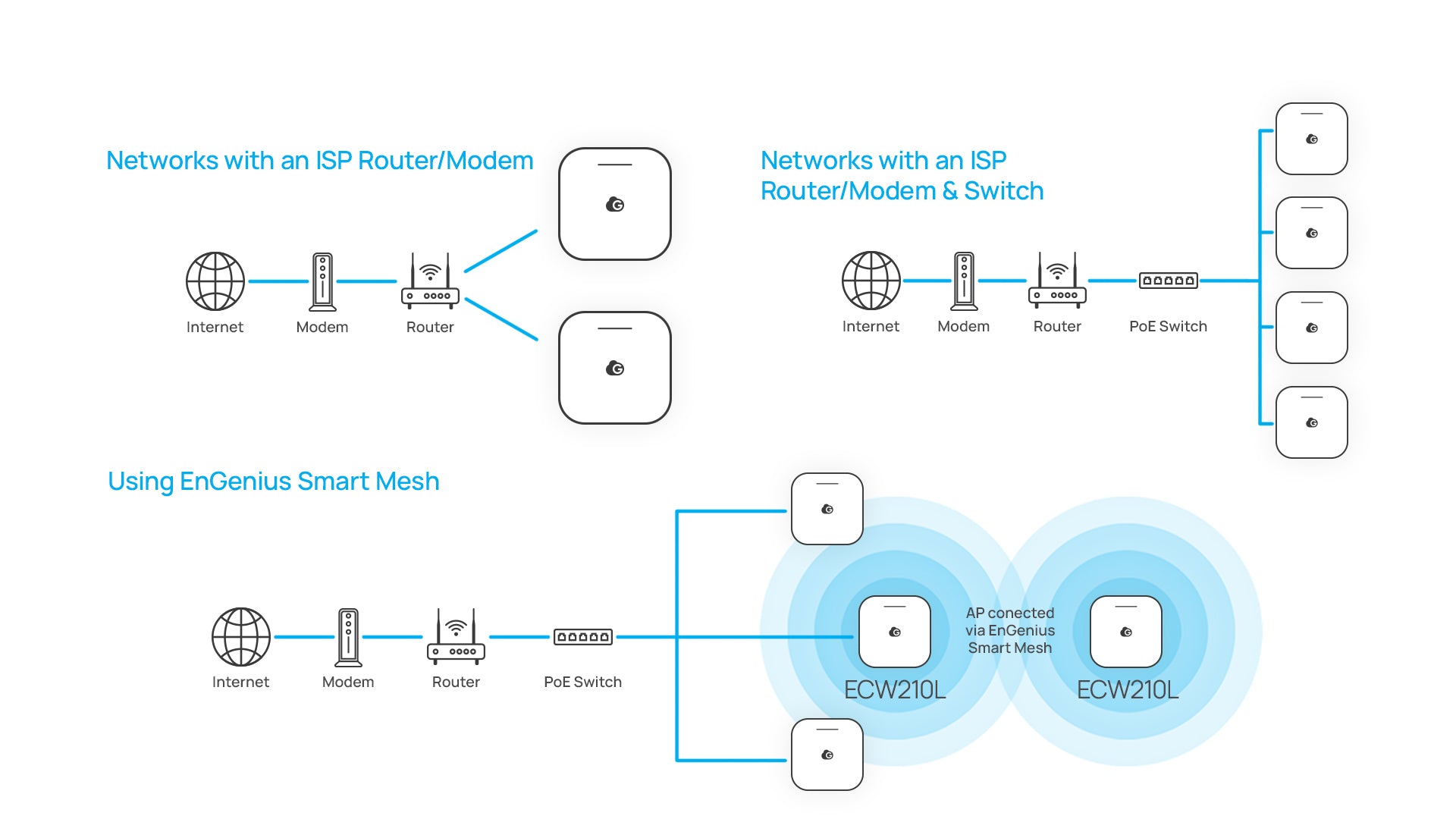

Mesh
AP Mesh
Frequency Radio
2.4 GHz: 2400 MHz ~ 2482 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
Transmit Power
Up to 21 dBm on 2.4 GHz
Up to 21 dBm on 5 GHz
Tx Beamforming (TxBF)
Radio Chains/Spatial Stream
2x2:2
SU-MIMO
Two (2) spatial streams SU-MIMO for 2.4GHz and two (2) spatial streams SU-MIMO for 5GHz up to 2,400Mbps wireless data rate to a single 11ax wireless client device under both the 2.4G Hz and 5GHz radios.
MU-MIMO
Two (2) spatial streams Multiple (MU)-MIMO for up to 2400 Mbps wireless data rate to transmit to one (1) two streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously.
Two (2) multiple (MU)-MIMO for up to 574 Mbps wireless data rate to transmit to one (1) two streams MU-MIMO 11ax capable wireless client devices under 2.4GHz simultaneously.
Supported Data Rates (Mbps):
802.11ax:
2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 2)
5 GHz: 18 to 1200 (MCS0 to MSC11, NSS = 1 to 2)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 300 Mbps (MCS0 to MCS15)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)
Supported Radio Technologies
802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)
802.11b: Direct-sequence spread-spectrum (DSSS)
802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)
Channelization
802.11ax supports very high throughput (HE) —VHT 20/40/80/160 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU
Supported Modulation
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK
Multiple BSSID
8 SSIDs for both 2.4GHz and 5GHz radios.
VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN
Spanning Tree
Supports 802.1d Spanning Tree Protocol
QoS (Quality of Service)
Compliant With IEEE 802.11e Standard
WMM
SNMP
v1
v2c
v3
MIB
I/II
Private MIB
Wireless Security
WPA3-PSK (SAE)
WPA3 Enterprise
WPA2 Enterprise (AES)
WPA2 AES-PSK
OWE
Hide SSID in Beacons
MAC Address Filtering, Up to 32 MACs per SSID
Wireless STA (Client) Connected List
SSH Tunnel
Client Isolation
Temperature Range
Operating: 32ºF~104ºF (0 ºC~40 ºC)
Storage: -40 ºF~176 ºF (-40 ºC~80 ºC)
Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less
ECW210L Device
Weight: 0.83 lbs. (380 g)
Length: 6.30" (160 mm)
Width: 6.30" (160 mm)
Height: 1.18" (30 mm)
ECW210L Packaging
Weight: 1.10 lbs. (500 g)
Length: 10.35" (263 mm)
Width: 6.41" (163 mm)
Height: 1.49" (38 mm)

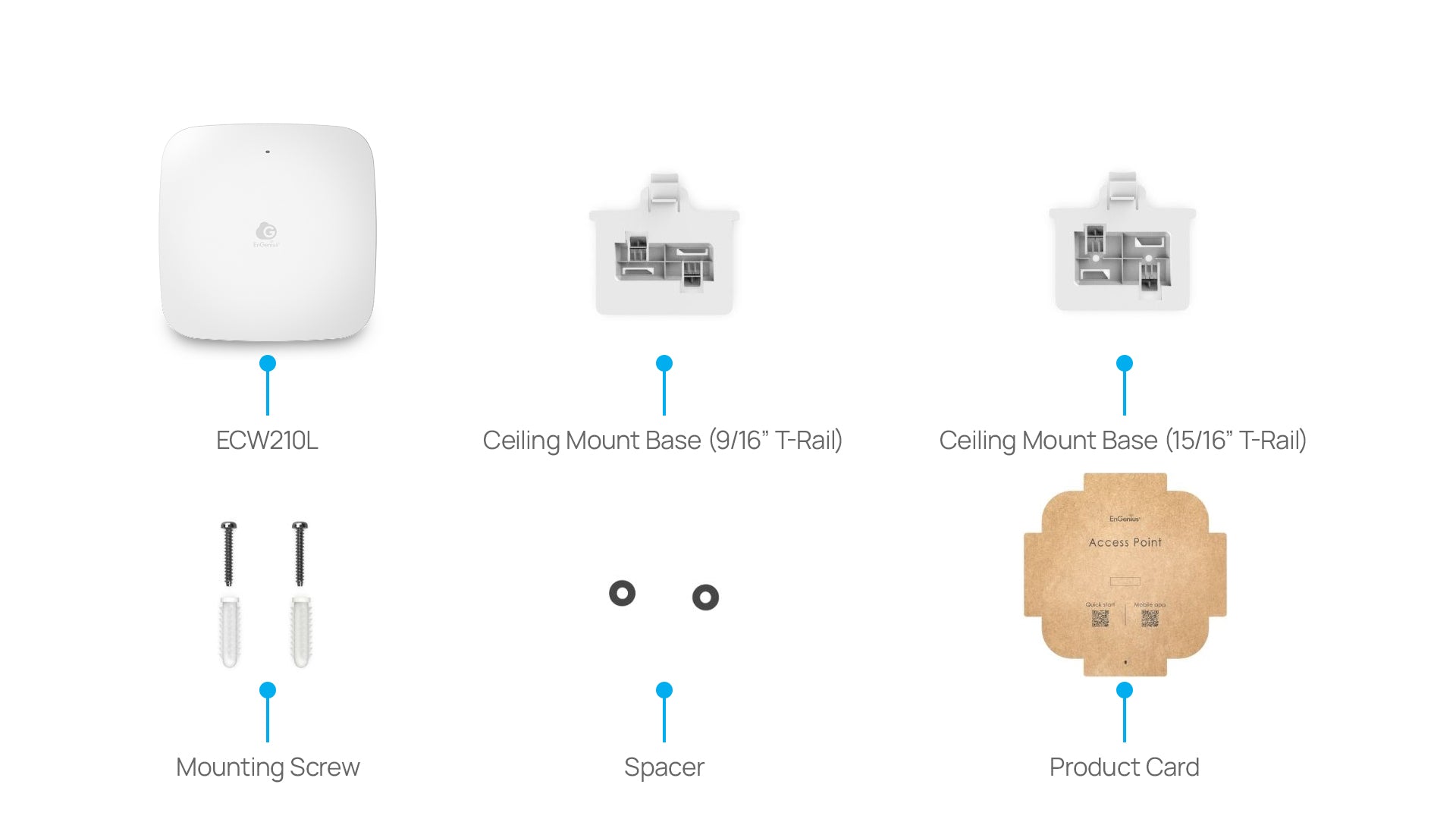

Package Contents
1 - ECW210L Cloud Managed Indoor Access Point
1 – Ceiling Mount Base (9/16” Trail)
1 – Ceiling Mount Base (15/16” Trail)
1 - Ceiling and Wall Mount Screw Kits
Quick Start Guide QR Code
Mobile App QR Code
Certifications
FCC
CE
IC
Warranty
1 Year
