ECW215: Wi-Fi 6 Cloud-Managed Wall Plate Access Point
Provides exceptional in-room wired and wireless connectivity
EnGenius Cloud Managed ECW215 Wi-Fi 6 dual-band 2x2:2 wall plate access point that is powered by Qualcomm®. It offers a built-in 2-port gigabit switch, with port 2 supporting PoE power transfer to other PoE devices, providing exceptional in-room wired and wireless connectivity for superior entertainment in hotel rooms, student housing, assisted living, senior living, multi-tenant dwellings, and classrooms.
Must be Powered over Ethernet, does not include AC Adapters.
- ECW215 Datasheet
- Cloud Managed AP Datasheet
- EnGenius Cloud User Manual
Shipping & Returns
Not satisfied? We allow returns within 30 days of product purchase
Management
This product is compatible with the EnGenius Cloud line of products
Wall Plate
Provides exceptional in-room wired and wireless connectivity
5-Year Warranty
Leave the worrying to us. We've got you covered on your hardware purchase.
Features
Specifications
- Dual-band 802.11ax 2x2 supports up-to 1,200 Mbps (5 GHz) & 574 Mbps in 2.4-GHz

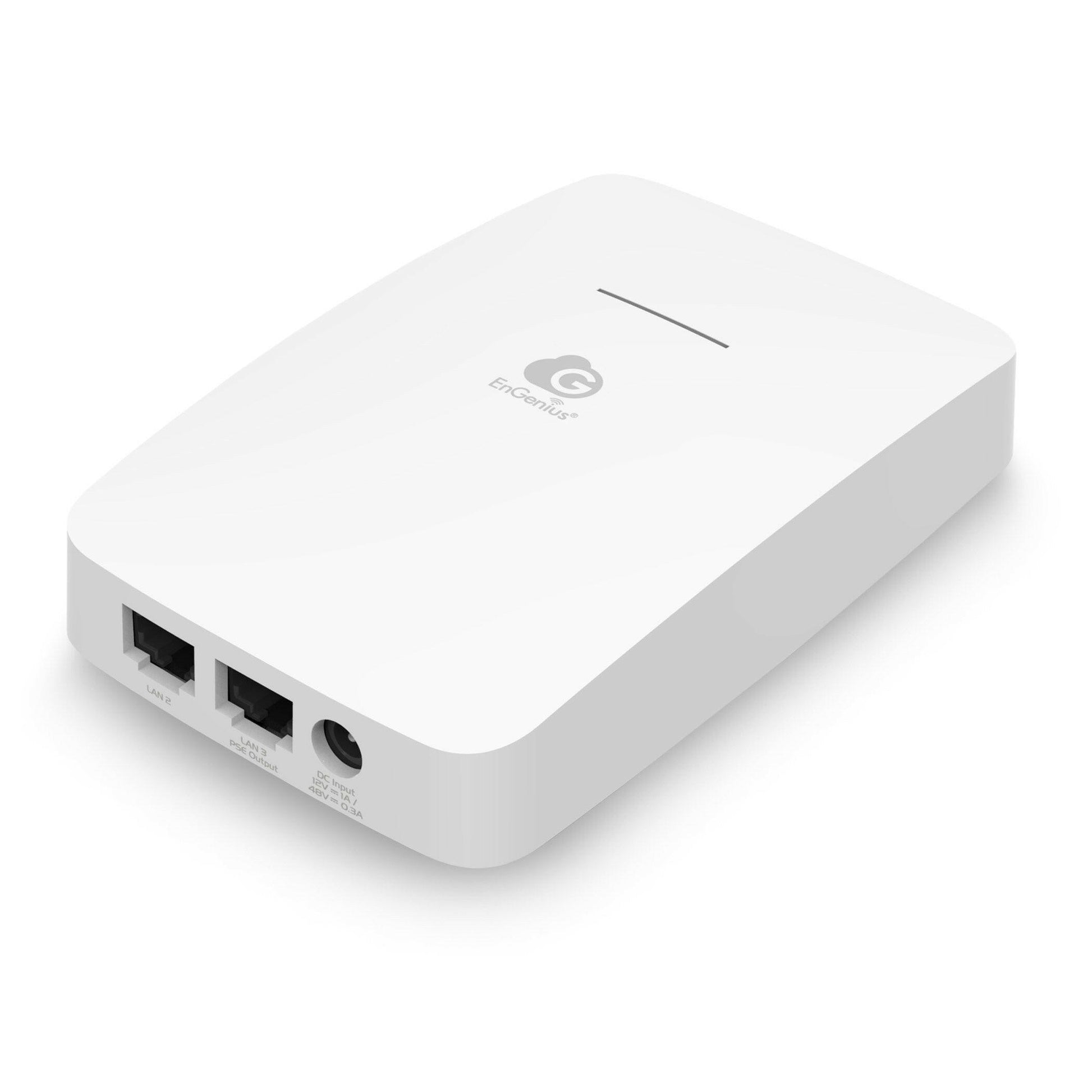

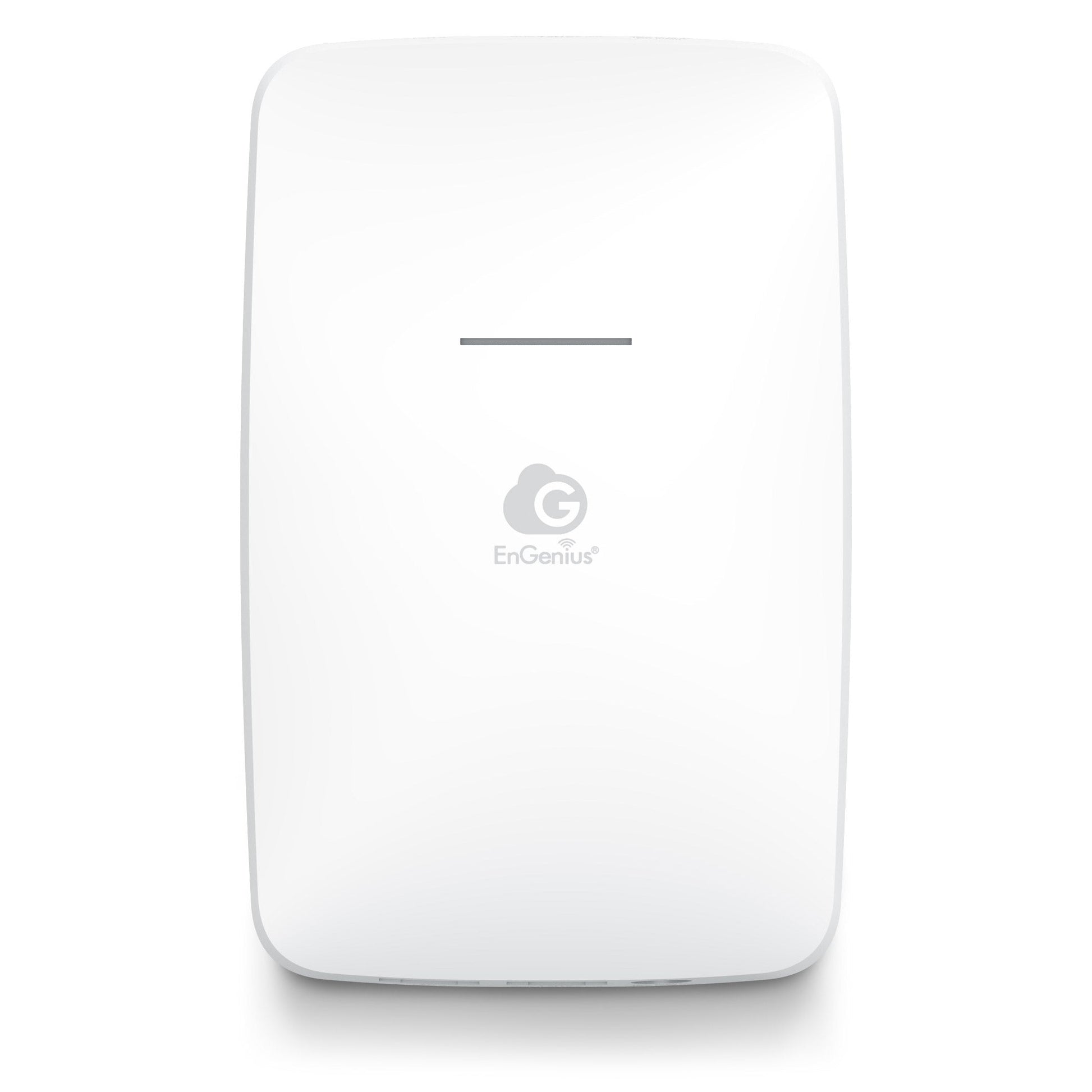

- Sleek, low-profile design for in-room Wi-Fi & wired connectivity
- On-board 2-port switch offers port-based 802.1Q VLAN support
- LAN1 & LAN2 support 802.3af/at PoE input for flexible installation up-to 328 feet
- Connect & power VoIP phones or other PoE devices with PSE Support
- SmartCasting to personalize in-room media with mobile device streaming to TV’s
- Extend SSID settings to LAN ports & provide captive portal, splash page, and advanced security
- Mesh wireless support simplifies setup, optimizes signals & self-heals
Standards
IEEE 802.11ax on 2.4 GHz
IEEE 802.11ax on 5 GHz
Backward compatible with 802.11b/g/n/ac
Processor
Qualcomm® Quad-Core CPU ARM Cortex A53s @ 1.0GHz
Antenna
2 x 2.4 GHz: 4 dBi
2 x 5 GHz: 5 dBi
Integrated Omni-Directional Antenna

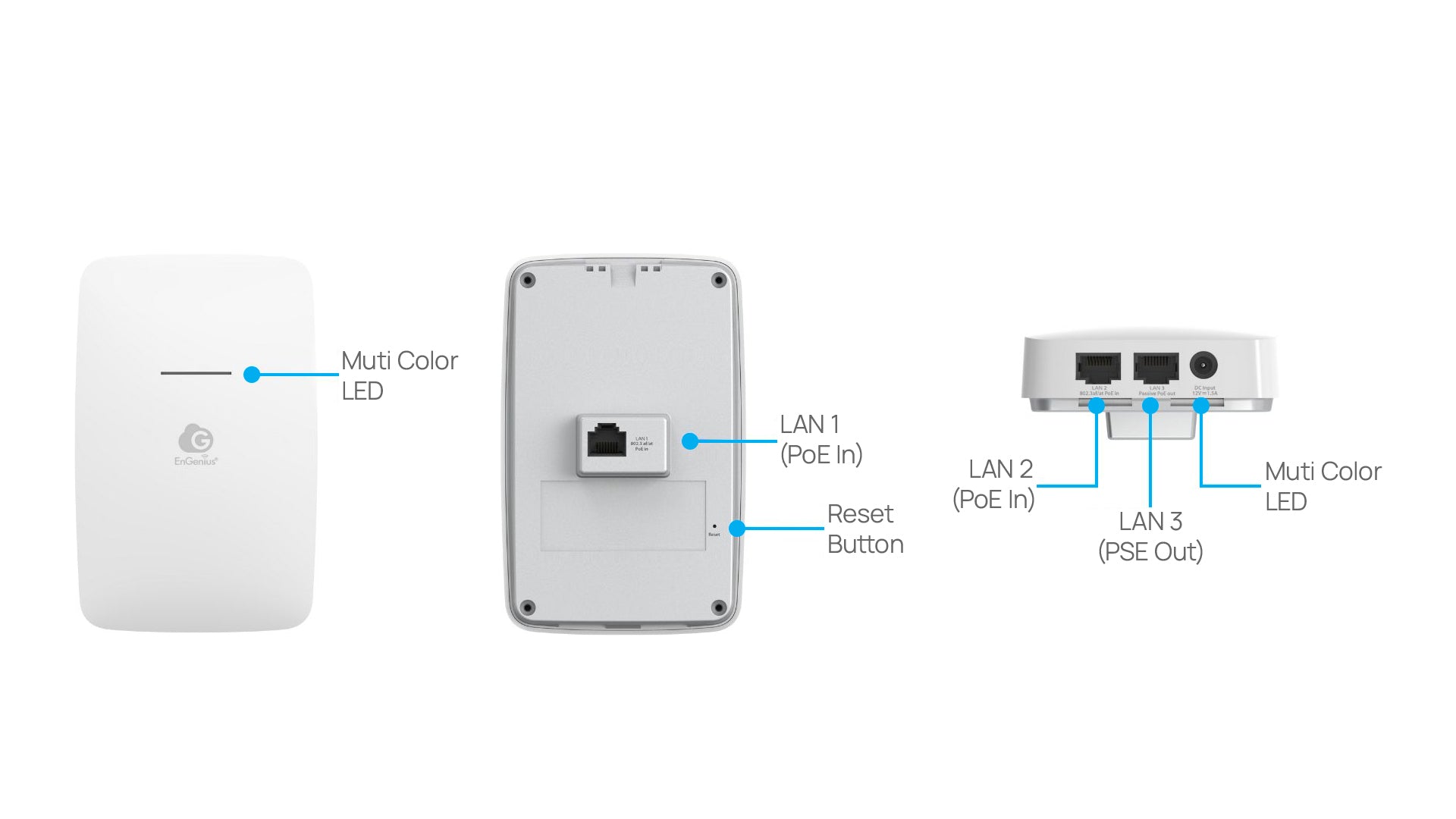

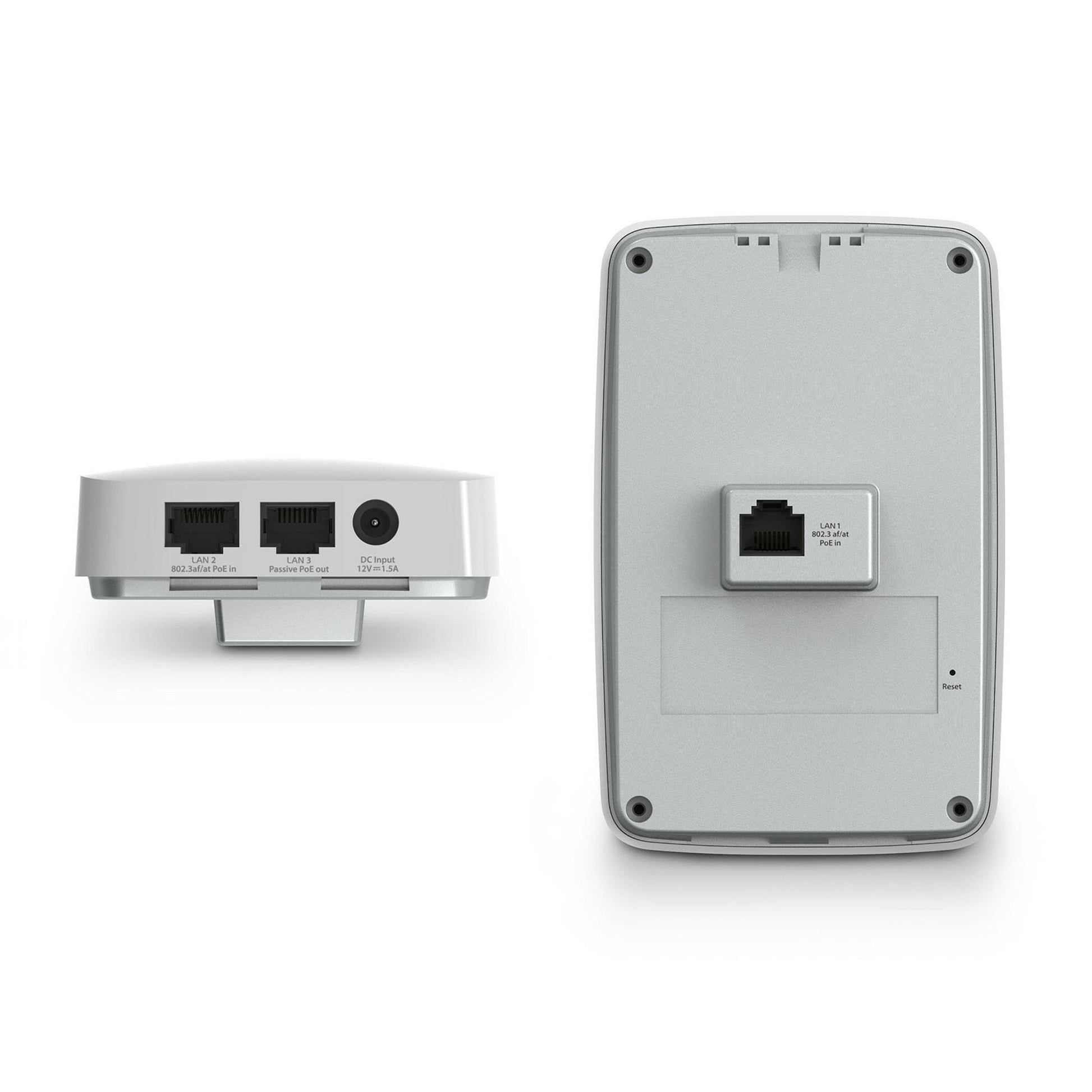

Physical Interface

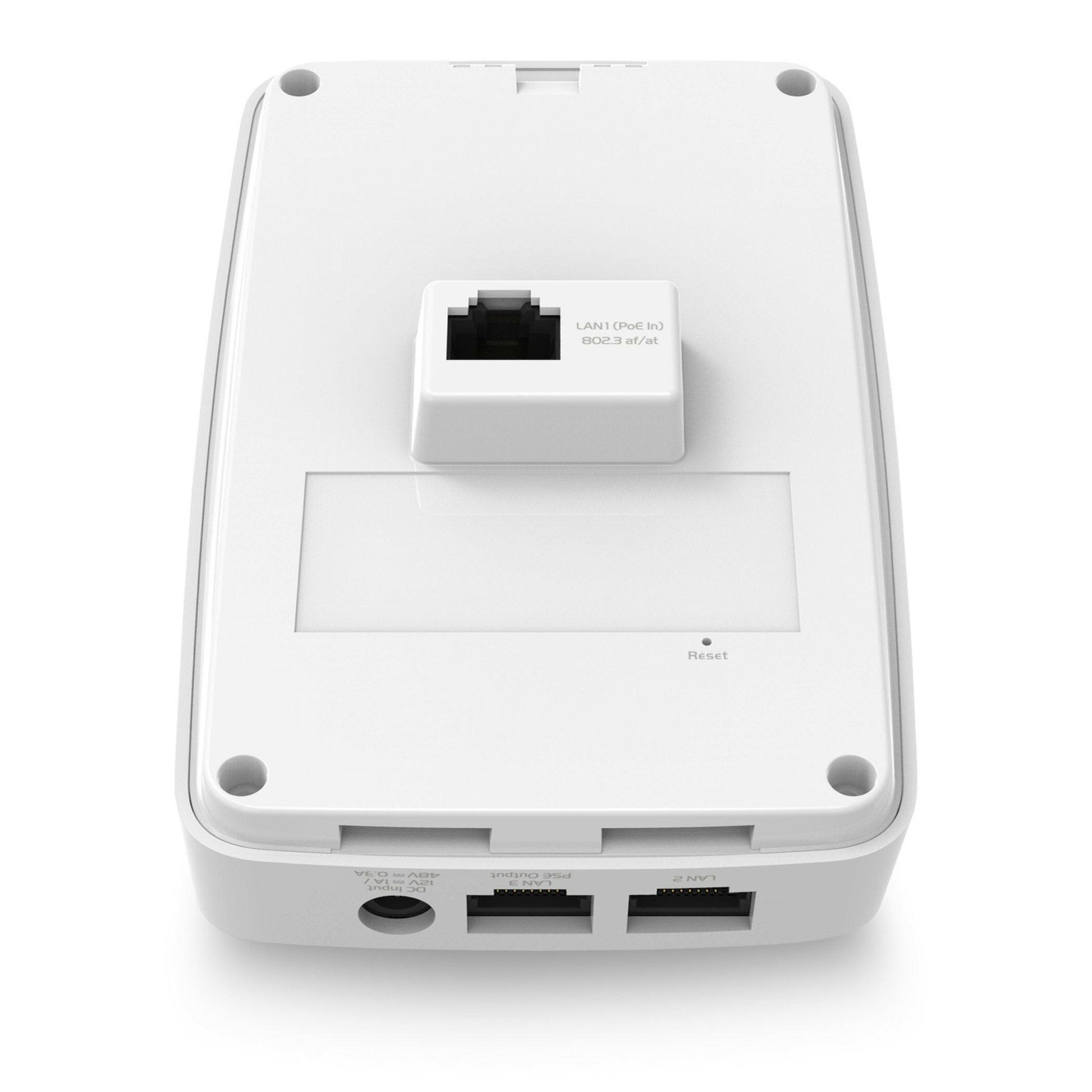

1 x 10/100/1000 Mbps Ethernet Uplink Port (back plate)
2 x 10/100/1000 Mbps Ethernet Switched Ports (client ports)
- Port 3 PoE PSE (ECW215 requires 802.3at power source)
1 x Reset Button
1 x DC Jack
LED Indicators
1 x Multi- color LED for following behavior
- Power up
- Cloud connecting
- Disconnected
Power Source
Power-over-Ethernet: 802.3af/at Input
- PoE Output w/ 802.3at Input
IEEE 802.11e Compliant Source
DC Jack: 12V/1.5A 48V
Maximum Power Consumption
14.2W
Operating Frequency
Dual-Radio Concurrent 2.4 GHz & 5 GHz
Operation Modes
AP, AP Mesh, Mesh
Frequency Radio
2.4 GHz: 2400 MHz ~ 2482 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
Transmit Power
Up to 20 dBm on 2.4 GHz
Up to 20 dBm on 5 GHz
Tx Beamforming (TxBF)
Radio Chains/Spatial Stream
2x2:2
SU-MIMO
Two (2) spatial streams SU-MIMO for 2.4GHz and two (2) spatial streams SU-MIMO for 5GHz up to 1,774Mbps wireless data rate to a single 11ax wireless client device under both 2.4GHz and 5GHz radio.
MU-MIMO
Two (2) spatial streams multi-user (MU)-MIMO for up to 1,200 Mbps wireless data rate to transmit to one (1) two streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously.
Two (2) spatial streams multi-user (MU)-MIMO for up to 574 Mbps wireless data rate to transmit to one (1) two streams MU-MIMO 11ax capable wireless client devices under 2.4GHz simultaneously.
Supported Data Rates (Mbps)
802.11ax:
2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 2)
5 GHz: 18 to 1200 (MCS0 to MSC11, NSS = 1 to 2)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 300 Mbps (MCS0 to MCS15)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)
Supported Radio Technologies
802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)
802.11b: Direct-sequence spread-spectrum (DSSS)
802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)
Channelization
802.11ax supports high efficiency (HE) —HE 20/40/80 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU
Supported Modulation
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK
Multiple BSSID
8 SSIDs for both 2.4GHz and 5GHz radios
VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN
Spanning Tree
Supports 802.1d Spanning Tree Protocol
QoS (Quality of Service)
Complaint with IEEE 802.11e Standard
WMM
SNMP
v1, v2c, v3
MIB
I/II, Private MIB
Wireless Security
WPA3 Enterprise
WPA3-PSK (SAE)
WPA3/WPA2-PSK Mixed
WPA2 Enterprise
WPA2 AES-PSK
Hide SSID in Beacons
MAC Address Filtering, up to 256 MACs per SSID
Wireless STA (Client) Connected List
SSH Tunnel
Client Isolation
L2 Isolation
Temperature Range
Operating: 32ºF~104ºF (0 ºC~40 ºC)
Storage: -40 ºF~176 ºF (-30 ºC~80 ºC)
Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less
ECW215 Device
Weight: .80 lbs. (.363 Kg)
Length: 5.5” (140 mm)
Width: 3.5” (90 mm)
Height: 1.6” (40 mm)
Packaging
Weight: .86 lbs. (.390 Kg)
Length: 7.375” (187.3 mm)
Width: 5.375” (136.5 mm)
Height: 2.75” (69.9 mm)

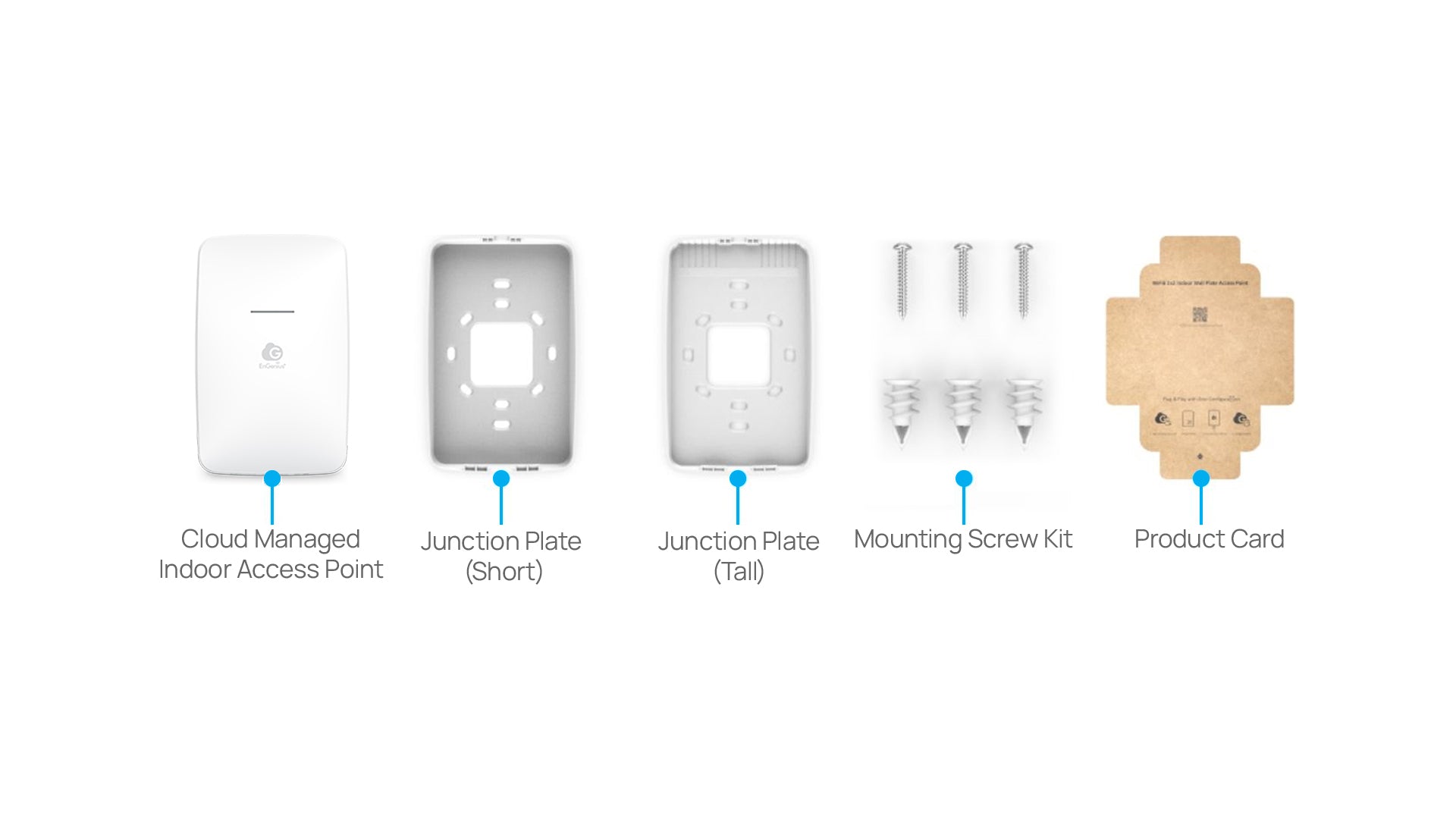

Package Contents
1 - ECW215 Cloud Managed Indoor Access Point

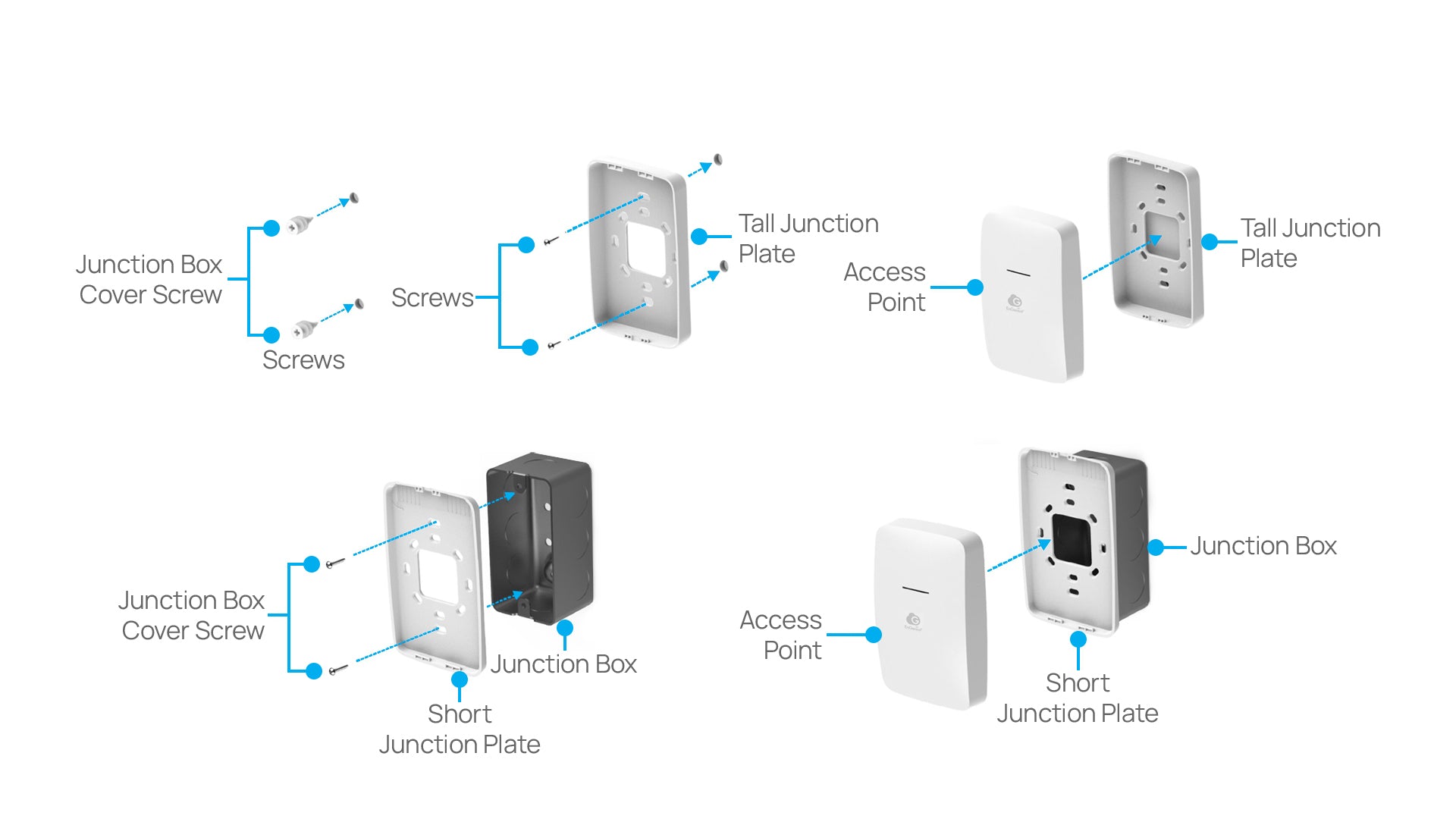

1 - Ceiling and Wall Mount Screw Kits
2 - Junction-plates (tall/short)
1 - Quick Installation Guide
Certifications
FCC
CE
IC
Warranty
5 Year
