ECW270: Cloud Managed 4×4 WiFi 6 Outdoor Access Point

• Highest-rated, IP68-rated waterproof & dustproof housing withstands extreme WiFi outdoor environments

• Detachable four (4) 7 dBi 5 GHz & four (4) 5 dBi 2.4 GHz, Omni 360° N-type antennas

• Supports up to 2,400 Mbps in 5-GHz band & 1,200 Mbps in 2.4-GHz band

• Dual-band 802.11ax & backward-compatible with 11ac/a/b/g/n client devices

• 2.5 GigE PoE++ compatible port for easy placement in outdoor spaces

• 1 GigE port with PSE (802.3af/at) to power-up IP-cameras or other compliant devices

• High-powered radios to increase meshing distances on either 2.4 GHz or 5 GHz

• Built-in surge and ESD (electro-static discharge) protection

• Wide outdoor operation ranges from -4°F ~ +149°F (-20°C ~ +65°C)

• Cloud-manage unlimited number of APs from anywhere with the EnGenius Cloud app

• Real-time AP diagnostics, deep-dive analytics, and remote configurations

• No access point licensing or subscription fees needed

Standards
IEEE 802.11b/g/n/ax on 2.4GHz
IEEE802.11a/n/ac/ax on 5GHz

Processor
Qualcomm® Quad-Core CPU ARM Cortex A53s @ 2.2GHz

Antenna
Four (4) External 7 dBi 5 GHz Detachable N-Type Antennas
Four (4) External 5 dBi 2.4 GHz Detachable N-Type Antennas

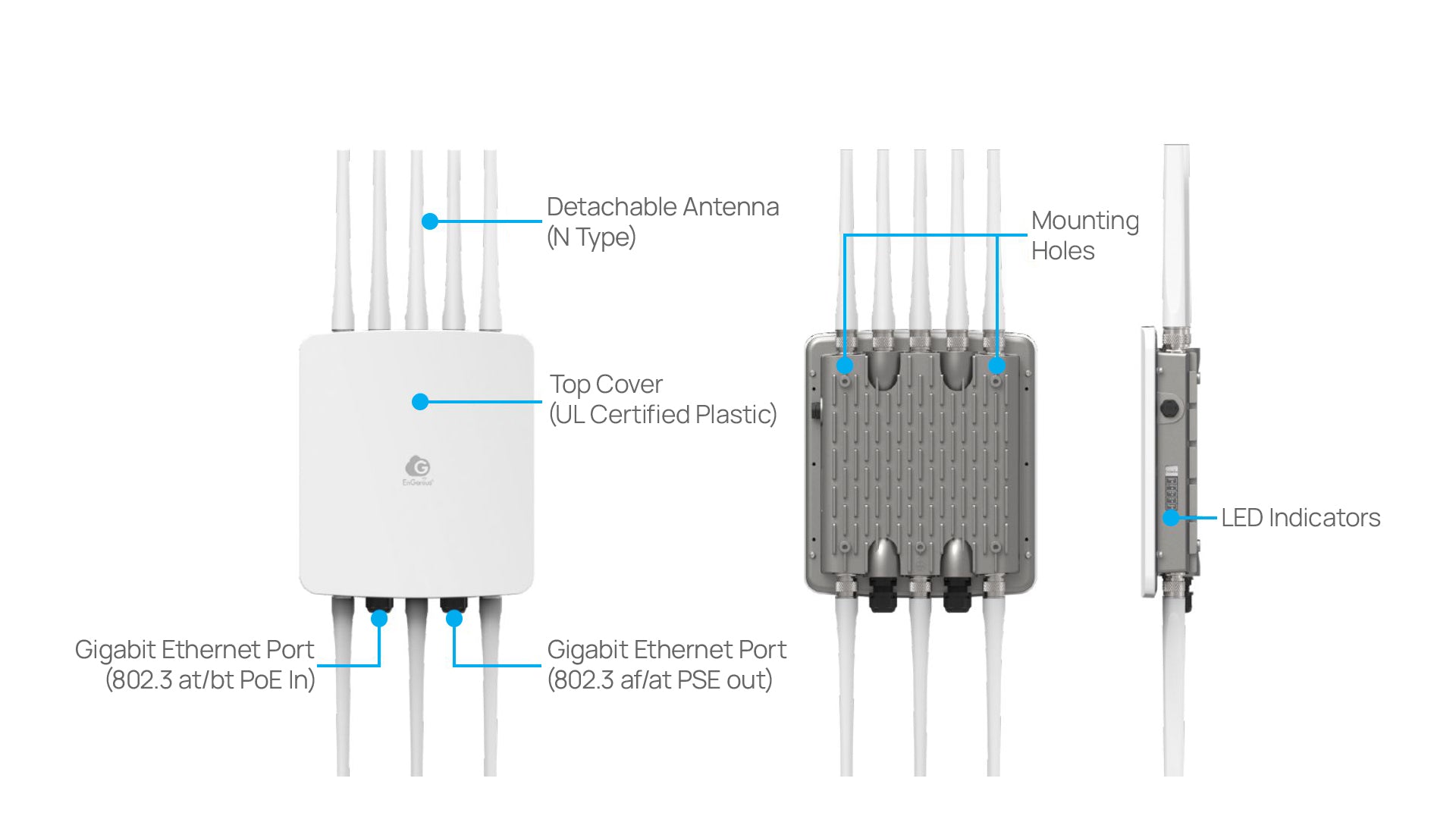

Physical Interface
1 x 10/100/1000/2500 BASE-T, RJ-45 Ethernet Port
1 x 10/100/1000 BASE-T, RJ-45 Ethernet Port (PoE+ PSE out)

LED Indicators
1 x Power
1 x LAN
1 x LAN 2
1 x 2.4 GHz
1 x 5 GHz

Power Source
Power-over-Ethernet: 802.3at/bt
Proprietary 48V – 54V
IEEE 802.11e Compliant Source
Active Ethernet (PoE)

Maximum Power Consumption
46W

Surge Protection
1KV

ESD Protection
Contact: 4KV
Air: 8 KV

Operating Frequency
Dual-Radio Concurrent 2.4GHz & 5 GHz

Operation Modes
AP, Mesh, AP Mesh

Frequency Radio
2.4GHz: 2400 MHz ~ 2482 MHz
5GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725MHz ~ 5850MHz

Transmit Power
2.4GHz: 24 dBm
5GHz: 24 dBm
Maximum power is limited by regulatory domain

Tx Beamforming (TxBF)
Increasing signal reliability and transmitting distance.

Radio Chains/Spatial Stream
4x4:4

SU-MIMO
Four (4) spatial streams SU-MIMO for 2.4GHz and four (4) spatial streams SU-MIMO for 5GHz up to 3,600 Mbps wireless data rate to a single 11ax wireless client device under both 2.4G Hz and 5GHz radio.

MU-MIMO
Four (4) spatial streams multi-user (MU)-MIMO for up to 2,400 Mbps wireless data rate to transmit to one (1) four streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously

Four (4) spatial streams multi-user (MU)-MIMO for up to 1,200 Mbps wireless data rate to transmit to one (1) four streams MU-MIMO 11ax capable wireless client devices under 2.4GHz simultaneously.

Supported Data Rates (Mbps)
802.11ax:
2.4 GHz: 9 to 1148 (MCS0 to MCS11, NSS = 1 to 2)
5 GHz: 18 to 2400 (MCS0 to MSC11, NSS = 1 to 2)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 600 Mbps (MCS0 to MCS15)
802.11ac: 6.5 to 1733 Mbps (MCS0 to MCS9, NSS = 1 to 2)

Supported Radio Technologies
802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)
802.11b: Direct-sequence spread-spectrum (DSSS)
802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)

Channelization
802.11ax supports high efficiency (HE) —HE 20/40/80 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM) 802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU

Supported Modulation
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK

Multiple BSSID
8 SSIDs for both 2.4GHz and 5GHz radios

VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-band VLAN Pass Through
Management VLAN

Spanning Tree
Supports 802.1d Spanning Tree Protocol

QoS (Quality of Service)
Complaint With IEEE 802.11e Standard WMM

SNMP
v1, v2c, v3

MIB
I/II, Private MIB

Wireless Security
WPA3-PSK (SAE)
WPA3 Enterprise
WPA2 Enterprise (AES)
WPA2 AES-PSK
OWE
Hide SSID in Beacons
MAC Address Filtering, up to 32 MACs per SSID
Wireless STA (Client) Connected List
SSH Tunnel
Client Isolation

Temperature Range
Operating: -4º~149ºF/-20ºC~65ºC
Storage: -40Fº~176ºF/-30ºC~80ºC

Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less

Waterproof & Dustproof
IP68-Rated Enclosure

ECW270 Device
Weight: 4.12lbs. (1.87kg)
Width: 8.58” (218 mm)
Length: 11.22” (285 mm)
Height” 2.18” (55.5 mm)

Packaging
Weight: 3.33 lbs. (1.51kg)
Width: 9.21" (234 mm)
Length: 11.18" (284 mm)
Height: 5.67" (144 mm)

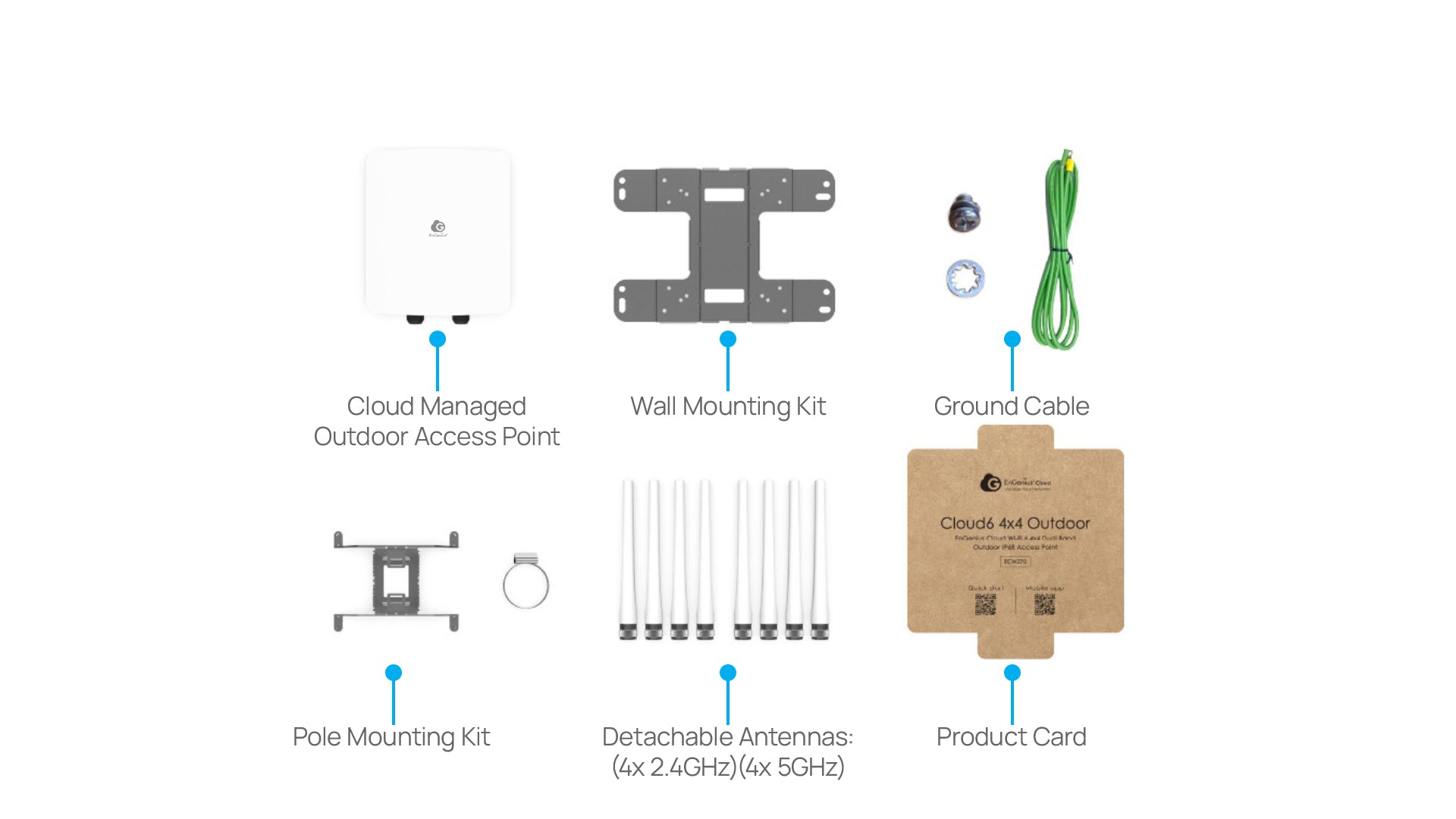

Package Contents
1 – ECW270 Cloud Managed Outdoor Access Point

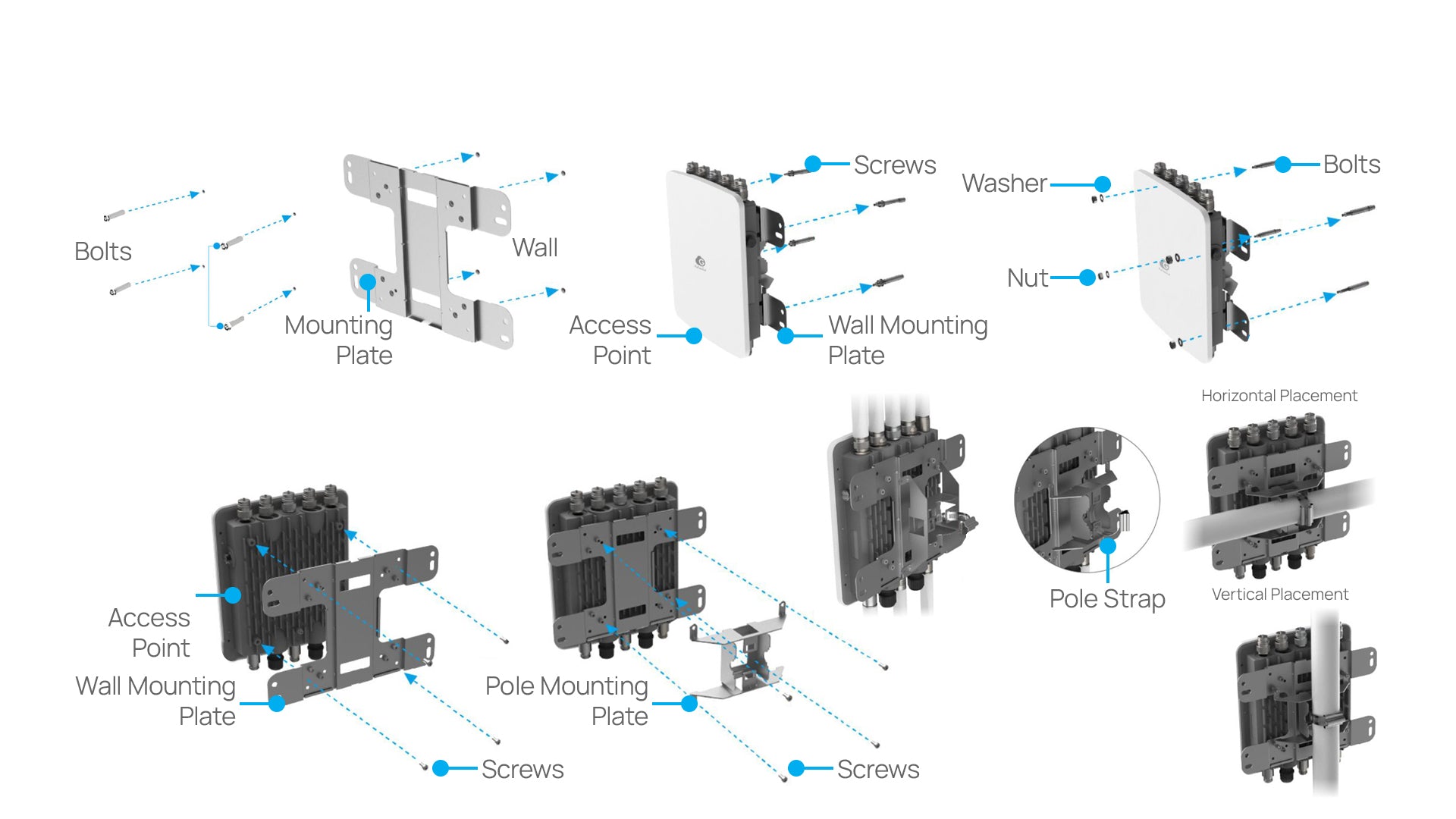

1 - Pole-Mounting Brackets
1 - Wall-Mount Screw Set
4 - 2.4 GHz 5dBi N-Type Antennas
4 – 5 GHz 7dBi N-Type Antennas
1 - Quick Installation Guide

Certifications
FCC
CE
IC

Warranty
2 Year
