ECW160: Cloud Managed 11ac Wave 2 2×2 Outdoor Wireless Access Point
ECW160: Cloud Managed 11ac Wave 2 2×2 Outdoor Wireless Access Point
Delivers higher speeds and user capacity and supercharges performance faster than 11ac Wave 1 APs

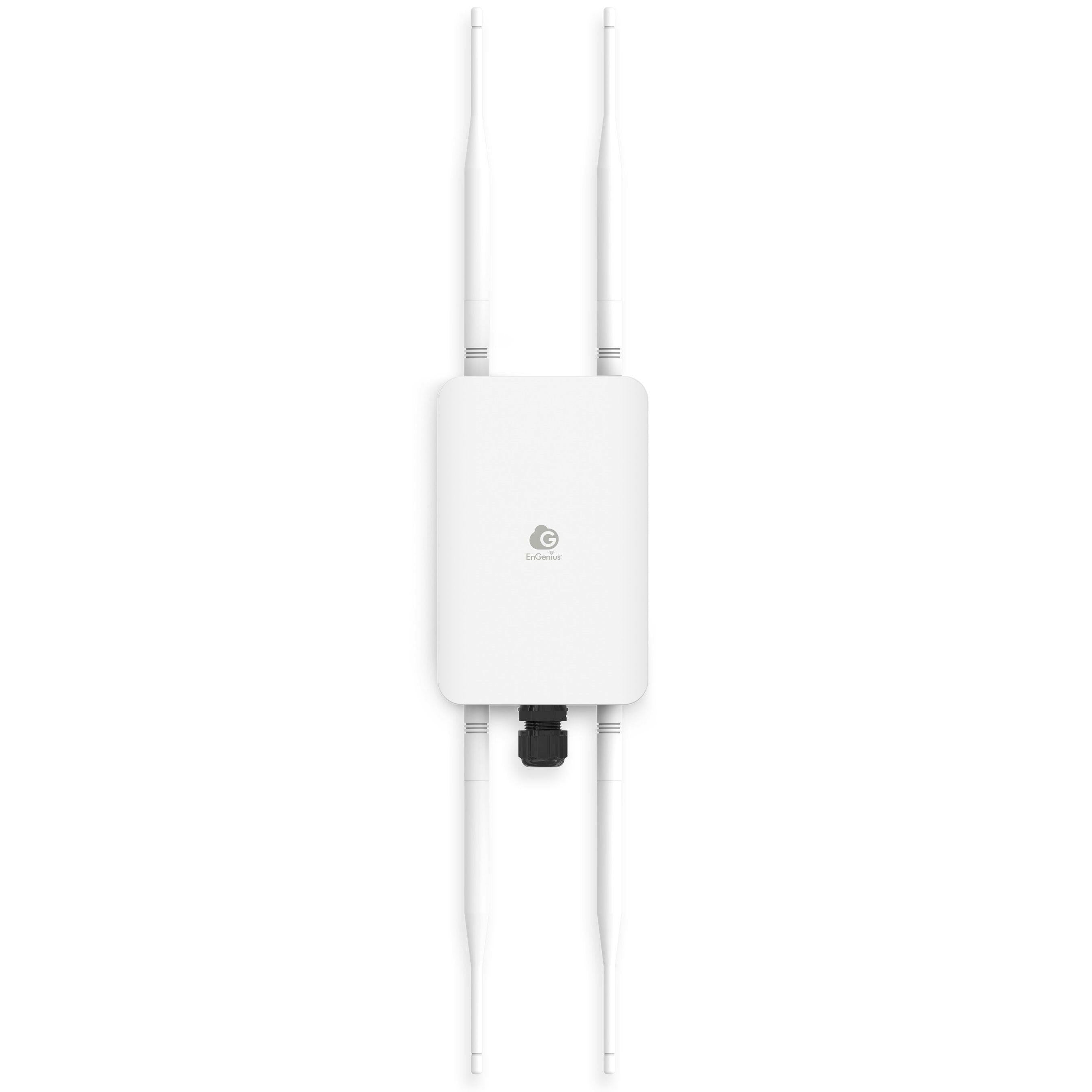

EnGenius Cloud Managed ECW160 11ac Wave 2, 2x2, IP67, MU-MIMO Dual-Band Outdoor Mesh WiFi Wireless Access Point reaching speeds to 867Mbps on 5GHz and 400Mbps on 2.4GHz band. Designed to perform in harsh environments, this AP leverages advanced Wi-Fi and Beamforming technology, maximizing performance and reliability while greatly increasing network user capacities.
Must be Powered over Ethernet, does not include AC Adapters.
- ECW160 Datasheet
- ECW160 Quick Start Guide
- Cloud Managed AP Datasheet
- EnGenius Cloud User Manual
Features
Specifications
- Dual-radio 2x2 802.11ac/a/b/g/n with MU-MIMO & Beamforming technology
- Supports up-to 867 Mbps in 5-GHz band & 400 Mbps in 2.4-GHz band
- IP67-Rated Weatherproof & Dustproof Housing Withstands Harsh Environments
- GigE PoE-Compatible Port for Easy Placement Where Power Outlets are Scarce
- Four (4) Detachable 5dbi High-Gain, 360° SMA-Type Antennas
Standards
IEEE 802.11b/g/n on 2.4GHz
IEEE802.11a/n/ac on 5GHz
Processor
Qualcomm® 717 MHz Quad-Core CPU
ARM Cortex A7
Antenna
Four (4) External 5 dBi Dual-Concurrent Omni-Directional Antenna
SMA-Type
Physical Interface
1 x 10/100/1000 BASE-T, RJ-45 Ethernet Port
LED Indicators
1 x Power
1 x LAN
1 x 2.4 GHz
1 x 5 GHz
Power Source
Power-over-Ethernet: 802.3af/at or Proprietary 54V
IEEE 802.11e Compliant Source
Active Ethernet (PoE)
Maximum Power Consumption
12.6W
Surge Protection
2KV
ESD Protection
Contact: 4KV
Air: 8 KV
Operating Frequency
Dual-Radio Concurrent 2.4GHz & 5 GHz
Operation Modes
AP, Mesh
Frequency Radio
2.4GHz: 2400 MHz ~ 2482 MHz
5GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725MHz ~ 5850MHz
Transmit Power
2.4 GHz: 23 dBm
5 GHz: 23 dBm
Tx Beamforming (TxBF)
Radio Chains/Spatial Stream
2x2:2
SU-MIMO
Two (2) spatial stream Single User (SU) MIMO for up to 400 Mbps wireless data rate with VHT40 bandwidth to a 2x2 wireless device under the 2.4GHz radio.
Two (2) spatial stream Single User (SU) MIMO for up to 867 Mbps wireless data rate with VHT80 to a 2x2 wireless device under the 5GHz radio.
MU-MIMO
Two (2) Spatial Stream MU-MIMO up to 1267 Mbps to two (2) MU-MIMO capable wireless devices simultaneously
Supported Data Rates (Mbps)
2.4 GHz: Max 400
5 GHz: Max 867
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 400 Mbps (MCS0 to MCS15) (Additional 25% bandwidth when enabling 256-QAM under HT40)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)
Supported Radio Technologies
802.11b: Direct-Sequence Spread Spectrum (DSSS)
802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)
802.11n/ac: 2x2 MIMO with 2 Streams
Channelization
802.11ac supports very high throughput (VHT)—VHT 20/40/80 MHz
802.11n supports high throughput (HT)—HT 20/40 MHz
802.11n supports very high throughput (VHT) under the 2.4 GHz radio—VHT (256-QAM)
802.11n/ac packet aggregation: AMPDU, ASPDU
Supported Modulation
802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
Multiple BSSID
8 SSIDs for both 2.4GHz and 5GHz radios
VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-band VLAN Pass Through
Management VLAN
Spanning Tree
Supports 802.1d Spanning Tree Protocol
QoS (Quality of Service)
Compliant with IEEE 802.11e Standard
WMM
SNMP
v1, v2c, v3
MIB
I/II, Private MIB
Wireless Security
WPA2 AES-PSK/WPA2 Enterprise
Hide SSID in Beacons
MAC Address Filtering, Up to 32 MACs per SSID
Wireless STA (Client) Connected List
Https
SSH
Client Isolation
Temperature Range
Operating: -4º~140ºF/-20ºC~60ºC
Storage: -40Fº~176ºF/-40ºC~80ºC
Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less
Waterproof & Dustproof
IP67-Rated Enclosure
ECW160 Device
Weight: 0.65 lbs. (295 g)
Width: 4.37” (111.2 mm)
Length: 6.83” (173.6 mm)
Height” 1.19” (30.29 mm)
Packaging
Weight: 1.82 lbs. (829 g)
Width: 5.98" (152 mm)
Length: 9.76" (248 mm)
Height: 4.6" (117 mm)
Package Contents
1 – ECW160 Cloud Managed Outdoor Access Point
2 - Pole-Mounting Brackets
1 - Wall-Mount Screw Set
2 - 2.4GHz 5dBi SMA Antennas
2 - 5GHz 5dBi SMA Antennas
1 - Quick Installation Guide
Warranty
2 Year
Certifications
CE
FCC
IC
