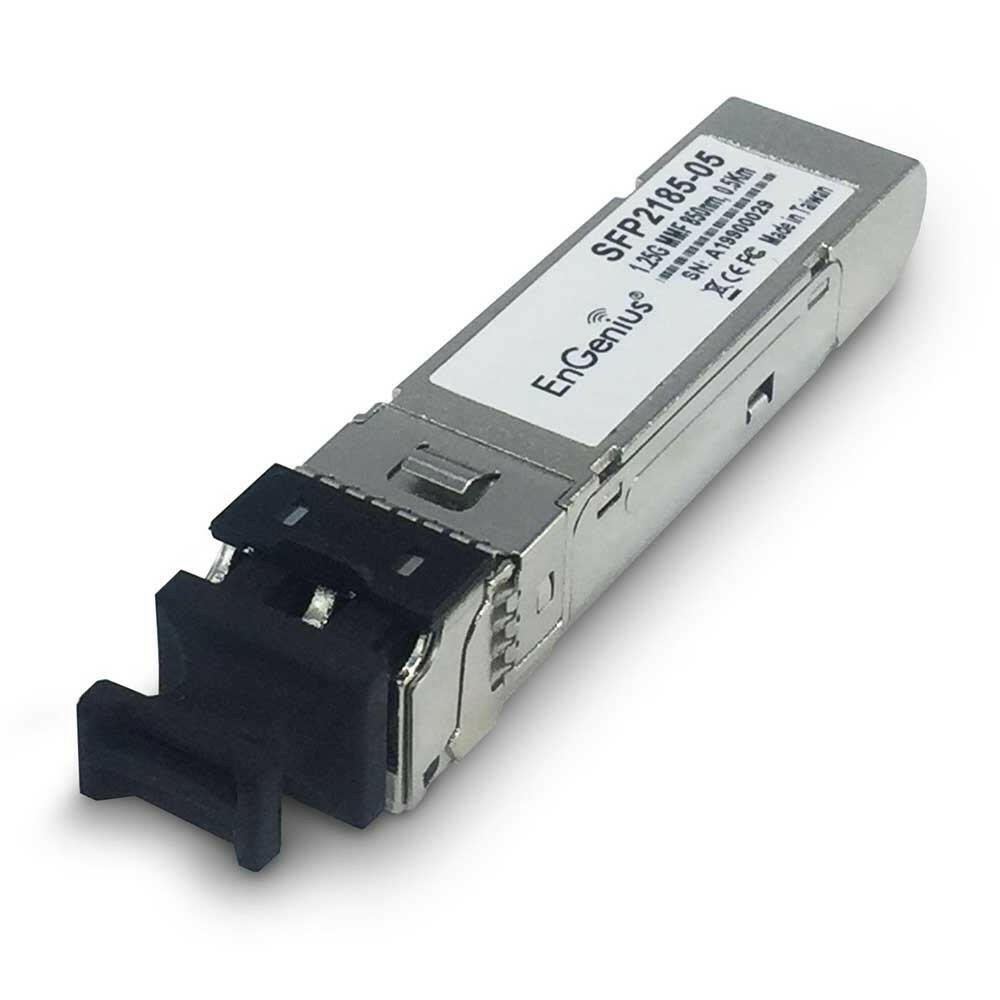

SFP2185-05: SFP Switch 1.25Gig Transceiver Module
SFP2185-05: SFP Switch 1.25Gig Transceiver Module
1.25G Multi-Mode Fiber, SFP, 850nm
EnGenius's premium TAA compliant SFP SFP2185-05 transceiver is a hot-swappable, multi-purpose module that supports up to 1 Gigabit Ethernet. The transceiver provides 1.25 Gbps serial optical data transfer rates on a single duplex fiber core up-to 500 meters at 850nm VCSEL wavelength, ideal for connecting switches and routers between and across floors and across business parks and campuses.
Specifications
- Premium SFP MSA Compliant Transceiver
- 1.25G Multi-Mode Fiber, SFP, 850nm
- 1.25 Gigabit Data Rate
- 500 Meter Distance
- 850nm VCSEL Wavelength
- Hot-Swappable Duplex LC Connector
- Trade Agreements Act (TAA) Compliant
- Manufactured in Taiwan
Standard Compliance
IEEE 802.3z
Data Rate Gigabit
1.25G
Media Type
MMF
Optical Transmission Power
-10 ~ -3 dBm
Optical Receiver Sensitivity
-18 dBm
Wavelength
850nm
Supply Voltage
3.15V ~3.45V
Max Voltage/Current
3.45V/160mA
Temperature
0°C ~70°C
Humidity
5~95% (non-condensing)
Dimensions (Lx W x H)
55.9mm x 14.69mm x 12.39mm
Certifications
Compliant with Class 1 Laser International safety Standard with EN 60825-1
