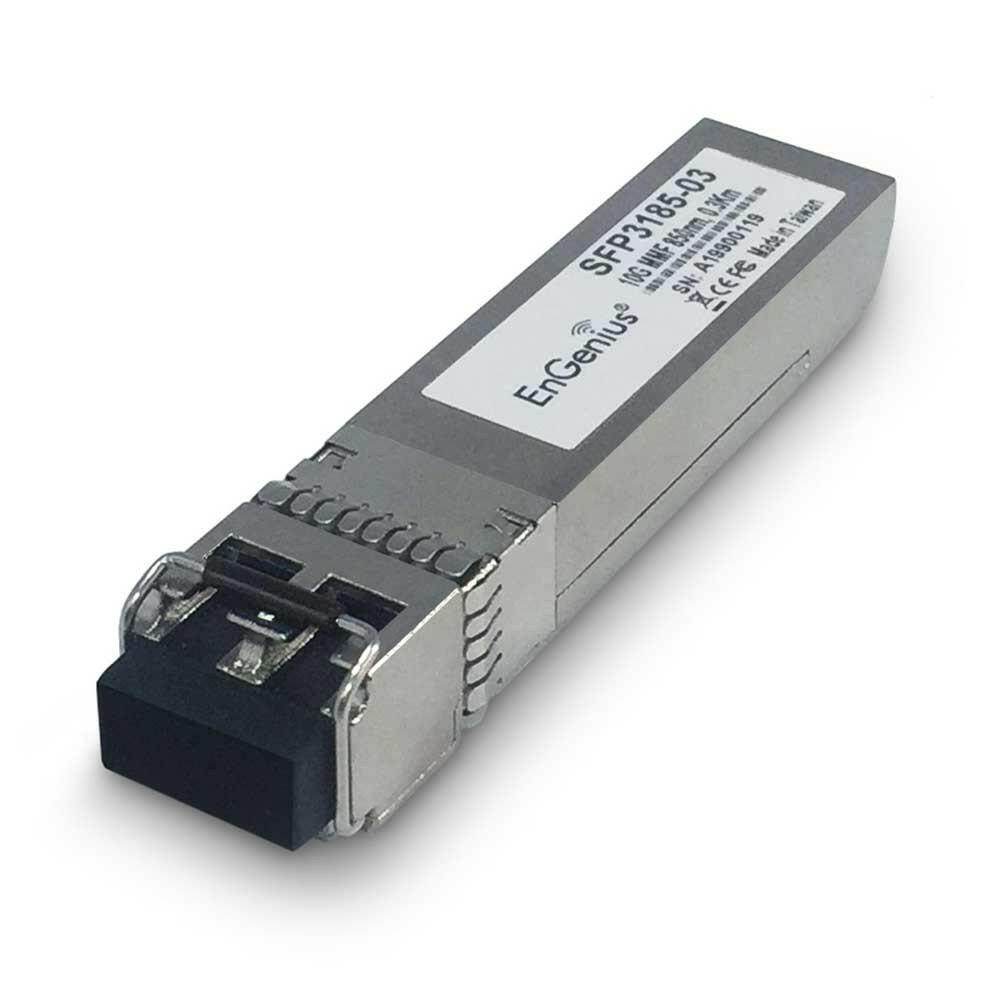

SFP3185-03: SFP+ Switch 10Gig Transceiver Module
SFP3185-03: SFP+ Switch 10Gig Transceiver Module
10G Multi-Mode 300m – SR
EnGenius's premium TAA compliant SFP+ SFP3185-03 transceiver is a hot-swappable, multi-purpose module that supports up to 10 Gigabit Ethernet over long distances. The transceiver provides 10 Gbps serial optical data transfer rates on a single duplex fiber core up to 300 meters at 850nm VCSEL wavelength, ideal for connecting switches and routers between and across floors and across business parks and campuses.
Specifications
- Premium SFP+ MSA Compliant Transceiver
- Multi-Mode Fiber (MMF)
- 10 Gigabit Data Rate
- 300 Meter Distance
- 850nm VCSEL Wavelength
- Hot-Swappable Duplex LC Connector
- Trade Agreements Act (TAA) Compliant
- Manufactured in Taiwan
Standard Compliance
IEEE 802.3ae 10Gbase-SR
Data Rate Gigabit
10.3125G
Media Type
MMF
Connector
Duplex LC Connector
Single / Bi-Directional
Single Direction
Average Optical Transmission Power
-6.5 ~ -1 dBm
Receiver Sensitivity
-11.1 dBm
Wavelength
850nm VCSEL
Cable Type
Multi-mode (50/125μm) or (62.5/125μm)
Supply Voltage
3.13V ~3.46V
Max Voltage/Current
3.46V/300mA
Temperature
0°C ~70°C
Humidity
5~95% (non-condensing)
Dimensions (Lx W x H)
58.4mm x 13.9mm x 12.6mm
Certification
Compliant with Class 1 Laser International Safety Standard with EN 60825-1
