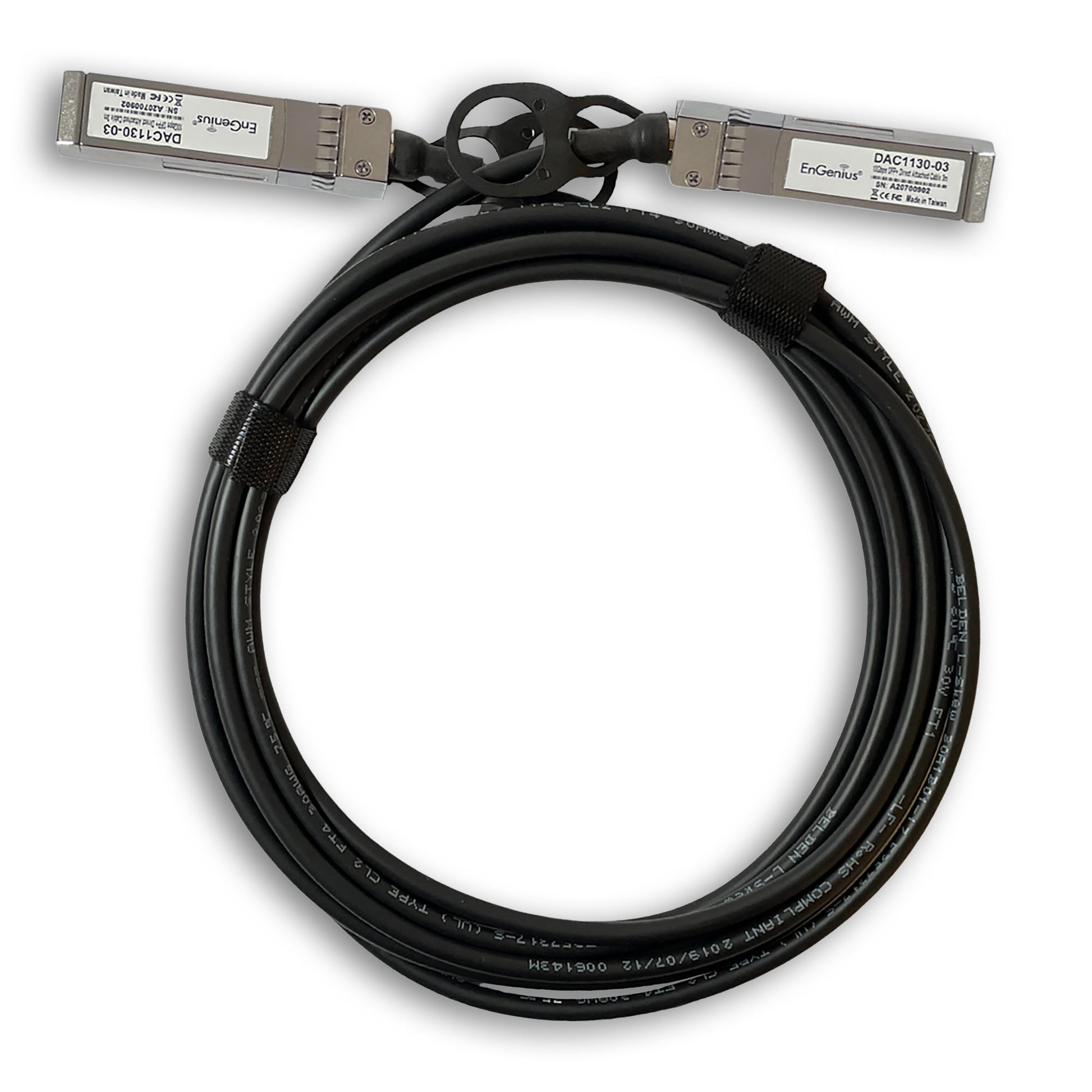

DAC1130-03: Cost-effective Copper DAC Cable SFP+ with 10G SFP+ Module
10G Cost-effective Copper 3 Meters
EnGenius DAC1130-03 10G SFP is an affordable copper DAC cable with built-in SFP+ module, delivering up to 10 Gbps over 3 meters. Perfect for intra- or adjacent-rack connections, it uses the host device for signal driving, ensuring low latency, easy installation, and cost efficiency, though with a shorter reach.
Shipping & Returns
Not satisfied? We allow returns within 30 days of product purchase
3 Meters
Allows network connections of up to 3 meter distance
10 Gbps
10G SFP+ Single Mode Fiber at 1,330nm TX and 1,270nm RX Wavelengths
Specifications
- Cost-Effective: Affordable alternative to optical fiber solutions
- High Performance: Supports data rates up to 10 Gbps with low latency
- Energy Efficient: Passive design requires no additional power
- Simple Installation: Plug-and-play connectivity for quick deployment
- Short-Distance Optimization: Ideal
for intra-rack and adjacent-rack connections
- Durable and Reliable: Twin
axial copper design ensures robust performance
Standard Compliance
IEEE 802.3ae 10Gbase-Cu
Data Rate Gigabit
10.3125G
Cable Type
Passive Twinax Direct Attach Copper
Cable Length
3m
Connector
SFP+ to SFP+
Wire AWG
30AWG
Temperature
Operating: 0°C ~70°C (32°F ~158°F)
Storage: -40°C ~85°C (-40°F ~185°F)
Humidity
5~95% (non-condensing)
SFP Module Dimensions (Lx W x H)
2.24” x 0.52” x 0.33” (56.89mm x 13.2mm x 8.38mm)
Weight
0.26 lb. (117g)
Certification
Compliant with SFP+ MSA, SFF-8431, SFF-8432, Improved Pluggable Form-Factor (IPF)
