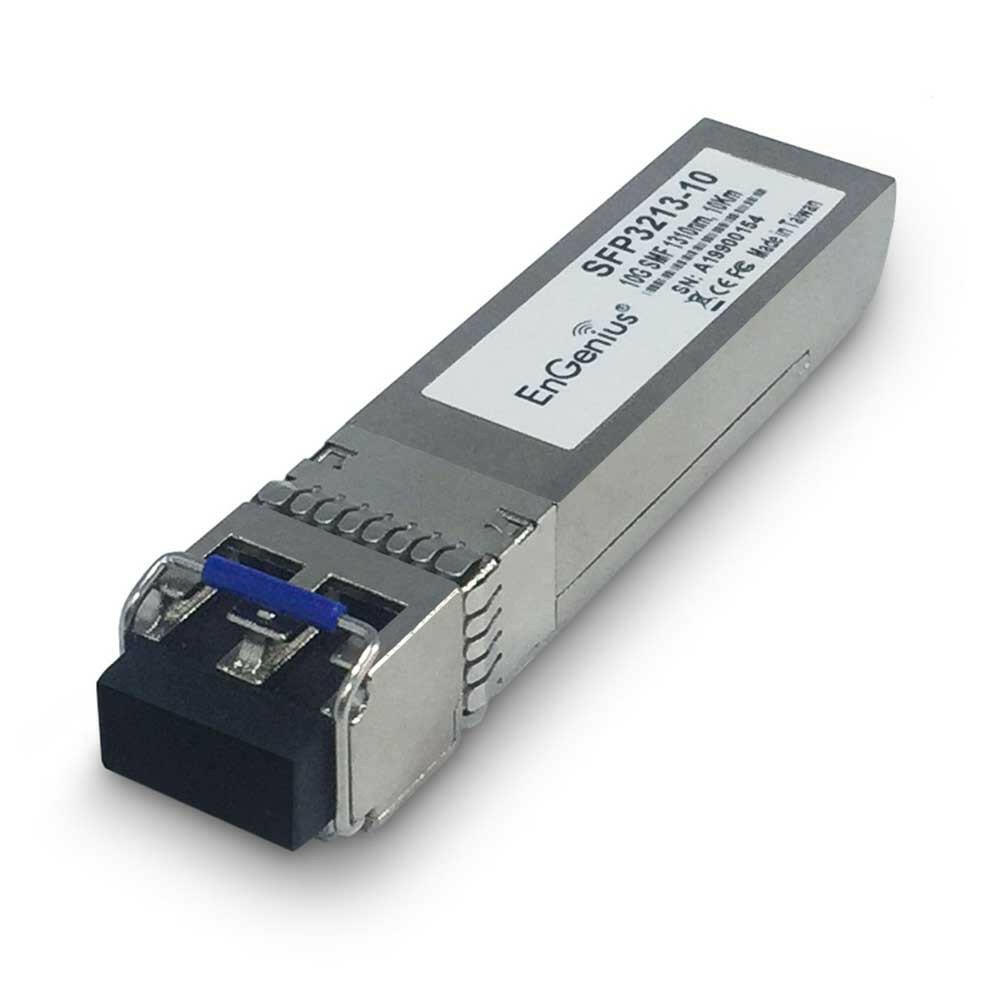

SFP3213-10: SFP+ Switch 10Gig Transceiver Module
SFP3213-10: SFP+ Switch 10Gig Transceiver Module
10G Single Mode 10km – LR
EnGenius's premium TAA compliant SFP+ SFP3213-10 transceiver is a hot-swappable, multi-purpose module that supports up to 10 Gigabit Ethernet over long distances. The transceiver provides 10 Gbps serial optical data transfer rates on a single duplex fiber core up to 10,000 meters at 1,310 nm wavelength, ideal for connecting switches, routers, and servers between and across floors and across business parks and campuses.
Specifications
- Premium SFP+ MSA Compliant Transceiver
- Single Mode Fiber (SMF)
- 10 Gigabit Data Rate
- 10,000 Meter Distance
- 1,310nm Wavelength
- Hot-Swappable Duplex LC Connector
- Trade Agreements Act (TAA) Compliant
- Manufactured in Taiwan
Standard Compliance
IEEE 802.3ae 10Gbase-LR
Data Rate Gigabit
10.3125G
Media Type
SMF
Connector
Duplex LC Connector
Single / Bi-Directional
Single Direction
Average Optical Transmission Power
-8.2 ~ -0.5 dBm
Receiver Sensitivity
12.6
Wavelength
1310nm DFB
Cable Type
Single-mode
Supply Voltage
3.13V ~3.46V
Max Voltage/Current
3.46V/300mA
Temperature
0°C ~70°C
Humidity
5~95% (non-condensing)
Dimensions (Lx W x H)
58.4mm x 13.9mm x 12.6mm
Certification
Compliant with Class 1 Laser International Safety Standard with EN 60825-1
