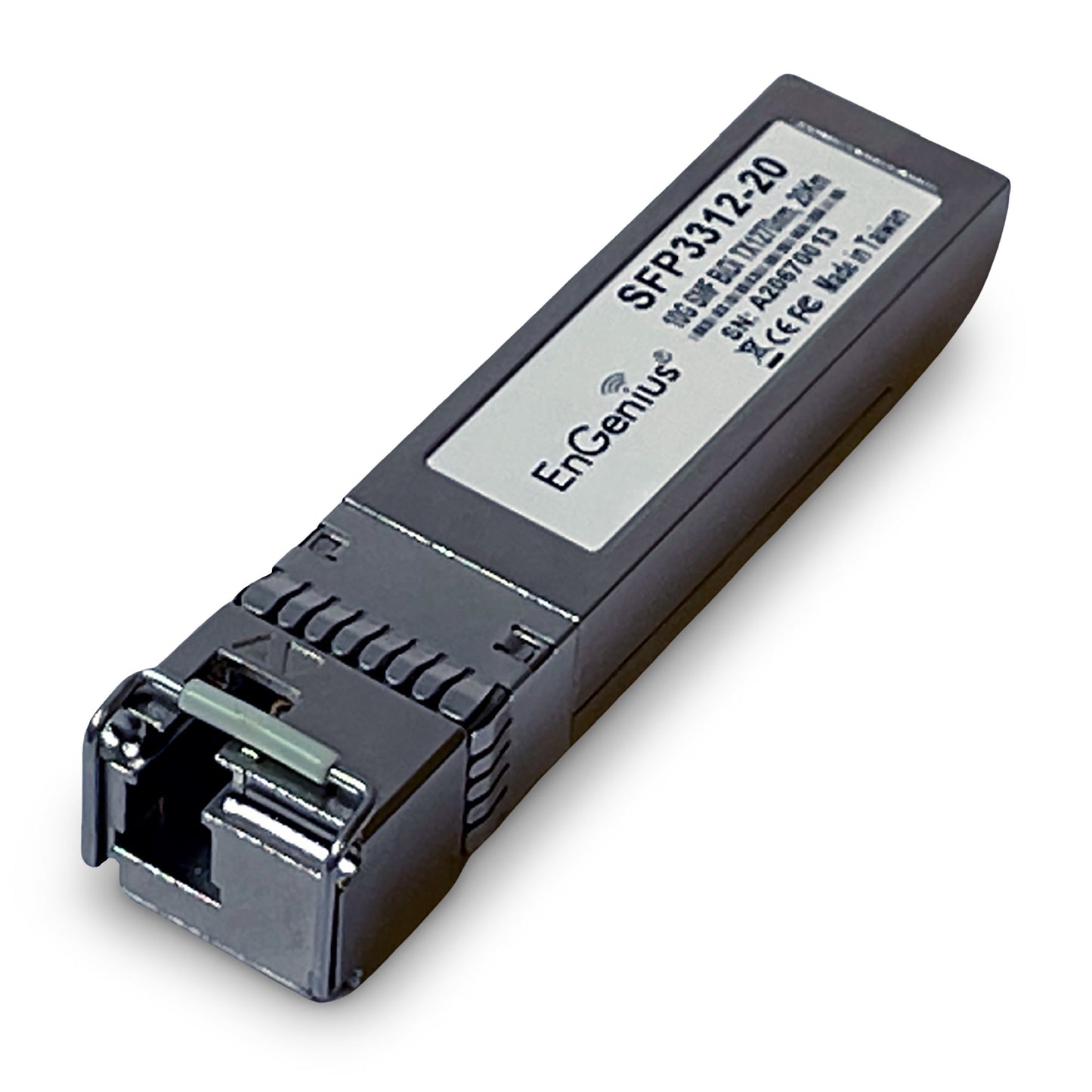

SFP3312-20A: SFP+ Switch 10Gig Bi-Directional Fiber Transceiver Module
10G Single Mode 20km
EnGenius SFP3312-20A BiDi Transceivers are versatile, hot-swappable optical modules designed for 10 Gigabit Ethernet applications across various switching and routing platforms. They enable 10 Gbps optical data transfer over a single duplex fiber core, reaching up to 20 km—perfect for enterprise networks, metropolitan and regional links.
Shipping & Returns
Not satisfied? We allow returns within 30 days of product purchase
20 Kilometers
Allows network connections of up to 20 kilometer distance
10 Gbps
10G SFP+ Single Mode Fiber at 1,330nm TX and 1,270nm RX Wavelengths
Specifications
- Long Range: Supports distances up to 20 km over single-mode fiber
- Wavelength: Operates at 1330nm and 1270nm
- High Speed: Delivers 10 Gbps Ethernet connectivity for demanding applications
- Reliable Performance: Optimized for stable, high-quality data transmission
- Compact and Efficient: Fits standard SFP+ slots, saving space and reducing power consumption
- Easy Integration: Compatible with existing networking equipment using SFP+ ports
Standard Compliance
IEEE 802.3ae 10Gbase-LR
Data Rate Gigabit
9.95Gb/s to 10.3Gb/s
Media Type
SMF
Max Transmission Distance
20km
Connector
Simplex LC Connector
Single / Bi-Directional
Bi-Direction
Average Output Optical Transmission Power
-2 ~ 2 dBm
Optical Receiver Sensitivity
-14.5 dBm
Wavelength
TX: 1270nm
RX:1330nm
Cable Type
Single mode
Supply Voltage
3.3V ~3.6V
Max Voltage/Current
3.6V/420mA
Maximum Receiver Power
-14.5 dBm
Temperature
Operating: 0°C ~70°C (32°F ~158°F)
Storage: -40°C ~85°C (-40°F ~185°F)
Humidity
5~95% (non-condensing)
Dimensions (Lx W x H)
2.26” x 0.55” x 0.43” (57.5mm x 14mm x 10.8mm)
Weight
0.05 lb. (22.6g)
