EPA5090XBT: 90W 802.3af/at/bt 10GbE PoE Adapter

$119.99
 por
In stock!
Spend $75.00 to FREE SHIPPING
Earn 1 Point on this purchase. Learn more
Ver todos los detalles

EPA5090XBT: 90W 802.3af/at/bt 10GbE PoE Adapter

$119.99
 por

Delivers 90-watts of power and 10Gb data communication to compatible network devices up to 328 feet

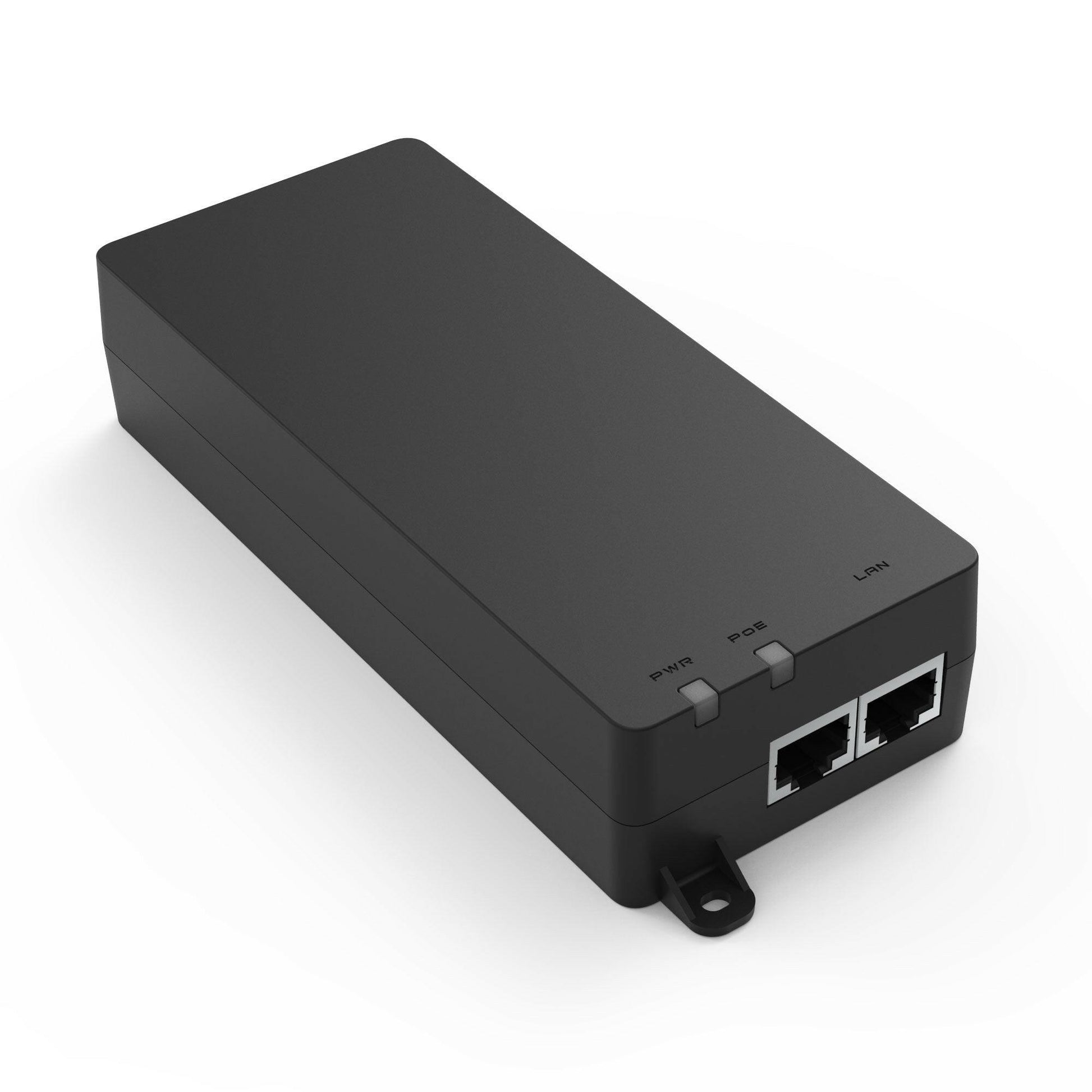

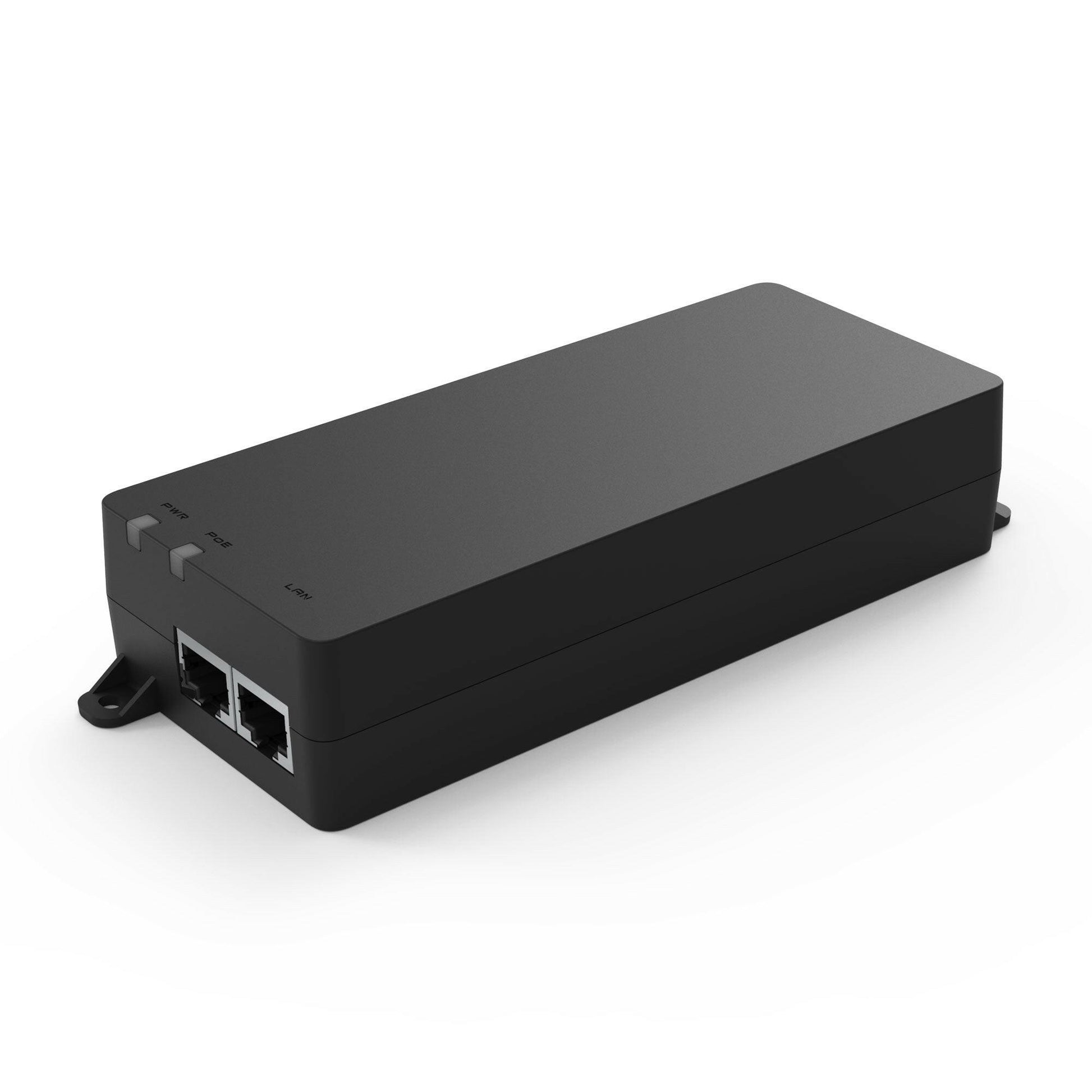

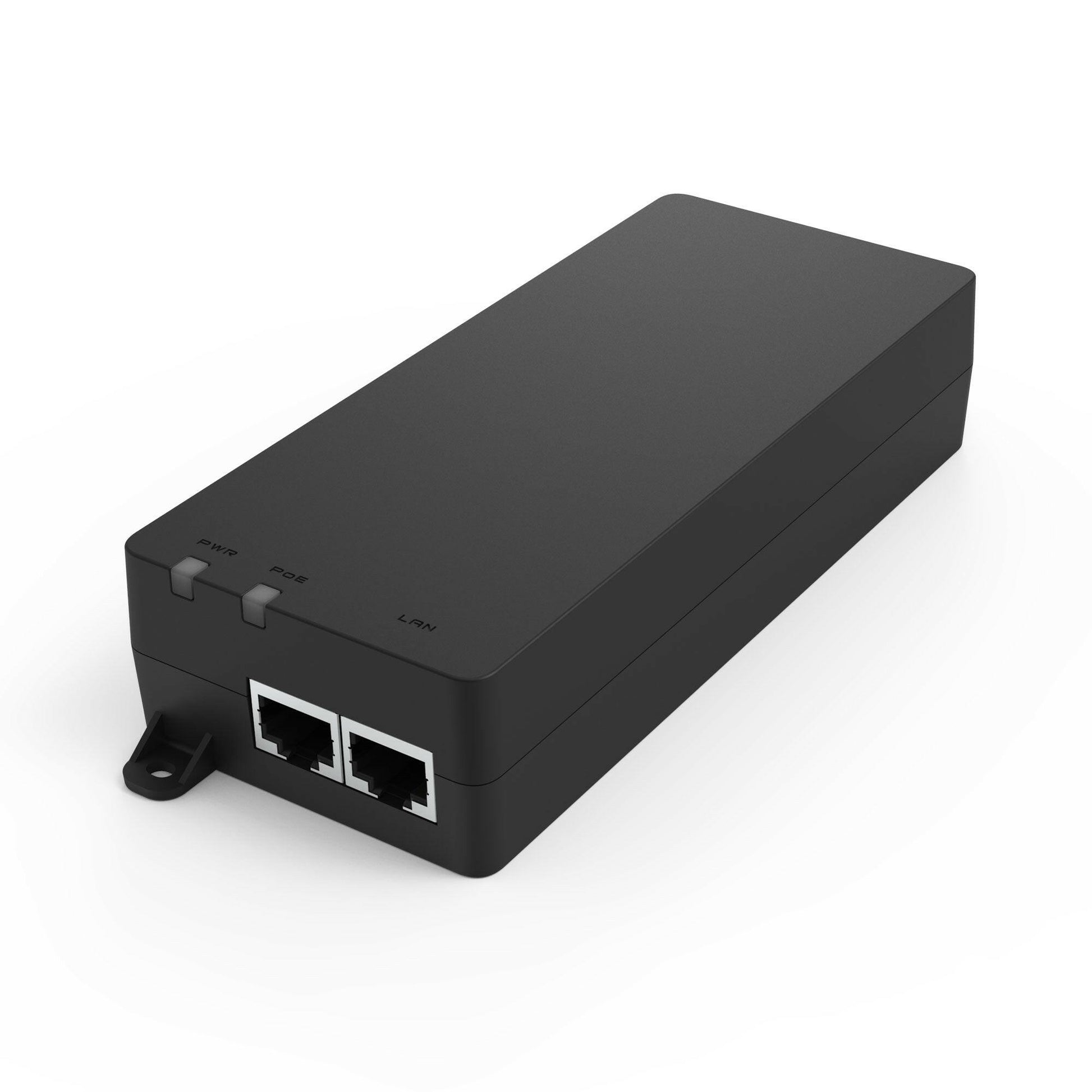

The EnGenius EPA5090XBT PoE Injector delivers 90-watts of power and 10Gb data communication to compatible network devices up to 328 feet (100m) over Cat5e cable. Compact design with IEEE802.3bt compliance offers easy installation while providing built-in power protection to preserve valuable equipment.


Shipping & Returns

Not satisfied? We allow returns within 30 days of product purchase

90 Watts of Power

Energy efficient PoE up to 90W with full power capabilities

10 GB Ethernet

1 x 10/100/1000Mb, 2.5Gb/5Gb/10Gb Data & Power Output; RJ-45

Features

EPA5090XBT

Specifications

Product Highlights

  • IEEE 802.3bt Type 3 & 4 compliant

  • IEEE 802.3af/at backward compatible

  • Backward compatible for legacy PoE while future proofing network with up to 10Gb bandwidth

  • Supports 10/100/1000 Mbps and 2.5/5/10 Gbps applications

  • Output power up to 90W over four pairs with auto-detection on power requirement

  • Leverage energy efficient PoE of up to 90W with full power capabilities

  • Single-port PoE Midspan Injector flexible design allows for either desktop or surface-mount use

  • Fan-less design ideal for silent operation

  • Simple plug-and-play installation

Technical Specifications

Input Voltage
100 ~ 240VAC

Input Current
0.95A @ 120V AC
0.5A @ 240V AC

Input Frequency
50-60Hz

Maximum Output Power
90W

Powerline
Pin4 (Vdc+) & Pin5 (Vdc+)
Pin7 (Vdc-) & Pin8 (Vdc-)

Data Specifications

Ethernet Port Standards
IEEE 802.3af/at/bt compatible

Data Lines
Pin 1 (Rx+) & Pin 2 (Rx-)
Pin 3 (Tx+) & Pin 6 (Tx-)

Protection Level

Surge Protection
L-L: 2KV
L-G: 4KV

ESD
Contact 4KV; Air: 8KV

Other Protection
Over-voltage and Over-current protection
Short-circuit protection

Physical Interfaces & Indicators

Network Ethernet Ports
1 x 10/100/1000Mb & 2.5Gb/5Gb/10Gb Data Input; RJ-45
1 x 10/100/1000Mb & 2.5Gb/5Gb/10Gb Data & Power Output; RJ-45

Power Source

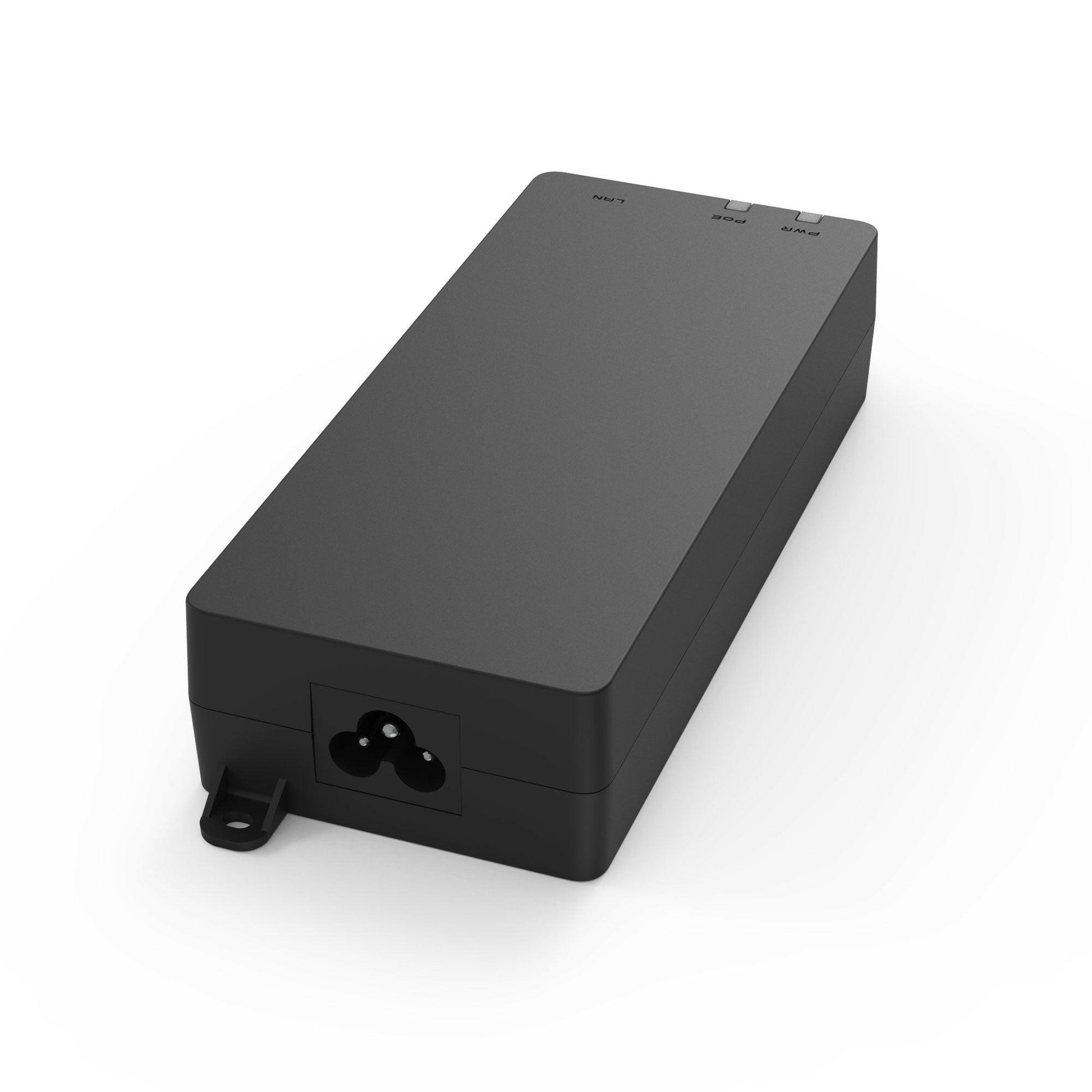

AC Connector
1 x IEC-320 C6 AC Connector

LED Indicators
Power On: Green
PoE On: Green

Environmental & Physical

Temperature Range
Operating: 32°F to 104°F (0°C to 40°C)
Storage: -4°F to 158°F (-20°C to 70°C)

Package Contents
1 x PoE Adapter
1 x Quick Installation Guide (Printed on side of Box)
1 x Power Cord – 16 inches (40.64cm)

Dimensions & Weights

EPA5090XBT Device (Without Mounting Kit)
Weight: 12.5oz (354g)
Length: 5.9” (150mm)
Width: 2.56” (65mm)
Height: 1.34” (34mm)

EPA5090XBT Packaging
Weight: 16.6oz (470g)
Length: 7” (178mm)
Width: 3.54” (90mm)
Height: 2.8” (72mm)

Certifications
IEC 62328-1: 2014
UL 62328-1
FCC Subpart 15 Class B
EN 55032: 2012 / AC: 2013
EN 55024: 2010

Warranty
1 year
