EPA5006HAT: 2.5 Gigabit 802.3at PoE Adapter

Los gastos de envío se calculan en la pantalla de pago.

802.3at PoE Adapter Supports high-speed data and up to 30 watts of power to compatible network devices

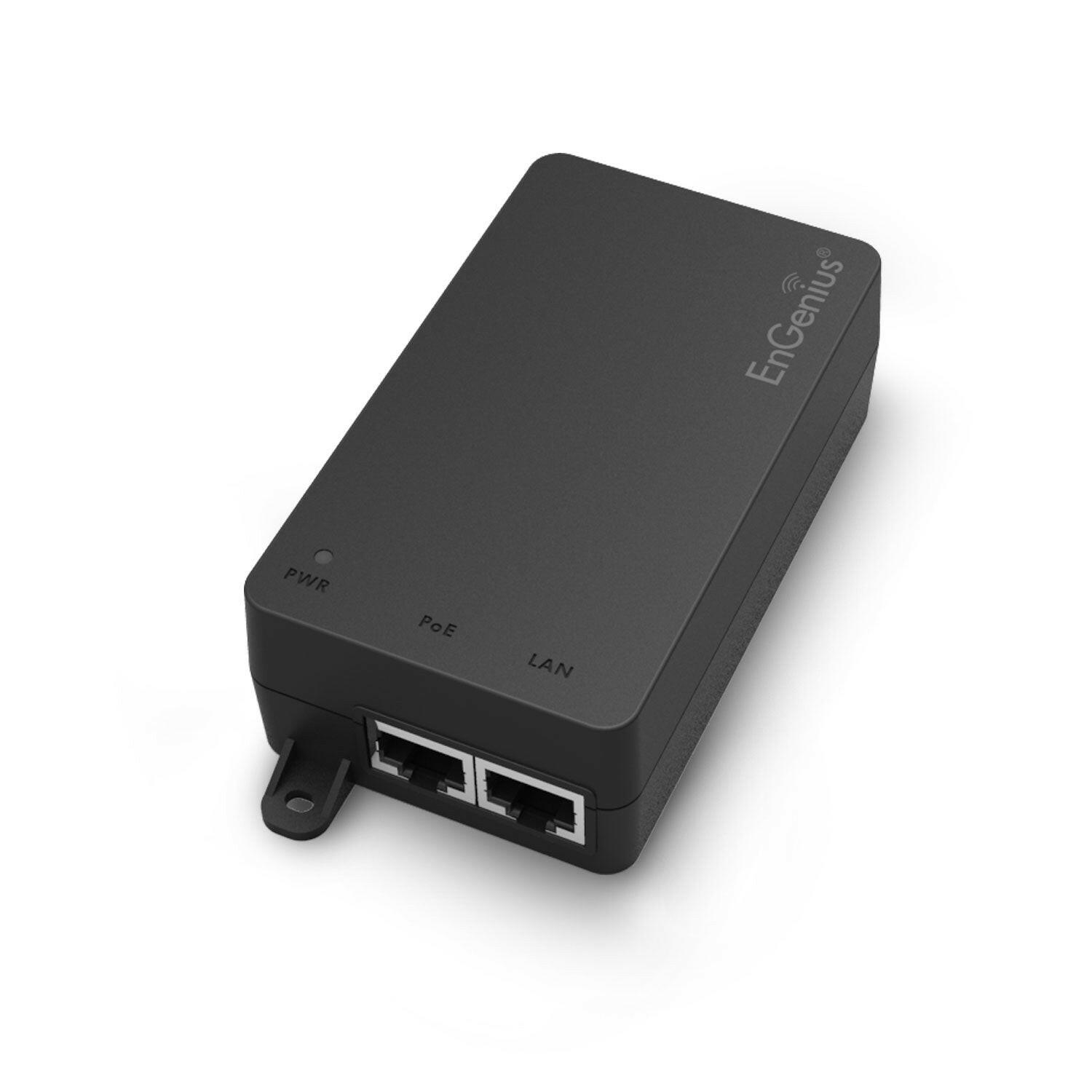

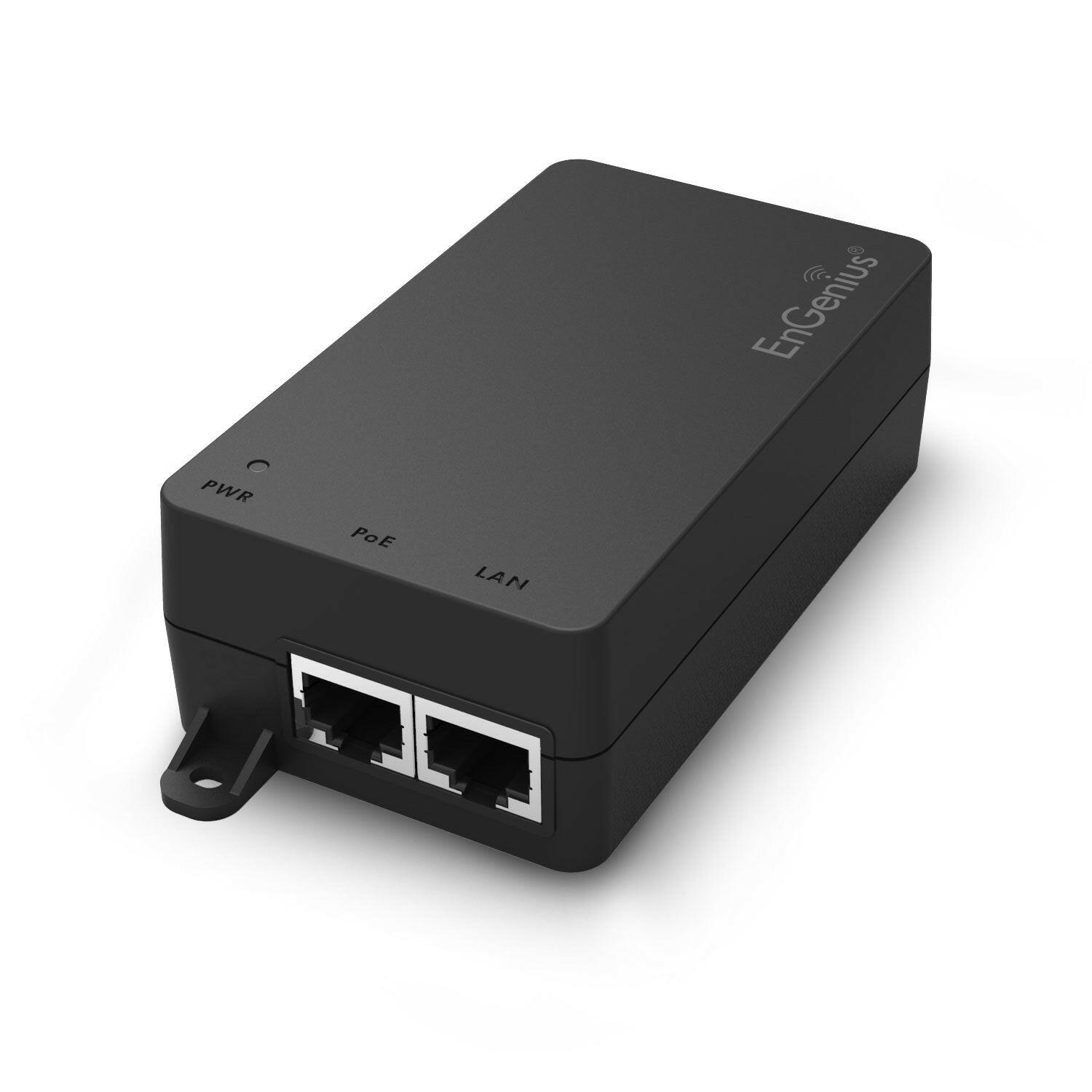

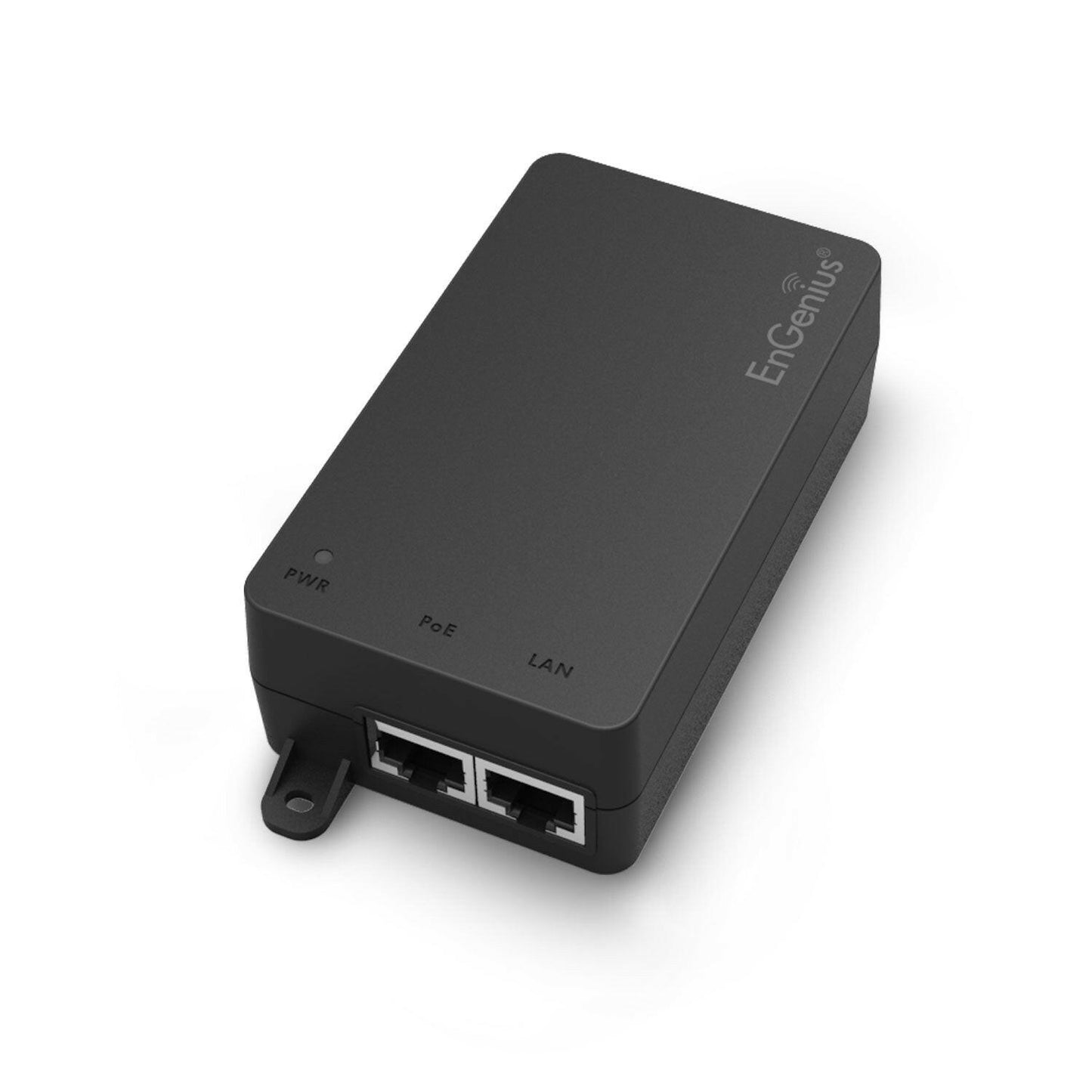

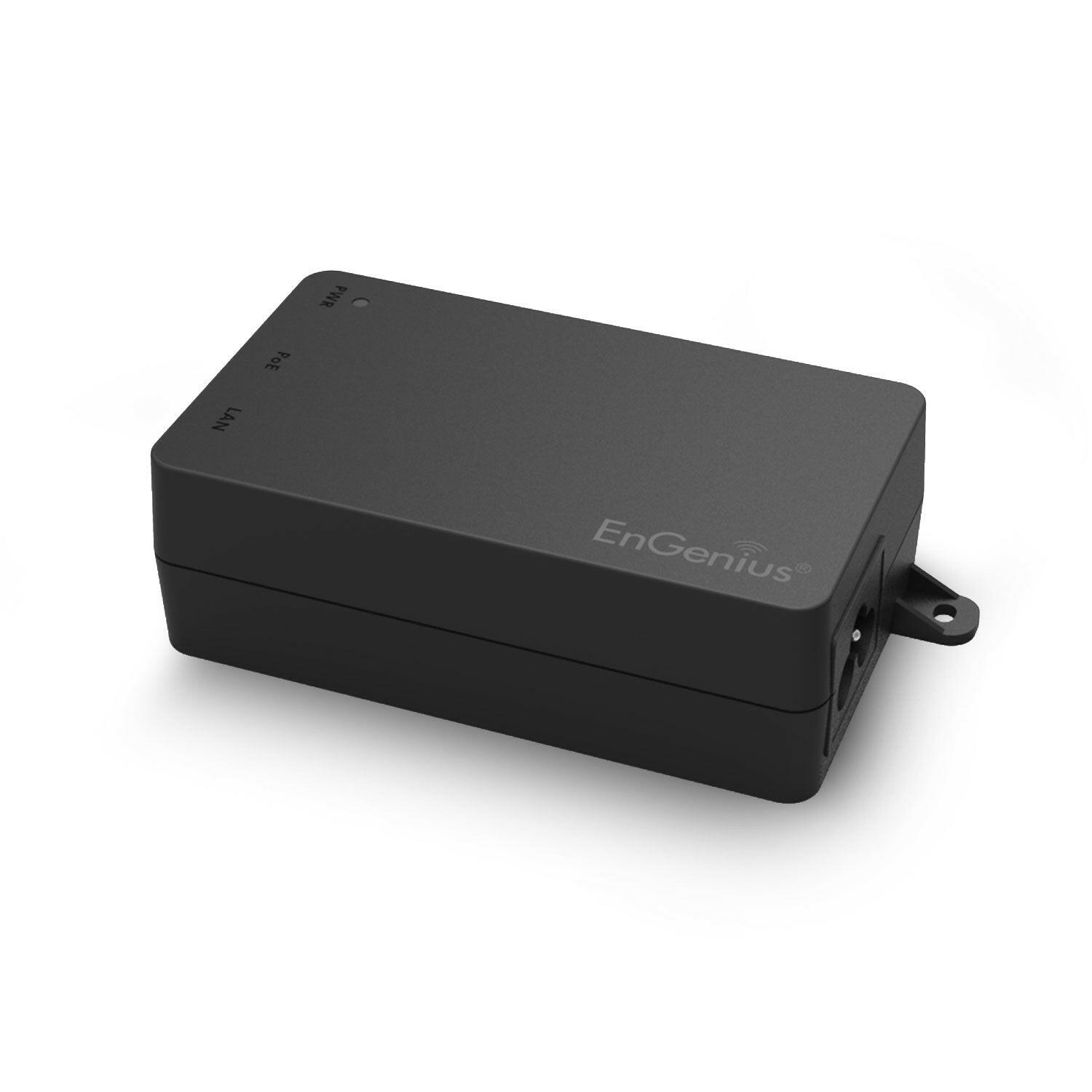

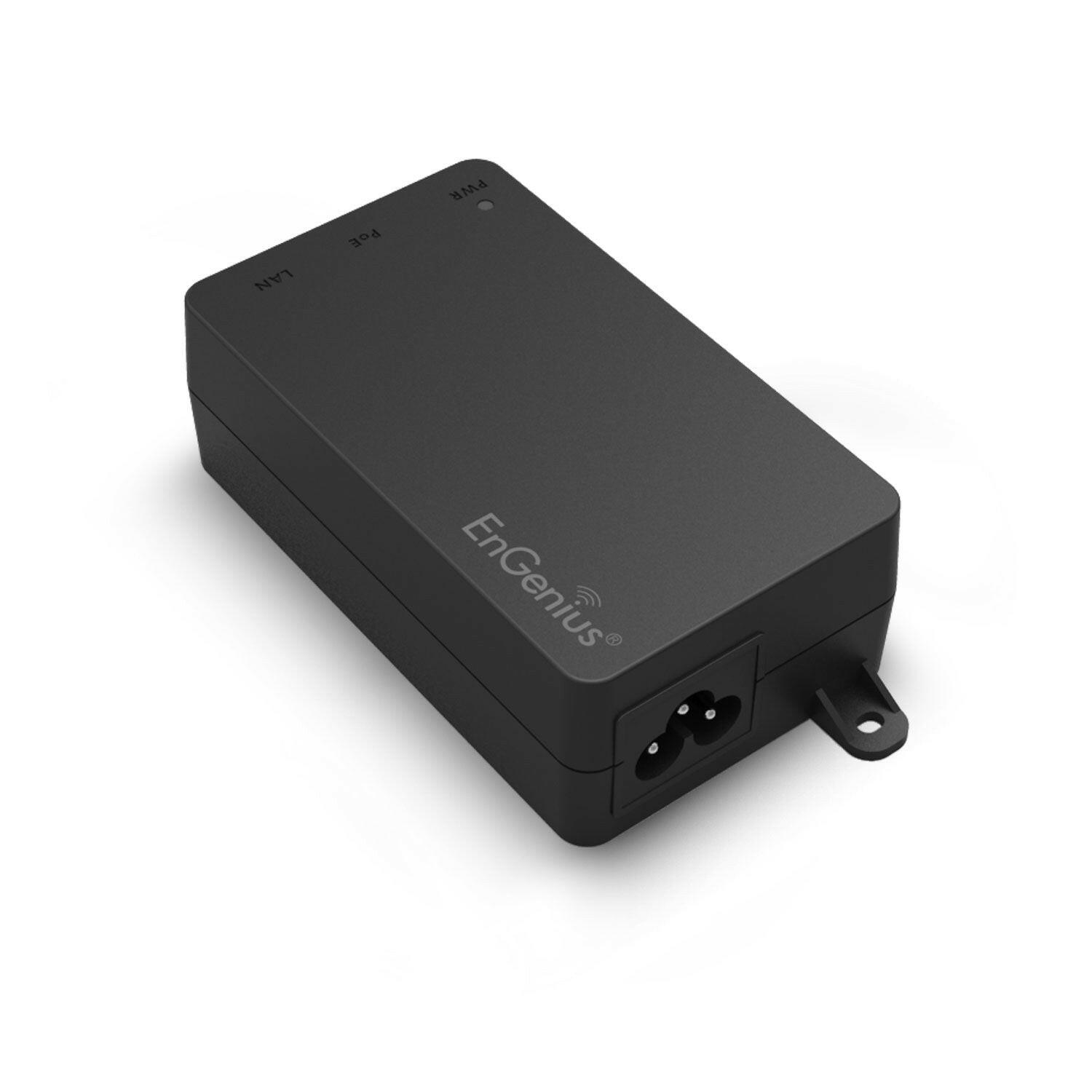

The EnGenius EPA5006HAT 2.5 Gigabit standard Power-over-Ethernet adapter supports high-speed data and up to 30 watts of power. Compact port design provides easy installation, and built-in power surge protection preserves valuable equipment.

Shipping & Returns

Can be returned within 30 days If not satisfied with product.

Product Specifications

Product Highlights
  • 2.5 Gigabit Ethernet in & out ports allow connection of high-speed devices

  • Delivers both data and power to PoE-compatible devices

  • Optimal port design for easy mounting/positioning

  • Compact design

  • Extends power to unwired areas up to 328-ft./100m

  • Disconnect, short-circuit & surge protection assures secure, reliable connections

  • Sends up to 30W of output power for connecting APs, IP cameras, VoIP phones & more

  • Mounts to walls or ceilings with included hardware
Technical Specifications

802.3 10BaseT
802.3u 100BaseT
802.3ab 1000Base-T Ethernet
802.3bz 2500Base-T Ethernet
Standard PoE

IEC 60950-1:2005+A1
FCC Part 15 Class B

Physical Interface
(1) 2.5 Gigabit Data Port
(1) Gigabit Data & Power Output Port
(1) IEC-320 C6 AC Connector

LED Indicator
1 x Power on Green

Wall (anchors & screws included)


Input Voltage
100 to 240VAC

Input Current
0.8A @ 120V AC
0.4A @ 240V AC

AC Input Frequency

Maximum Output Power
30 W

Power Lines
Pin4(Vdc+)&Pin5(Vdc+); Pin7(Vdc-)&Pin8(Vdc-)

Data Lines
Pin1(Rx+)&Pin2(Rx-); Pin3(Tx+)&Pin6(Tx-)

Surge Protection

L-L: 2KV; L-G: 4KV

Contact 4KV; Air: 8KV

Environmental & Physical

Temperature Range
Operating: 32°F to 104°F (0°C to 40°C)
Storage: -4°F to 158°F (-20°C to 70°C)

Humidity (non-condensing)
Operating: 5 to 90% or less
Storage: 5 to 90% or less

Dimensions & Weights

EPA5006HAT Device (Without Mounting Kit)
Weight: .33 lbs. (154 g)
Length: 3.9” (99 mm)
Width: 2.27” (68.5 mm)
Height: 1.3” (33 mm)

Weight: .57 lbs. (262 g)
Length: 5.4” (139 mm)
Width: 4.8” (122.5 mm)
Height: 2” (52 mm)

Package Contents
power cord

1 Year
