EPA5090HBT: 90W 802.3af/at/bt 2.5GbE Ethernet over Power Adapter
Earn [points_amount] when you buy this item.
EPA5090HBT: 90W 802.3af/at/bt 2.5GbE Ethernet over Power Adapter
Delivers 90-watts of power and 2.5Gb data communication to compatible network devices up to 328 feet
The EnGenius EPA5090HBT PoE Injector delivers 90-watts of power and 2.5Gb data communication to compatible network devices up to 328 feet (100m) over Cat5e cable. Compact design with IEEE802.3bt compliance offers easy installation while providing built-in power protection to preserve valuable equipment.
Shipping & Returns
Not satisfied? We allow returns within 30 days of product purchase
90 Watts of Power
Energy efficient PoE up to 90W with full power capabilities
2.5 GB Ethernet
1 x 10/100/1000Mb, 2.5Gb Data & Power Output; RJ-45
Features
Specifications
- IEEE 802.3bt Type 3 & 4 compliant
- IEEE 802.3af/at backward compatible
- Backward compatible for legacy PoE while future proofing network with up to 10Gb bandwidth
- Supports 10/100/1000 Mbps and 2.5/5/10 Gbps applications
- Output power up to 90W over four pairs with auto-detection on power requirement
- Leverage energy efficient PoE of up to 90W with full power capabilities
- Single-port PoE Midspan Injector flexible design allows for either desktop or surface-mount use
- Fan-less design ideal for silent operation
- Simple plug-and-play installation
Input Voltage
100 ~ 240VAC
Input Current
0.95A @ 120V AC
0.5A @ 240V AC
Input Frequency
50-60Hz
Maximum Output Power
90W
Powerline
Pin4 (Vdc+) & Pin5 (Vdc+)
Pin7 (Vdc-) & Pin8 (Vdc-)
Ethernet Port Standards
IEEE 802.3af/at/bt compatible
Data Lines
Pin 1 (Rx+) & Pin 2 (Rx-)
Pin 3 (Tx+) & Pin 6 (Tx-)
Surge Protection
L-L: 2KV
L-G: 4KV
ESD
Contact 4KV; Air: 8KV
Other Protection
Over-voltage and Over-current protection
Short-circuit protection
Network Ethernet Ports
1 x 10/100/1000Mb & 2.5Gb/5Gb/10Gb Data Input; RJ-45
1 x 10/100/1000Mb & 2.5Gb/5Gb/10Gb Data & Power Output; RJ-45
Power Source
AC Connector

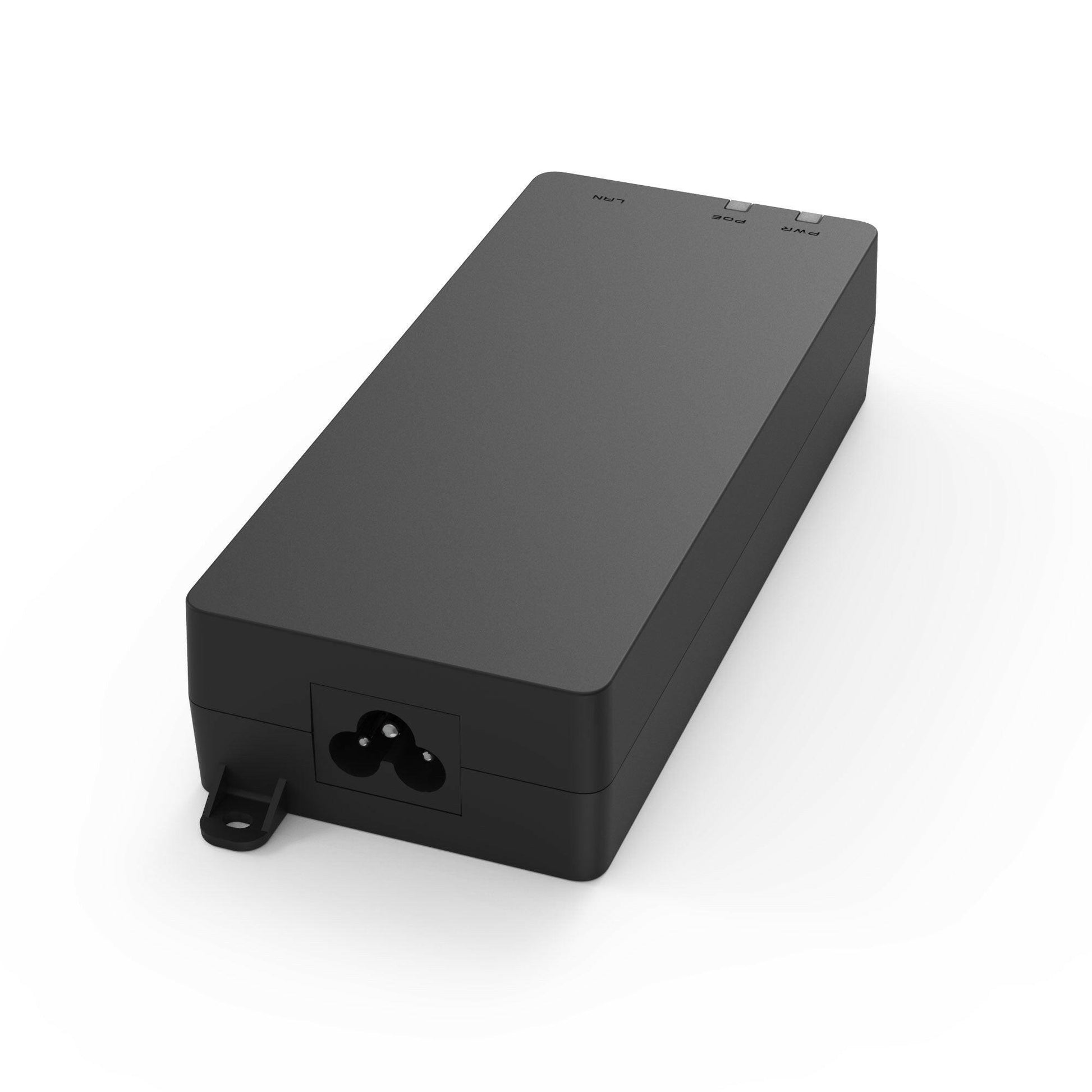

1 x IEC-320 C6 AC Connector
LED Indicators
Power On: Green
PoE On: Green
Temperature Range
Operating: 32°F to 104°F (0°C to 40°C)
Storage: -4°F to 158°F (-20°C to 70°C)
Package Contents
1 x PoE Adapter
1 x Quick Installation Guide (Printed on side of Box)
1 x Power Cord – 16 inches (40.64cm)

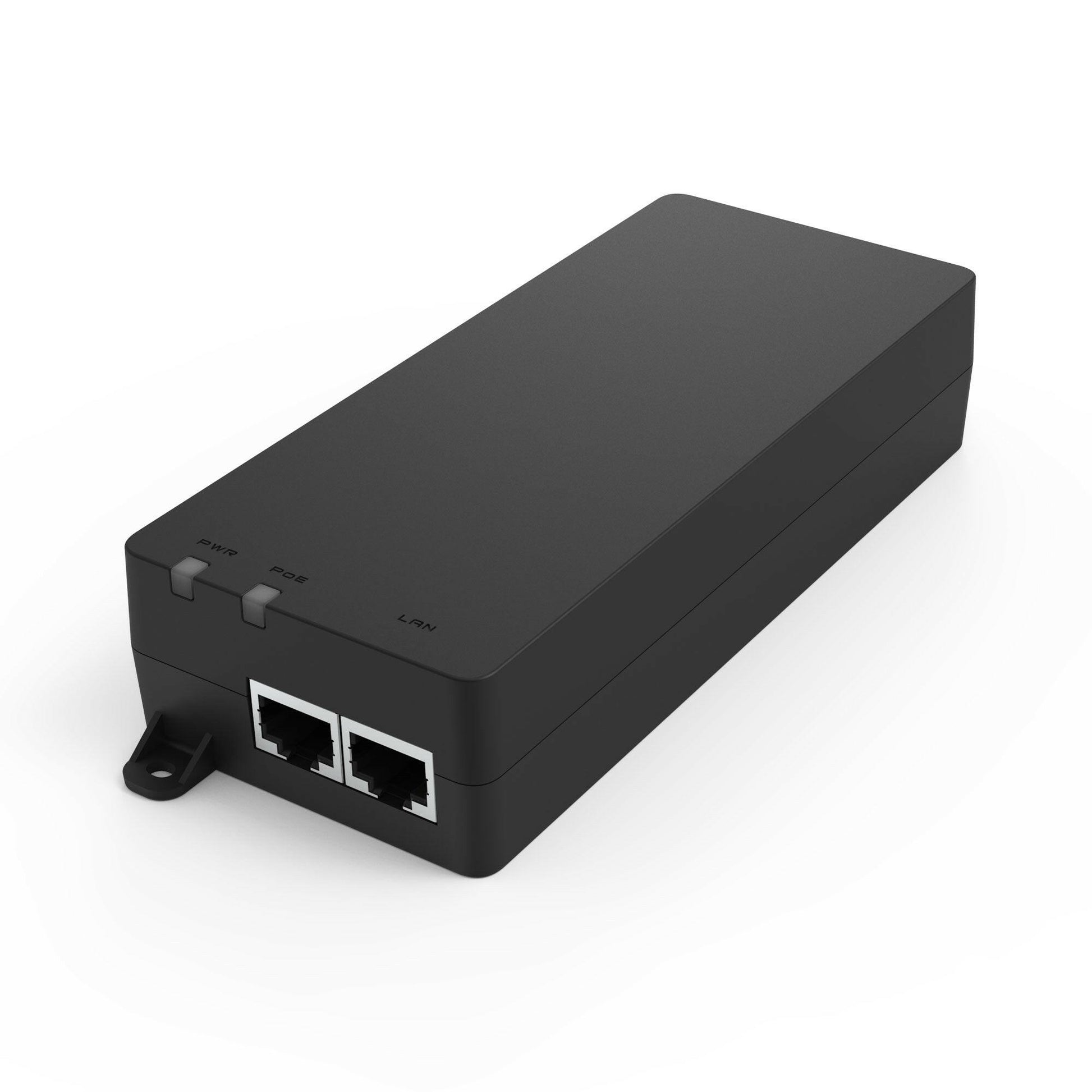

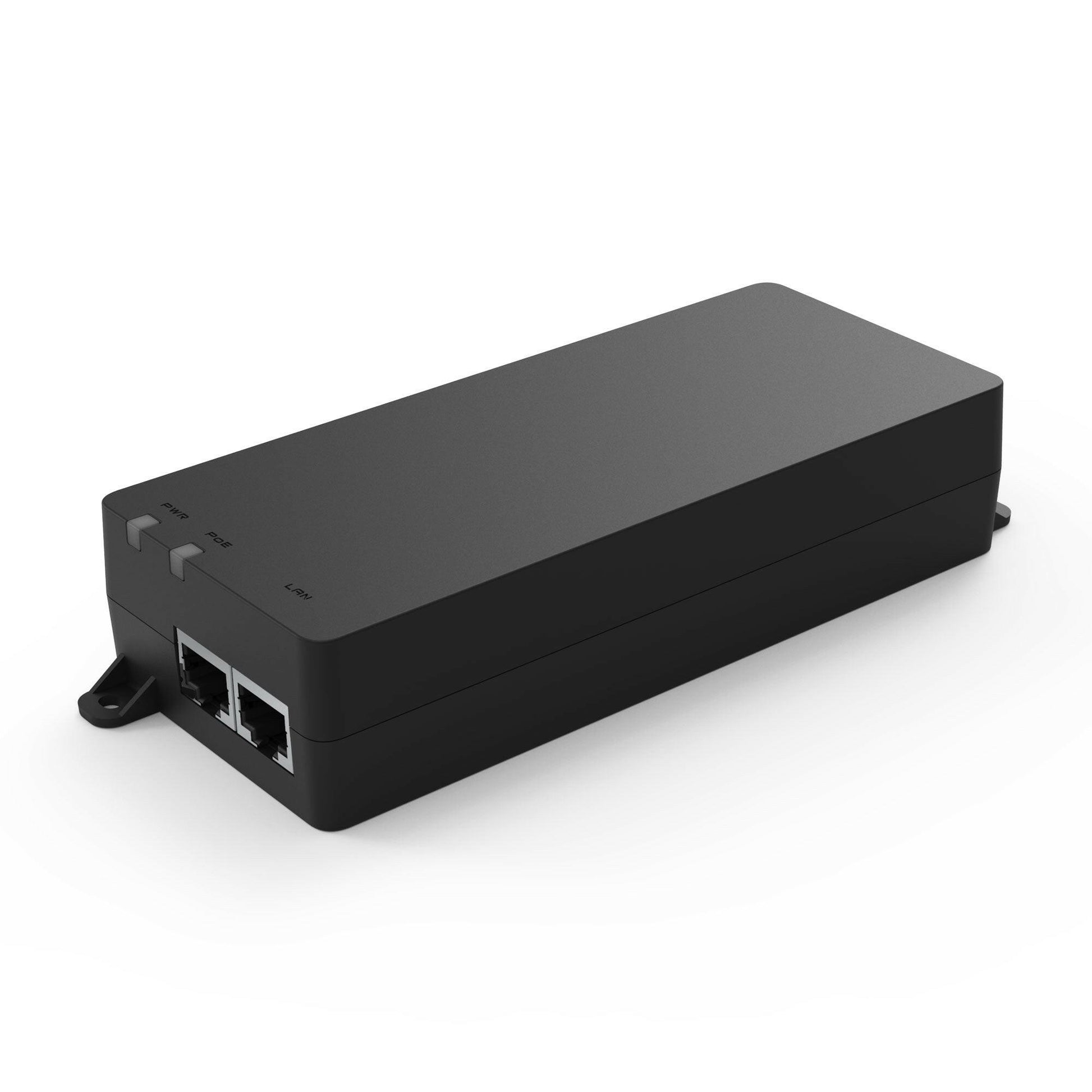

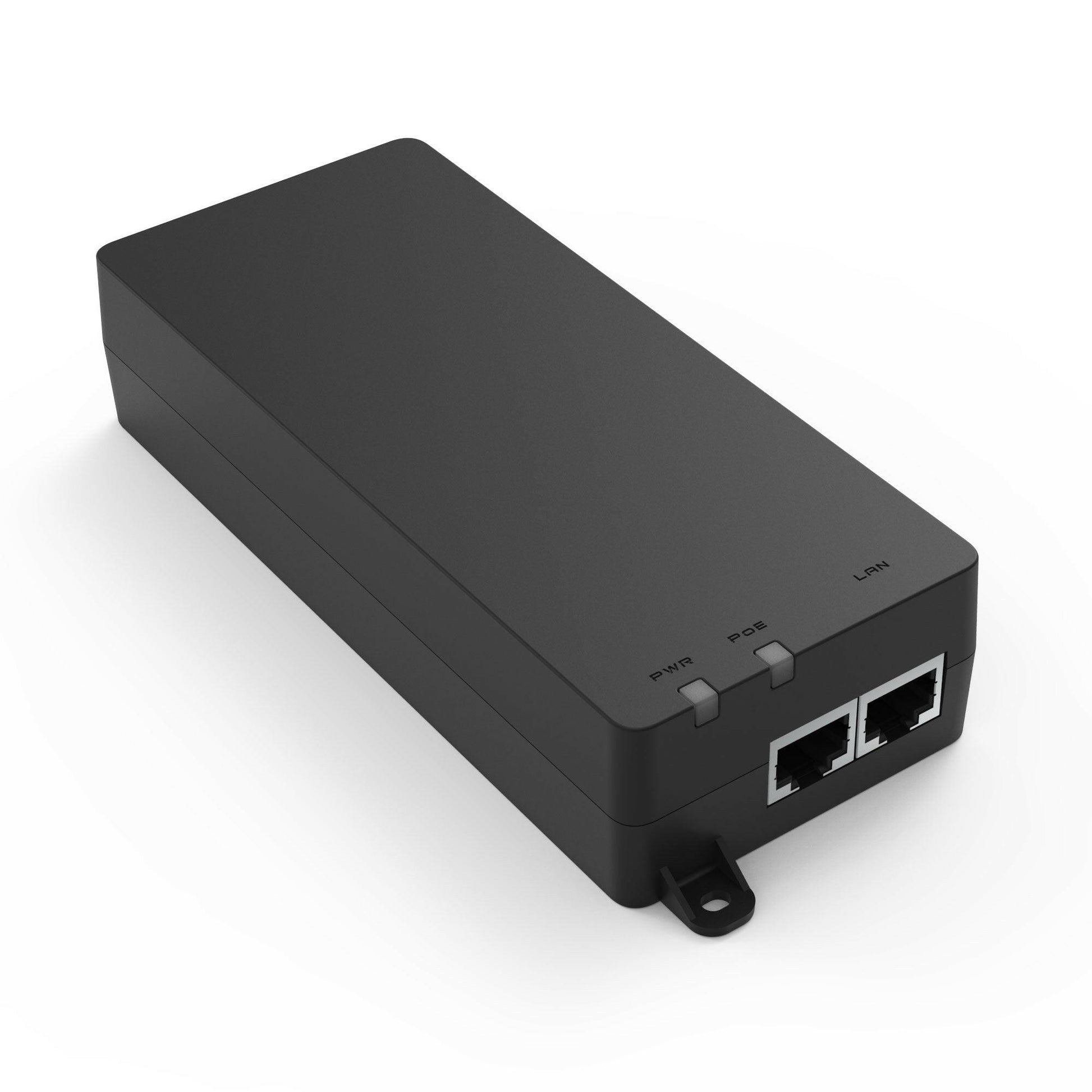

EPA5090XBT Device (Without Mounting Kit)
Weight: 12.5oz (354g)
Length: 5.9” (150mm)
Width: 2.56” (65mm)
Height: 1.34” (34mm)
EPA5090XBT Packaging
Weight: 16.6oz (470g)
Length: 7” (178mm)
Width: 3.54” (90mm)
Height: 2.8” (72mm)
Certifications
IEC 62328-1: 2014
UL 62328-1
FCC Subpart 15 Class B
EN 55032: 2012 / AC: 2013
EN 55024: 2010
Warranty
1 year
