• Physical Distance - Achieving extensive coverage demands flexible, simplified, and long-distance deployment solutions.

• Cost Constraints - Network expansion can be cost-prohibitive; Businesses and institutions require economical alternatives to safeguard their financial well-being. EnGenius Switch Extender solution minimizes expenses.

• Power Availability - Many remote locations lack readily available power sources for network devices. Deploying in locations with power constraints or a lack of power outlet can indeed pose challenges. EnGenius Switch Extender effectively addresses power constraints and lack of power outlets.

• Deployment Complexity - Deploying network infrastructure in remote or diverse locations demands high technical expertise. Complex installation processes, specialized equipment, and skilled technicians are often prerequisites, leading to delays and increased deployment costs. Simplify complex technical details with user-friendly design, efficient cloud management, and easy deployment.

• VLAN Trunking - Extending network segmentation to encompass every room, ensuring that each resident has VLAN-based networks within their apartments or dorms.

• 8 10/100/1000 Base-T GbE ports

• 1 10/100/1000 SFP Port

• Port 1 equipped with PoE Input port for power and supports 802.3af/at/bt

• Ports 2 through 5 are equipped with 802.3at/af PoE support, up to 30W per port

• 18 Gbps switching capacity

• Quick-scan device register, remote monitoring, and troubleshooting

• Real-time system metrics, analytics, and remote configurations

• IGMP snooping provides advanced multicast filtering & network efficiency

• Voice VLAN for fast, reliable deployment of VoIP services

Port Standards
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3x Full-Duplex Flow Control

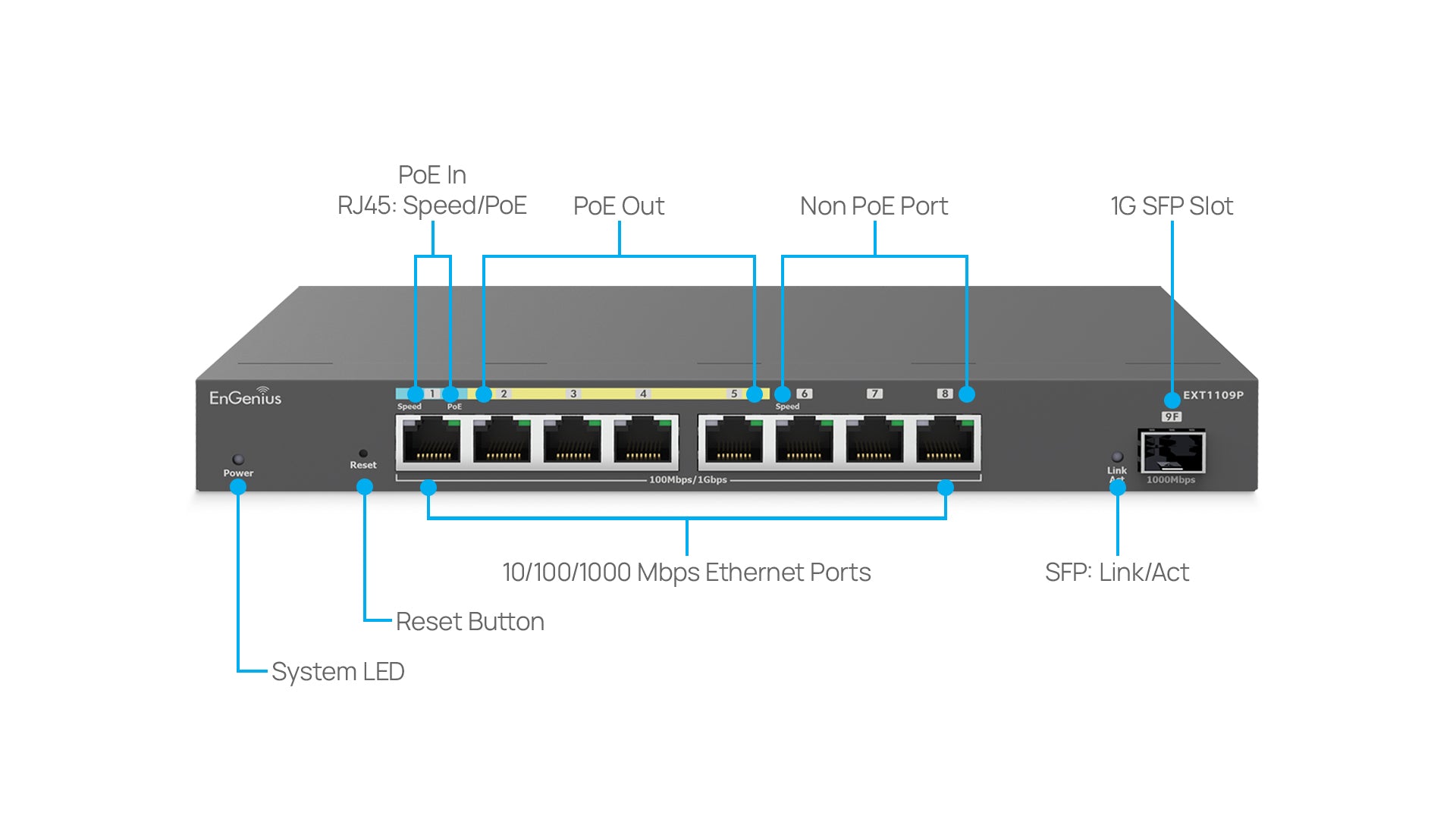

Network Ports
7 10/100/1000 Mbps Ports
1 10/100/1000 Mbps PoE Input Port for Power
1 10/100/1000 Mbps SFP Port

PoE Capable Ports
Port 1 (PoE In) supports 802.3af/at/bt
Port 2 to Port 5 (PoE Out) supports 802.3af/at
All Gigabit Ethernet ports can output up to 30 Watts

Total PoE Budget
Total PoE Budget is 15W when connected to a power source supporting 802.3at, which provides 30W
Total PoE Budget is 40W when connected to a power source supporting 802.3bt type 3, which provides 60W
Total PoE Budget is 60W when connected to a power source supporting 802.3bt type 4, which provides 90W

Power Source
PoE Power Delivery / PoE In (Port 1) supports 802.3af/at/bt

Switching Capacity
18Gbps

Flash Memory
32MB

Power Source
Standard 802.3 PoE Input

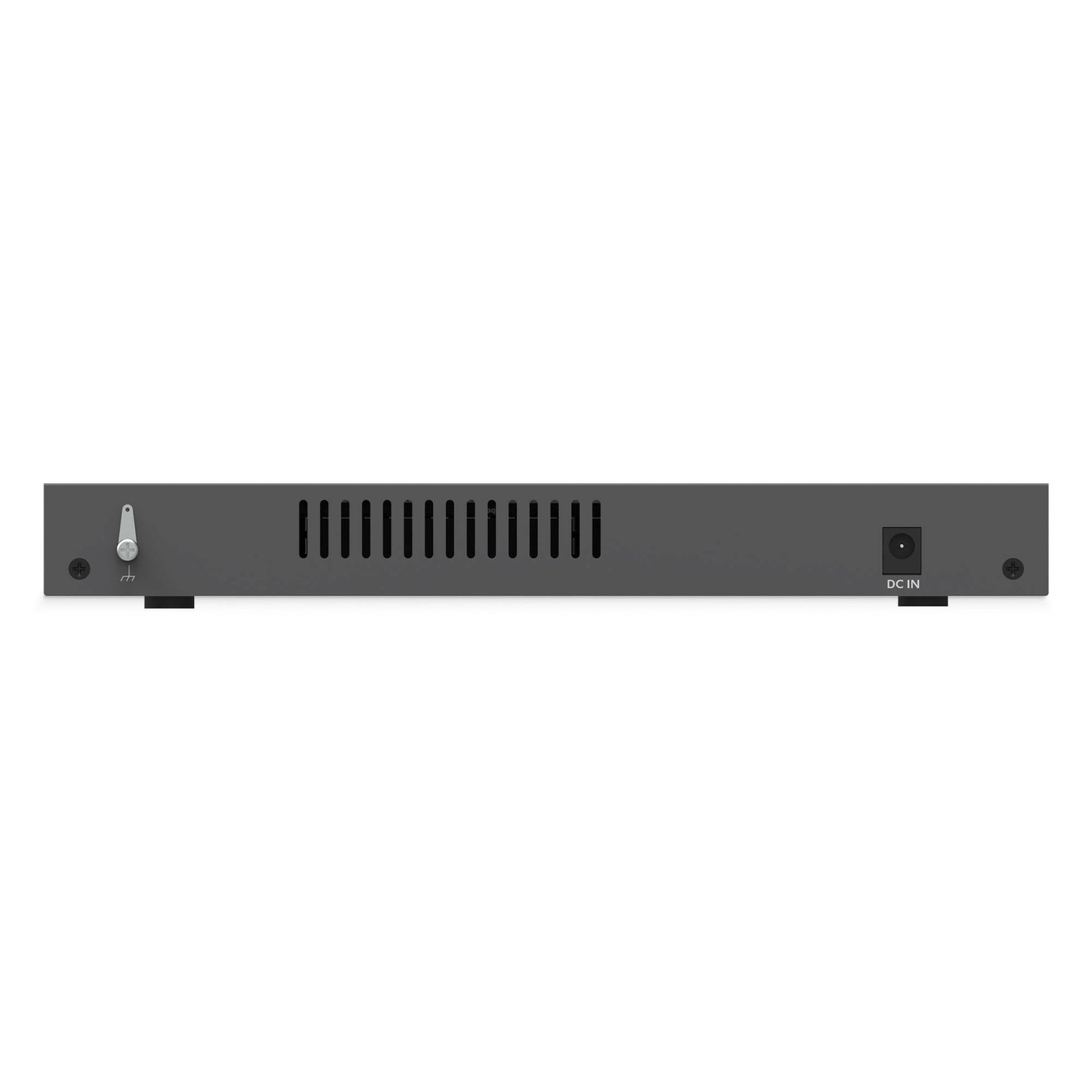

DC-Jack power source (Optional, power adapter not Included)

LED Indicators
Port LED (P1, P2, P3, P4, P5, P6, P7 and P8)

Ports
Link/Activity (per Ethernet port)
Speed (per Ethernet port)

MAC Address Table
8K

Jumbo Frame
10K

Multicast Group
Max 8 groups

QoS Number of Priority Queues
8

QoS Trust Mode
CoS/802.1p
CoS/802.1p-DSCP
DSCP

802.1w Rapid Spanning Tree
Multicast Filtering
IGMPv2
IGMP Snooping
IGMP Snooping Fast Leave
Port Statistics
802.1Q VLAN tagging
Voice VLAN
Port-based VLAN
Jumbo Frame
IPv4 Settings
Link Layer Discovery Protocol (LLDP)
IEEE 802.3az Energy Efficient Ethernet (EEE)
Weighted Round Robin Queue (WRR)
Simple Network Time Protocol (SNTP)
SYSLOG
Factory Default
Reboot

Temperature Range
Operating: 32°F to 104°F (0°C to 40°C)

Humidity (Non-Condensing)
Operating: 5% - 95%

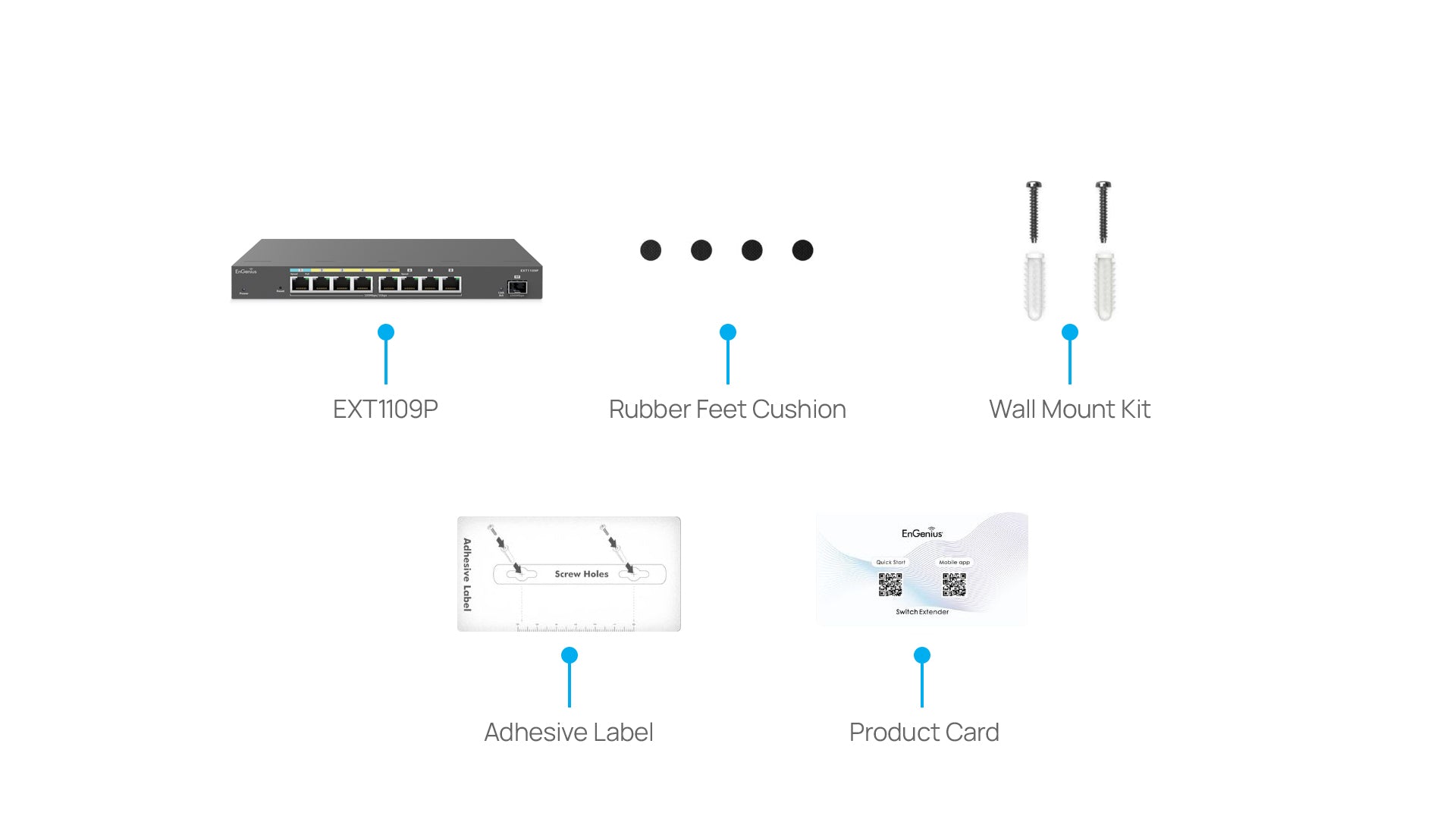

Package Contents
1 x Cloud Managed 8 Ports Gigabit Switch Extender
1 x Product Card

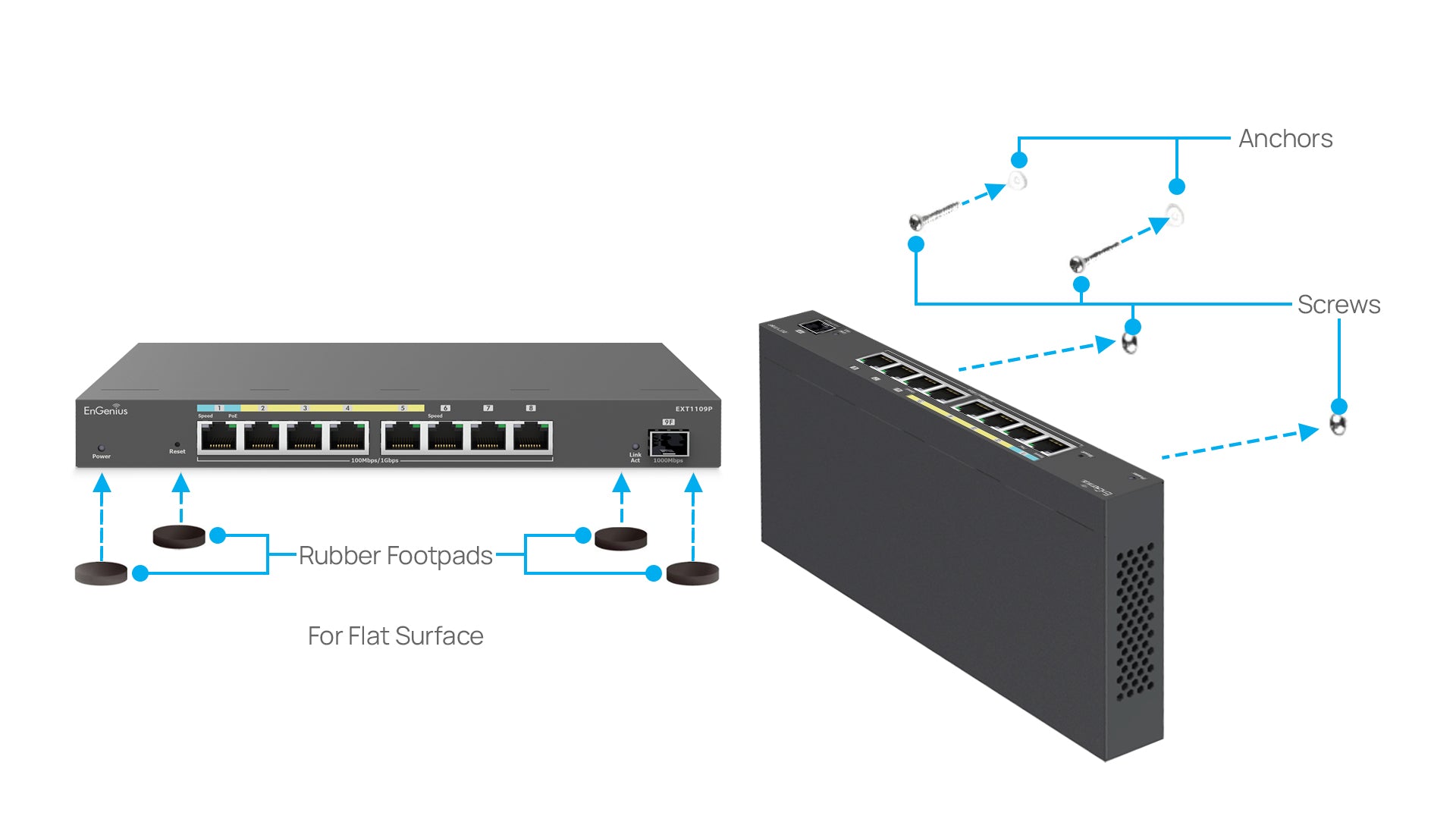

1 x Wall mount kit
1 x Adhesive label
1 x Rubber Feet Cushion

EXT1109P Device
Weight: 1.36 lbs. (620 g)
Length: 9.44” (240 mm)
Width: 4.13” (105 mm)
Height: 1.06” (27 mm)

Packaging
Weight: 3.3 lbs. (1495 g)
Length: 10.67” (271 mm)
Width: 6.61” (168 mm)
Height: 3.34” (85 mm)

Warranty
5 years

Certifications
CE
FCC
IC
