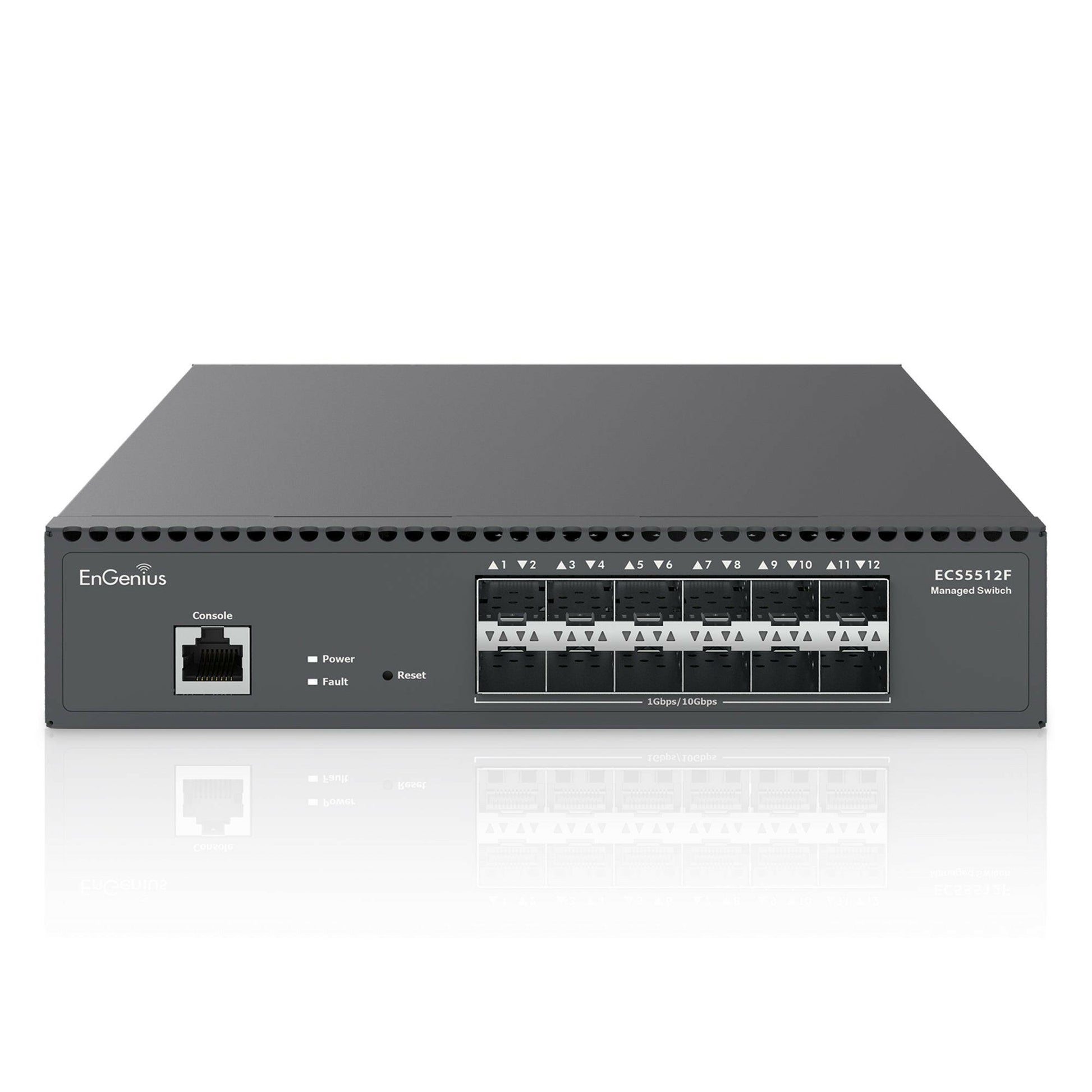

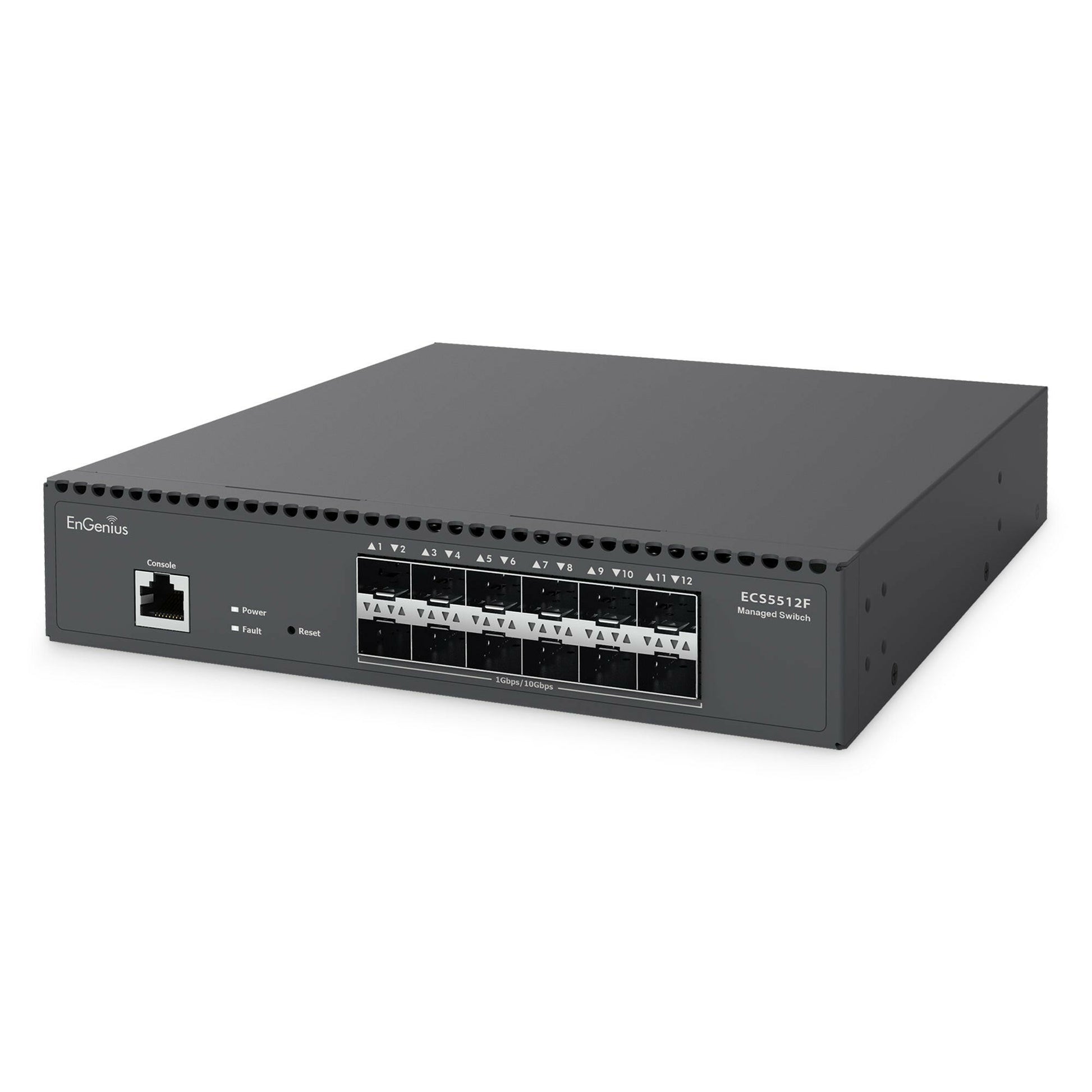

ECS5512F: Cloud Managed 12-Port 10 Gigabit SFP+ Half-Rack Aggregate Fiber Switch
Earn [points_amount] when you buy this item.
ECS5512F: Cloud Managed 12-Port 10 Gigabit SFP+ Half-Rack Aggregate Fiber Switch
Expandable to two per rack, boosts traffic flow and network performance in large businesses
EnGenius Cloud Managed Multi-Gigabit ECS5512F 12-port 10 Gigabit SFP+ half-rack aggregate fiber switch, expandable to two per rack, boosts traffic flow and network performance. Administrators can easily scale from 12 to 24 SFP+ ports on a single rack as network demands increase in large business, multi-dwelling unit, hospitality, and campus environments.
- ECS5512F Datasheet
- Cloud Switch User Manual
- Cloud Managed Switch Datasheet
Shipping & Returns
Not satisfied? We allow returns within 30 days of product purchase
Management
This product is compatible with the EnGenius Cloud line of products
Expandable
Administrators can easily scale from 12 to 24 SFP+ ports on a single rack
Fiber
Half-rack aggregate fiber switch boosts traffic flow and network performance
12 SFP Ports
12 x 10-Gigabit SFP+ fiber uplink ports for maximum connection speeds
5-Year Warranty
Leave the worrying to us. We've got you covered on your hardware purchase.
Features
Specifications
- (12) 10 Gigabit SPF+ Ports
- Full-Featured Layer 2+ Ethernet Switch
- 240 Gbps Switching Capacity

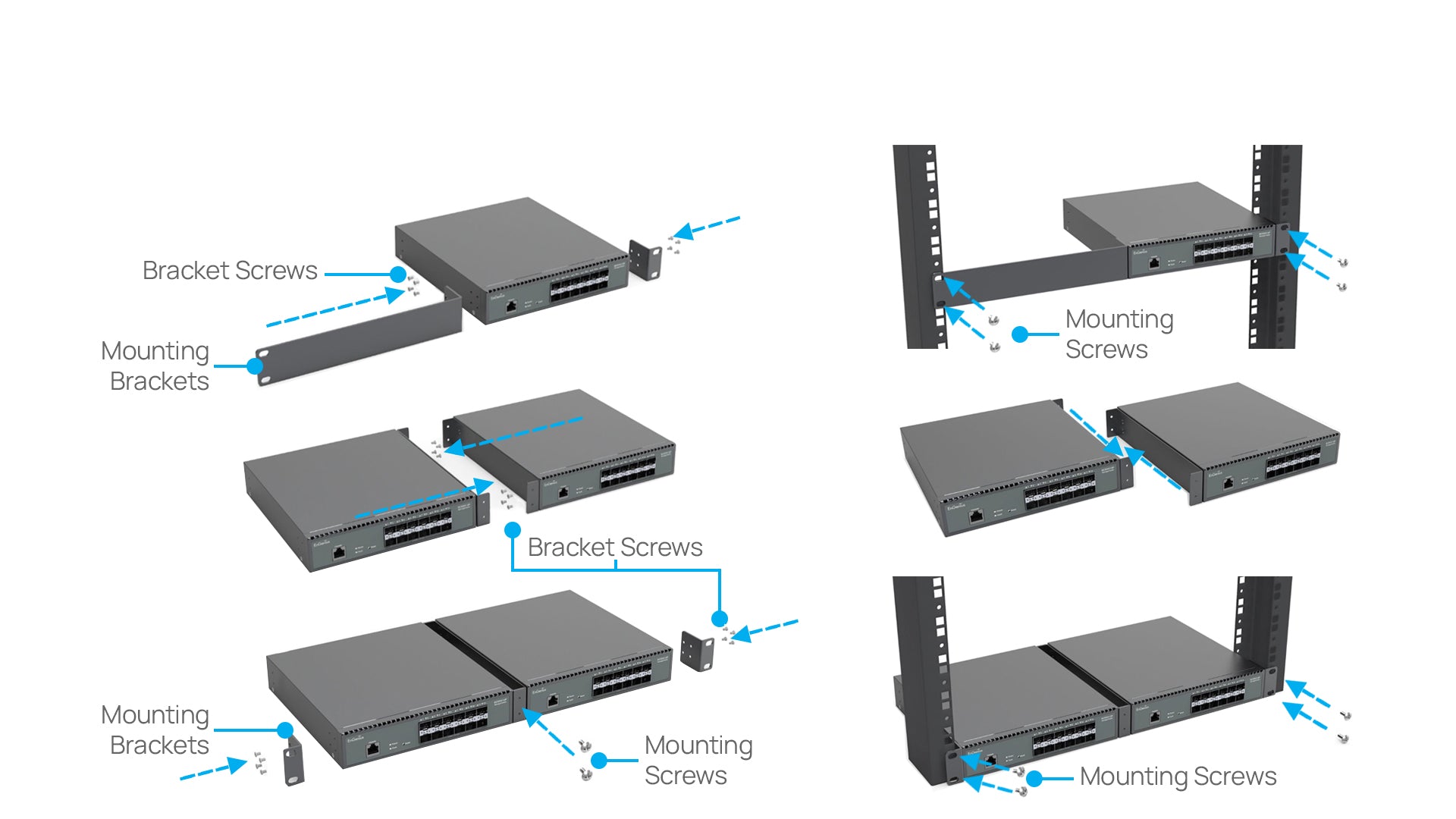

- Half Rack 1U (9.5”) Mount Expandable to Two Switches 1U (19") per Rack
- Real-Time System Metrics, Deep-Dive Analytics and Remote Configurations
- Quick-Scan Device Register, Remote Monitoring and Troubleshooting
- Advanced View Displays Network Topology with Devices and Relationships

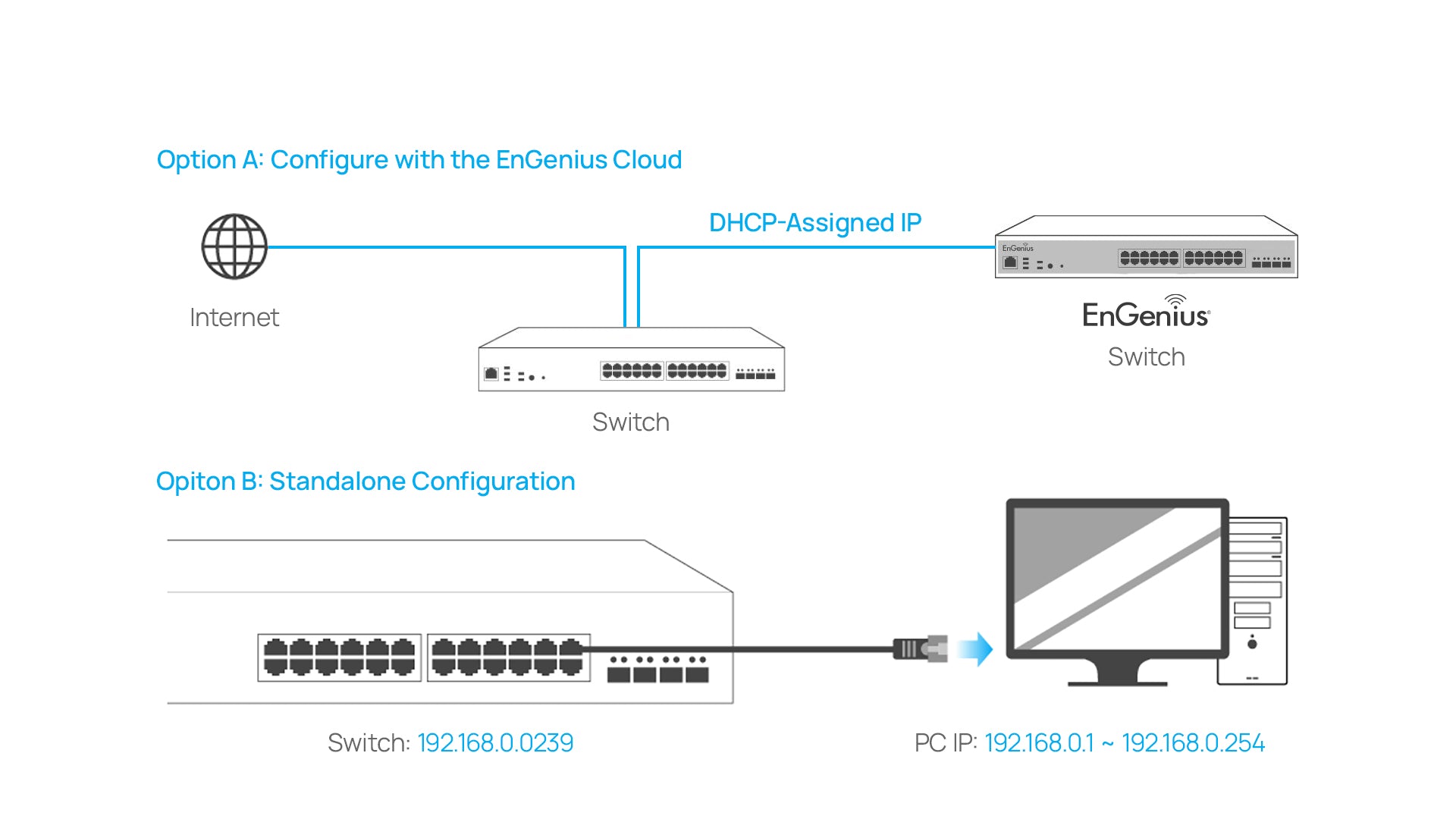

- Hybrid Switch Supports Multiple Management Options
- Security - Access Control List/Port Security; 802.1X & RADIUS Authentication
- IGMP & MLD snooping provides advanced multicast filtering & network efficiency
- 802.3ad Link Aggregation (LACP) Supports Traffic Load Balancing
- Spanning Tree (STP), Rapid Spanning Tree (RSTP) & Multiple Spanning Tree (MSTP)
- Voice VLAN for fast, reliable deployment of VoIP services
Port Standards
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3bz 2.5G Base-T Ethernet
802.3x Full-Duplex Flow Control
Network Ports
12 SFP+ Ports
Switching Capacity
240Gbps
SDRAM
512MB
Flash Memory
128MB

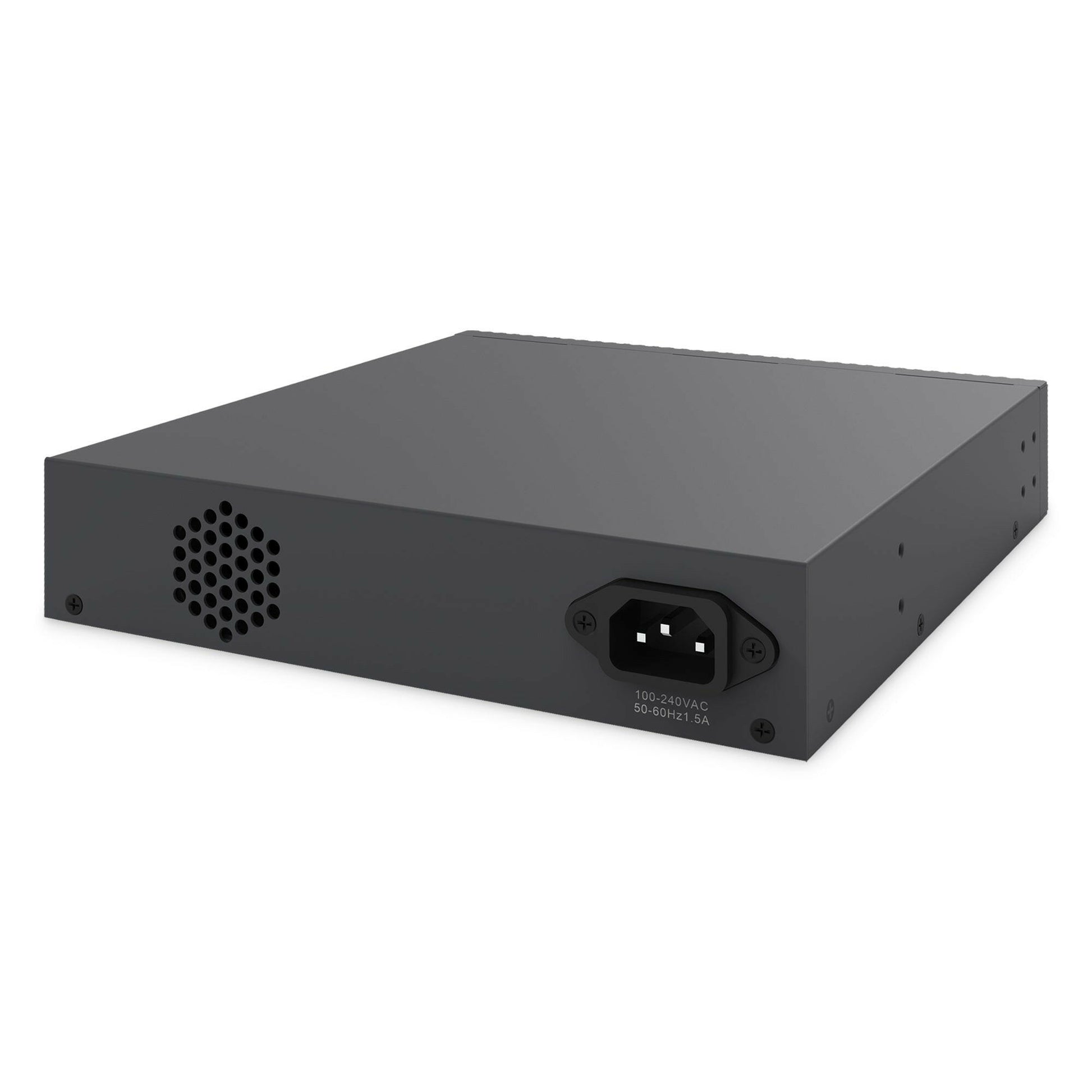

Power Source
100 ~ 240VAC, 50-60Hz

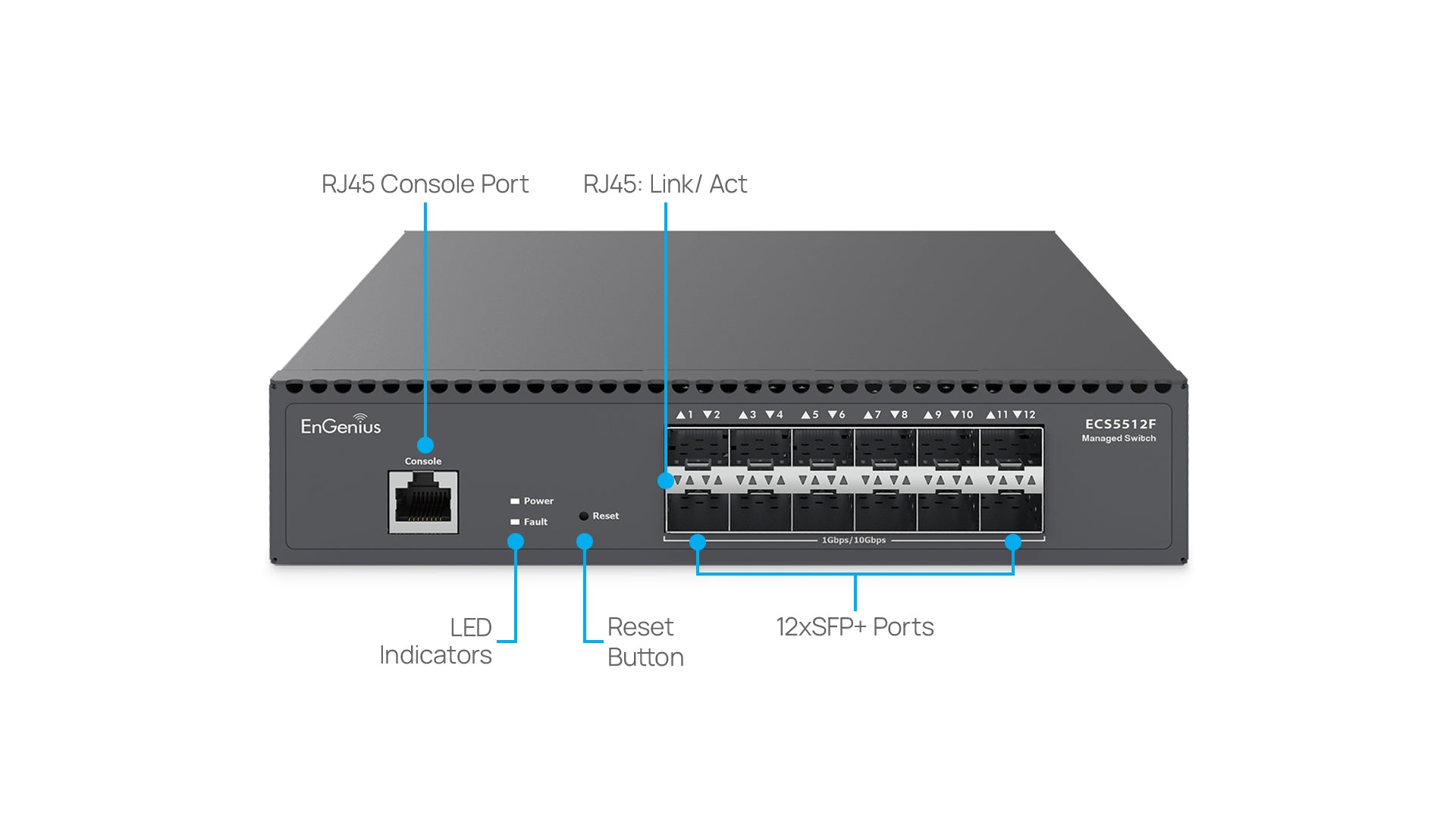

LED Indicators
Power LED
Fault LED
Ports
Link/Activity/Speed (per SFP slot)
Access Control List (ACL)
Ingress
MAC Based ACL
IPv4/IPv6 Based ACL
ACL Binding
Action: Permit/Deny
Time base ACL
Web Graphical User Interface (GUI)
HTTP IPv4 / IPv6
HTTPS IPv4 / IPv6
SSL Certificate
Certificate/Key Import
SNMP
SNMP v1/v2c/v3 Support
RMON
RMON 1,2,3,9
System Time
Time Setting/Daylight saving
Common L2 Features
802.1d Spanning tree
Loopback Detection
Multicast Filtering
Multicast Group
IGMP Multicast Forwarding
IGMP Snooping
MLD Multicast Forwarding
802.1Q VLAN tagging
802.3x flow control
802.3ad Link Aggregation
IPv4 DHCP Relay
IPv4 DHCP Snooping
IPv4 DHCP Snooping Source MAC Address Check-up
ARP Inspection
ARP Packet Validation (additional validation checks)
Voice VLAN
Port-based VLAN
Protocol-Based VLAN
Dynamic VLAN
VLAN Group
CoS Mapping
802. 1X Radius Authentication Protocol
IPv4 Settings
IPv6 Settings
IEEE 802. 3az Energy Efficient Ethernet (EEE)
Command Line Interface (CLI)
SSH Server
Telnet Server
TFTP Client
Configuration Upgrade/Backup
Simple Network Time Protocol (SNTP)
SYSLOG
Multiple IP Interface
20 IPv6 address
ARP Table
Max. 192 ARP entries
Static ARP
Static 192 ARP entries
IPv4 Static Route
Max. 63 entries
IPv6 Static Route
Max. 21 entries
Temperature Range
Operating: 32°F to 122°F (0°C to 50°C)
Humidity (Non-Condensing)
Operating: 5% - 90%

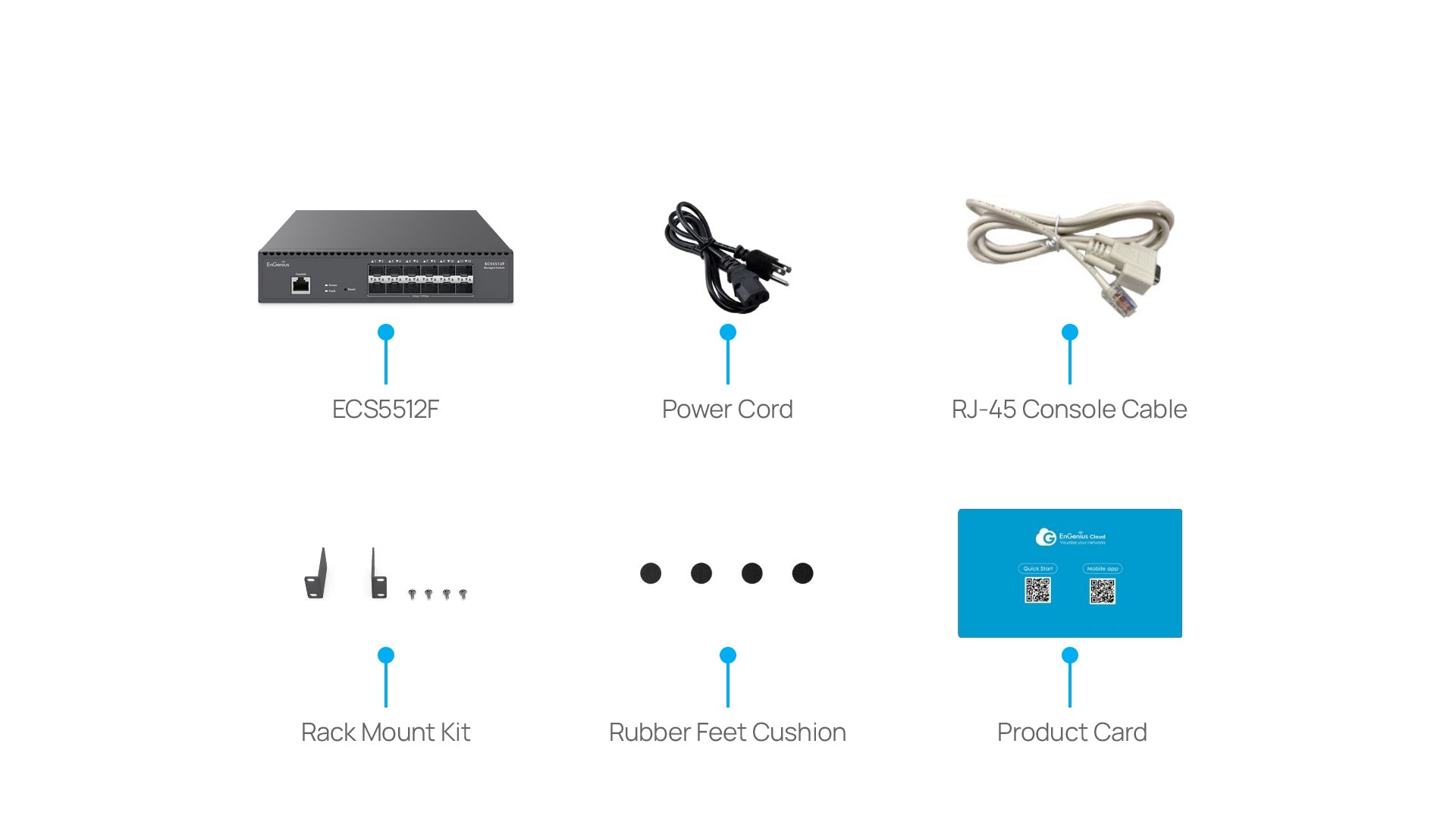

Package Contents
1x Cloud Managed Gigabit Switch
1x Quick Installation Guide
1x Power Cord
1x RJ45 Console Cable
1x 1U Rack Mount Kit
ECS5512F Device
Weight: 1.39kg (3.07 lbs.)
Width: 210mm (8.27”)
Length: 230mm (9.06”)
Height: 44mm (1.74”)
ECS5512F Packaging
Weight: 13.18 lbs. (5.98 kg)
Width: 12.04” (306 mm)
Length: 14.76” (375 mm)
Height: 3.58” (149 mm)
Warranty
5 Years
Certifications
CE
FCC
IC
