ECS2552FP: Cloud Managed 48-Port Multi-Gig PoE+ Network Switch with 4 SFP+ Ports
740 Watt with simple network configuration, monitoring, and management powers IP cameras, VoIP phones, and access points
The EnGenius ECS2552FP cloud-managed 48-port PoE+ multi-gigabit network switch with 740-Watt budget, simple network configuration, monitoring, and management powers IP cameras, VoIP phones, and access points. The ECS2552FP offers features like extended PoE mode, PD lifeguard, and continuous PoE power, to extend the reach and to maximize uptime for surveillance cameras.
- ECS2552FP Datasheet
- ECS2552FP Quick Start Guide
- Cloud Switch User Manual
- Cloud Managed Switch Datasheet
Shipping & Returns
Not satisfied? We allow returns within 30 days of product purchase
Management
This product is compatible with the EnGenius Cloud line of products
48 Ports
16 x 10/100/1000/2500 Base-T GbE Ports (32 x 10/100/1000 Base-T GbE Ports)
Multi Gigabit
Sixteen ports on this switch have up to 2.5 Gigabits per second connection speed
4 SFP Ports
4 x 10-Gigabit Dual-Speed SFP+ fiber uplink ports for maximum connection speeds
5-Year Warranty
Leave the worrying to us. We've got you covered on your hardware purchase.
Features
Specifications
- 16 x 10/100/1000/2500 Base-T GbE Ports
- 32 x 10/100/1000 Base-T GbE Ports
- Full-Featured Layer 2+ Ethernet Network Switch
- 802.3 at/af PoE+ Ready on All Ports with 740W PoE budget
- 224 Gbps Switching capacity
- 4 10-Gigabit Dual-Speed SFP+ (fiber) uplink ports
- Real-Time System Metrics, Deep-Dive Analytics and Remote Configurations
- Quick-Scan Device Register, Remote Monitoring and Troubleshooting
- PoE Extended Mode - Extend PoE Ethernet cable deploying range up to 250 meters
- PD Lifeguard - Real-time detecting and auto-reboot PoE power for failed camera
- Continuous PoE Power – Steady supply of PoE power for camera during switch upgrades
- Advanced View Displays Network Topology with Devices and Relationships
- Hybrid Switch Supports Multiple Management Options
Port Standards
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3bz 2.5G Base-T Ethernet
802.3x Full-Duplex Flow Control
Network Ports
32 10/100/1000 Mbps Ports
16 100/1000/2500 Mbps Ports
4 SFP+ Ports
Switching Capacity
224Gbps
SDRAM
512MB
Flash Memory
128MB
PoE+ Capable Ports
1-48 (802.3af/at)
Total PoE Budget
740W
Power Source
100 ~ 240VAC, 50-60Hz

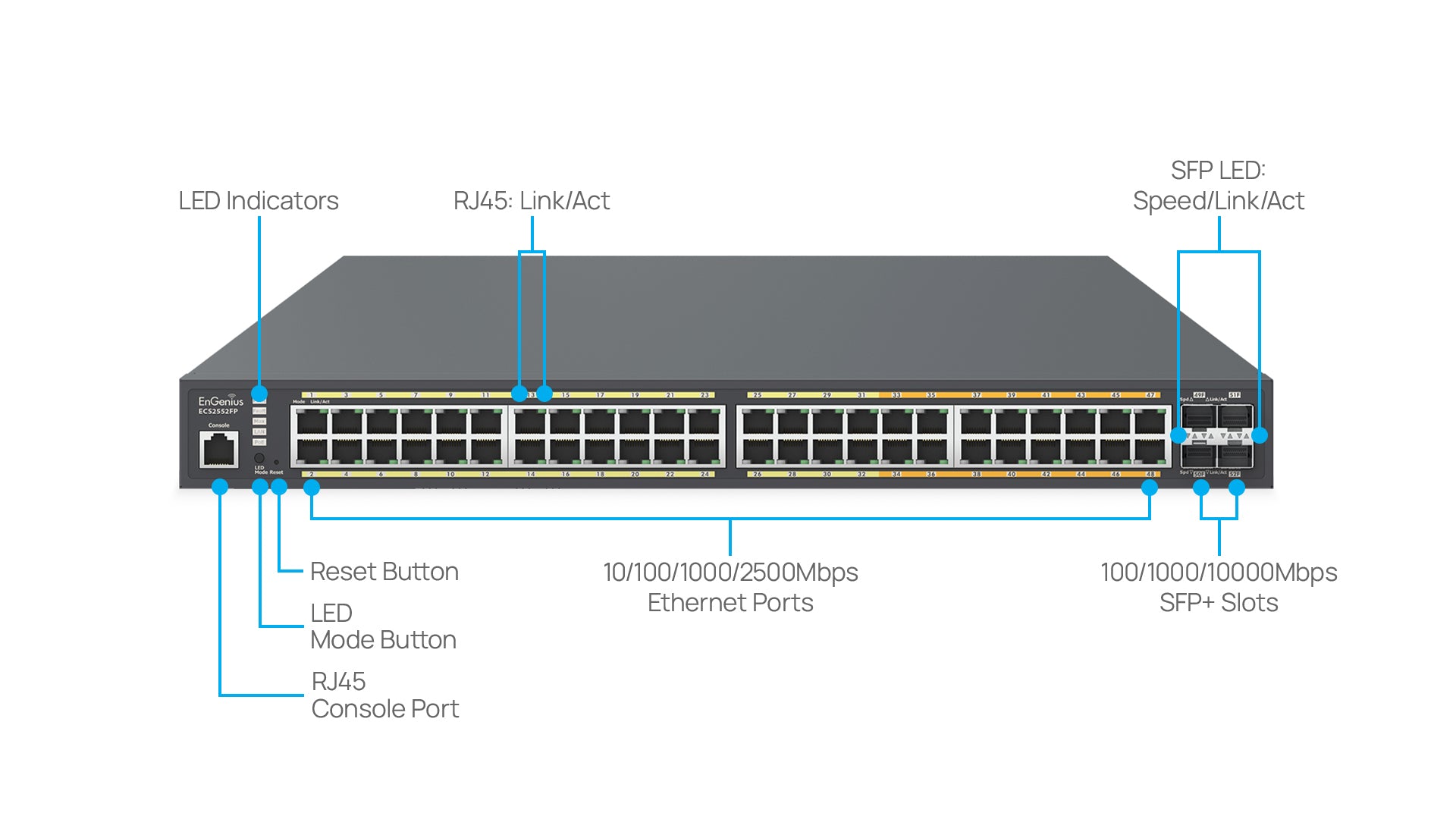

LED Indicators
Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED
Ports
Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)

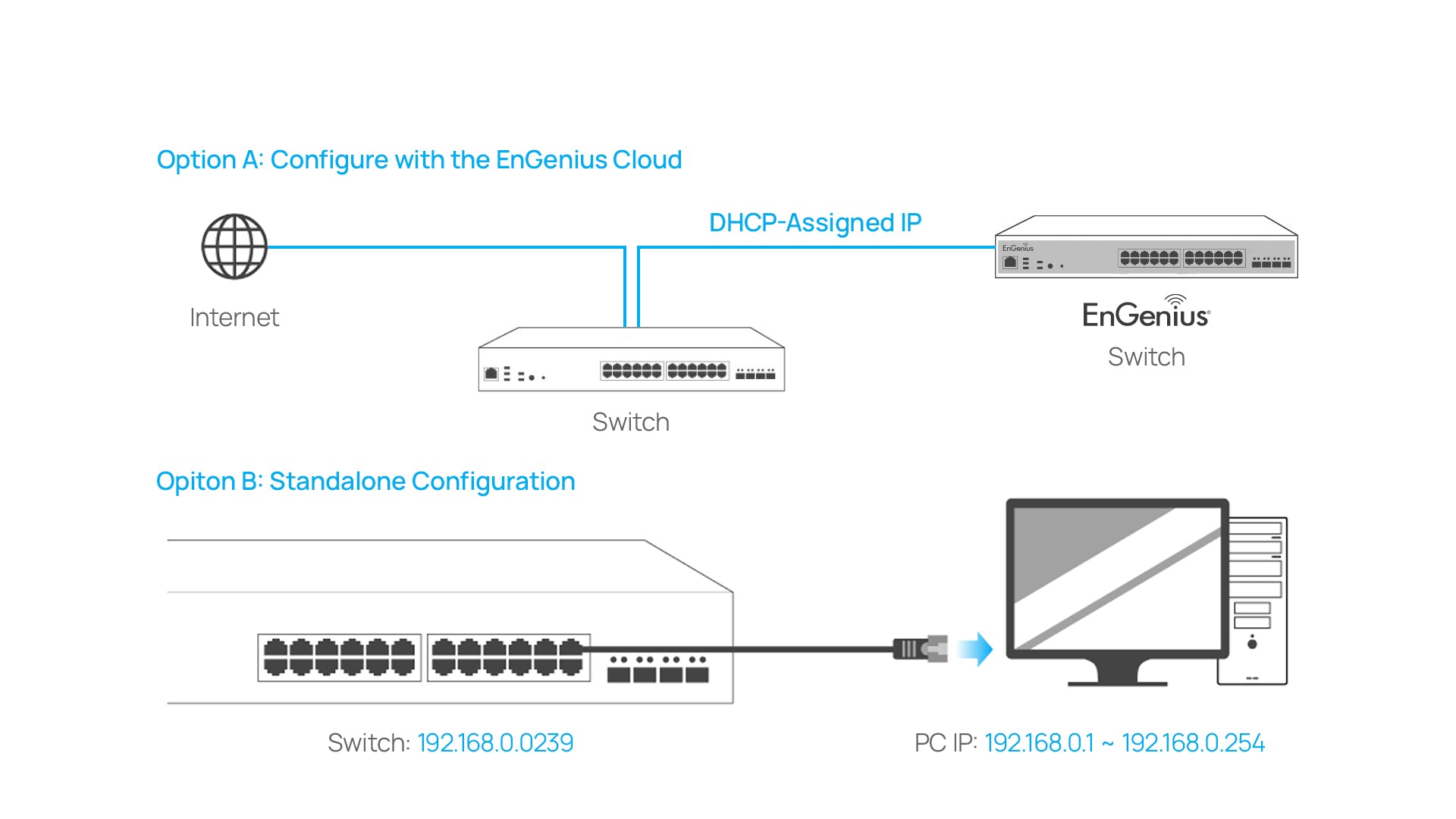

Network Management
EnGenius Cloud
ezMaster/SkyKey
Local Web GUI
MAC Address Table
32K
Jumbo Frame
10K
Multicast Group
Max 256 groups
MLD Snooping
MLD Snooping: v1
QoS-Number of Priority Queues Supported
Queue 8
Trust Mode
Cos/802.1p
DSCP
CoS/802.1p-DSCP
Scheduling Mechanism
Strict / WRR/ Strict + WRR
Bandwidth Control
Port-based bandwidth control (Ingress/Egress)
Port Security
Max. 256 Entries
Access Control List (ACL)
MAC Based ACL
IPv4/IPv6 Based ACL
ACL Binding
Time base ACL
Web Graphical User Interface (GUI)
HTTP IPv4 / IPv6
HTTPS IPv4 / IPv6
SSL Certificate
Certificate/Key Import
SNMP
SNMP v1/v2c/v3 Support
RMON
RMON 1,2,3,9
System Time
Time Setting/Daylight saving
Common L2 Features
802.1d Spanning tree
Loopback Detection
Multicast Filtering
IGMP Multicast Forwarding
IGMP Snooping
MLD Multicast Forwarding
802.1Q VLAN tagging
802.3x flow control
802.3ad Link Aggregation
IPv4 DHCP Relay
IPv4 DHCP Snooping
IPv4 DHCP Snooping Source MAC Address Check-up
ARP Inspection
ARP Packet Validation (additional validation checks)
Voice VLAN
Port-based VLAN
Protocol-Based VLAN
CoS Mapping
802. 1X Radius Authentication Protocol
IPv4 Settings
IPv6 Settings
IEEE 802. 3az Energy Efficient Ethernet (EEE)
Command Line Interface (CLI)
SSH Server
Telnet Server
TFTP Client
Configuration Upgrade/Backup
Simple Network Time Protocol (SNTP)
SYSLOG
802.1d Spanning tree
Multiple IP Interface
20 IPv6 address
ARP Table
Max. 192 ARP entries
Static ARP
Static 192 ARP entries
IPv4 Static Route
Max. 63 entries
IPv6 Static Route
Max. 21 entries
Temperature Range
Operating: 32°F to 122°F (0°C to 50°C)
Humidity (Non-Condensing)
Operating: 5% - 95%

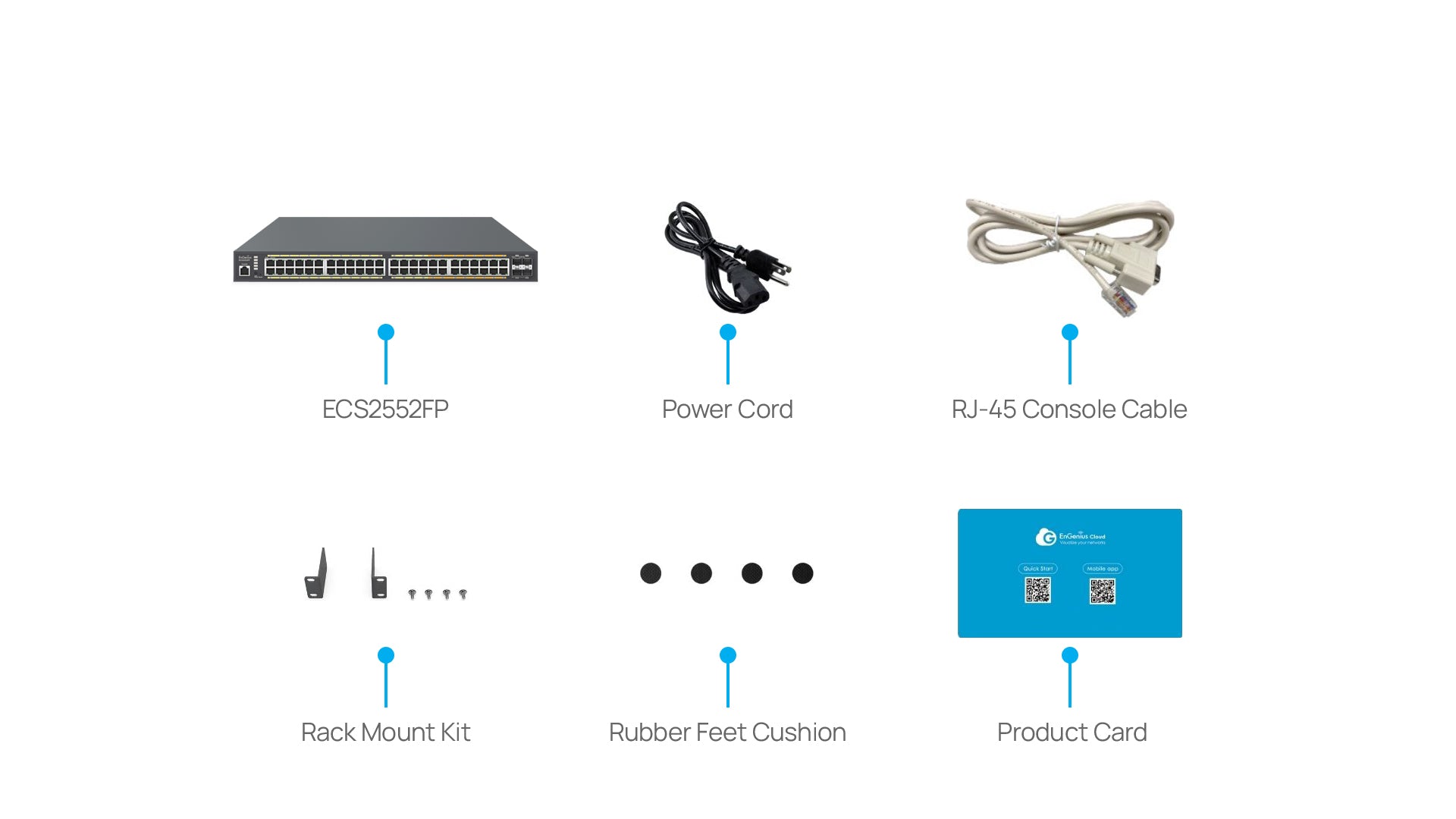

Package Contents
1x Cloud Managed Gigabit Switch
1x Quick Installation Guide
1x Power Cord
1x RJ45 Console Cable

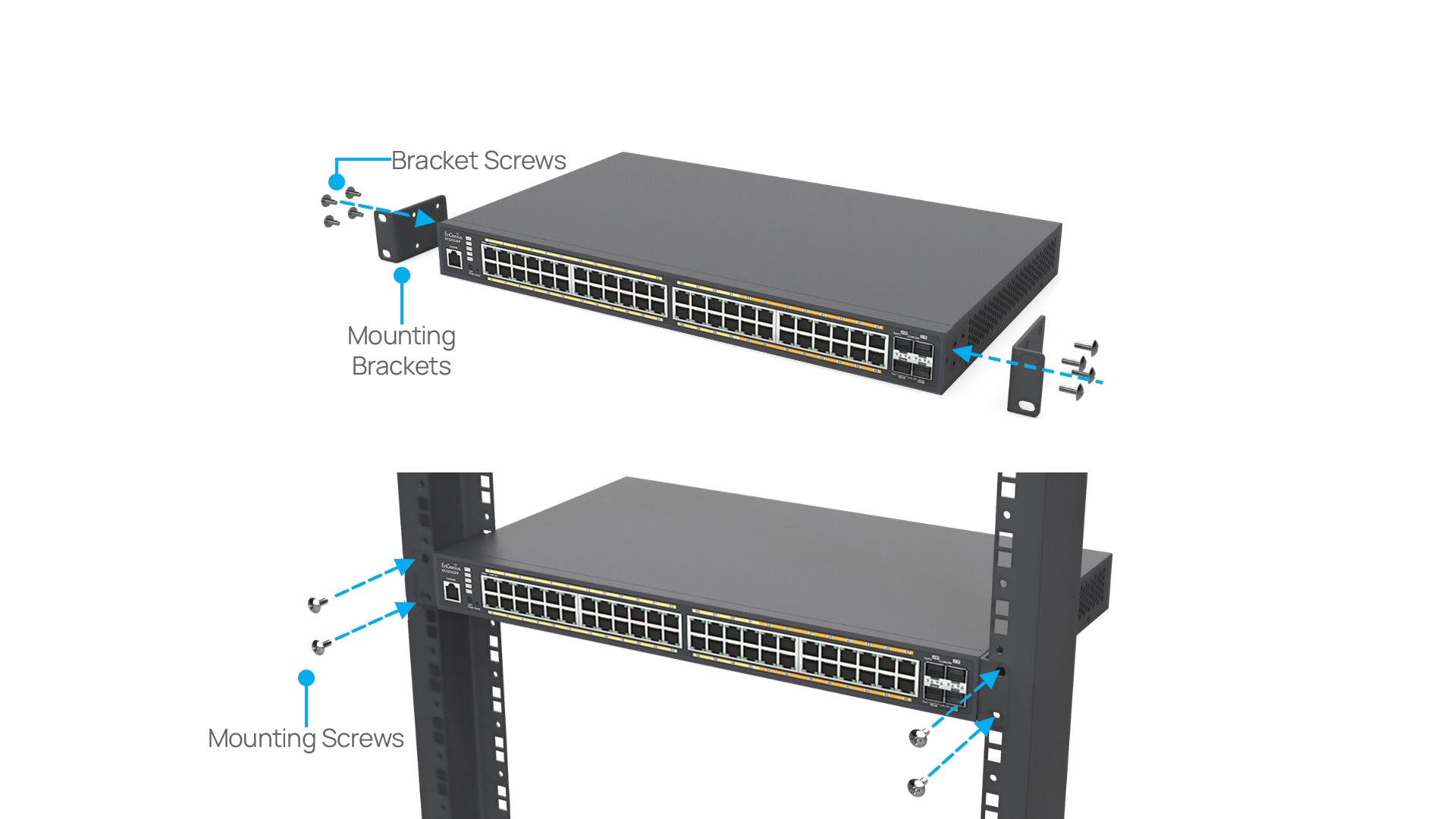

1x Rack Mount Kit
ECS2552FP Device
Weight: 10.74 Ibs. (4.87 kg)
Width: 12.20” (310mm)
Length: 17.32” (440 mm)
Height: 1.73” (44 mm)
Packaging
Weight: 13.18 lbs. (5.98 kg)
Width: 16.89” (429 mm)
Length: 21.57” (548 mm)
Height: 4.13” (105 mm)
Warranty
5 Years
Certifications
CE
FCC
IC
