EXT1105P: Cloud Managed 5-Port Gigabit PoE+ Switch Extender w/ up to 60W Budget

$119.00
 por
In stock!
Spend $75.00 to FREE SHIPPING
Earn 1 Point on this purchase. Learn more
Ver todos los detalles

EXT1105P: Cloud Managed 5-Port Gigabit PoE+ Switch Extender w/ up to 60W Budget

$119.00
 por

Provides an efficient solution for network deployments while addressing cable-related limitations

The EnGenius cloud-managed EXT1105P Switch Extender is a streamlined network expansion and connectivity enhancement solution designed to tackle power and connectivity challenges across diverse industries. With PoE technology and multiple PSE output ports, it eliminates network cabling and power wiring complexities and costs, offering a cost-effective, hassle-free way to extend your network reach and empower critical business applications.


To manage the switch extender on the EnGenius Cloud it will require a Pro License.

- EXT1105P Datasheet
- EXT1105P Quick Start Guide
- Cloud Switch User Manual
- Cloud Managed Switch Datasheet

Shipping & Returns

Not satisfied? We allow returns within 30 days of product purchase

Management

This product is compatible with the EnGenius Cloud line of products

5-Ports

5 x 10/100/1000 Base-T GbE Ports with 10 Gbps switching capacity

5-Year Warranty

Leave the worrying to us. We've got you covered on your hardware purchase.

Features

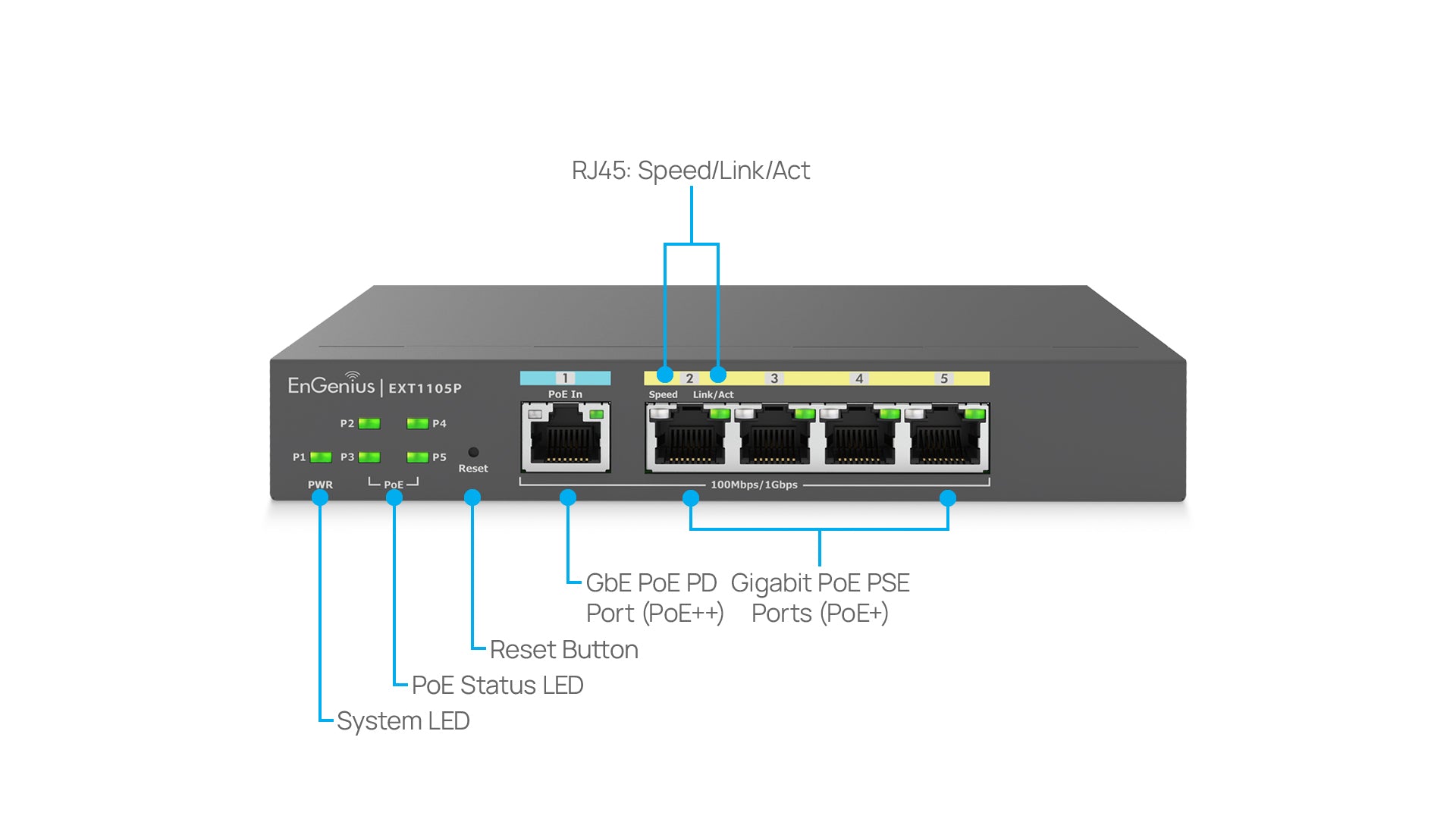

Overview

In-the-Box

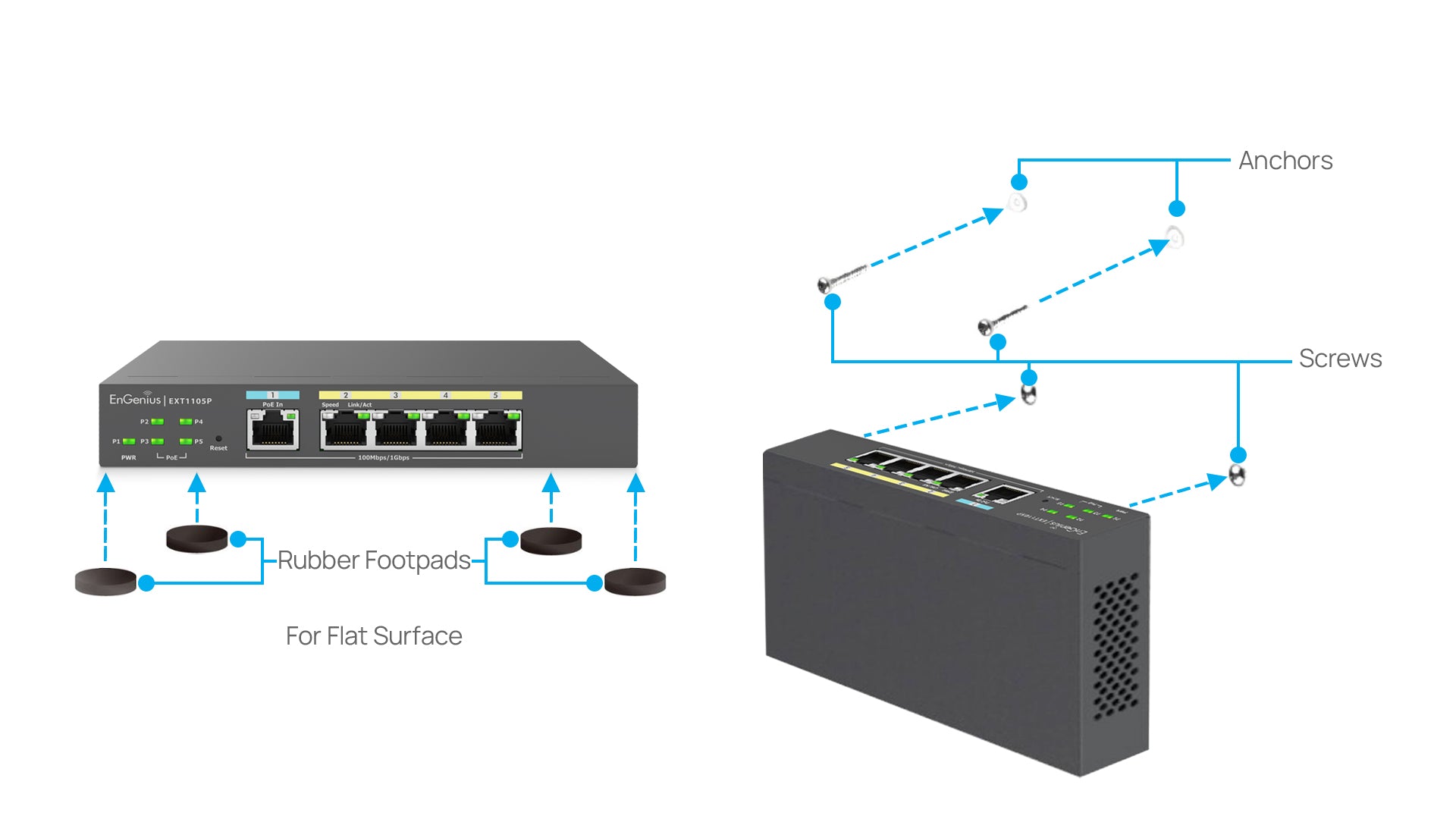

Mounting

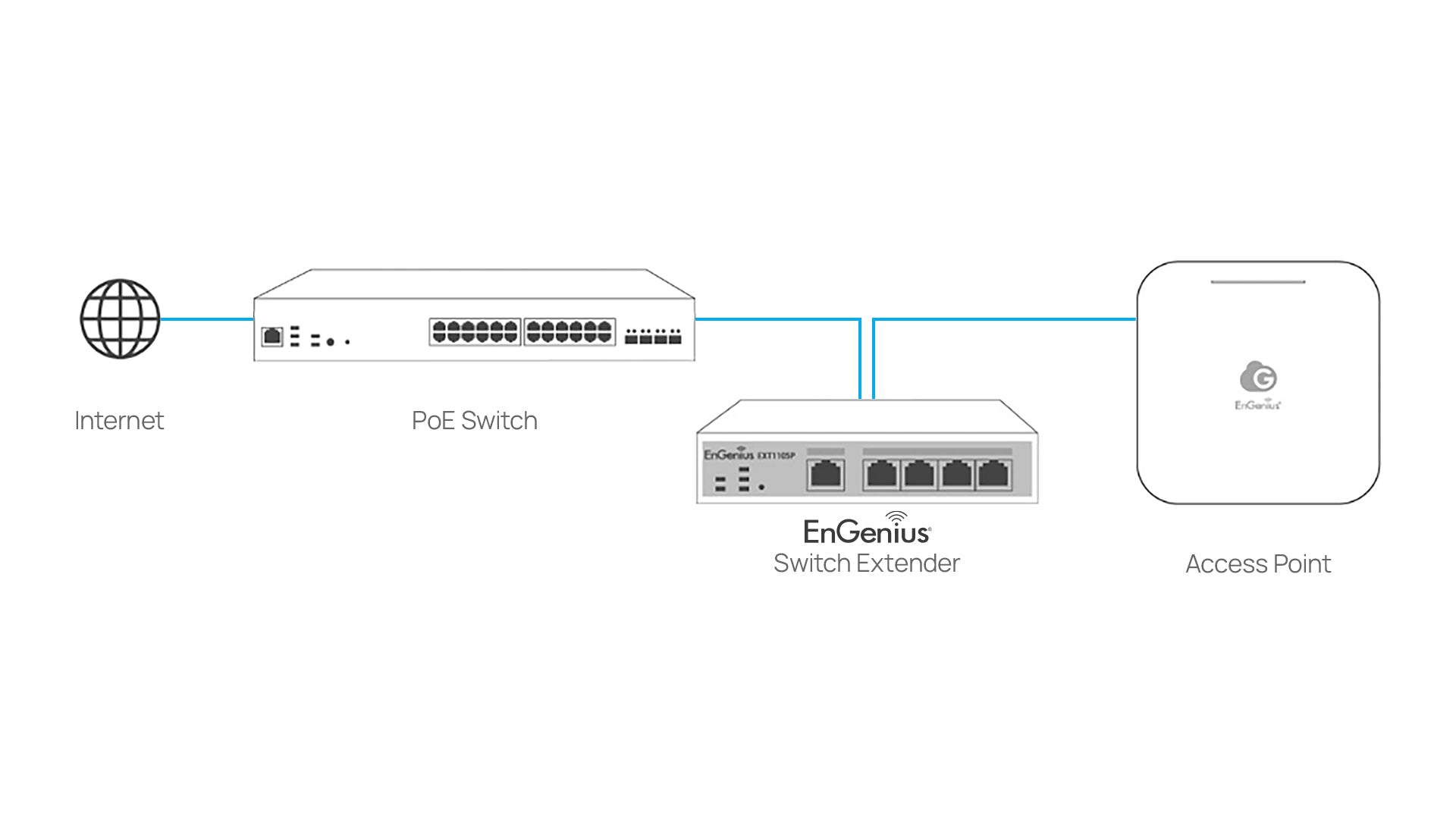

Deployment

EXT1105P

Specifications

Key Features

  • Physical Distance - Achieving extensive coverage demands flexible, simplified, and long-distance deployment solutions.

  • Cost Constraints - Network expansion can be cost-prohibitive; Businesses and institutions require economical alternatives to safeguard their financial well-being. EnGenius Switch Extender solution minimizes expenses.

  • Power Availability - Many remote locations lack readily available power sources for network devices. Deploying in locations with power constraints or a lack of power outlet can indeed pose challenges. EnGenius Switch Extender effectively addresses power constraints and lack of power outlets.

  • Deployment Complexity - Deploying network infrastructure in remote or diverse locations demands high technical expertise. Complex installation processes, specialized equipment, and skilled technicians are often prerequisites, leading to delays and increased deployment costs. Simplify complex technical details with user-friendly design, efficient cloud management, and easy deployment.

  • VLAN Trunking - Extending network segmentation to encompass every room, ensuring that each resident has VLAN-based networks within their apartments or dorms.

Product Highlights

  • 5 10/100/1000 Base-T GbE ports

  • Port 1 equipped with PoE Input port for power

  • Ports 2 through 5 are equipped with 802.3at/af PoE support, up to 30W per port

  • 10 Gbps switching capacity

  • Setup in minutes with app-based step by step instructions

  • Quick-scan device register, remote monitoring, and troubleshooting

  • Real-time system metrics, analytics, and remote configurations

  • From anywhere cloud visibility and control

  • IGMP snooping provides advanced multicast filtering & network efficiency

  • Spanning Tree (RSTP) that promotes high availability and loop-free topology within Ethernet networks

  • Voice VLAN for fast, reliable deployment of VoIP services

Technical Specifications

Port Standards
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3x Full-Duplex Flow Control

Network Ports
4 10/100/1000 Mbps Ports
1 10/100/1000 Mbps PoE Input Port for Power

PoE Capable Ports
Port 1 (PoE In) supports 802.3af/at/bt
Port 2 to Port 5 (PoE Out) supports 802.3af/at
All Gigabit Ethernet ports can output up to 30 Watts

Total PoE Budget
Total PoE Budget is15W when connected to a power source supporting 802.3at, which provides 30W.
Total PoE Budget is 30W when connected to a power source supporting 802.3bt type 3, which provides 60W.
Total PoE Budget is 60W when connected to a power source supporting 802.3bt type 4, which provides 90W.

Power Source
PoE Power Delivery / PoE In (Port 1) supports 802.3af/at/bt

Switching Capacity
10Gbps

Flash Memory
32MB

Power Source
Standard 802.3 PoE Input

Physical Interface

LED Indicators
Power LED (P1, P2, P3, P4 and P5)

Ports
Link/Activity (per Ethernet port)
Speed (per Ethernet port)

MAC Address Table
8K

Jumbo Frame
10K

Multicast Group
Max 8 groups

QoS Number of Priority Queues
8

QoS Trust Mode
CoS/802.1p
CoS/802.1p-DSCP
DSCP

Features

802.1w Rapid Spanning Tree
Multicast Filtering
IGMPv2
IGMP Snooping
IGMP Snooping Fast Leave
Port Statistics
802.1Q VLAN tagging
Voice VLAN
Port-based VLAN
Jumbo Frame
IPv4 Settings
Link Layer Discovery Protocol (LLDP)
IEEE 802.3az Energy Efficient Ethernet (EEE)
Weighted Round Robin Queue (WRR)
Simple Network Time Protocol (SNTP)
SYSLOG
Factory Default
Reboot
Find me

Environmental & Physical

Temperature Range
Operating: 32°F to 104°F (0°C to 40°C)

Humidity (Non-Condensing)
Operating: 5% - 95%

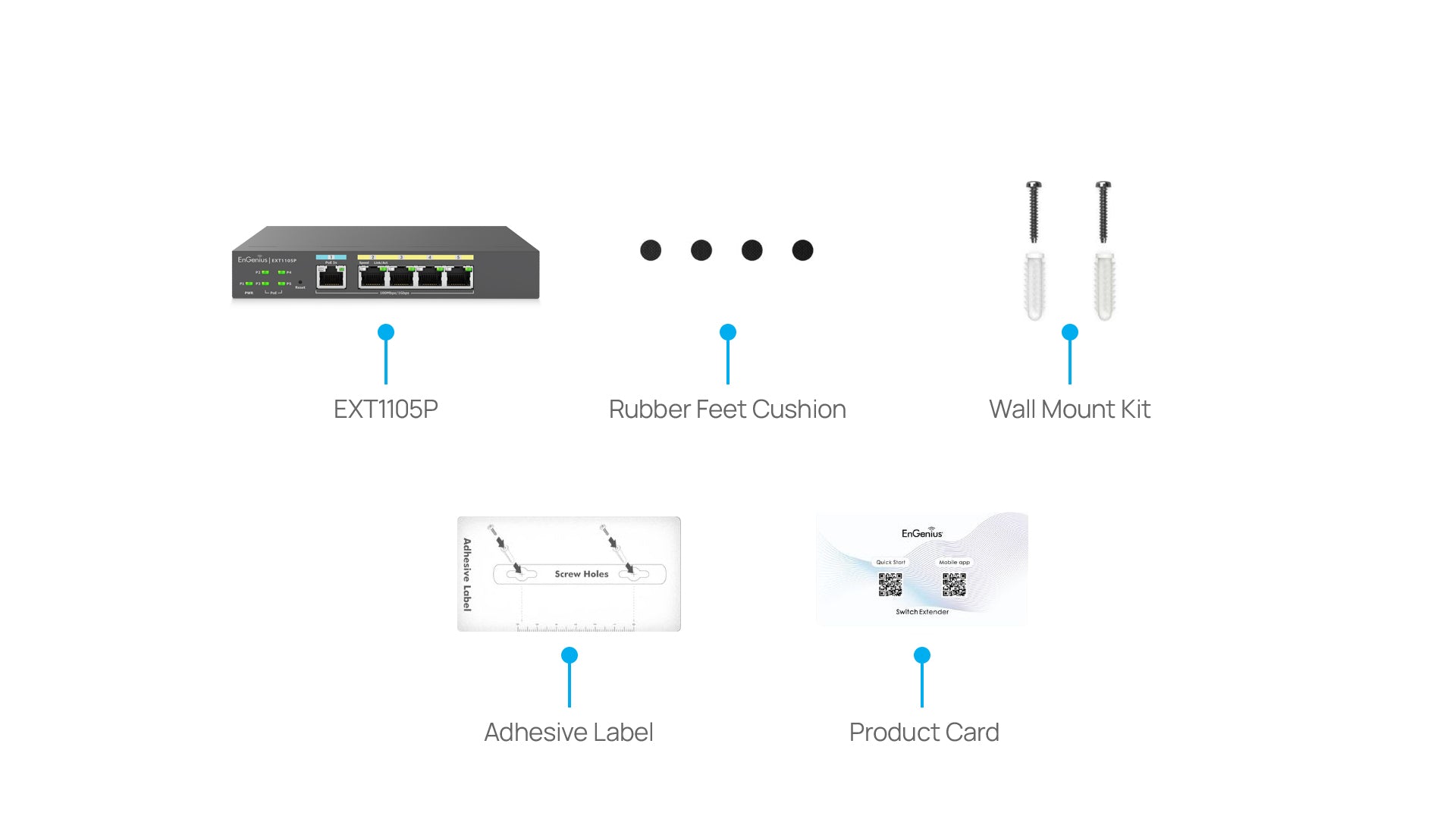

Package Contents
1 x Cloud Managed 5 Ports Gigabit Switch Extender
1 x Product Card
1 x Wall mount kit
1 x Adhesive label
1 x Rubber Feet Cushion

Dimensions & Weights

Dimensions & Weights
EXT1105P Device
Weight: 1.01 lbs. (460 g)
Length: 6.69” (170 mm)
Width: 4.13” (105 mm)
Height: 1.02” (26 mm)

Packaging
Weight: 1.14 lbs. (520 g)
Length: 8.89” (226 mm)
Width: 4.41” (112 mm)
Height: 1.41” (36 mm)

Warranty
5 Years

Certifications
CE
FCC
IC
