ESG320: Cloud-Managed VPN Router with Dual Core 2.1GHz and 4 x 1G ports
Earn [points_amount] when you buy this item.
ESG320: Cloud-Managed VPN Router with Dual Core 2.1GHz and 4 x 1G ports
Cellular failover, stateful firewall, and site to site & client VPN
EnGenius Cloud Managed ESG320 is a 2.1 GHz Dual-Core SD-WAN VPN Router with Dual-WAN (WAN1 SFP /Gigabit LAN combo and WAN2 Gigabit), 4 Gigabit LAN (1 PoE+), 1 SFP supporting auto-VPN site-to-site and client, WAN balancing and failover, and stateful firewall delivers effortless setup, enterprise-level security, and an end-to-end network solution.
- EnGenius Cloud User Manual
- Cloud-Managed VPN Router Datasheet
Shipping & Returns
Not satisfied? We allow returns within 30 days of product purchase
Management
This product is compatible with the EnGenius Cloud line of products

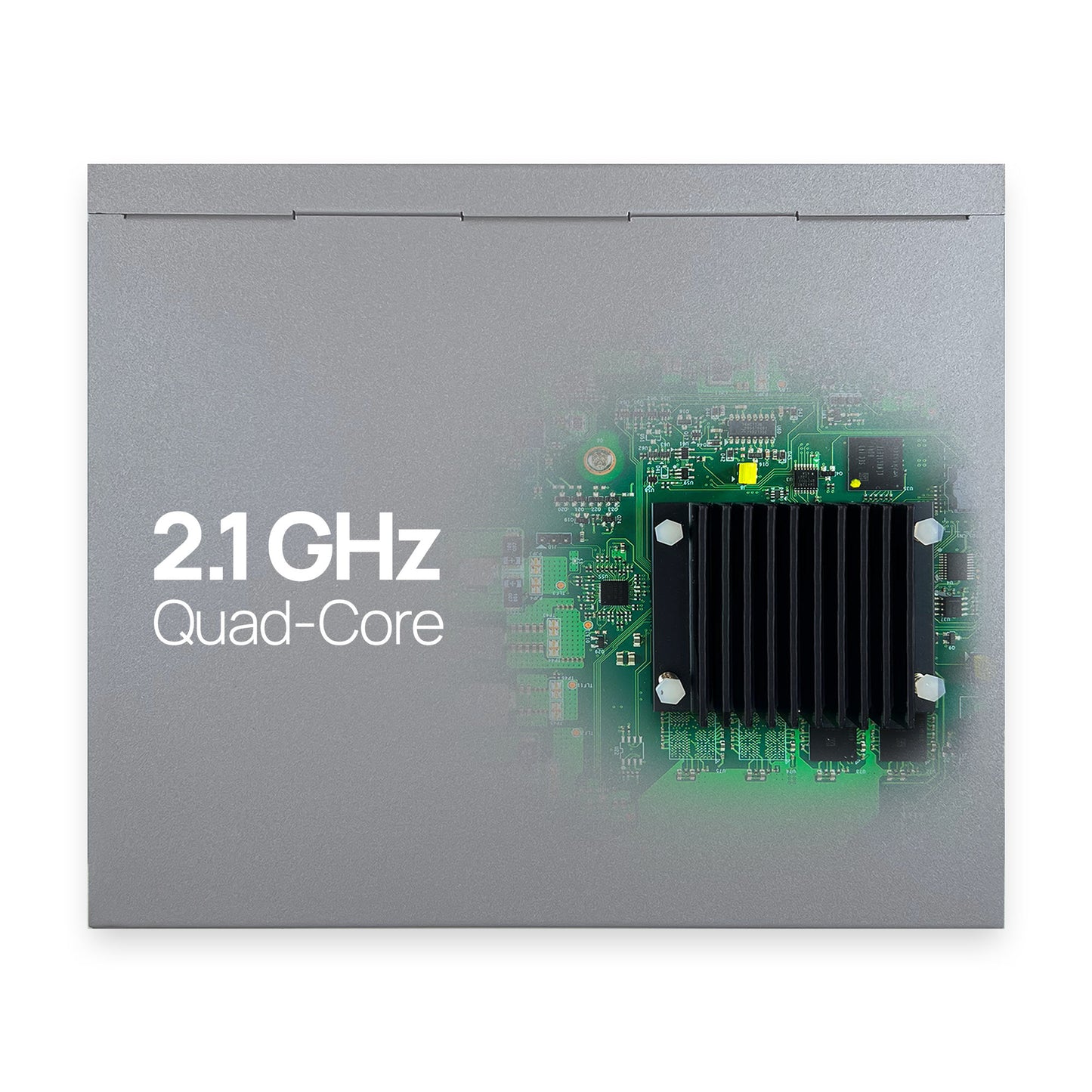

2.1GHz Processor
Quad core design for greater speed and power
5-Year Warranty
Leave the worrying to us. We've got you covered on your hardware purchase.
Features
Specifications
- High-performance VPN Router designed for small and medium-sized enterprises.
- High efficiency stateful firewall to protect from unauthorized access and data theft.
- Auto-VPN automates secure VPN setup, reducing manual effort.
- Seamless and secure VPN Client, SecuPoint to ensure simple remote connections.
- Uninterrupted connectivity with Dual-WAN and cellular failover.
- Simple VLAN configuration for easy traffic segmentation.
- Passthrough mode for easy integration into existing networks.
- Touchless system maintenance and automatic updates.
- Effortless control with enterprise-level cloud management platform.
- No licensing or subscription fees
are needed.
CPU Processor
Dual-Core
Operating Frequency
2.1 GHz
Memory
4 GB
Storage
8 GB
Network Ports (Copper Ports)
4 x 10/100/1000 BASE-T, RJ-45 Ethernet ports
1 SFP Ports
Console Port
1 x 10/100/1000, RJ-45 Ethernet port
PoE+ Capable Port
1 (802.3af/at) LAN (P1)
USB Interface
1 x USB 3.0
Security Chip
TPM
Firewall (SPI Throughput)
3 Gbps
VPN Throughput
900 Mbps
Max. TCP Concurrent Sessions
1,000,000
Max. Concurrent VPN Tunnels
100
Max. VLAN
16
Firewall Features
Stateful Packet Inspection
Policy Rules
Port Forwarding
1:1 NAT
Allow Inbound Services
Export Outbound and Port Forwarding Rules
Layer 7 Application Firewall
Apply firewall rules universally
Site-to-Site VPN
Mesh VPN/Hub-and-Spoke
Encryption
3DES, AES (256/192/128-bit)
Authentication
MD5, SHA1, SHA2 (512-bit)
Key Management
IKEv1 (x-auth, mode-config)
IKEv2 (EAP, configuration payload)
VPN Features
Site-to-Site VPN
VPN Client – IPSec IKEv1
SecuPoint VPN Client
Policy-based VPN
IPsec NAT traversal (NAT-T)
Dead Peer Detection (DPD)
Auto-VPN Connection
Auto NAT traversal
Operation Mode
Routed/Passthrough
Multiple WANS
Dual-WAN (WAN 1 SFP Fiber/Gigabit LAN P4 combo & WAN 2 /P3)
WWAN Cellular Backup (USB 3.0)
Bandwidth Limit
Per Interface
Traffic Load Balancing
WAN load balancing with WRR
Networking Features
Static Route
Multiple WANs
USB Cellular
User Authentication
PPPoE
VLAN Tagging
Captive Portal
Custom Splash Page
Dynamic Routing
Bandwidth Limiting
Traffic Load Balancing
DHCP client/server/relay
Dynamic DNS support
Policy Based Routing
Power
54V/1.2A
Operating Temperature
0°C to 40°C
Humidity (non-condensing)
5 to 95% non-condensing
ESG320 Package Contents
Power adapter
Power cord
RJ-45 Console Cable
Wall Mount Kit
Quick Installation Guide
ESG320 Device
Weight: 2.14 lbs. (.97 kg)
Width: 8.27” (210 mm)
Length: 7.07” (179.5 mm)
Height: 1.38” (35 mm)
ESG320 Packaging
Weight: 3.75 lbs. (1.7 kg)
Width: 4.09” (104 mm)
Length: 10.98” (279 mm)
Height: 12.19” (297mm)
Regulatory Compliance
- FCC Part 15 (Class B)
- IC
- CE EMC (Class B)
- RCM
Warranty
5 years
Certifications
CE
FCC
IC
