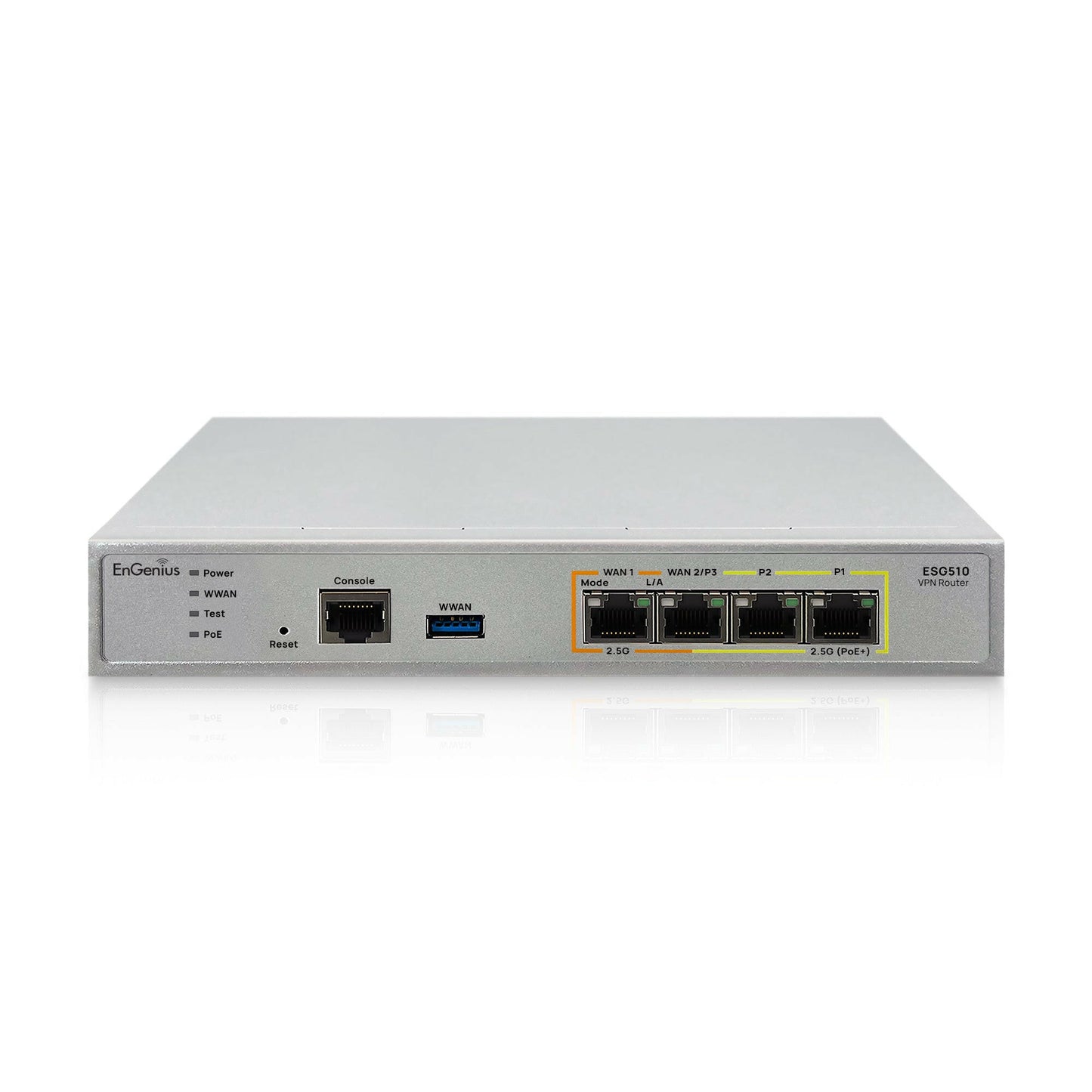

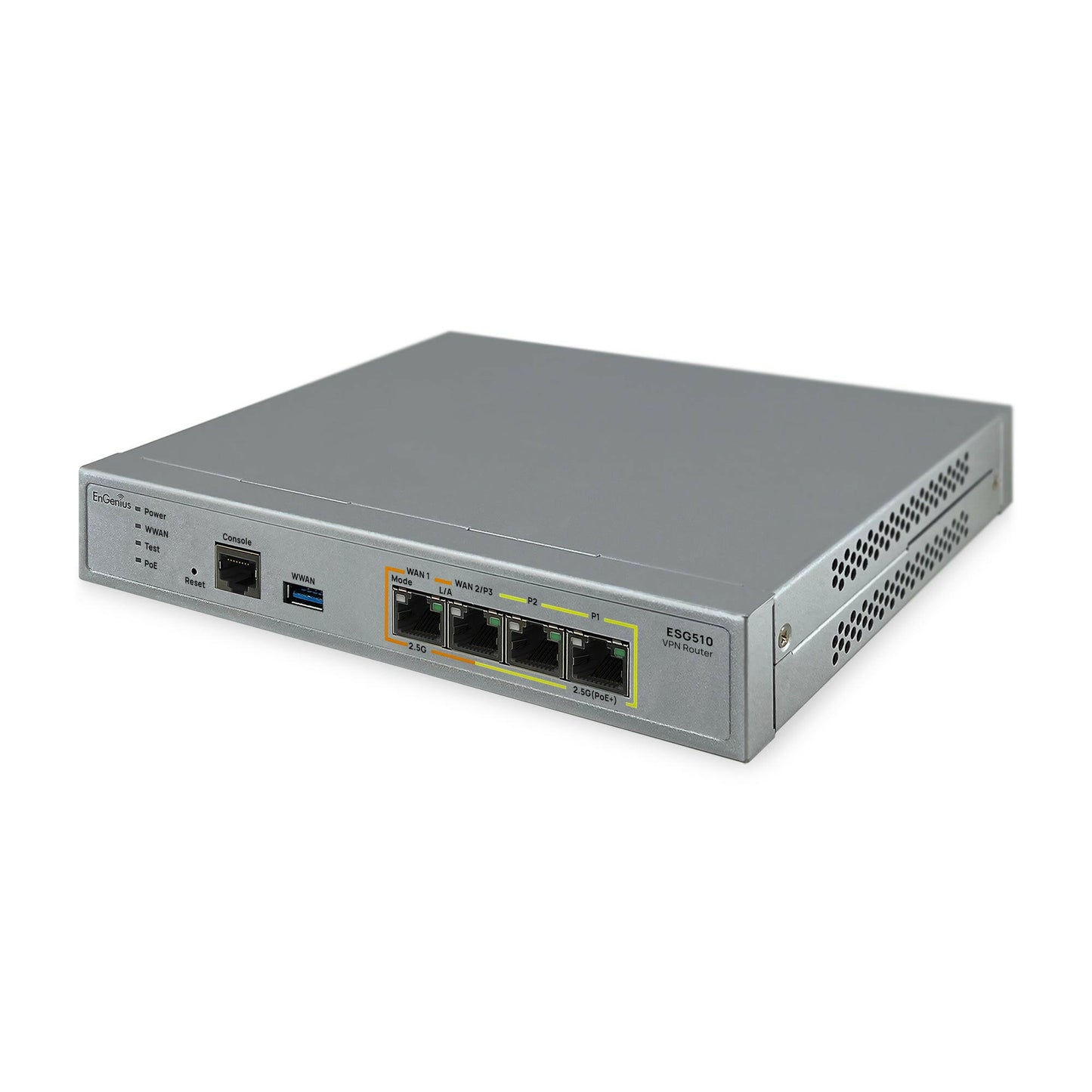

ESG510: Cloud Managed Cloud-Managed VPN Router with Quad Core 1.6GHz and 4x 2.5G ports
Earn [points_amount] when you buy this item.
ESG510: Cloud Managed Cloud-Managed VPN Router with Quad Core 1.6GHz and 4x 2.5G ports
Cellular failover, stateful firewall, and site to site & client VPN
The EnGenius Cloud Managed ESG510 1.6GHz Quad-Core Cloud-Managed VPN Router with Dual-WAN 2.5GbE, Dual-LAN 2.5GbE, cellular failover, stateful firewall, and site-to-site and client VPN delivers more simplicity and security to businesses by providing the IT team with effortless setup, enterprise-level security, and an end-to-end network solution.
- ES5510 Datasheet
- ESG510 Quick Start Guide
- EnGenius Cloud User Manual
- Cloud-Managed VPN Router Datasheet
Shipping & Returns
Not satisfied? We allow returns within 30 days of product purchase
Management
This product is compatible with the EnGenius Cloud line of products

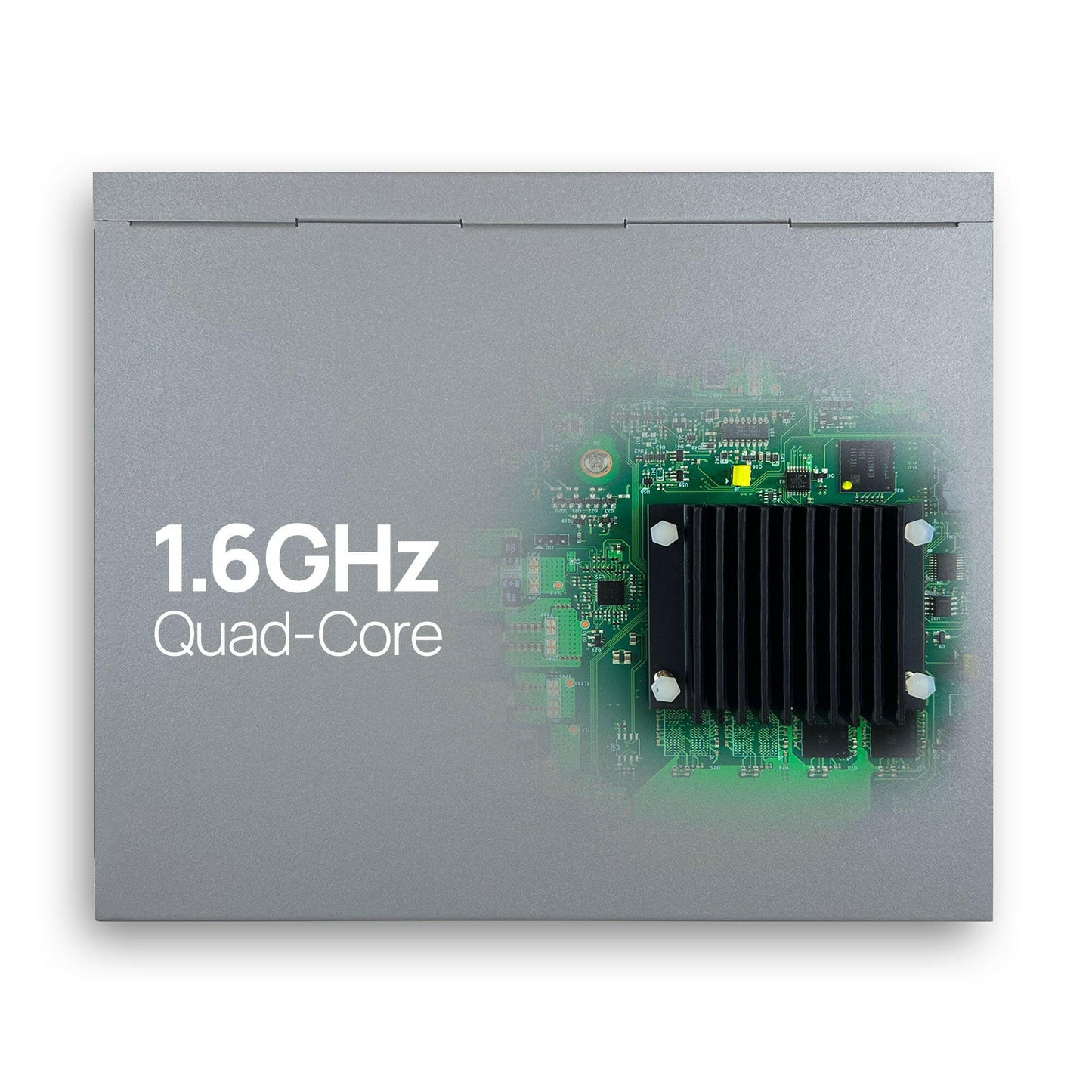

1.6GHz Processor
Quad core design for greater speed and power
5-Year Warranty
Leave the worrying to us. We've got you covered on your hardware purchase.
Features
Specifications
- Simple, unified cloud management for any size business
- Intuitive and centralized device visibility from anywhere
- Quad core 1.6GHz processor for greater speed and power
- Dual 2.5GbE WAN and Dual 2.5GbE LAN for maximum performance
- 2.5GbE PoE+ to power up a Wi-Fi 6E AP, IP camera or IP phone
- Built-in load balancing and safeguards with dual-WAN and cellular failover
- Enhance security with a high-throughput firewall
- Quick VPN and VLAN setup for easy configurations
- Fast Site-to-site VPN and Client VPN for secure connections
- Self-healing AUTO VPN to minimize disruption
- Passthrough mode for easy integration into existing networks
- TPM chipset to enhance the security level of the gateway
- Touchless system maintenance and automatic updates
- No licensing or subscription fees needed
CPU Processor
Quad-Core
Operating Frequency
1.6GHz
Memory
4GB
Storage
8GB
Network Ports (Copper Ports)
4 x 10/100/1000/2500 BASE-T, RJ-45 Ethernet ports
Console Port
1 x 10/100/1000, RJ-45 Ethernet port
PoE+ Capable Port
1 (802.3af/at) LAN (P1)
Mounting Method
Wall mount
USB Interface
1 x USB 3.0
Security Chip
TPM
Firewall (SPI Throughput)
4 Gbps
VPN Throughput
970 Mbps
Max. TCP Concurrent Sessions
1,000,000
Max. Concurrent VPN Tunnels
200
Max. VLAN
96
Firewall Features
Stateful Packet Inspection
Policy Rules
Port Forwarding
1:1 NAT
Allow Inbound Services
Site-to-Site VPN
Mesh VPN/Hub-and-Spoke
Encryption
DES, 3DES, AES (256-bit)
Authentication
MD5, SHA1, SHA2 (512-bit)
Key Management
IKEv1 (x-auth, mode-config)
IKEv2 (EAP, configuration payload)
VPN Features
Site-to-Site VPN
Client VPN
Policy-based VPN
IPSec NAT traversal (NAT-T)
Dead Peer Detection (DPD)
Auto-VPN Connection
Auto NAT traversal
Operation Mode
Routed/Passthrough
Multiple WANS
Dual (WAN 1 & WAN/P3)
Bandwidth Limit
Per Interface/Per Client
Traffic Load Balancing
WAN load balancing with WRR
Networking Features
Static Route
Multiple WANs
USB Cellular
User Authentication
PPPoE
VLAN Tagging
Captive Portal
Custom Splash Page
Dynamic Routing
Bandwidth Limit
Traffic Load Balancing
DHCP client/server/relay
Dynamic DNS support
Power
54V/1.2A
Operating Temperature
0°C to 40°C
Humidity (non-condensing)
5 to 95% non-condensing
Package Contents
Power adapter
Power cord
RJ-45 Console Cable
Wall Mount Kit
Quick Installation Guide
ESG510 Device
Weight: 2.14 lbs. (.97 kg)
Width: 8.27” (210 mm)
Length: 7.07” (179.5 mm)
Height: 1.38” (35 mm)
Packaging
Weight: 3.75 lbs. (1.7 kg)
Width: 4.09” (104 mm)
Length: 10.98” (279 mm)
Height: 11.69” (297mm)
Regulatory Compliance
FCC Part 15 (Class B)
IC
CE EMC (Class B)
RCM
BSMI
Warranty
5 years
Certifications
CE
FCC
IC
