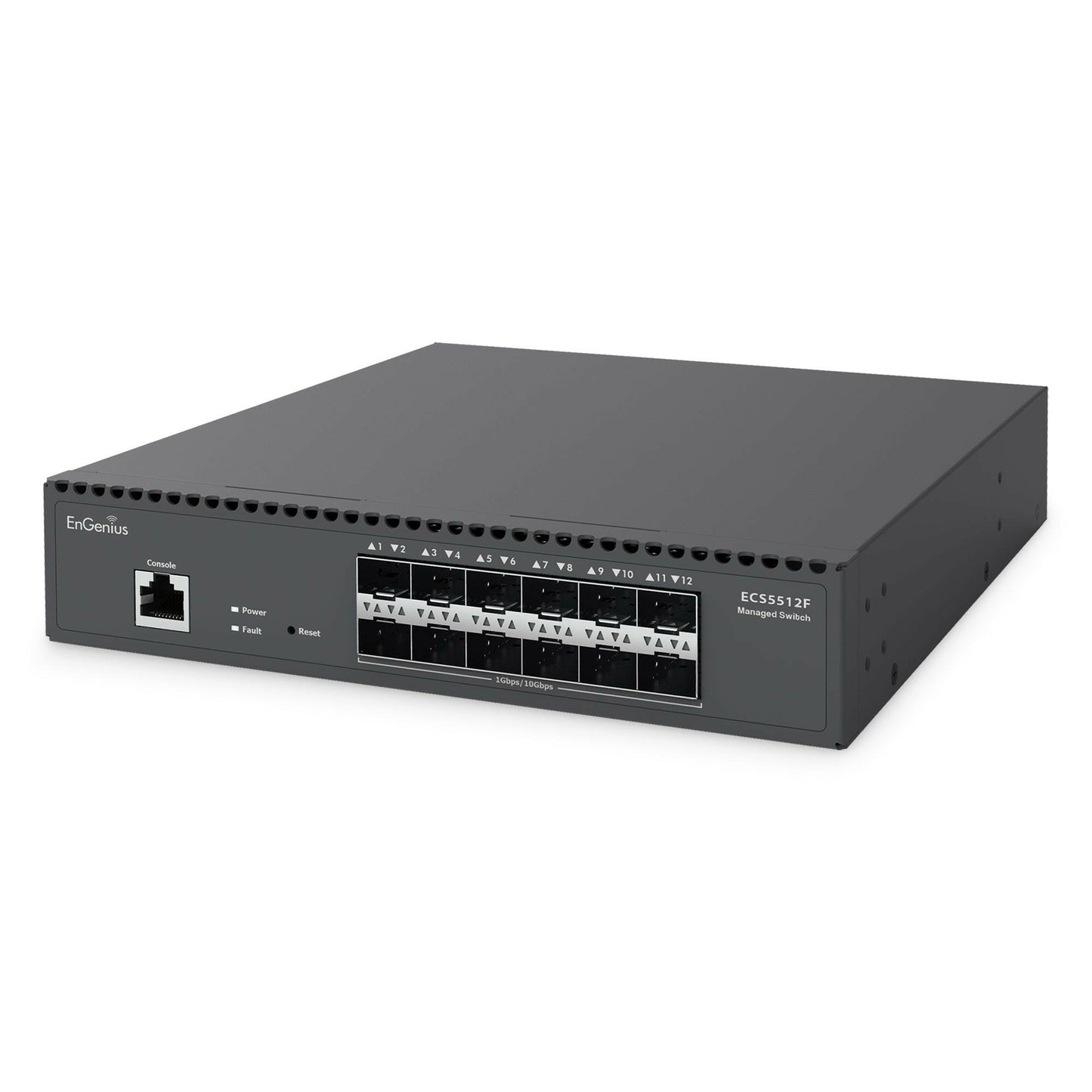

ECS5512F: Cloud Managed 12-Port 10 Gigabit SFP+ Half-Rack Aggregate Fiber Switch

$299.00
 per
Just 3 left. Order soon!
Spend $75.00 to FREE SHIPPING
Earn 1 Point on this purchase. Learn more
View full details

ECS5512F: Cloud Managed 12-Port 10 Gigabit SFP+ Half-Rack Aggregate Fiber Switch

$299.00
 per

Expandable to two per rack, boosts traffic flow and network performance in large businesses

EnGenius Cloud Managed Multi-Gigabit ECS5512F 12-port 10 Gigabit SFP+ half-rack aggregate fiber switch, expandable to two per rack, boosts traffic flow and network performance. Administrators can easily scale from 12 to 24 SFP+ ports on a single rack as network demands increase in large business, multi-dwelling unit, hospitality, and campus environments.


- ECS5512F Datasheet
- Cloud Switch User Manual
- Cloud Managed Switch Datasheet

Shipping & Returns

Not satisfied? We allow returns within 30 days of product purchase

Management

This product is compatible with the EnGenius Cloud line of products

Expandable

Administrators can easily scale from 12 to 24 SFP+ ports on a single rack

Fiber

Half-rack aggregate fiber switch boosts traffic flow and network performance

12 SFP Ports

12 x 10-Gigabit SFP+ fiber uplink ports for maximum connection speeds

5-Year Warranty

Leave the worrying to us. We've got you covered on your hardware purchase.

Features

Overview

In-the-Box

Mounting

Deployment

ECS5512F

Specifications

Product Highlights

  • (12) 10 Gigabit SPF+ Ports

  • Full-Featured Layer 2+ Ethernet Switch

  • 240 Gbps Switching Capacity

  • Half Rack 1U (9.5”) Mount Expandable to Two Switches 1U (19") per Rack

  • Real-Time System Metrics, Deep-Dive Analytics and Remote Configurations

  • Quick-Scan Device Register, Remote Monitoring and Troubleshooting

  • Advanced View Displays Network Topology with Devices and Relationships

  • Hybrid Switch Supports Multiple Management Options

  • Security - Access Control List/Port Security; 802.1X & RADIUS Authentication

  • IGMP & MLD snooping provides advanced multicast filtering & network efficiency

  • 802.3ad Link Aggregation (LACP) Supports Traffic Load Balancing

  • Spanning Tree (STP), Rapid Spanning Tree (RSTP) & Multiple Spanning Tree (MSTP)

  • Voice VLAN for fast, reliable deployment of VoIP services

Technical

Port Standards
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3bz 2.5G Base-T Ethernet
802.3x Full-Duplex Flow Control

Network Ports
12 SFP+ Ports

Switching Capacity
240Gbps

SDRAM
512MB

Flash Memory
128MB

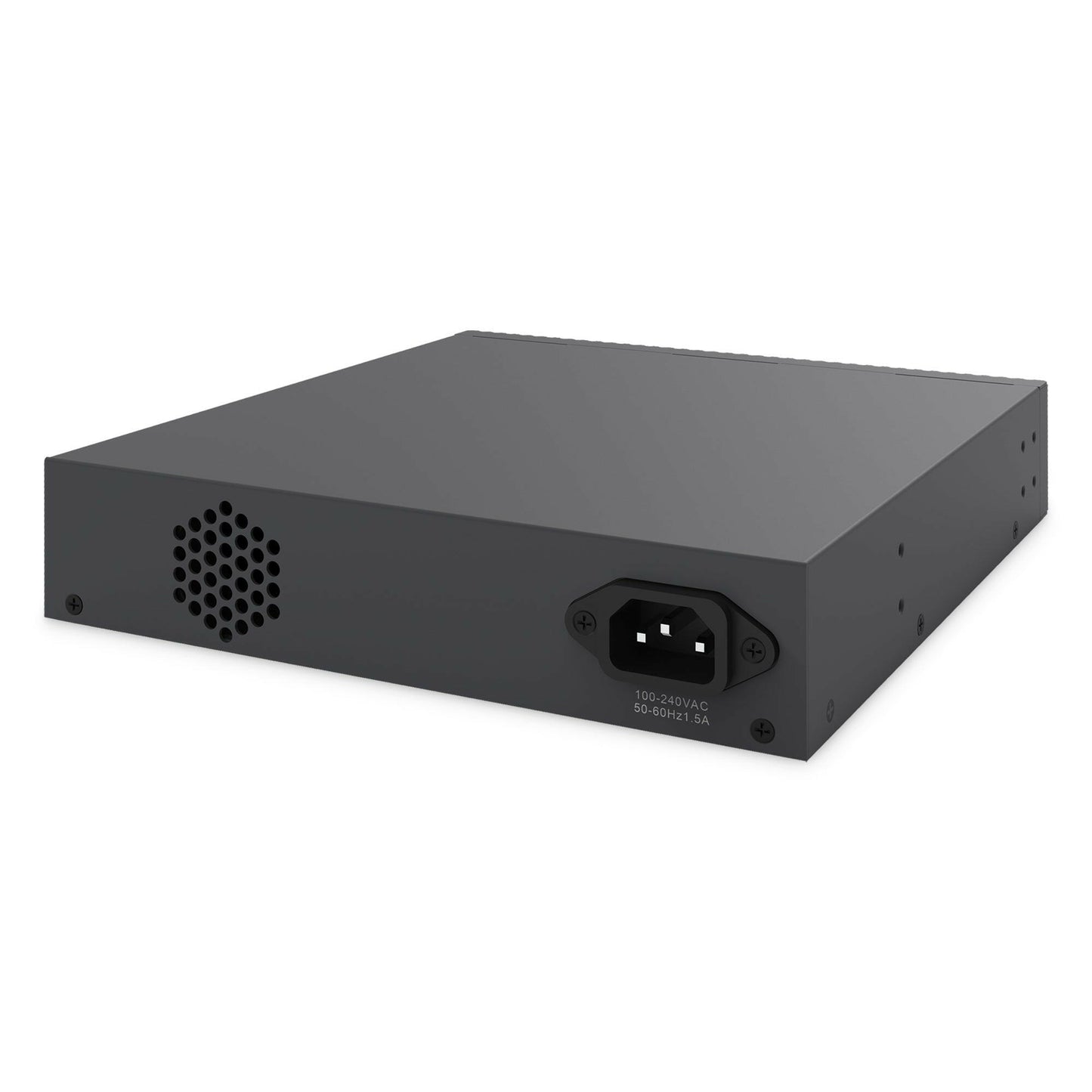

Power Source
100 ~ 240VAC, 50-60Hz

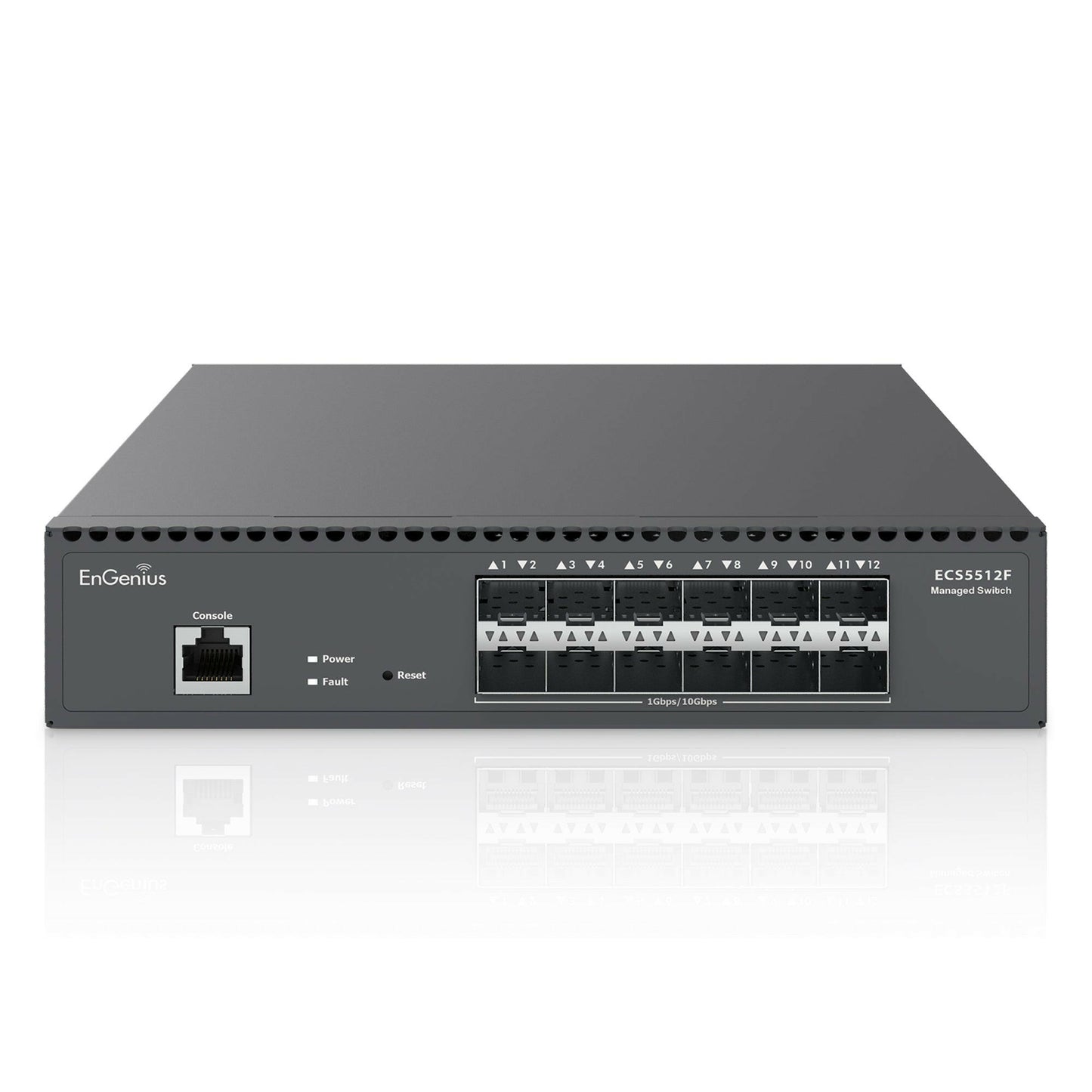

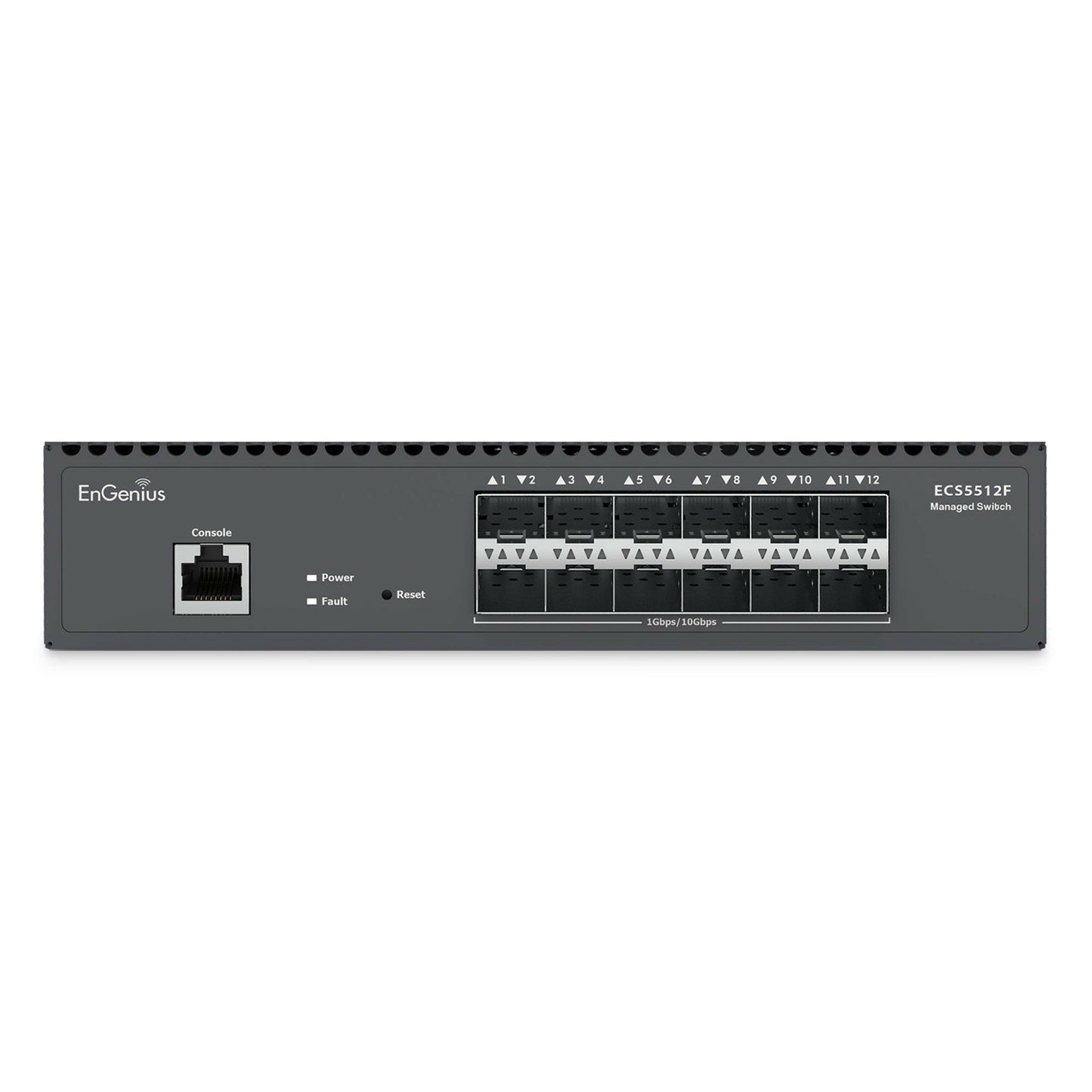

Physical Interface

LED Indicators
Power LED
Fault LED

Ports
Link/Activity/Speed (per SFP slot)

Software Features (L2 Features)

Access Control List (ACL)
Ingress
MAC Based ACL
IPv4/IPv6 Based ACL
ACL Binding
Action: Permit/Deny
Time base ACL

Web Graphical User Interface (GUI)
HTTP IPv4 / IPv6
HTTPS IPv4 / IPv6

SSL Certificate
Certificate/Key Import

SNMP
SNMP v1/v2c/v3 Support

RMON
RMON 1,2,3,9

System Time
Time Setting/Daylight saving

Common L2 Features
802.1d Spanning tree
Loopback Detection
Multicast Filtering
Multicast Group
IGMP Multicast Forwarding
IGMP Snooping
MLD Multicast Forwarding
802.1Q VLAN tagging
802.3x flow control
802.3ad Link Aggregation
IPv4 DHCP Relay
IPv4 DHCP Snooping
IPv4 DHCP Snooping Source MAC Address Check-up
ARP Inspection
ARP Packet Validation (additional validation checks)
Voice VLAN
Port-based VLAN
Protocol-Based VLAN
Dynamic VLAN
VLAN Group
CoS Mapping
802. 1X Radius Authentication Protocol
IPv4 Settings
IPv6 Settings
IEEE 802. 3az Energy Efficient Ethernet (EEE)
Command Line Interface (CLI)
SSH Server
Telnet Server
TFTP Client
Configuration Upgrade/Backup
Simple Network Time Protocol (SNTP)
SYSLOG

Software Features (L3 Features)

Multiple IP Interface
20 IPv6 address

ARP Table
Max. 192 ARP entries

Static ARP
Static 192 ARP entries

IPv4 Static Route
Max. 63 entries

IPv6 Static Route

Max. 21 entries

Environmental & Physical

Temperature Range
Operating: 32°F to 122°F (0°C to 50°C)

Humidity (Non-Condensing)
Operating: 5% - 90%

Package Contents
1x Cloud Managed Gigabit Switch
1x Quick Installation Guide
1x Power Cord
1x RJ45 Console Cable
1x 1U Rack Mount Kit

Dimensions & Weights

ECS5512F Device
Weight: 1.39kg (3.07 lbs.)
Width: 210mm (8.27”)
Length: 230mm (9.06”)
Height: 44mm (1.74”)

ECS5512F Packaging
Weight: 13.18 lbs. (5.98 kg)
Width: 12.04” (306 mm)
Length: 14.76” (375 mm)
Height: 3.58” (149 mm)

Warranty

5 Years

Certifications
CE
FCC
IC
