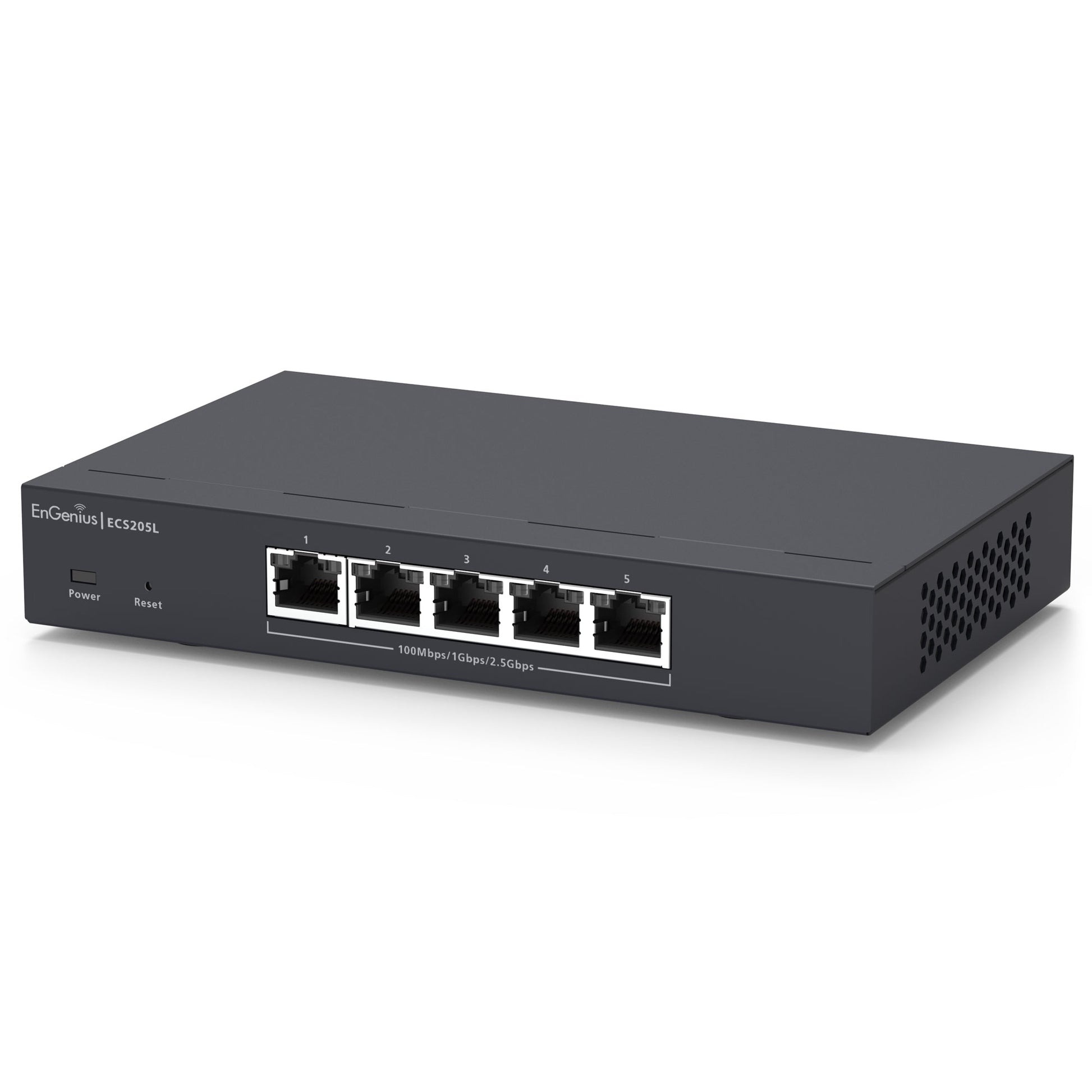

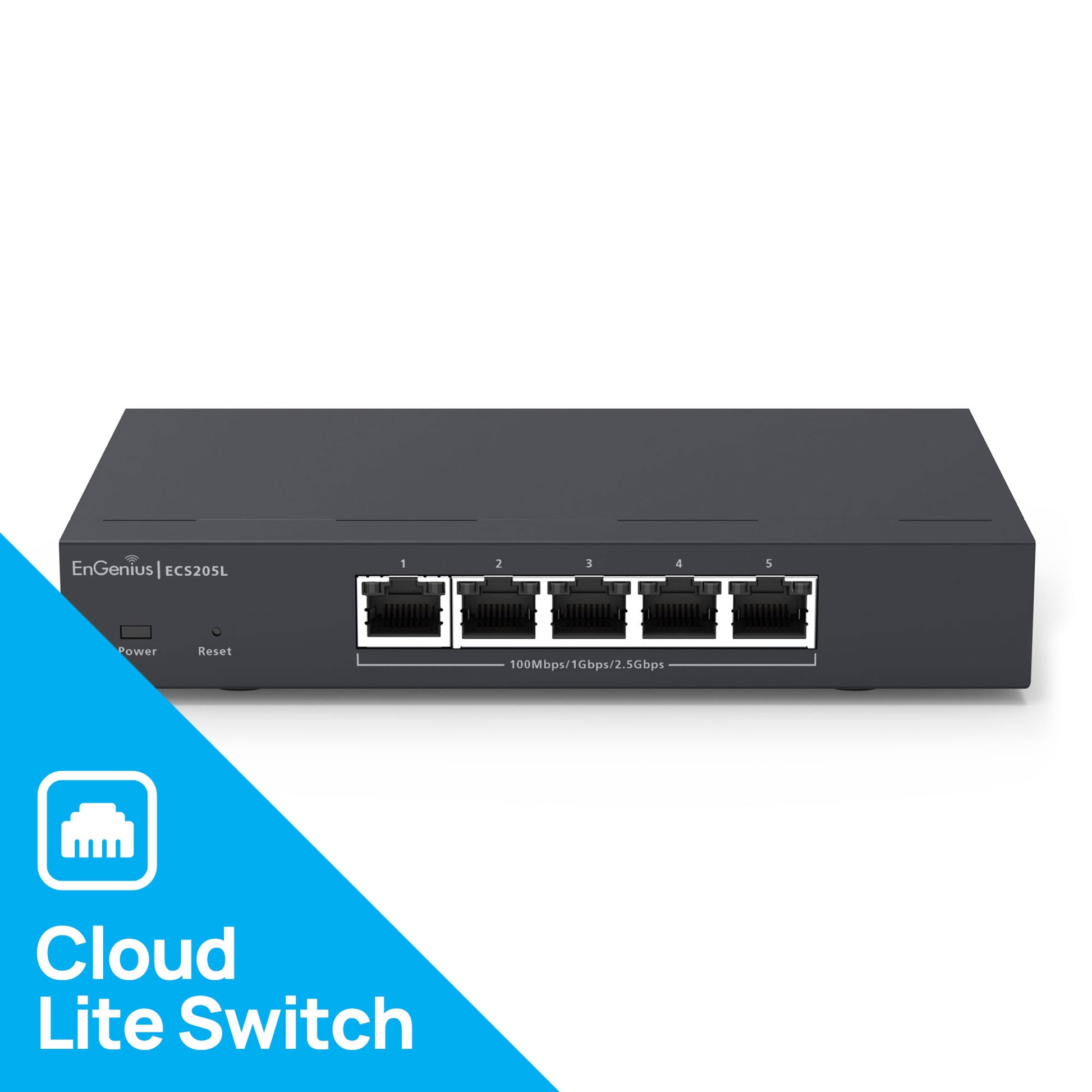

ECS205L: Cloud Managed Lite 5-Port Multi-Gigabit Switch
2.5G ports and a 25Gbps switching capacity enables multi-gigabit performance
EnGenius Cloud Lite ECS205L is a small compact 5-port Layer 2 switch supporting 2.5G per port and a 25 Gbps switching capacity for multi-gigabit speeds over existing cable runs to improve overall network performance. This switch offers flexible management options, allowing users to choose between cloud, on-premises, and local management.
- ECS205L Datasheet
- ECS205L Quick Start Guide
- Cloud Switch User Manual
- Cloud Managed Switch Datasheet
Shipping & Returns
Not satisfied? We allow returns within 30 days of product purchase
Management
This product is compatible with the EnGenius Cloud line of products
5-Ports
5 x 10/100/1000/2500 Base-T GbE Ports with compact size
2-Year Warranty
Leave the worrying to us. We've got you covered on your hardware purchase.
Cloud PRO Switch Licenses
Features
Specifications
- 5 multi-gigabit (10/100/1000/2500 Base-T GbE) ports support various high-bandwidth devices
- 25 Gbps switching capacity ensures seamless data flow and enhanced network performance
- IGMP snooping reduces network traffic by ensuring multicast data is only sent to devices that need it
- Spanning Tree Protocol (STP) provides network resilience through loop prevention and network stability
- Energy Efficient Ethernet (802.3az) reduces power consumption during low activity
- Auto-voice VLAN streamlines voice deployment for smooth, reliable VoIP integration
- Auto-surveillance VLAN strengthens protection and simplifies reliable integration
- Compatible with industry standards for seamless integration with existing network devices

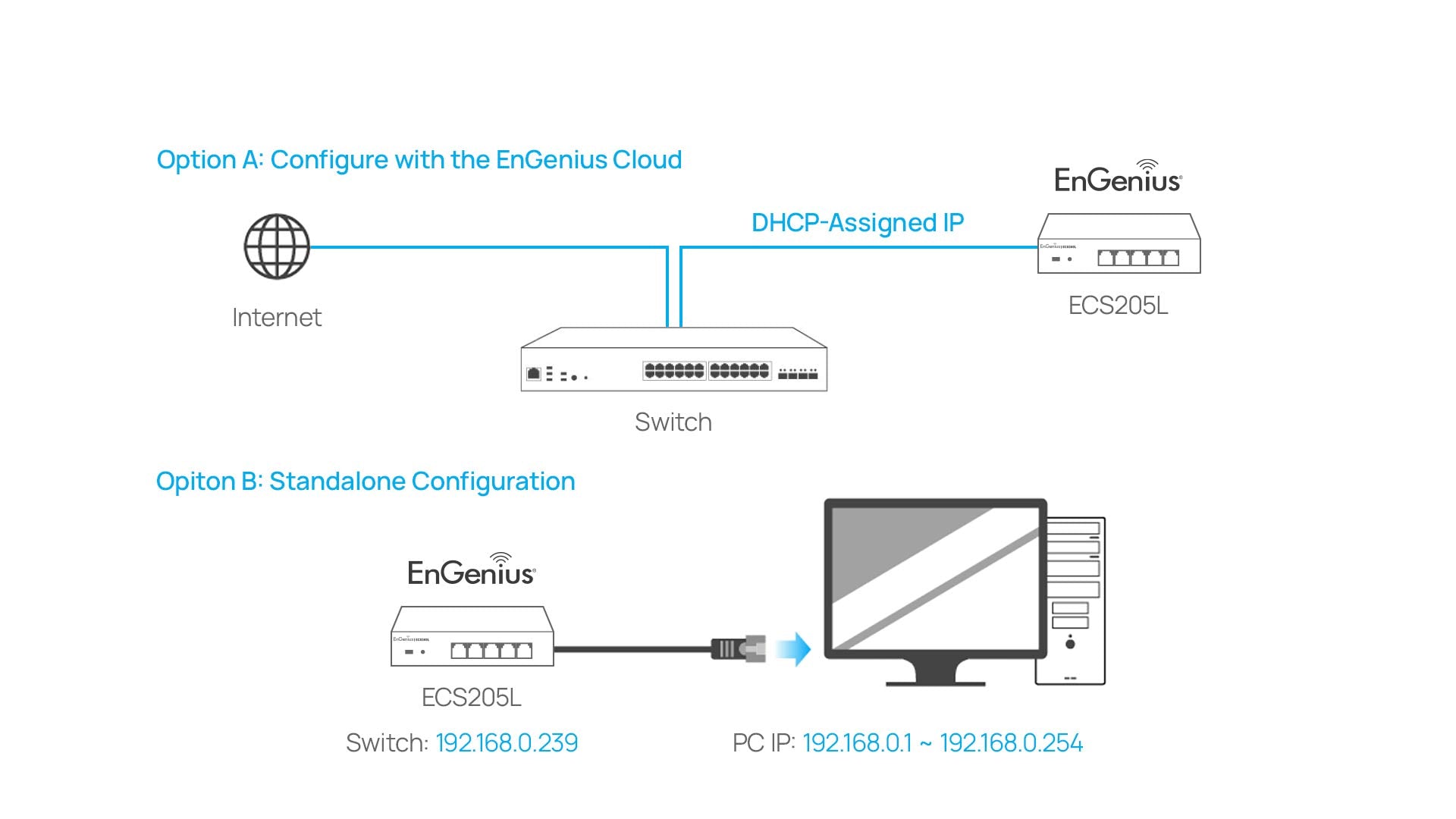

- Provides flexible management with cloud, on-premises, and local control
Port Standards
802.3u 100Base-T Ethernet
802.3ab 1000Base-T Ethernet
802.3bz 2500Base-T Ethernet
802.3x Full-Duplex Flow Control
Network Ports (Copper Ports)

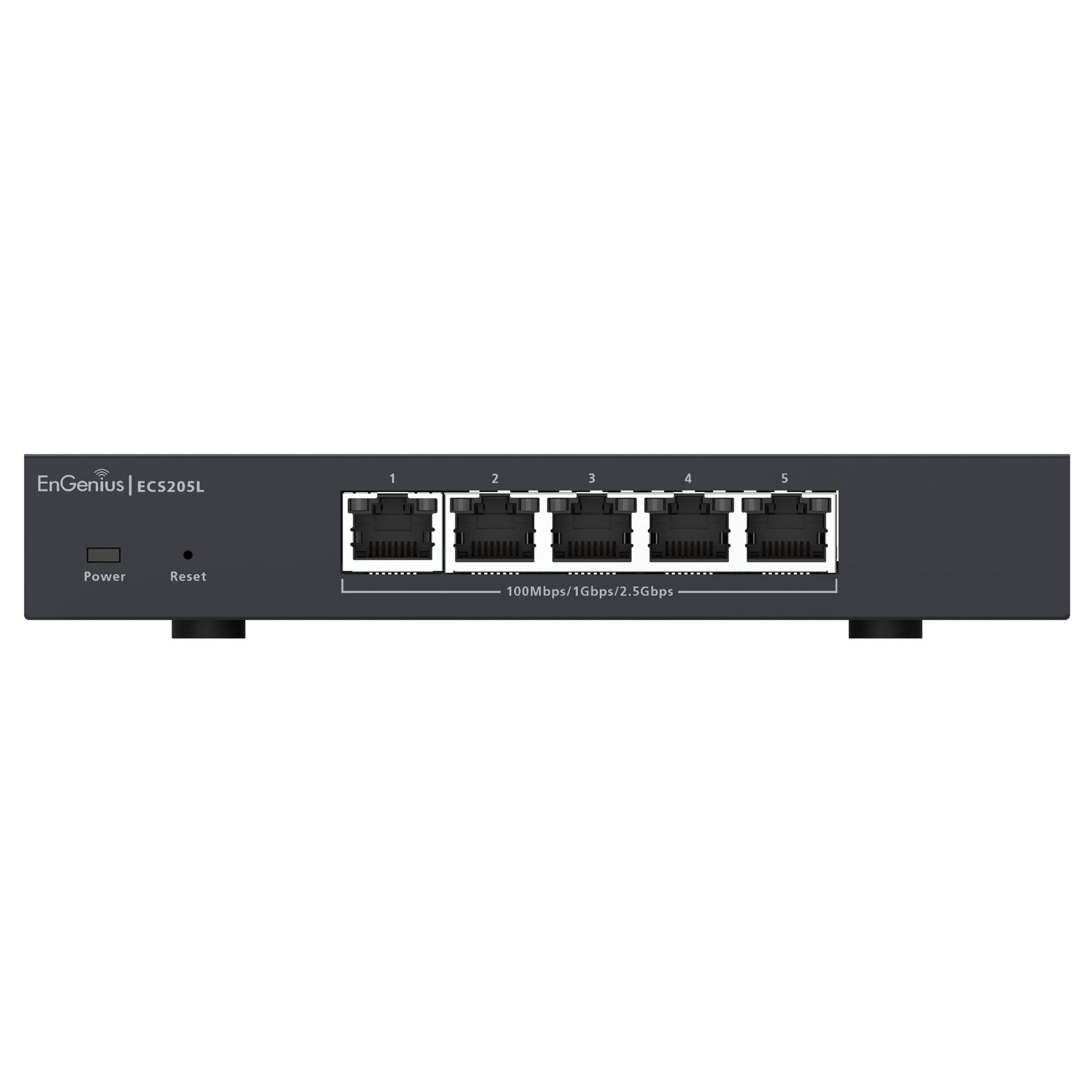

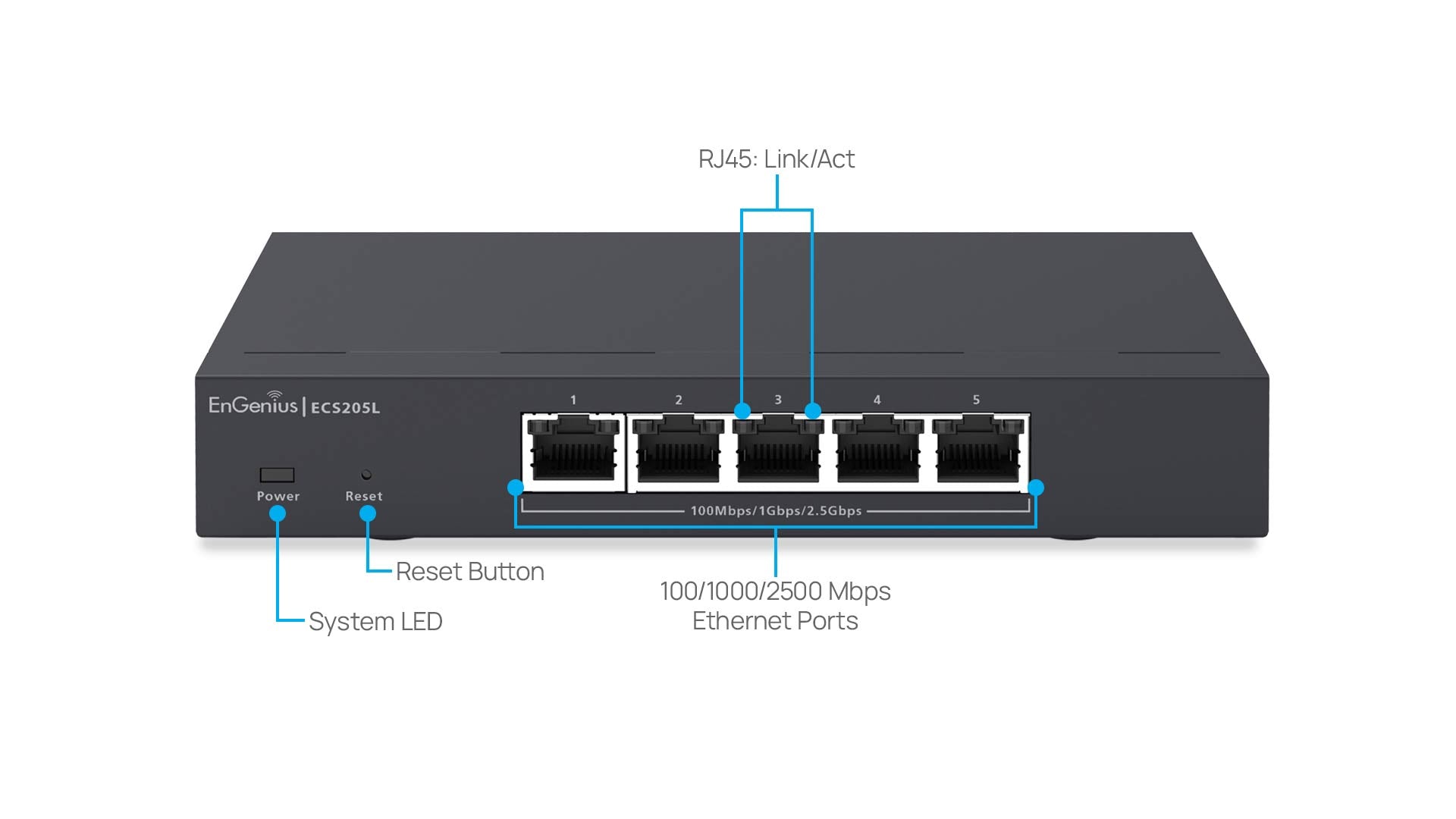

5 x 10/100/1000/2500 BASE-T, RJ-45 Ethernet ports
Switching Capacity
25 Gbps
Flash Memory
32 MB
Power Source
100 ~ 240VAC, 50-60Hz
MAC Address Table
4K
Jumbo Frame
12K
Multicast Group
Max. 8 groups
QoS-Number of Priority
Queues Supported
Queue 8
Trust Mode
CoS/802.1p
DSCP
CoS/802.1p-DSCP
Scheduling Mechanism
Strict / WRR
Bandwidth Control
Port-based bandwidth control
(Ingress/Egress)
Web Graphical User Interface (GUI)
HTTP IPv4
HTTPS IPv4
System Time
Time Setting / Daylight Saving
Layer 2 Features
802.1w Rapid Spanning Tree
Multicast Filtering
IGMP Snooping
802.1Q VLAN tagging
802.3x Flow Control
Voice VLAN
Port-based VLAN
CoS Mapping
IPv4 Settings
Configuration Upgrade/Backup
Simple Network Time Protocol (SNTP)
SYSLOG
Broadcast/Unknown Multicast
Operating Temperature
32°F to 104°F (0°C to 40°C)
Humidity (non-condensing)
5 to 95% non-condensing

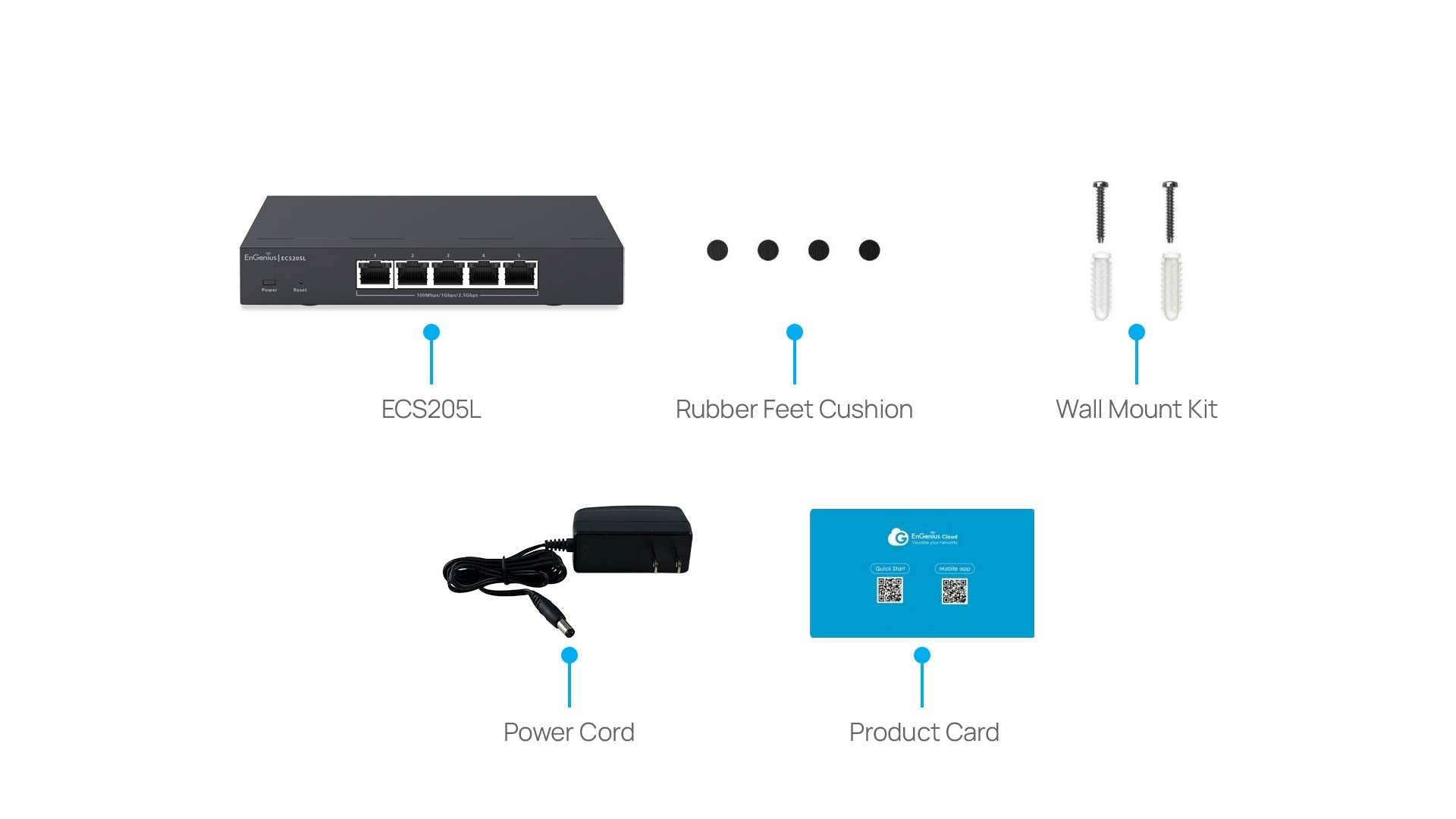

Package Contents
1 x Cloud Lite Multi-Gigabit Switch

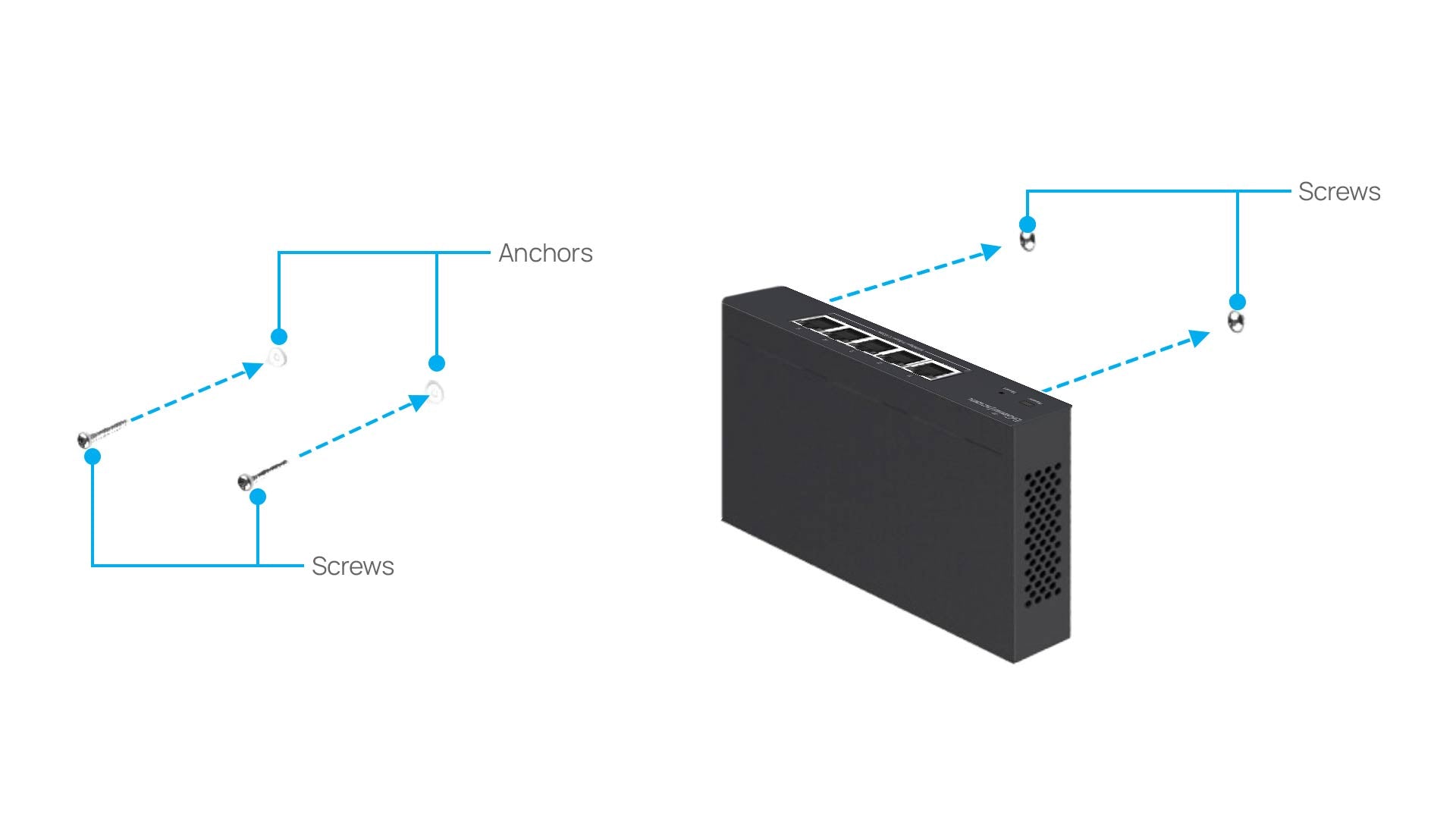

1 x Wall Mount Kit
1 x Rubber Feet Cushion
1 x Quick Installation Guide
Device
Weight: 0.9 lbs. (.41 kg)
Width: 4.13” (105 mm)
Length: 6.69” (170 mm)
Height: 1.06” (27 mm)
Packaging
Weight: 1.16 lbs. (0.53 kg)
Width: 6.57” (167 mm)
Length: 7.87” (200 mm)
Height: 3.54” (90mm)
Regulatory Compliance
- FCC Part 15 (Class B)
- IC
- CE EMC (Class B)
- RCM
Warranty
2 Years
Certifications
CE
FCC
IC
