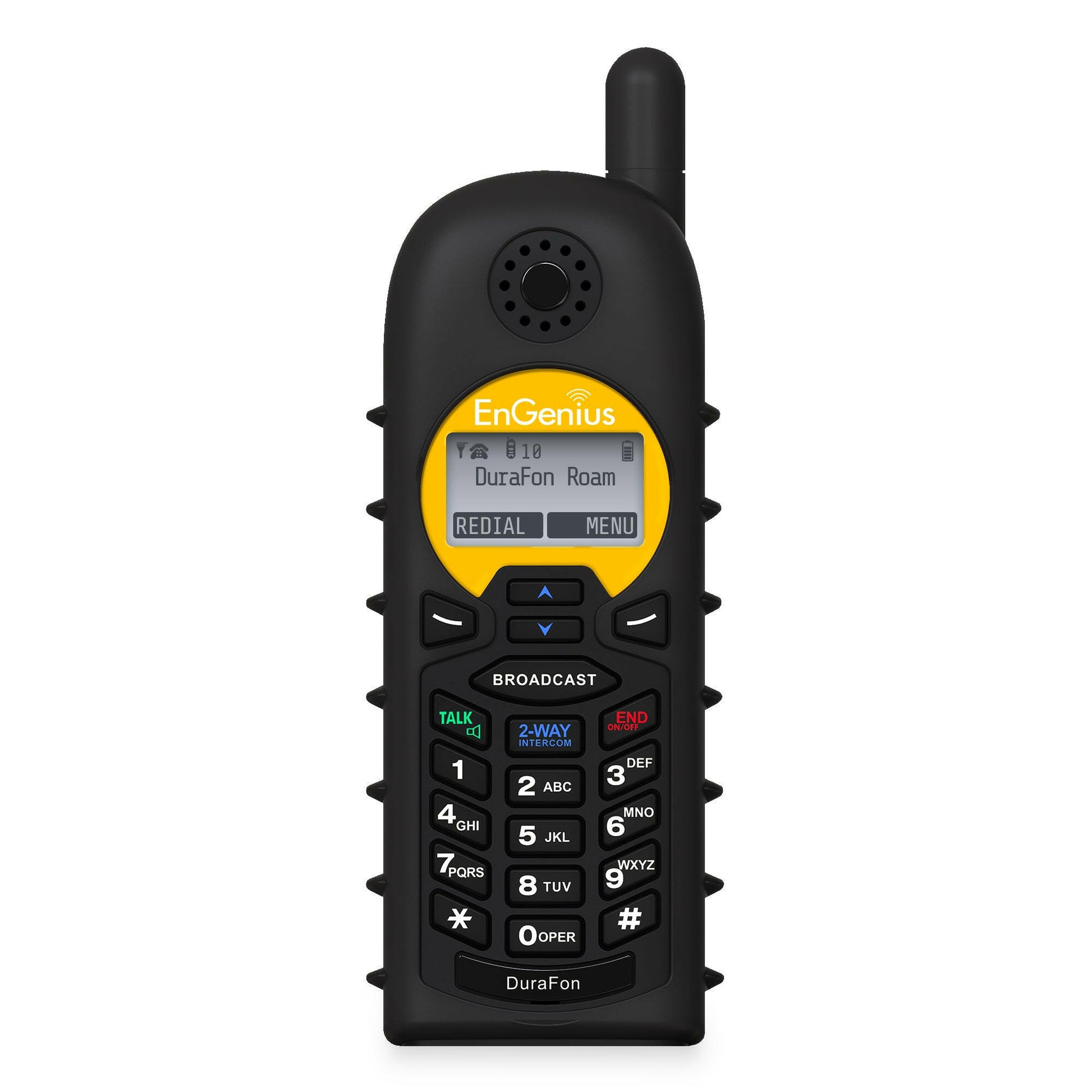

![DuraFon Roam Walkie Handset](http://store.engeniustech.com/cdn/shop/files/Product_Photos_Handset_DuraFon_Roam_Walkie_Front_View.jpg?v=1702585669&width=1445)
![DuraFon Roam Walkie Handset](http://store.engeniustech.com/cdn/shop/files/Product_Photos_Handset_DuraFon_Roam_Walkie_Right_3_4_View.jpg?v=1702585669&width=1445)

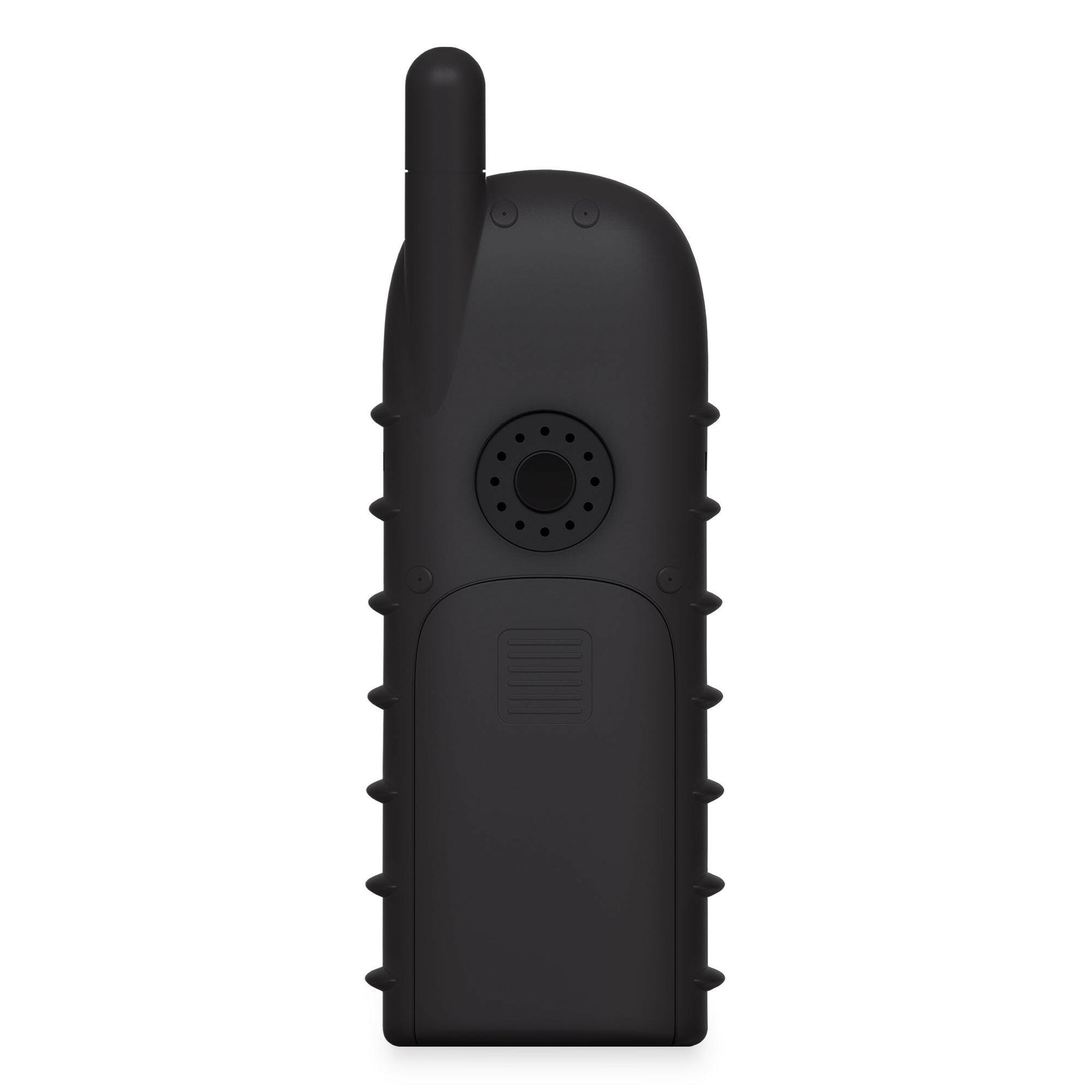

![DuraFon Roam Walkie Handset](http://store.engeniustech.com/cdn/shop/files/Product_Photos_Handset_DuraFon_Roam_Walkie_Back_View.jpg?v=1702585669&width=1445)

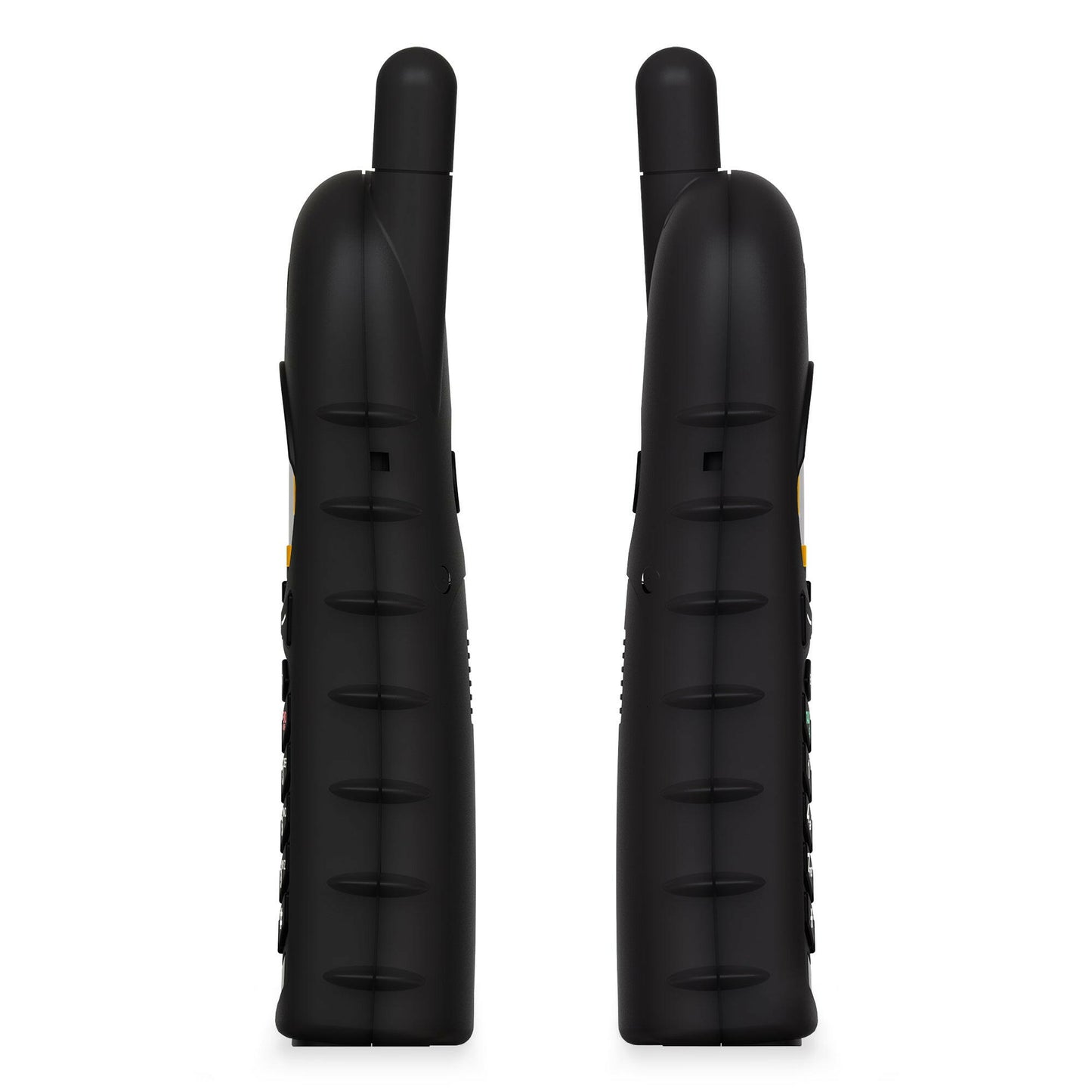

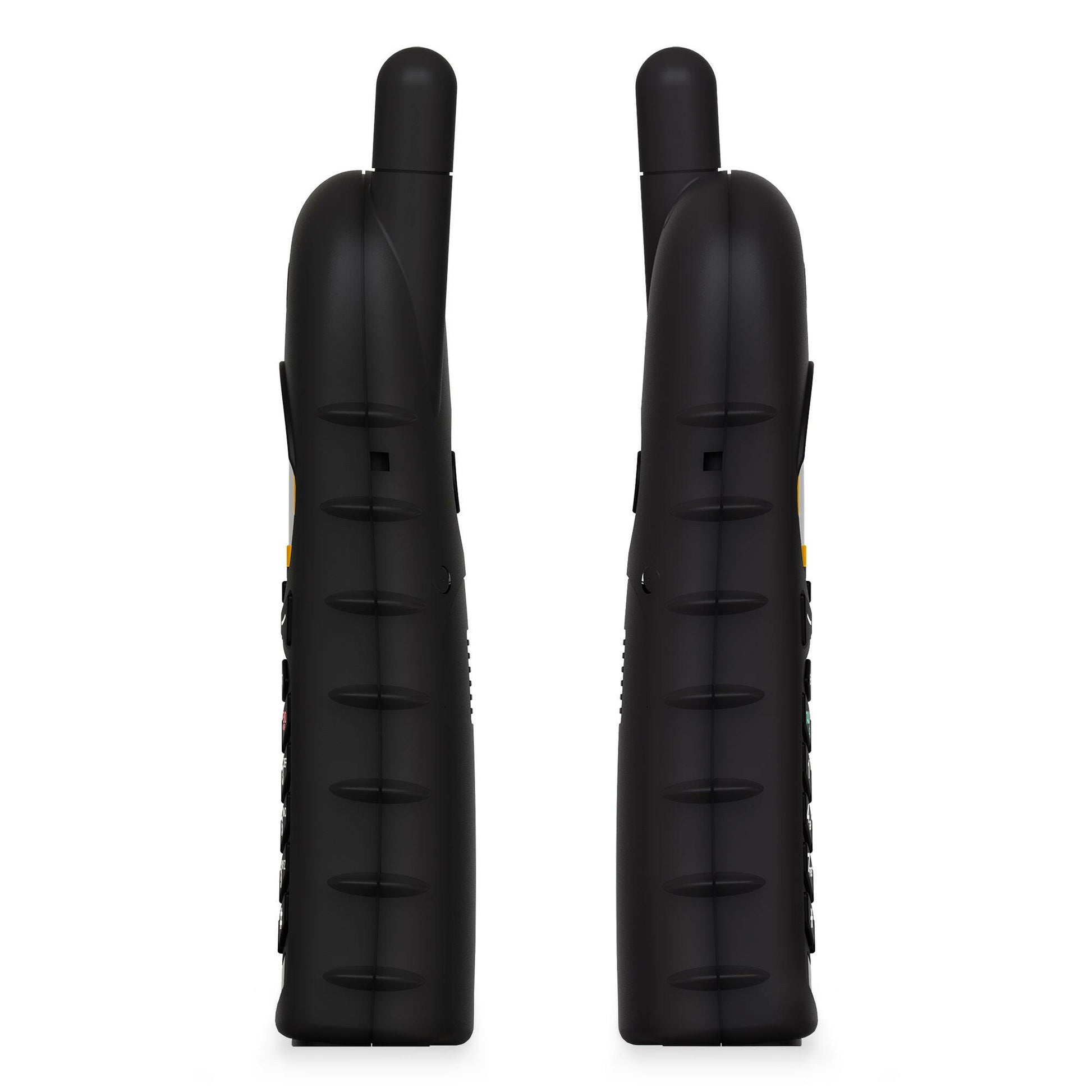

![DuraFon Roam Walkie Handset](http://store.engeniustech.com/cdn/shop/files/Product_Photos_Handset_DuraFon_Roam_Walkie_Sides_View.jpg?v=1702585665&width=1445)

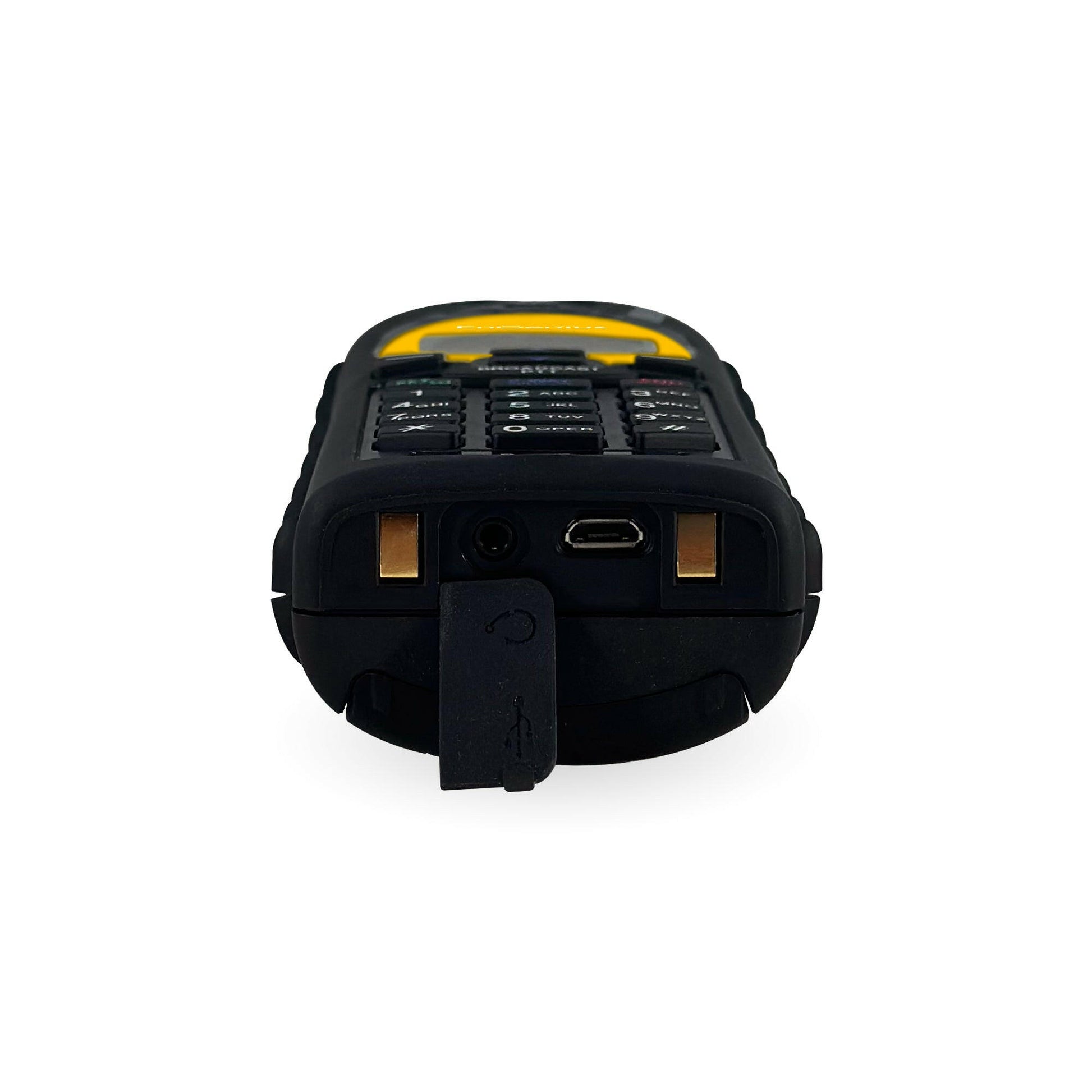

![DuraFon Roam-WK: DuraFon Roam-Walkie Handset](http://store.engeniustech.com/cdn/shop/files/Product_Photos_DuraFon_Roam-Walkie_Connections_Charging.jpg?v=1721840969&width=1445)

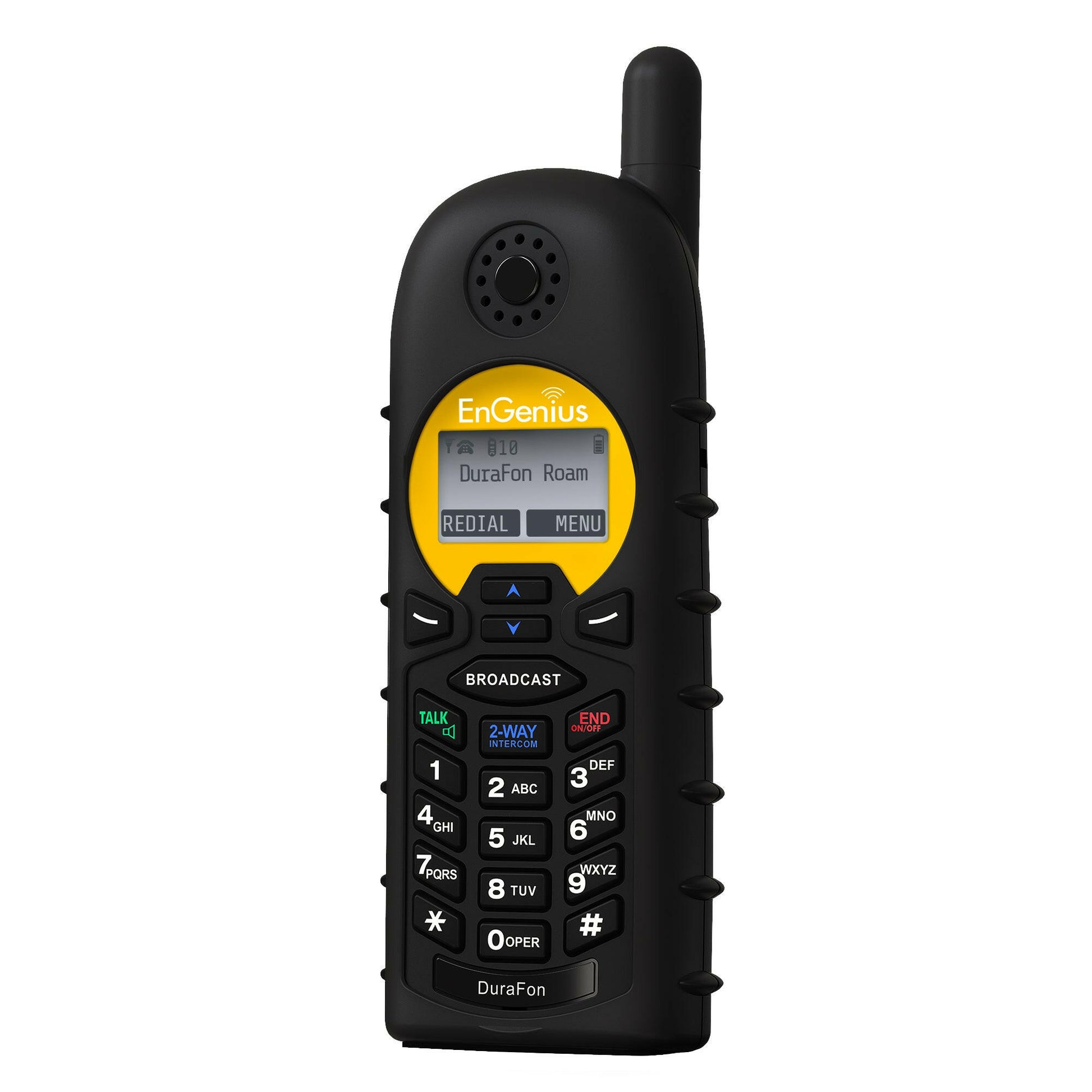

DuraFon Roam-WK: DuraFon Roam-Walkie Handset
Two-way Radio only Handset for DuraFon Roam system
The DuraFon Roam-Walkie handset functions as a long-range digital two-way radio, with both broadcast and intercom. Durable design and radio call hand-off capability between base units ensures coverage in even very demanding environments.
Specifications
- Use 900 MHz frequency

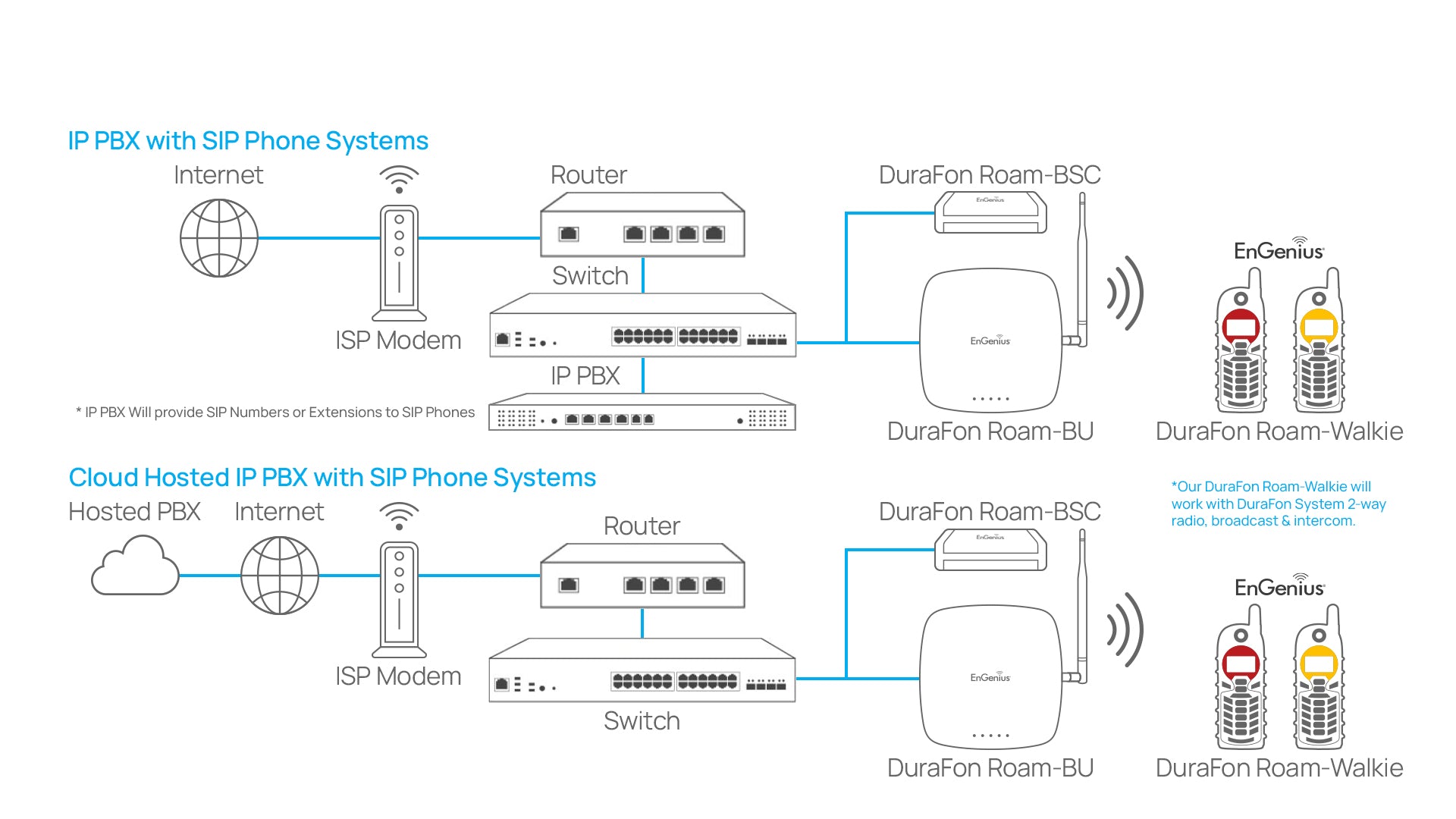

- Expandable up to 8 base units
- Can be powered via PoE

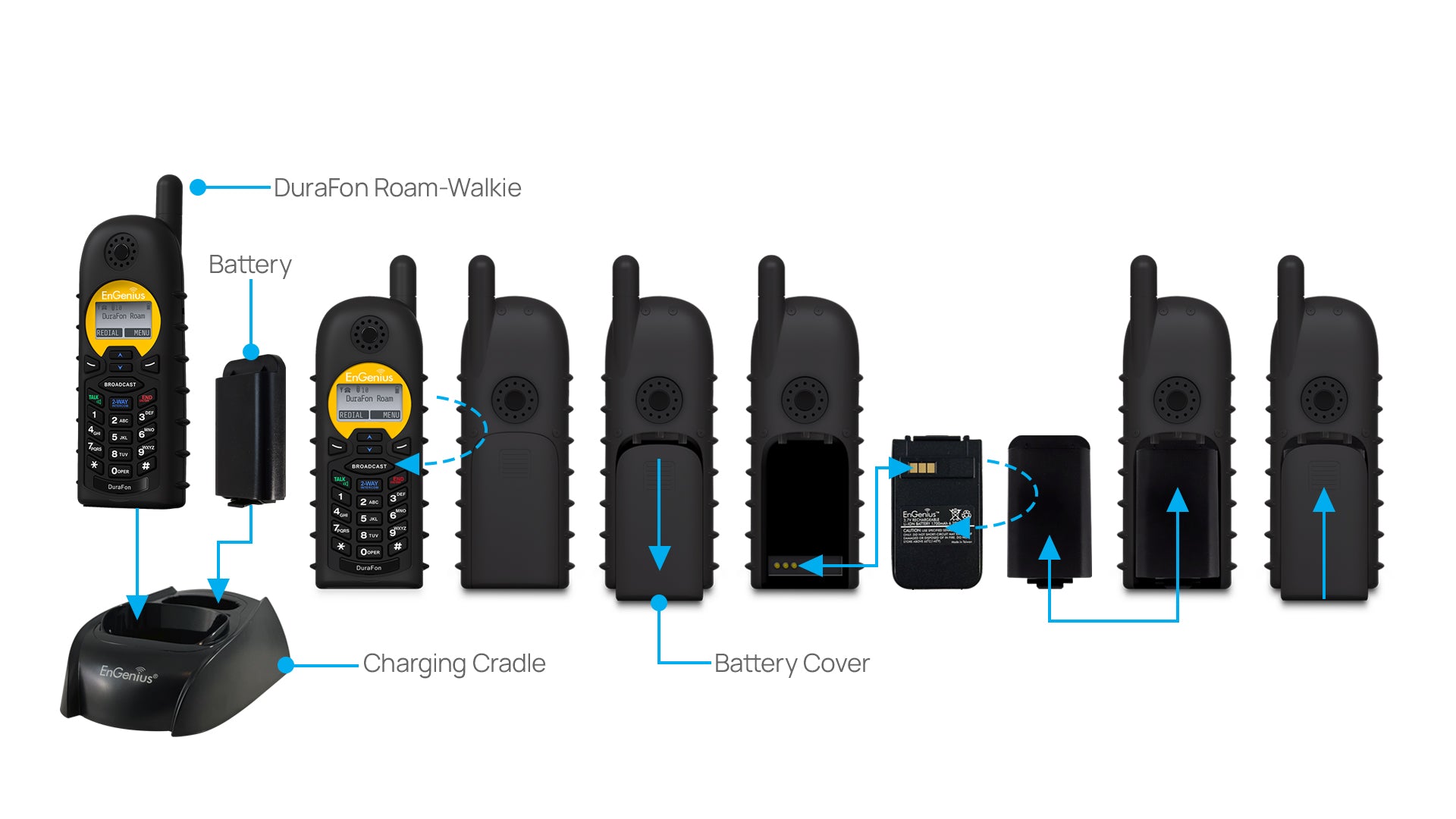

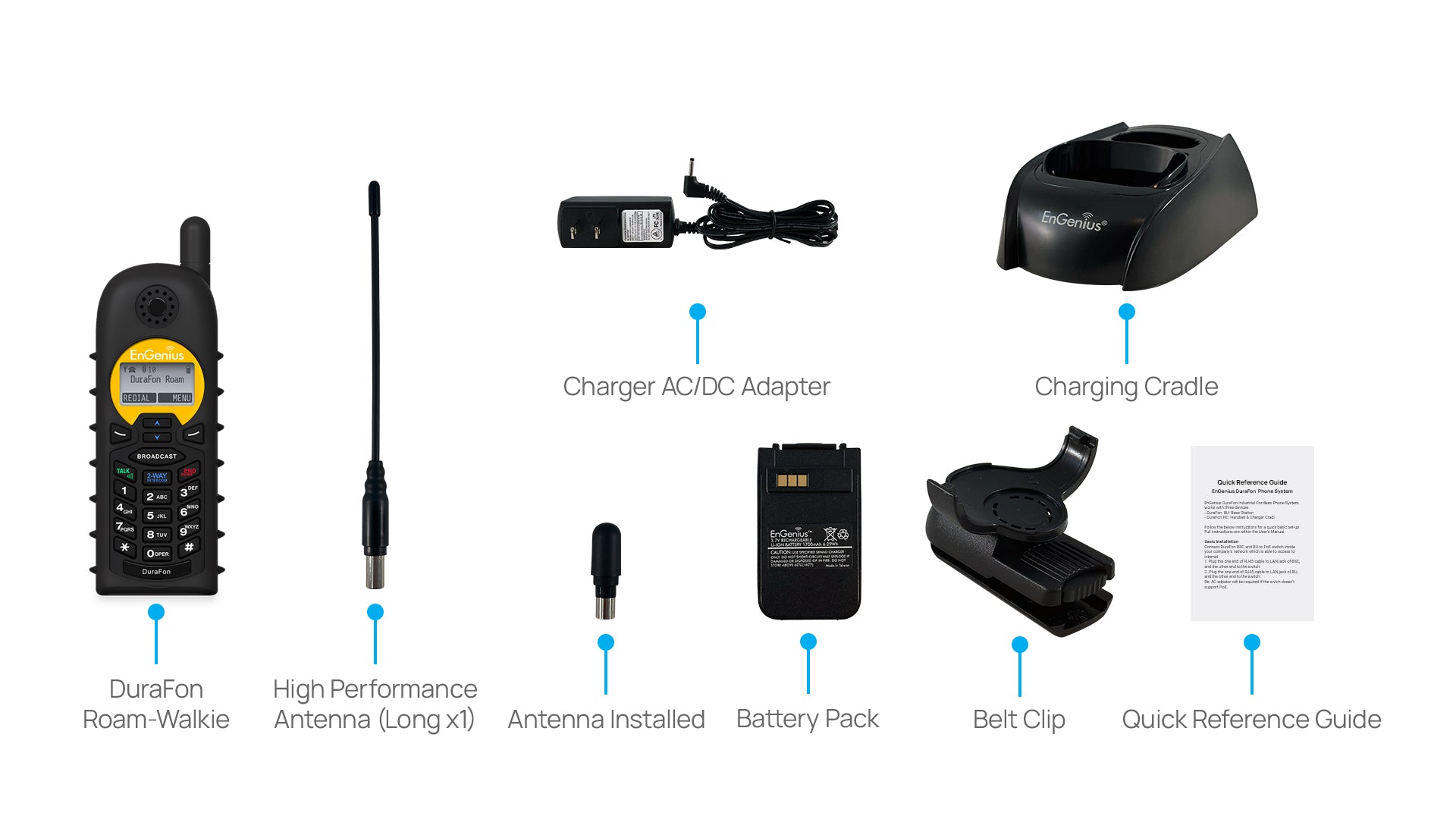

1 - Handset with Charging Cradle
1 - AC Adapter
1 - Battery Pack
1 - High Performance Antenna
1 - Low-Profile Antenna
System Features
Web-GUI
Transport Layer Security: TLS 1.2
IPv4: DHCP, Static IP
VLAN
IEEE1588 Precision Time Protocol (PTP)
Auto-Provision: TFTP, FTP, HTTP, and HTTPS
Logging To Syslog Server
NTP
Configuration Backup/Restore
Firmware Upgrade
SIP Features
SIP Protocol: RFC3261
SIP Transport: UDP, TCP, TLS
Voice Codec: G.711a, G.711u, G.729A
Media Encryption: SRTP (Disable, Optional, Mandatory)
DTMF: RFC2833, SIP INFO, Inband
Hold: RFC3264, RFC2543
Transfer: RFC3515, RFC3891, RFC3892
Support Outbound Proxy
DNS SRV Support
STUN
QoS 802.1p
RTP Multicast
Call Control Features
Caller ID
Call Waiting
Call Hold
Call Transfer
Call Conference
Intercom
Broadcast
Flexible Port Dedication: Single, Group or All
Frequency RF Power
902-928 MHz
Peak: 27 dBm / Average: 21 dBm
Channel Spacing
200kHz
Number of Channels
128
Modulation
MSK
Multiple Access
Frequency Hopping TDMA
Frequency Hopping Rate
100 per second
TDMA Frame Length
10 ms
Number of Slots/Frame
8
Receiver Sensitivity
< -108 dBm (@ BER 10-2)
Antenna Connector
Reverse TNC
Antenna Gain
2 dBi
TX Power Control Range
19~27dBm
Internet Interface
RJ45 x 1
Speech Coding
8 kbps G.729AB
Channel Coding
8 kbps Convolutional + CRC
Transmission Data Rate
170.667 kbps
User Data Rate
64 kbps duplex
Duplex
Time Division Duplex (TDD)
No. of System ID
65,536
Ring Signal
20-50 Hz, 30-90 Vrms
Power Source
AC/DC 100~240V/5V,1A SW Adapter
Charger Current
NA
Charge Time
NA
Regulation Compliance
FCC Part 15
Operating Temperature
0 — 50˚ C
Storage Temperature
-40 — 70˚ C
Humidity
20 – 75 %
Frequency RF Power
902-928 MHz
Peak: 26 dBm / Average: 20 dBm
Channel Spacing
200kHz
Number of Channels
128
Modulation
MSK
Multiple Access
Frequency Hopping TDMA
Frequency Hopping Rate
100 per second
TDMA Frame Length
10 ms
Number of Slots/Frame
8
Receiver Sensitivity
< -108 dBm (@ BER 10-2)
Antenna Connector
Non-standard
Antenna Gain
1.5 dBi (short antenna)
2.5 dBi (long antenna)
TX Power Control Range
19~26dBm
Internet Interface
NA
Speech Coding
8 kbps G.729AB
Channel Coding
8 kbps Convolutional + CRC
Transmission Data Rate
170.667 kbps
User Data Rate
64 kbps duplex
Duplex
Time Division Duplex (TDD)
No. of System ID
65,536
Ring Signal
NA
Power Source
3.7V/1100 mAh Li-Ion Battery
Optional: 3.7V/1700mAh
Charger Current
550 mA
Charge Time
3 hours
Regulation Compliance
FCC Part 15
Hearing Aid Compatible
Operating Temperature
-10 — 60˚ C
Storage Temperature
-40 — 70˚ C
Humidity
20 – 75 %
