DuraFon Roam-BU: DuraFon Roam Base Unit

$1,499.00
 por



Base unit for DuraFon Roam system

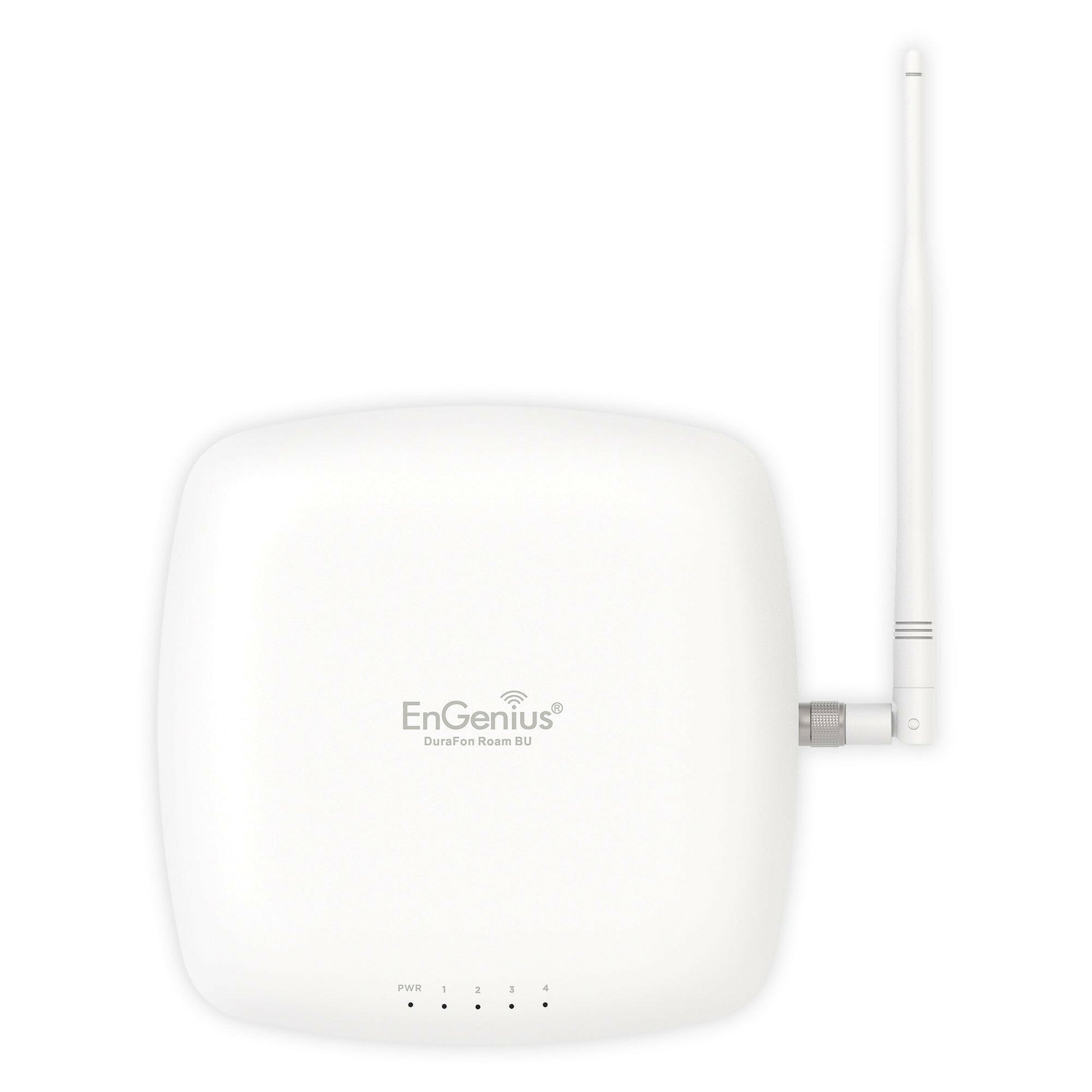

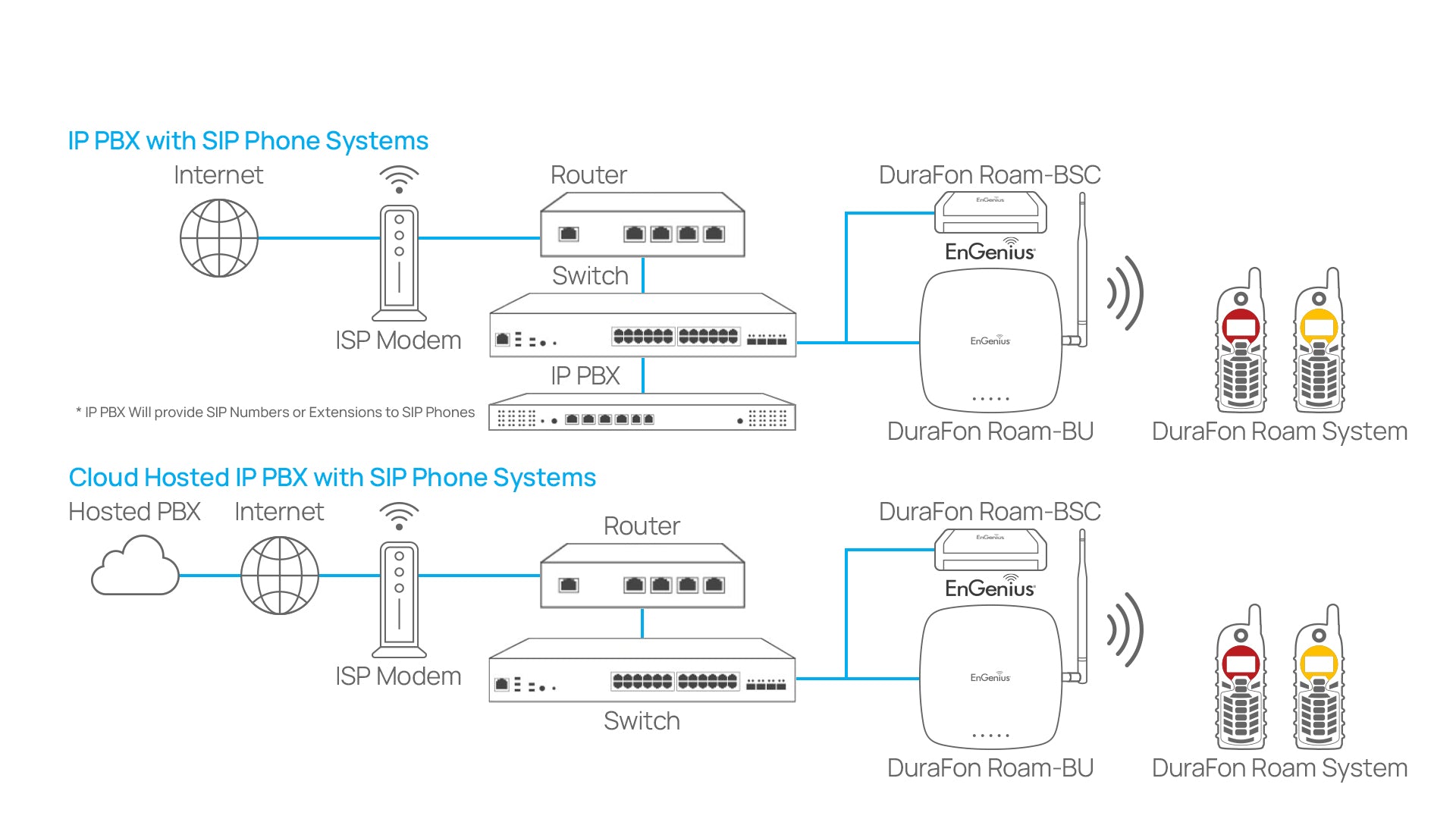

The DuraFon Roam base unit (BU) provides the long-range coverage between Roam handsets and phone access or other Roam handsets. Coverage is expanded by adding additional base units in the environment. An optional external indoor or outdoor antenna can be added to the base unit to customize the coverage needs.


  • Uses 900 MHz frequency

  • Expandable up to 8 base units

  • Can be powered via PoE
  • DuraFon Roam-BU

    Specifications

    Product Highlights

    • Use 900 MHz frequency

    • Expandable up to 8 base units

    • Can be powered via PoE

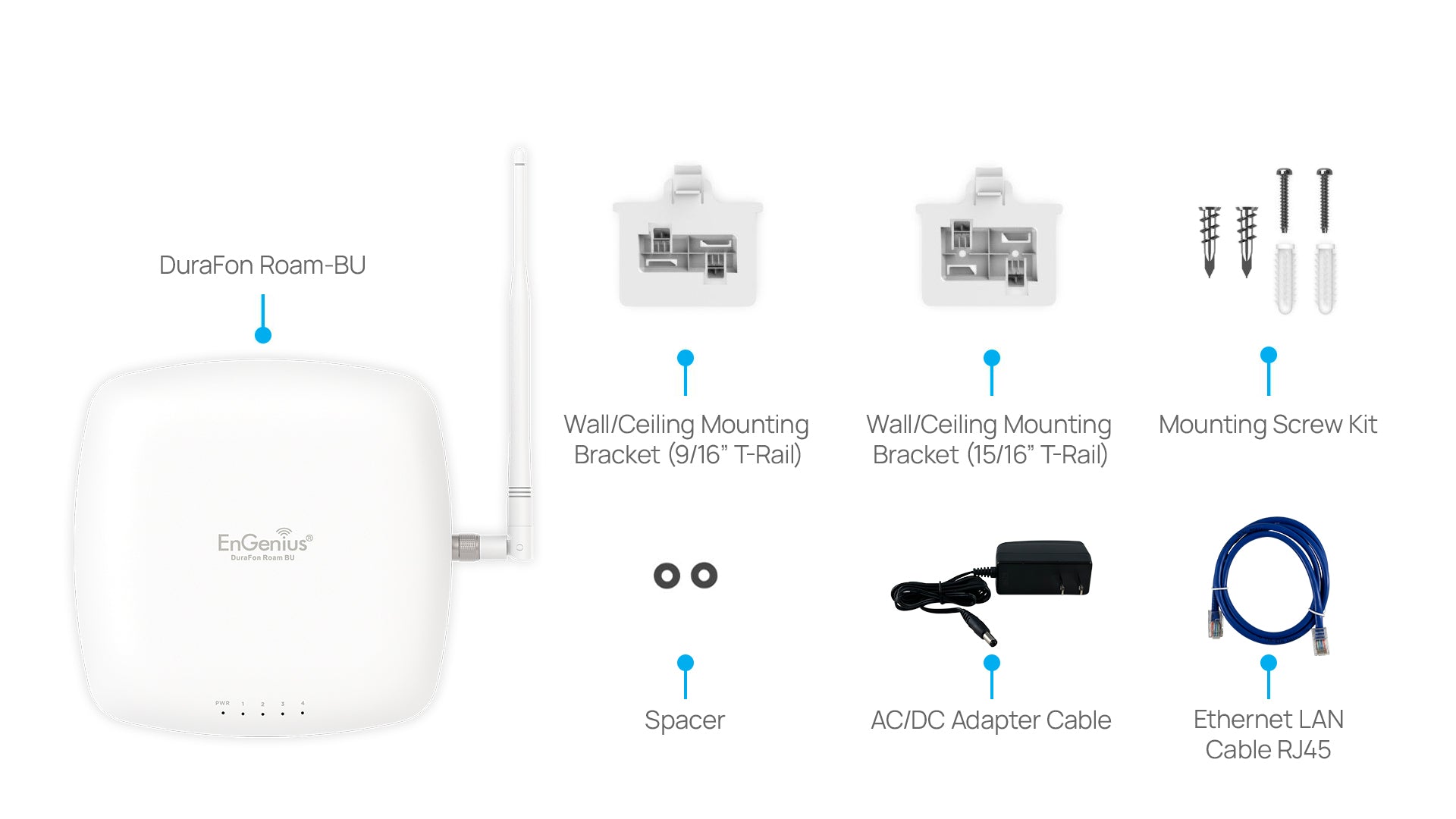

    Package Includes

    1 - Base Station
    1 - Rubber Duck Antenna
    1 - AC Adapter

    DuraFon Feature List

    System Features
    Web-GUI
    Transport Layer Security: TLS 1.2
    IPv4: DHCP, Static IP
    VLAN
    IEEE1588 Precision Time Protocol (PTP)
    Auto-Provision: TFTP, FTP, HTTP, and HTTPS
    Logging To Syslog Server
    NTP
    Configuration Backup/Restore
    Firmware Upgrade

    SIP Features
    SIP Protocol: RFC3261
    SIP Transport: UDP, TCP, TLS
    Voice Codec: G.711a, G.711u, G.729A
    Media Encryption: SRTP (Disable, Optional, Mandatory)
    DTMF: RFC2833, SIP INFO, Inband
    Hold: RFC3264, RFC2543
    Transfer: RFC3515, RFC3891, RFC3892
    Support Outbound Proxy
    DNS SRV Support
    STUN
    QoS 802.1p
    RTP Multicast

    Call Control Features
    Caller ID
    Call Waiting
    Call Hold
    Call Transfer
    Call Conference
    Intercom
    Broadcast
    Flexible Port Dedication: Single, Group or All

    Base Station Specifications

    Frequency RF Power
    902-928 MHz
    Peak: 27 dBm / Average: 21 dBm

    Channel Spacing
    200kHz

    Number of Channels
    128

    Modulation
    MSK

    Multiple Access
    Frequency Hopping TDMA

    Frequency Hopping Rate
    100 per second

    TDMA Frame Length
    10 ms

    Number of Slots/Frame
    8

    Receiver Sensitivity
    < -108 dBm (@ BER 10-2)

    Antenna Connector
    Reverse TNC

    Antenna Gain
    2 dBi

    TX Power Control Range
    19~27dBm

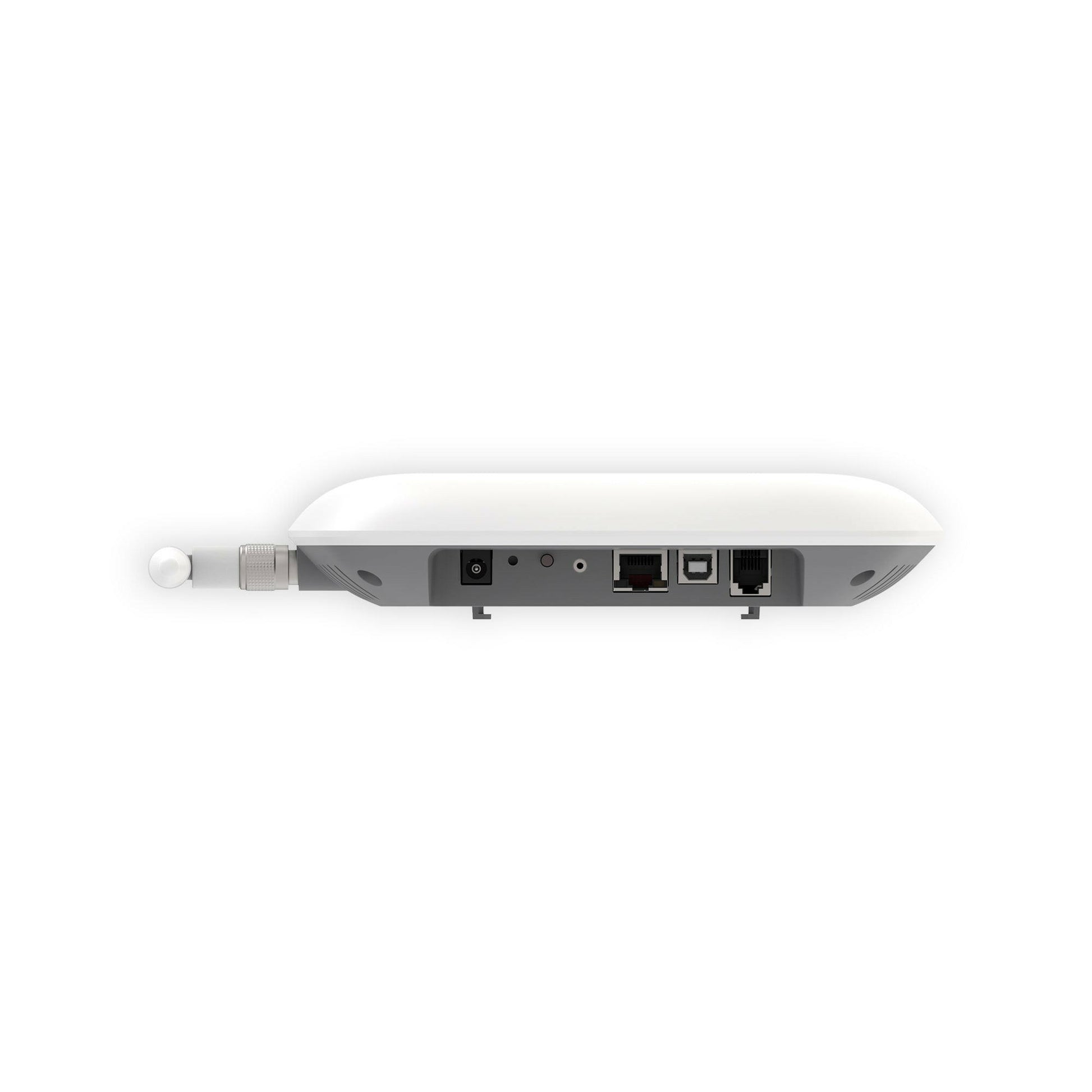

    Internet Interface
    RJ45 x 1

    Speech Coding
    8 kbps G.729AB

    Channel Coding
    8 kbps Convolutional + CRC

    Transmission Data Rate

    170.667 kbps

    User Data Rate
    64 kbps duplex

    Duplex
    Time Division Duplex (TDD)

    No. of System ID
    65,536

    Ring Signal
    20-50 Hz, 30-90 Vrms

    Power Source
    AC/DC 100~240V/5V,1A SW Adapter

    Charger Current
    NA

    Charge Time
    NA

    Regulation Compliance
    FCC Part 15

    Operating Temperature
    0 — 50˚ C

    Storage Temperature
    -40 — 70˚ C

    Humidity
    20 – 75 %

    Handset Specifications

    Frequency RF Power
    902-928 MHz
    Peak: 26 dBm / Average: 20 dBm

    Channel Spacing
    200kHz

    Number of Channels
    128

    Modulation
    MSK

    Multiple Access
    Frequency Hopping TDMA

    Frequency Hopping Rate
    100 per second

    TDMA Frame Length
    10 ms

    Number of Slots/Frame
    8

    Receiver Sensitivity
    < -108 dBm (@ BER 10-2)

    Antenna Connector
    Non-standard

    Antenna Gain
    1.5 dBi (short antenna)
    2.5 dBi (long antenna)

    TX Power Control Range
    19~26dBm

    Internet Interface
    NA

    Speech Coding
    8 kbps G.729AB

    Channel Coding
    8 kbps Convolutional + CRC

    Transmission Data Rate
    170.667 kbps

    User Data Rate
    64 kbps duplex

    Duplex
    Time Division Duplex (TDD)

    No. of System ID
    65,536

    Ring Signal
    NA

    Power Source
    3.7V/1100 mAh Li-Ion Battery
    Optional: 3.7V/1700mAh

    Charger Current
    550 mA

    Charge Time
    3 hours

    Regulation Compliance
    FCC Part 15
    Hearing Aid Compatible

    Operating Temperature
    -10 — 60˚ C

    Storage Temperature
    -40 — 70˚ C

    Humidity
    20 – 75 %
