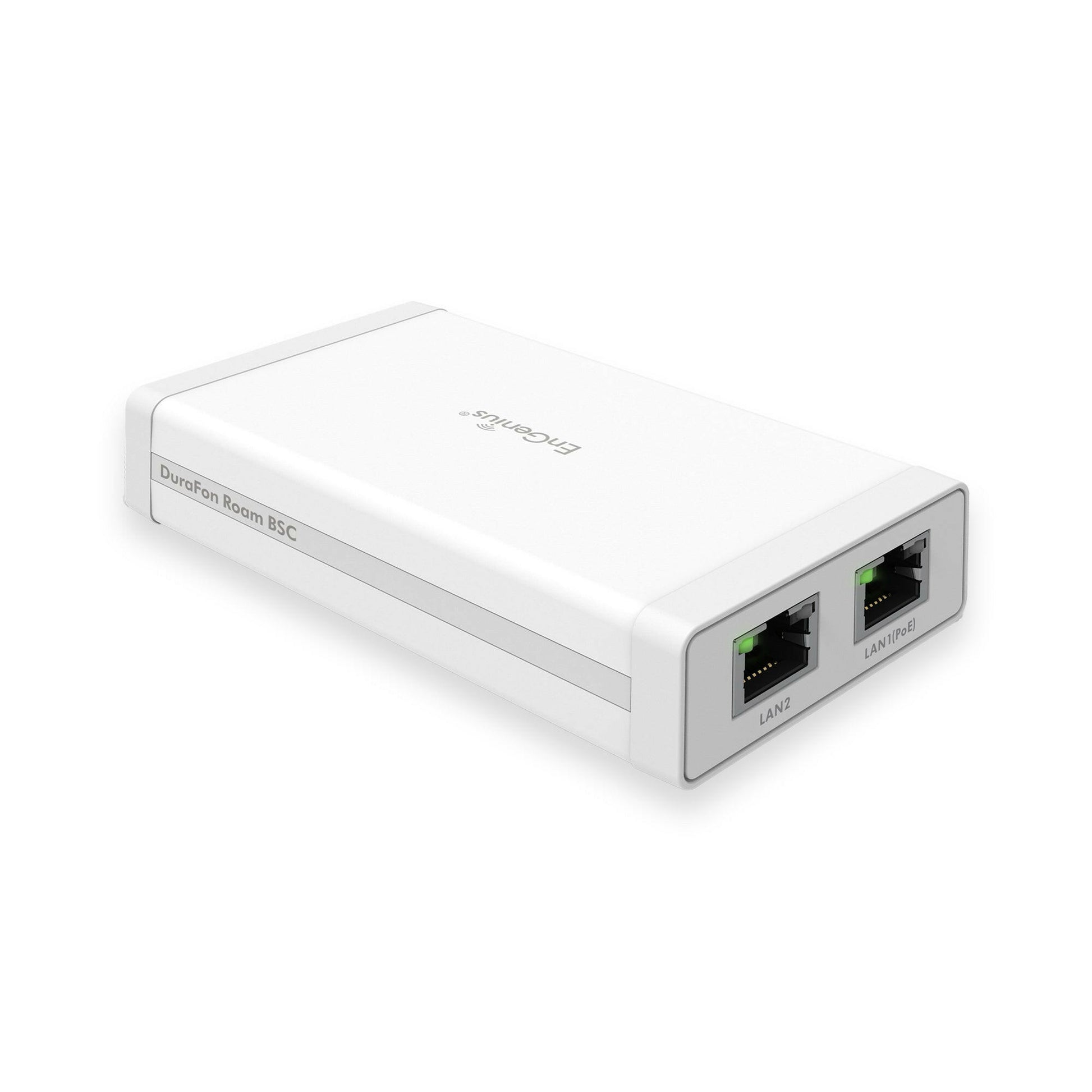

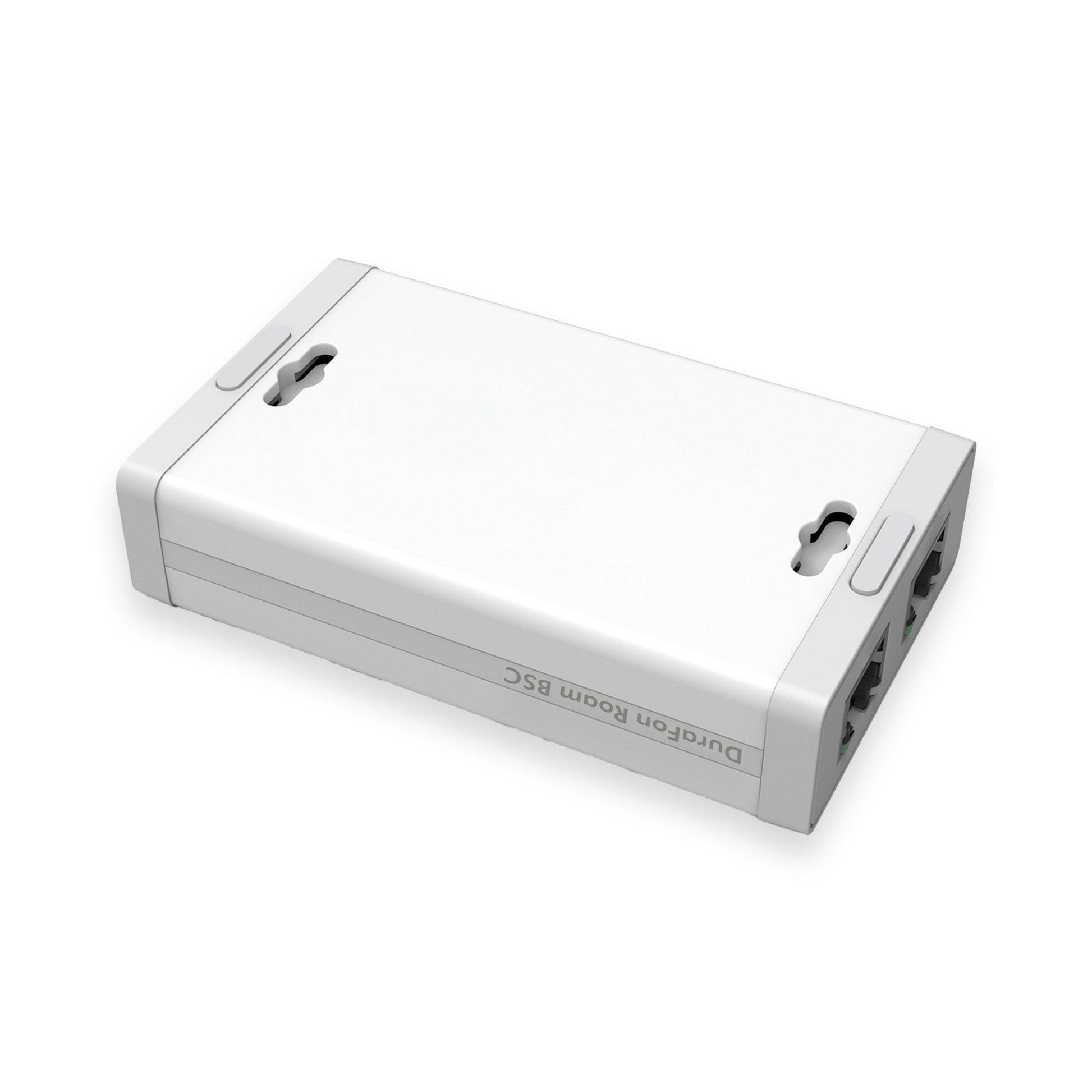

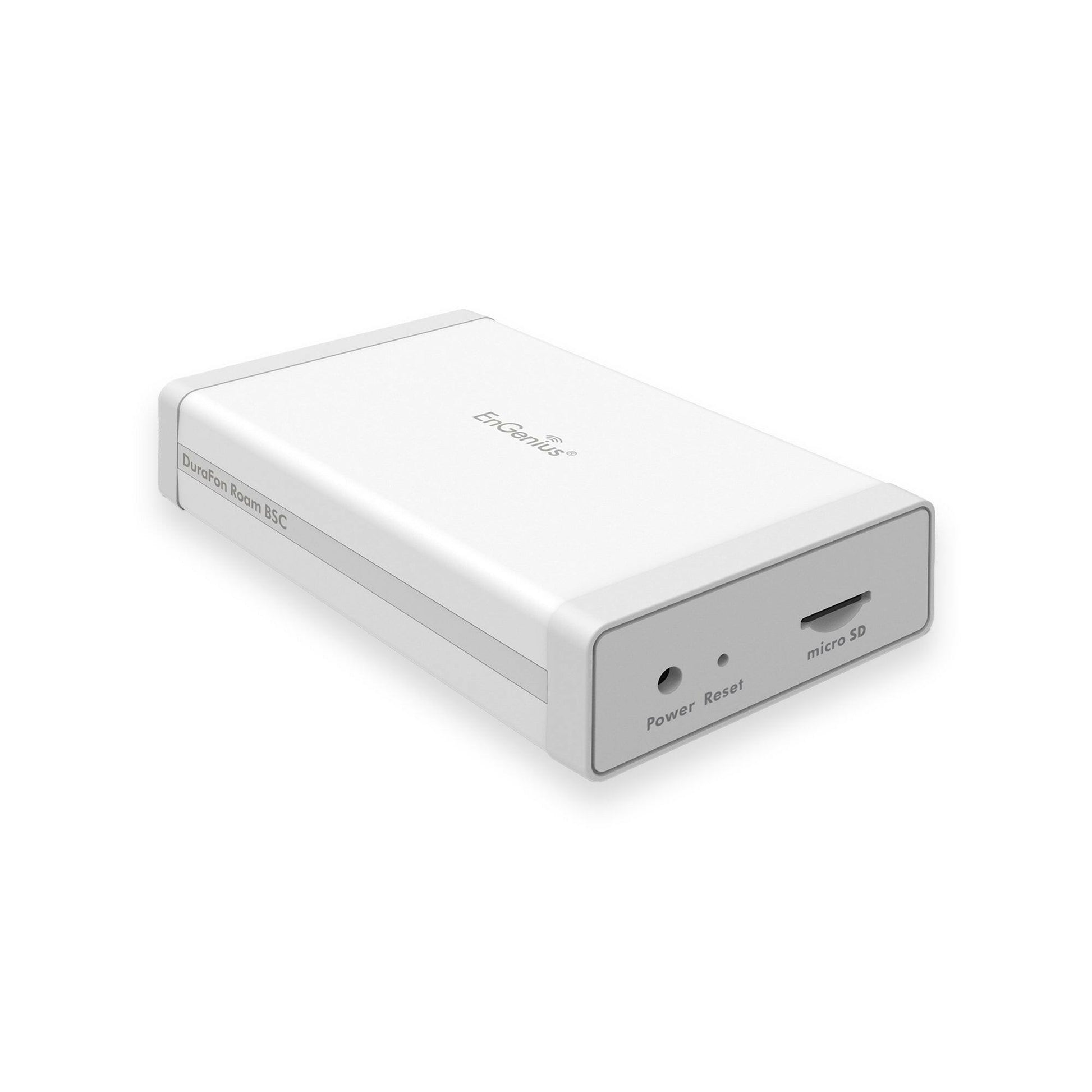

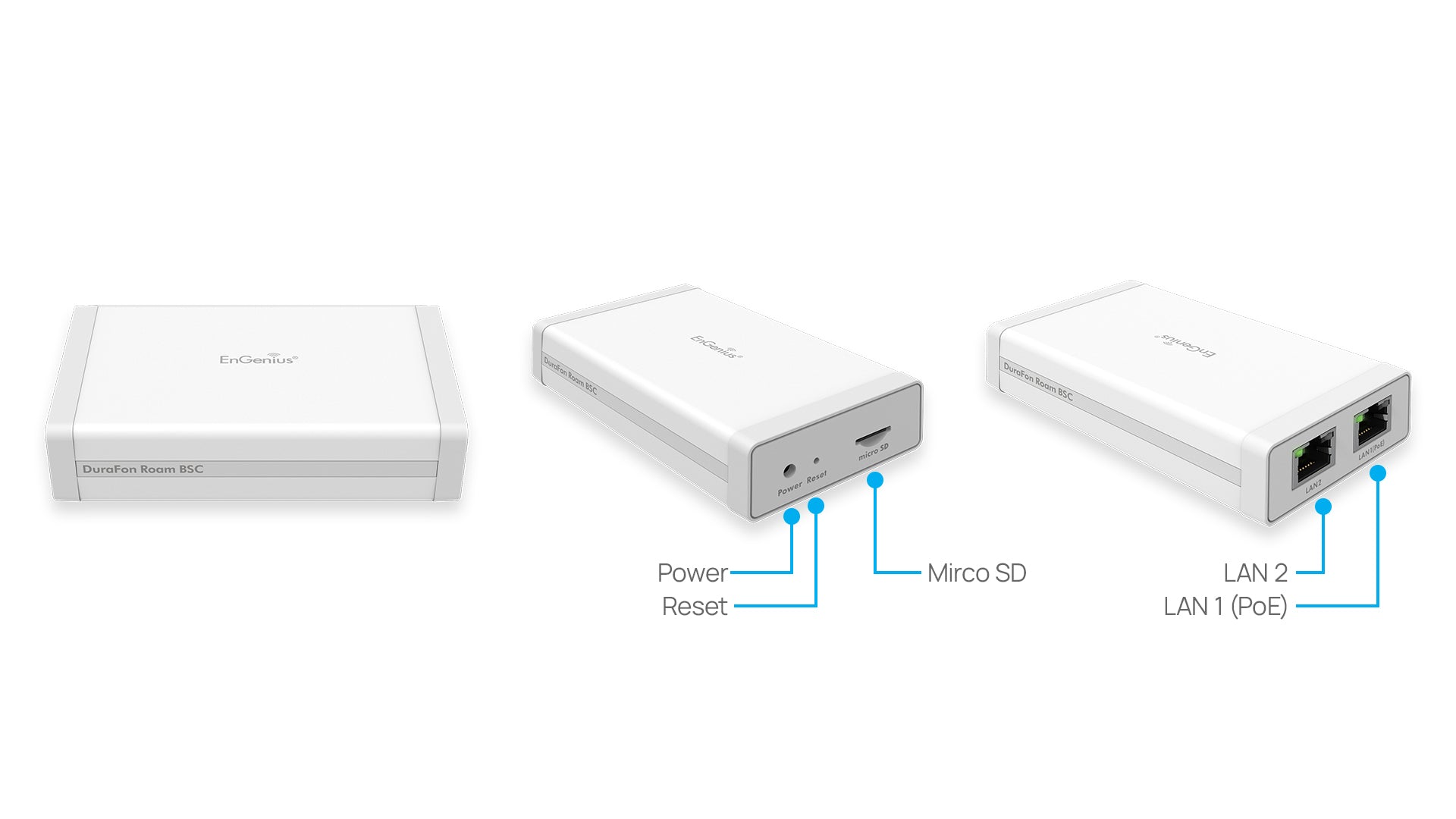

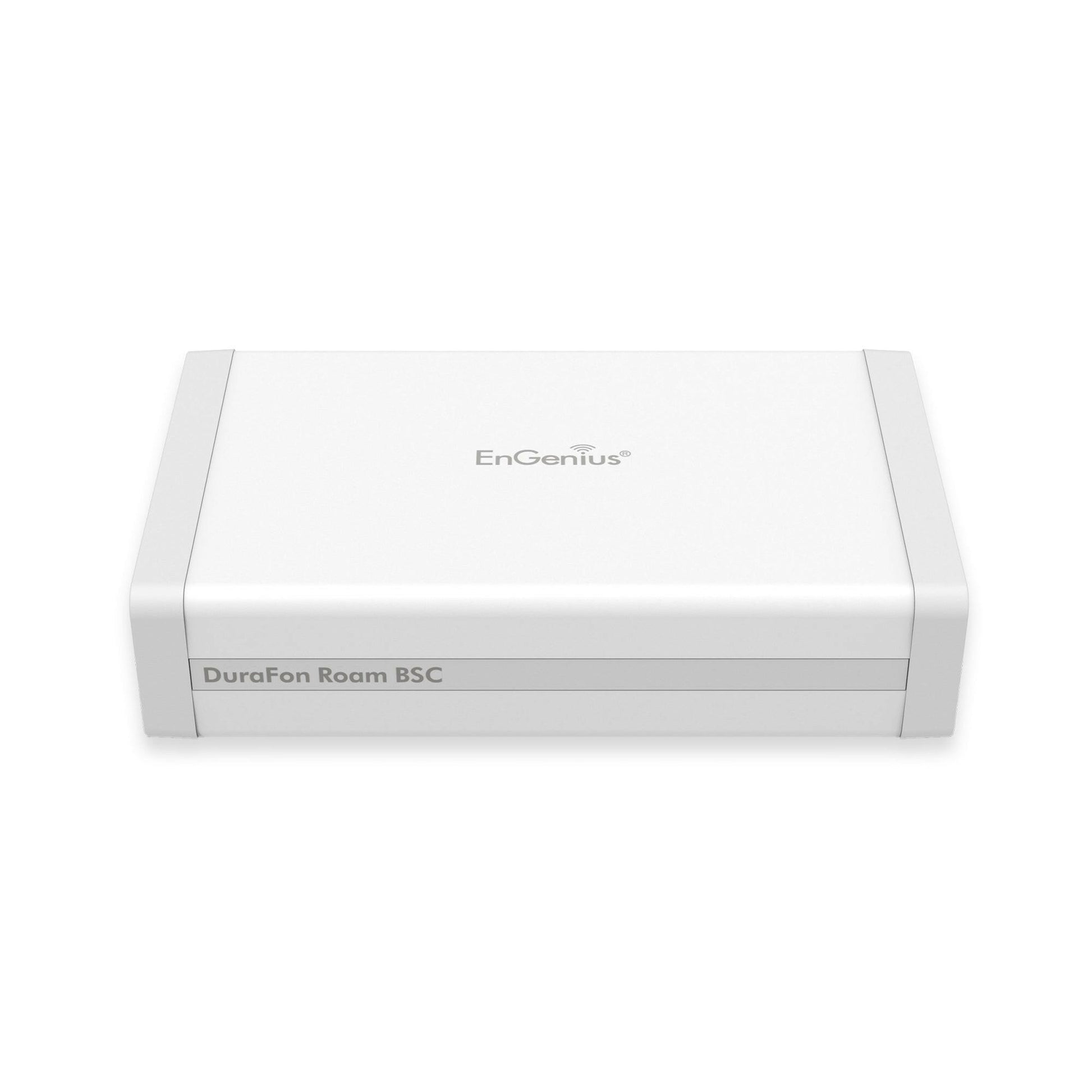

DuraFon Roam-BSC: DuraFon Roam Base Station Controller
Base station controller for DuraFon Roam system

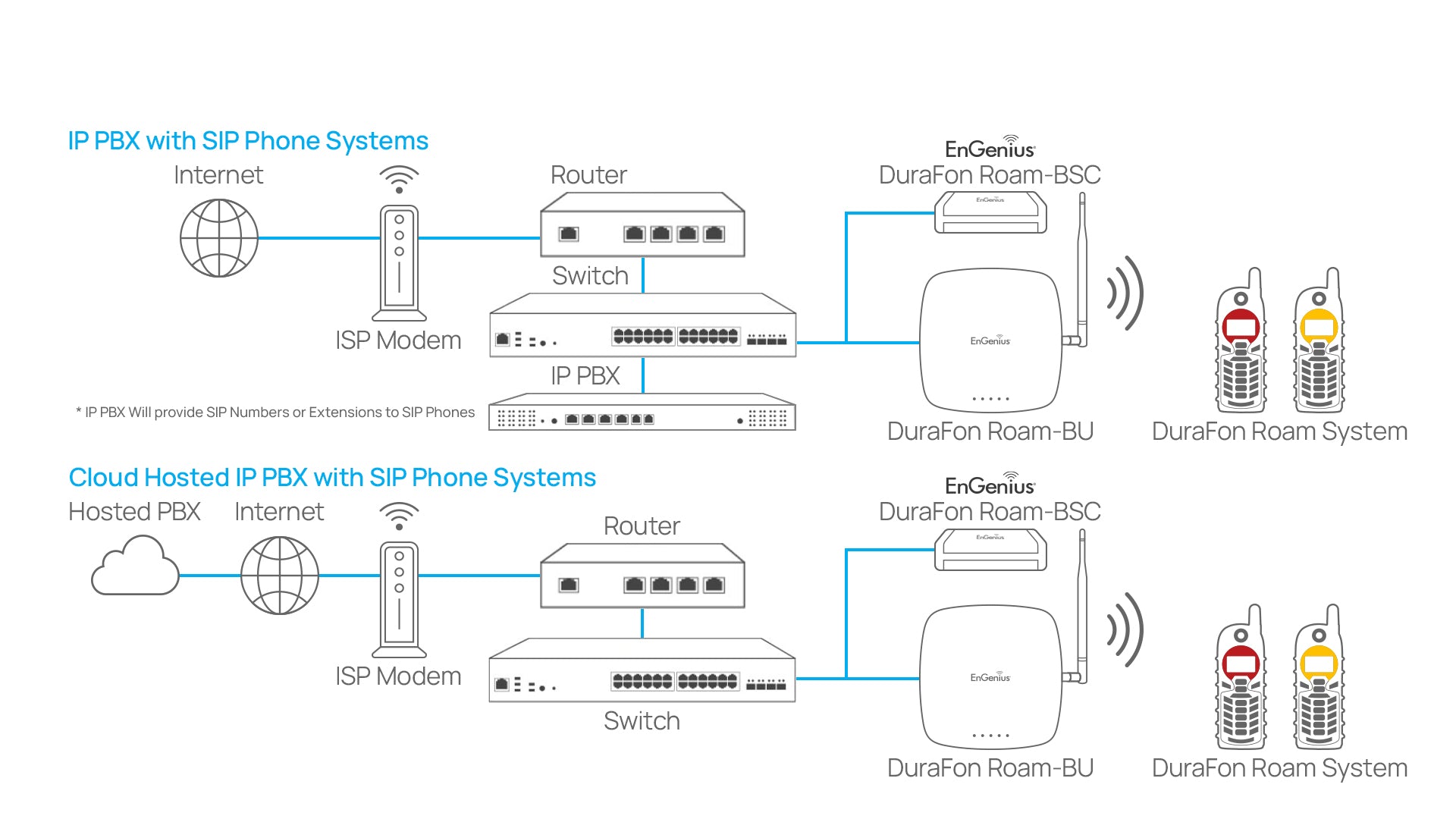

The DuraFon Roam base station controller (BSC) is required for the DuraFon Roam system. The BCS manages the system calls and hand-off between base units to ensure exceptional long-range coverage.
Specifications
- Standard SIP protocol
- Manages up to 8 base units

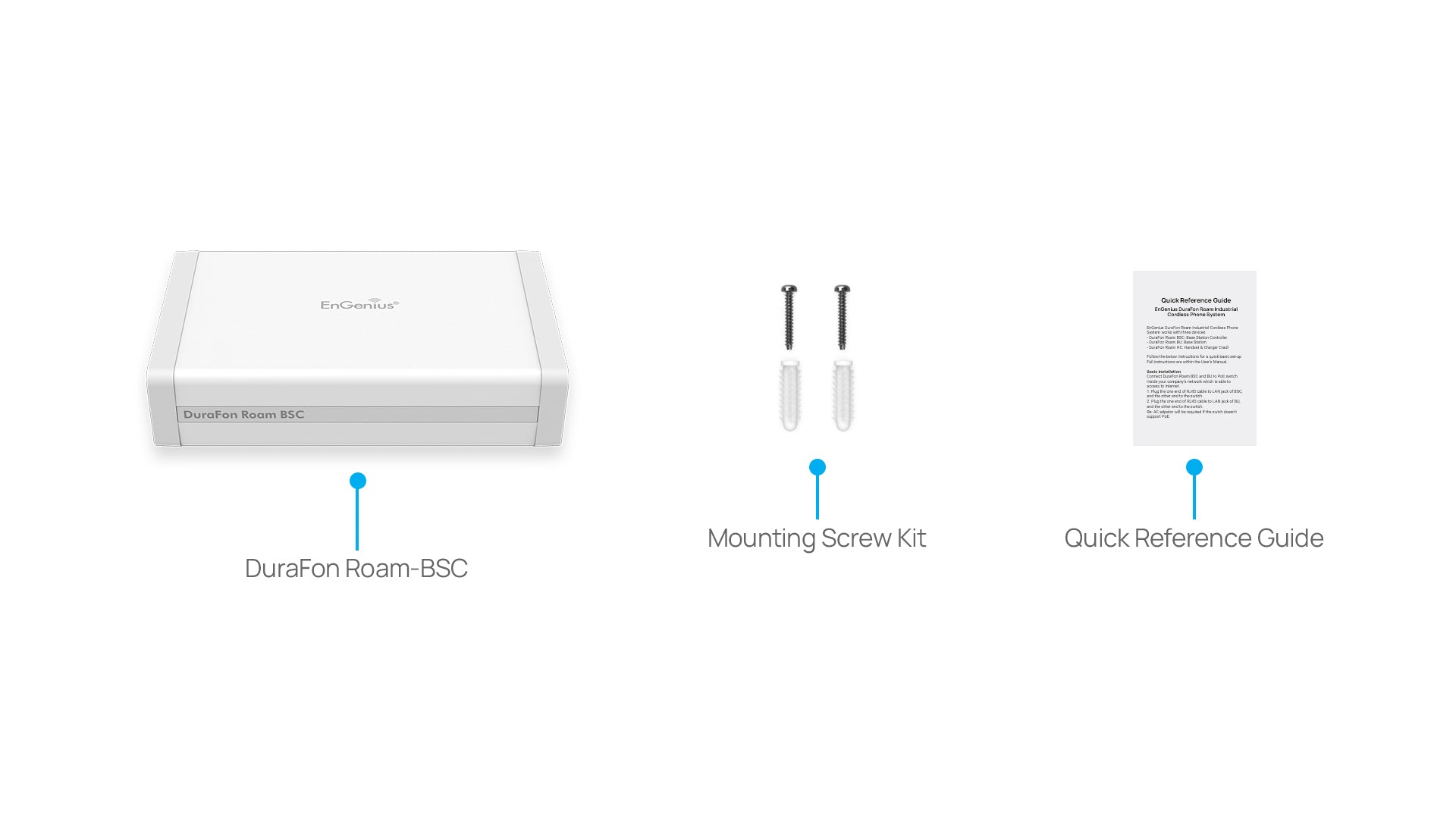

1 - Base Controller
System Features
Web-GUI
Transport Layer Security: TLS 1.2
IPv4: DHCP, Static IP
VLAN
IEEE1588 Precision Time Protocol (PTP)
Auto-Provision: TFTP, FTP, HTTP, and HTTPS
Logging To Syslog Server
NTP
Configuration Backup/Restore
Firmware Upgrade
SIP Features
SIP Protocol: RFC3261
SIP Transport: UDP, TCP, TLS
Voice Codec: G.711a, G.711u, G.729A
Media Encryption: SRTP (Disable, Optional, Mandatory)
DTMF: RFC2833, SIP INFO, Inband
Hold: RFC3264, RFC2543
Transfer: RFC3515, RFC3891, RFC3892
Support Outbound Proxy
DNS SRV Support
STUN
QoS 802.1p
RTP Multicast
Call Control Features
Caller ID
Call Waiting
Call Hold
Call Transfer
Call Conference
Intercom
Broadcast
Flexible Port Dedication: Single, Group or All
Frequency RF Power
902-928 MHz
Peak: 27 dBm / Average: 21 dBm
Channel Spacing
200kHz
Number of Channels
128
Modulation
MSK
Multiple Access
Frequency Hopping TDMA
Frequency Hopping Rate
100 per second
TDMA Frame Length
10 ms
Number of Slots/Frame
8
Receiver Sensitivity
< -108 dBm (@ BER 10-2)
Antenna Connector
Reverse TNC
Antenna Gain
2 dBi
TX Power Control Range
19~27dBm
Internet Interface
RJ45 x 1
Speech Coding
8 kbps G.729AB
Channel Coding
8 kbps Convolutional + CRC
Transmission Data Rate
170.667 kbps
User Data Rate
64 kbps duplex
Duplex
Time Division Duplex (TDD)
No. of System ID
65,536
Ring Signal
20-50 Hz, 30-90 Vrms
Power Source
AC/DC 100~240V/5V,1A SW Adapter
Charger Current
NA
Charge Time
NA
Regulation Compliance
FCC Part 15
Operating Temperature
0 — 50˚ C
Storage Temperature
-40 — 70˚ C
Humidity
20 – 75 %
Frequency RF Power
902-928 MHz
Peak: 26 dBm / Average: 20 dBm
Channel Spacing
200kHz
Number of Channels
128
Modulation
MSK
Multiple Access
Frequency Hopping TDMA
Frequency Hopping Rate
100 per second
TDMA Frame Length
10 ms
Number of Slots/Frame
8
Receiver Sensitivity
< -108 dBm (@ BER 10-2)
Antenna Connector
Non-standard
Antenna Gain
1.5 dBi (short antenna)
2.5 dBi (long antenna)
TX Power Control Range
19~26dBm
Internet Interface
NA
Speech Coding
8 kbps G.729AB
Channel Coding
8 kbps Convolutional + CRC
Transmission Data Rate
170.667 kbps
User Data Rate
64 kbps duplex
Duplex
Time Division Duplex (TDD)
No. of System ID
65,536
Ring Signal
NA
Power Source
3.7V/1100 mAh Li-Ion Battery
Optional: 3.7V/1700mAh
Charger Current
550 mA
Charge Time
3 hours
Regulation Compliance
FCC Part 15
Hearing Aid Compatible
Operating Temperature
-10 — 60˚ C
Storage Temperature
-40 — 70˚ C
Humidity
20 – 75 %
