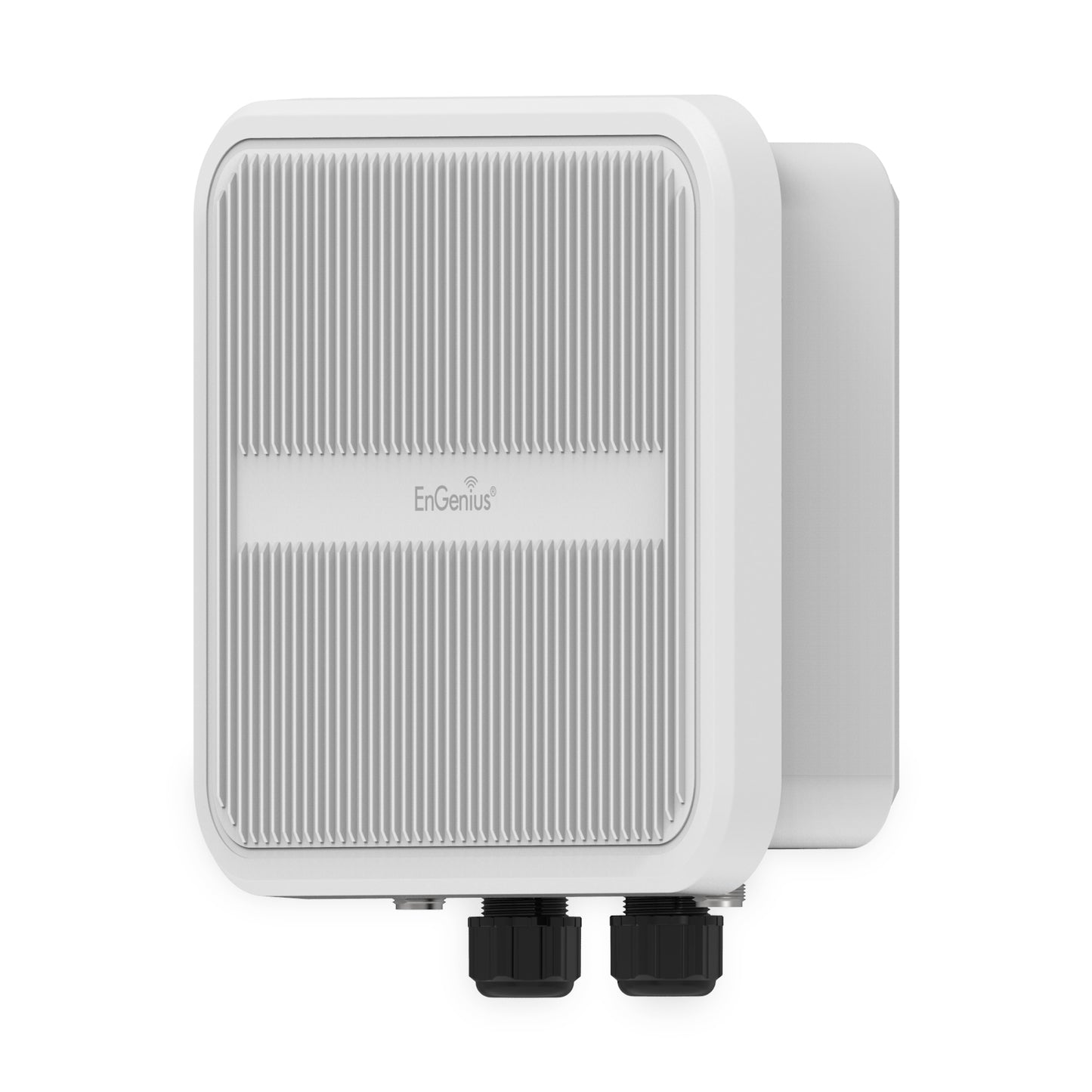

EOC655-C18: Broadband Outdoor 5GHz Dual Radio 2×2 AP w/ Integrated 18dBi Panel Antenna
EOC655-C18: Broadband Outdoor 5GHz Dual Radio 2×2 AP w/ Integrated 18dBi Panel Antenna
Dual 5GHz radios deliver speeds of 2Gbps | IP67–rated for durability | Supports multi-gig on one port
The EnGenius EOC655C18 Wi-Fi 6 2x2 outdoor access point boasts dual 5GHz radios that can reach speeds of up to 2Gbps. High gain 16 dBi integrated directional panel antenna extends wireless networks. Its IP67 rating ensures reliable performance even in harsh outdoor conditions. The EOC series is equipped with built-in GPS that ensures precise device placement and effective network mapping. This is crucial for PtP/PtMP setups, asset management, and network integration through auto-discovery features. The system prioritizes security by utilizing AES-256 encryption and providing optional FIPS-140-2 compliance for reliable and secure communication. With the SkyPoint NMS, you can enjoy comprehensive web-based monitoring and management while auto-provisioning enables efficient large-scale deployments.
Specifications
- Wi-Fi 6 (802.11ax) technology with OFDMA, Beamforming, and MU-MIMO for improved throughput
- 2x2 dual 5GHz radios capable of reaching speeds of up to 2 Gbps
- High 27 dBm transmit power extends Wi-Fi to yard or building-to-building
- High gain 16 dBi integrated directional panel antenna extend wireless networks
- Auto Provisioning: Streamline large-scale network development with easy, centralized control
- Mobile App Radio Tuning: Integrates a 2.4 GHz radio
with a mobile app for easy PtP or PtMP setup, efficient antenna alignment, and streamlined troubleshooting
- Quick Outage Response: Features a Dying Gasp module for prompt alerts and response to power-related issues
- Automatic RF Correction: Enhances network resilience by improving stability and reducing interruptions
- Auto & Dynamic Channel Selection: Automatically chooses optimal channels to avoid interference and enhance signal quality
- Smart Network Mapping: Built-in GPS enables auto-discovery and detailed network topology insights
- Centralized Network Management Software: Offers a comprehensive web-based network performance, health, and security management platform
- IP67-Rated Casing: Ensures durability against harsh environmental conditions, prolonging device lifespan
- Uncompromised Security: Ensures top-tier data protection with AES-256 encryption and optional FIPS-140-2 compliance
- No lag on Performance: Real-time system metrics, analytics, and remote configurations
Standards
IEEE 802.11ax on 5 GHz
(Backward compatible with 802.11b/g/n/ac)
Processor
Qualcomm® Quad-Core ARM Cortex A53s @ 1.0GHz CPU
Memory
DDR3 1GB, Flash 32 MB, eMMC 8GB
Antenna
2.4 GHz: 3.5 dBi Integrated Omni-Directional
5 GHz (Radio 1): 18 dBi Integrated Panel Antenna

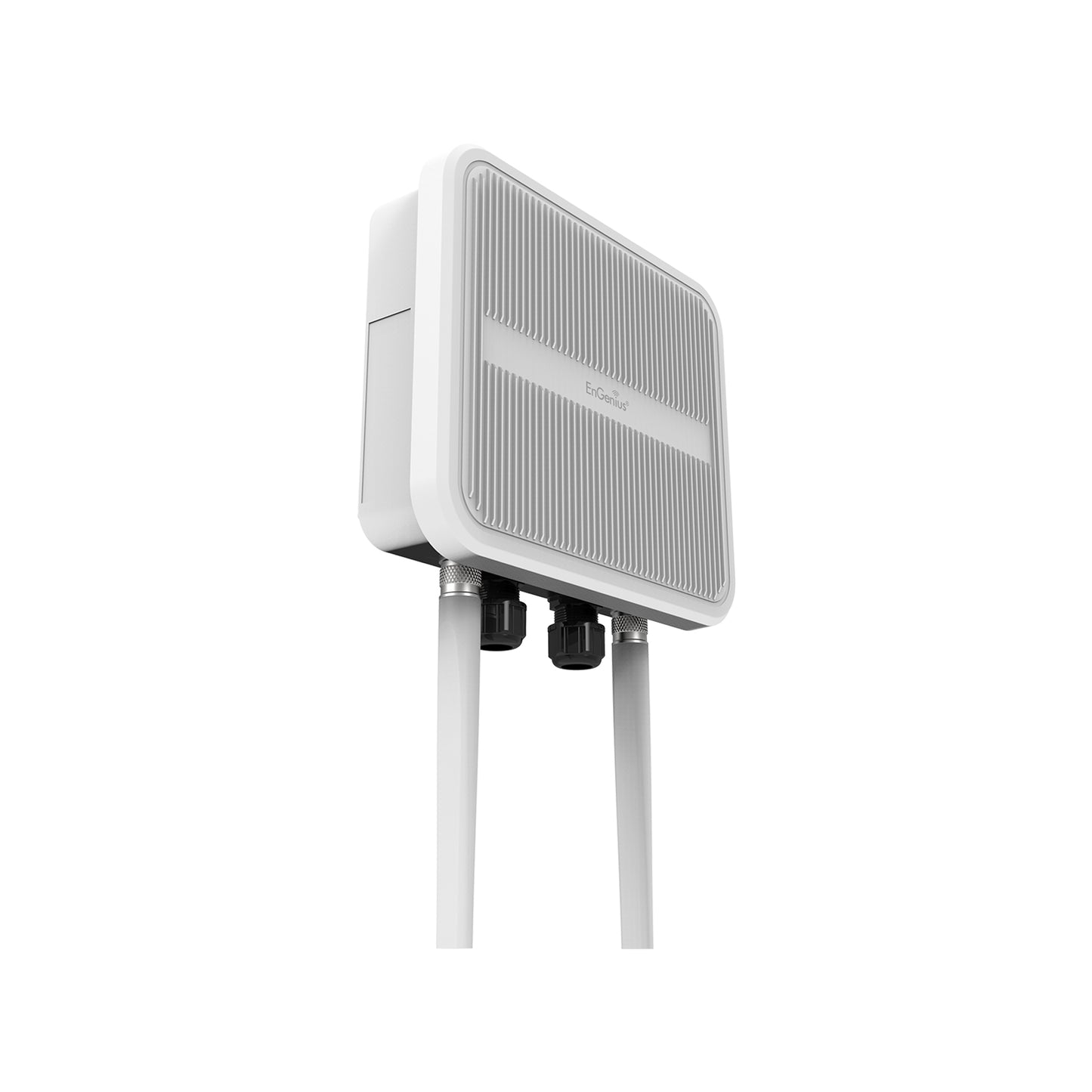

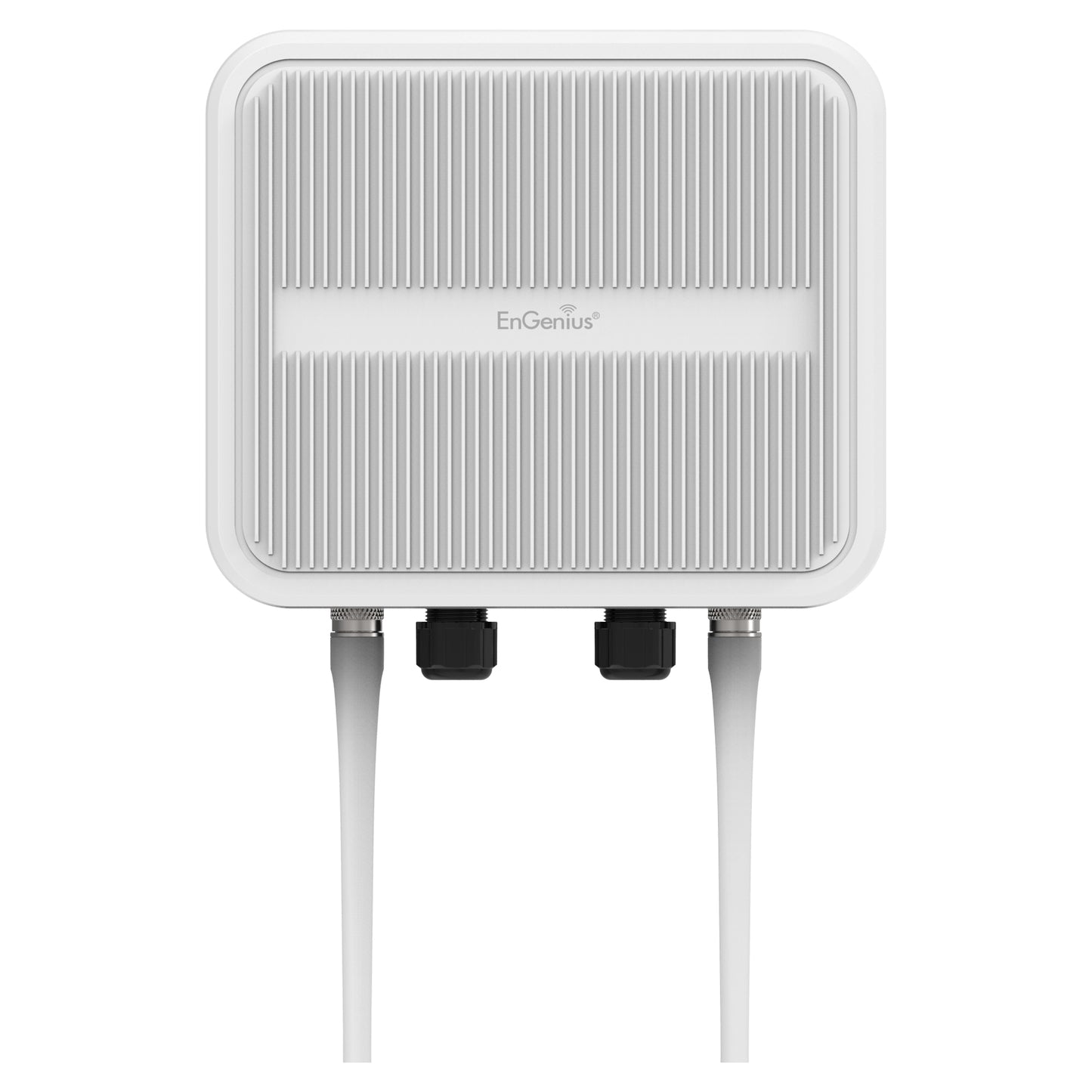

5 GHz (Radio 2): N-Type Connector
External Antenna Connector Type
N-Type Connector (Female)
IP Rating
IP67
Bluetooth
Radio Management
Compass sensor
Antenna Management
Thermal sensor
Monitoring board temperature
GPS
Onboard GPS with integrated antenna, 1PPS pulse, GPS Synchronization
Dying Gasp
40ms (Max)

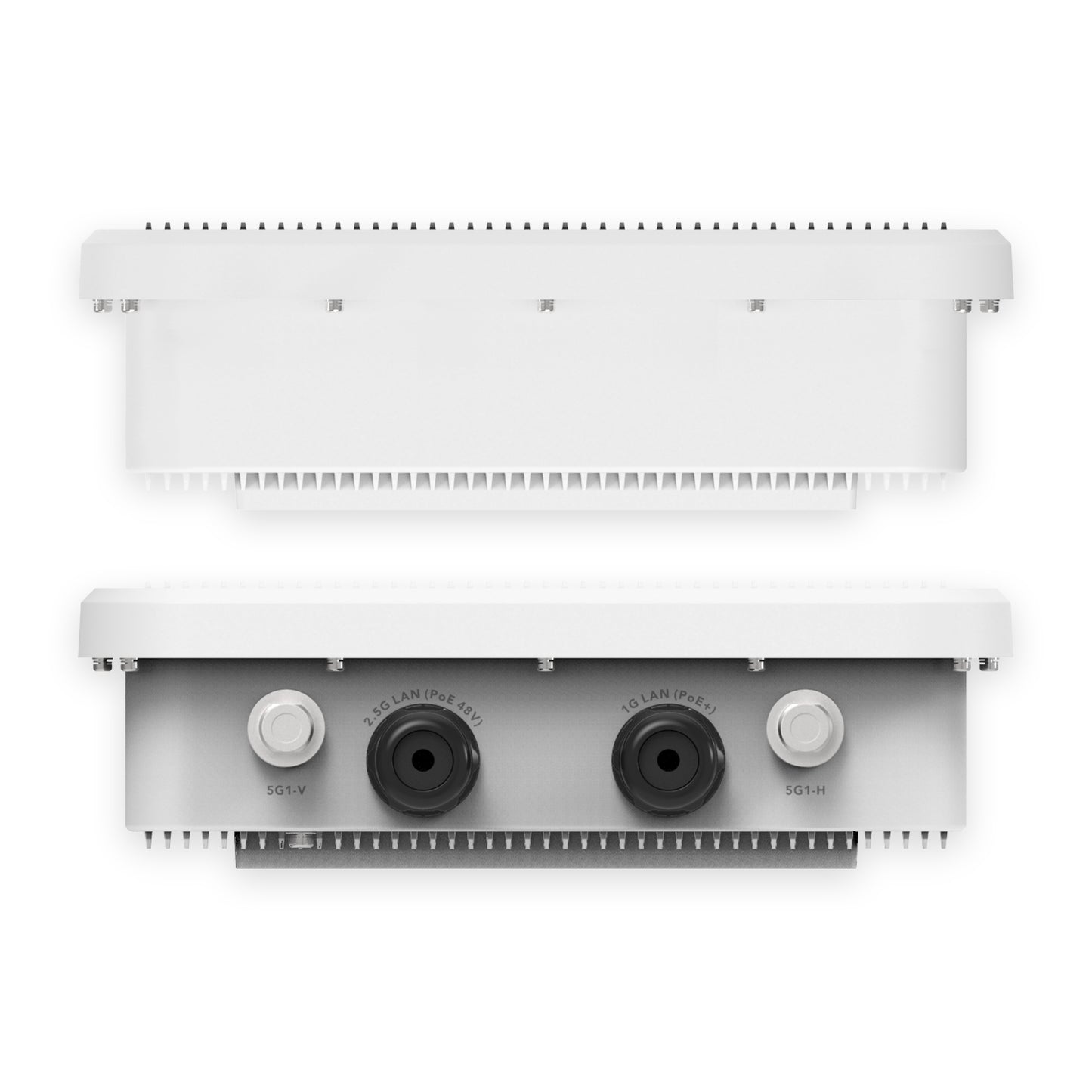

Physical Interface
1 x 10/100/1000 BASE-T, RJ-45 Ethernet Port (802.3at PoE)
1 x 10/100/1000/2500 BASE-T, RJ-45 Ethernet Port (Proprietary PoE)
Power Source
IEEE802.3at or Proprietary 48V/1A or Direct DC Input up-to 56V LAN2 Port
Maximum Power Consumption
21W
Surge Protection
6KV Surge Protection on Ethernet Ports
EDS Protection
Contact: 4KV
AIR: 8KV
Operating Frequency
Dual-Radio 5 GHz
Operation Modes
Access Point, Station, Base Station (BSU), Subscriber (SU)
Max Subscribers
16 per radio
Frequency Radio
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz (Broadband Connectivity)
2.4 GHz / Bluetooth (Radio Management)
Transmit Power
Up to 27 dBm (Combined)
Tx Beamforming (TxBF)
Increasing signal reliability and transmitting distance.
Radio Chains/Spatial Stream
2x2:2
Jumbo Frame
9k bytes
Supported Data Rates (Mbps):
802.11ax:
5 GHz: 18 to 1200 (MCS0 to MSC11, NSS = 1 to 4)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)
802.11n: 6.5 to 300 Mbps (MCS0 to MCS15)
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
Supported Radio Technologies
802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)
802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)
Channelization
802.11ax supports high efficiency (HE) —HE 20/40/80/160 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU
Supported Modulation
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK
Dynamic Channel Selection (DCS)
Selects optimal channel to operate to maintain SLAs (CIR & MIR)
Dynamic Data Rate Selection (DDRS)
Automatically detect optimal data rate for a given link
Auto Transmit Power Control (ATPC)
Automatically adapt the transmit power
Interference Mitigation
Auto Channel Selection (ACS), Dynamic Channel Selection (DCS), and Background Scan (BG Scan) features aid in adapting to varying RF medium
Encryption
AES 256
Spectrum Analyzer
Provides RF medium statistics
VLAN Tagging
Supports 802.1Q: Transparent, Access, Trunk, Q-in-Q
Spanning Tree
Supports 802.1d Spanning Tree Protocol
QoS (Quality of Service)
IEEE 802.11e compliant
WMM
SNMP
v1, v2c, v3
IP Stack
IPv4, IPv6
MAC-in-MAC
To improve the multicast traffic performance, IGMP Snooping
Ethernet-QAM
Fault Link Management
Packet Filtering
MAC, IP, Protocol, Port
NTP Server
Stratum 1 NTP Server using GPS – less than 1 msec accuracy
Asymmetric Bandwidth Control
Asymmetric UL/DL committed and maximum information rate per Service Flow
Packet Classification Capabilities
802.1p p priority, IPTOS, VLAN ID, IP addresses, Ports, Ethernet Addresses, IP Protocol, and Ether Type. Supports a maximum of 4 SFC’s with a maximum 32 PIR’s
Scheduling
Real-Time priority-based services
Temperature Range
Operating: -14ºF~140ºF (-10ºC~60ºC)
Storage: -22ºF~176 ºF (-30ºC~80ºC)
Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less

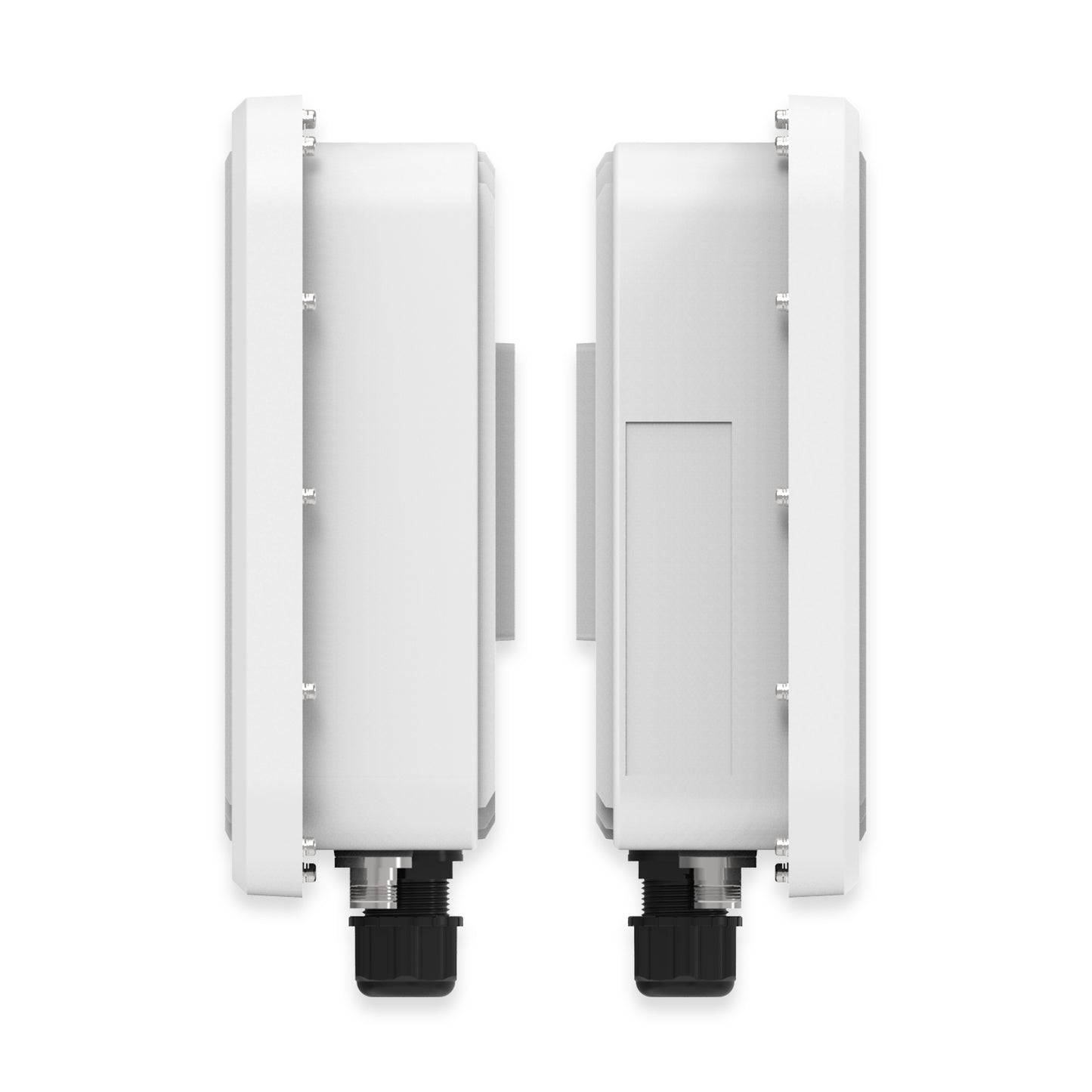

EOC655-C18 Device
Weight: 4.12 lbs. (1.87 kg)
Length: 10.51" (267 mm)
Width: 8.93" (227 mm)
Height: 3.22" (82 mm)
Packaging
Weight: 8.84 lbs. (4.01 kg)
Length: 12.36" (314 mm)
Width: 6.25" (159 mm)
Height: 17.71" (450 mm)
Package Contents
1 – EOC655-C18 Outdoor Wireless
1 – PoE Injector
1 – Power Cord

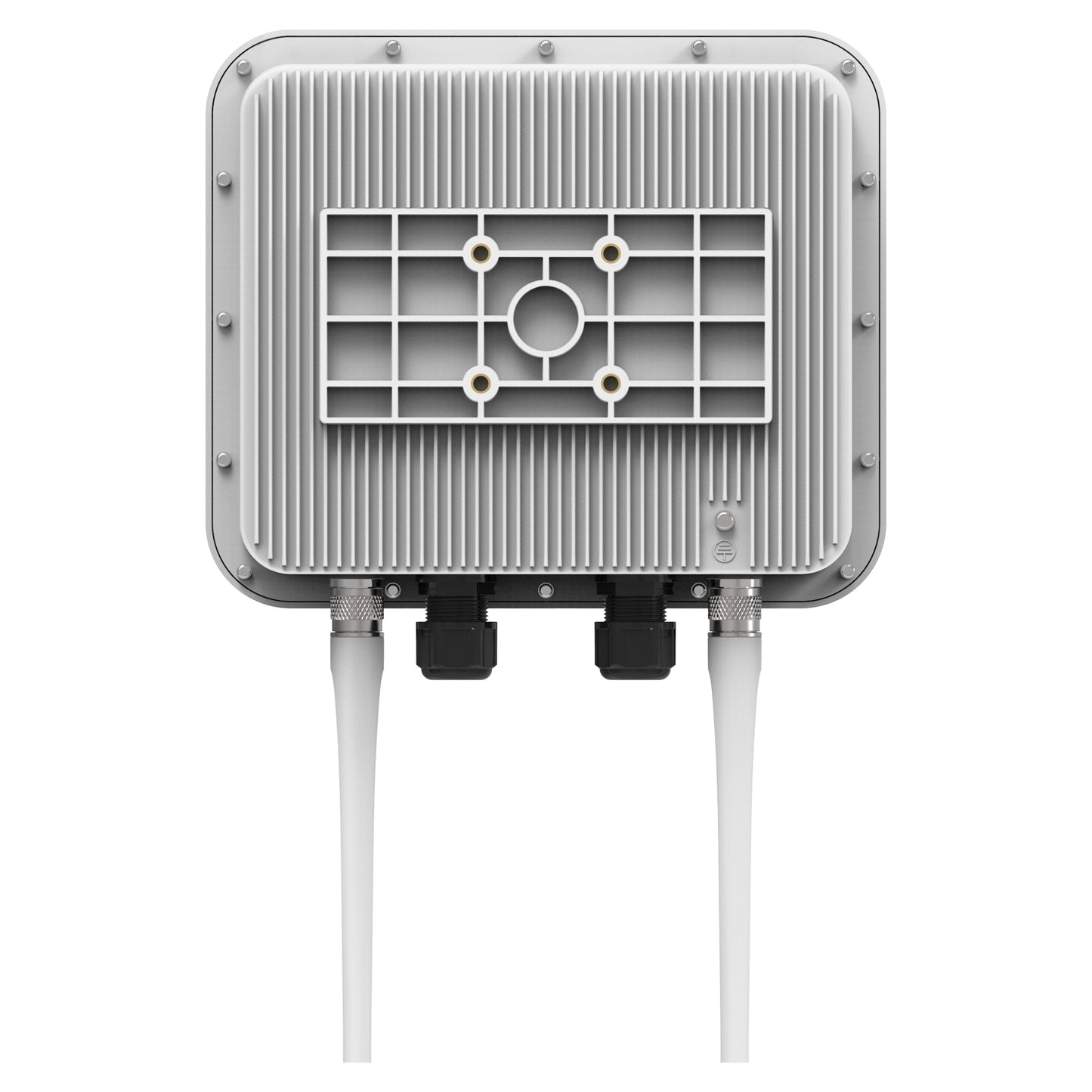

1 – Pole Mount Brackets
1 – Pole Mount Strap
1 – Ethernet Cable Cat5e 1.5 mts
1 – Grounding Cable 1.8 mts
Certifications
FCC
CB
RoHS
WEEE
MTBF
100K hours
Warranty
1 Year
