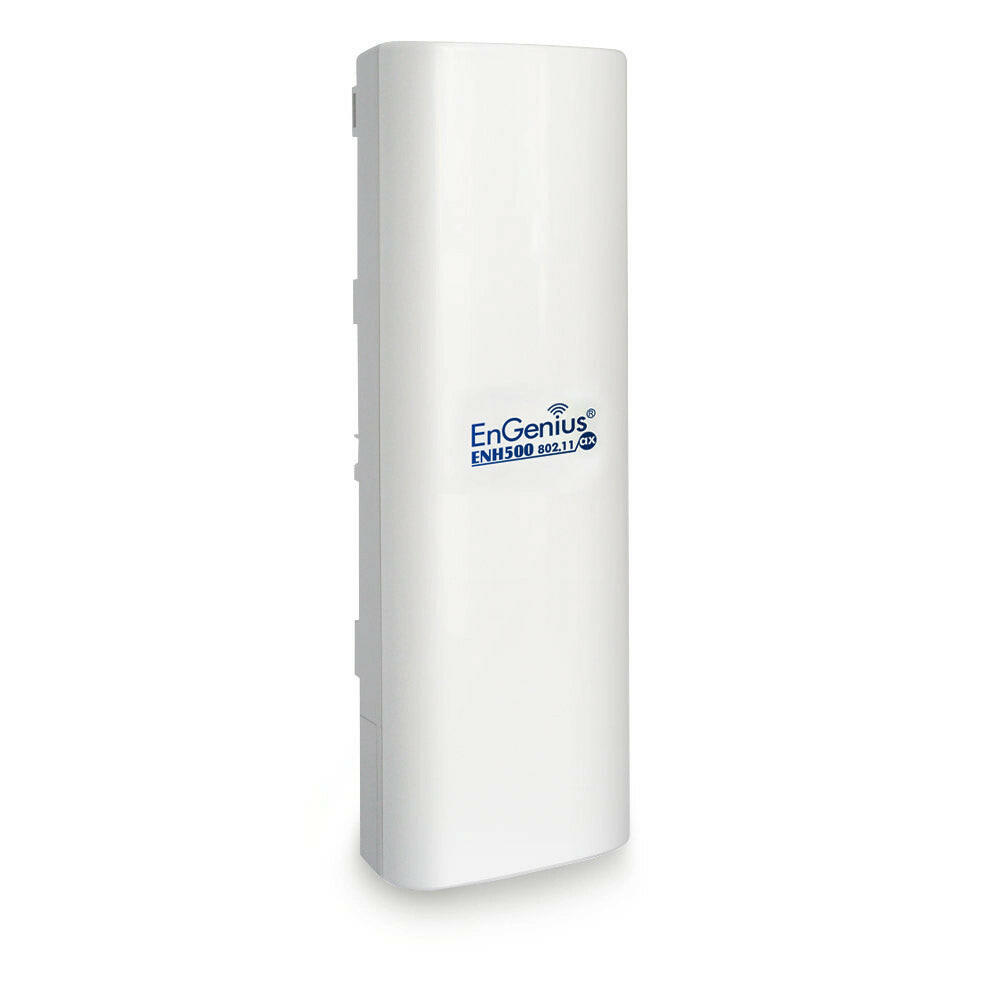

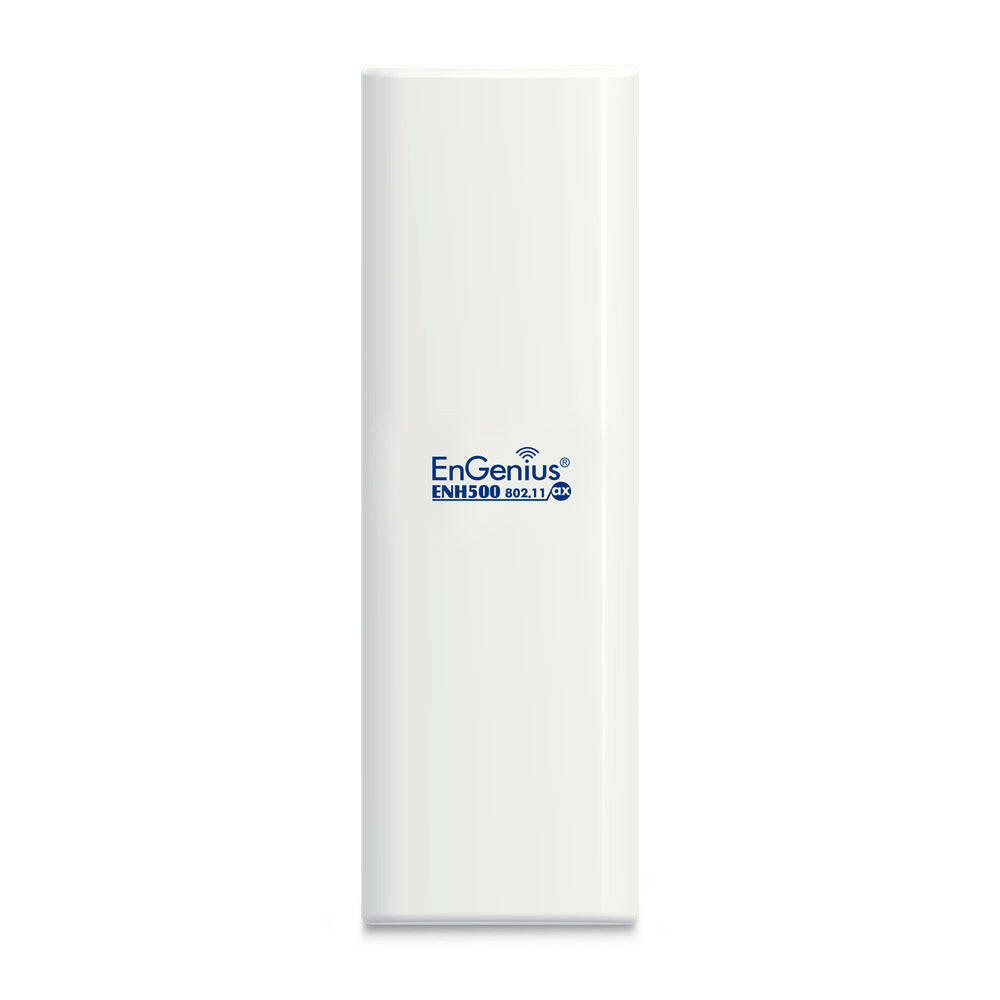

ENH500-AX: Wi-Fi 6 Outdoor AX1200 5 GHz Point to Point Wireless Bridge

$195.00
 per

Single Unit

View full details
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Customer Reviews

Overall rating: 4.8 / 5 from 4 reviews.

### 5 Stars – Rock Solid Reliability! We've used a lot of wireless bridges over the years, and EnGenius is hands down our favorite. We prefer these over anything else on the market. Setup is straightforward, and once they're installed, you can pretty much forget about them. They just work! These units have been rock solid for us, even through the brutal Louisiana summer heat, heavy rain, and unpredictable weather. We've never had an issue with reliability or performance. As an IT company, we appreciate equipment that doesn't require constant attention or troubleshooting. EnGenius delivers exactly that. Highly recommended!

ENH500-AX: Wi-Fi 6 Outdoor AX1200 5 GHz Point to Point Wireless Bridge

I put this in as a wireless link to a node of security cameras, consisting of three high resolution cameras. I received the radio set. It was packaged well and had no defects. Configuration of the device was fairly straight forward, but then I have experience with the system and networking to start with. Newbies might have some difficulty. The manual contains all you need, but its quite lengthy to read. I would suggest a better Quick Start pamphlet for newbies. System went in easily and came up as configured, and the bandwidth is over the top. Very pleased with the results.

ENH500-AX: Wi-Fi 6 Outdoor AX1200 5 GHz Point to Point Wireless Bridge

ENH500-AX: Wi-Fi 6 Outdoor AX1200 5 GHz Point to Point Wireless Bridge

$195.00
 per

Streamlined, Long-Range CPE Expands Point-to-Point or Point-to-Multipoint Networks

The EnGenius ENH500-AX 5GHz (802.11ax) Wi-Fi 6 Outdoor 2x2 Wireless Bridge features the newest generation of wireless technology delivering high density Wi-Fi performance transmissions between buildings and across large outdoor properties without the exorbitant cost of running fiber cable. With advantages over the older Wi-Fi standards, the Wi-Fi 6 bridge significantly increases throughput, supports greater efficiency, and accommodates 8k ultra HD video and heavy multi-application traffic with extended bandwidth over greater distances. The Wi-Fi 6 “invisible wire” bridge uses the latest in Wi-Fi technology to achieve longer ranges when paired with another Wi-Fi 6 bridge in a point-to-point/multiple point deployment.



- ENH500-AX Datasheet
- ENH500-AX Quick Install Guide
- ENH500-AX User Manual
- Managed Station Series Datasheet


Shipping & Returns

Not satisfied? We allow returns within 30 days of product purchase

Flexible Management

Operation Modes: Access Point, Client Bridge, WDS Access Point, WDS Station

WiFi 6 Technology

For high-performance and efficiency Wi-Fi in outdoor environments

Features

Overview

EnGenius ENH500-AX In-the-Box

In-the-Box

EnGenius ENH500-AX Mounting

Mounting

EnGenius ENH500-AX Deployment

Deployment

ENH500-AX

Specifications

Product Highlights

  • Wi-Fi 6 technology for high-performance and efficiency Wi-Fi in outdoor environments

  • Beamforming optimizes antenna signal, reception & reliability for clients

  • 2x2 directional antennas to support up to 1,200 Mbps in 5-GHz

  • High 26 dBm transmit power extends Wi-Fi to yard or building-to-building

  • High gain 16 dBi Integrated directional antenna extend wireless networks up to 5 miles point-to-point

  • IP55-rated weatherproof & dustproof housing

  • Simple, Intuitive interface via EnWiFi app for local AP configuring & monitoring

  • Flexible Operation Modes: Access Point, Client Bridge, WDS Access Point, WDS Station

  • Gigabit Ethernet PoE port supports flexible power options

Technical

Standards
IEEE 802.11ax on 5 GHz
(Backward compatible with 802.11b/g/n/ac)

Processor
Qualcomm® Quad-Core ARM Cortex A53s @ 1.0GHz CPU

Antenna
5 GHz (Port 1)
- Average Antenna Gain: 16 dBi
- Polarization: Linear
- Azimuth Beam Width: 18°
- Elevation Beam Width: 58°
- VSWR: 1:2.0
5 GHz (Port 2)
- Average Antenna Gain: 16 dBi
- Polarization: Linear
- Azimuth Beam Width: 18°
- Elevation Beam Width: 85°
- VSWR: 1:2.0

Physical Interface

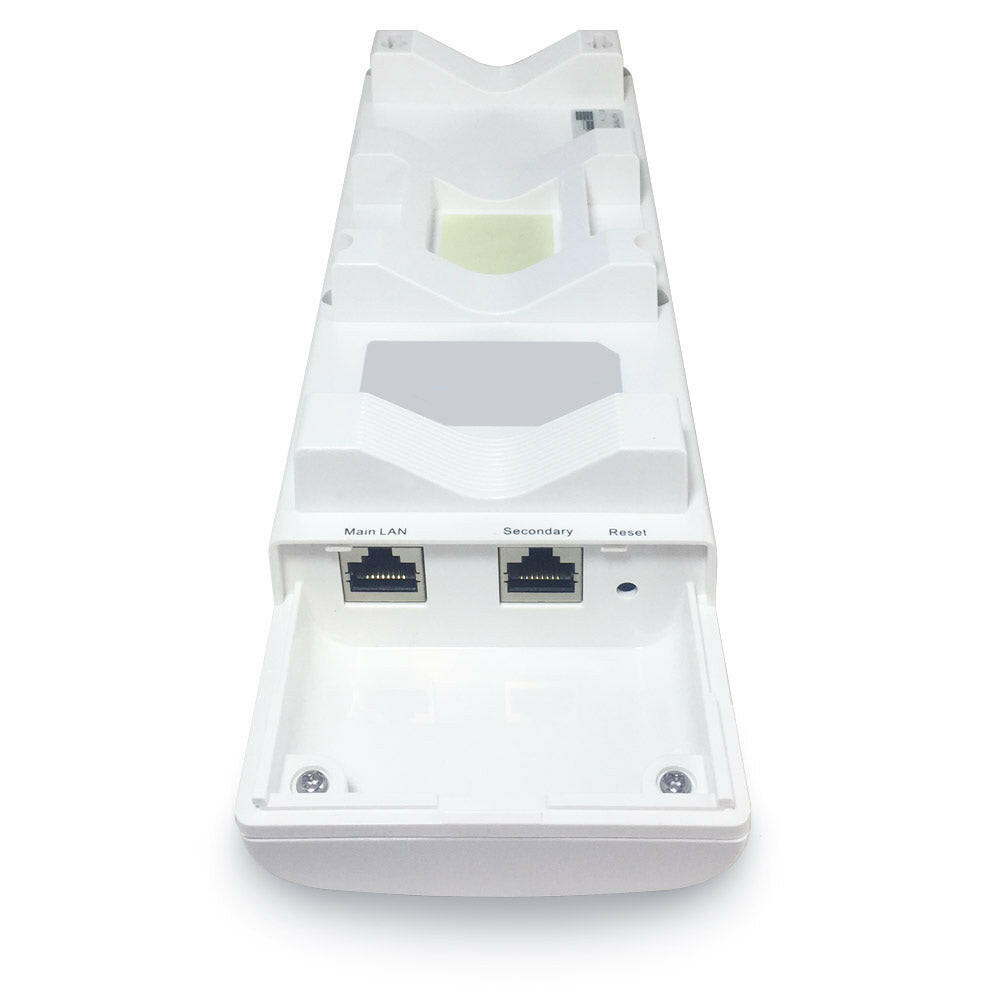

2 x 10/100/1000 BASE-T, RJ-45 Ethernet Port
1 x Reset Button

LED Indicators
1 x Power
1 x LAN 1
1 x LAN 2
1 x WLAN
1 x Signal

Power Source
EPA5006GP PoE Injector

Maximum Power Consumption
12.5W

Surge Protection
Line to Line: 1 KV
Line to Ground: 2 KV

ESD Protection
Contact: 4 KV
Air: 8 KV

Wireless & Radio Specifications

Operating Frequency
Single-Radio 5 GHz

Operation Modes
Access Point, Client Bridge, WDS Access Point, WDS Station

Frequency Radio
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz

Transmit Power
Up to 26 dBm on 5 GHz

Tx Beamforming (TxBF)
Increasing signal reliability and transmitting distance

Radio Chains/Spatial Stream
2x2:2

SU-MIMO
Two (2) spatial stream SU-MIMO for 5GHz up to 1,200 Mbps wireless data rate with VHT80 to a single 2x2 wireless client device under 5GHz radio

MU-MIMO
Two (2) spatial streams multiple (MU)-MIMO for up to 1,200 Mbps wireless data rate to transmit to two (2) stream MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously

Supported Data Rates (Mbps)
802.11ax:
- 5 GHz: 18 to 1200 (MCS0 to MSC11, NSS = 1 to 4)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)
802.11n: 6.5 to 300 Mbps (MCS0 to MCS15)
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54

Supported Radio Technologies
802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)
802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)

Channelization
802.11ax supports high efficiency (HE) —HE 20/40/80 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU

Supported Modulation
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK

Management

Multiple BSSID
8 SSIDs for 5GHz radios

VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Management VLAN

Spanning Tree
Supports 802.1d Spanning Tree Protocol

QoS (Quality of Service)
IEEE 802.11e compliant
WMM

SNMP
v1, v2c, v3

MIB
I/II, Private MIB

Wireless Security
WPA3 Enterprise
WPA3-PSK (SAE)
WPA3/WPA2-PSK Mixed
WPA2 Enterprise
WPA2 AES-PSK
Hide SSID in Beacons
Client Isolation

Environmental & Physical

Temperature Range
Operating: -4ºF~140ºF (-20ºC~60ºC)
Storage: -40ºF~176 ºF (-40ºC~80ºC)

Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less

Dimensions & Weights

ENH500-AX Device
Weight: 1.34 lbs. (0.61 kg)
Length: 10.23" (260 mm)
Width: 2.16" (55 mm)
Height: 3.30" (84 mm)

Packaging
Weight: 2.35 lbs. (1.07 kg)
Length: 12.08" (307 mm)
Width: 4.96" (126 mm)
Height: 4.80" (122 mm)

Package Contents
1 - ENH500-AX Outdoor Wireless Bridge/Access Point
1 – PoE Injector (EPA5006GR)
1 – Power Cord
2 – Pole Mount Brackets
1 – Pole Mount Strap
1 - Wall Mount Screw Kits
1 – Product Card

Certifications
FCC
CE
IC

Warranty
1 Year
