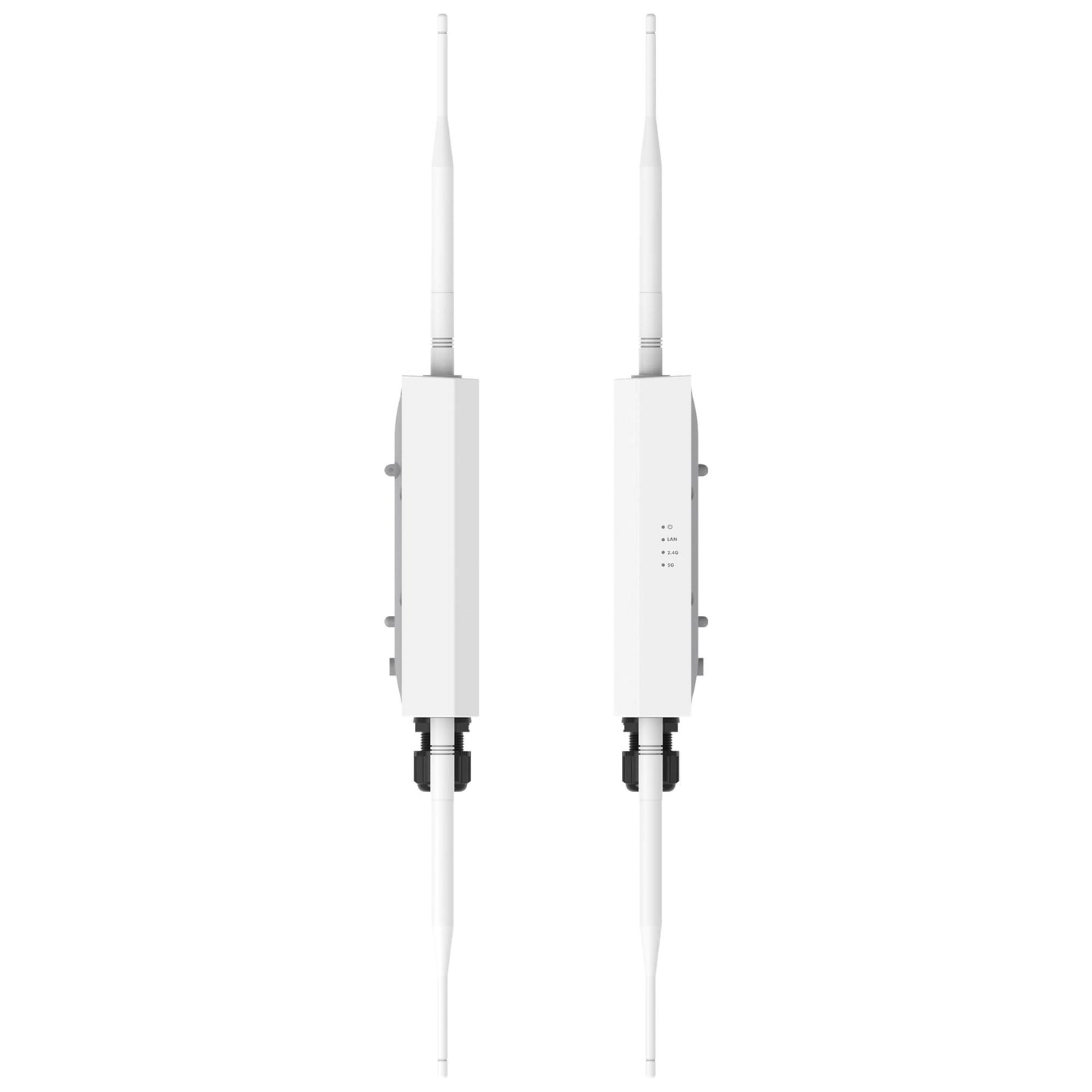

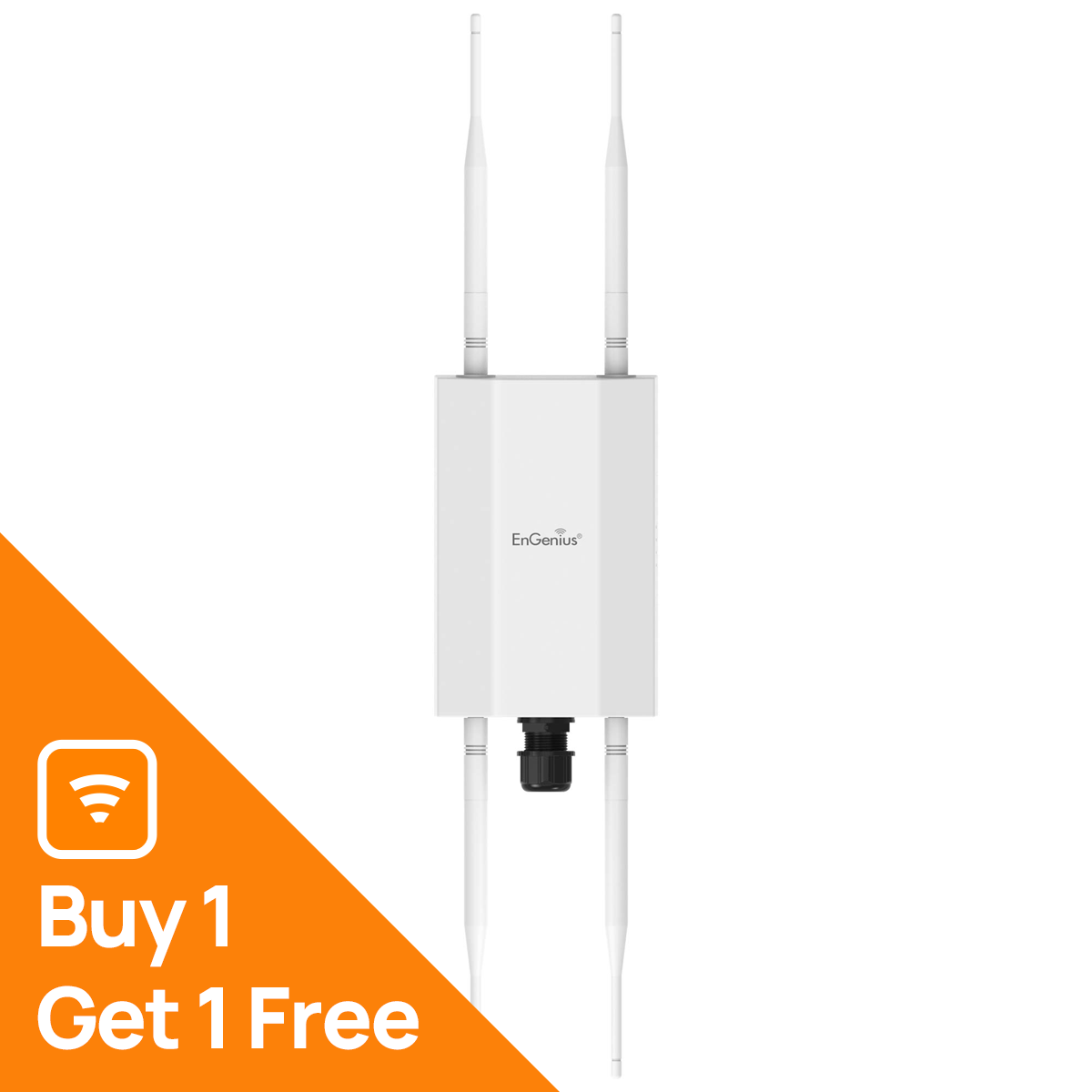

EOC620: Broadband Outdoor 5GHz Dual Radio 2×2 Wi-Fi 6 Bridge

• Single 5GHz Radio: Offers Up to 1,200 Mbps link capacity, ideal for PTP and PTMP deployments

• Automatic RF Corrections: Enhance network resilience by improving stability and reducing interruptions

• Dynamic Data Rates: Adjusts transmission speeds based on signal quality for reliable and efficient connections

• Auto & Dynamic Channel Selection: Automatically chooses optimal channels to avoid interference and enhance signal quality

• Superior QoS over RF Links: Prioritizes critical traffic to ensure high service quality and better user experience

• Mobile App Radio Tuning: Integrates a 2.4GHz radio with a mobile app for easy PtP/PtMP setup, efficient antenna alignment, and streamlined troubleshooting

• Enhanced Connectivity: Employs 802.11ax technology with OFDMA, Beamforming, and MU-MIMO for improved throughput and coverage

• Multi-Tenant Network Efficiency: Utilizes VLAN, Q-in-Q, and filtering to manage multi-tenant networks effectively and reduce congestion

• Centralized NMS: Offers a comprehensive web-based platform for network performance, health, and security management

• Auto Provisioning: Streamlines large-scale network deployments with easy, centralized control

• Uncompromised Security: Ensures top-tier data protection with AES-256 encryption

• IP67-rated weatherproof & dustproof housing

Standards
IEEE 802.11b/g/n/ax on 2.4GHz (FOR MOBILE APP USE ONLY)
IEEE 802.11ax on 5GHz

Processor
Qualcomm® Quad-Core CPU ARM Cortex A53s @ 1.8GHz

Antenna
Four (4) External 5 dBi Dual-Concurrent Omni-Directional Antenna
SMA-Type

Physical Interface
1 x 10/100/1000/2500 BASE-T, RJ-45 Ethernet Port

LED Indicators
1 x Power
1 x LAN
1 x 2.4 GHz
1 x 5 GHz

Power Source
Power-over-Ethernet: 802.3af/at
Proprietary 48V – 54V
IEEE 802.11e Compliant Source
Active Ethernet (PoE)

Maximum Power Consumption
15.9W

Surge Protection
1KV

ESD Protection
Contact: 4KV
Air: 8 KV

Operating Frequency
Dual-Radio Concurrent 2.4GHz & 5 GHz

Operation Modes
Base station (BSU) / Subscriber (SU)

Frequency Radio
2.4GHz: Management Radio ONLY
5GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725MHz ~ 5850MHz

Transmit Power
2.4GHz: 23dBm
5GHz: 25dBm
Maximum power is limited by regulatory domain

Tx Beamforming (TxBF)
Increasing signal reliability and transmitting distance.

Radio Chains/Spatial Stream
2x2:2

SU-MIMO
Two (2) spatial streams SU-MIMO for 2.4GHz and two (2) spatial streams SUMIMO for 5GHz up to 1,774Mbps wireless data rate to a single 11ax wireless client device under both the 2.4G Hz and 5GHz radios.

MU-MIMO
Two (2) spatial streams multiple (MU)-MIMO for up to 1200 Mbps wireless data rate to transmit to one (1) two streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously

Two (2) multiple (MU)-MIMO for up to 574 Mbps wireless data rate to transmit to one (1) two streams MU-MIMO 11ax capable wireless client devices under 2.4GHz simultaneously.

Supported Data Rates (Mbps):
802.11ax:
2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 2)
5 GHz: 18 to 1200 (MCS0 to MSC11, NSS = 1 to 2)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 300 Mbps (MCS0 to MCS15)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)

Supported Radio Technologies
802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)
802.11b: Direct-sequence spread-spectrum (DSSS)
802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)

Channelization
802.11ax supports high efficiency (HE) —HE 20/40/80 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM) 802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU

Supported Modulation
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK

Multiple BSSID
8 SSIDs for both 2.4GHz and 5GHz radios

VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-band VLAN Pass Through
Management VLAN

Spanning Tree
Supports 802.1d Spanning Tree Protocol

QoS (Quality of Service)
Complaint With IEEE 802.11e Standard WMM

SNMP
v1, v2c, v3

MIB
I/II, Private MIB

Wireless Security
WPA2 AES-PSK
OWE
Hide SSID in Beacons
MAC Address Filtering, up to 32 MACs per SSID
Wireless STA (Client) Connected List
SSH Tunnel
Client Isolation

Temperature Range
Operating: -4º~140ºF/-20ºC~60ºC
Storage: -40Fº~176ºF/-40ºC~80ºC

Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less

Waterproof & Dustproof
IP67-Rated Enclosure

EOC620 Device
Weight: 1.54 lbs. (0.7 kg)
Width: 4.07” (124 mm)
Length: 7.48” (190 mm)
Height” 2.07” (52.5 mm)

Packaging
Weight: 3.97 lbs. (1.8kg)
Width: 9.29” (236mm)
Length: 11.26” (286mm)
Height: 5.74” (146 mm)

Package Contents
1 – EOC620 Broadband Outdoor AP
1 - Pole-Mounting Brackets
1 - Wall-Mount Screw Set
2 - 2.4GHz 5dBi SMA Antennas
2 - 5GHz 5dBi SMA Antennas

Certifications
FCC
CE
IC

Warranty
1 Year
