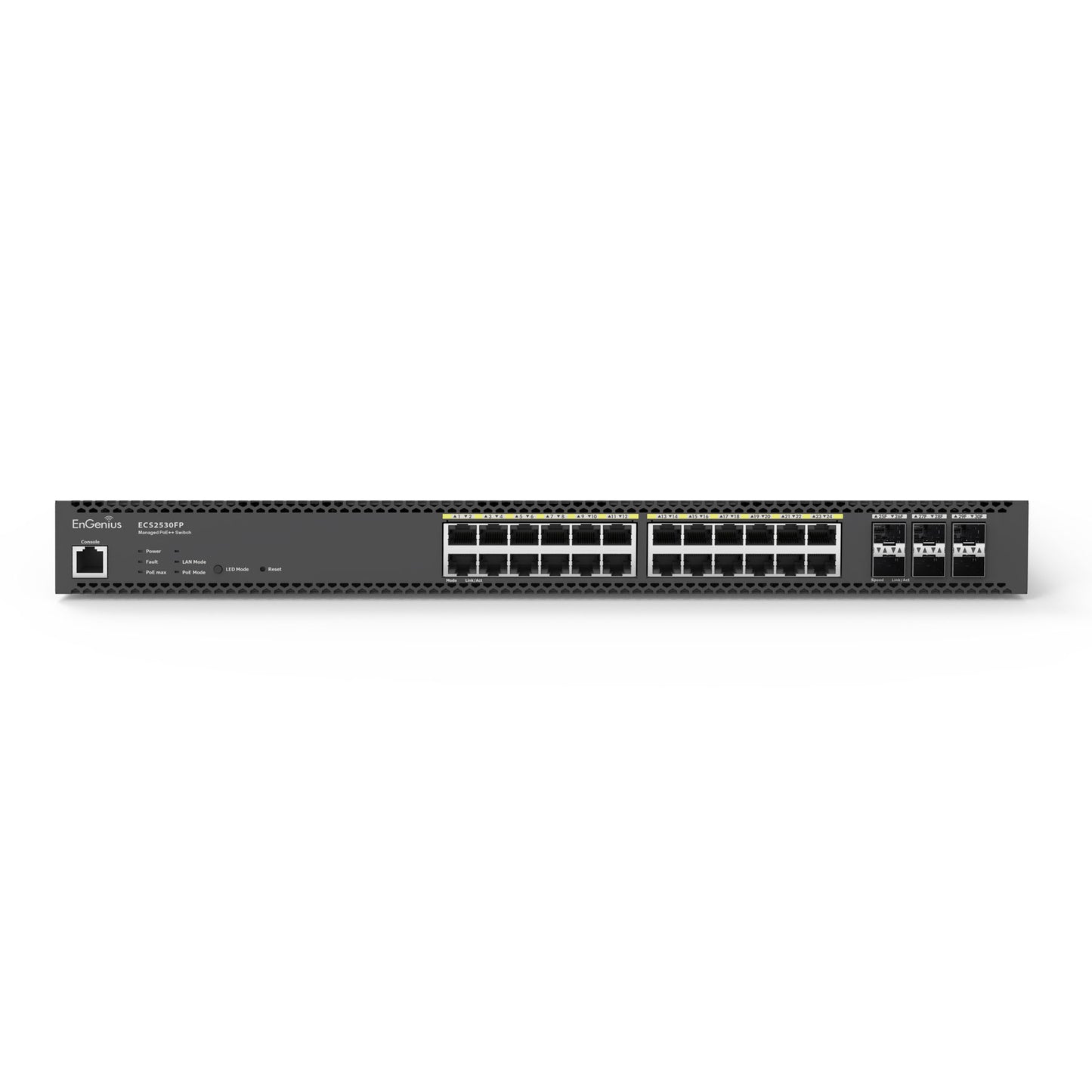

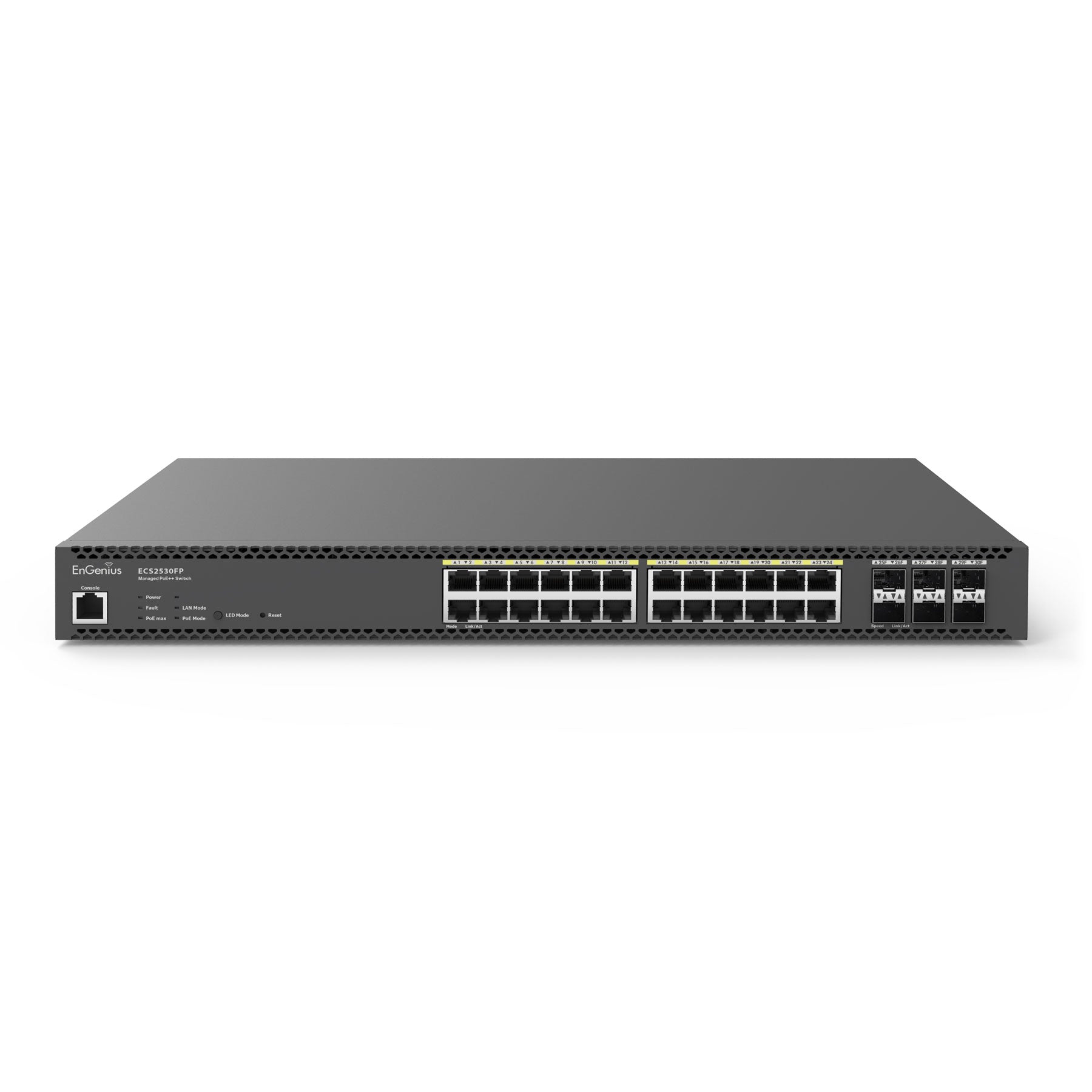

ECS2530FP: Cloud Managed 24-Port 740W L2+ PoE++ Multi Gig Switch with 6 SFP+ Slots
Earn [points_amount] when you buy this item.
ECS2530FP: Cloud Managed 24-Port 740W L2+ PoE++ Multi Gig Switch with 6 SFP+ Slots
Multiple management options for large businesses to easily configure, monitor, and manage
EnGenius Cloud Managed Multi-Gigabit ECS2530FP multi gig switch features 24 × 2.5GbE PoE ports, 6 × SFP+ uplinks, 16 × PoE+ (802.3at), and 8 × PoE++ (802.3bt up to 90W) ports. With a 740W power budget, it provides reliable, high-capacity connectivity for modern enterprise networks, supporting demanding devices and cloud-based network management.
- ECS2530FP Datasheet
- ECS2530FP Quick Start Guide
- Cloud Switch User Manual
- Cloud Managed Switch Datasheet
Shipping & Returns
Not satisfied? We allow returns within 30 days of product purchase
Management
This product is compatible with the EnGenius Cloud line of products
24-Ports
24 x 10/100/1000/2500 Base-T GbE Ports with Full-Featured Layer 2+ Switching
Multi Gigabit
All eight ports on this switch have up to 2.5 Gigabits per second connection speed
6 SFP Ports
6 x 10-Gigabit Dual-Speed SFP+ fiber uplink ports for maximum connection speeds
5-Year Warranty
Leave the worrying to us. We've got you covered on your hardware purchase.
Compare other models
Cloud PRO Switch Licenses
Features
Specifications
- 24 multi-gigabit (100/1000/2500 Base-T GbE) ports
- 6 10-Gigabit Dual-Speed SFP+ (Fiber) uplink ports
- Power for diverse devices including 16×PoE+ and 8×PoE++ ports for 4x4 Wi-Fi 7 APs
- Ample power budget of 740W supports dense deployments
- Multi Gig Switch has 240Gbps switching capacity
- Real-Time System Metrics, Deep-Dive Analytics and Remote Configurations
- Quick-Scan Device Register, Remote Monitoring and Troubleshooting
- PoE Extended Mode - Extend PoE Ethernet cable deploying range up to 250 meters
- PD Lifeguard - Real-time detecting and auto-reboot PoE power for failed camera
- Continuous PoE Power – Steady supply of PoE power for camera during switch upgrades
- Advanced View Displays Network Topology with Devices and Relationships
- Hybrid Switch Supports Multiple Management Options
Port Standards
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3bz 2.5G Base-T Ethernet
802.3x Full-Duplex Flow Control
Network Ports
24 100/1000/2500 Mbps Ports
6 SFP+ Port
Switching Capacity
240 Gbps
SDRAM
512MB
Flash Memory
128MB
PoE+ Capable Ports
1-16 (802.3af/at)
PoE++ Capable Ports
17-24 (802.3af/at/bt, up to 90W)
Total PoE Budget
740W
Power Source
100 ~ 240VAC, 50-60Hz
LED Indicators
Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED
Ports
Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)
Multiple IP Interface
20 IPv6 address
ARP Table
Max. 192 ARP entries
Static ARP
Static 192 ARP entries
IPv4 Static Route
Max. 63 entries
IPv6 Static Route
Max. 21 entries
Network Management
EnGenius Cloud
Local Web GUI
MAC Address Table
16K
Jumbo Frame
10K
Multicast Group
Max 256 groups
MLD Snooping
MLD Snooping: v1
QoS-Number of Priority Queues Supported
Queue 8
Trust Mode
Cos/802.1p
DSCP
CoS/802.1p-DSCP
Scheduling Mechanism
Strict / WRR/ Strict + WRR
Bandwidth Control
Port-based bandwidth control (Ingress/Egress)
Port Security
Max. 256 Entries
Access Control List (ACL)
MAC Based ACL
IPv4/IPv6 Based ACL
ACL Binding
Time base ACL
Web Graphical User Interface (GUI)
HTTP IPv4 / IPv6
HTTPS IPv4 / IPv6
SSL Certificate
Certificate/Key Import
SNMP
SNMP v1/v2c/v3 Support
RMON
RMON 1,2,3,9
System Time
Time Setting/Daylight saving
Common L2 Features
802.1d Spanning tree
Loopback Detection
Multicast Filtering
IGMP Multicast Forwarding
IGMP Snooping
MLD Multicast Forwarding
802.1Q VLAN tagging
802.3x flow control
802.3ad Link Aggregation
IPv4 DHCP Relay
IPv4 DHCP Snooping
IPv4 DHCP Snooping Source MAC Address Check-up
ARP Inspection
ARP Packet Validation (additional validation checks)
Voice VLAN
Port-based VLAN
Protocol-Based VLAN
CoS Mapping
802. 1X Radius Authentication Protocol
IPv4 Settings
IPv6 Settings
IEEE 802. 3az Energy Efficient Ethernet (EEE)
Command Line Interface (CLI)
SSH Server
Telnet Server
TFTP Client
Configuration Upgrade/Backup
Simple Network Time Protocol (SNTP)
SYSLOG
802.1d Spanning tree
Temperature Range
Operating: 32°F to 122°F (0°C to 50°C)
Humidity (Non-Condensing)
Operating: 5% - 95%
Package Contents
1 x Cloud Managed Gigabit Switch
1 x Product Card
1 x Power Cord
1 x RJ45 Console Cable
1 x Rack Mount Kit
ECS2530FP Device
Weight: 8.84 lbs. (4011 g)
Length: 17.32" (440 mm)
Width: 10.12" (257 mm)
Height: 1.73" (44 mm)
ECS2530FP Packaging
Weight: 10.1 lbs. (4580 g)
Length: 21.06" (535 mm)
Width: 13.74" (349 mm)
Height: 4.09" (104 mm)
Warranty
5 years
Certifications
CE
CC
IC
