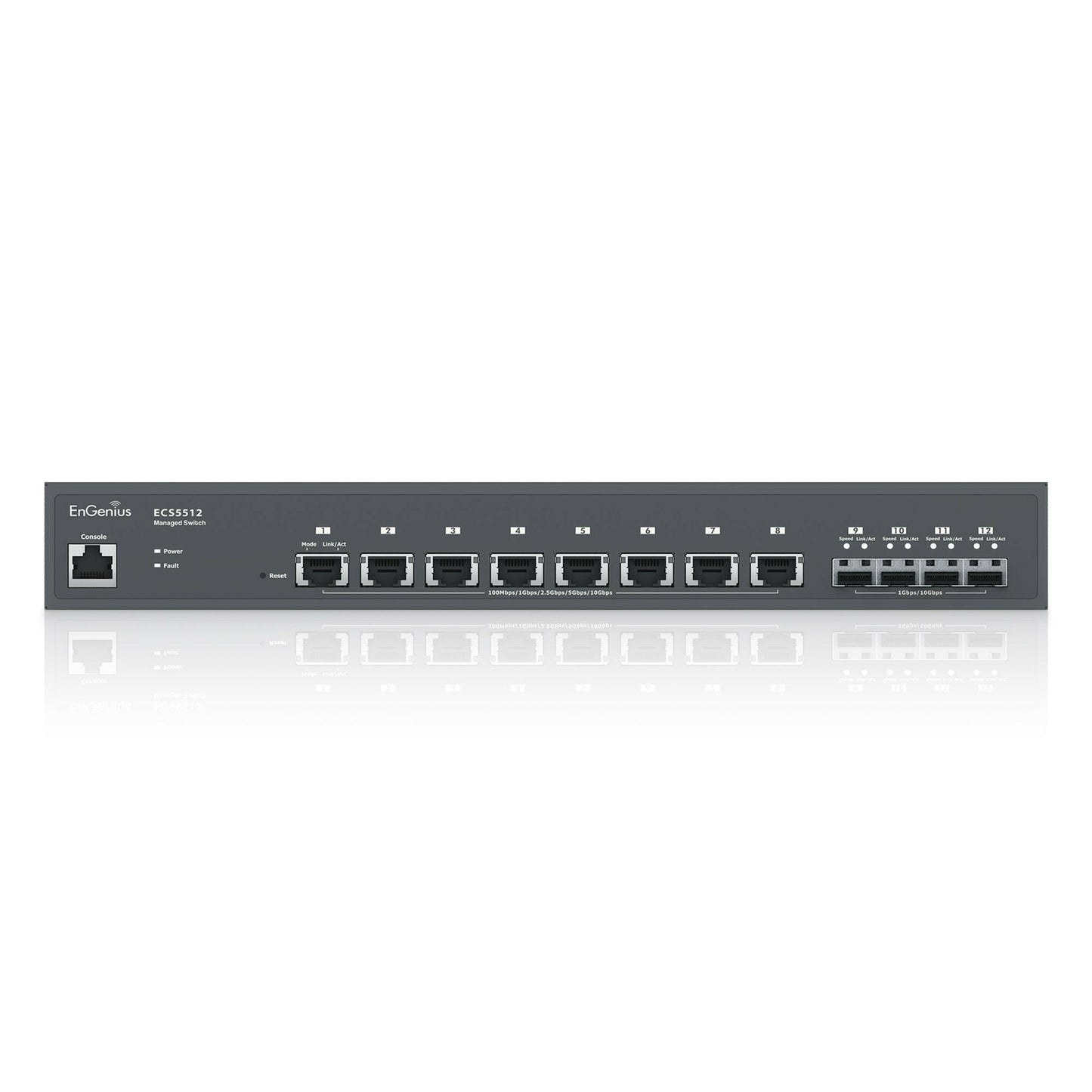

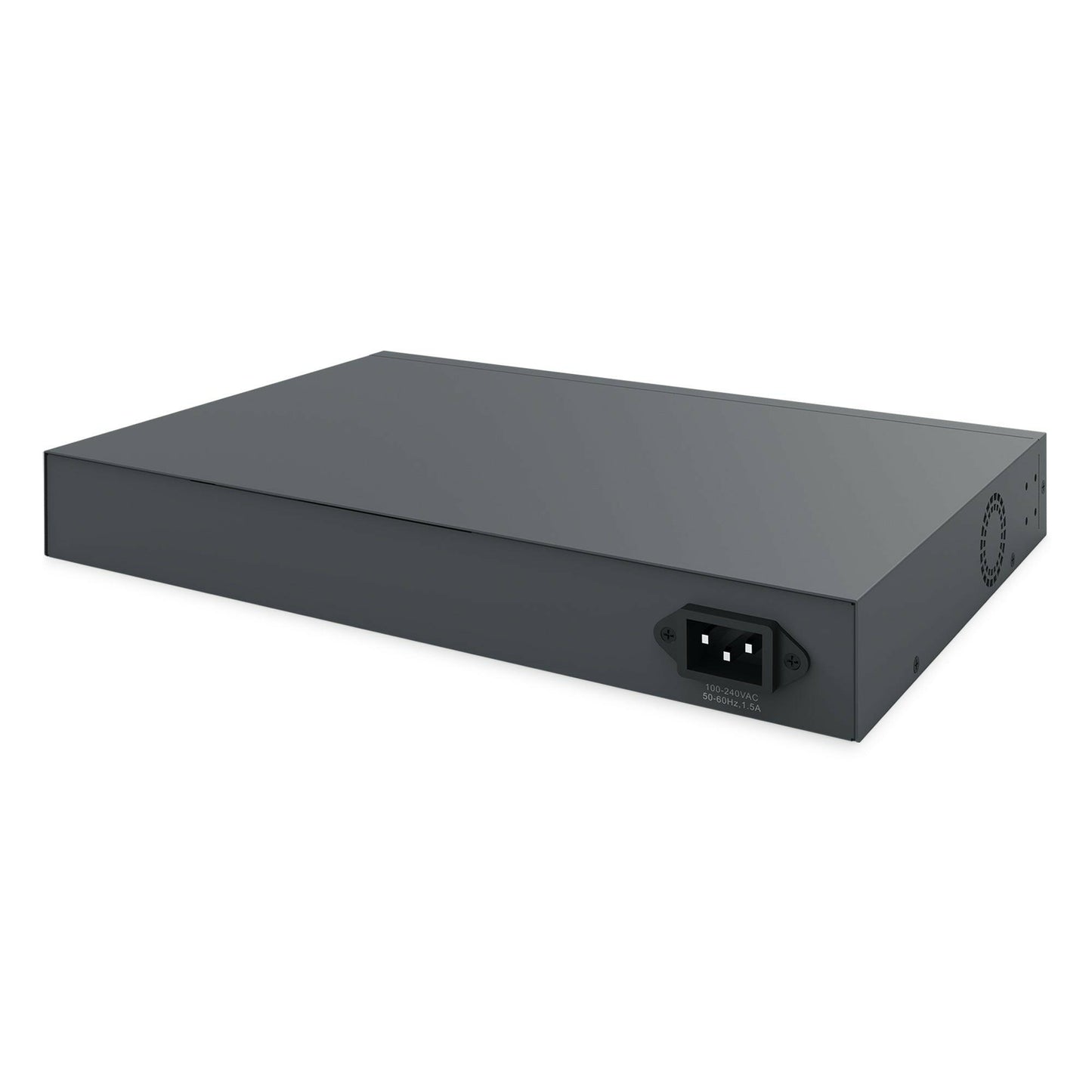

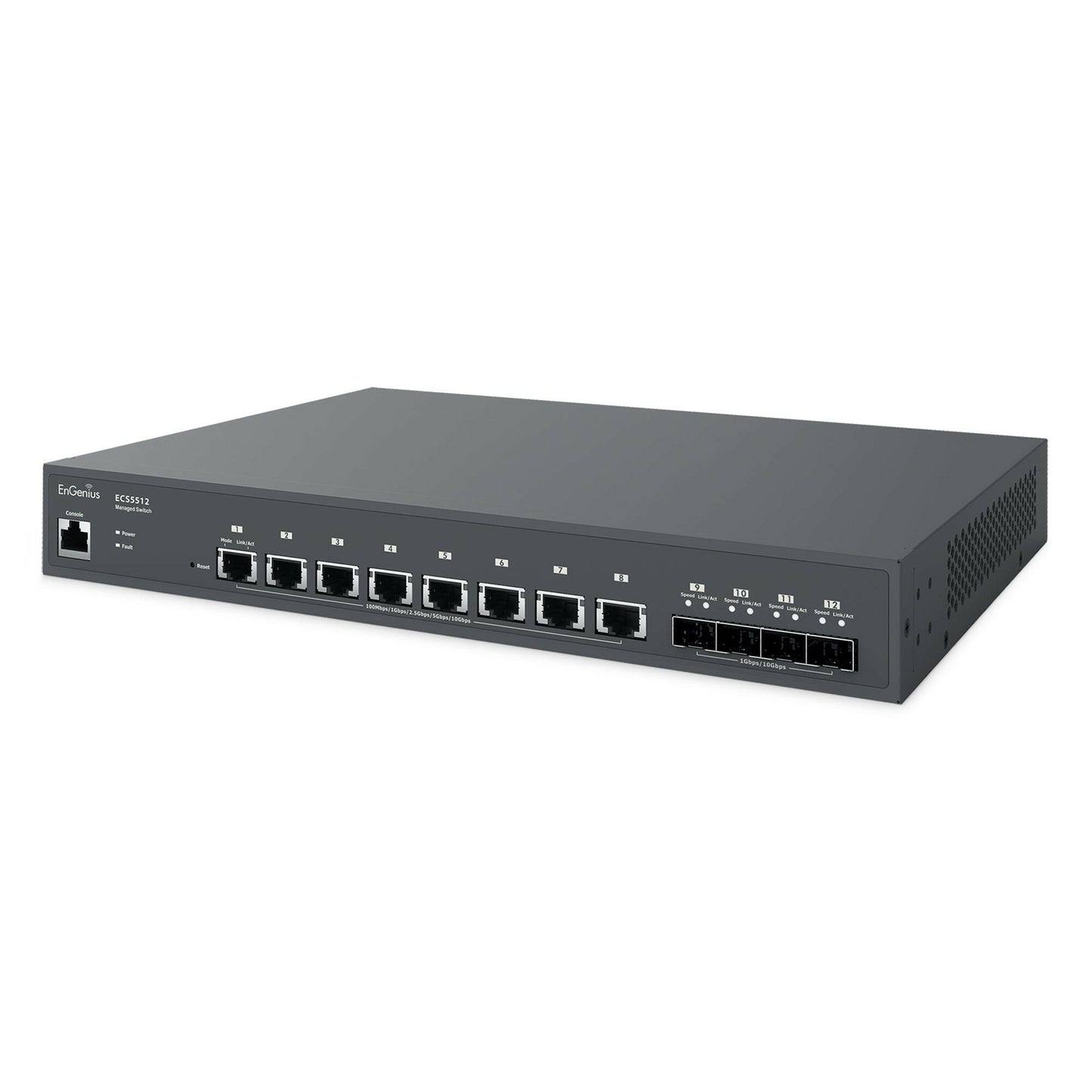

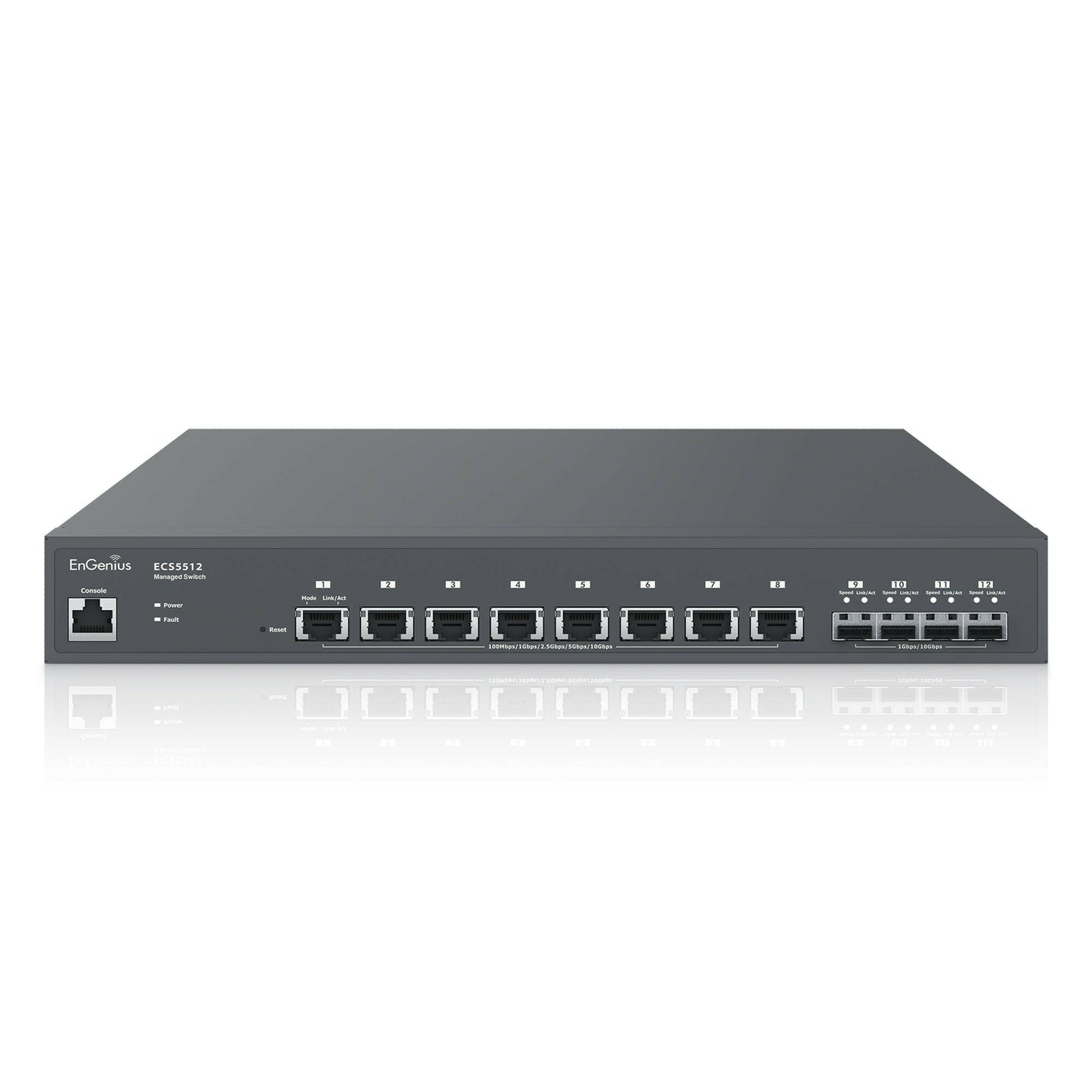

ECS5512: Cloud Managed 8-Port 10 Gigabit Switch with 4 SFP+ Ports
View full details
ECS5512: Cloud Managed 8-Port 10 Gigabit Switch with 4 SFP+ Ports
Layer 2+ Switch Comes With 4 10Gig Uplink Ports, Ensuring Network Efficiency
EnGenius Cloud Managed Multi-Gigabit ECS5512 is an 8-port, 10G per port, layer 2+ switch that comes with 4 10G uplinks ports. These 10 gig switches with enterprise-class features ensure network efficiency and peak performance for large businesses. Cloud or on-premises management is available based on network architecture, administrative permissions, technical aptitude, and budget.
- ECS5512 Datasheet
- ECS5512 Quick Start Guide
- Cloud Switch User Manual
- Cloud Managed Switch Datasheet
Shipping & Returns
Not satisfied? We allow returns within 30 days of product purchase
Management
This product is compatible with the EnGenius Cloud line of products
8-Ports
8 x 100/1000/2500/5000/10000 Base-T GbE Ports with Full-Featured Layer 2+ Switching
10 Gigabit
Eight ports on this switch have up to 10 Gigabits per second connection speed
4 SFP Ports
4 x 10-Gigabit Dual-Speed SFP+ fiber uplink ports for maximum connection speeds
5-Year Warranty
Leave the worrying to us. We've got you covered on your hardware purchase.
Compare other models
Cloud PRO Switch Licenses
Features
Specifications
- Full-featured layer 2+ switching
- 8 100/1000/2500/5000/10000 Base-T GbE ports to serve high-bandwidth devices
- 240 Gbps switching capacity for improved performance
- 4 Dual-Speed 10G SFP+ (fiber) uplink ports to connect at long distances, high speeds & high capacity
- Security - access control list/port security; 802.1X & RADIUS authentication
- IGMP & MLD snooping provides advanced multicast filtering & network efficiency
- 802.3ad link aggregation (LACP) supports traffic load balancing
- Spanning Tree (STP), Rapid Spanning Tree (RSTP) & Multiple Spanning Tree (MSTP)
- Voice VLAN for fast, reliable deployment of VoIP services
Port Standards
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3bz 2500Base-T Ethernet
802.3an 10000Base-T Ethernet
802.3x Full-Duplex Flow Control
Network Ports
8 10/100/1000/2500/5000/10000 Mbps Ports + 4x SFP+ Ports
Switching Capacity
240Gbps
SDRAM
512MB
Flash Memory
128MB
Power Source
100 ~ 240VAC, 50-60Hz
Physical Interface
LED Indicators
Power LED
Fault LED
Ports
Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)
MAC Address Table
32K
Jumbo Frame
9K
Multicast Group
Max 256 groups
MLD Snooping
MLD Snooping: v1
QoS-Number of Priority Queues Supported
Queue 8
Trust Mode
Cos/802.1p
DSCP
CoS/802.1p-DSCP
Scheduling Mechanism
Strict / WRR/ Strict + WRR
Bandwidth Control
Port-based bandwidth control (Ingress/Egress)
Port Security
Max. 256 Entries
Access Control List (ACL)
MAC Based ACL
IPv4/IPv6 Based ACL
ACL Binding
Time base ACL
Web Graphical User Interface(GUI)
HTTP IPv4 / IPv6
HTTPS IPv4 / IPv6
SSL Certificate
Certificate/Key Import
SNMP
SNMP v1/v2c/v3 Support
RMON
RMON 1,2,3,9
System Time
Time Setting/Daylight saving
Common L2 Features
802.1d Spanning tree
Loopback Detection
Multicast Filtering
IGMP Multicast Forwarding
IGMP Snooping
MLD Multicast Forwarding
802.1Q VLAN tagging
802.3x flow control
802.3ad Link Aggregation
IPv4 DHCP Relay
IPv4 DHCP Snooping
IPv4 DHCP Snooping Source MAC Address Check-up
ARP Inspection
ARP Packet Validation (additional validation checks)
Voice VLAN
Port-based VLAN
Protocol-Based VLAN
CoS Mapping
802. 1X Radius Authentication Protocol
IPv4 Settings
IPv6 Settings
IEEE 802. 3az Energy Efficient Ethernet (EEE)
Command Line Interface (CLI)
SSH Server
Telnet Server
TFTP Client
Configuration Upgrade/Backup
Simple Network Time Protocol (SNTP)
SYSLOG
802.1d Spanning tree
Multiple IP Interface
20 IPv6 address
ARP Table
Max. 192 ARP entries
Static ARP
Static 192 ARP entries
IPv4 Static Route
Max. 63 entries
IPv6 Static Route
Max. 21 entries
Temperature Range
Operating: 32°F to 122°F (0°C to 50°C)
Humidity (Non-Condensing)
Operating: 5% - 95%
Package Contents
1x Cloud Managed 10 Gig Switch
1x Quick Installation Guide
1x Power Cord
1x RJ45 Console Cable
1x Rack Mount Kit
ECS5512 Device
Weight: 4.54 lbs (2.06 kg)
Width: 9.05” (230 mm)
Length: 12.99” (330 mm)
Height: 1.73” (44 mm)
Packaging
Weight: 6.11 lbs (2.77 kg)
Width: 15.75” (400 mm)
Length: 12.0” (305 mm)
Height: 3.94” (100 mm)
Warranty
5 Years
Certifications
CE
FCC
IC
