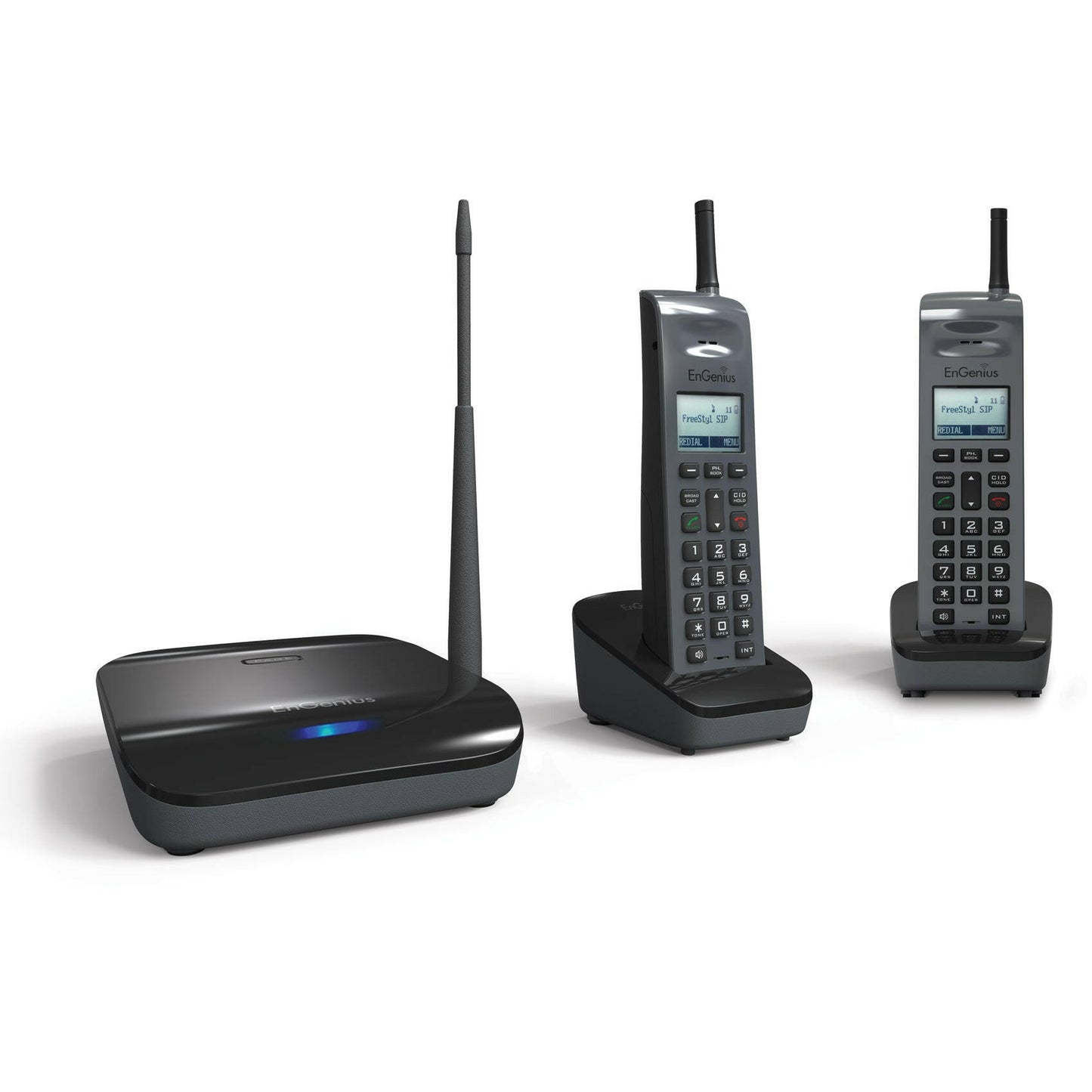

FreeStyl SIP2: FreeStyl SIP Cordless Long Range Phone System
Earn [points_amount] when you buy this item.
FreeStyl SIP2: FreeStyl SIP Cordless Long Range Phone System
Carry-Away, Long-Range SIP Phone System
The FreeStyl SIP provides long-range coverage in a carry-away, sleek, office-style cordless phone. Expandible to 10 handset and 10 SIP accounts, this system avoid adding demands to the Wi-Fi network by utilizing 900 MHz frequency.
This system includes 2 handsets. VoIP service required
- FreeStyl SIP Datasheet
- FreeStyl SIP Set-Up Guide
- FreeStyl SIP Quick Reference Guide
- FreeStyl SIP Set-Up Guide
- FreeStyl SIP User Manual
Specifications
- Range up to: 10 acres (open), 100,000 sq. ft.(semi-open) or 6 floors / 25,000 sq. ft. (office space)
- Supports 10 SIP accounts
- Up to 4 concurrent calls
- Work behind IP-PBX or hosted provider services

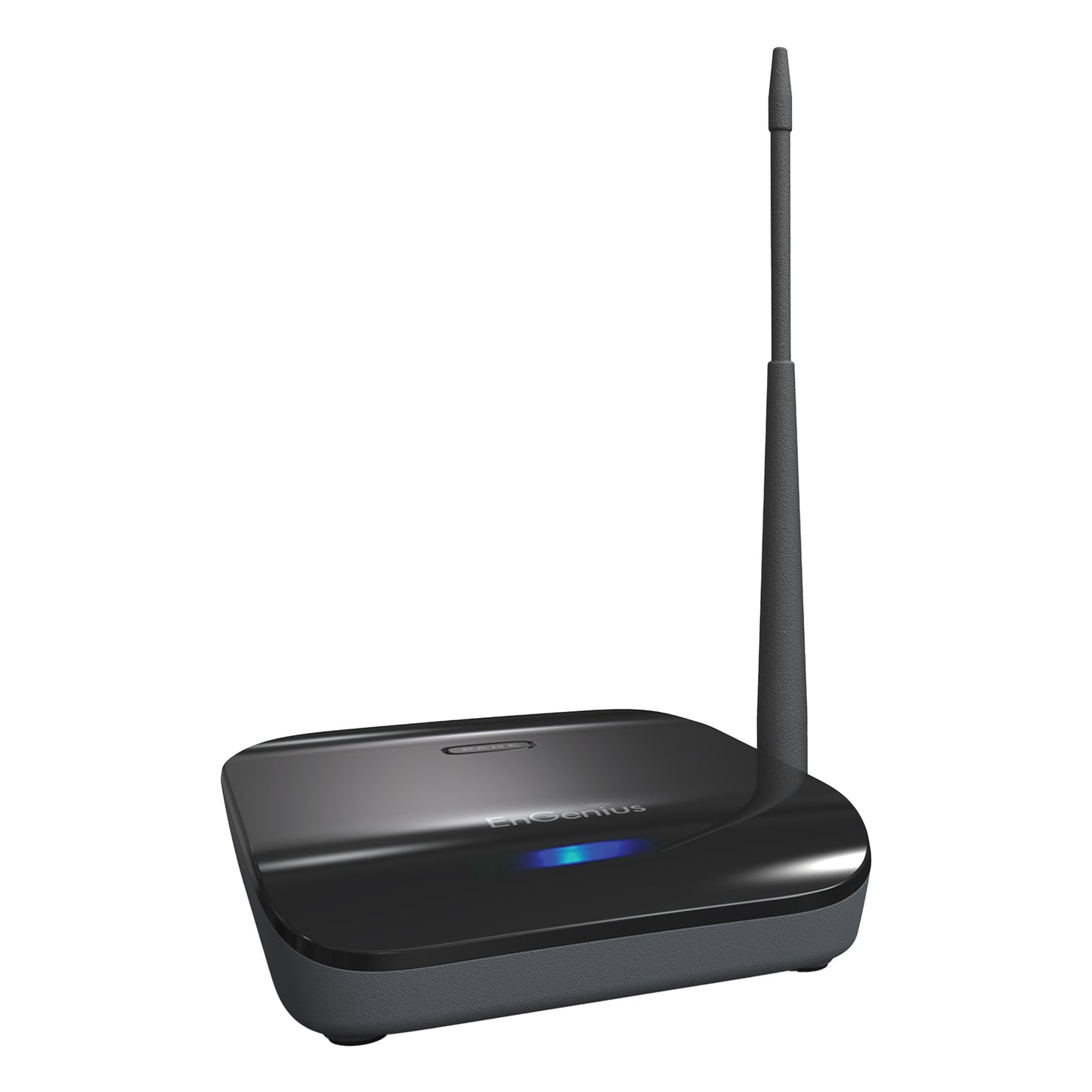

1 - SIP Phone Base w/ antenna
1 - Base AC adapter
2 - SIP Handsets w/ antennas & battery covers
2 - Battery packs

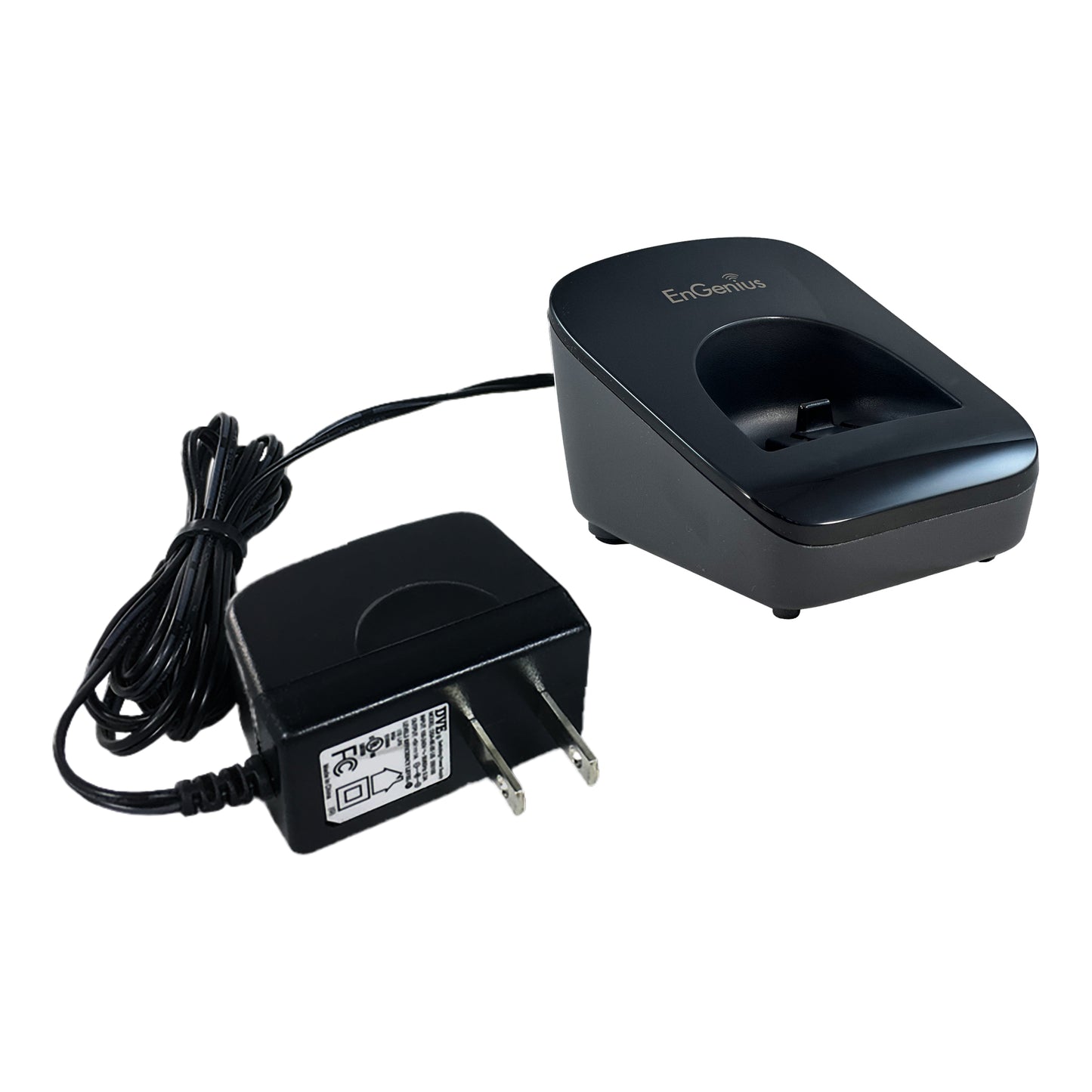

2 - Handset Charging Cradles
2 - Handset Charging Cradle AC Adapters
2 - Handset Belt Clips
Frequency RF Power
902-928 MHz
Peak: 27 dBm / Average: 21 dBm
Channel Spacing
200kHz
Number of Channels
128
Modulation
MSK
Multiple Access
Frequency Hopping TDMA
Frequency Hopping Rate
100 per second
TDMA Frame Length
10 ms
Number of Slots/Frame
8
Receiver Sensitivity
< -108 dBm (@ BER 10-2)
Antenna Connector
Reverse TNC
Antenna Gain
2 dBi
TX Power Control Range
19~27dBm

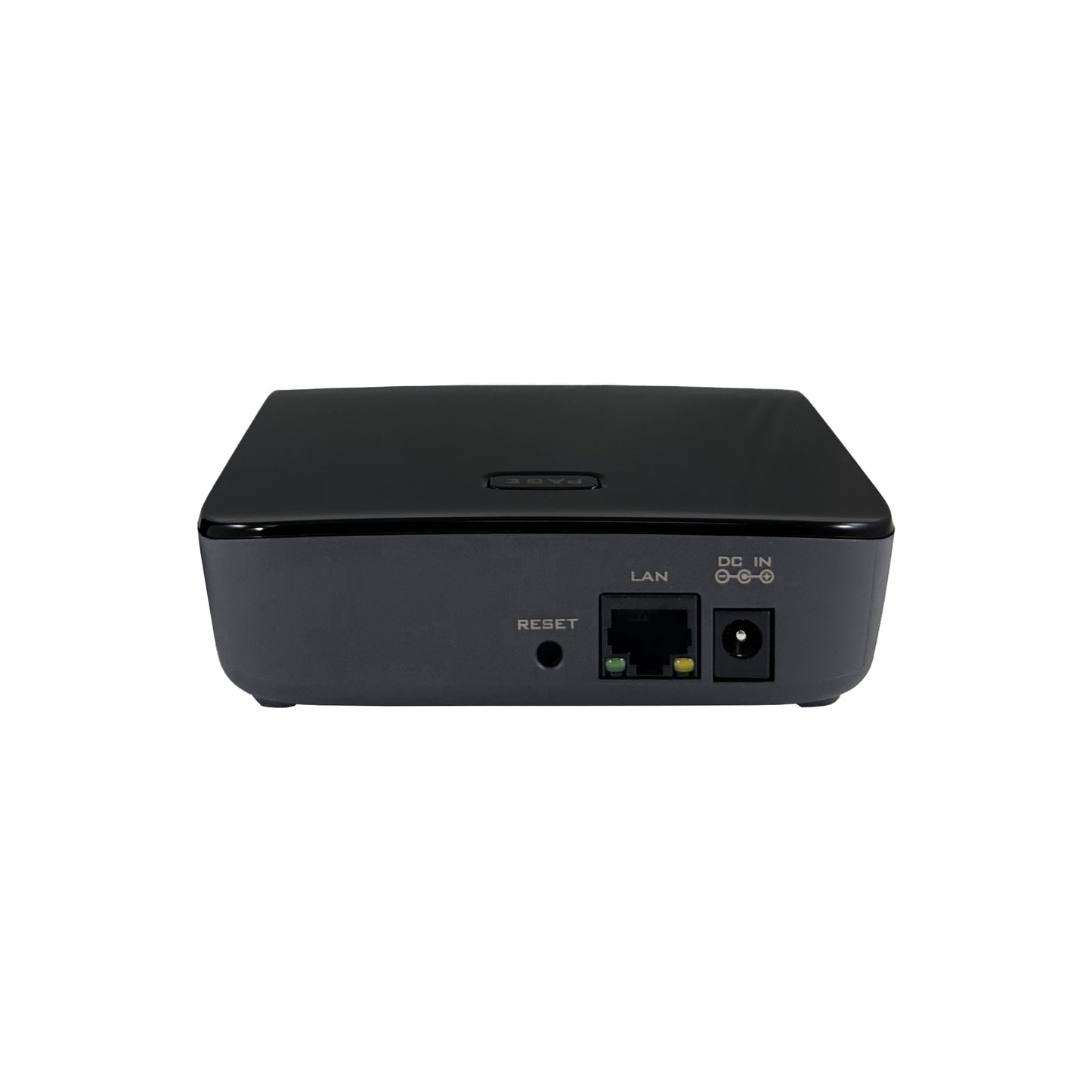

Internet Interface
RJ45 x 1
Speech Coding
8 kbps G.729AB
Channel Coding
8 kbps Convolutional + CRC
Transmission Data Rate
170.667 kbps
User Data Rate
64 kbps duplex
Duplex
Time Division Duplex (TDD)
No. of System ID
65,536
Ring Signal
20-50 Hz, 30-90 Vrms
Power Source
AC/DC 100~240V/5V,1A SW Adapter
Charger Current
NA
Charge Time
NA
Regulation Compliance
FCC Part 15
Operating Temperature
0 — 50˚ C
Storage Temperature
-40 — 70˚ C
Humidity
20 – 75 %
Frequency RF Power
902-928 MHz
Peak: 26 dBm / Average: 20 dBm
Channel Spacing
200kHz
Number of Channels
128
Modulation
MSK
Multiple Access
Frequency Hopping TDMA
Frequency Hopping Rate
100 per second
TDMA Frame Length
10 ms
Number of Slots/Frame
8
Receiver Sensitivity
< -108 dBm (@ BER 10-2)
Antenna Connector
Non-standard
Antenna Gain
1.5 dBi (short antenna)
2.5 dBi (long antenna)
TX Power Control Range
19~26dBm
Internet Interface
NA
Speech Coding
8 kbps G.729AB
Channel Coding
8 kbps Convolutional + CRC
Transmission Data Rate
170.667 kbps
User Data Rate
64 kbps duplex
Duplex
Time Division Duplex (TDD)
No. of System ID
65,536
Ring Signal
NA
Power Source
3.7V/1100 mAh Li-Ion Battery
Optional: 3.7V/1700mAh
Charger Current
550 mA
Charge Time
3 hours
Regulation Compliance
FCC Part 15
Hearing Aid Compatible
Operating Temperature
-10 — 60˚ C
Storage Temperature
-40 — 70˚ C
Humidity
20 – 75 %
FreeStyl SIP2 Packaging
Weight: 3.24 lbs. (1.47 kg)
Length: 14.88” (378 mm)
Width: 10.33” (262.5 mm)
Height: 4.09” (104 mm)
FreeStyl SIP2 Package Contents
2 x FreeStyl SIP Handsets
1 x FreeStyl SIP Base Unit
2 x Battery Packs
2 x Chargers
Certifications
FCC
IC
Warranty
1 Year
