FreeStyl SIP-HC: FreeStyl SIP Handset
Carry-Away, Long-Range SIP Cordless Phone System Handset
The FreeStyl SIP Cordless Phone System Handset is a long-range cordless phone and two-way radio. The handsets are designed using 900 MHz and not add to the demands on Wi-Fi bandwidth.
- FreeStyl SIP Datasheet
- FreeStyl SIP Set-Up Guide
- FreeStyl SIP Quick Reference Guide
- FreeStyl SIP Set-Up Guide
- FreeStyl SIP User Manual
Specifications

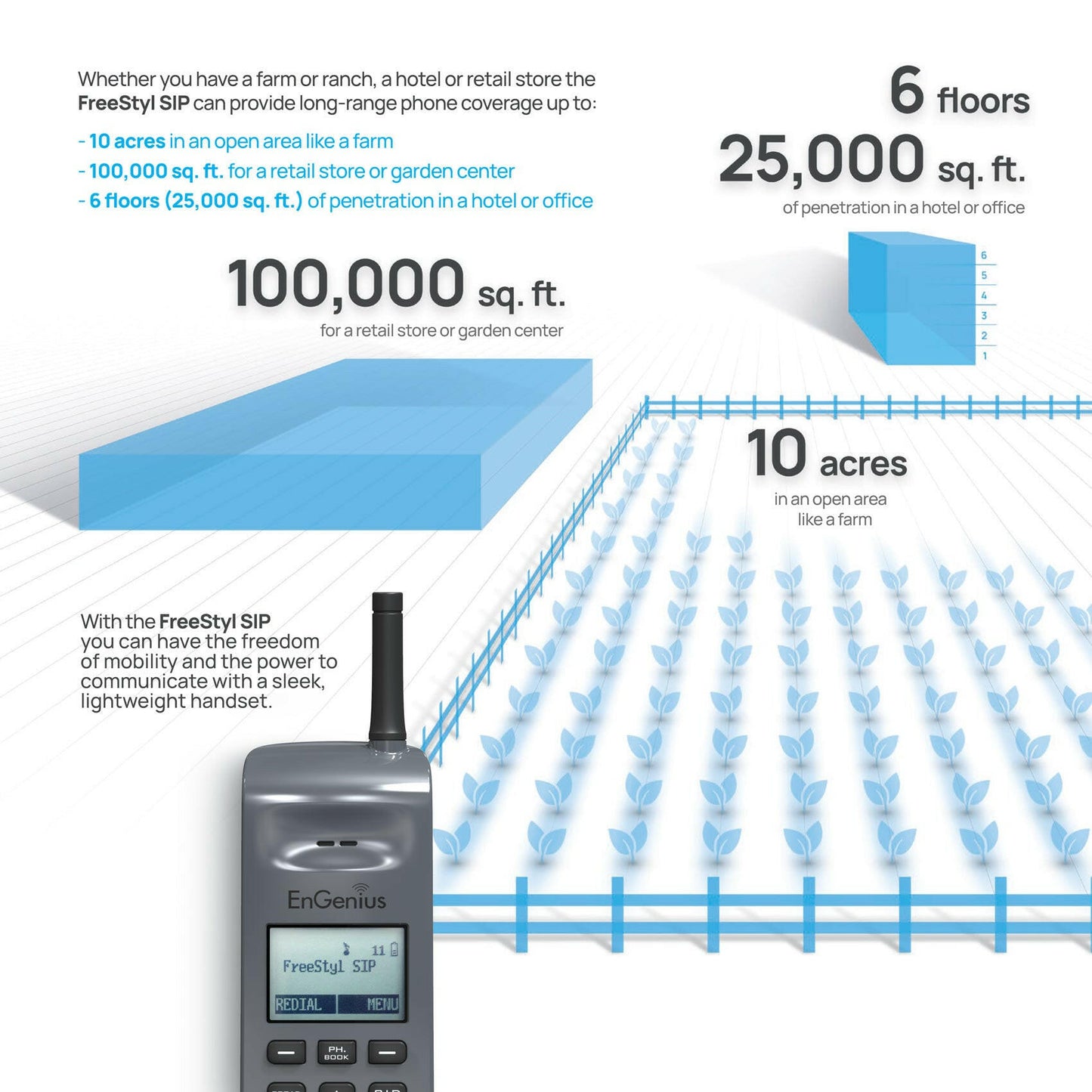

- Range up to: 10 acres (open), 100,000 sq. ft.(semi-open) or 6 floors / 25,000 sq. ft. (office space)
- Supports 10 SIP accounts
- Up to 4 concurrent calls
- Work behind IP-PBX or hosted provider services
1 - Handset w/ battery cover
1 - Battery pack
1 - Handset antenna

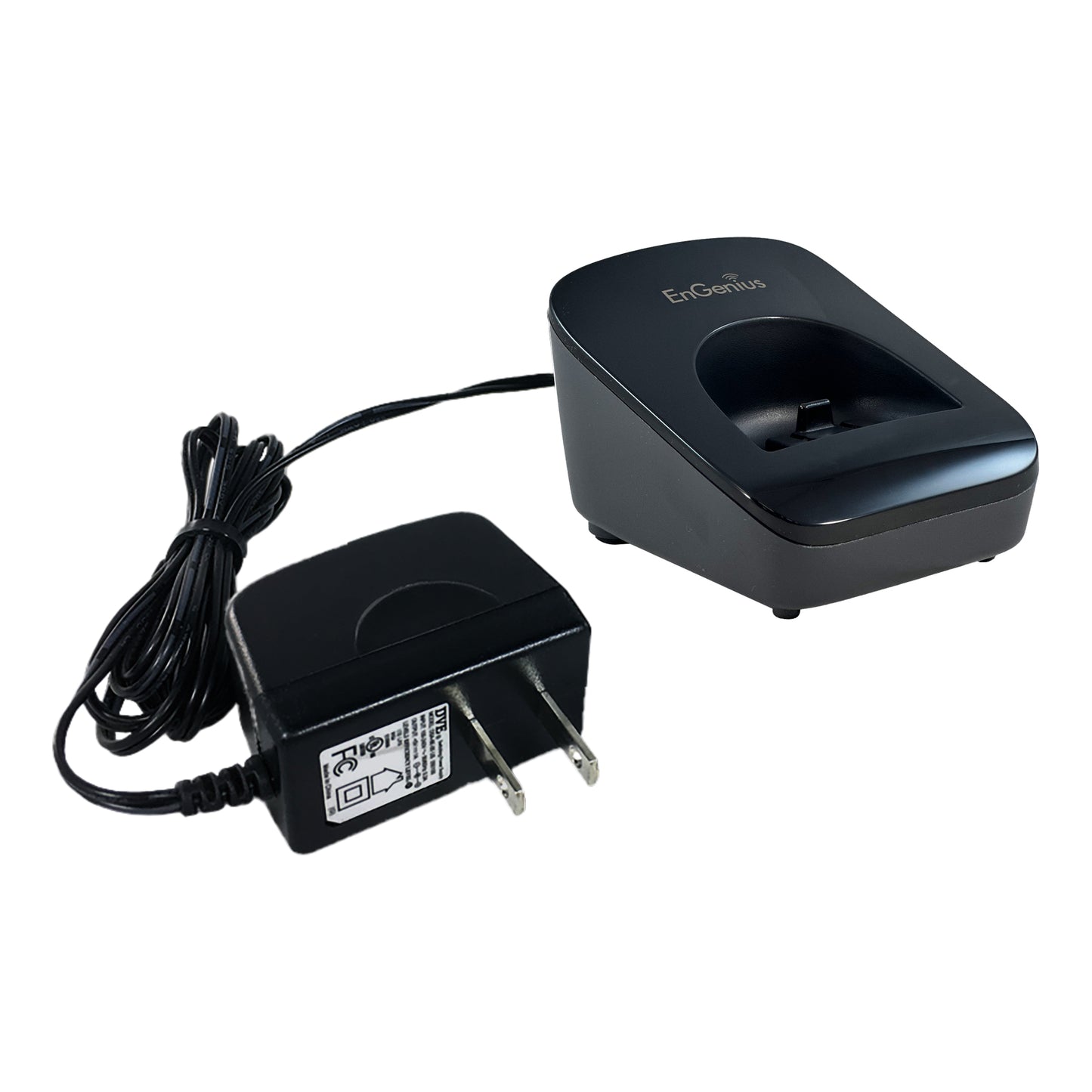

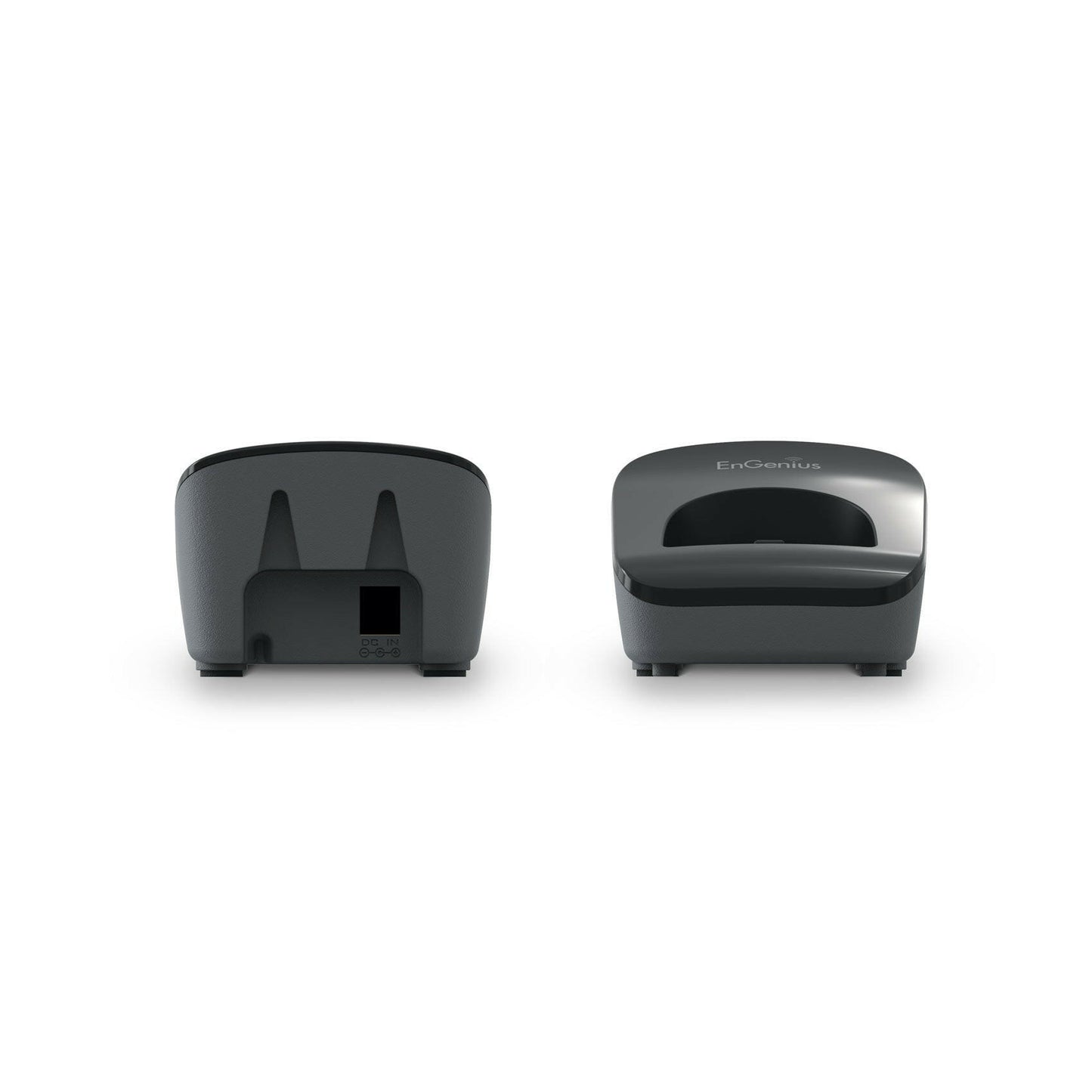

1 - Handset charging cradle
1 - Handset charging cradle AC adapter
1 - Handset belt clip
Frequency RF Power
902-928 MHz
Peak: 26 dBm / Average: 20 dBm
Channel Spacing
200kHz
Number of Channels
128
Modulation
MSK
Multiple Access
Frequency Hopping TDMA
Frequency Hopping Rate
100 per second
TDMA Frame Length
10 ms
Number of Slots/Frame
8
Receiver Sensitivity
< -108 dBm (@ BER 10-2)
Antenna Connector
Non-standard
Antenna Gain
1.5 dBi (short antenna)
2.5 dBi (long antenna)
TX Power Control Range
19~26dBm
Internet Interface
NA
Speech Coding
8 kbps G.729AB
Channel Coding
8 kbps Convolutional + CRC
Transmission Data Rate
170.667 kbps
User Data Rate
64 kbps duplex
Duplex
Time Division Duplex (TDD)
No. of System ID
65,536
Ring Signal
NA
Power Source
3.7V/1100 mAh Li-Ion Battery
Optional: 3.7V/1700mAh
Charger Current
550 mA
Charge Time
3 hours
Regulation Compliance
FCC Part 15
Hearing Aid Compatible
Operating Temperature
-10 — 60˚ C
Storage Temperature
-40 — 70˚ C
Humidity
20 – 75 %
FreeStyl SIP-HC Packaging
Weight: .34 lbs. (156 g)
Length: 7.64” (194.05 mm)
Width: 1.83” (46.59 mm)
Height: 1.31” (33.35 mm)
FreeStyl SIP-HC Package Contents
1 x FreeStyl SIP Handset
1 x Battery Pack
1 x Charger
Certifications
FCC
IC
Warranty
1 Year
