DuraFon PSL-BU: DuraFon PSL Expansion Base

$399.00
 por
Spend $75.00 to FREE SHIPPING
Earn 1 Point on this purchase. Learn more
Ver todos los detalles

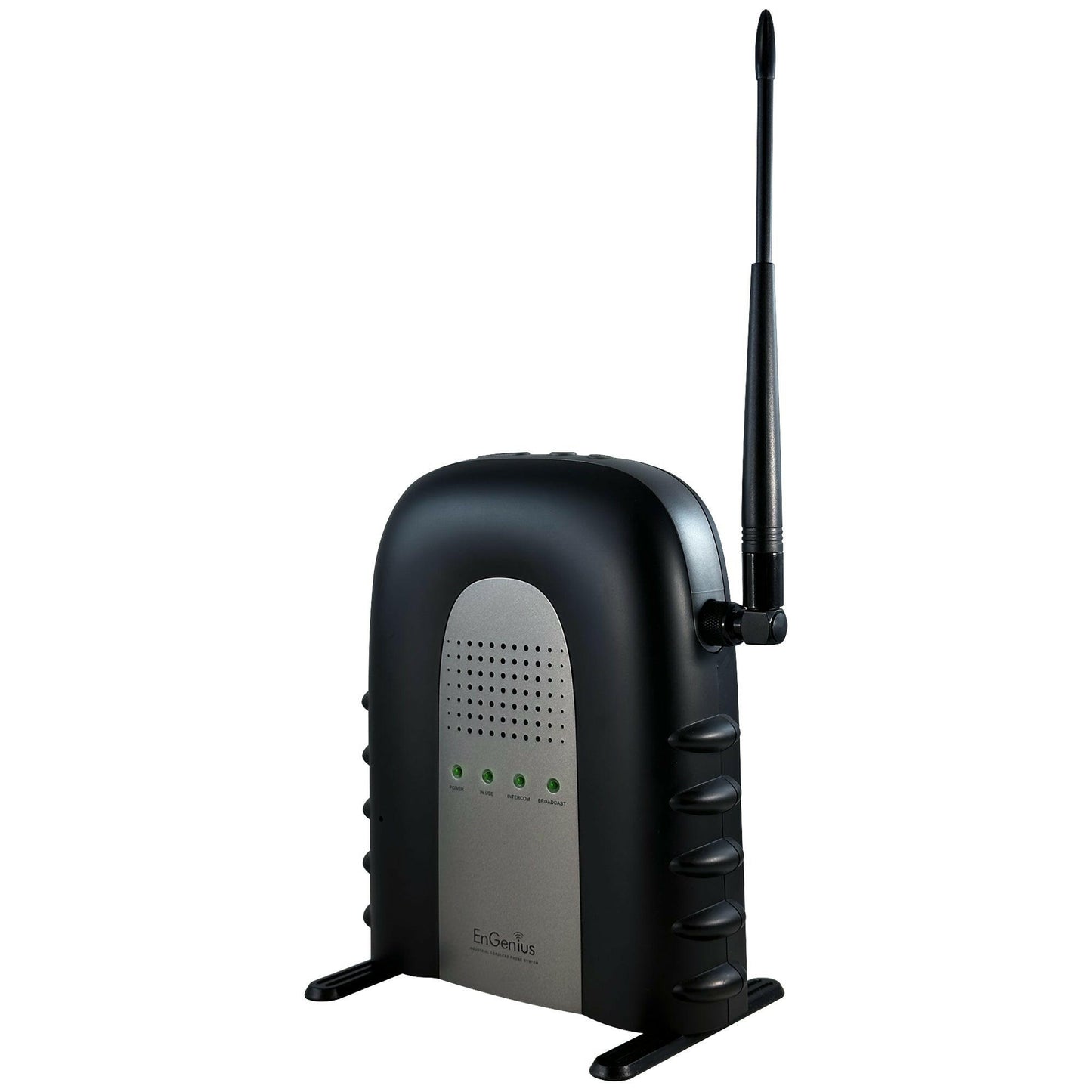

DuraFon PSL-BU: DuraFon PSL Expansion Base

$399.00
 por



Single-Line base unit for DuraFon PRO, UHF and DuraWalkie handsets

The DuraFon PSL-BU (PRO, Single-Line) long-range cordless phone expansion base is ideal for an add-on to the DuraFon PRO or DuraFon UHF multi-line system when another port or line is needed.


  • Coverage up to: 12 floors, 250,000 sq. ft., or 3,000 acres

  • Expandable up to eight (8) base units

  • Works with DuraFon PRO or DuraFon UHF handsets (up to 90)
  • DuraFon PSL-BU

    Specifications

    Product Highlights

    • Coverage up to: 12 floors (office / hotel), 250,000 sq. ft. (retail store / warehouse) , or 3,000 acres (farm / ranch)

    • Expandable up to eight (8) base units

    • Works with DuraFon PRO or DuraFon UHF handsets (up to 90)

    Package Includes

    1 - Phone Base unit w/ rubber antenna
    1 - Base unit AC adapter

    Physical Interface

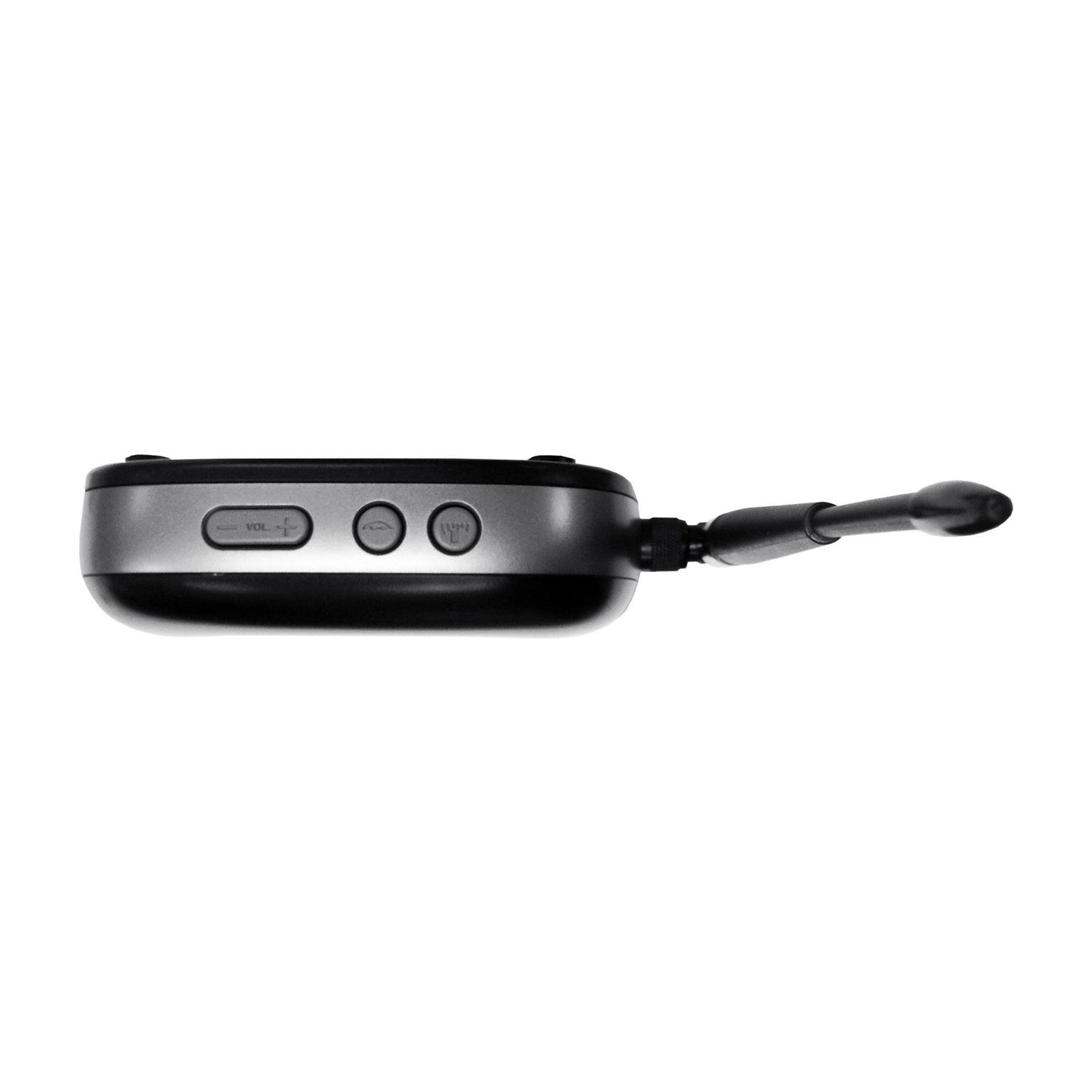

    Buttons
    Reset
    Registration
    Broadcast
    Intercom
    Volume Up/Down

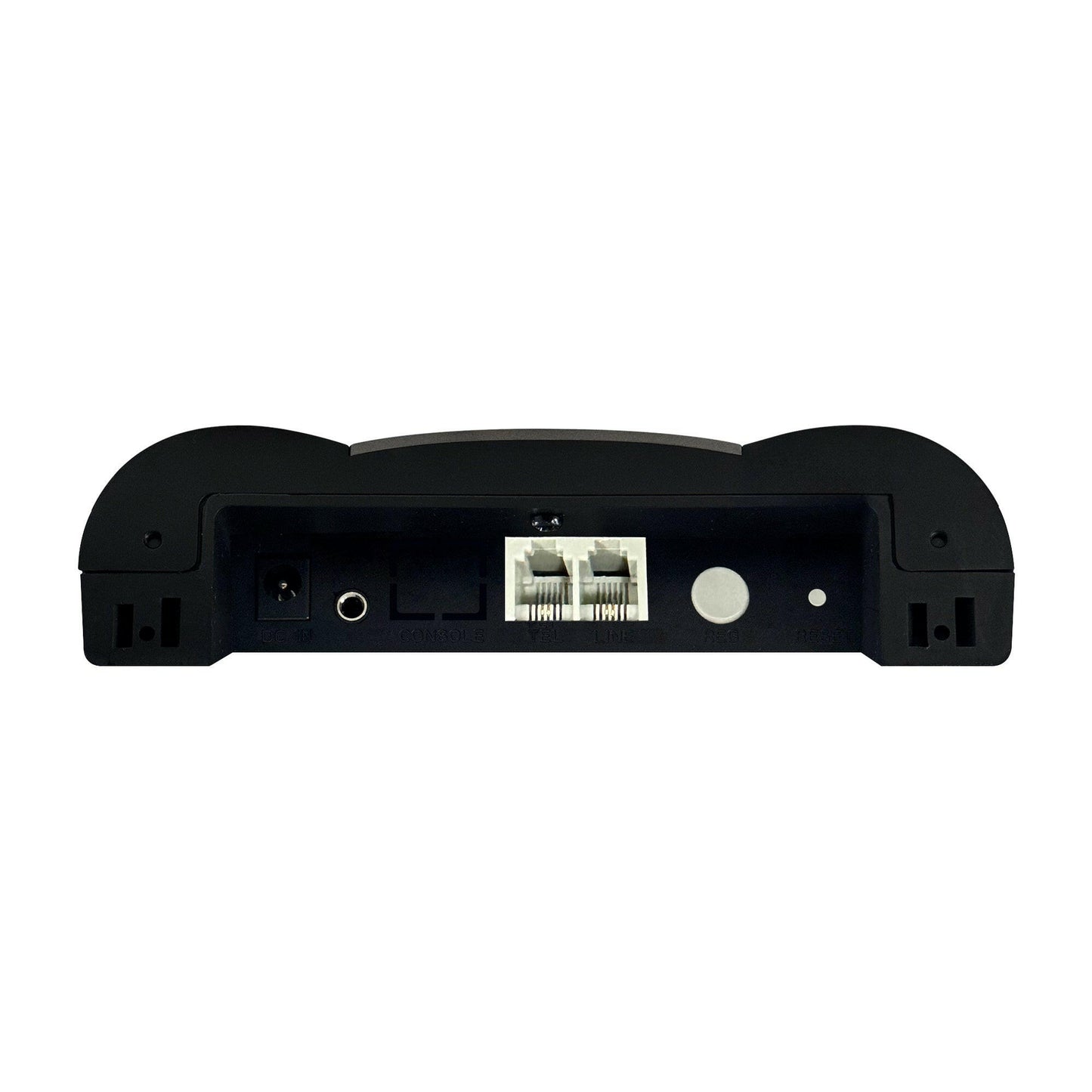

    Jack(s)
    Line x 1
    LAN x 1
    Audio-In x 1
    Type-B USB x 1
    DC x 1
    Grounding

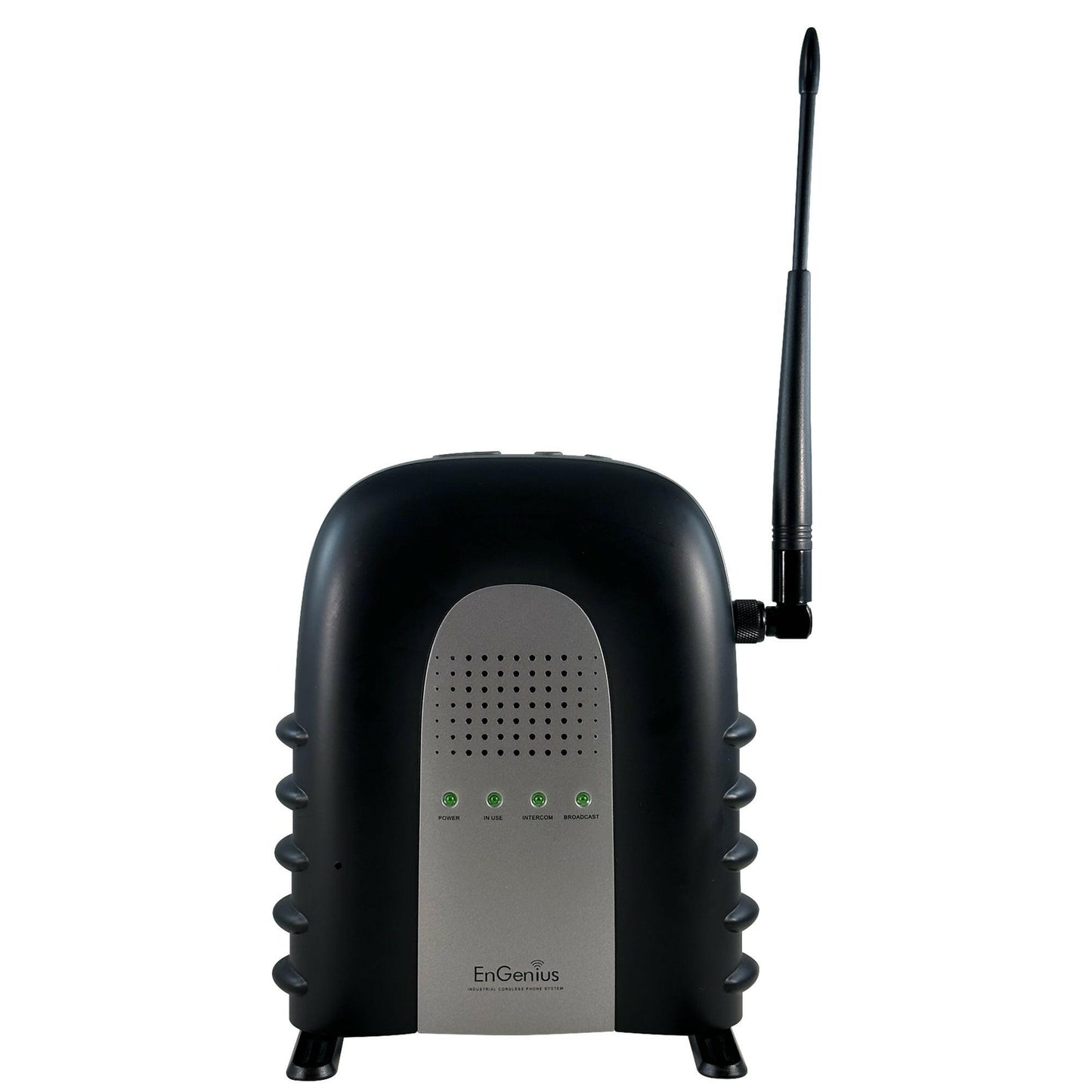

    LED Indicators

    Power
    In-Use
    Intercom
    Broadcast

    Electrical Specifications

    Frequency
    902-928 MHz

    RF Power
    Peak: 708 mW; Average: 354 mW

    Channel Spacing
    200 kHz

    Number of Channels
    128

    Modulation
    MSK

    Multiple Access
    Frequency Hopping TDMA

    Frequency Hopping Rate
    100 per second

    TDMA Frame Length
    10 ms

    Number of Talk Paths
    4

    Receiver Sensitivity
    < -108 dBm (@ BER 10-2)

    Antenna Connector
    Reverse TNC

    Antenna Gain
    2 dBi (included)
    6 dBi Outdoor (optional)
    2.7 dBi Indoor (optional)

    TX Power Control Range
    N/A

    Telephone Interface
    RJ11 x 1

    VoIP Interface
    RJ45 x 1

    Default IP Address
    192.186.1.156

    Default User Name & Pswd
    admin/admin

    SIP Protocol
    RFC 3261

    Speech Coding
    64Kbps G.711a, G.711u
    8 kbps G.729A

    Channel Coding
    8 kbps Convolutional + CRC

    Transmission Data Rate
    170.667 kbps

    User Data Rate

    128 kbps Duplex

    Duplex
    Time Division Duplex (TDD)

    Voice Quality
    TIA/EIA-470B

    Number of System IDs

    65,536

    Ring Signal
    20-50 Hz, 15-90 Vrms

    Auto-Attendant Coding
    N/A

    Flash Time
    100-900 ms Programmable

    Power Source
    100~240V/12V AC/DC Adapter

    Charge Time
    N/A

    Charge Current
    N/A

    Battery Talk & Standby Time
    N/A

    Environmental Specifications

    Regulation Compliance
    FCC Part 15, Part 68

    Operating Temperature
    32 – 122°F (0 – 50°C)

    Storage Temperature
    14 – 158°F (-10 – 70°C)

    Humidity
    20 – 75 %

    IP Rating
    N/A

    Dimensions
    6.3” x 16.5” x 7.4” (161 x 42 x 188 mm)

    Device Weight
    1.90 lbs. (.86 kg)
