FreeStyl 2: FreeStyl 2 Long Range Phone System
Extreme Range Cordless Phone System
The EnGenius FreeStyl 2 is a scalable, 900 MHZ cordless phone system with extreme wireless coverage over long distances and in complex, multi-floor environments. The FreeStyl 2 features robust, powerful technology in a sleek design. The system is perfect for offices and large homes.
- FreeStyl 2 User Manual
- FreeStyl Sales Guide
- FreeStyl Datasheet
- FreeStyl 2 Hospitality Bulletin
- FreeStyl 2 Quick Reference
Specifications
- Supports up to Nine (9) Handsets (Sold Separately)
- Extreme Wireless Range & Connectivity
- Two-Way Intercom, Simultaneous Broadcast to Multiple Handsets
Buttons
Page (handset locator)/
Registration
Reset

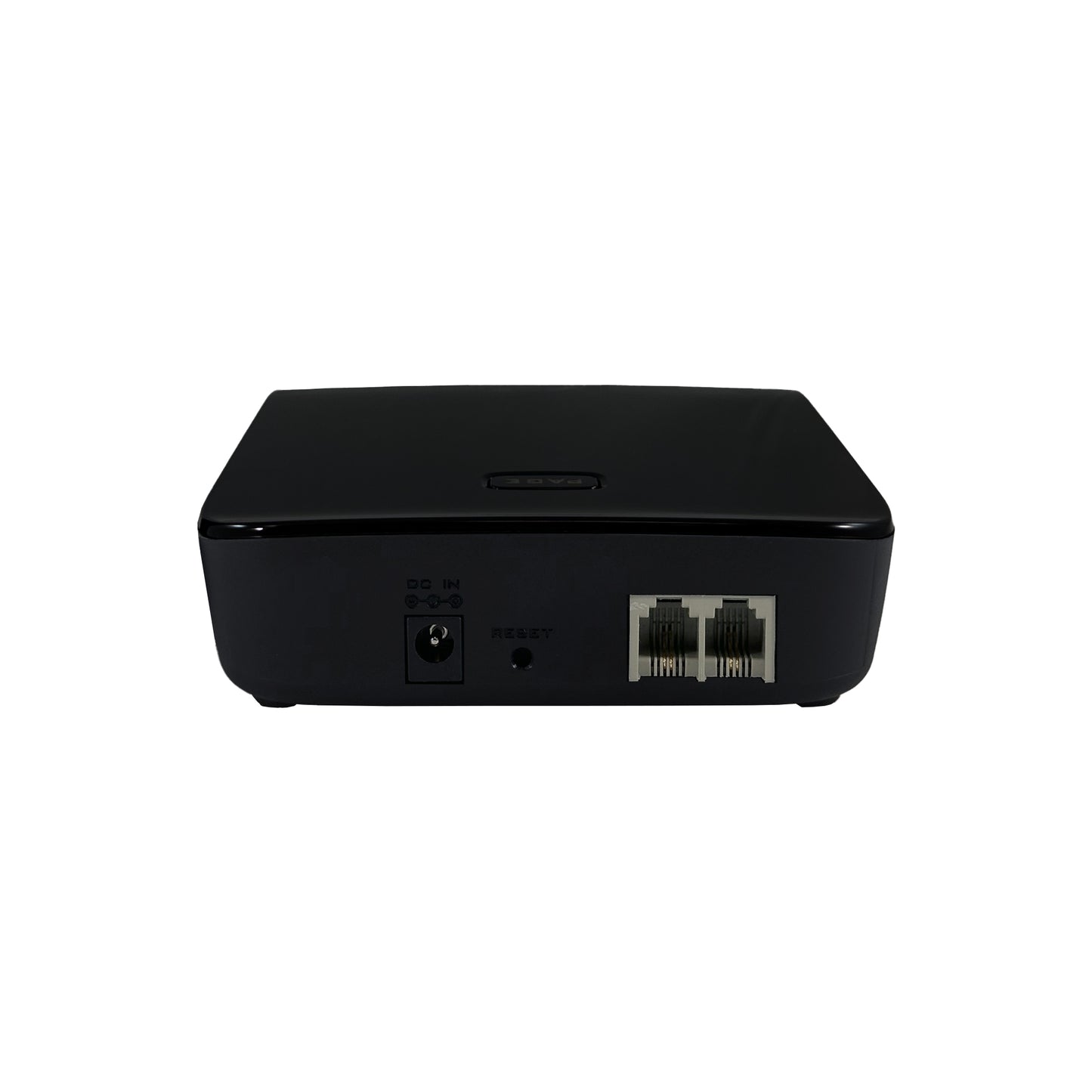

Jack(s)
DC
Phone
Line
LED Indicators
Power (blue)
In-Use (white)
Frequency
902-928 MHz
RF Power
Peak - 27 dBm
Average - 21 dBm
Channel Spacing
101 kHz
Number of Channels
252
Modulation
Differentially Encoded MSK
Multiple Access
Frequency Hopping TDD
Frequency Hopping Rate
100 per second
TDMA Frame Length
10 ms
Number of Talk Paths
1
Receiver Sensitivity
< -111 dBm (@ BER 10-2)
Antenna Connector
Reverse TNC
Antenna Gain
2 dBi
TX Power Control Range
400 mW
Telephone Interface
RJ11 x2
Speech Coding
8 kbps G.729A
Channel Coding
8 kbps Convolutional+CRC
Transmission Data Rate
85.333 kbps
User Data Rate
64 kbps duplex
Duplex
Time Division Duplex (TDD)
Voice Quality
TIA/EIA-470B
Number of System ID
65,536
Ring Signal
20-50 Hz, 30–90 Vrms
Auto-Attendant Coding
N/A
Flash Time
100-900 ms Programmable
Power Source
AC/DC 5V/1V Adapter
Charge Time
N/A
Charge Current
N/A
Battery Talk & Standby Time
N/A
Frequency
902-928 MHz
RF Power
Peak - 26 dBm; Average - 20 dBm
Channel Spacing
101 kHz
Number of Channels
252
Modulation
Differentially Encoded MSK
Multiple Access
Frequency Hopping TDD
Frequency Hopping Rate
100 per second
TDMA Frame Length
10 ms
Number of Talk Paths
1
Receiver Sensitivity
< -111 dBm (@ BER 10-2)
Antenna Connector
Proprietary
Antenna Gain
1.5 dBi (Short Antenna)
2.5 dBi (Long Antenna)
TX Power Control Range
400 mW
Telephone Interface
N/A
Speech Coding
8 kbps G.729A
Channel Coding
8 kbps Convolutional + CRC
Transmission Data Rate
85.333 kbps
User Data Rate
64 kbps duplex
Duplex
Time Division Duplex (TDD)
Voice Quality
TIA/EIA-470B
Number of System ID
65,536
Ring Signal
N/A
Auto-Attendant Coding
N/A
Flash Time
N/A
Power Source
1100mA Li-ion Battery
Charge Time
3 hours (from empty)
Charge Current
550/850 mA (charging cradle)
Battery Talk & Standby Time
~ 5.5 Hours/60 Hours
Regulation Compliance
FCC Part 15, Part 68
Canada RSS-210, CS03
Operating Temperature
32 – 122°F (0 – 50°C)
Storage Temperature
-40 – 158°F (-40 – 70 °C)
Humidity
20 – 75 %
IP Rating
N/A
Dimensions
5.48” x 5.05” x 1.35” (139 x 128 x 34 mm)
Device Weight
.6 lbs. (275g)
Regulation Compliance
FCC Part 15, Part 68;
CAN/DOC RSS210, CS03;
Hearing Aid Compatible
Operating Temperature
14 – 140 °F (-10 – 60 °C)
Storage Temperature
-40 – 158 °F (-40 – 70 °C)
Humidity
20 – 75 %
IP Rating
N/A
Dimensions
7.64” x 1.83” x 1.31” (194.05 x 46.59 x 33.35 mm)
Device Weight
.34 lbs. (156g) incl. battery
