FreeStyl 2 HC: FreeStyl 2 Handset
FreeStyl 2 HC: FreeStyl 2 Handset
Extreme Range Cordless Phone Handset
The EnGenius FreeStyl 2 is a scalable, 900 MHZ cordless phone system with extreme wireless coverage over long distances and in complex, multi-floor environments. Individual handsets are available for the FreeStyl 2, making the system a scalable solution for growing needs. The cordless 900 MHz handsets offer reliable service with extremely long ranges. The FreeStyl 2 Base Station supports up to nine (9) handsets.
- FreeStyl 2 User Manual
- FreeStyl Sales Guide
- FreeStyl Datasheet
- FreeStyl 2 Hospitality Bulletin
- FreeStyl 2 Quick Reference
Features
Specifications
- Supports up to Nine (9) Handsets (Sold Separately)
- Extreme Wireless Range & Connectivity
- Two-Way Intercom, Simultaneous Broadcast to Multiple Handsets
Frequency
902-928 MHz
RF Power
Peak - 26 dBm; Average - 20 dBm
Channel Spacing
101 kHz
Number of Channels
252
Modulation
Differentially Encoded MSK
Multiple Access
Frequency Hopping TDD
Frequency Hopping Rate
100 per second
TDMA Frame Length
10 ms
Number of Talk Paths
1
Receiver Sensitivity
< -111 dBm (@ BER 10-2)
Antenna Connector
Proprietary
Antenna Gain
1.5 dBi (Short Antenna)
2.5 dBi (Long Antenna)
TX Power Control Range
400 mW
Telephone Interface
N/A
Speech Coding
8 kbps G.729A
Channel Coding
8 kbps Convolutional + CRC
Transmission Data Rate
85.333 kbps
User Data Rate
64 kbps duplex
Duplex
Time Division Duplex (TDD)
Voice Quality
TIA/EIA-470B
Number of System ID
65,536
Ring Signal
N/A
Auto-Attendant Coding
N/A
Flash Time
N/A
Power Source

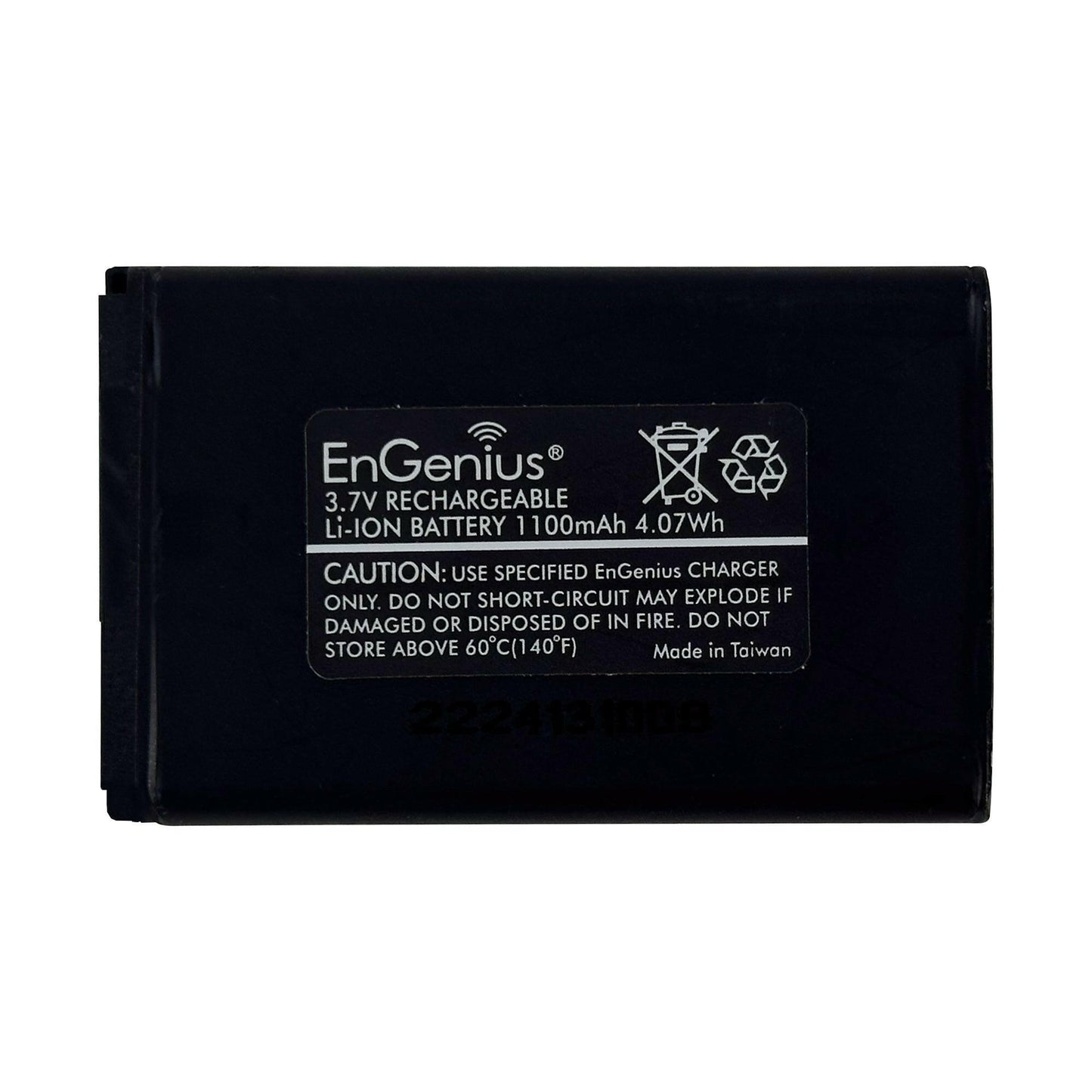

1100mA Li-ion Battery
Charge Time
3 hours (from empty)
Charge Current

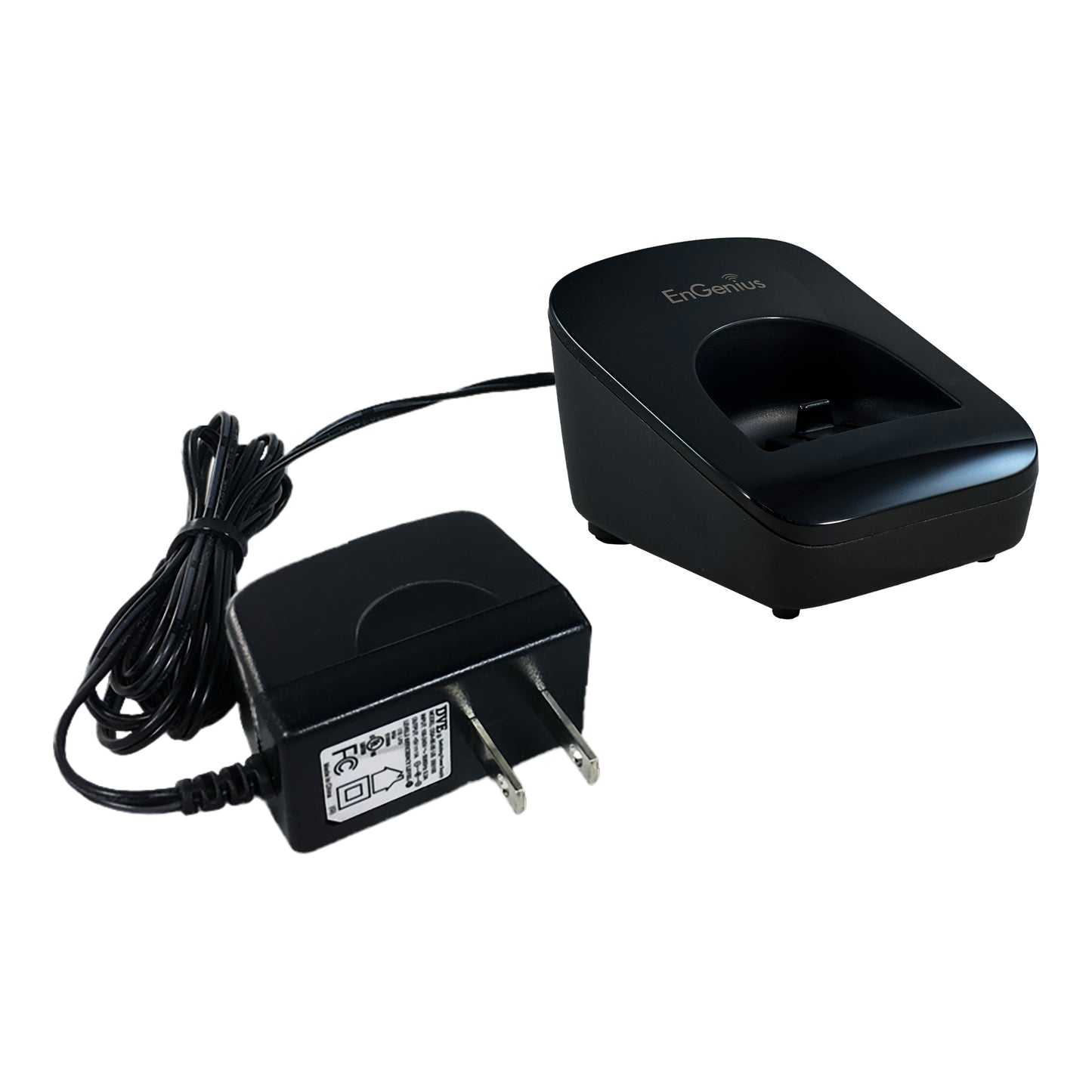

550/850 mA (charging cradle)
Battery Talk & Standby Time
~ 5.5 Hours/60 Hours
Regulation Compliance
FCC Part 15, Part 68;
CAN/DOC RSS210, CS03;
Hearing Aid Compatible
Operating Temperature
14 – 140 °F (-10 – 60 °C)
Storage Temperature
-40 – 158 °F (-40 – 70 °C)
Humidity
20 – 75 %
IP Rating
N/A
Dimensions
7.64” x 1.83” x 1.31” (194.05 x 46.59 x 33.35 mm)
Device Weight
.34 lbs. (156g) incl. battery
