FitCon100: EnGenius Fit On-Premises Management Network Controller

$99.99
 per
Spend $75.00 to FREE SHIPPING

Earn [points_amount] when you buy this item.

View full details

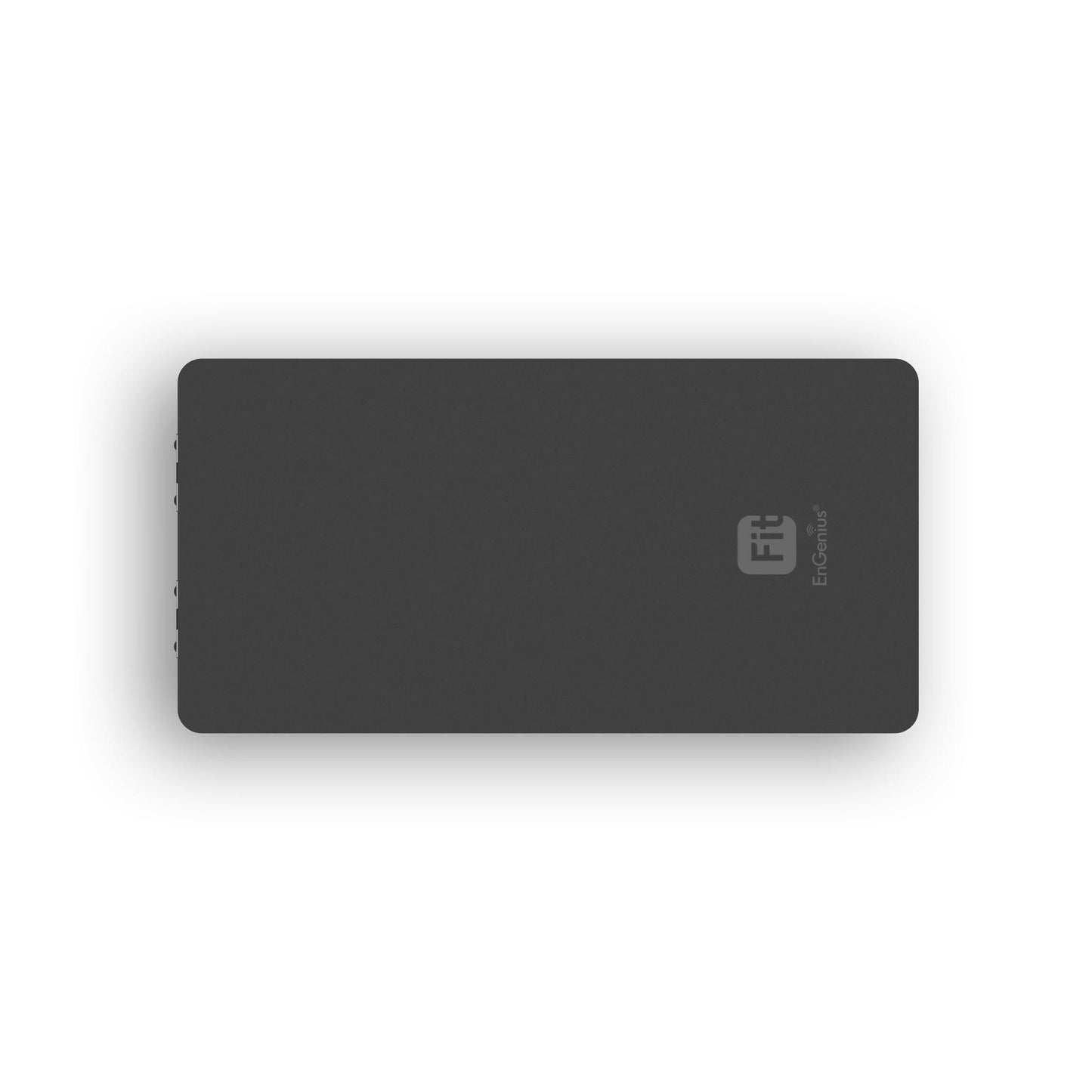

FitCon100: EnGenius Fit On-Premises Management Network Controller

$99.99
 per

For small businesses who need to manage access points and switches quickly and easily

The EnGenius FitController FitCon100 is for IT managers or admins at small businesses who need to manage access points and switches quickly and easily, FitController’s intuitive interface and simple plug-and-play integration securely provide efficient device management, cloud accessibility that allows remote management of multiple networks from a single portal without requiring a dedicated server.

DC Adapter is not included.

- FitController Datasheet
- EnGenius Fit FAQs
- FitCon100 Quick Start Guide

Shipping & Returns

Not satisfied? We allow returns within 30 days of product purchase

Management

This product is compatible with the EnGenius Fit line of products

Controller

Manage access points and switches quickly and easily from one device

Features

Overview

In-the-Box

Mounting

Deployment

FitCon100

Specifications

Product Highlights

  • Plug and play installation. Simply plug into PoE Ethernet switch. No additional download or training required

  • Fast deployment with quick-scan device registration & configuration

  • Network management for up to 100 EnGenius Fit access point and switches

  • License-free on-premises network management with a comprehensive line of wired and wireless networking products

  • Hierarchy view to quickly structure customer sites and organize networks

  • Network health view to analyze networks and report potential issues

  • Multi-tenant user login privileges

  • Device two-factor authentication to ensure only authorized devices are on the network

  • Enhanced Wi-Fi security WPA3 for employee as well as guests

  • Support up to 8 networks per user account

  • Create separate employee and guest networks to keep traffic isolated

  • Set limits to stop bandwidth hogs

  • Built-in powerful Qualcomm Qual-Core CPU

  • Micro SD slot for extra back-up

  • 802.3af or DC12/1A input power source

CPU

Model
Qualcomm Cypress IPQ6010

Clock Rate

Quad-Core Cortex A53 1.8 GHz

Hardware Encryption Acceleration
Yes

Memory

System Memory
DDR4 1GB x 2

Storage

eMMC
8GB (MLC)

Interfaces and LEDs

Interfaces and LEDs

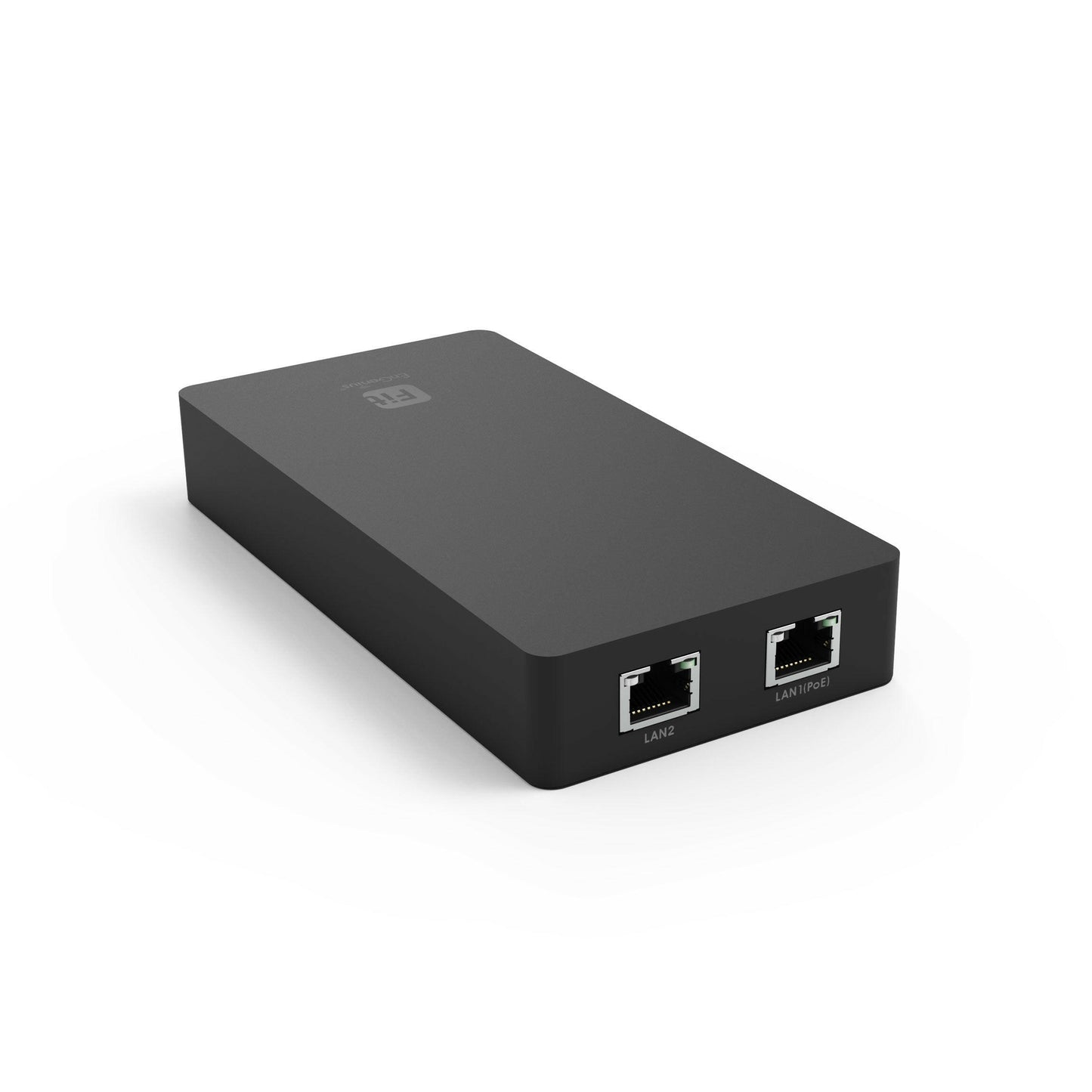

2 x 10/100/1000 Mbps RJ45 ports (1 x PoE)

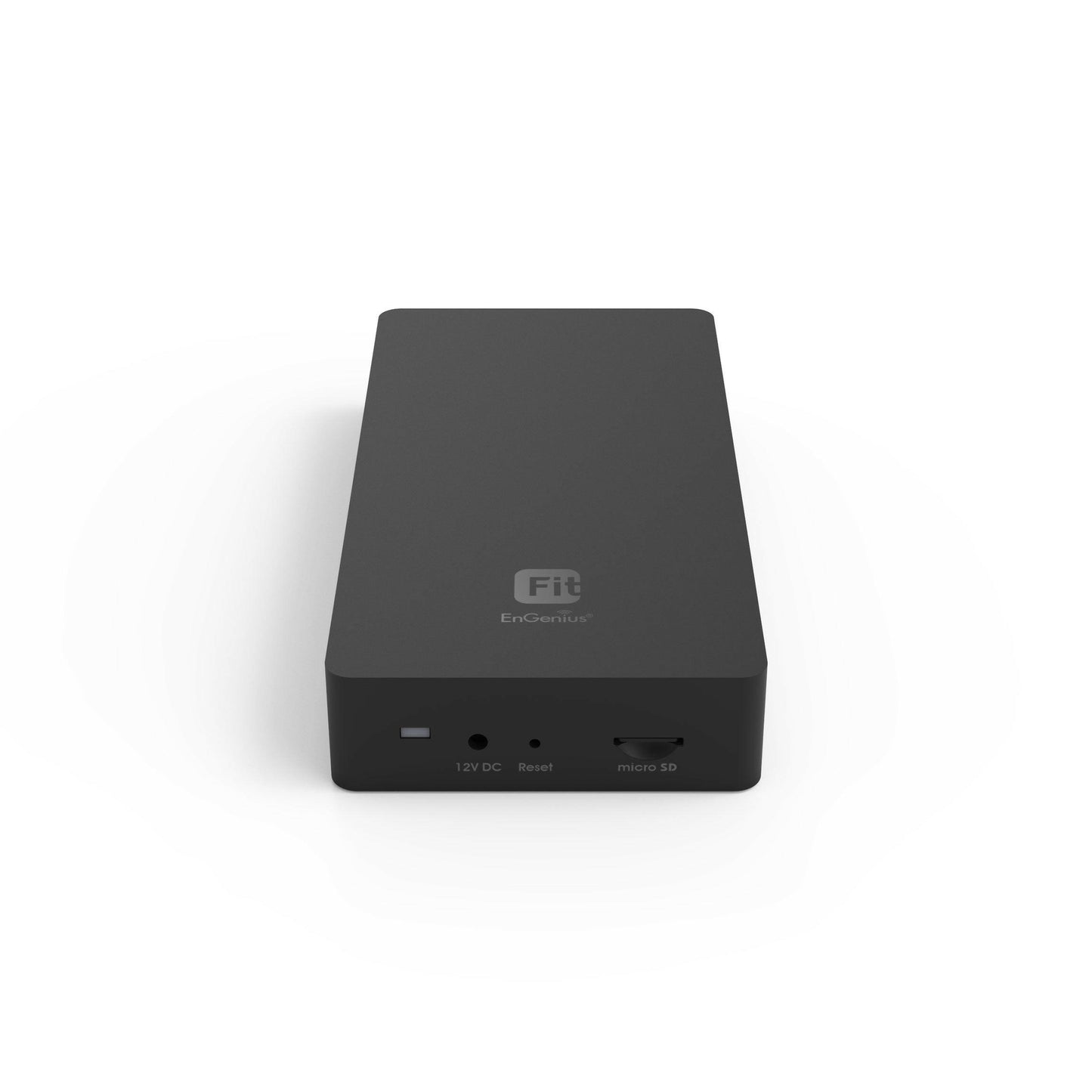

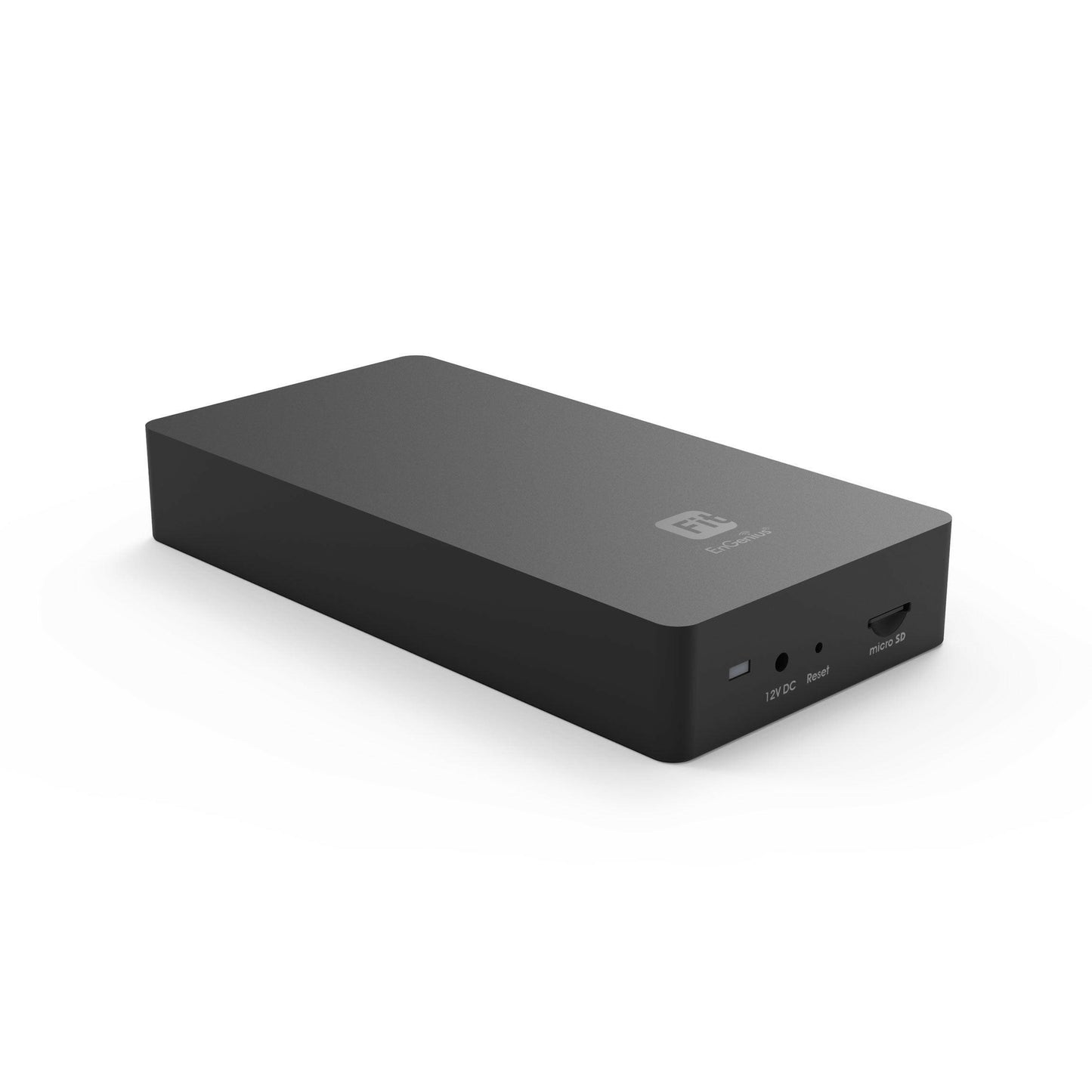

1 x Micro SD Slot
1 x DC-Input Jack
1 x Reset Button
1 x Power LED (Orange)
2 x LAN LED (Green)

LED Indicators
1 x Power
2 x LAN

Power Source
Power-over-Ethernet: 802.3af Input
12VDC /1A Power Adapter (Not Included)

Maximum Power Consumption
Under 5W




Environmental & Physical

Operating
Temperature:
0°C~40°C (32°F~104°F)
Humidity: 0%~90% typical

Storage
Temperature:
-40°C~80°C (-40°F~176°F)
Humidity: 0%~90% typical

Dimensions & Weights

FitController Device
Weight: 0.36 lb (165g)
Length: 6.02” (153mm)
Width: 3.04” (77.4mm)
Height: 0.98” (25mm)

Packaging
Weight: 0.57 lb (260g)
Length: 6.99” (177.75mm)
Width: 3.99” (101.5mm)
Height: 1.71” (43.5mm)

Certifications
FCC
IC

Package Contents
1 – FitController
1 – Screw Position Idenifier
1 – Wall Mount Screw Kit
(Excludes Power Adapter)

Warranty
1 Year
