ECW536-P: Cloud Managed 4x4x4 Indoor WiFi 7 Access Point with PoE++ 60W 802.3bt 10GbE Injector
Earn [points_amount] when you buy this item.
*Must be Powered over Ethernet, does not include AC Adapter.
ECW536-P: Cloud Managed 4x4x4 Indoor WiFi 7 Access Point with PoE++ 60W 802.3bt 10GbE Injector
Tri-band wireless access point reaching speeds of 11,529 Mbps on 6GHz, 5,764 Mbps on 5GHz, and 1,376 Mbps on 2.4GHz

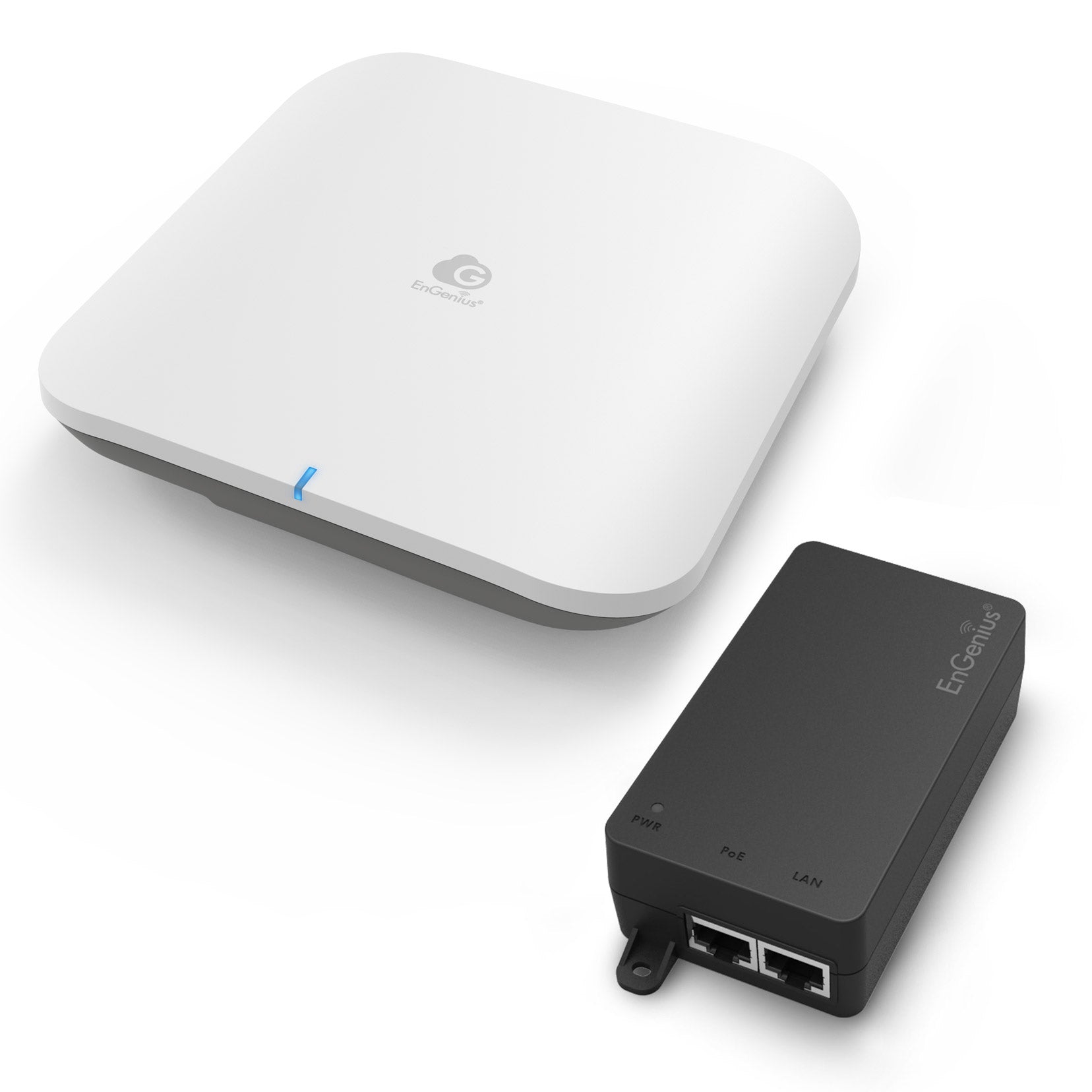

EnGenius Cloud Managed ECW536-P comes with the sleekly designed Wi-Fi 7 access point ECW536 and a PoE++ injector EXT5060XBT for a power source. The ECW536 is a Tri-band 4x4x4 indoor AP that can support up to 11.5 Gbps on 6GHz, 5.7 Gbps on 5GHz, and 1.3 Gbps on 2.4GHz. This AP has one built-in 10 GbE PoE++ port and 10 GbE port for high throughput and placing the AP in hard-to-reach areas making it more convenient when mounting. The ECW536-P also comes with the EXT5060XBT PoE++ (802.3bt) injector, which provides a 10 GbE port for high-speed connections and delivers 60 watts to power the Wi-Fi 7 AP at distances of up to 100 meters from the power source.
Must be Powered over Ethernet, does not include AC Adapter.
- ECW536 Datasheet
- Cloud Managed AP Datasheet
- EnGenius Cloud User Manual
Shipping & Returns
Not satisfied? We allow returns within 30 days of product purchase
Management
This product is compatible with the EnGenius Cloud line of products
Wi-Fi 7
Super-wide 6GHz band increases performance, network capacity and wireless efficiency
5-Year Warranty
Leave the worrying to us. We've got you covered on your hardware purchase.
Features
Specifications
- Wi-Fi 7 delivers stunning gigabit speed performance in small to medium businesses
- Provides Wi-Fi connectivity for up to 1,500 employee and guest devices per AP
- Delivers 1,500 sq. ft. of high-performance Wi-Fi across diverse environments
- Experience smooth streaming and video conferencing with speeds up-to 18.7Gbps
- Take advantage of Wi-Fi 7’s seamless connectivity for all your legacy devices
- Centrally mount the AP up to 100 meters from a power source on ceilings using the included PoE++ adapter for optimal
performance
- Protect your employee and guest
connections with the latest Wi-Fi security, WPA3 enterprise and WPA3
- Easily manage all your AP’s with EnGenius Cloud and a user-friendly mobile AP from anywhere
- Quick network setup and management with simple device registration and remote monitoring
- Sleek ceiling-mount design and modern LED, seamlessly blending into any setting
- Simple mounting and Kensington lock to ensure a hassle-free and secure installation process
- Compatible with iPhone 16 Pro, MacBook Pro, iPad Pro, Galaxy S23, and Galaxy S23+
- Best for Professional Offices, Retail Stores, Hotels and Resorts, Multi-Dwelling Units, Assisted Living, Urgent Care, etc.
Standards
IEEE 802.11be on 2.4 GHz
IEEE 802.11be on 5 GHz
IEEE 802.11be on 6 GHz
(Backward compatible with 802.11b/g/n/ac/ax)
Processor
Qualcomm® Networking Pro 1220
Antenna
4 x 2.4 GHz: 5 dBi
4 x 5 GHz: 6 dBi
4 x 6 GHz: 5 dBi

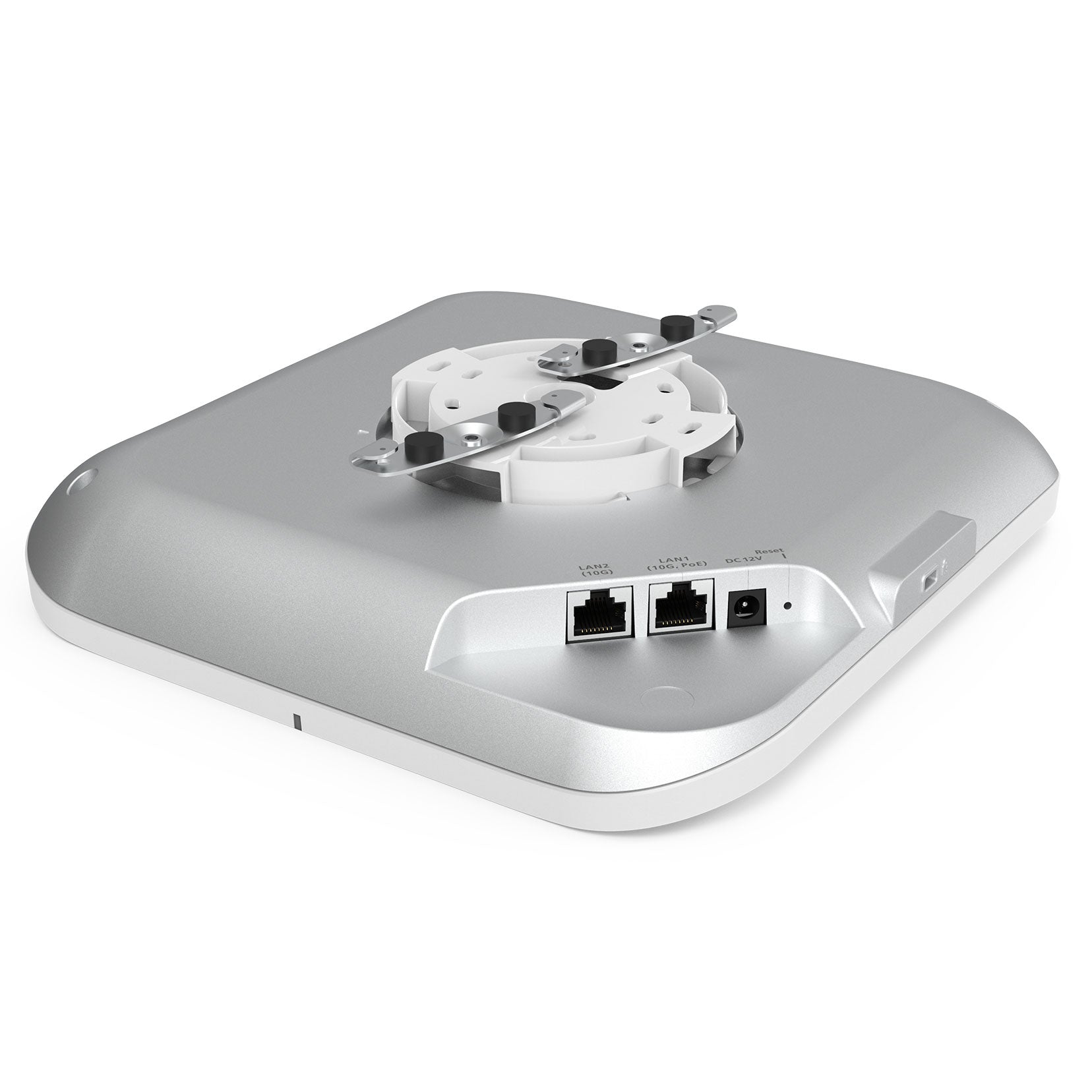

Physical Interface
2 x 10/100/1000/2500/5000/10000 BASE-T, RJ-45 Ethernet Port
1 x DC Jack
1 x Reset Button
LED Indicators
1 x Multi-color LED
Power Source
Power-over-Ethernet: 802.3bt Input
12VDC/3A Power Adapter (Not Included)
Maximum Power Consumption
35W
Operating Frequency
Tri-Radio Concurrent 2.4 GHz, 5 GHz, & 6 GHz
Operation Modes
AP, Mesh
Frequency Radio
2.4 GHz: 2400 MHz ~ 2482 GHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
6 GHz: 5.925GHz~6.425GHz, 6.425GHz~6.525GHz, 6.525GHz~6.875GHz, .6875GHz~7.125GHz
Transmit Power
Up to 25 dBm on 2.4 GHz
Up to 24 dBm on 5 GHz
Up to 24 dBm on 6 GHz
(Maximum power is limited by regulatory domain)
Tx Beamforming (TxBF)
Increasing signal reliability and transmitting distance
Radio Chains/Spatial Stream
4x4x4:4
SU-MIMO
Four (4) spatial stream Single User (SU) MIMO for up to 1,376 Mbps wireless data rate with VHT40 bandwidth to a 4x4 wireless device under the 2.4GHz radio.
Four (4) spatial stream Single User (SU) MIMO for up to 5,764 Mbps wireless data rate with HE160 bandwidth to a 4x4 wireless device under the 5GHz radio.
Four (4) spatial stream Single User (SU) MIMO for up to 11,529 Mbps wireless data rate with HE320 bandwidth to a 4x4 wireless device under the 6GHz radio.
MU-MIMO
Four (4) spatial stream Multi-User (MU)-MIMO for up to 1,376Mbps wireless data rate with VHT40 bandwidth to a 4x4 wireless device under the 2.4GHz radio simultaneously.
Four (4) spatial stream Multi-User (MU)-MIMO for up to 5,764 Mbps wireless data rate with HE160 bandwidth to a 4x4 wireless device under the 5GHz radio simultaneously.
Four (4) spatial stream Multi-User (MU)-MIMO for up to 11,529 Mbps wireless data rate with HE320 bandwidth to a 4x4 wireless device under the 6GHz radio simultaneously.
Supported Data Rates (Mbps)
802.11be:
6 GHZ: Max 11,600 (MCS0 to MCS13, NSS = 1 to 4)
5 GHz: Max 5,800 (MCS0 to MCS11, NSS = 1 to 4)
2.4 GHz: Max 1,440 (MCS0 to MCS11, NSS = 1 to 4)
802.11ax:
6 GHZ: 18 to 4,800 (MCS0 to MCS13, NSS = 1 to 4)
5 GHz: 18 to 2,400 (MCS0 to MCS11, NSS = 1 to 4)
2.4 GHz: 9 to 1,148 (MCS0 to MCS11, NSS = 1 to 4)
802.11ac: 6.5 to 1733 Mbps (MCS0 to MCS9, NSS = 1 to 4)
802.11n: 6.5 to 600 Mbps (MCS0 to MCS15)
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11b: 1, 2, 5.5, 11
Multiple BSSID
8 SSIDs for 2.4GHz, 5GHz, & 6 GHz radios
VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN
Spanning Tree
Supports 802.1d Spanning Tree Protocol
QoS (Quality of Service)
IEEE 802.11e compliant
WMM
SNMP
v1, v2c, v3
MIB
I/II, Private MIB
Wireless Security
WPA3 Enterprise
WPA3-PSK (SAE)
WPA3/WPA2-PSK Mixed
WPA2 Enterprise
WPA2 AES-PSK
Hide SSID in Beacons
MAC Address Filtering, up to 256 MACs per SSID
Wireless STA (Client) Connected List
SSH Tunnel
Client Isolation
L2 Isolation
Temperature Range
Operating: 32ºF~104ºF (0ºC~40ºC)
Storage: -40ºF~176 ºF (-40ºC~80ºC)
Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less
ECW536 Device
Weight: TBD
Length: 9.06" (230 mm)
Width: 9.06" (230 mm)
Height: 1.46" (37 mm)
Package Contents
1 x ECW536 Cloud Managed Indoor Access Point
1 x Mount Base
1 x Ceiling and Wall Mount Screw Kits
1 x Quick Installation Guide
Certifications
FCC
CE
IC
Warranty
5 Year
- IEEE 802.3bt Type 3 compliant
- IEEE 802.3af/at backward compatible
- Backward compatible for legacy PoE
- Supports 10/100/1000 Mbps and 1Gb/2.5Gb/10Gb applications
- Output power up to 60W over four pairs with auto-detection on power requirement
- Leverage energy efficient PoE up to 60W with full power capabilities mount use
- Fan-less design ideal for silent operation
- Simple plug-and-play installation
Input Voltage
100 ~ 240VAC
Input Current
1.12A @ 120V AC
0.75A @ 240V AC
Input Frequency
50-60Hz
Maximum Output Power
60W
Powerline
Pin 4 (Vdc+) & Pin 5 (Vdc+)
Pin 7 (Vdc-) & Pin 8 (Vdc-)
Ethernet Port Standards
IEEE 802.3af/at/bt Compatible
Data Lines
Pin 1 (Rx+) & Pin 2 (Rx-)
Pin 3 (Tx+) & Pin 6 (Tx-)
Surge Protection
L-L: 2KV
L-G: 4KV
ESD
Contact 4KV; Air: 8KV
Other Protection
Over-voltage and Over-current protection
Short-circuit protection
Network Ethernet Ports
1 x 10/100/1000Mb, 2.5Gb/5Gb/10Gb Data Input; RJ-45
1 x 10/100/1000Mb, 2.5Gb/5Gb/10Gb Data & Power Output; RJ-45
Power Source
AC Connector
1 x IEC-320 C6 AC Connector
LED Indicators
Power On: Green
PoE On: Green
Temperature Range
Operating: 32°F to 104°F (0°C to 40°C)
Storage: -4°F to 158°F (-20°C to 70°C)
Package Contents
1 x PoE Adapter
1 x Quick Installation Guide (Printed on side of Box)
1 x Power Cord – 16 inches (40.64cm)
EPA5060XBT Device (Without Mounting Kit)
Weight: 7oz (198g)
Length: 3.9” (99mm)
Width: 2.27” (57mm)
Height: 1.3” (33mm)
EPA5060XBT Packaging
Weight: 11oz (315g)
Length: 6” (152mm)
Width: 4.8” (122.5mm)
Height: 2” (52 mm)
Certifications
IEC 62328-1: 2014
UL 62328-1
FCC Subpart 15 Class B
EN 55032: 2012 / AC: 2013
EN 55024: 2010
Warranty
1 year
