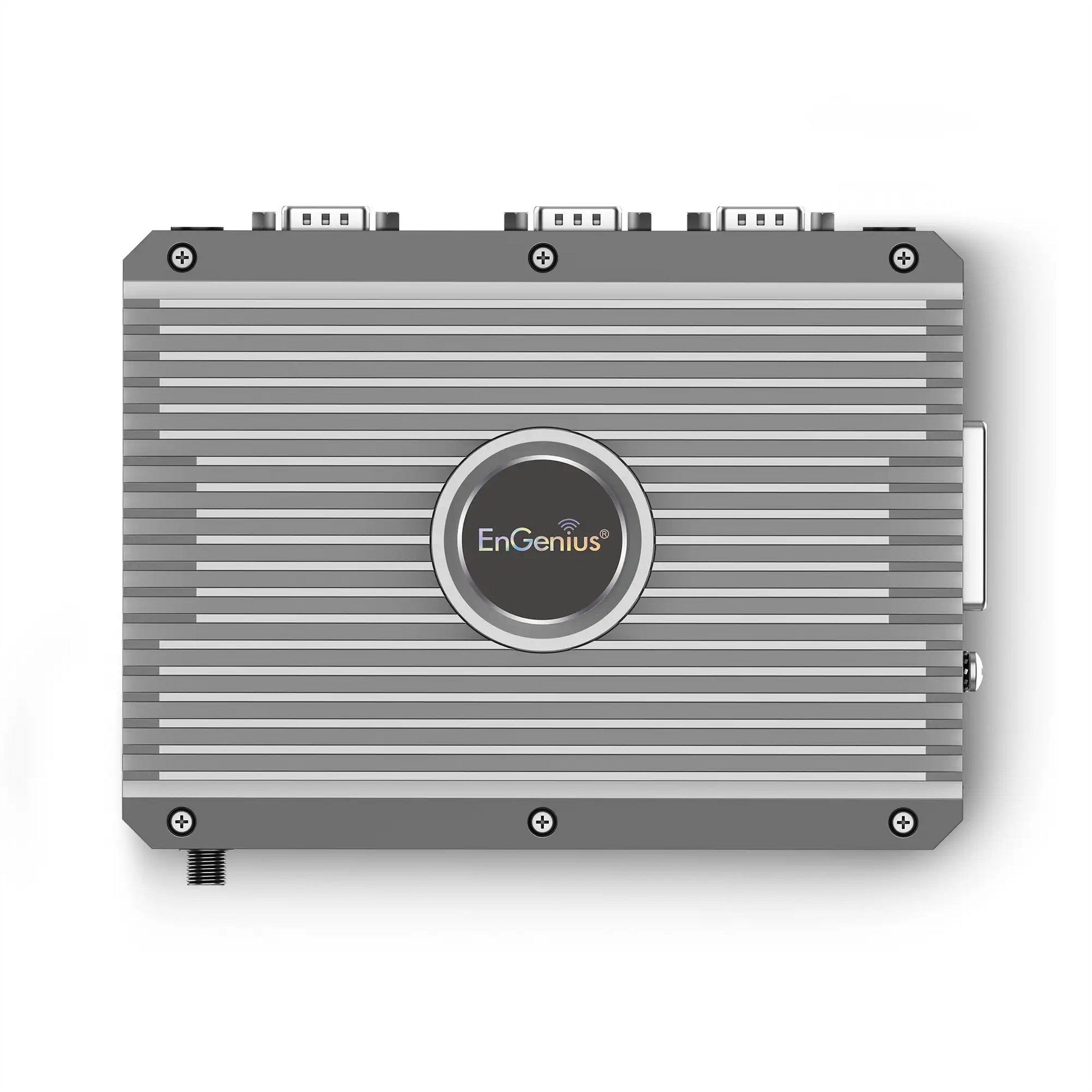

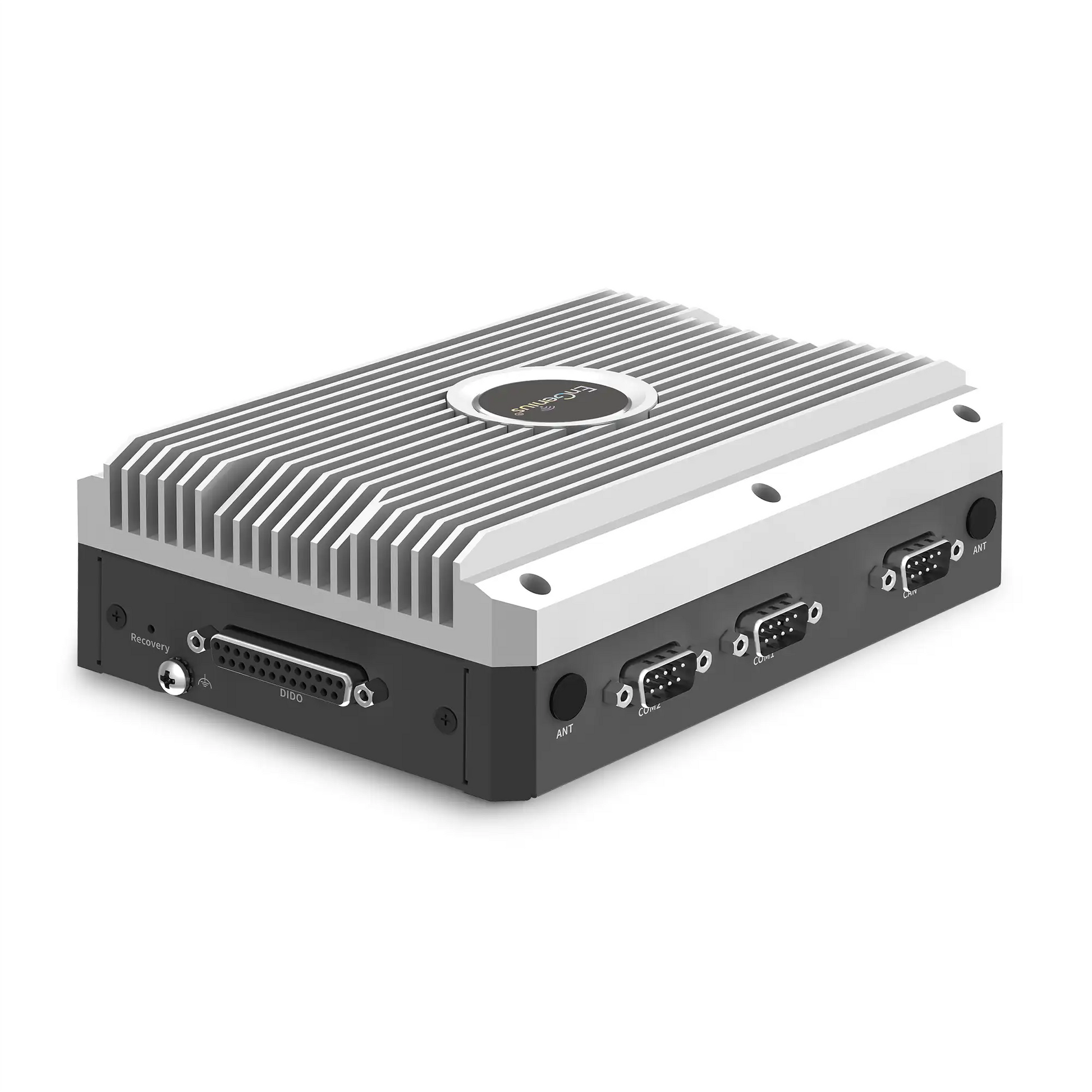

E5-NA08: Industrial Edge AI Platform

Name: E5-NA08: Industrial Edge AI Platform
Brand: EnGenius Store
SKU: E5-NA08
Price: 1269.0 USD
Availability: InStock

$1,269.00

View full details

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Compact, cost-effective industrial Edge AI Box designed to accelerate vision AI deployment while reducing implementation costs

The E5-NA08 is an affordable and compact Edge AI computing platform designed for scalable vision AI deployments. Powered by NVIDIA® Jetson Orin™ Nano 8GB, it provides efficient on-device AI inference, helping businesses accelerate AI adoption while reducing infrastructure costs and simplifying deployment.

- AI Box Datasheet
- AI Box Quick Start Guide

Real-Time AI Performance

NVIDIA® Jetson Orin™ SoM streamlines intensive AI workloads at the source of data generation while maintaining low-power efficiency and compact footprint.

Rugged Fanless Design

Engineered for reliable 24/7 operation in harsh industrial environments, withstanding extreme temperatures, dust, and airborne particulates.

Rich IoT Connectivity

Ensures versatile I/O compatibility with both modern and legacy systems, sensors, and equipment.

Button

Buy Now

Features

E5-NA08

Specifications

Product Highlights

NVIDIA® Jetson Orin™ Nano 8GB AI Platform

Up to 67 TOPS AI Performance

Bluetooth 5.2 Connectivity

Dual Gigabit Ethernet

Rich Industrial Interfaces

NVIDIA® Operation System L4T inside

Fanless Design with Wide Temperature
Support

Technical

6-core Arm Cortex-A78AE, up to 1.5GHz

8GB LPDDR5 memory

256GB NVMe SSD storage

Dual M.2 2280 NVMe expansion

Dual Gigabit Ethernet and Bluetooth 5.2 connectivity

Fanless industrial design, operating from -20°C to 70°C

Mechanical

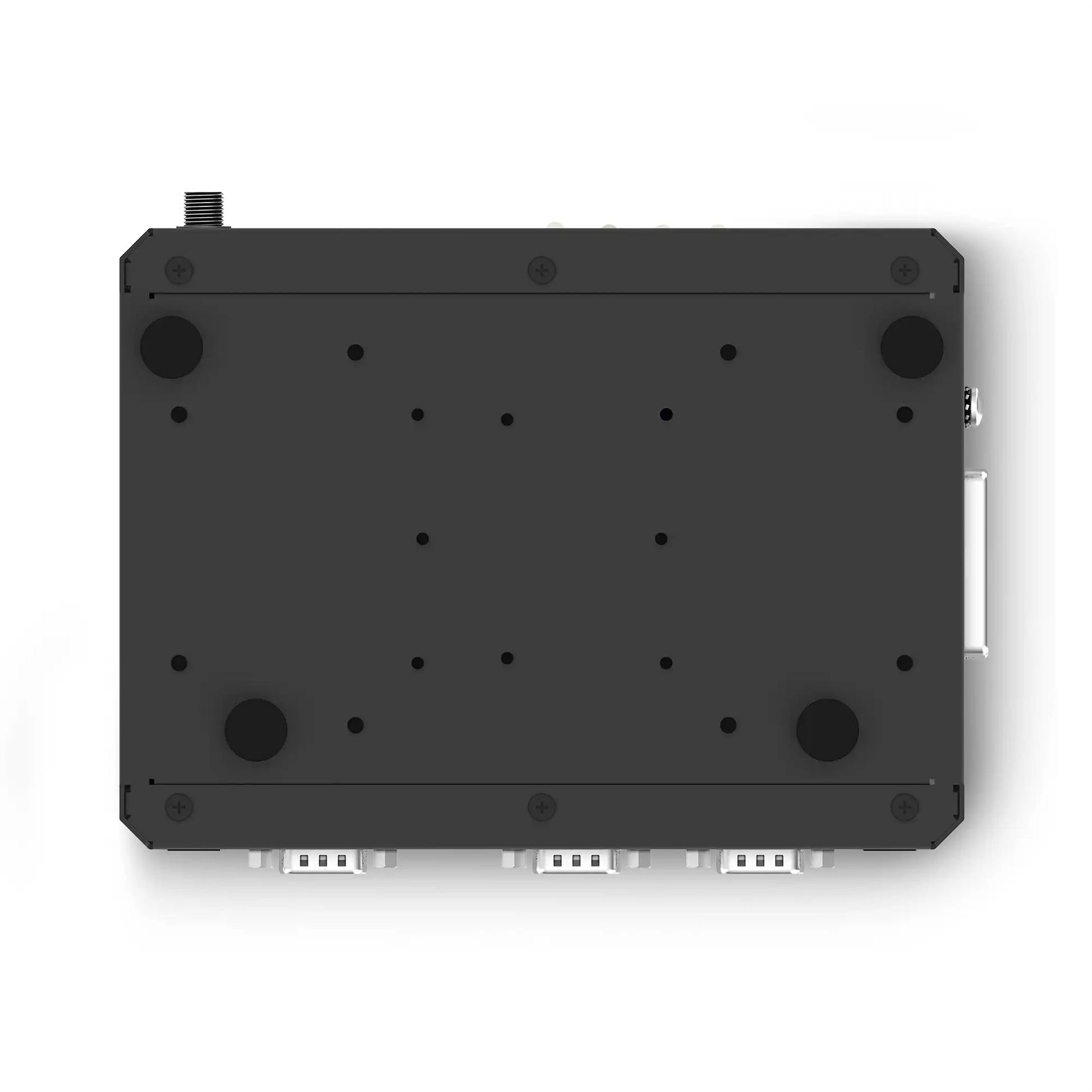

Mounting: VESA / DIN Rail / Wall Mount

Dimensions: 170 × 125 × 60 mm

Weight: 1.9kg

Button

Overview

Specifications	AI Box 157/157W	AI Box 117/117W	AI Box 67/67W
Processor	NVIDIA® Jetson Orin™ NX 16GB LPDDR5	NVIDIA® Jetson Orin™ NX 8GB LPDDR5	NVIDIA® Jetson Orin™ Nano 8GB LPDDR5
Storage	1 × M.2 M-key 2280 Default 256GB	1 × M.2 M-key 2280 Default 256GB	1 × M.2 M-key 2280 Default 256GB
Expansion Slots	1 × M.2 M-key 2280 (Optional Storage) 1 × M.2 E-Key 2230 (Optional Wi-Fi/Bluetooth)	1 × M.2 M-key 2280 (Optional Storage) 1 × M.2 E-Key 2230 (Optional Wi-Fi/Bluetooth)	1 × M.2 M-key 2280 (Optional Storage) 1 × M.2 E-Key 2230 (Optional Wi-Fi/Bluetooth)

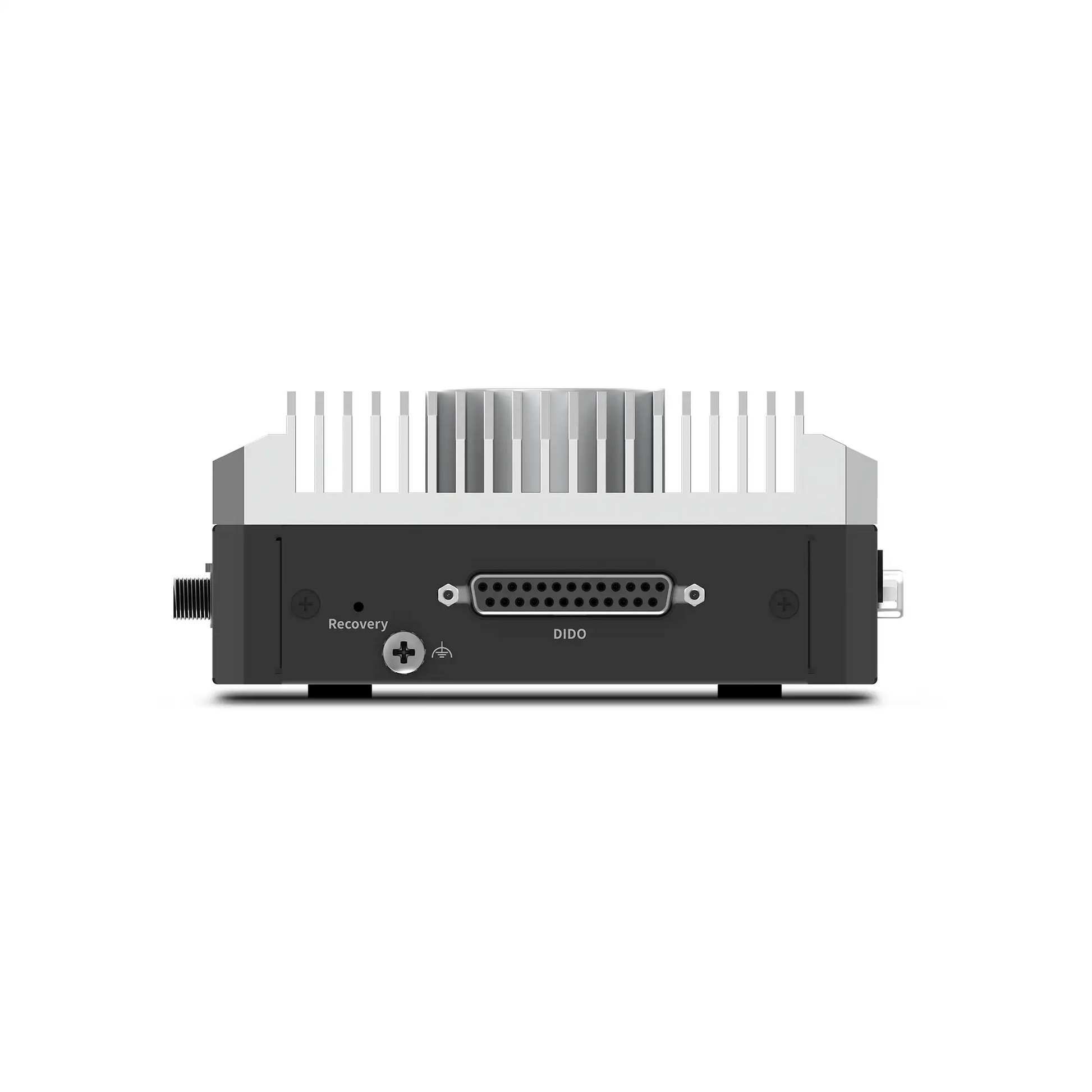

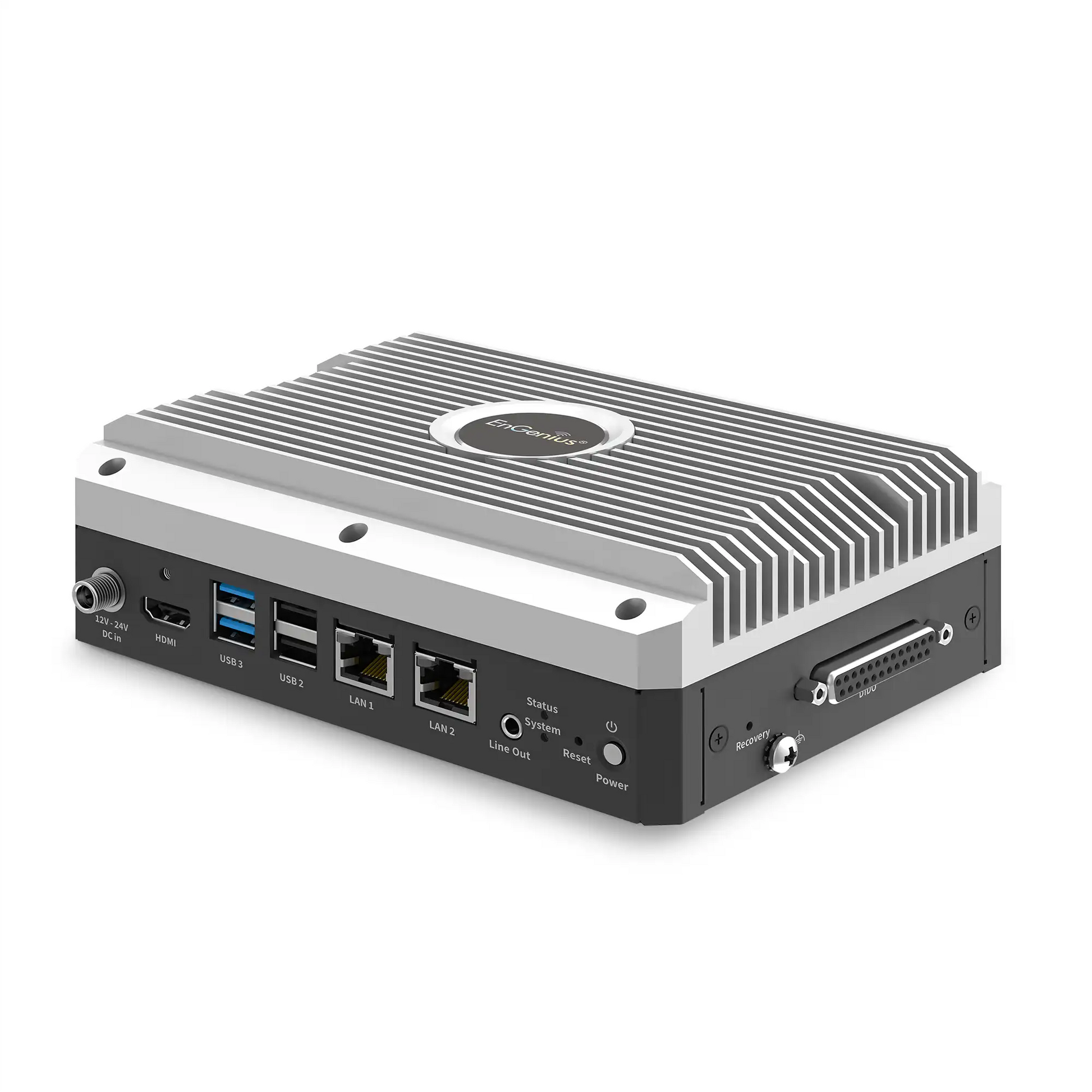

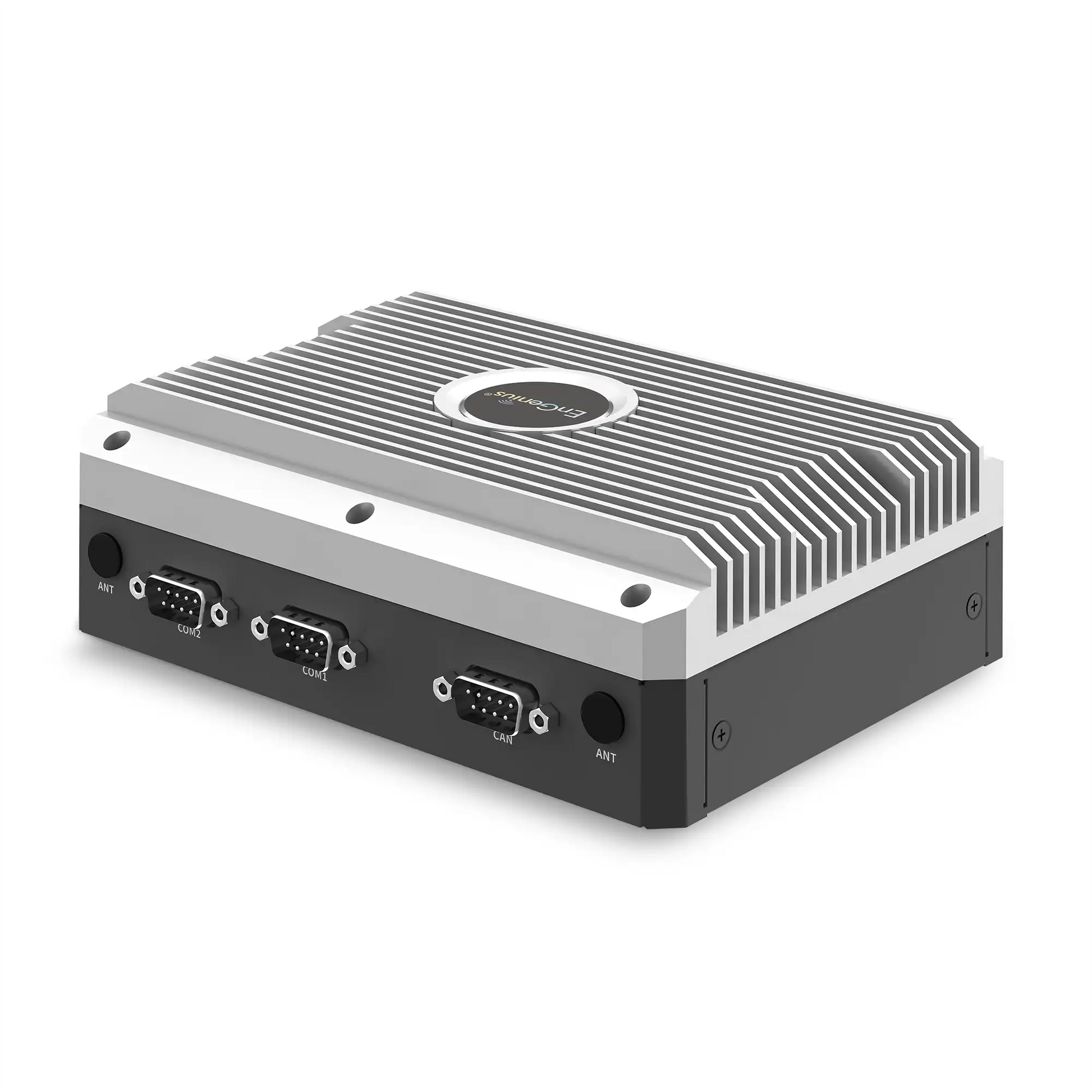

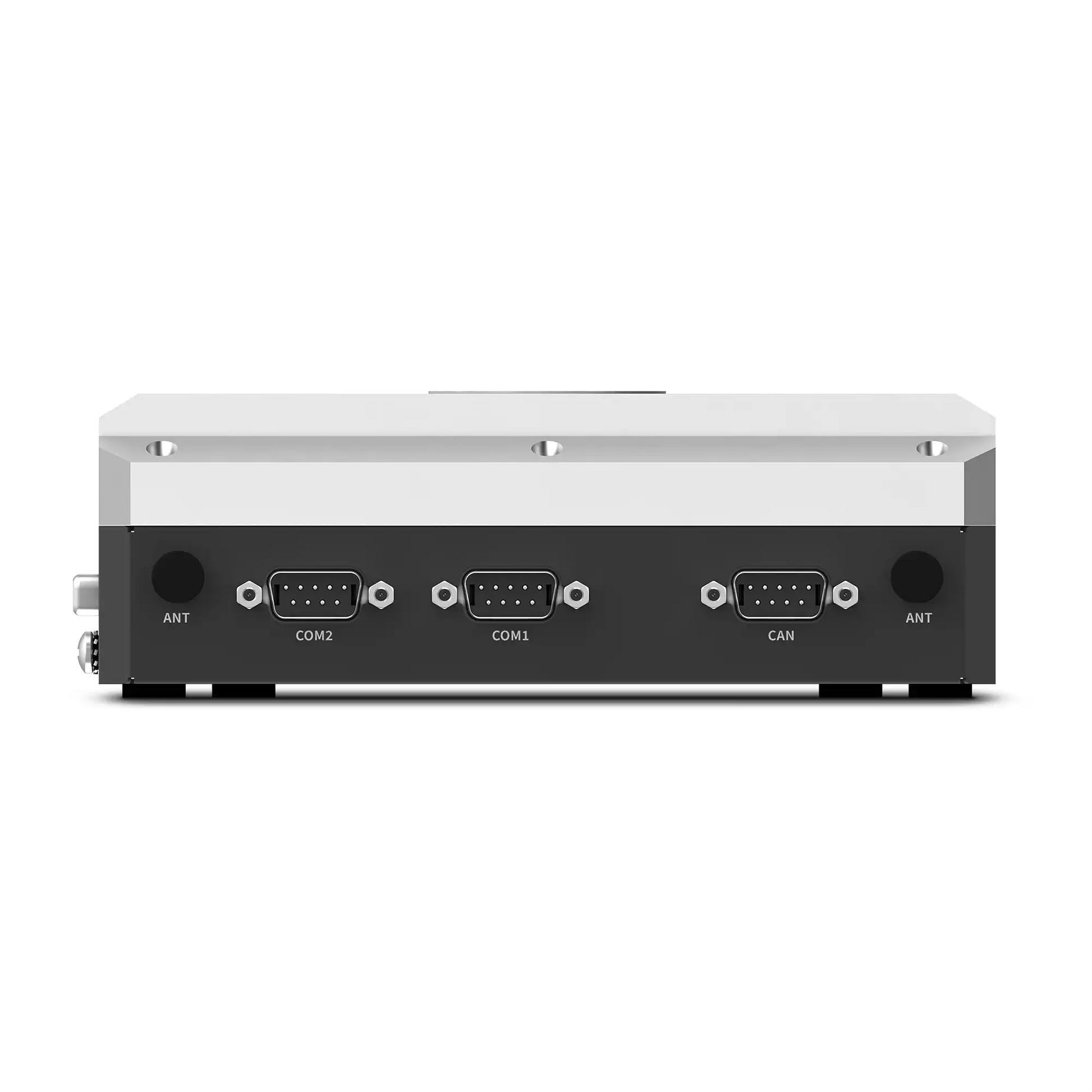

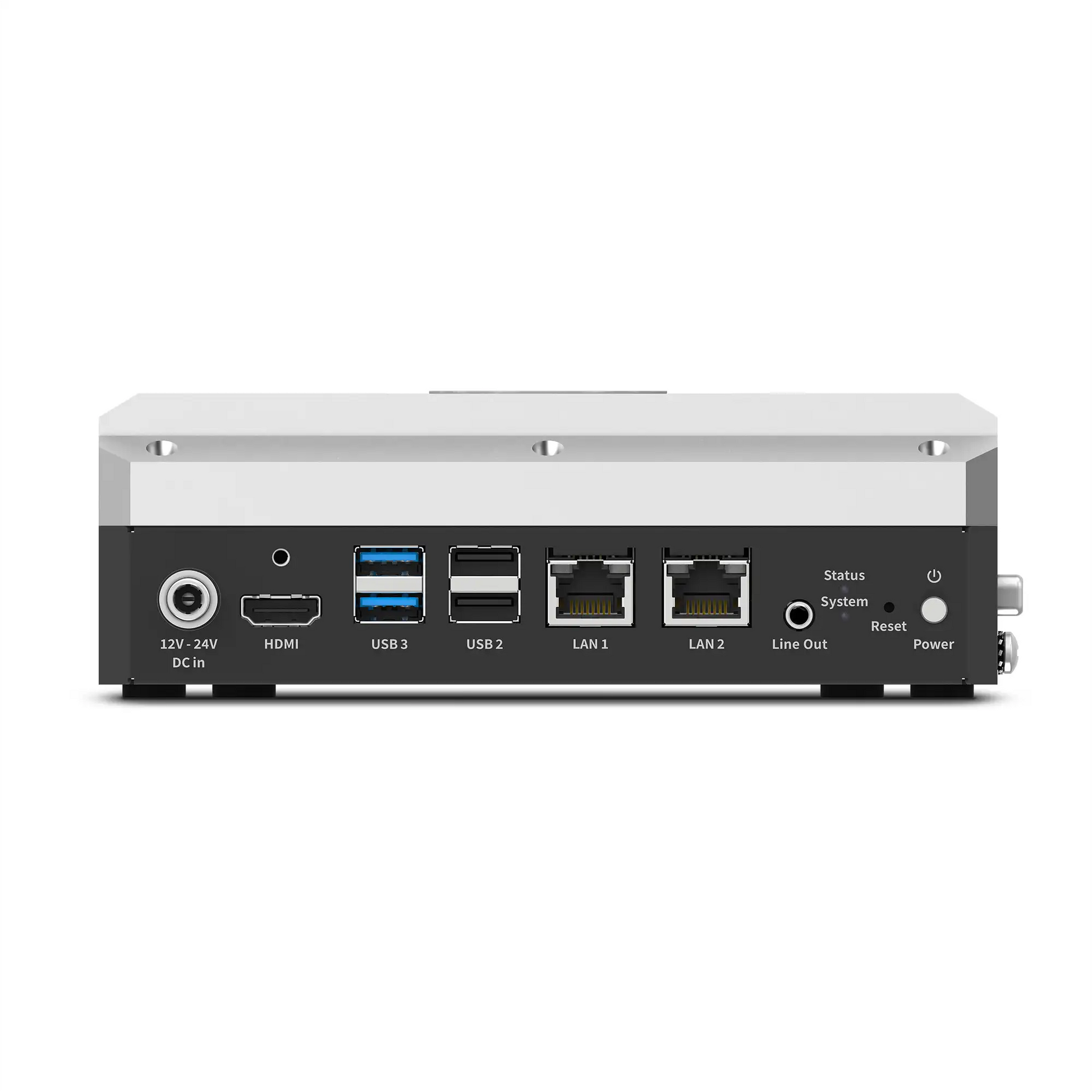

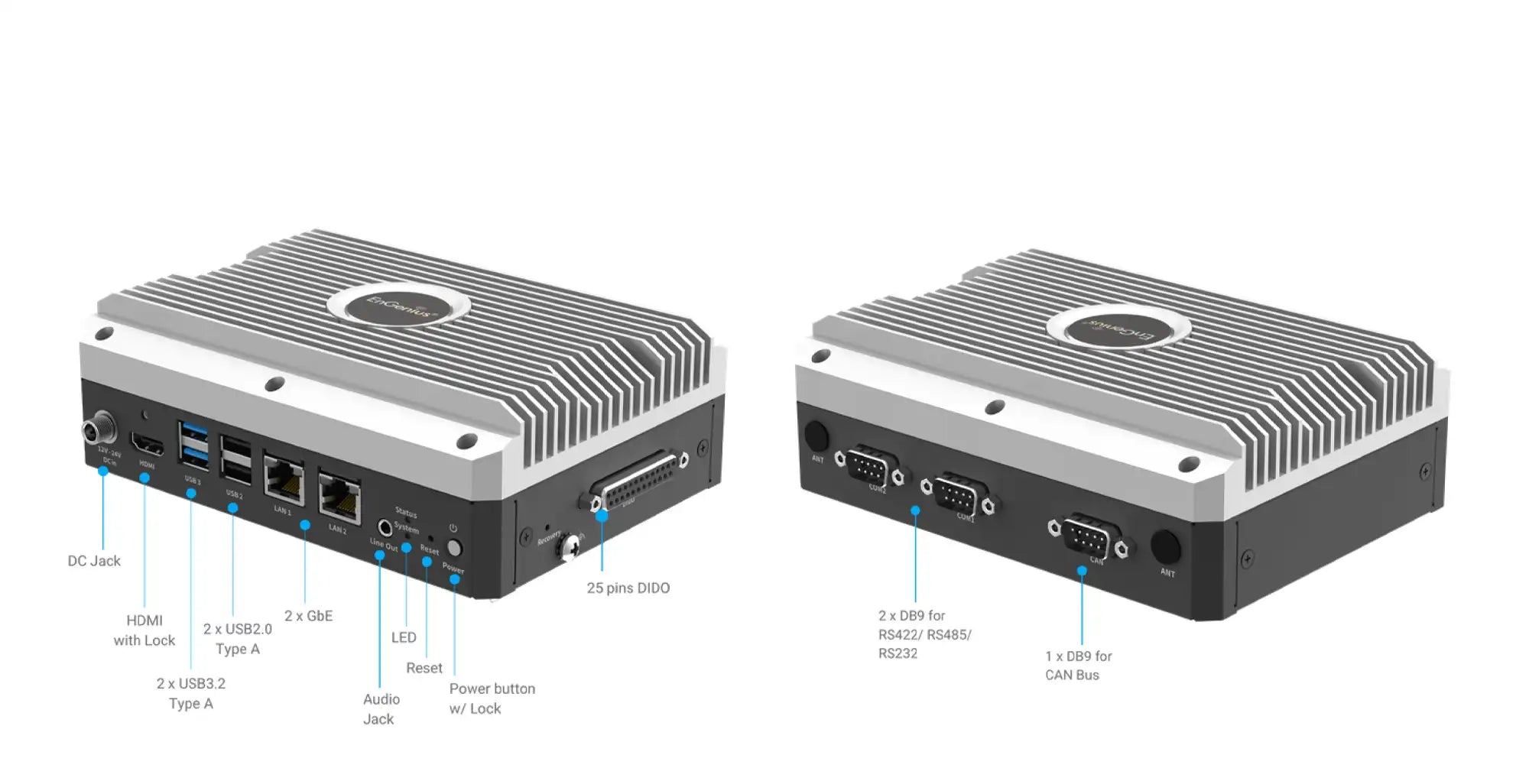

I/O	2 × GbE LAN 2 × USB 3.2 2 × USB 2.0 1× DB9 CAN Bus 1 × DB25 GPIO 2 × DB9 Serial Ports 1 × HDMI Port (Screw Lock)	2 × GbE LAN 2 × USB 3.2 2 × USB 2.0 1 × DB9 CAN Bus 1 × DB25 GPIO 2 × DB9 Serial Ports 1 × HDMI Port (Screw Lock)	2 × GbE LAN 2 × USB 3.2 2 × USB 2.0 1 × DB9 CAN Bus 1 × DB25 GPIO 2 × DB9 Serial Ports 1 × HDMI Port (Screw Lock)
Operating System	NVIDIA® Linux L4T NVIDIA® JetPack 6.2 Support	NVIDIA® Linux L4T NVIDIA® JetPack 6.2 Support	NVIDIA® Linux L4T NVIDIA® JetPack 6.2 Support
Operating Temperature	−20°C to 70°C	−20°C to 70°C	−20°C to 70°C
Dimensions	170 × 125 × 62.5 mm	170 × 125 × 62.5 mm	170 × 125 × 62.5 mm
