ENH500-AX KIT: Wi-Fi 6 Outdoor AX1200 5 GHz Point to Point Wireless Bridge Kit
ENH500-AX KIT: Wi-Fi 6 Outdoor AX1200 5 GHz Point to Point Wireless Bridge Kit
Streamlined, Long-Range CPE Expands Point-to-Point or Point-to-Multipoint Networks
The EnGenius ENH500-AX 5GHz (802.11ax) Wi-Fi 6 Outdoor 2x2 Wireless Bridge Kit features the newest generation of wireless technology delivering high density Wi-Fi performance transmissions between buildings and across large outdoor properties without the exorbitant cost of running fiber cable. With advantages over the older Wi-Fi standards, the Wi-Fi 6 bridge significantly increases throughput, supports greater efficiency, and accommodates 8k ultra HD video and heavy multi-application traffic with extended bandwidth over greater distances. The Wi-Fi 6 “invisible wire” bridge uses the latest in Wi-Fi technology to achieve longer ranges when paired with another Wi-Fi 6 bridge in a point-to-point/multiple point deployment.

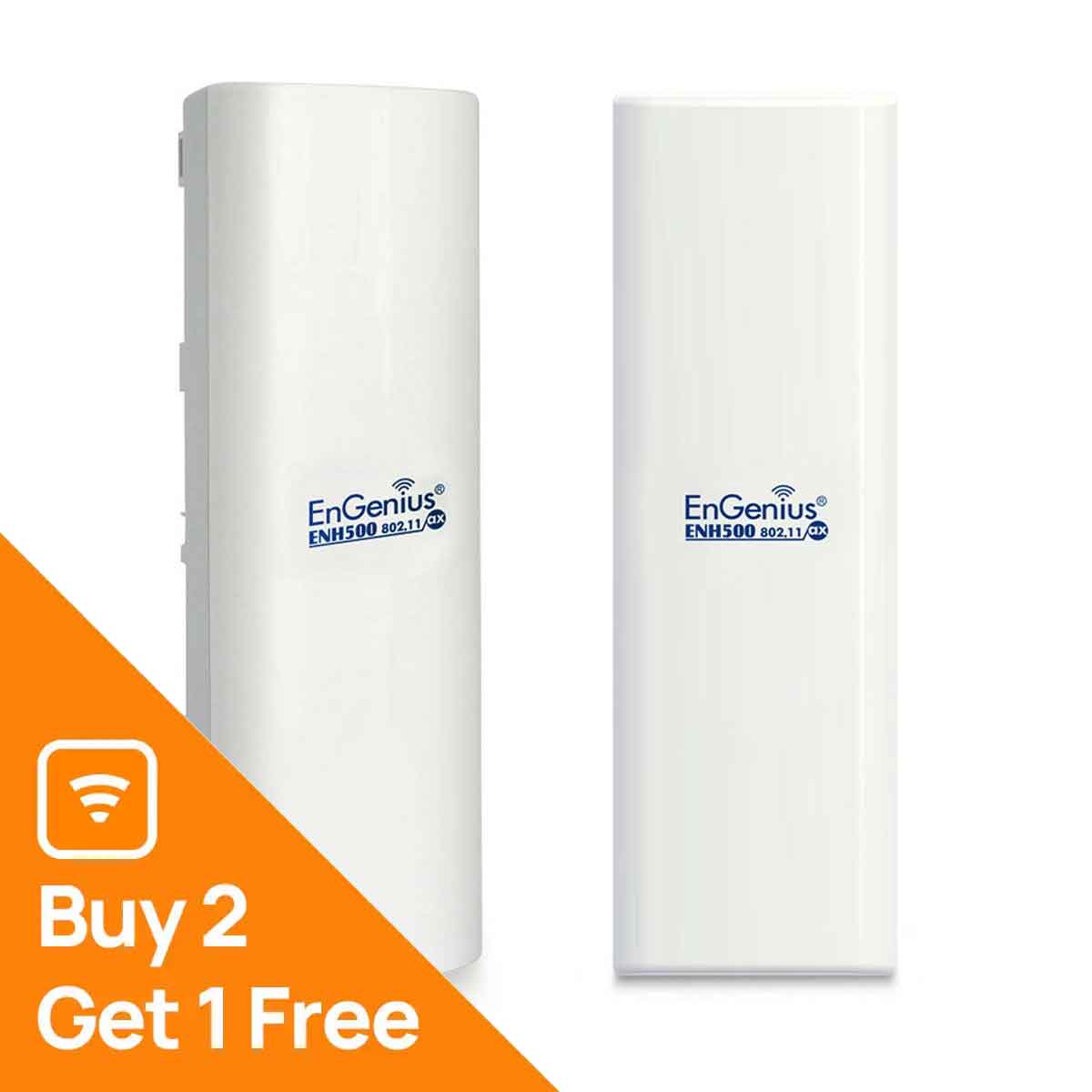

This kit includes two (2) ENH500-AX Wireless Outdoor Bridges.
- ENH500-AX Datasheet
- ENH500-AX Quick Install Guide
- ENH500-AX User Manual
- Managed Station Series Datasheet
Features
Specifications
- Wi-Fi 6 technology for high-performance and efficiency Wi-Fi in outdoor environments
- Beamforming optimizes antenna signal, reception & reliability for clients
- 2x2 directional antennas to support up to 1,200 Mbps in 5-GHz
- High 26 dBm transmit power extends Wi-Fi to yard or building-to-building
- High gain 16 dBi Integrated directional antenna extend wireless networks up to 5 miles point-to-point
- IP55-rated weatherproof & dustproof housing
- Simple, Intuitive interface via EnWiFi app for local AP configuring & monitoring
- Flexible Operation Modes: Access Point, Client Bridge, WDS Access Point, WDS Station
- Gigabit Ethernet PoE port supports flexible power options
Standards
IEEE 802.11ax on 5 GHz
(Backward compatible with 802.11b/g/n/ac)
Processor
Qualcomm® Quad-Core ARM Cortex A53s @ 1.0GHz CPU
Antenna
5 GHz (Port 1)
- Average Antenna Gain: 16 dBi
- Polarization: Linear
- Azimuth Beam Width: 18°
- Elevation Beam Width: 58°
- VSWR: 1:2.0
5 GHz (Port 2)
- Average Antenna Gain: 16 dBi
- Polarization: Linear
- Azimuth Beam Width: 18°
- Elevation Beam Width: 85°
- VSWR: 1:2.0
Physical Interface

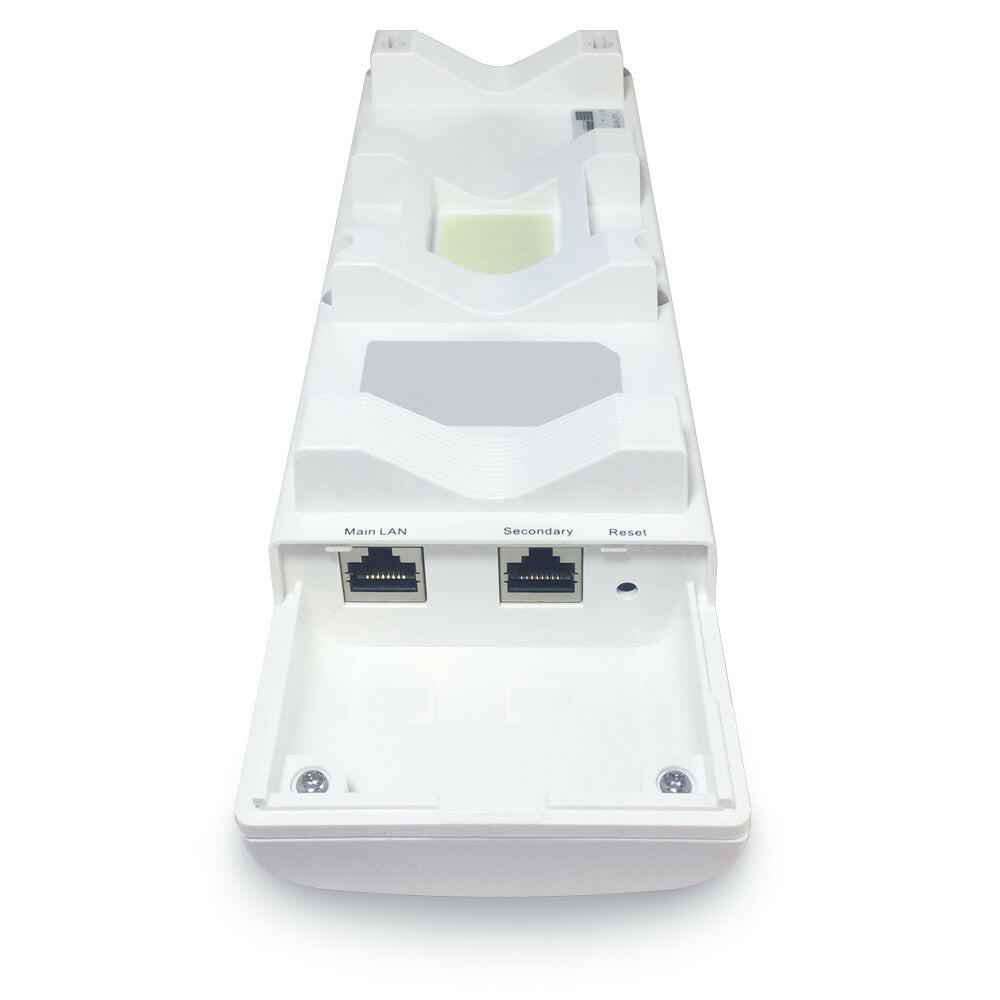

2 x 10/100/1000 BASE-T, RJ-45 Ethernet Port
1 x Reset Button
LED Indicators
1 x Power
1 x LAN 1
1 x LAN 2
1 x WLAN
1 x Signal
Power Source
EPA5006GP PoE Injector
Maximum Power Consumption
12.5W
Surge Protection
Line to Line: 1 KV
Line to Ground: 2 KV
ESD Protection
Contact: 4 KV
Air: 8 KV
Operating Frequency
Single-Radio 5 GHz
Operation Modes
Access Point, Client Bridge, WDS Access Point, WDS Station
Frequency Radio
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
Transmit Power
Up to 26 dBm on 5 GHz
Tx Beamforming (TxBF)
Increasing signal reliability and transmitting distance
Radio Chains/Spatial Stream
2x2:2
SU-MIMO
Two (2) spatial stream SU-MIMO for 5GHz up to 1,200 Mbps wireless data rate with VHT80 to a single 2x2 wireless client device under 5GHz radio
MU-MIMO
Two (2) spatial streams multiple (MU)-MIMO for up to 1,200 Mbps wireless data rate to transmit to two (2) stream MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously
Supported Data Rates (Mbps)
802.11ax:
- 5 GHz: 18 to 1200 (MCS0 to MSC11, NSS = 1 to 4)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)
802.11n: 6.5 to 300 Mbps (MCS0 to MCS15)
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
Supported Radio Technologies
802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)
802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)
Channelization
802.11ax supports high efficiency (HE) —HE 20/40/80 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU
Supported Modulation
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK
Multiple BSSID
8 SSIDs for 5GHz radios
VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Management VLAN
Spanning Tree
Supports 802.1d Spanning Tree Protocol
QoS (Quality of Service)
IEEE 802.11e compliant
WMM
SNMP
v1, v2c, v3
MIB
I/II, Private MIB
Wireless Security
WPA3 Enterprise
WPA3-PSK (SAE)
WPA3/WPA2-PSK Mixed
WPA2 Enterprise
WPA2 AES-PSK
Hide SSID in Beacons
Client Isolation
Temperature Range
Operating: -4ºF~140ºF (-20ºC~60ºC)
Storage: -40ºF~176 ºF (-40ºC~80ºC)
Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less
ENH500-AX Device
Weight: 1.34 lbs. (0.61 kg)
Length: 10.23" (260 mm)
Width: 2.16" (55 mm)
Height: 3.30" (84 mm)
Packaging
Weight: 2.35 lbs. (1.07 kg)
Length: 12.08" (307 mm)
Width: 4.96" (126 mm)
Height: 4.80" (122 mm)
Package Contents
2 - ENH500-AX Outdoor Wireless Bridge/Access Points
2 – PoE Injectors (EPA5006GR)
2 – Power Cords
4 – Pole Mount Brackets
2 – Pole Mount Straps
2 - Wall Mount Screw Kits
2 – Product Cards
Certifications
FCC
CE
IC
Warranty
1 Year
