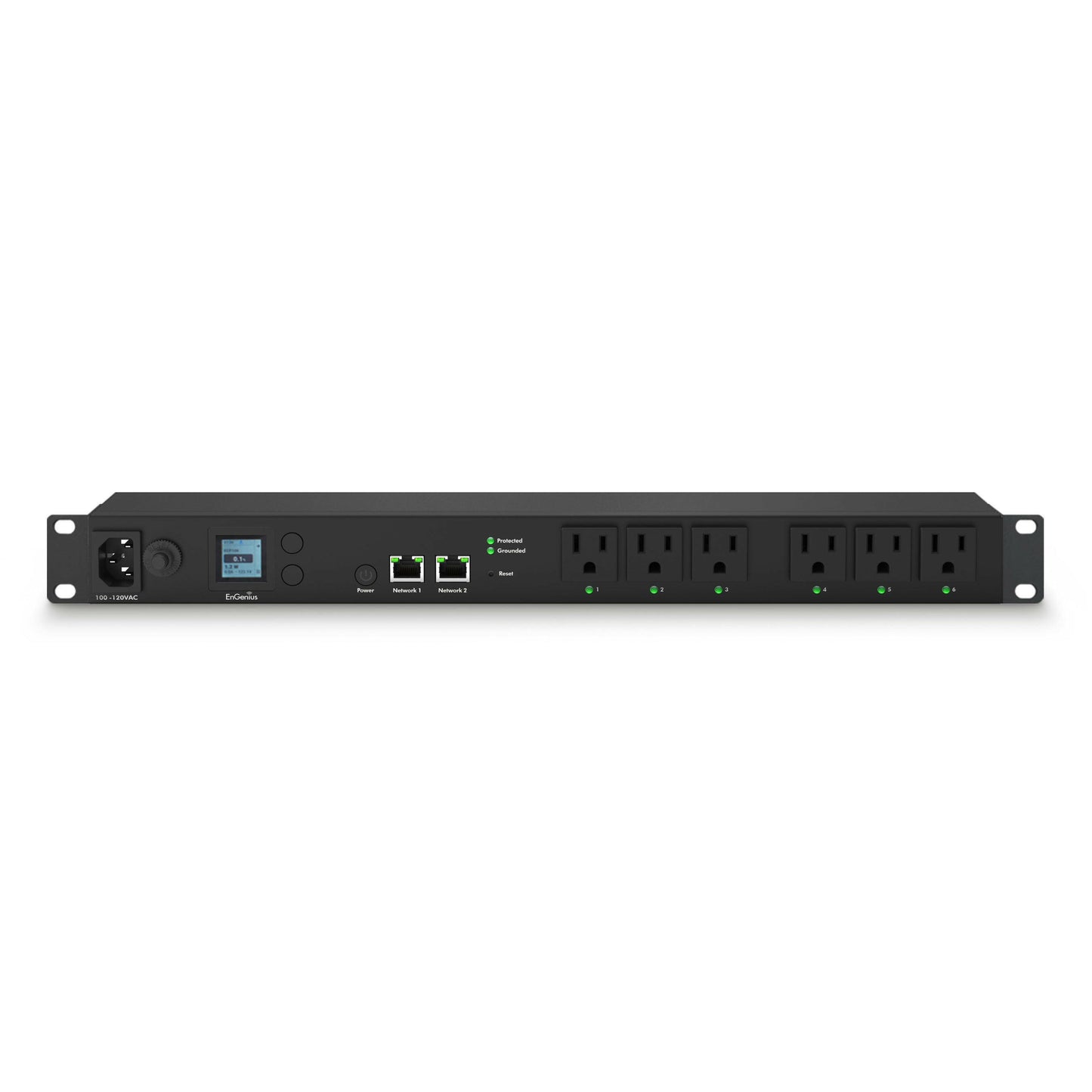

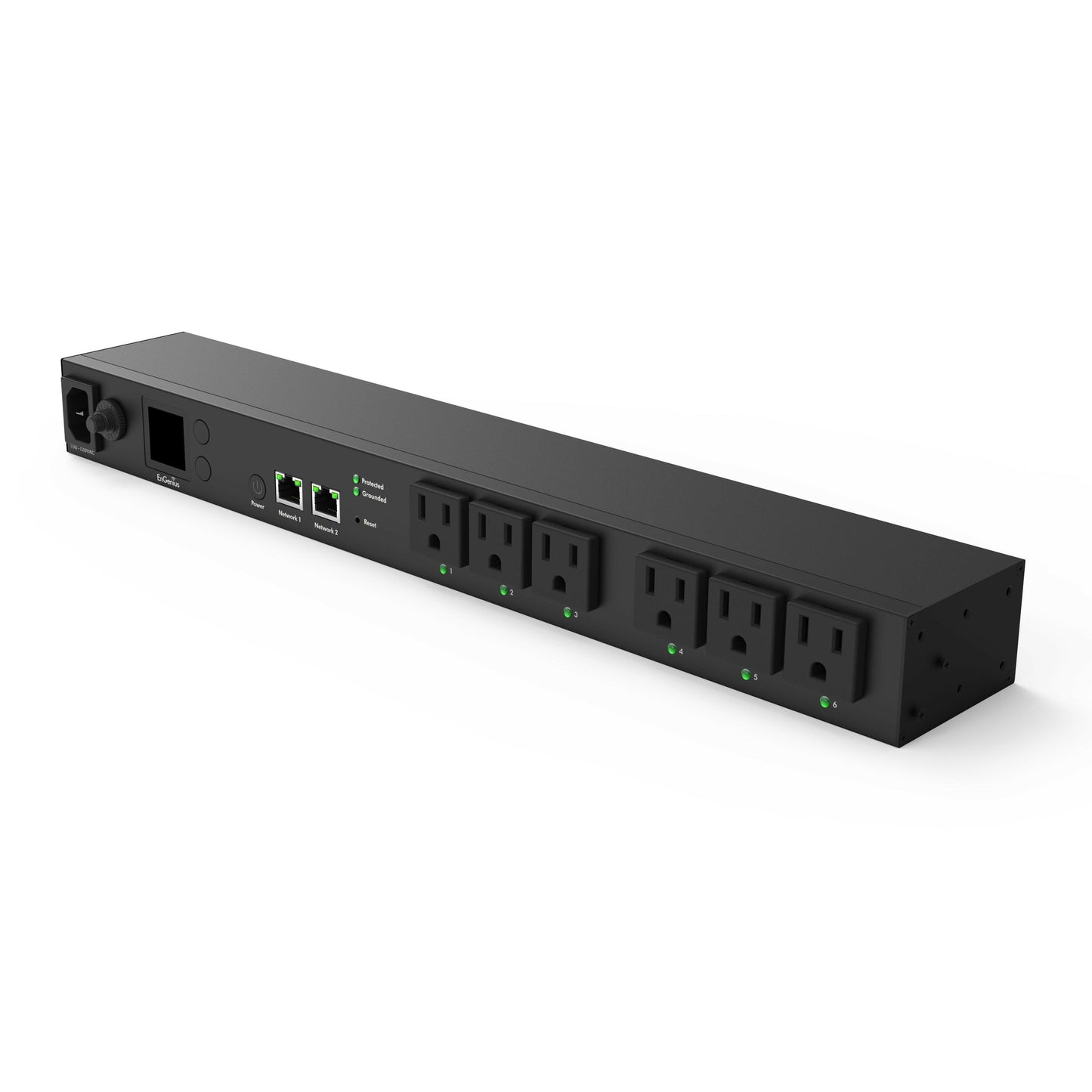

ECP106: 6 Outlet Cloud Managed Switchable Smart PDU
ECP106: 6 Outlet Cloud Managed Switchable Smart PDU
Power Management with Real-time Monitoring and Analysis
EnGenius ECP106 offers a cloud-based power management solution for data centers. It enables remote control via the EnGenius Cloud platform, efficiently managing energy consumption and providing advanced surge protection. This solution features the capability to power cycle multiple managed devices, streamlining maintenance and troubleshooting efforts.
- ECP106 Datasheet
- ECP106 Quick Start Guide
- Cloud User Manual
Shipping & Returns
Not satisfied? We allow returns within 30 days of product purchase
Management
This product is compatible with the EnGenius Cloud line of products
6-Outlets
6 individually switchable outlets for cloud-based power management solution
5-Year Warranty
Leave the worrying to us. We've got you covered on your hardware purchase.
Features
Specifications
- Built In Surge Protection and Overcurrent Protection
- 6 individually switchable outlets
- Real-Time power consumption information, alerts, and controls from anywhere with EnGenius Cloud
- 1.3-inch LCD display for in-site information and controls
- Network self-healing when devices go offline
- Local and cloud management with power consumption reports, by PDU or by outlet
- Flexible mounting capabilities for 1U, 0U, wall or under-desk mounting
- 15A circuit breaker for overload protection
- Fireproof MOV for surge protection
- Surge Protection certified with UL-1449
- RESTFUL API and SNMP v1, 2c, and v3 support
- 6 NEMA 5-15R Outlets
- Two Gigabit Ethernet ports
Input
Voltage: 100-120V
Frequency: 50/60Hz
Derated Input Current: 12A
Power Input Plug: SJT 14AWG
Power Cord Type: NEMA-5-15P
Power Cord Length: 6 foot
LED Indicators
1 x Outlet Power Switch
2 x LAN
1 x Outlet Power Indicator
1 x Grounded Indicator
1 x SPD Indicator
Output
Voltage: 100-120V
Frequency: 50/60Hz
Derated Input Current: 12A
Outlet Type: NEMA-5-15R
Number of Outlets: 6
Overload Protection: 15A
Max Power Consumption: 1800 for 120V
Physical Interface
2 x 10/100/1000/ BASE-T, RJ-45 Ethernet Port
IEC-C13 Inlet
Reset Button
15A Circuit Breaker
Temperature Range
Operating: 32º~+122ºF/0ºC~+50ºC
Storage: -22Fº~+158ºF/-30ºC~+70ºC
Humidity (non-condensing)
Storage: 95% or less
Surge Protection
Yes
ESD Protection
Yes
ECP106 Device
Weight: 2.28 lbs. (1.035 kg)
Width: 1.73” (44 mm)
Length: 17.32” (440 mm)
Height” 2.75” (70 mm)
Enclosure material
AL6063
Package Contents
1 x ECP106 PDU
1 x Power Cord
1 x Rack Ear
1 x Rack Screw Set
1 x Quick Installation Guide
Certifications
FCC
IC
WEEE
RoHS
UL1449 type 5
UL62368-1
CSA22.2
Warranty
5 Years
