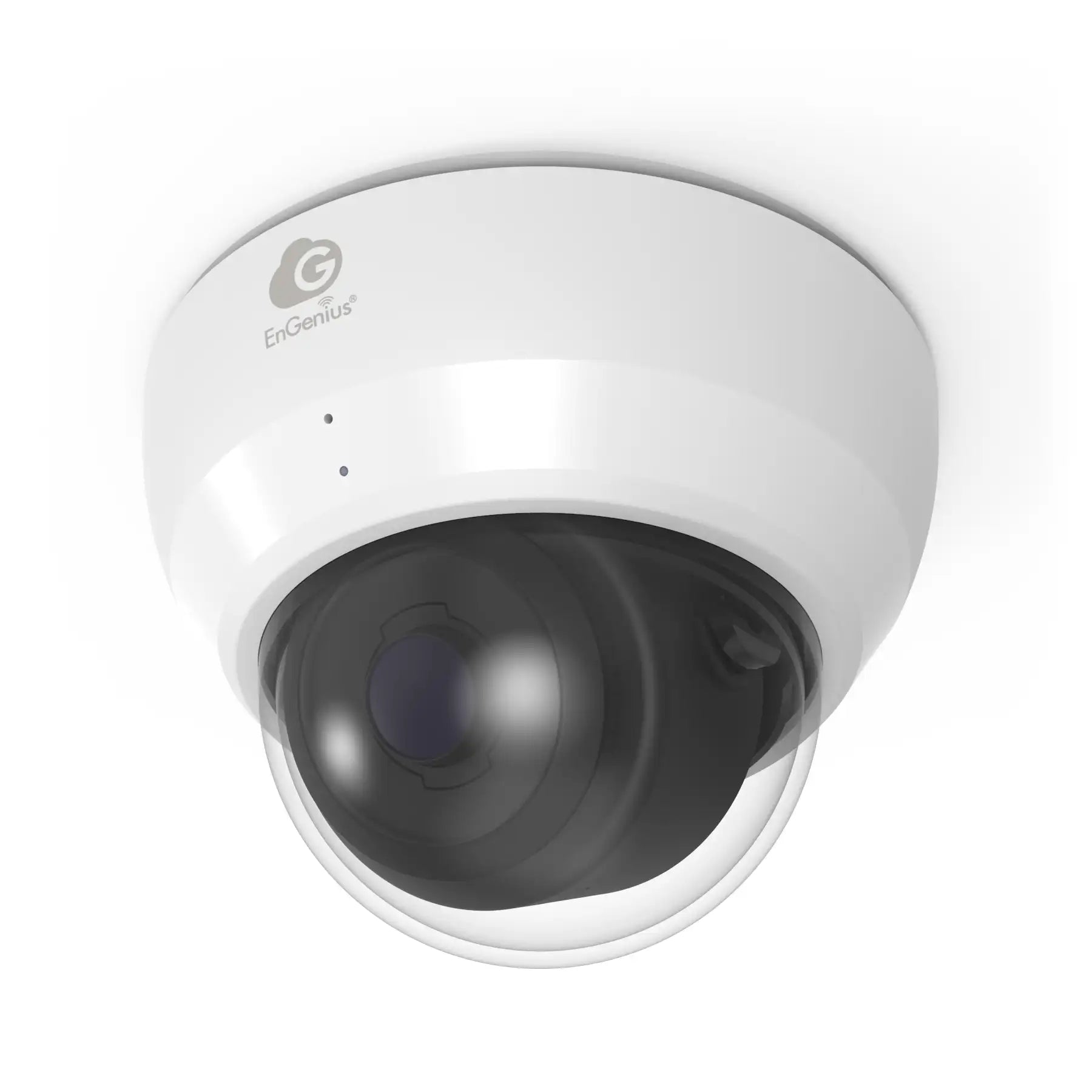

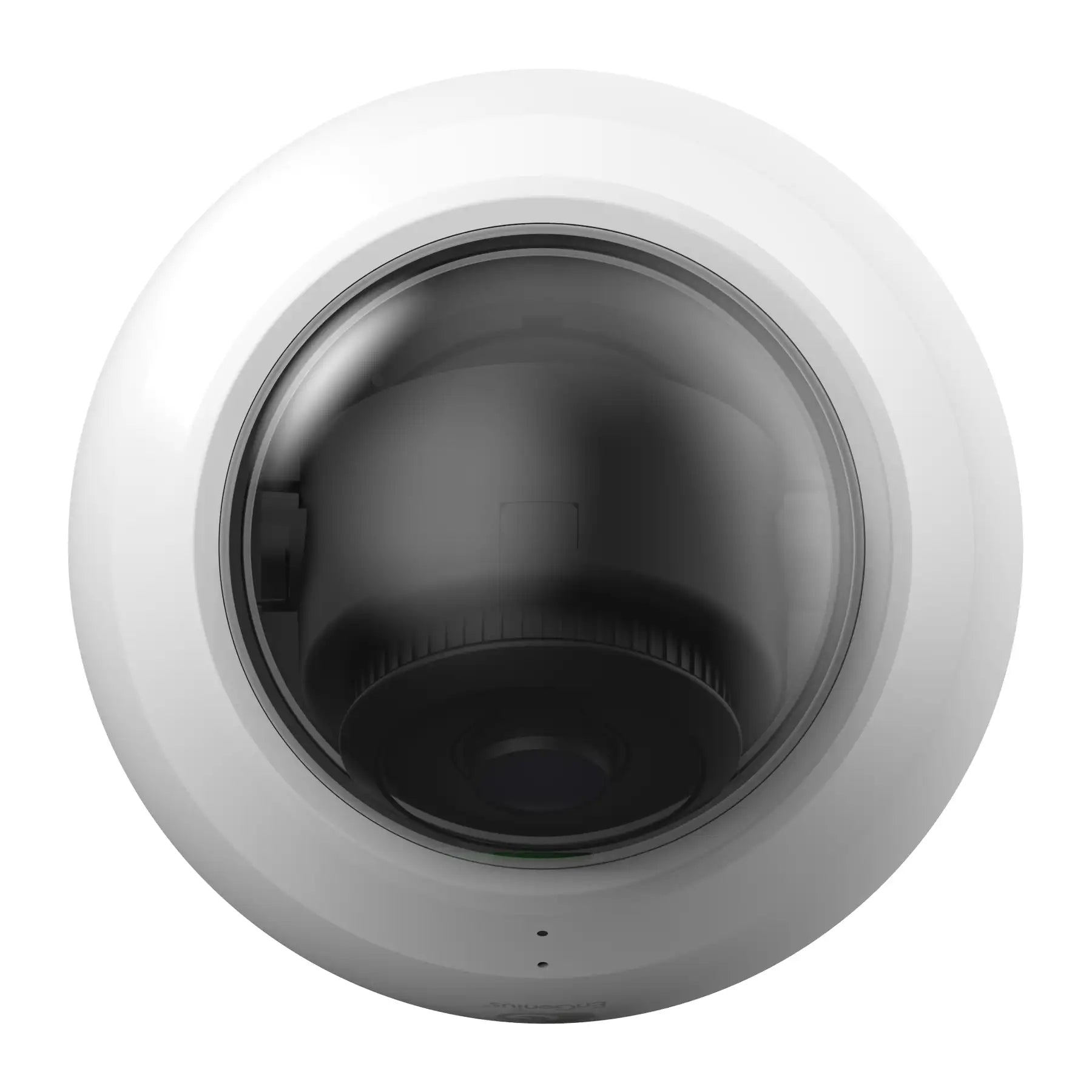

• Cloud Managed AI 8MP dome camera is accessible anytime, anywhere

• 8MP HDR clarity with Sony Starvis sensor delivers clear day-and-night visuals

• 3x motorized zoom and 30m IR long-distance coverage for versatile environments

• 24/7 Continuous event recording, with convenient 512GB built-in storage

• AES-256 encryption secures microSD recordings, keeping them protected from unauthorized access

• Indoor/outdoor durable IP67 weatherproof and IK10 vandal-resistant build

• AI Cloud analytics detect complex behaviors and scenarios in real time

• Natural language search with multimodal AI/LLMs simplifies investigations

• Recognizes multiple faces at once, even in crowded spaces, where most systems track only one

• Visual Timeline Tracking lets you follow a person’s path across sites, review snapshots instantly, and export complete reports in minutes

• Cloud-AI alerts instantly notify you of critical events like fights, bullying, accidents, and weapon detection

• EnGenius SD-Alerts: Define your own alerts, like spotting missing safety gear or vehicles in restricted zones, for tailored real-world protection

• Edge AI processes video in real time, sending lightweight metadata to the cloud for faster, more efficient streaming

• Integrated storage enables video retention and instant access to footage, eliminating the need for an NVR

• Optional AI-Powered NVS: RAID-backed redundancy boosts and centralizes existing camera systems with advanced AI

• Advanced surveillance for student housing, senior living, multi-family units, hospitality, and assisted living

CPU
Ambarella cv75

Flash
8GB EMMC

Memory
4GB DDR4

Image Sensor
1 / 2.8” Sony Starvis CMOS

Sensor Resolution
8MP 3840x2160 (16:9)

Lens Type
Varifocal 3x motorized zoom

Focal Length
3.2mm~10.5mm

Aperture
F1.6~F3.3

Iris
P-Iris

Field of View
Horizontal 108.1° ~ 30.3°
Vertical 56.3° ~ 17.1°
Diagonal 130.9° ~ 34.8°

Sensor Movement
Pan: 0° ~ 350°
Tilt: 0° ~ 60°
Roll: 0° ~ 350°

Shutter Speed
1/32,000 ~ 1/30

Day/Night
IR-Cut filter for day and night function

IR Cut Filter
Yes

IR Range
30m / 98ft

Minimum Illumination
0.05 Lux @ F1.6 (Color)
0.01 Lux @ F1.6 (B&W)
0 Lux with IR illumination on

Onboard Storage
Capacity: Pre-installed 512GB MicroSD card
Recording source: Both video and audio (optional for audio)
Retention Method: 24/7 seamless and auto recycling
Retention Days: 30 days with ABR

Compression
H.265, H.264

Frame Rate
20FPS, max 30 FPS

Video Quality
Optional 2.5Mbps, 4.5Mbps(default), 6Mbps

Video Processing
AE, AWB, AGC, BLC, HLC, WDR, HDR (120db), 3DNR, Privacy Mask, OSD, Video Orientation, AF (Auto focus and manually), Change FoV

Audio
Supported

Audio Capacity
One-way audio

Interface
Built-in microphone

Effective Range
5m / 15ft

Power Input

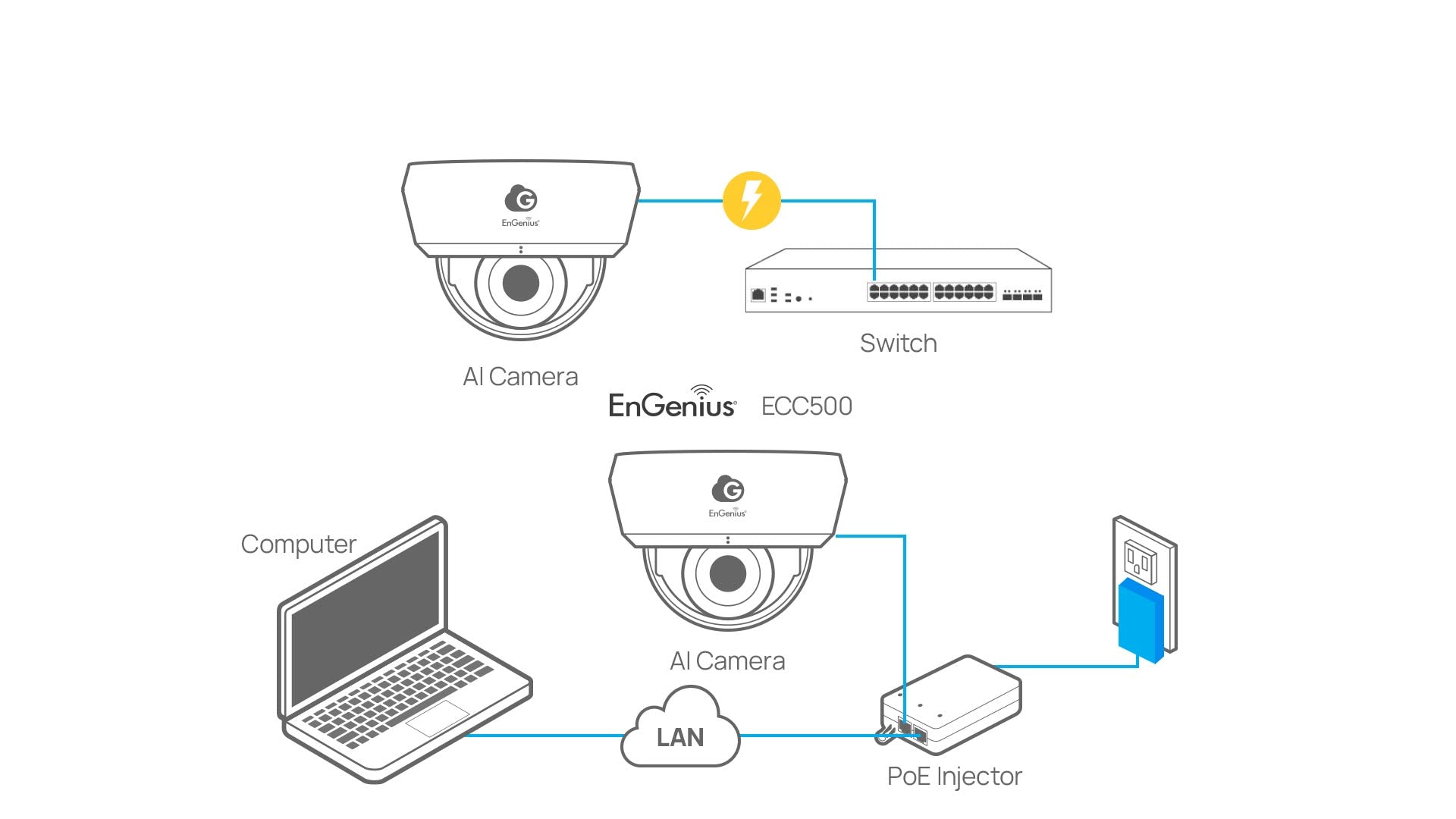

802.3at PoE+

Power Consumption
Max. 16.1W

Weatherproofing
IP67

Resistance
IK10

Connectivity
RJ-45 cable connector for network/PoE connection
10/100/1000 Mbps

RTSP
RTSP 1.0
RFC 2326
Max concurrent streams: 2

Reset Button
Supported
Support deletes all recordings

Remote Reboot
Supported

LED Indicator
System and network status
LED blinking

People Analytics
People detection
People tracking
History search
People counting

Vehicle Analytics
Vehicle detection
Vehicle tracking
History search
Vehicle counting

Alert
Tampering detection
Restricted area detection
Line-crossing detection

Advanced Image Processing
Advanced Intelligence
Cloud Management
Facial Recognition (Face Tracking, Image Search, POI Alerts)
EnGenius Cloud AI Integration

Operating Temperature
-40°C ~ 50°C (-22°F ~ 122°F) (IR off)
-40°C ~ 60°C (-22°F ~ 140°F) (IR on)

Humidity (non-condensing)
5 to 90% non-condensing

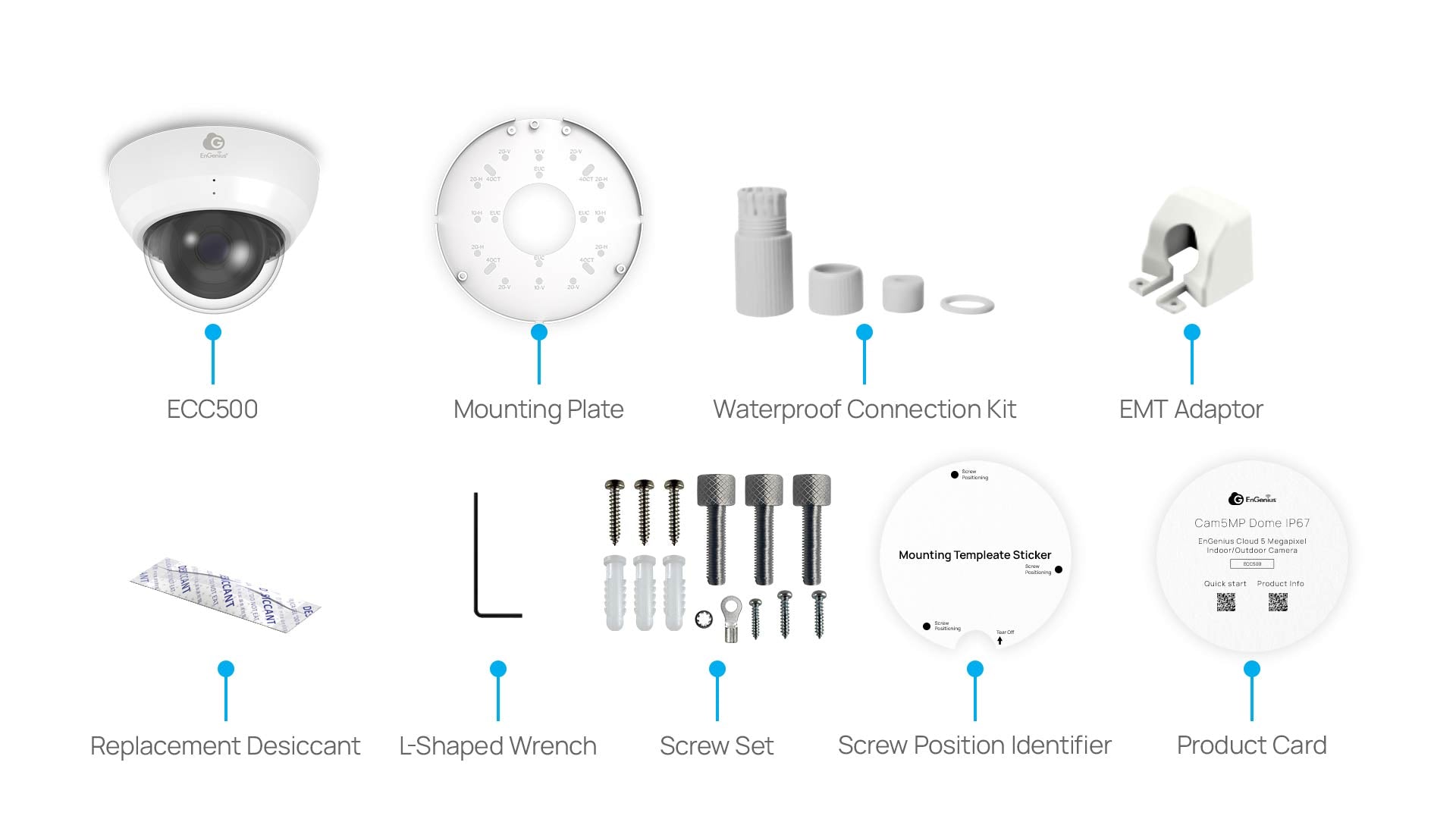

Package Contents
ECC500 AI Network Camera x 1
Mounting Plate x 1

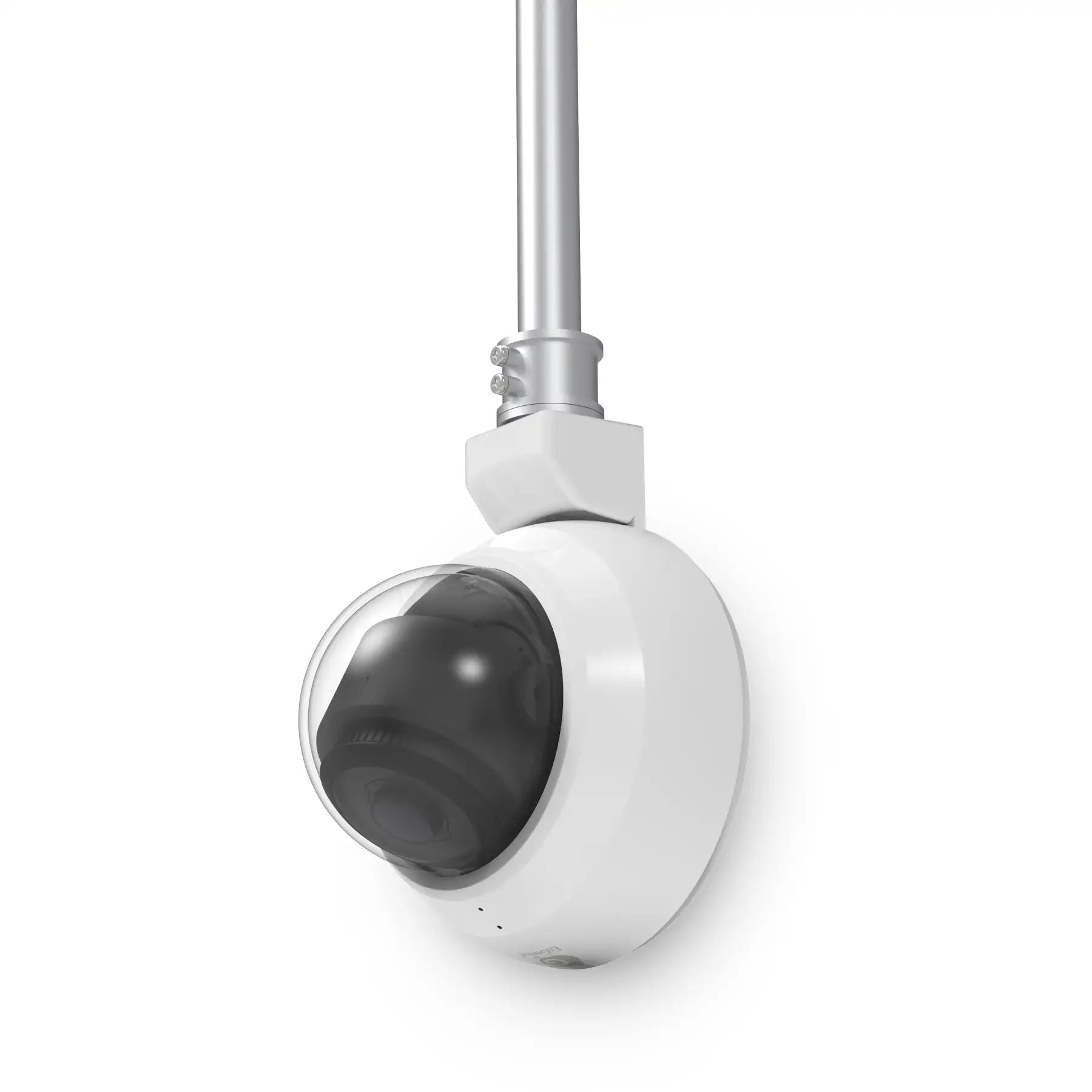

EMT Adaptor x 1
EMT Adaptor Screw x 2
Ground Screw Kit x 1
Mounting Plate Screw x 3
Replacement Desiccant x 1
L-Shaped Wrench x 1
Mounting Kit x 1
Product Card x 1

Device
Weight: 1.63 lbs. (.74 kg)
Ø: 145mm / 5.71in, H: 105mm / 4.14in

Packaging
Weight: 2.84lbs (1.296kg)
Width: 9.4“(239mm)
Length: 8.19” (208mm)
Height: 5.75” (146mm)

Warranty
5 years

Certifications
CE
FCC

Compliance
TAA
NDAA
