• Cloud Managed AI security camera bullet is accessible anytime from anywhere

• Clear day-and-night visuals with 5MP HDR Clarity, powered by a Sony Starvis sensor

• 103° wide view with ultra-long 30m IR distance coverage for versatile environments

• 24/7 Continuous event recording, with convenient 256GB built-in storage

• Indoor/outdoor low-profile durable IP66 weatherproof build

• Natural language search via advanced AI multimodal large language models (LLMs)

• Cloud-AI alerts notify you of events like bullying, accidents, and weapon detection

• Cloud Edge AI Security Camera with NPU for real-time detection, lightweight metadata

• Eliminate NVRs: Integrated storage for better video retention and instant access

• Optional AI-Powered NVS: RAID-backed redundancy enhances camera systems with AI

• Surveillance AI cameras for student housing, senior living, multi-family units, hospitality, and assisted living

CPU
InnoFusion C5-30Q

Flash
128MB NAND

Memory
2568MB DDR3

Image Sensor
1 / 2.8” Sony Starvis CMOS

Sensor Resolution
5MP 2592 x 1944 (4:3)

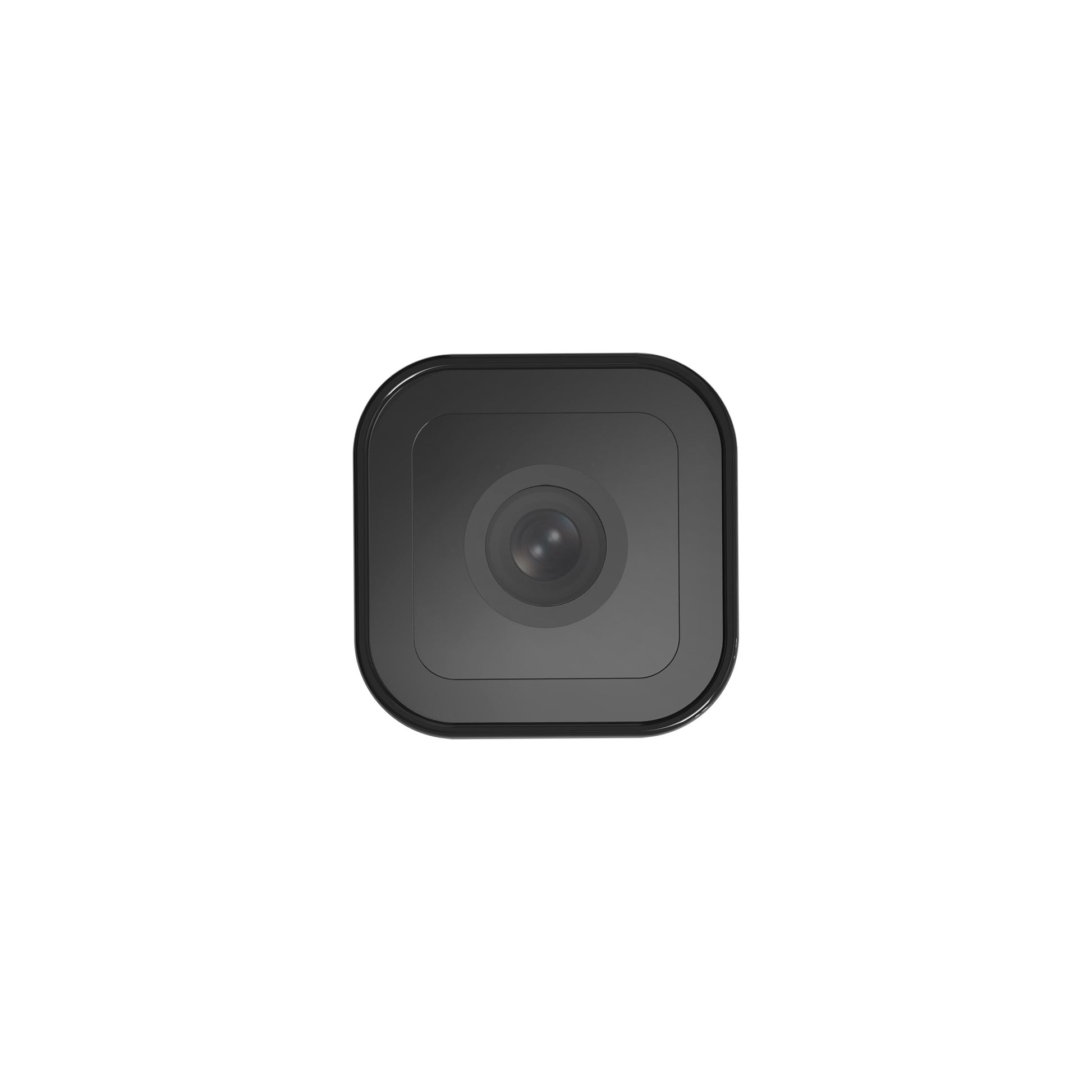

Lens Type
Fixed

Focal Length
4mm

Aperture
F2.0

Iris
Fixed

Field of View (after LDC2)
Horizontal: 78°
Vertical: 56°
Diagonal: 103°

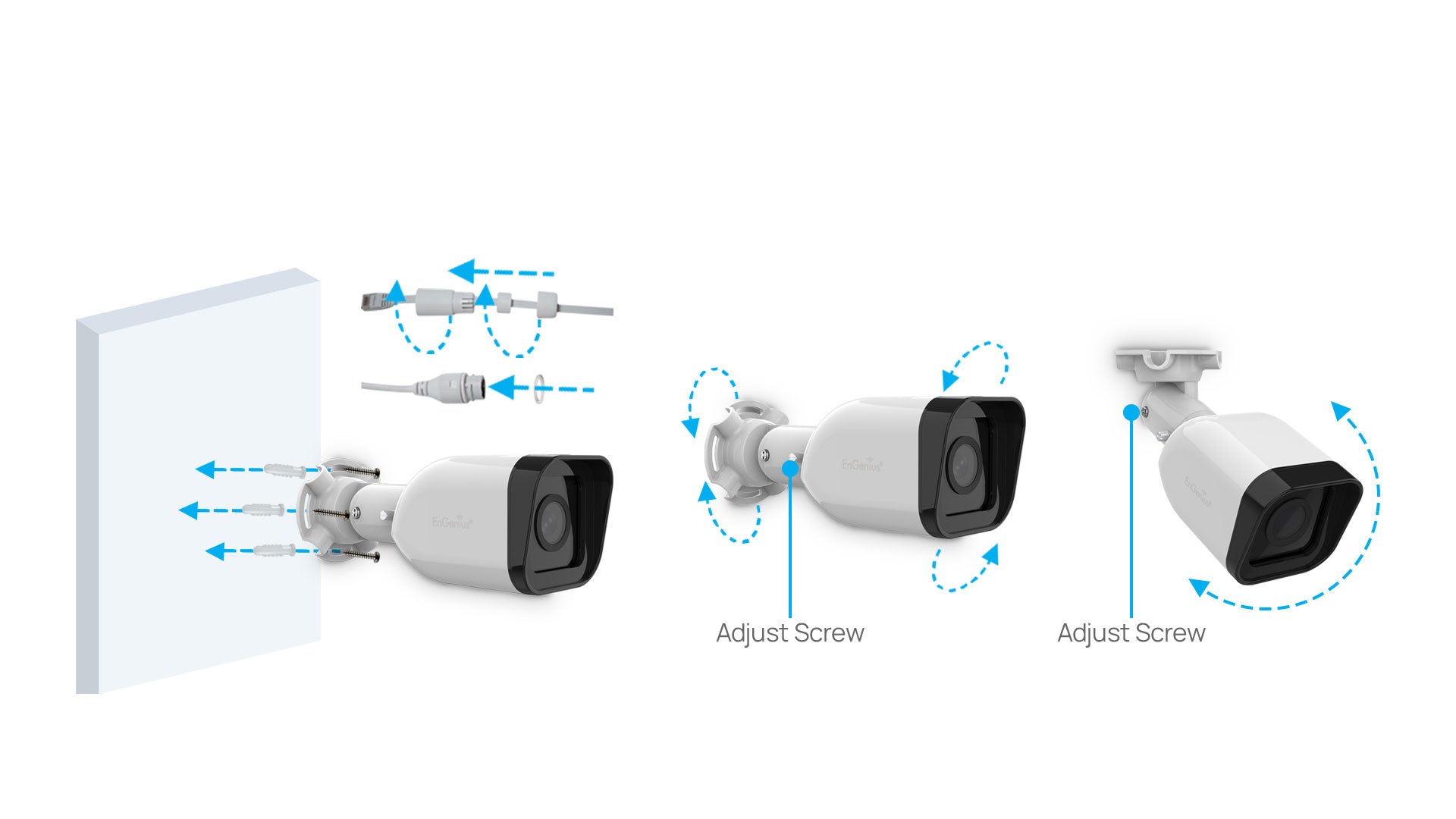

Sensor Movement
Tilt: 0°~90°
Rotation: 0°~180°

Shutter Speed
1 / 7.5 sec. to 1 / 10,000 sec.

Day/Night
IR-Cut filter for day and night function

IR Cut Filter
Yes

IR Range
30m / 98ft

Minimum Illumination
0.05 lux @ F2.0 (Color)
0.01 lux @ F2.0 (B&W)

Onboard Storage
Capacity: Built-in EMMC 256GB
Recording source: video
Retention Method: 24/7 seamless and auto recycling
Retention Days: 20 days based on video bit rate

Compression
H.265, H.264

Frame Rate
20FPS, max 30 FPS

Video Quality
Optional 768Kbps, 1Mbps(default), 2.5Mbps

Video Processing
AE, AWB, AGC, BLC, HLC, WDR, HDR, 3DNR, Privacy Mask, OSD, Video Orientation

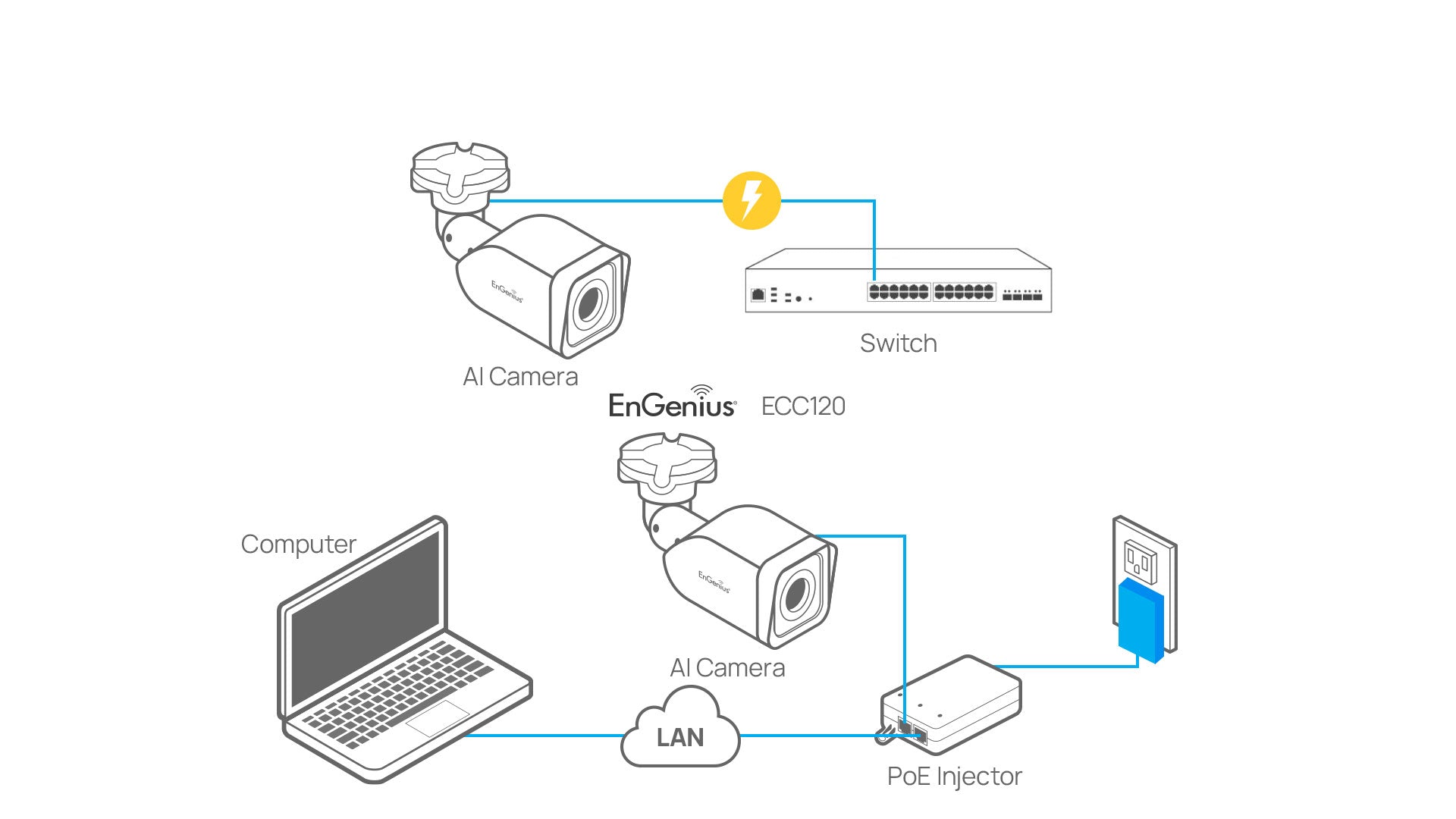

Power Input
With IR: IEEE 802.3af Type 1 PoE Class 3
Without IR: IEEE 802.3af Type 1 PoE Class 3

Power Consumption
With IR: 37-57V, 0.14-0.09A, 7.5W
Without IR: 37-57V, 0.08-0.05A, 2.9W

Weatherproofing
IP66

Connectivity
RJ-45 cable connector for network/PoE connection
10/100 Mbps

RTSP
RTSP 1.0
RFC 2326
Max concurrent streams: 2

Reset Button
Supported
Support deletes all recordings

Remote Reboot
Supported

LED Indicator
System and network status
LED blinking

People Analytics
People detection
People tracking
History search
People counting

Vehicle Analytics
Vehicle detection
Vehicle tracking
History search
Vehicle counting

Alert
Tampering detection
Restricted area detection
Line-crossing detection

Advanced Image Processing
Image Orientation
Image Brightness and Contrast
HDR
3DNR
Privacy mask

Operating Temperature
-20°C to 50°C / -4°F to 122°F

Humidity (non-condensing)
98% non-condensing

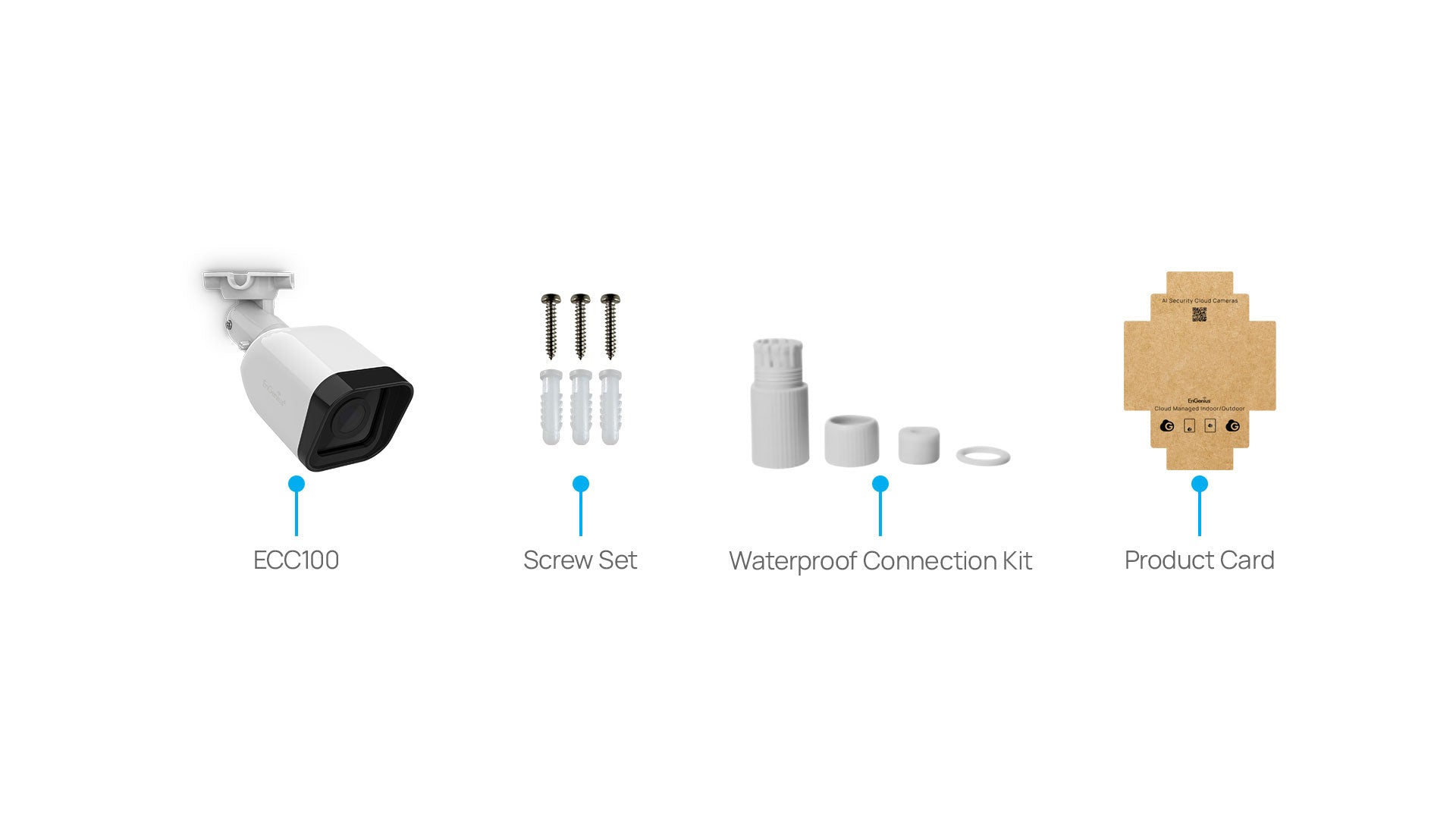

Package Contents
ECC120 AI Network Camera x 1
Mounting Kit x 1
Product Card x 1

Device Dimensions & Weights
Weight: 0.73lbs (0.334kg)
Width: 3“ (76.21mm)
Length: 8” (203.14mm)
Height: 3” (76.21mm)

Packaging
Weight: 1.32lbs (0.6kg)
Width: 10.2“ (259mm)
Length: 6.18” (157mm)
Height: 3.9” (99mm)

Warranty
5 years

Certifications
CE
FCC

Compliance
TAA
NDAA
