ECS5512: Conmutador de 10 Gigabits de 8 puertos administrado en la nube con 4 puertos SFP+
Earn [points_amount] when you buy this item.
Earn [points_amount] when you buy this item.
ECS5512: Conmutador de 10 Gigabits de 8 puertos administrado en la nube con 4 puertos SFP+
AI Cloud and Edge Analytics enable advanced outdoor surveillance

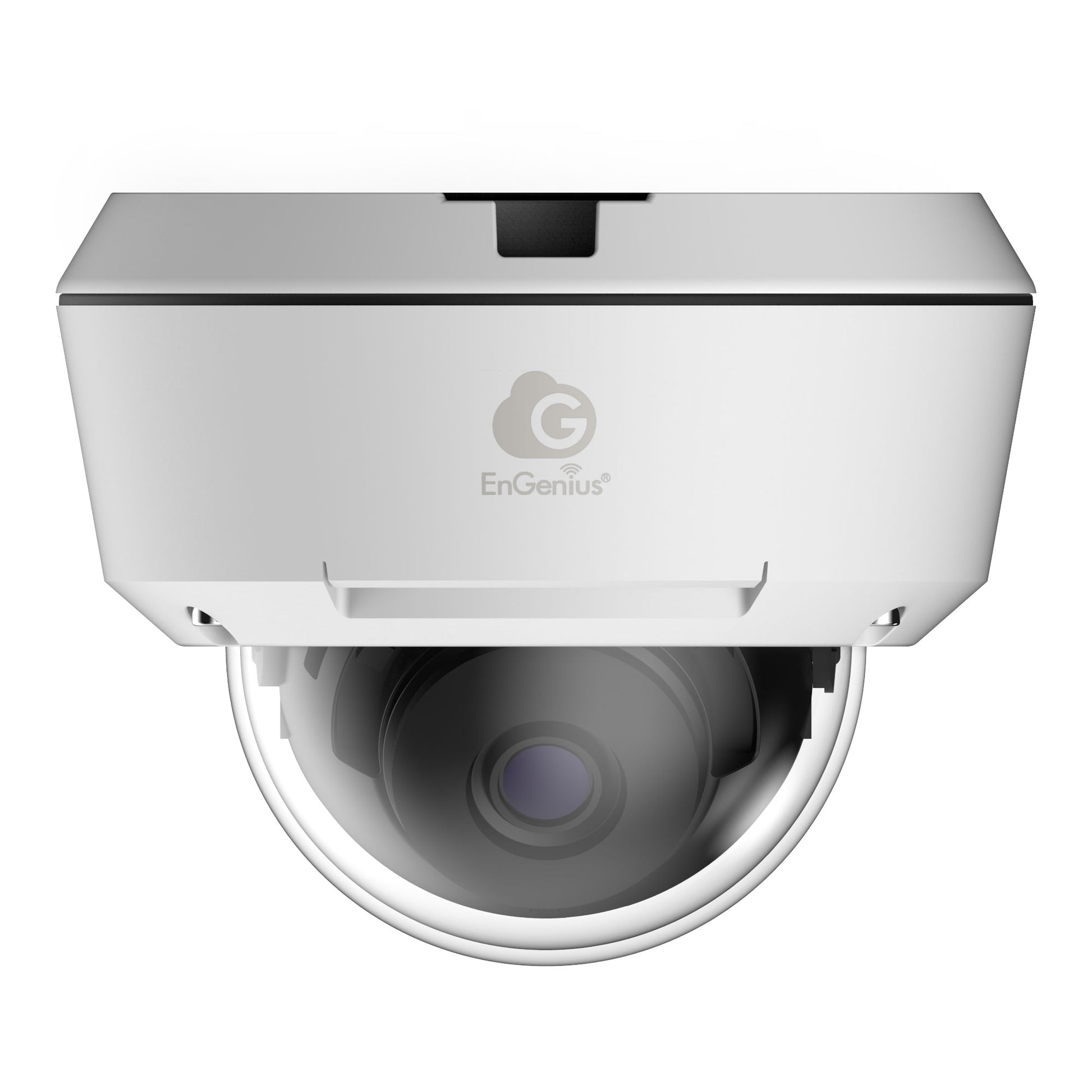

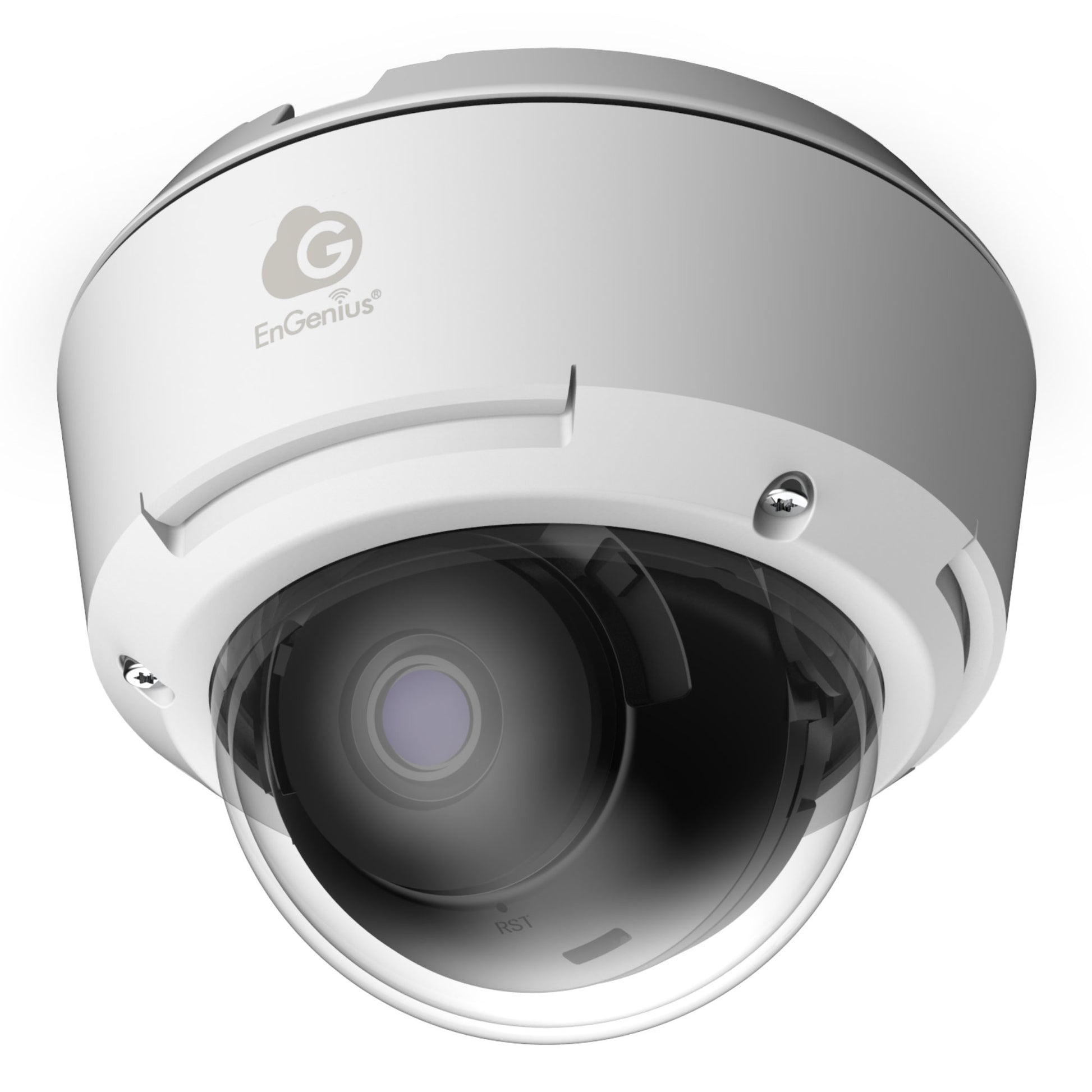

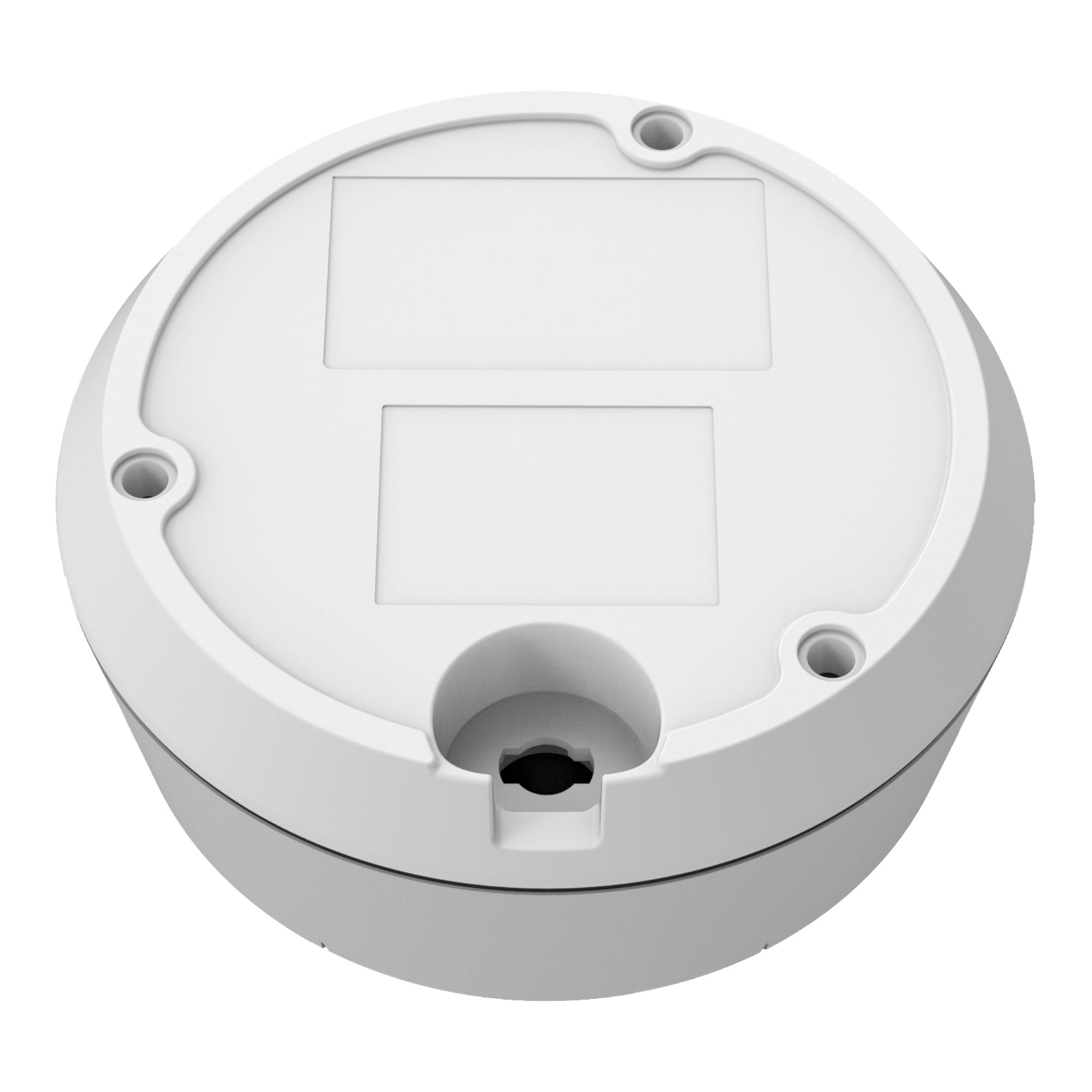

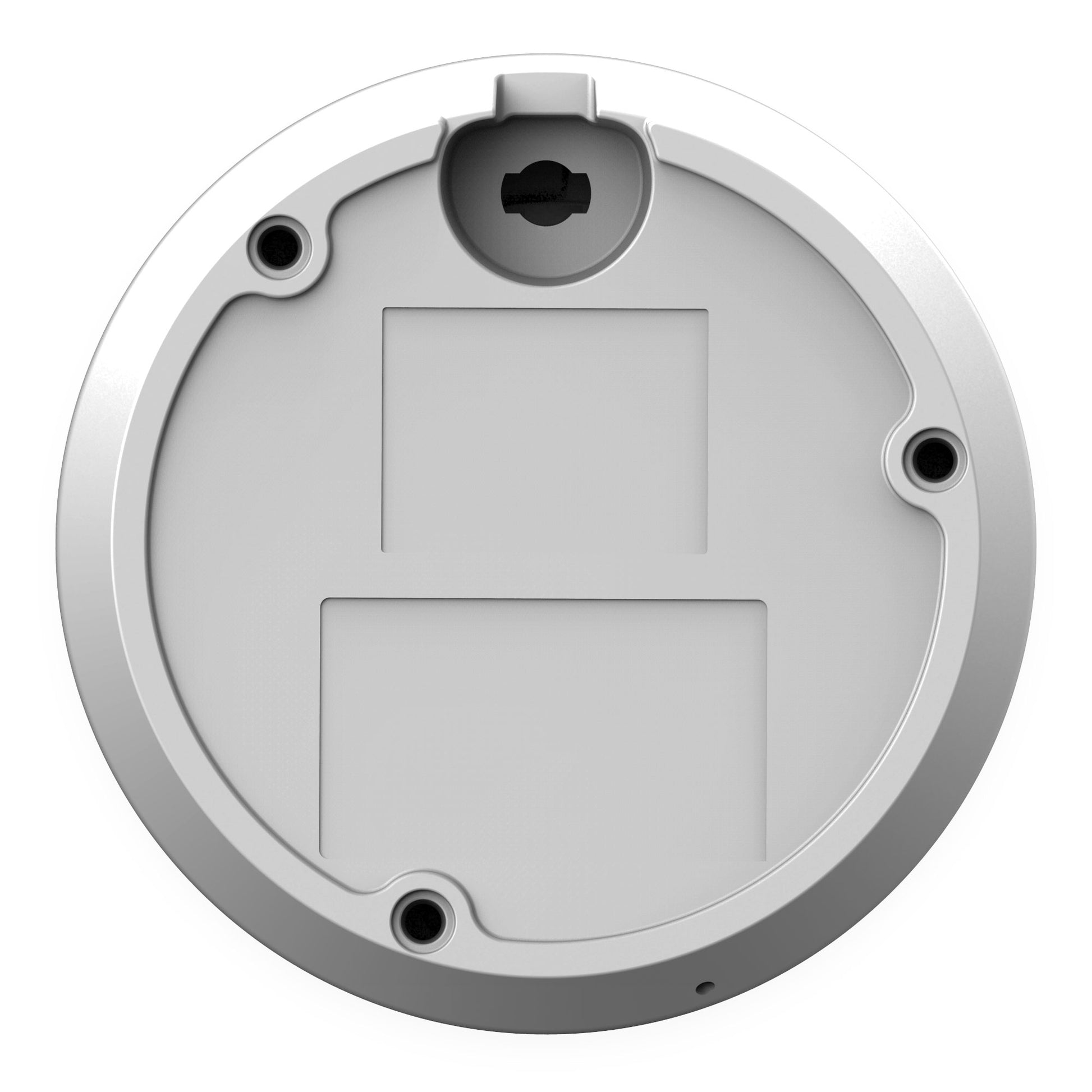

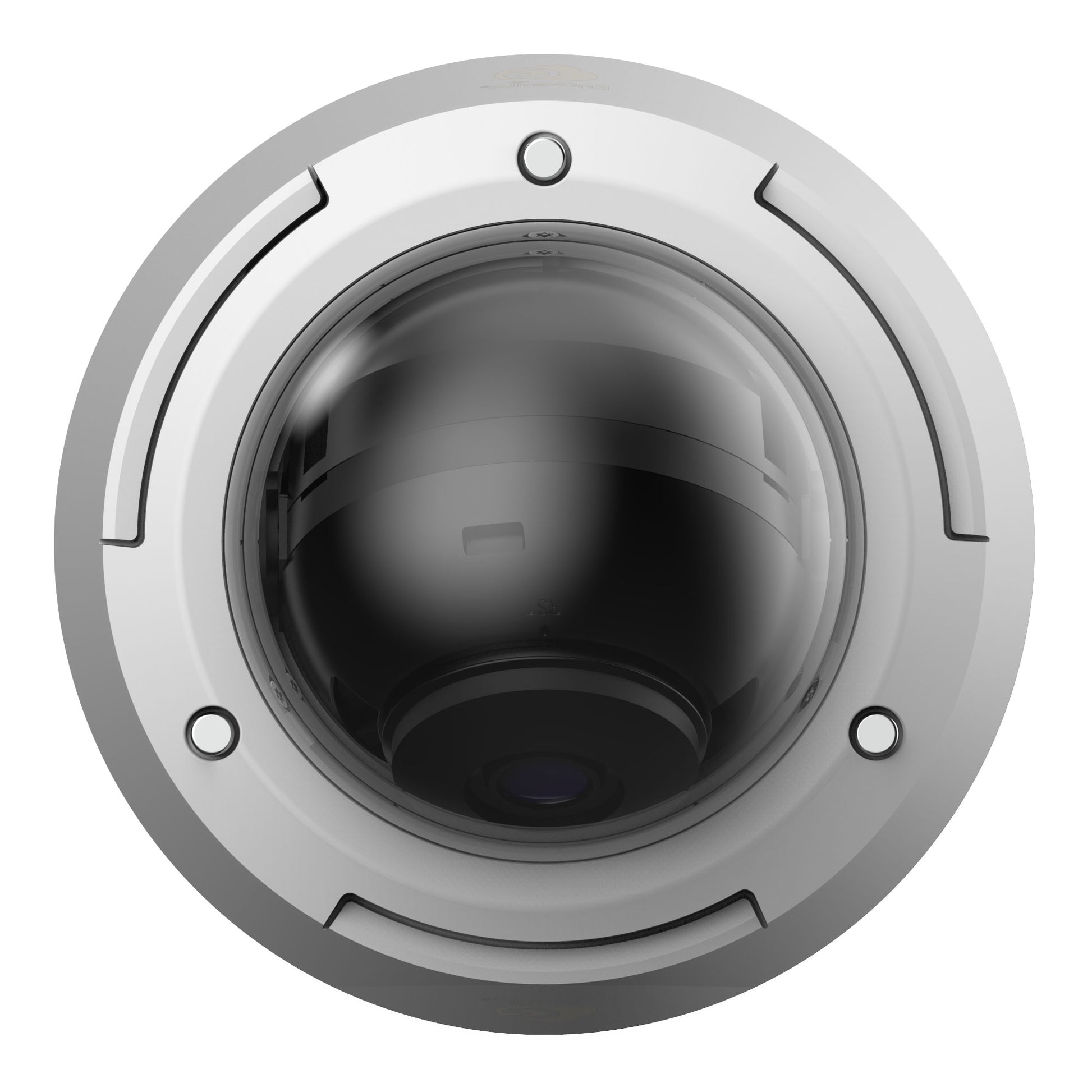

EnGenius Cloud Managed ECC100 Indoor/Outdoor 5MP Dome AI Camera with 132° ultra-wide view, 20-meter IR, IP67 outdoor rating, IK10 durability, and built-in 256GB storage. The AI Cloud and Edge analytics detect complex scenarios and provide instant alerts, enabling advanced surveillance in MDU, hospitality, and assisted living environments.
- ECC100 Datasheet
- ECC100 Quick Start Guide
- Cloud Managed AI Camera Datasheet
Shipping & Returns
Not satisfied? We allow returns within 30 days of product purchase
Management
This product is compatible with the EnGenius Cloud line of products
AI-Driven
Transform Surveillance with
AI-Driven Recognition
Features
AI Surveillance Camera Tokens & Licenses
Specifications
- Cloud Managed Dome AI Camera is accessible anytime from anywhere
- Clear day-and-night visuals with 5MP HDR Clarity, powered by a Sony Starvis sensor
- 132° ultra-wide view and 20m IR long-distance coverage for versatile environments
- 24/7 Continuous event recording, with convenient 256GB built-in storage
- Indoor/outdoor durable IP67 weatherproof and IK10 vandal-resistant build
- AI Cloud analytics uses multimodal analysis to detect complex scenarios in real-time
- Natural language search via advanced AI multimodal large language models (LLMs)
- Cloud-AI alerts notify you of events like bullying, accidents, and weapon detection
- Cloud Edge AI Camera with NPU for real-time detection, lightweight metadata
- Eliminate NVRs: Integrated storage for better video retention and instant access
- Optional AI-Powered NVS: RAID-backed redundancy enhances camera systems with AI
- Surveillance AI cameras for student housing, senior living, multi-family units, hospitality, and assisted living
CPU
InnoFusion C5-30Q
Flash
128MB NAND
Memory
2568MB DDR3
Image Sensor
1 / 2.8” Sony Starvis CMOS
Sensor Resolution
5MP 2592 x 1944 (4:3)
Lens Type
Fixed
Focal Length
3.16mm
Aperture
F2.0
Iris
Fixed
Field of View (after LDC2)
Horizontal: 102°
Vertical: 71.6°
Diagonal: 132°
Sensor Movement
Tilt: 90°
Pan: 350°
Rotation: 350°
Shutter Speed
1 / 7.5 sec. to 1 / 10,000 sec.
Day/Night
IR-Cut filter for day and night function
IR Cut Filter
Yes
IR Range
20m / 66ft
Minimum Illumination
0.05 lux @ F2.0 (Color)
0.01 lux @ F2.0 (B&W)
Onboard Storage
Capacity: Built-in EMMC 256GB
Recording source: Both video and audio (optional for audio)
Retention Method: 24/7 seamless and auto recycling
Retention Days: 20 days based on video bit rate
Compression
H.265, H.264
Frame Rate
20FPS, max 30 FPS
Video Quality
Optional 768Kbps, 1Mbps(default), 2.5Mbps
Video Processing
AE, AWB, AGC, BLC, HLC, WDR, HDR, 3DNR, Privacy Mask, OSD, Video Orientation
Resistance
IK10
Connectivity
RJ-45 cable connector for network/PoE connection
10/100 Mbps
RTSP
RTSP 1.0
RFC 2326
Max concurrent streams: 2
Reset Button
Supported
Support deletes all recordings
Remote Reboot
Supported
LED Indicator
System and network status
LED blinking
People Analytics
People detection
People tracking
History search
People counting
Vehicle Analytics
Vehicle detection
Vehicle tracking
History search
Vehicle counting
Alert
Tampering detection
Restricted area detection
Line-crossing detection
Advanced Image Processing
Image Orientation
Image Brightness and Contrast
HDR
3DNR
Privacy mask
Device Dimensions & Weights
Weight: 1.15 lbs. (.52 kg)
Ø: 122mm / 4.79in, H: 94.8mm / 3.73in
Packaging
Weight: 2.25lbs (1.02kg)
Width: 7.36“ (187mm)
Length: 8.62” (219mm)
Height: 5.71” (145mm)
Warranty
5 years
Certifications
CE
FCC
Compliance
TAA
NDAA
