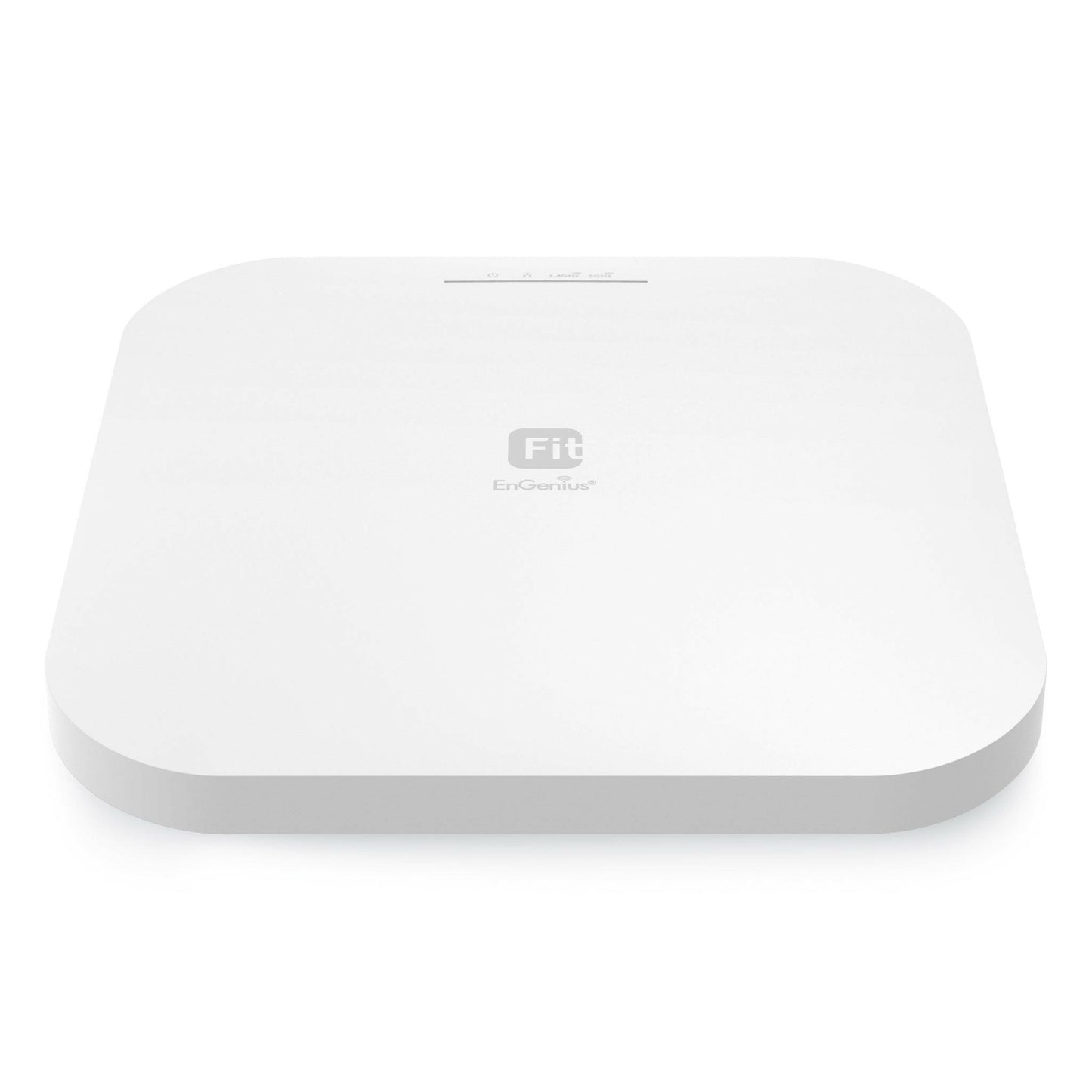

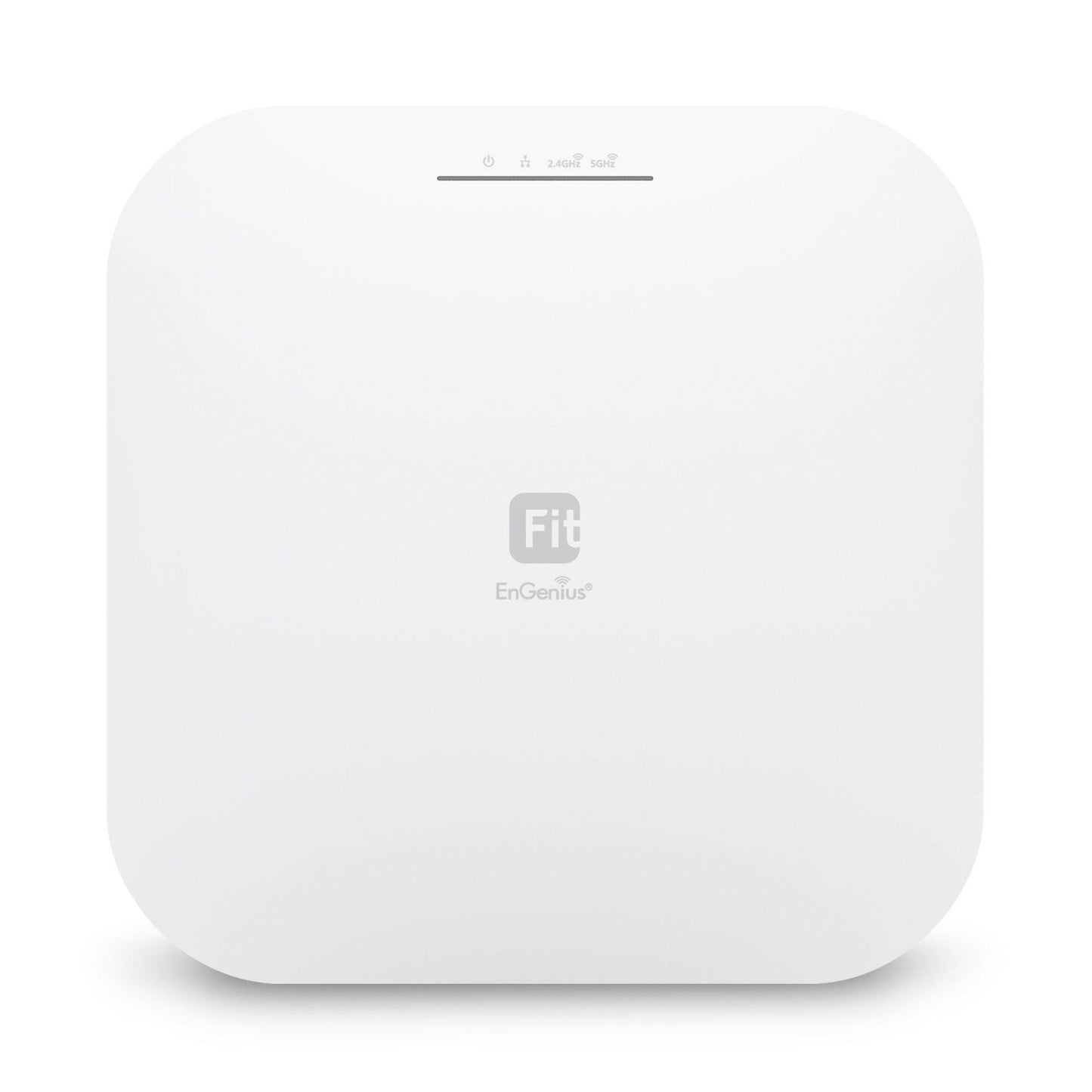

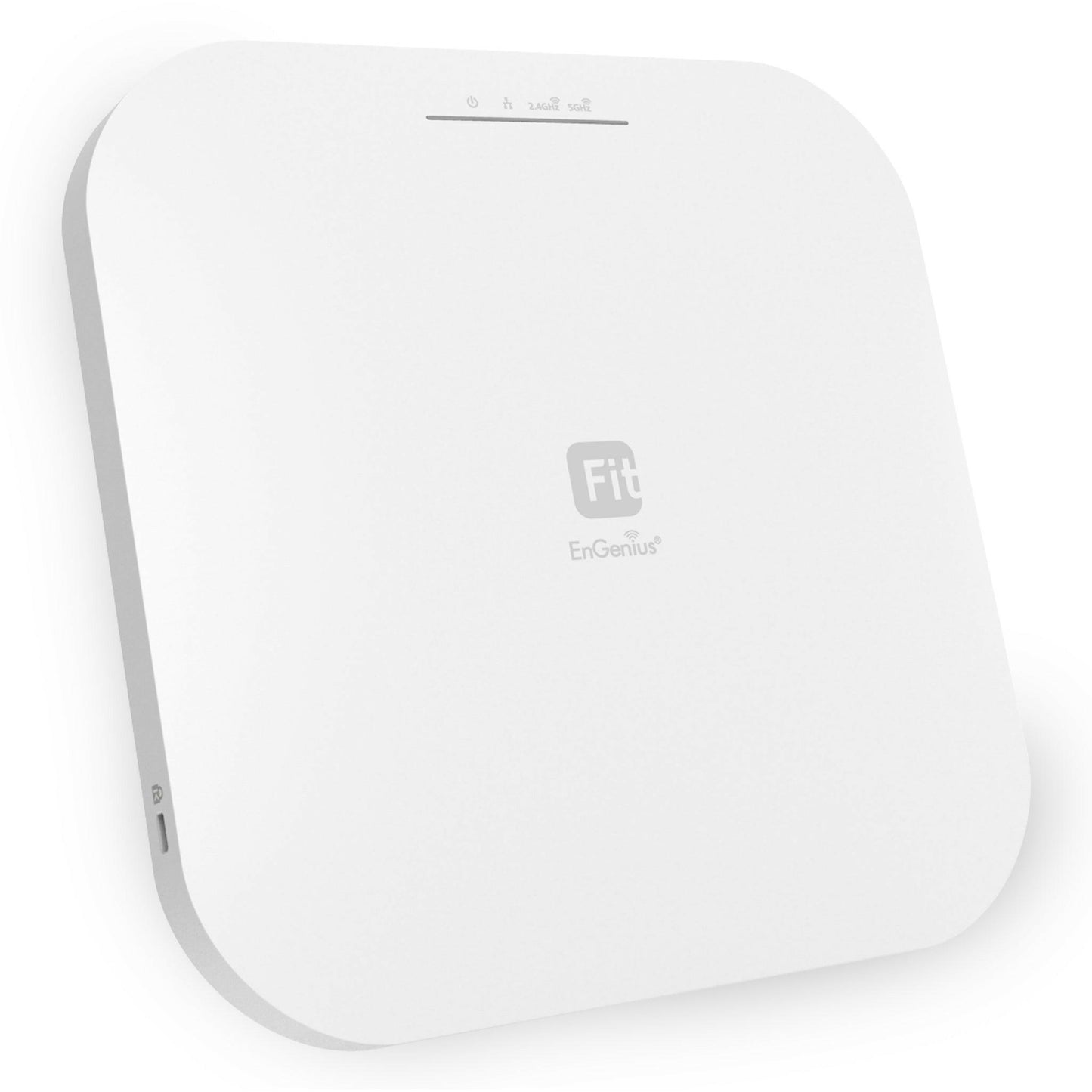

EWS276-FIT: EnGenius Fit 4×4 Indoor Wireless Wi-Fi 6 Access Point

$149.00
$99.00
 per
In stock!
Spend $75.00 to FREE SHIPPING


Earn 1 Point on this purchase. Learn more
View full details

EWS276-FIT: EnGenius Fit 4×4 Indoor Wireless Wi-Fi 6 Access Point

$149.00
$99.00
 per

Indoor WiFi 6 AP speeds up to 1148Mbps on 2.4GHz and 2400Mbps on 5GHz

The EnGenius Fit Managed EWS276-FIT 4x4 WiFi 6 AP is managed by the Fit mobile app, Fit on-prem controller, or Fit cloud and supports an aggregate Wi-Fi speed of 3.5 Gbps, one 2.5 GbE PoE+ port & eight 5 dBi antennas providing faster speeds, improved coverage, and 250 concurrent connections.


Subject to product availability.

Must be Powered over Ethernet, does not include AC Adapters.

- EWS276-FIT Datasheet
- EWS276-FIT Quick Start Guide
- EnGenius Fit FAQs
- EnGenius Fit Access Point Series
- EnGenius Fit Network Management Datasheet

Shipping & Returns

Not satisfied? We allow returns within 30 days of product purchase

Management

This product is compatible with the EnGenius Fit line of products

WiFi 6

Supports up to 2,400 Mbps in 5GHz band & 574 Mbps in 2.4GHz band

Features

Overview

In-the-Box

Mounting

Deployment

EWS276-FIT

Specifications

Product Highlights

  • Wi-Fi 6 (802.11ax) 4x4 antenna solution compatible with 11ac/a/b/g/n client devices

  • Dual-Band radios support up to 2,400 Mbps in 5 GHz & 1,148 Mbps in 2.4 GHz frequency bands

  • Take advantage of greater throughput with a 2.5 gigabit Ethernet port

  • PoE+ (802.3at) & 48V input support for flexible installation over 100 meters (328 feet)

  • Uplink and downlink of OFDMA improves transmission to APs and client devices

  • Target Wait Time (TWT) automatically provides power-saving for Wi-Fi clients & IoT devices

  • Uplink & downlink of MU-MIMO for optimal signal & reception reliability for up to 2 devices

  • Reduce transmission wait time and contention with support from spatial reuse and BSS coloring

  • Fit solution provides essential network control and visibility from anywhere

  • Choose FitXpress, FitController, or Fit Cloud-lite based on network scale and technical ability

  • Configure in minutes with Fit management’s quick-scan device register and setup

  • Simplified app-based step by step instructions for ease of use

  • Real-time system metrics, analytics, and remote troubleshooting

  • No access point licensing or subscription fees

Technical

Standards
IEEE 802.11ax on 2.4 GHz
IEEE 802.11ax on 5 GHz

Backward compatible with 802.11a/b/g/n/ac

Processor
Mediatek MT7986A Quad-core A53 2GHz

Antenna
4 x 2.4 GHz: 5 dBi
4 x 5 GHz: 5 dBi
Integrated Omni-Directional Antenna

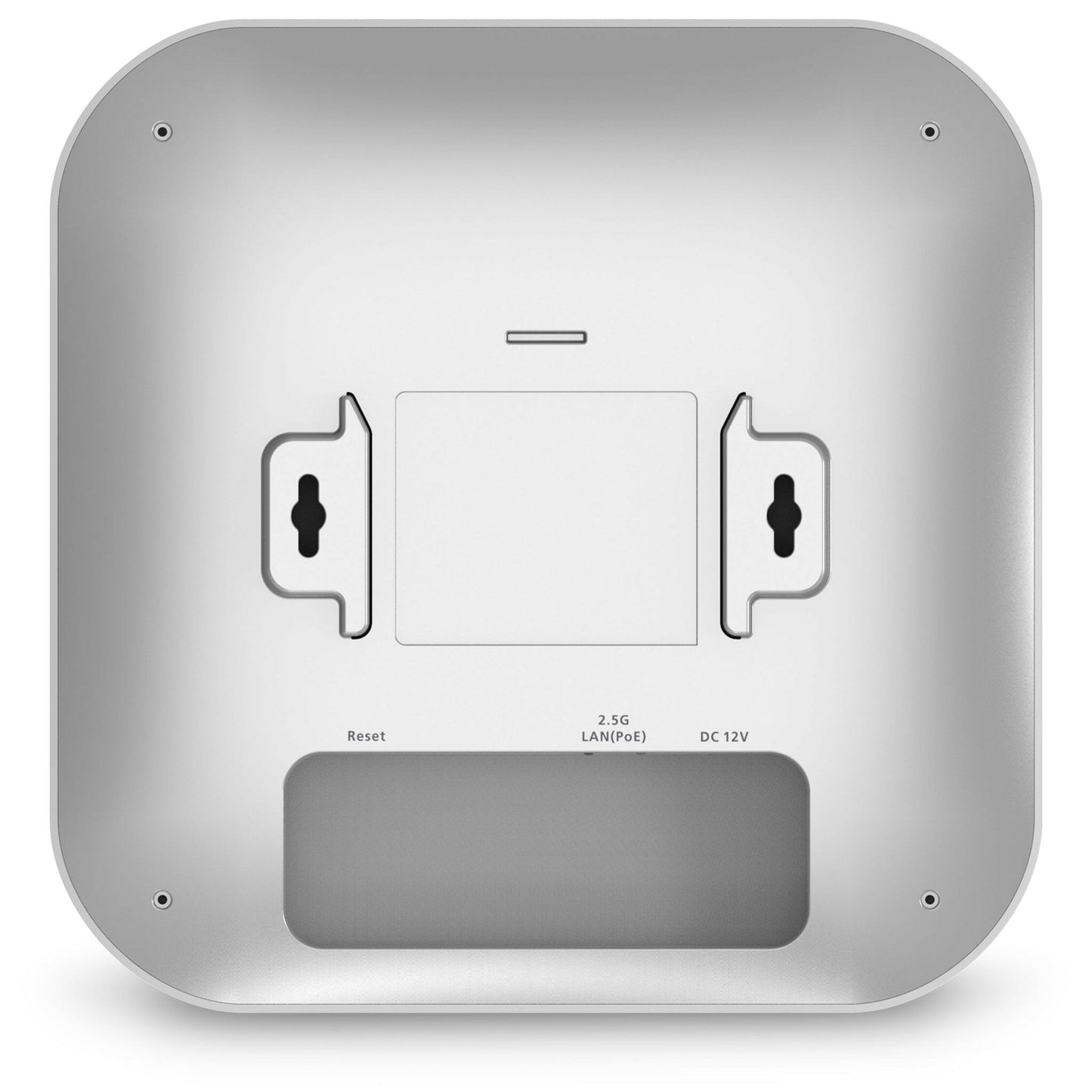

Physical Interface
1 x 10/100/1000/2500 N-BASE-T, RJ-45 Ethernet Port
1x DC Jack
1 x Reset Button

LED Indicators
1 x Power
1 x LAN
1 x 2.4 GHz
1 x 5 GHz

Power Source
Power-over-Ethernet: 802.3at Input
12VDC /2A

Maximum Power Consumption
17W

Wireless & Radio Specifications

Operating Frequency
Dual-Radio Concurrent 2.4 GHz & 5 GHz

Operation Modes
AP

Frequency Radio
2.4 GHz: 2400 MHz ~ 2482 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz

Transmit Power

Up to 23 dBm on 2.4 GHz
Up to 23 dBm on 5 GHz
(Maximum power is limited by regulatory domain)

Tx Beamforming (TxBF)
Yes

Radio Chains/Spatial Stream
4x4:4

SU-MIMO
Four (4) spatial stream SU-MIMO for 2.4GHz and four spatial stream SU-MIMO for 5GHz up to 3,548 Mbps wireless data rate to a single wireless client device under both the 2.4 GHz and 5GHz radios.

MU-MIMO
Four (4) spatial streams Multiple (MU)-MIMO for up to 2400 Mbps wireless data rate to transmit to two (2) two streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously.

Four (4) multiple (MU)-MIMO for up to 1,148 Mbps wireless data rate to transmit to two streams MUMIMO 11ax capable wireless client devices under 2.4GHz simultaneously.

Supported Data Rates (Mbps)
802.11ax: 2.4 GHz: 9 to 1148 (MCS0 to MCS11, NSS = 1 to 4)
5 GHz: 18 to 2400 (MCS0 to MSC11, NSS = 1 to 4)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 600 Mbps (MCS0 to MCS31)
802.11ac: 6.5 to 1733 Mbps (MCS0 to MCS9, NSS = 1 to 4)

Supported Radio Technologies
802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)
802.11b: Direct-sequence spread-spectrum (DSSS)
802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)

Channelization
802.11ax supports high efficiency (HE) —HE 20/40/80 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU

Supported Modulation
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK

Max Concurrent
128 per radio

Management

Multiple BSSID
8 SSIDs for both 2.4GHz and 5GHz radios.

VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN

Spanning Tree
Supports 802.1d Spanning Tree Protocol

QoS (Quality of Service)
Compliant with IEEE 802.11e Standard
WMM

SNMP
v1, v2c, v3

MIB
I/II, Private MIB

Wireless Security
WPA3
WPA2 Enterprise (AES)
WPA2 AES-PSK
Hide SSID in Beacons
MAC Address Filtering, up to 32 MACs per SSID for standalone mode, and Up to 256 MACs per SSID for managed mode.
Wireless STA (Client) Connected List
SSH Tunnel
Client Isolation

Environmental & Physical

Multiple BSSID
8 SSIDs for both 2.4GHz and 5GHz radios.

VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN

Spanning Tree
Supports 802.1d Spanning Tree Protocol

QoS (Quality of Service)
Compliant with IEEE 802.11e Standard
WMM

SNMP
v1, v2c, v3

MIB
I/II, Private MIB

Wireless Security
WPA3
WPA2 Enterprise (AES)
WPA2 AES-PSK
Hide SSID in Beacons
MAC Address Filtering, up to 32 MACs per SSID for standalone mode, and Up to 256 MACs per SSID for managed mode.
Wireless STA (Client) Connected List
SSH Tunnel
Client Isolation

Dimensions & Weights

Temperature Range
Operating: 32ºF~104ºF (0ºC~40ºC)
Storage: -40ºF~176 ºF (-40ºC~80ºC)

Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less



Device Dimensions & Weights



EWS276-FIT Device
Weight: 1.26 lbs. (0.57 kg)
Length: 8.10" (205.7 mm)
Width: 8.10" (205.7 mm)
Height: 1.31" (33.2 mm)

Packaging
Weight: 1.92 lbs. (0.87 kg)
Length: 9.72" (247 mm)
Width: 9.72" (247 mm)
Height: 3.43" (87 mm)

Package Contents
1 – EWS276-FIT Cloud Managed Indoor Access Point
1 – Ceiling Mount Base (9/16” Trail)
1 – Ceiling Mount Base (15/16” Trail)
1 - Ceiling and Wall Mount Screw Kits
Quick Start Guide QR Code
Mobile App QR Code

RoHS
Yes

Regulatory Compliance
FCC
CE
IC
UKCA

Warranty
1 Year
