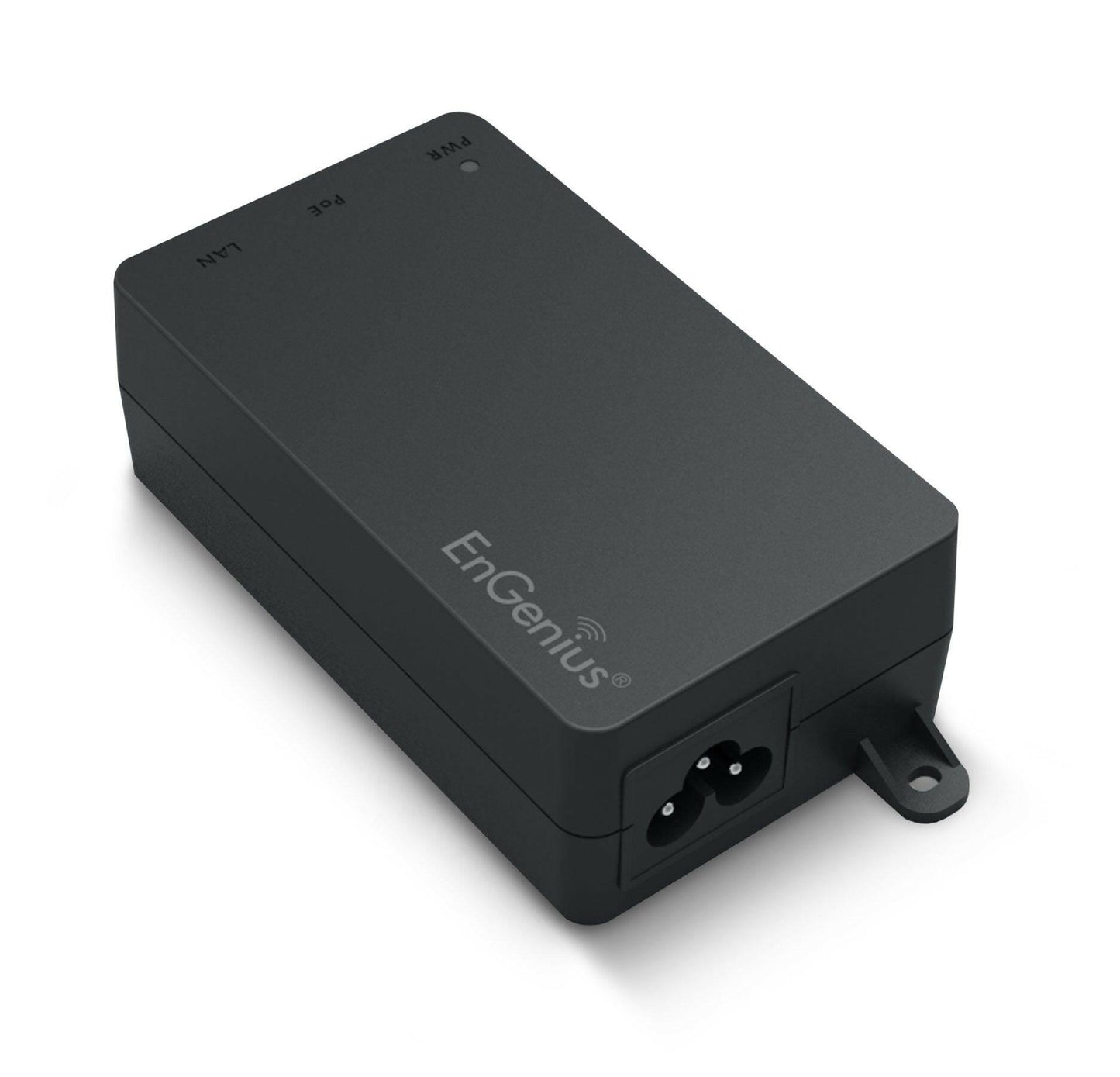

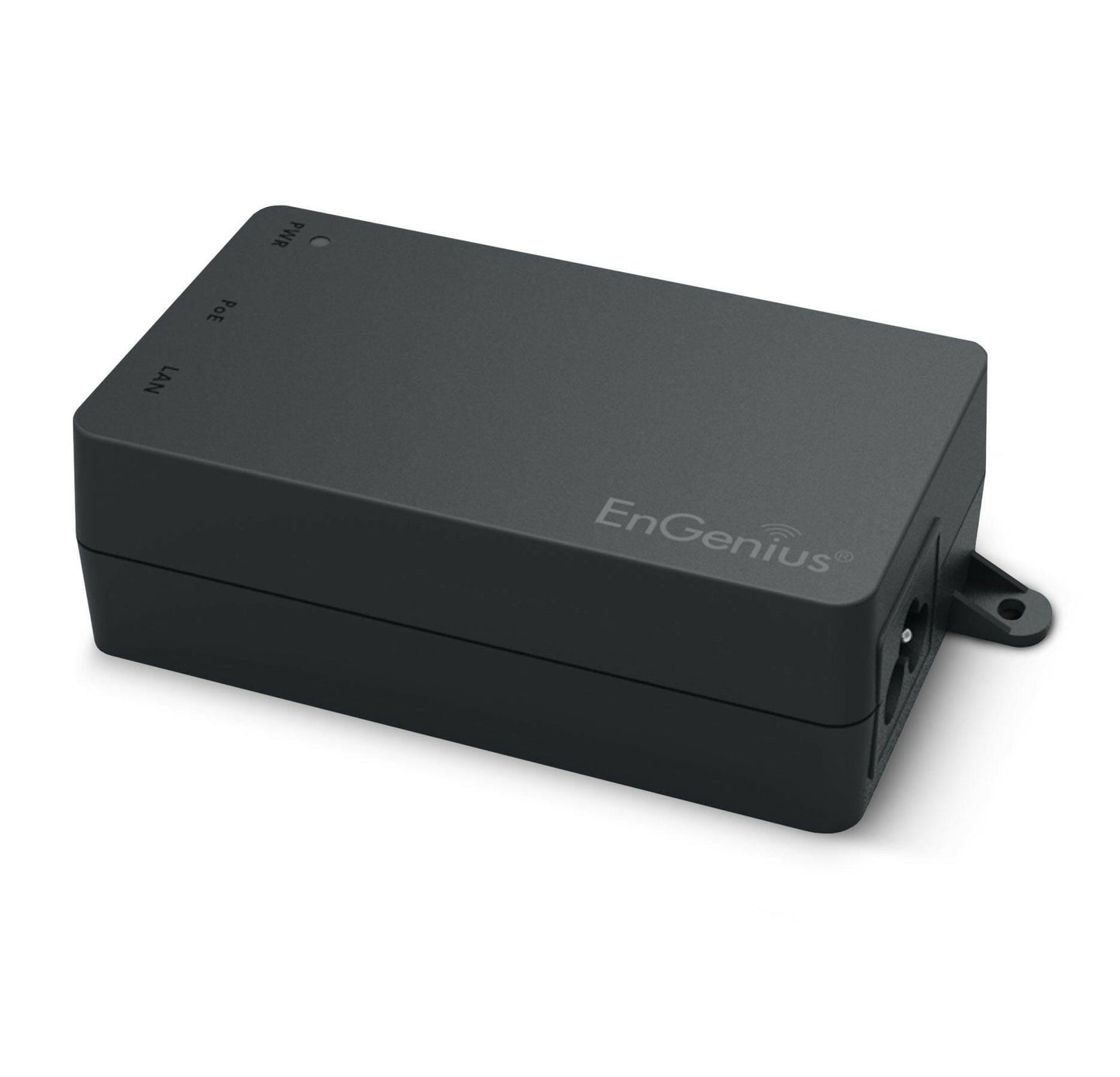

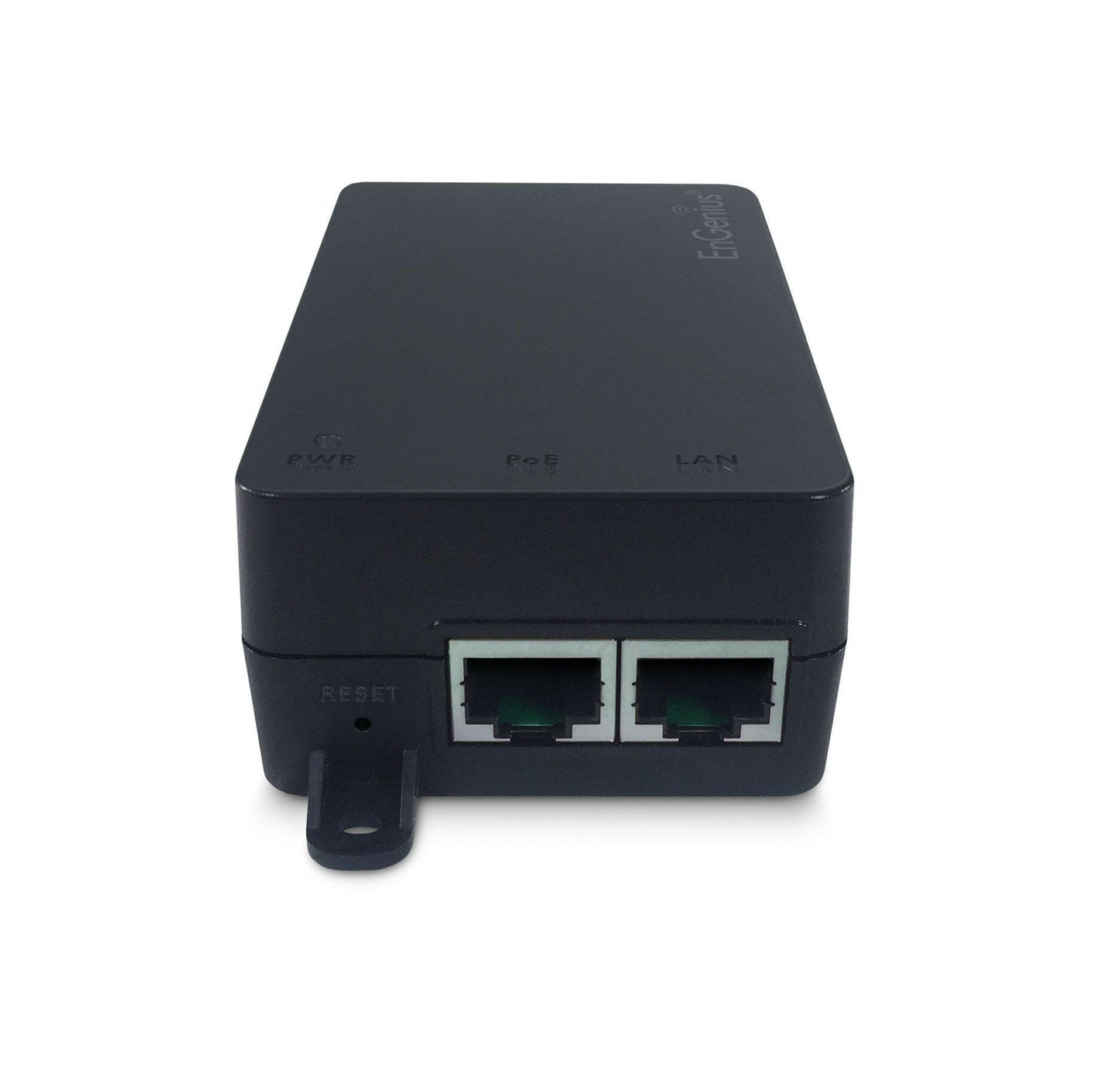

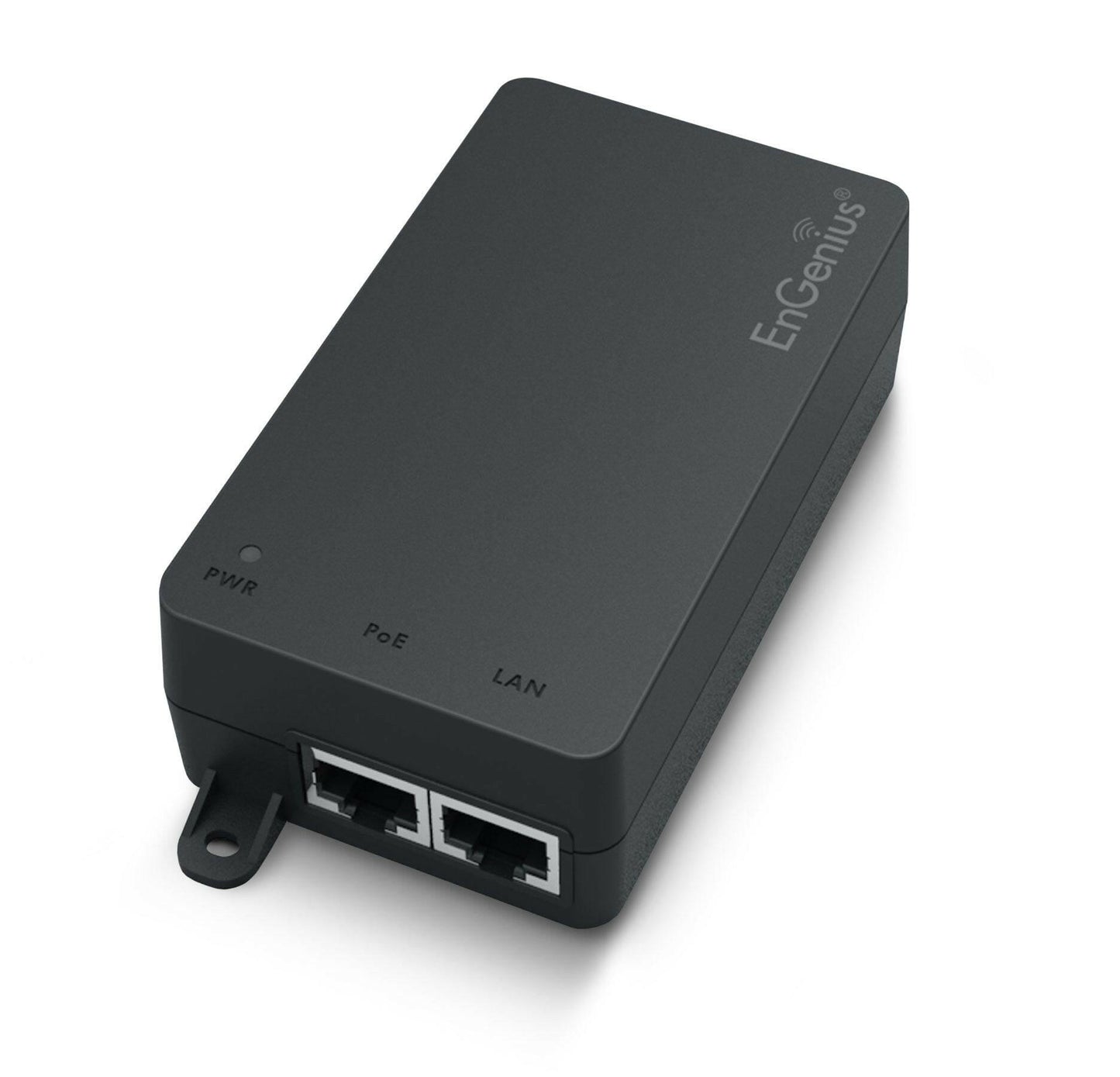

EPA2406GR: Gigabit Proprietary PoE Adapter with Reset Button
Supports high-speed data and up to 14.4 watts of power to compatible network devices up to 328 feet away
The EnGenius EPA2406GR Gigabit Proprietary Power-over-Ethernet adapter supports high-speed data and up to 14.4 watts of power. Compact port design provides easy installation, and built-in power surge
protection preserves valuable equipment. A PoE injector, placed closer to ground level, has a reset button that allows administrators to reset devices conveniently without having to take them down.
Features
Specifications
- Delivers both data and power to PoE-compatible devices
- PoE injector reset button positioned conveniently near ground level
- Optimal port design for easy mounting/positioning
- Compact design
- Extends power to unwired areas up to 328-ft./100m
- Gigabit Ethernet in & out ports allow connection of high-speed devices
- Disconnect, short-circuit & surge protection assures secure, reliable connections
- Sends up to 32.8W of output power for connecting APs, IP cameras, VoIP phones & more
- Mounts to walls or ceilings with included hardware
Standards
802.3 10BaseT
802.3u 100BaseT
802.3ab Gigabit Ethernet
Proprietary PoE
Compliance
IEC 60950-1:2005+A1
UL60950-1
ENS55022:2010
EN55024:2010
FCC Part 15 Class B
FCC, CE
Physical Interface
(1) Gigabit Data Port
(1) Gigabit Data & Power Output Port
(1) IEC-320 C6 AC Connector
(1) Reset button.
LED Indicator
1 x Power on Green
Mounting
Wall (anchors & screws included)
Input Voltage
100 to 240VAC
Input Current
0.8A Max for 100VAC
AC Input Frequency
47-63Hz
Maximum Output Power
32.8W
Power Lines
Pin4, 5:54V, Pin7, 8:Return
Added Protection Features
Short-Circuit
Surge (over current/over voltage)
Temperature Range
Operating: 32°F to 104°F (0°C to 40°C)
Storage: -22°F to 176°F (-30°C to 80°C)
Humidity (non-condensing)
Operating: 5 to 90% or less
Storage: 5 to 90% or less
EPA5006GR Device (Without Mounting Kit)
Weight: .33 lbs. (154 g)
Length: 3.9” (99 mm)
Width: 2.27” (68.5 mm)
Height: 1.3” (33 mm)
Packaging
Weight: .57 lbs. (262 g)
Length: 5.4” (139 mm)
Width: 4.8” (122.5 mm)
Height: 2” (52 mm)
Package Contents
EPA5006GR
Power Cord
Warranty
1 Year
